Alcatel-Lucent OpenTouch User manual

Alcatel-Lucent OpenTouch™ Connection
for 8082 My IC Phone
User Manual
R100
8AL90883ENAAed.01 R100-1340

2
Introduction
Thank you for choosing an Alcatel-Lucent phone.
This model offers enhanced ergonomical features for more effective communication.
Its innovative and high-quality design will improve your corporate communications and allow access to
a variety of services.

3
1. GETTING TO KNOW YOUR TELEPHONE 6
1.1. TOUCH SCREEN 7
1.2. THE OPENTOUCH™CONNECTION WELCOME SCREENS 8
1.3. KEYS TAB 9
1.4. PERMANENT FEATURES KEYS 10
1.5. VIRTUAL KEYBOARD. 10
1.6. CALL MANAGEMENT SCREEN 11
1.7. DEVICE SETTINGS SCREENS 12
1.8. MY IC PHONE BLUETOOTH®WIRELESS HANDSET 13
2. USING YOUR TELEPHONE 14
2.1. MAKING A CALL 14
2.2. RECEIVING A CALL 14
2.3. USING THE TELEPHONE IN "HANDS FREE"MODE 14
2.4. ACTIVATING THE LOUDSPEAKER DURING A CONVERSATION (RECEIVER LIFTED)-LOUDSPEAKER. 15
2.5. CALLING YOUR CORRESPONDENT BY NAME (COMPANY DIRECTORY) 15
2.6. MAKE CALLS VIA YOUR PROGRAMMED CALL KEYS 15
2.7. REDIALING 15
2.8. CALL BACK AN UNANSWERED CALL 16
2.9. REQUESTING AUTOMATIC CALLBACK IF INTERNAL NUMBER IS BUSY 16
2.10. RECEIVING INTERCOM CALLS 16
2.11. SENDING DTMF SIGNALS 17
2.12. MUTE,SO THAT YOUR CORRESPONDENT CANNOT HEAR YOU 17
3. DURING A CONVERSATION 18
3.1. MAKING A SECOND CALL DURING A CONVERSATION 18
3.2. ANSWERING A SECOND CALL DURING A CONVERSATION 18
3.3. SWITCHING BETWEEN CALLS (BROKER CALL) 19
3.4. TRANSFERRING A CALL 19
3.5. THREE-WAY CONFERENCE WITH INTERNAL AND/OR EXTERNAL CORRESPONDENTS (CONFERENCE) 19
3.6. TALK SIMULTANEOUSLY TO MORE THAN 2CORRESPONDENTS 19
3.7. PLACING A CALL ON HOLD (HOLD) 20
3.8. PLACING AN OUTSIDE CALL ON HOLD (PARKING) 20
3.9. INTRUSION INTO AN INTERNAL CONVERSATION 21
3.10. ADJUST AUDIO VOLUME 21
3.11. SIGNAL MALICIOUS CALLS 21

4
4. SHARING 22
4.1. ANSWERING THE GENERAL BELL 22
4.2. MANAGER/ASSISTANT FILTERING 22
4.3. CALL PICK-UP 22
4.4. HUNTING GROUPS 23
4.5. CALLING AN INTERNAL CORRESPONDENT ON HIS/HER PAGER 23
4.6. ANSWERING A CALL ON YOUR PAGER 23
4.7. CALLING A CORRESPONDENT ON HIS/HER LOUDSPEAKER 23
4.8. SENDING A WRITTEN MESSAGE TO AN INTERNAL CORRESPONDENT 24
4.9. SEND A VOICE MESSAGE COPY 24
4.10. SENDING A RECORDED MESSAGE TO A NUMBER /A DISTRIBUTION LIST 25
4.11. BROADCASTING A MESSAGE ON THE LOUDSPEAKERS OF A STATION GROUP 25
5. KEEP IN TOUCH 26
5.1. DIVERTING CALLS TO ANOTHER NUMBER (IMMEDIATE DIVERSION) 26
5.2. DIVERTING YOUR CALLS TO YOUR VOICE MESSAGE SERVICE 26
5.3. WHEN YOU RETURN,CONSULT RECORDED MESSAGES 26
5.4. DIVERTING CALLS TO YOUR PAGER 26
5.5. FORWARDING YOUR CALLS FROM THE RECEIVING TERMINAL ("FOLLOW ME") 27
5.6. APPLYING A SELECTIVE DIVERSION 27
5.7. CANCELING ALL DIVERSIONS 27
5.8. CANCELLING A SPECIFIC DIVERSION 27
5.9. DIVERTING CALLS 28
5.10. DO NOT DISTURB 28
5.11. LEAVING A RECORDED MESSAGE FOR INTERNAL CALLERS 28
5.12. CONSULTING WRITTEN MESSAGES 29
6. MANAGING YOUR CHARGES 30
6.1. CHARGING YOUR CALLS DIRECTLY TO BUSINESS ACCOUNTS 30
6.2. FINDING OUT THE COST OF AN OUTSIDE CALL MADE FOR AN INTERNAL USER FROM YOUR TERMINAL 30

5
7. PROGRAMMING YOUR TELEPHONE 31
7.1. INITIALIZING YOUR VOICE MAILBOX 31
7.2. CUSTOMIZING YOUR VOICE GREETING 31
7.3. MODIFY THE PASSWORD FOR YOUR PHONE SET 31
7.4. MODIFY THE PASSWORD FOR YOUR VOICE MAILBOX 32
7.5. ADJUSTING THE AUDIO FUNCTIONS 32
7.6. ADJUSTING THE CONTRAST OF THE DISPLAY 33
7.7. SELECT THE SCREENSAVER DELAY 33
7.8. SELECT THE RIGHT OR LEFT TYPE OF DISPLAY 33
7.9. SELECT THE KEYBOARD TYPE 34
7.10. SELECTING THE WELCOME PAGE 34
7.11. SELECTING LANGUAGE 34
7.12. PROGRAM THE KEYS FOR THE PERSO PAGE 34
7.13. PROGRAMMING DIRECT CALL KEYS (F1 AND F2 KEYS ) 35
7.14. DELETE A PROGRAMMED KEY 35
7.15. PROGRAMMING AN APPOINTMENT REMINDER 35
7.16. IDENTIFY THE TERMINAL YOU ARE ON 35
7.17. LOCK /UNLOCK YOUR TELEPHONE 35
7.18. CONFIGURING THE AUDIO JACK OF YOUR TELEPHONE 36
7.19. CALL THE ASSOCIATED SET 36
7.20. FORWARD YOUR CALLS TO THE ASSOCIATED NUMBER 36
7.21. MODIFY THE ASSOCIATED NUMBER 36
7.22. THE TANDEM CONFIGURATION 37
7.23. CREATE,MODIFY OR CONSULT YOUR INTERCOM LIST (MAX.10 NUMBERS) 37
7.24. INSTALLING A BLUETOOTH®WIRELESS TECHNOLOGY HANDSET (MATCHING) 38
7.25. USE OF THE BLUETOOTH®HANDSET 38
7.26. INSTALLING A BLUETOOTH®WIRELESS TECHNOLOGY HEADSET (MATCHING) 39
7.27. USING A BLUETOOTH®WIRELESS TECHNOLOGY HEADSET 39
7.28. DELETING AN ACCESSORY (HEADSET,HANDSET,ETC.): BLUETOOTH®WIRELESS TECHNOLOGY 39
8. GUARANTEE AND CLAUSES 40
8.1. SAFETY INSTRUCTIONS 40
8.2. THE OMNITOUCH™8082 MY IC PHONE ALSO OFFERS A BLUETOOTH®RADIO INTERFACE FOR THE BLUETOOTH®HANDSET
OR OTHER BLUETOOTH®DEVICESREGULATORY STATEMENTS 40

6
1. Getting to know your telephone
A sensitive LCD wide screen
Permanent feature keys: quick access to the phone’s
main features
A Bluetooth® handset for optimized communication. A
wired handset is also available and can replace the
Bluetooth® handset.
A wideband speaker for optimized sound
LED
Arrival of a new call (Flashing)
An adjustable and stable foot
One 3.5 mm headset jack
Various connections to allow phone extensions
Add-on module connector (SATA type). 2 USB
connectors
1 mini-USB connector for a keyboard (1)
Two 10/100/1000 Mbps Ethernet connectors to
enterprise network (LAN) and a PCOne DC power jack
for an external power adaptor
1 RJ9 connector for a corded handset
(1) Not yet released
8
7
6
5
4
3
2
1

7
1.1. Touch screen
To handle your calls and the features of your phone, the set provides a touch screen and permanent
features keys.
The touch screen is divided in 4 areas dedicated to :
Time, date and informative icons
This display is located at the top of the Touch screen. Date, time and informative icons (such as headset plug, lock
status, etc.) are displayed in this area.
Pads
They can be of two kindsThe dialpad allows you to dial numbers and fill text field with numeric
characters.
The dialpad allows you to dial numbers and populate text fields with numeric characters. The
alphapad is useful for quick access to the dial by name feature and complements the virtual keyboard.
Use this key associated to the pads, to switch from the dialpad to the
alphapad.
The pads
Time, date and
informative icons
The OpenTouch™ Connection
Welcome screens
Key tab

8
1.2. The OpenTouch™ Connection Welcome screens
You can access all of your phone features from these screens. The default display has three pages that
you can access by pressing the page tabs at the top of the screen. The selected page is highlighted.
omenu
operso
oinfo
Navigation : to navigate on these pages,
Menu page:
Contains all functions and applications accessible by pressing on the label of the desired
feature or application. From this page, it is possible to adjust the ringer volume, program the
time of an appointment, lock the terminal, define the default page displayed, configure voice
mail, and access telephone functions such as calling back one of the last numbers or
intercepting calls.
Use the Up and
Down arrows to go
up or down on a
page showing
details not
displayed on a
single page.
Use this key to go
back to the previous
step.
Use this key to
validate a choice,
data entered, …

9
Perso page:
Contains call line keys (allowing supervision of calls) and programmable call keys.
Info page:
Contains information on the telephone and the status of its functions: name, telephone
number, number of messages, activation of transfer function, appointment reminder, etc.
1.3. Keys tab
These keys are displayed at the bottom of the screen.
‘Redial’ key : to access the 'Redial'
feature.
END key: to end a call or return to idle
mode (the key is red when the line is
taken or you are browsing through the
menus).
Messaging key to access various mail
services:This key is blinking when you
received a new voice message, a new text
message or a callback request and is lit in
case of missed calls. When not lit, you can
access to various message services.
Programmable key (F1 and F2 keys) : Lit
when the function associated with the key
is activated
A service or a direct call can be associated
to these keys.

10

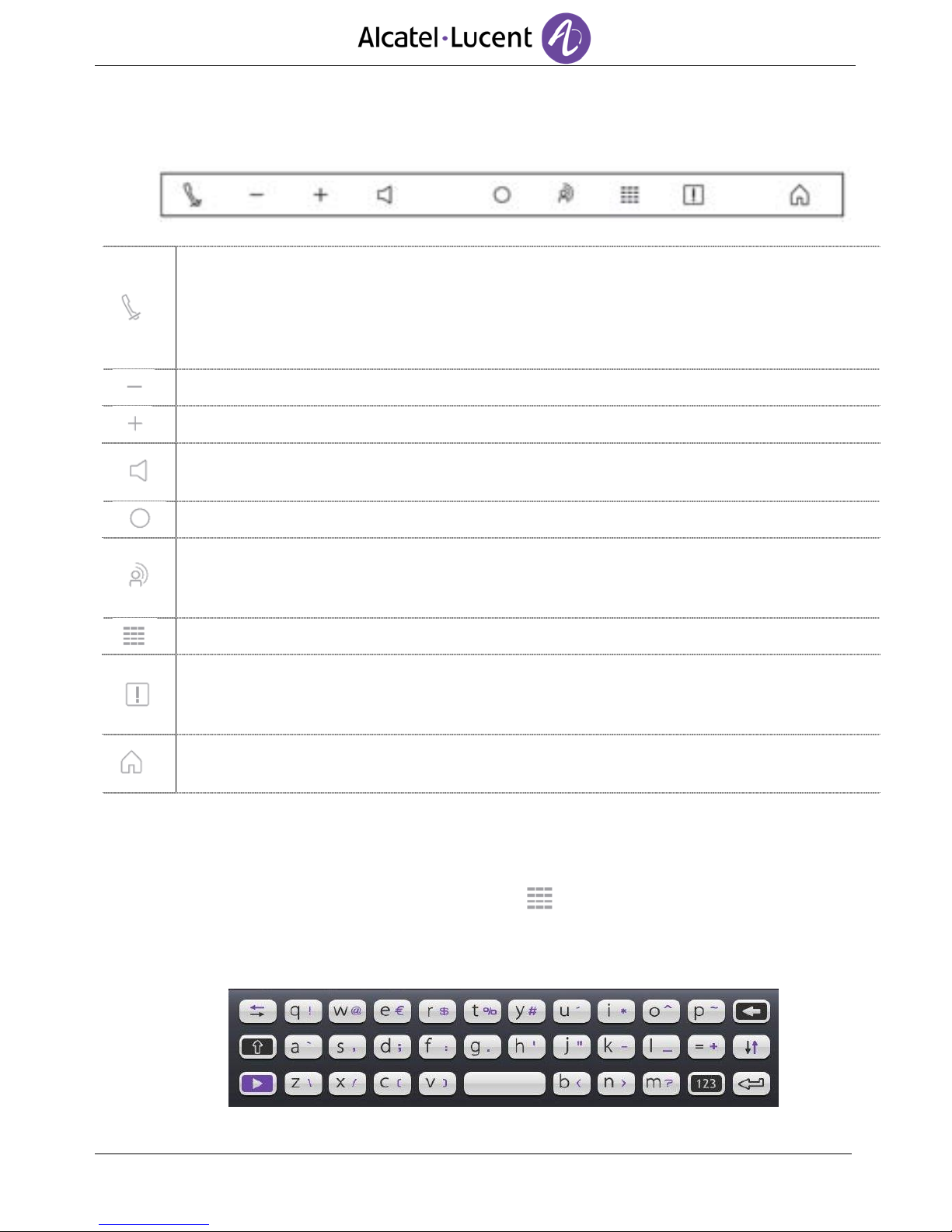

1.4. Permanent features keys
They are located just below the touch screen.
Mute and interphony key.
In conversation press this key so that your correpondent doesn’t hear you. In idle state press
this key to set up the phone in interphony mode. When you receive a call, the phone hooks off
automatically and you are directly in conversation in handsfree mode. When activated, the
key is lit blue.#
Turn down the volume.
Turn up the volume.
Pressing this key answers an incoming call in handsfree mode (the key is blue). When a call is
in progress, pressing this key switches from handsfree mode to headset or handset mode.
Pressing this key will access to the routing menus.
This key is lit when you received a new voice message, a new tex message or a callback
request. When not lit you can access to various message services. This key is blinking in case
of a missed call.
Activate or deactivate the virtual keyboard.
In idle mode, pressing this key takes you to the device settings menu. You can then choose the
type of display (left or right) and/or the type of keyboard you want to use (AZERTY, QWERTY,
QWERTZ, etc.). You can also adjust some screen settings.
Pressing this key brings the phone in idle mode when navigating in pages and configuring the
phone.
1.5. Virtual keyboard.
This keyboard is accessed by pressing the keyboard key ( ). It is designed for accessing the "Dial
by name" feature, and entering names, texts, data, etc.
When you first press the virtual keyboard key, the keyboard is shown such as below.

11
Here is a list of the functional keys that help you to access all symbols.
Cursor moving keys (left, right, up and down). Helps you to navigate in an edit
box. Press Alt key to access the left and up navigation
Caps lock. To write text in capital letters.
Alt key. To access to characters or functions in purple color.
Numbers key. To access numbers as well as specific characters.
Enter key. To validate a edited text.
Backspace key: to delete one character in an edit box.
1.6. Call management screen
Each tab corresponds to a call and its status is symbolized by its icon (in progress, held, arrival
of new call).
All features accessible while the call is displayed on the screen. Use the Up and Down arrows
to go down or up on a page These functions (transfer, conference, etc.) are directly related to
the status of the call consulted. For example, the transfer function will not be available
between a call in progress or a held call and an incoming call.
Used to switch from a telephone screen to an application screen and to browse a
device menu.
Calls can also be managed from the Perso page.
While the call is in progress, press the Back/Exit key and display the Perso page. Calls in
progress or waiting calls are displayed on the different line keys. It is then possible to converse
with the caller of your choice by pressing the key associated to the caller.
Incoming call and
conversation
presentation screen.
Soft keys: actions available
depending on the call status
Call holding icon
Incoming call icon
Call in progress icon

12

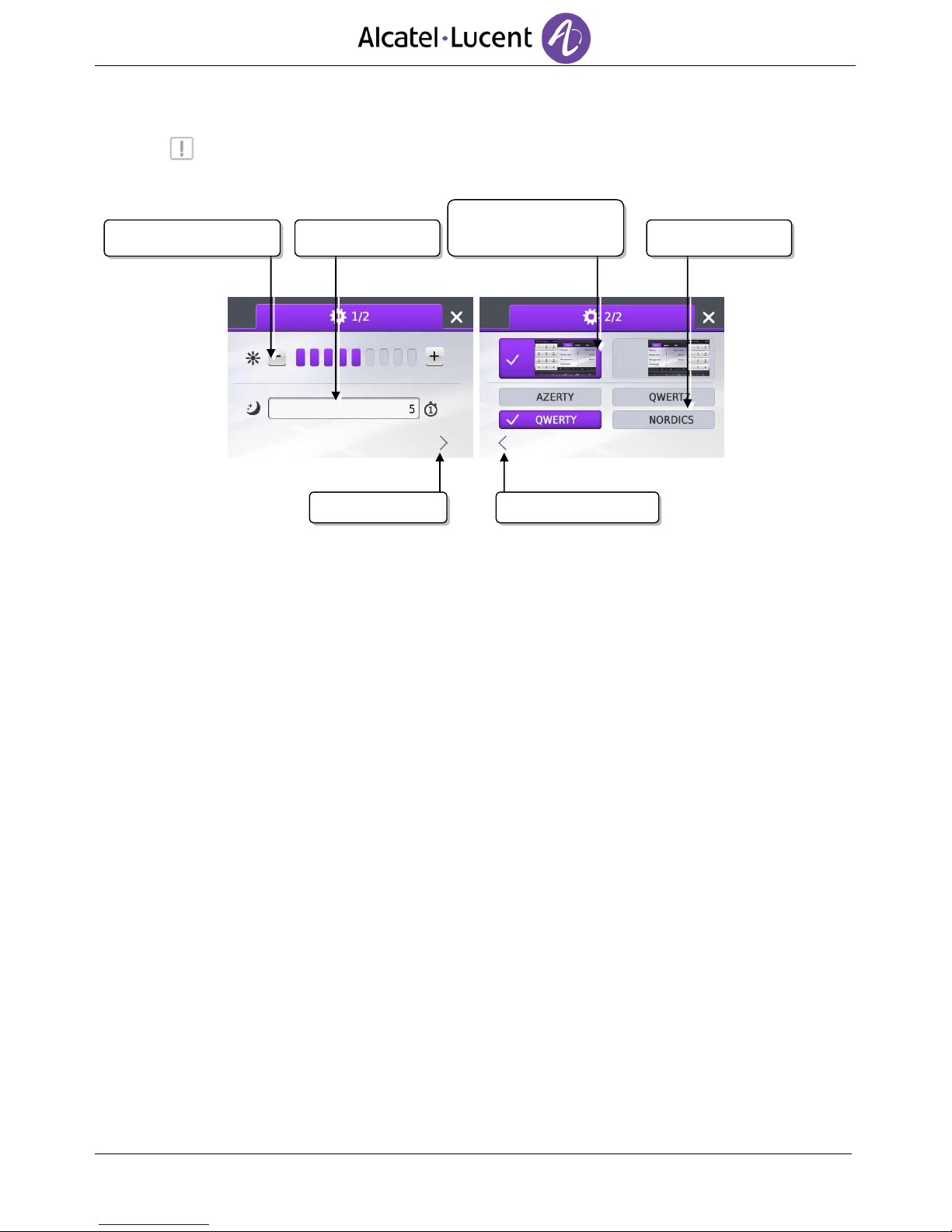

1.7. Device settings screens
: open the device settings menu
Note : to adjust the screansaver timeout, tap several times on the timeout value to access other
available values.
Go to next page
Go to previous page
Screen contrast
Screensaver delay
Type of display
(right/left)
Type of keyboard

13
1.8. My IC Phone Bluetooth® Wireless handset
If the Bluetooth® handset is on its base, you do not need to press the Off-hook/On-hook key to take or
terminate the call. Just off-hook/on-hook the Bluetooth® handset.
LED
Off: operating normally
Blinking green: in communication
Green steady: handset charging
Orange flashing: battery charge low or handset outside coverage zone
Orange steady: malfunction
Installing or replacing the Bluetooth® handset battery
The battery recharges when the Bluetooth® handset is on its base.
LED
Off-hook/On-hook: press this key to take or
terminate a call
Volume/Mute:
Short successive
presses to change the
handset volume level
(3 levels)
Long press to activate
or deactivate mute
mode
Location of the battery
Lift up the battery cover
Slide out the battery holding
part

14
2. Using your telephone
2.1. Making a call
Use one of the following different ways
Dial directly the number for your call
Lift the receiver Enter the destination number
Press the on/off hook key of the Bluetooth® device (IP Touch Bluetooth® Wireless handset)
Dial the destination number
Hands free Dial the destination number
Programmed line key
Search by name (you can also access the search by name feature via the alphapad)
To make an external call, dial the outside line access code before dialing your contact number
2.2. Receiving a call
Use one of the following different ways
Lift the receiver
Press the on/off hook key of the Bluetooth® device (IP Touch Bluetooth® Wireless handset)
Hands free
Take call
Select the « incoming call » icon
2.3. Using the telephone in "Hands free" mode
Terminal idle:
Press and release You are in hands free mode
Terminate your call
Call in progress:
During a conversation
Press and release You are in hands free mode
During a conversation, you can lift the receiver without terminating the call.

15
2.4. Activating the loudspeaker during a conversation (receiver lifted) -
Loudspeaker.
During a conversation
Activate loudspeaker , The key lights up
Adjust volume (9 levels) :
Deactivate loudspeaker The key is no longer lit
Press and release the loudspeaker key to switch to hands free mode (light steady).
2.5. Calling your correspondent by name (company directory)
Enter the name or initials or the surname and first name of your correspondent
Select the type of search you want (last name, last name and first name or initials) Display
of all the correspondents meeting the search criteria
Use one of the following different ways
oSelect the name of the person you wish to call
oModify the search
* Name must be entered in format namespacefirst name.
You can also search by initials. Type the initials of first name and surname, separated by a space. All
first names/names matching these initials will be displayed in the search
2.6. Make calls via your programmed call keys
Access the "Perso" page
Find the correspondent you want to call from the programmed call keys
Select the correspondent
2.7. Redialing
Redialing the last number dialed (redial)
(long press) Last number redial
Call back one of the last 8 numbers dialed
(short press)
Select the number to redial from the last dialed numbers
You can access to this feature too by menu :
Reach the "Menu" page
Redial list Last number redial
Select the number to redial from the last dialed numbers

16
2.8. Call back an unanswered call

No Reply calls (the number of new unanswered calls is displayed)
Select the type of call:
oNo non replied internal calls / xx non replied internal calls
oNo non replied external calls / xx non replied external calls
Select a name or a number
Recall
To delete the selected item
Delete
Erase the list of unanswered calls

No Reply calls (the number of new unanswered calls is displayed)
Select the type of call :
oNo non replied internal calls / xx non replied internal calls
oNo non replied external calls / xx non replied external calls
Delete all (or use icon: )
2.9. Requesting automatic callback if internal number is busy
Internal number busy
Call back Callback request acknowledged

2.10. Receiving intercom calls
You can answer a call without lifting the receiver. When you receive a call, you are automatically
connected in hands-free mode. The identity of the caller is displayed on the screen.
a. To activate - Terminal idle:
Corresponding LED lights up
When your caller hangs up, intercom mode remains active.
b. To deactivate - Terminal idle:
The corresponding LED goes out

17
2.11. Sending DTMF signals
During a conversation you sometimes have to send DTMF signals, such as with a voice server, an
automated attendant or a remotely consulted answering machine.
During a conversation
Send DTMF
Enter DTMF code
The function is automatically cancelled when you hang up.
2.12. Mute, so that your correspondent cannot hear you
You can hear your correspondent but he/she cannot hear you:
From the set
During a conversation
Disable microphone The key lights up
Resume the conversation The key is no longer lit
From the Bluetooth® receiver
Press the handset volume/mute key (long press)

18
3. During a conversation
3.1. Making a second call during a conversation
During a conversation
New call
Number of second correspondent The first call is on hold
Other methods for calling a second correspondent
Dial directly the number for your call.
Name of second correspondent.
Select the "Redial" function
Programmed line key.
To cancel your second call and recover the first:
You are in conversation with the second correspondent and the first one is on hold.
Use one of the following different ways :
oEnquiry off
oHang up
You are in conversation with your first correspondent
If you make an error, hang up: your telephone will ring and you will recover your first call.
3.2. Answering a second call during a conversation
During a conversation, another person is trying to call you Name or no. of the caller
displayed for 3 seconds
Use one of the following different ways to answer displayed call
oLine key for which icon is flashing
oTake call
The first call is on hold
To return to your first caller and end the conversation in progress
The second call is ended
To recover the first correspondent, use one of the following different ways
oSelect the « incoming call » icon
o
oLift the receiver

19
3.3. Switching between calls (Broker call)
During a conversation, a second call is on hold.
To accept the second call:
Select the correspondent on hold Your first call is placed on hold
3.4. Transferring a call
To transfer your call to another number:
During a conversation
Calling a second person during a conversation The first call is on hold
You can transfer immediately the call or wait for your contact to answer before transfer the
call
Transfer
Transfer between two outside calls is not generally possible (depends on country concerned and
system configuration).
3.5. Three-way conference with internal and/or external correspondents
(conference)
During a conversation, a second call is on hold
Conference You are in conference mode
Cancel conference and return to first correspondent (If conference is active)
End conference
Hang up on all correspondents (If conference is active)
Hang up
After the conference, to leave your two correspondents talking together:
Transfer
Hang up
3.6. Talk simultaneously to more than 2 correspondents
You are in a conference call with 2 correspondents. To add another correspondent to the conference:
Add
Dial the number of your correspondent (dial, directories, last numbers dialed...)
Your correspondent answers
Insert You are in conversation with additional correspondent
During a 3-way conference, you can add up to three additional participants.

20
3.7. Placing a call on hold (hold)
Exclusive hold:
During a conversation, you wish to place the call on hold and recover it later, on the same telephone.
During a conversation
Put on hold Your call is placed on hold
Recover the call on hold:
Select the call on hold
Common hold:
To recover your call on any telephone in your system.
During a conversation
Hold Your call is placed on hold
Recover the call on hold from any telephone:
Select the call on hold
3.8. Placing an outside call on hold (parking)
You can place an outside call on hold and recover the call on another telephone:
During a conversation
Park the call
A parking announcement message is displayed on the screen of the parking destination set.
To recover the parked call:
To automatically take the parked call, pick up the handset of the parking destination set.
Reach the "Menu" page
Settings My services Consultation Call pick up services Park/Retrieve call
If the parked call is not recovered within a preset time (default value 1 min 30), it is transferred to
the operator.
