Product SPecificationS
digiSmart™ Ptac
Packaged terminal air
conditioner and Heat PumP
Full Warranty
• 1stYear
• 2ndthrough5thYear—sealedsYstem
limitedWarrantY
• 2ndthrough5thYear—Parts
With
digiSmart™ControlBoard
We have designed the Amana® brand Packaged
Terminal Air Conditioner for customer comfort and
owner piece of mind. No other unit in the industry
offers so many energy management features as
standard. With the ability of the DigiSmart™ PTAC to
reduce operating costs by 35%, there is no need to settle
for anything less than an Amana® brand PTAC.
Features
• EnergyEfciency—Amana® brand PTACs have an EER
of up to 12.8 (on heat pumps, a COP of up to 3.6) to
keep energy consumption to a minimum
• On-boardEnergyManagementSystem—
Amana® brand units are equipped with EMS
technology to better control room temperature and
save energy dollars
• DigiSmart™ControlBoard—ready for wireless or
wired operation
• ProgrammableSet-backProgram—owner-controlled
settings allows automatic temperature setback when
unit is idle
• NetworkReady—Amana® brand DigiSmart™ units
connected to a Tridium JACE controller automatically
build their own wireless network
• DigiSmart™Suiteof Peripherals—remote occupancy
sensor, remote thermostat, RF antennas, and RF
platform controller provide everything you need to
reduce energy costs by 35%
UL (Underwriters Laboratories)
USA and Canada
ARI (Air Conditioning &
Refrigeration Institute)
Standards 310/380

SS-DPTAC www.amana-ptac.com 3
2 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
digiSmart™ SyStem
The Amana® DigiSmart™ suite of products work together to let you control and monitor each air conditioning unit.
in-room ProductS
A PTAC—The PTAC itself contains all the processing power and software to manage energy
consumption, unit status, and comfort performance.
B OccupancyControl—The remote sensor above the door determines if the room is occupied
or not. If occupied, normal routines run, but if unoccupied the PTAC can change temperature
settings based upon congurations set by owner.
C RemoteThermostat—The DigiSmart™ remote thermostat works just like the one at home but
unlike other PTACs does not disable the unit’s own controls. Remote and PTAC control panels
work at the same time and show the same information.
• Set-up—Best of all, no wiring. All of the peripheral devices can be installed by your handy
man without calling an expensive electrician. A touch of a button connects the peripherals to
the air conditioner in that room.
ProPerty-Wide netWork
• The Tridium Jace™ controller connects all Amana® DidgSmart™ PATCs in a property automatically through a self-detection
routine.
• Once connected to your PC, the status and operating condition of each unit can be viewed remotely and its settings changed.
• The Tridium Jace™ controller through its NiagaraAX protocol has already built connections to more than 100 commercially
available building management systems. So once the network is up and running, Amana® PTACS can be integrated with your
existing building management system or if desired, controlled remotely through the internet.
For more information, go to www.amana-ptac.com.
Product featureS
On-Board Energy Management System (EMS)
• Set-BackMode—the owner can determine amount of time unit is left ‘untouched’ (buttons
not pushed) before the PTAC begins a set-back routine and new thermostat temperature takes
effect. All set-back routines can be changed by owner.
• MaintenanceStatus—Separate green LED indicator light to show if unit requires
maintenance
• ElectronicTemperatureLimits–owner can set separate cooling and heating temperature
ranges and limit operation to one-degree increments, saving energy by preventing guests
from over-cooling or over-heating.
• EnhancedDehumidicationCoolingMode—the unit can be set to lengthen cooling cycles
while the room is occupied or unoccupied. This passes more air through the unit while the coil is below the dew point,
increasing the amount of moisture removed.
• UnitDiagnostics—when switched to diagnostics mode, the unit shows ten different self-diagnosis codes to help keep the
unit running most efciently.
• FreezeProtection—when sensors show an outdoor temperature of 40ºF or below, the unit automatically activates the fan
motor and the electric or hydronic heat to help prevent burst water pipes or broken xtures caused by freezing temperatures.
• ExtendedHeatingwiththeHeat-Pump—heat pump models will operate in heat-pump mode with external temperatures as
low 24ºF to provide additional energy savings.
• 30-SecondFan-Off Delay—the fan continues to run for 30 seconds after the compressor has stopped or after electric heat
has been turned off. This improves efciency by dispersing the cooled or heated air still on the coil into the room.
Maintenance
Indicator Light
A
B
C

SS-DPTAC www.amana-ptac.com 3
2 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet

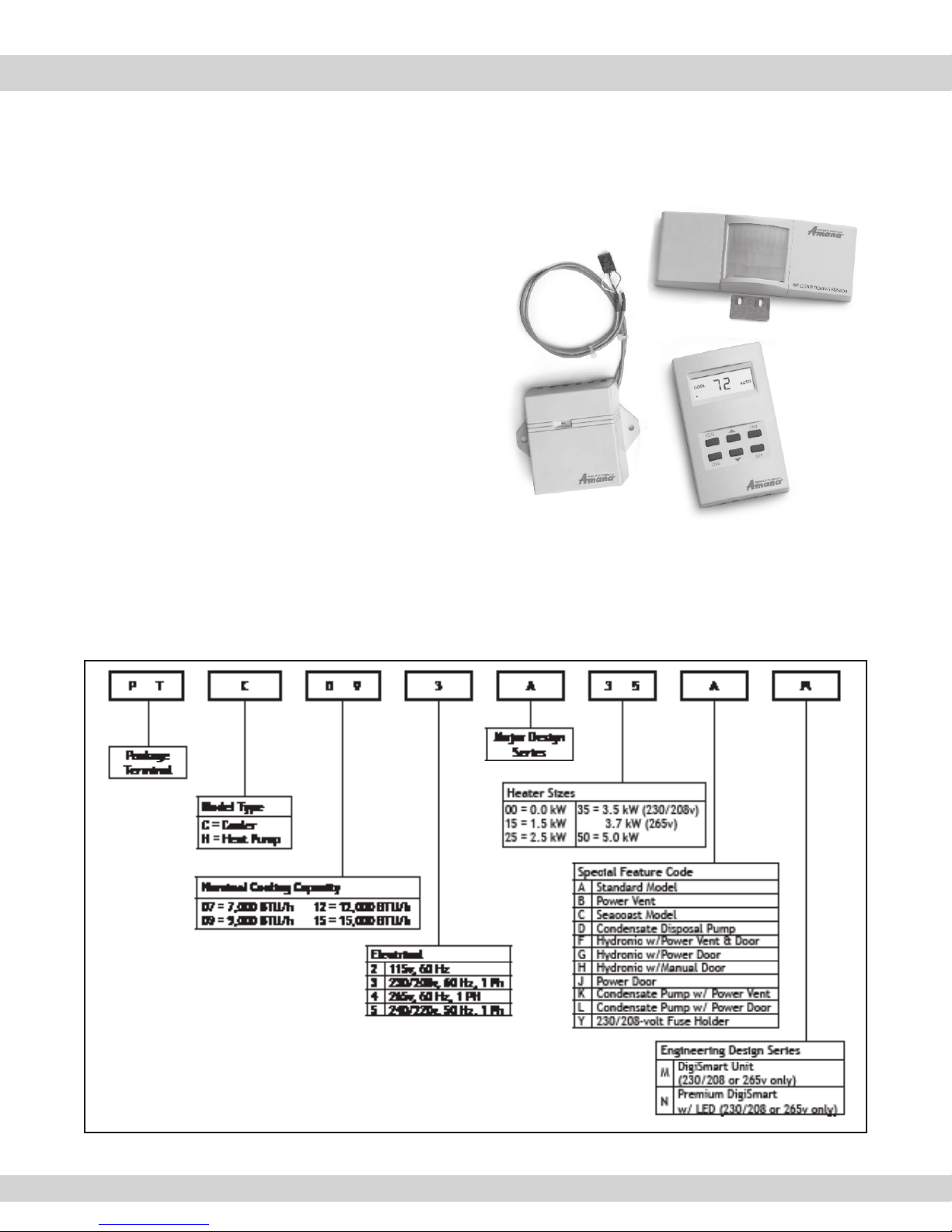

emS acceSSorieS (@ WWW.amana-Ptac.com)
• DigiDoor: Wireless RF Occupancy Sensor
• DigiPlatform: WEB-Enabled Platform Controller
• DigiStat” RF Wireless Remote-Mounted Thermostat
• DigiSmart Control Board Upgrade Kit
• DigiTenna: Wireless RF Gateway Transceiver Antenna
Ptac acceSSorieS (@ WWW.amana-Ptac.com)
• Wall Sleeves
• Grilles
• Condensate Drain Kits
• Thermostats – wired and wireless
• Wire Harness Kit
• Remote Escutcheon Kit (10 pack)
• Sub-base Kits
• Duct Extension Kits
• Vent Door Kits
• Power Door Kit – 230/208V & 265V
• Hydronic Valves and Kits
nomenclature

SS-DPTAC www.amana-ptac.com 5
4 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
Ptc modelS — cooling/electric Heat
Model 1, 7, 9, 10, 12 PTC
073B**A-
PTC
074B**A-
PTC
093B**AM
PTC
094B**AM
PTC
123B**AM
PTC
124B**AM
PTC
153B**AM
PTC
154B**AM
Voltage ¹, 3, ¹¹ 230/208 265 230/208 265 230/208 265 230/208 265
Capacity
(BTU/h)
M Models
M= 7,100/
6,900 M = 7,100 9,100/ 8,900 9,100 12,000/ 11,900 12,000 14,000/ 13,900 14,000
N Models
N= 7,400/
7,300 N = 7,300 N/A N/A N/A N/A N/A N/A
Amps¹² 2.8/3.0 2.3 3.7/3.8 3.0 4.6/5.0 4.3 6.3/6.9 5.9
Watts¹² 610/595 610 790/775 790 1,110/
1,100 1,130 1,470/ 1,450 1,470
EER
M Models M= 11.6/11.6 M = 11.6 11.5 11.5 10.8 10.8 9.5 9.5
N Models N= 12.4/12.8 N = 12.4 N/A N/A N/A N/A N/A N/A
Unit without Electric Heater
Min. Circuit
Amps 2, 4, 12 4.0 3.6 5.1 4.4 6.4 5.7 8.8 7.7
CFM
(Cool/Wet
Coil)
High 245/240 245 245/240 245 325/315 325 325/315 325
Low 220/205 220 220/205 220 250/229 250 250/220 250
CFM (Dry
Coil)
High 265/260 265 265/260 265 345/335 345 345/335 345
Low 230/215 230 230/215 230 265/235 265 265/235 265
Ventilated Air, CFM
(Fan Only)* 65* 65* 65* 65* 70* 70* 70* 70*
Ventilated Air, CFM
(Compressor
& Fan)*
65* 65* 65* 65* 70* 70* 70* 70*
Dehumidication
(Pints/Hr.) 1.6 1.6 2.6 2.6 3.5 3.5 4.4 4.4
Net Weight (lbs.) 90 90 95 95 105 105 110 110
Shipping
Weight (lbs.) 105 105 110 110 120 120 125 125
- Denotes M or N models
*
Approximately 95 CFM with optional power vent kit. Actual vent CFM performance will vary due to application and installation conditions.
Notes:
1– All 265-volt models must use an Amana®brand sub-base (PTSB4**E) or an Amana®brand hard-wire kit (PTPWHWK4).
2– Minimum Circuit Ampacity (MCA) ratings conform to the National Electric Code; however, local codes should apply.
3– Minimum voltage on 230/208-volt models is 197 volts; maximum is 253 volts.
Minimum voltage on 265-volt models is 238.5 volts; maximum is 291.5 volts.
4– Overcurrent protection for all units without electric heaters is 15 amps. Overcurrent protection on 265-volt models must be cartridge-style
time-delay fuses (included and factory-installed on all Amana®brand 265-volt chassis). See heater performance for total MCA.
5– Heating capacity and efciency based on unit operation without condensate pump; unit automatically switches to electric heat
at approximately 24°F outdoor ambient.
6– Total watts for 12,000 and 15,000 BTU/h models; subtract 70 watts for PT07/09*B**A*
7– Specify two-digit heater kW size to complete model number.
8– Total amps for 12,000 and 15,000 BTU/h models; subtract 0.2 amps for PT07/09*B*A*.
9– R-22 refrigerant used in all systems.
10– All units meet or exceed ASHRAE 90.1 standards.
11– All units less than 250 volts have a Leak Current Detector Interrupter (LCDI) power cord and meet UL 484 standards.
12– Refer to electric heat performance data for total MCA and recommended overcurrent protection. Amps and Watts notation refers to com-
pressor only.
Product SPecificationS

SS-DPTAC www.amana-ptac.com 5
4 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
Voltage
Electric
Heater
Size (kW)
No. of
Stages
Nominal Heating (BTU/h) Total
Watts6 Total Amps8
Minimum
Circuit
Ampacity²
MOD4
(amps)
Power
Cord
@ 230V @ 208V @ 265V
230/208V 2.5/2.0 1 8,500 6,800 - - 2,650/2,140 11.5/10.2 14.2 15 6 - 15 P
230/208V 3.5/2.9 1 12,000 9,900 - - 3,650/3,040 15.8/14.5 19.6 20 6 - 20 P
230/208V 5.0/4.1 1* 17,100 14,000 - - 5,150/4,240 22.3/20.3 27.7 30 6 - 30 P
265V 2.5 1 - - - - 8,500 2,650 10.0 12.4 15 7 - 20 P
265V 3.7 1 - - - - 12,600 3,850 14.6 18.1 20 7 - 20 P
265V 5.0 1* - - - - 17,100 5,150 19.5 24.2 25 7 - 30 P
* PTH/PTC09*B50*G/K has the same airow as a PTC/PTH12*B***G (not available on 7,000 BTU/h models).
Notes:
1– All 265-volt models must use an Amana®brand sub-base (PTSB4**E) or an Amana®brand hard-wire kit (PTPWHWK4).
2– Minimum branch circuit ampacity ratings conform to the National Electric Code; however, local codes should apply.
3– Minimum voltage on 230/208-volt models is 197 volts; maximum is 253 volts.
Minimum voltage on 265-volt models is 238.5 volts; maximum is 291.5 volts.
4– Overcurrent protection for all units without electric heaters is 15 amps. Overcurrent protection on 265-volt models must be cartridge-style
time-delay fuses (included and factory-installed on all Amana®brand 265-volt chassis).
5– Heating capacity and efciency based on unit operation without condensate pump; unit automatically switches to electric heat
at approximately 24°F outdoor ambient.
6– Total watts for 12,000 and 15,000 BTU/h models; subtract 70 watts for PT07/09*B**A*
7– Specify two-digit heater kW size to complete model number.
8– Total amps for 12,000 and 15,000 BTU/h models; subtract 0.2 amps for PT07/09*B*A*.
9– R-22 refrigerant used in all systems.
10– All units meet or exceed ASHRAE 90.1 standards.
11– All units less than 250 volts have a Leak Current Detector Interrupter (LCDI) power cord and meet UL 484 standards.
Ptc and PtH modelS — electric Heat Performance
(Primary Heating for PTC Models; Auxiliary Heating for PTH Models; See below for Power Cord Conguration)
Product SPecificationS (cont.)
All units come with factory-installed power cords.
All units less than 250 volts come with LCDI device.
Power Receptacle Conguration
NEMA6-30R; 250V receptacle,
used on 230/208V units
G
NEMA7-30R; 277V receptacle,
used on 265V units
G
NEMA6-15R; 250V receptacle,
used on 230/208V units
GNEMA6-20R; 250V receptacle,
used on 230/208V units
G
W
NEMA7-20R; 277V receptacle,
used on 265V units
G
277V Rating Power Cord Plugs
NEMA 7 Conguration
G
W
20 amp
G
W
30amp
250V Rating Power Cord Plugs with LCDI Device
NEMA 6 Conguration
Power Cord Plugs
15 amp 20 amp
30amp
PoWer cord configuration
contract Bid SPecificationS
Please visit www.amana-ptac.com to download the contractor bid specications information.

SS-DPTAC www.amana-ptac.com 7
6 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
Model 1, 7, 9, 10, ¹² PTH073B**A- PTH
074B**A-
PTH
093B**AM
PTH
094B**AM
PTH
123B**AM
PTH
124B**AM
PTH
153B**AM
PTH
154B**AM
Voltage 1, 3, 11 230/208 265 230/208 265 230/208 265 230/208 265
Capacity
(BTU/h)
M Models
M=7,000/
6,800 M=7,000 9,100/ 8,900 9,100 12,000/ 11,800 12,000 14,000/ 13,900 14,000
N Models
N=7,400/
7,300 N=7,300 N/A N/A N/A N/A N/A N/A
Amps 2.8/3.0 2.3 3.5/3.8 3.0 4.6/5.0 4.3 6.3/6.9 5.9
Watts¹² 605/585 605 790/775 790 1,110/1,090 1,110 1,505/1,495 1,505
M Models M=11.6/11.6 M=11.6 11.5 11.5 10.8 10.8 9.3 9.3
EER N Models N=12.4/12.8 N=12.4 N/A N/A N/A N/A N/A N/A
Units without Electric Heater
MCA ², 4, ¹² 4.0 3.6 5.1 4.4 6.4 5.7 8.8 7.7
CFM
(Cool/Wet Coil)
High 245/240 245 245/240 245 325/315 325 325/315 325
Low 220/205 220 220/205 220 250/229 250 250/220 250
CFM (Dry Coil)
High 265/260 265 265/260 265 345/335 345 345/335 345
Low 230/215 230 230/215 230 265/235 265 265/235 265
Ventilated Air, CFM
(Fan Only)* 65* 65* 65* 65* 70* 70* 70* 70*
Ventilated Air, CFM
(Compressor and Fan)* 65* 65* 65* 65* 70* 70* 70* 70*
Dehumidication
(Pints/Hr.) 1.6 1.6 2.6 2.6 3.5 3.5 4.4 4.4
Net Weight (lbs.) 95 95 100 100 110 110 115 115
Shipping Weight (lbs.) 110 110 115 115 125 125 130 130
- Denotes M or N models
* Approximately 95 CFM with optional power vent kit; actual vent CFM performance will vary due to application and installation conditions.
** EER = Energy Efciency Rating per Air Conditioning & Refrigeration Institute (ARI) and Canadian Standards Association (CSA) EEV Test
Procedures.
Notes:
1– All 265-volt models must use an Amana®brand sub-base (PTSB4**E) or an Amana®brand hard-wire kit (PTPWHWK4).
2– Minimum Circuit Ampacity (MCA) ratings conform to the National Electric Code; however, local codes should apply.
3– Minimum voltage on 230/208-volt models is 197 volts; maximum is 253 volts.
Minimum voltage on 265-volt models is 238.5 volts; maximum is 291.5 volts.
4– Overcurrent protection for all units without electric heaters is 15 amps. Overcurrent protection on 265-volt models must be cartridge-style
time-delay fuses (included and factory-installed on all Amana®brand 265-volt chassis). See heater performance for total MCA.
5– Heating capacity and efciency based on unit operation without condensate pump; unit automatically switches to electric heat
at approximately 24°F outdoor ambient.
6– Total watts for 12,000 and 15,000 BTU/h models; subtract 70 watts for PT07/09*B**A*
7– Specify two-digit heater kW size to complete model number.
8– Total amps for 12,000 and 15,000 BTU/h models; subtract 0.2 amps for PT07/09*B*A*.
9– R-22 refrigerant used in all systems.
10– All units meet or exceed ASHRAE 90.1 standards.
11– All units less than 250 volts have a Leak Current Detector Interrupter (LCDI) power cord and meet UL 484 standards.
12– Refer to electric heat performance data for total MCA and recommended overcurrent protection. Amps and Watts notation refers to com-
pressor only.
PtH modelS — cooling/Heat PumP/electric Heat
Product SPecificationS (cont.)

SS-DPTAC www.amana-ptac.com 7
6 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
PtH modelS — reverSe-cycle Heating Performance
Heating Capacity¹
PTH 073B**A- PTH
074B**A-
PTH
093B**AM
PTH
094B**AM
PTH
123B**AM
PTH
124B**AM
PTH
153B**AM
PTH
154B**AM
BTU/h5
M Models
M=6,200/
6,000 M = 6,200 8,200/ 8,000 8,200 10,800/ 10,600 10,800 13,300/ 13,200 13,300
N Models
N=6,400/
6,300 N = 6,200 --- --- --- --- --- ---
Amps¹² 2.6/ 3.0 2.2 3.2/ 3.6 2.6 4.5/ 5.1 3.9 5.7/ 6.3 5.4
Watts¹² 550/ 530 550 750/ 730 750 1,020/ 1,000 1,020 1,340/ 1,330 1,340
COP5
M Models M= 3.3/ 3.3 M = 3.3 3.2 3.2 3.1 3.1 2.9 2.9
N Models N= 3.5/ 3.6 N = 3.5 --- --- --- --- --- ---
CFM (Dry) 235/ 230 235 235/ 230 230 310/ 290 310 345/ 335 345
Heating
(BTU/h)5
Outdoor
Ambient
Rating
Point
62 °F 7,200/ 7,000 7,200 9,800/ 9,600 9,800 13,000/
12,800 13,000 15,800/ 15,700 15,800
57 °F 6,900/ 6,700 6,900 9,300/ 9,100 9,300 12,300/
12,100 12,300 15,000/ 14,900 15,000
52 °F 6,500/ 6,300 6,500 8,700/ 8,500 8,700 11,600/
11,400 11,600 14,200/ 14,100 14,200
47 °F 6,200/ 6,000 6,200 8,200/ 8,000 8,200 10,800/
10,600 10,800 13,300/ 13,200 13,300
COP* 3.3/ 3.3 3.3 3.2/ 3.2 3.2 3.1/ 3.1 3.1 2.9/ 2.9 2.9
42 °F 5,900/ 5,700 5,900 7,700/ 7,500 7,700 10,100/
9,900 10,100 12,500/ 12,400 12,500
37 °F 5,600/ 5,400 5,500 7,200/ 7,000 7,200 9,400/ 9,200 9,400 11,700/
11,600 11,700
32 °F 5,300/ 5,100 5,200 6,700/ 6,500 6,700 8,600/ 8,400 8,600 10,800/
10,700 10,800
27 °F 5,000/ 4,800 5,000 6,200/ 6,000 6,200 7,900/ 7,700 7,900 10,000/
9,900 10,000
24 °F 4,800/ 4,600 4,800 5,900/ 5,700 5,900 7,500/ 7,300 7,500 9,500/ 9,400 9,500
Watts
Outdoor
Ambient
62 °F 580/ 560 580 810/ 790 810 1,120/ 1,100 1,120 1,465/ 1,455 1,465
57 °F 575/ 555 575 800/ 780 800 1,090/ 1,075 1,090 1,440/ 1,430 1,440
52 °F 555/ 535 555 775/ 755 775 1,060/ 1,045 1,060 1,405/ 1,395 1,405
47 °F 550/ 530 550 750/ 730 750 1,020/ 1,005 1,020 1,340/ 1,330 1,340
42 °F 540/ 525 560 730/ 710 730 985/ 970 985 1,325/ 1,315 1,325
37 °F 530/ 515 545 705/ 685 705 950/ 935 950 1,285/ 1,275 1,285
32 °F 515/ 500 535 690/ 670 690 900/ 885 900 1,240/ 1,230 1,240
27 °F 505/ 490 525 660/ 640 660 855/ 840 855 1,190/ 1,180 1,190
24 °F 500/ 485 520 640/ 620 640 830/ 815 830 1,180/ 1,170 1,180
- Denotes M or N models
COP = Coefciency of Performance; per ARI Test Procedures, units are rated for capacities and efciencies.
See Page 6 for Notes and Auxiliary Electric Heater Performance.
Product SPecificationS (cont.)

SS-DPTAC www.amana-ptac.com 8
8 www.amana-ptac.com SS-DPTAC
SPecification SHeet SPecification SHeet
Amana®is a trademark of Maytag Corporation and used under license to Goodman
Company, L.P. All rights reserved. Our continuing commitment to quality products may
mean a change in specications without notice.
Copyright © 2007 • Goodman Company, L.P. • Houston, Texas • Printed in the USA.

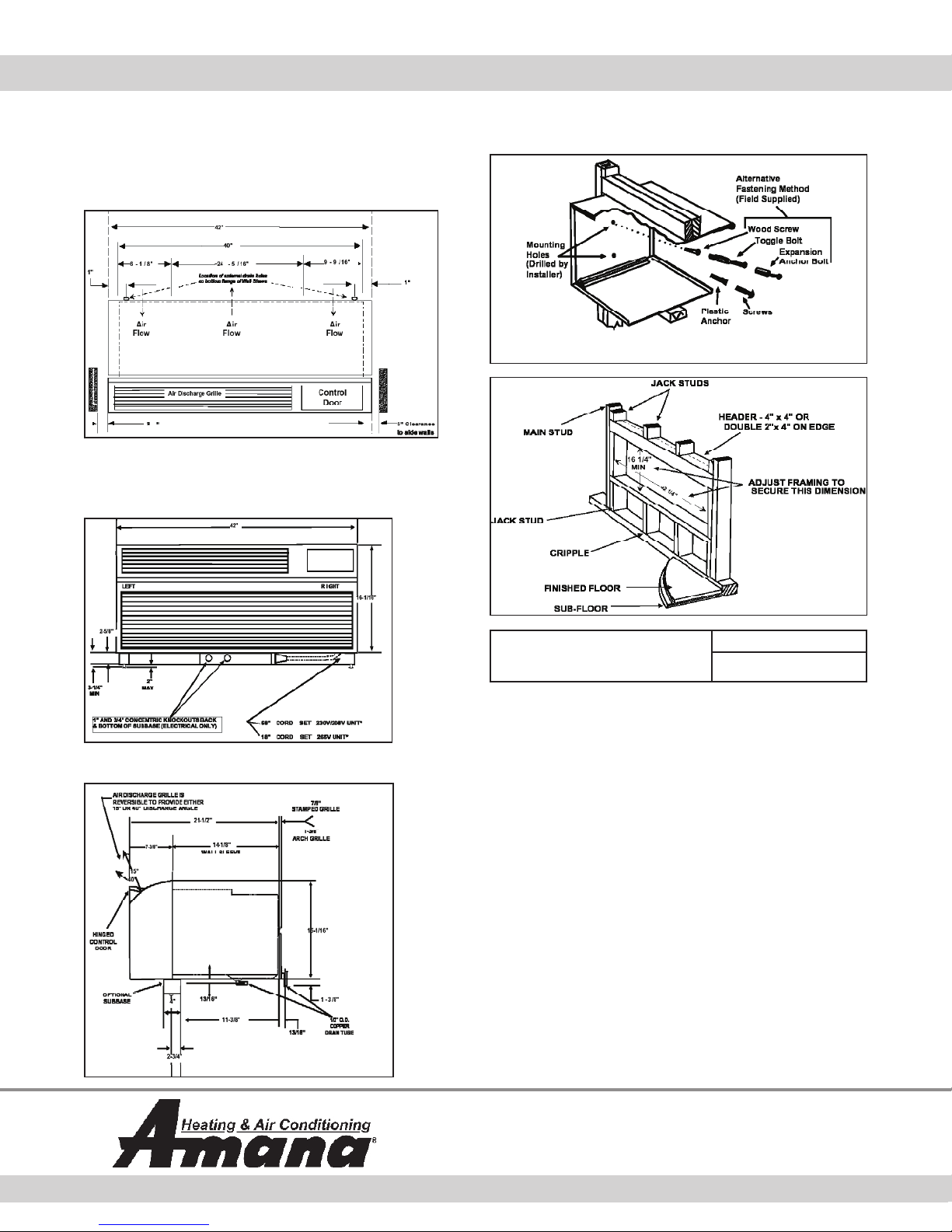

framing for acceSSory Wall Sleeve (WS900d)
Wall Sleeve Opening Height
Should Be Squared with
Wall Sleeve Opening Width
H = 16¼"
W = 42¼"
Fastening Wall Sleeve
When installed in an opening, the Wall Sleeve must be horizontally level
(side-to-side) and pitched ¼ bubble to the outside. (NOTE: To ensure
unit’s maximum efciency, DO NOT over- or under-pitch.)
Installation Notes
1. If Sub-base (PTSB***E) is installed, allow minimum 3¼” height
clearance and maximum 5” height clearance between wall sleeve
and oor; allow minimum 2¾” protrusion from a nished wall. See
Note 4 if using hydronic units.
2. Drain Kit (DK900D) shipped separately. Can be mounted either right
side, left side or bottom of sleeve. If mounted to bottom of sleeve,
allow 2” height clearance from oor to bottom of sleeve.
3. For UL approval, 265V units must use Amana®brand Sub-base
(PTSB***E) or Amana®brand Hard Wire Kit (PTPWHWK4).
Overcurrent protection on 265V units must be by cartridge-style
time delay fuses, which are included and factory-installed on
the Amana®brand 265V chassis.
4. If Hydronic Kit (HWK03 or HVK03) is installed, Wall Sleeve must
extend exactly 3" into the room from the nished interior wall. If
using the Amana®brand Sub-base (PTSB***E), only the minimum
3¼” height clearance between wall sleeve and oor is permissible.
Unit must also be operated with a remote-mounted thermostat.
5. If Duct Kit (MDK02B) is installed, allow a minimum of 2⅜” into the
room from the nished interior wall.
unit WitH acceSSory Wall Sleeve and
SuB-BaSe acceSSory
Top View
Right View
Wall Sleeve must extend a minimum of ¼” beyond outside wall to allow for
proper caulking.
Front View
58” LCDI CORD SET — 230V/208V UNIT*
