Anova D1110 User manual

anovafurnishings.com
888.535.5005 tel
TOOLS NEEDED:
1/2” Open-end or Box-end Wrench•
Ratchet Wrench with 1/2” Socket•
Level•
Rubber Mallet or Hammer•
ASSEMBLY HARDWARE:
20 x
5/16” X 1.25” Long
Hex Head Bolt
48 x
5/16”
Washer
24 x
5/16”
Flanged Hex Nut
4 x Seat 4 x Leg
1 x Tabletop
Tabletop
Packing plastic and
cardboard or so
surface
4 x
5/16” X 2.25” Long
Hex Head Bolt
1 x Cross Brace
TABLE COMPONENTS:
ASSEMBLY:
The assembly is a two-person operation.
1. Inspect the contents for damage and to determine that all components and hardware are present.
2. Place the tabletop upside down
on the shipping plastic over the
packaging or other so surface to
avoid scratching the product.
8 x
Plastisol Plug
ASSEMBLY INSTRUCTIONS
D1110 Children’s Square Table
F1110 Children’s Square Table

Do not drag the assembled unit across any surface.•
This product requires only periodic cleaning with a sponge and a solution of mild detergent and water to•
remove surface dirt. Do not clean with a solvent or petroleum based products.
Furniture must not be used other than for its intended purpose and should be inspected regularly for loose,•
missing, or broken hardware, and general instability.
Furniture that is damaged or appears to be unstable must be removed from service and be repaired or replaced.•
Repairs must be made using only factory authorized parts and methods.•
WARNING
CARE AND
MAINTENANCE
211 North Lindbergh Blvd.
St. Louis, MO 63141
tel: [phone]
web: anovafurnishings.com
10/2012

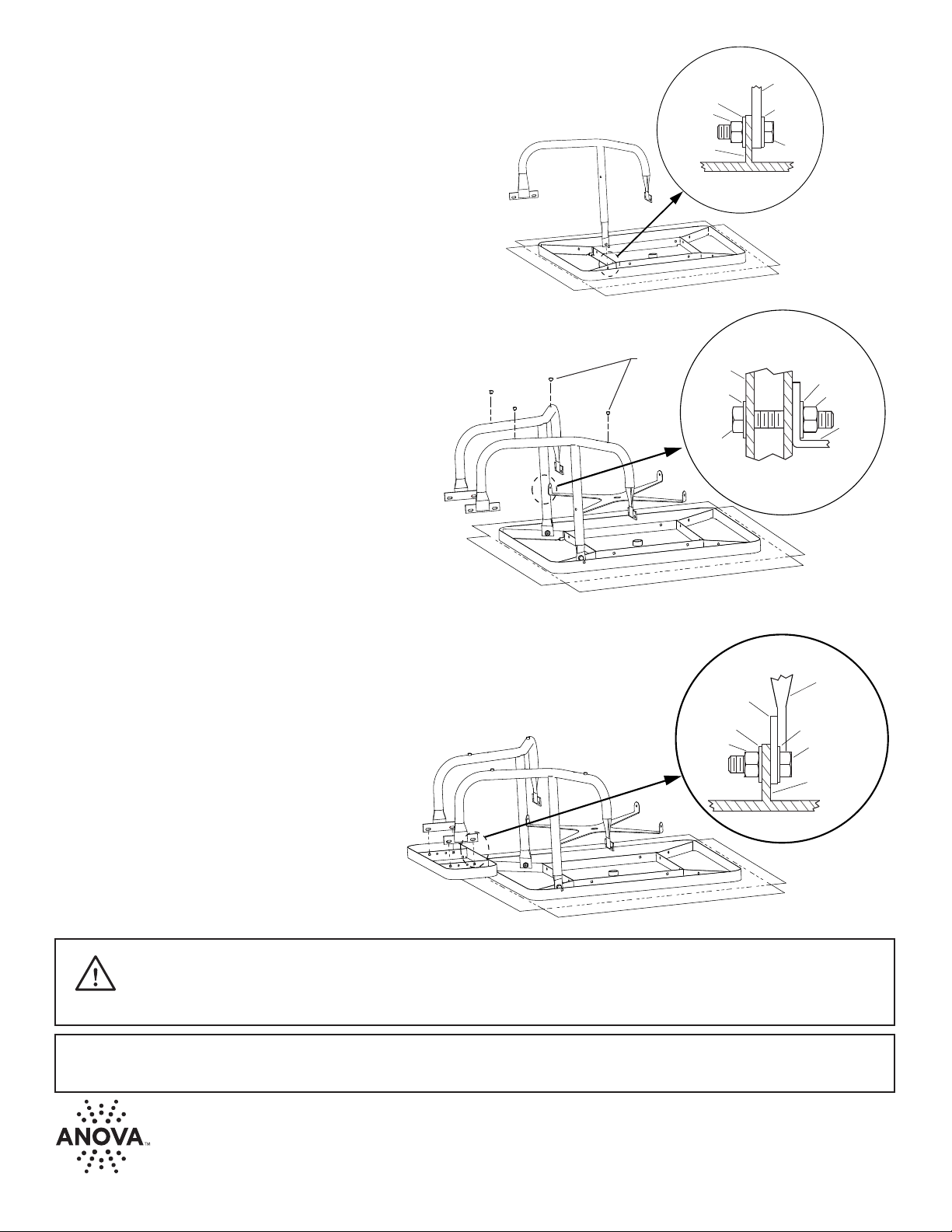

3. Place one of the Table Legs next to the tabletop
frame support as shown. When viewing down
the frame support from the outside of the table,
the Leg should go on the right side of the frame
support. Put a Washer on one of the 1.25” long
Bolts and insert the Bolt through the Leg and
frame support with the bolt head toward the
outside of the Tabletop. Install a Washer and
Nut to the Bolt and hand tighten, leaving the
Nut nger-tight. Repeat this step for each of
the three remaining Legs.
Nut
Washer
Bolt
Washer
Leg
Cross
Brace
Nut Washer
Bolt
Washer
Leg
Tabletop
Frame
Bolt
Washer
Nut
Washer
Leg
Bracket
Seat Frame
Leg
Insert
Plugs
4. Aer all the Legs are attached (only two are shown
here for clarity), install the Cross Brace. Put a
Washer on one of the 2.25” long Bolts and insert
the Bolt through the Leg and Cross Brace with
the bolt head toward the outside of the Tabletop.
Install a Washer and Nut to the Bolt and hand
tighten, leaving the Nut nger-tight. Repeat this
step for each of the three remaining Legs.
5. Use a Rubber Mallet or Hammer to seat the
Plastisol Plugs into the holes on the bottom of
each Leg.
6. Position a Seat upside-down next to one of the Legs as shown. The leg brackets attach to the
outside of each of the seat frame cross-members. Put a Washer on one of the 1.25” long Bolts
and insert the Bolt through the leg bracket and seat frame cross-member with the bolt head
toward the outside of the Seat. Install a Washer and Nut to the Bolt and hand tighten, leaving
the Nut nger-tight. Repeat this step for each of
the three remaining mounting holes in that Seat.
Install the three remaining Seats in the same
manner.
7. Turn the table right side up and tighten the table
frame hardware while checking with a Level;
minor adjustments can be made while tightening
the hardware to make the Tabletop level.
8. Tighten the hardware on each of the seat frames
while checking the Seat with a Level; minor
adjustments can be made while tightening the
hardware to make the Seat level.
9. Retighten all hardware two weeks aer initial
assembly.
