APRILIA eSR2 User manual

electric scooter
User Manual
English | Italiano | Español | Français
Deutsch | Polskie | Português | Ελληνικά

Index
English
Italiano
Español
Français
Deutsch
Polskie
Português
Ελληνικά
01
36
71
106
141
176
211
246

01
electric scooter
User manual
Thank you for choosing this product.
For information, technical support and assistance, contact your dealer
or visit the website www.apriliasmartmovement.com
English

02
Indice
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
Safety instructions
Quick-start guide
Contents
Product overview
Control information/Control panel
Assembly and set-up

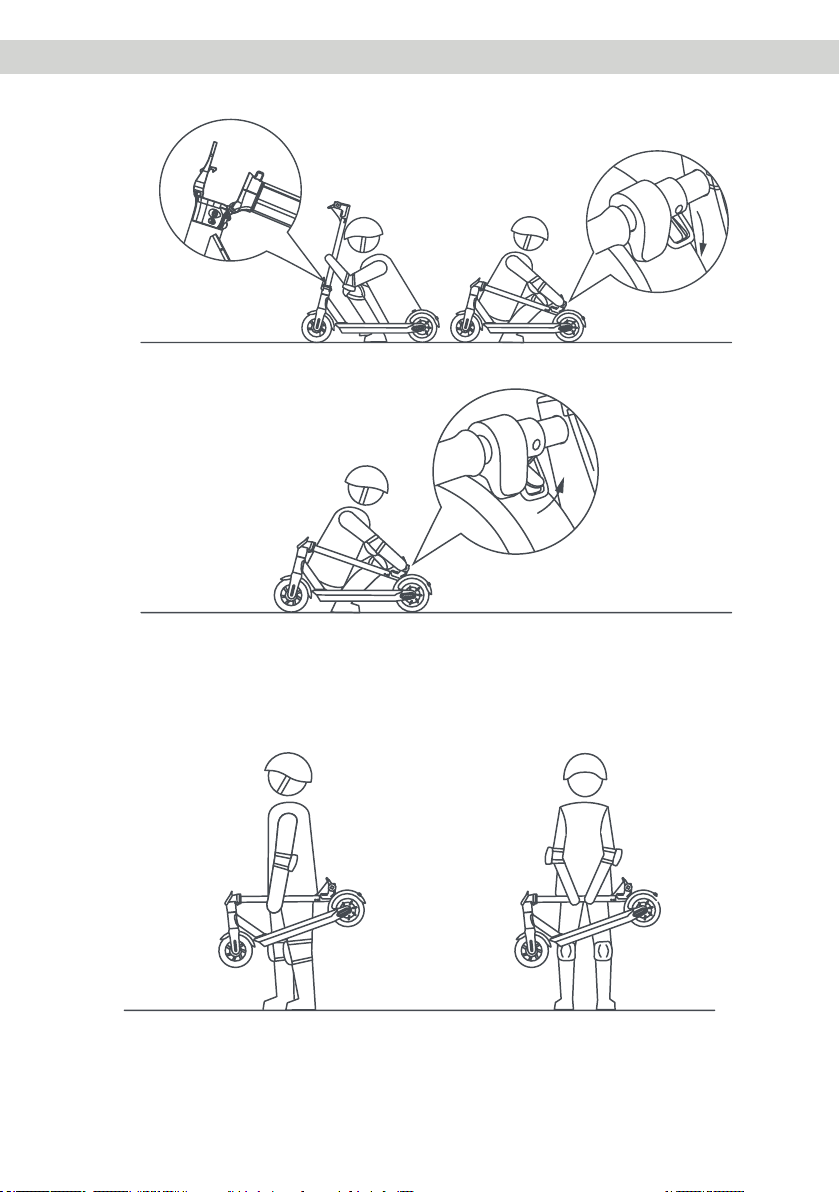

Fold and carry
Battery charging and activation
Adjusting the brakes
Range
Storage and cleaning
General warnings
App conguration
Learn to drive
Battery (Warnings)
Responsibilities
Maintenance and daily care
Data sheet
Troubleshooting
Error code table

03
1. Safety instructions
Please read the following instructions carefully before using the product. Save this manual
for future reference or new users.
• The company will not assume any liability deriving from misuse of the product or non-
compliance with road regulations and the instructions in this manual.
• This electric scooter is not a toy. Use it responsibly, with care and respect for others.
• Check the local regulations in force regarding the use of this type of product before using
it and be sure to follow the local regulations. Drive responsibly and pay attention to
people and obstacles to avoid accidents.
• Always use the recommended clothing: non-slip gloves, knee and elbow pads and wear a
helmet.
• The person driving this scooter must be able to place both feet on the oor easily when
holding the handlebars at the correct height.
• When stopping or parking your vehicle, be sure to do so on a smooth, safe surface
• The maximum load capacity for the product is 100kg.
• This product may not be used by more than one person at the same time.
• Misuse of the product or non-compliance with the instructions in this manual may cause
serious damage.
• Should technical problems occur, contact the Technical Assistance Service at your dealer.
• Do not attempt to disassemble or repair the product on your own.
• Do not leave the battery near re or heat sources.
• Avoid using used, defective and/or non-original batteries.
• Do not sit on the product either when driving or stationary.
• In the event that the user who is going to use the product is not familiar with driving this
type of vehicle, it is recommended that they be instructed on the basics of driving by an
adult before using it for the rst time, regarding the following aspects:
1. Acceleration
2. Deceleration
3. Braking
4. Basic driving rules

04
2. Quick-start guide
• When you use it for the rst time, charge the scooter to 100%.
• Press the power button for a few seconds to start it.
• Check the battery indicator, if the battery is low, recharge it before use, the electric
scooter is a device that requires periodic charging to work.
• Check the tyre pressure (36 PSI) if the scooter has not travelled at least 60% of the
stated km or reached the maximum speed in the rst 3 months of use, it is likely that the
wheels have deated again, it will thus be necessary to restore the pressure as indicated.
• Place the scooter on a at surface.
• Put your hands on the handlebar. Step onto the footplate with one foot and use the other
to give yourself a gentle push and accelerate.
• When the scooter begins to move, place both feet on the footplate and press the
accelerator.
• To drive the scooter, tilt your body in the direction of travel when turning and slowly turn
the handlebars.
• To stop the scooter, release the accelerator and press the electronic or lever brake on the
left side of the handlebar.
• To dismount, rst stop the scooter completely. Trying to get off the scooter while it is in
motion can cause injury.
• When you want to change speed mode, click the ON/OFF button (button B in
chapter 5).
• When driving at night or in dark places,double click the ON/OFF button to turn on the
lights, and wear a reective vest.
For your own safety, wear a helmet and knee pads to protect yourself against falls and
injuries while learning to ride the electric scooter.
The rider assumes all risks for not wearing a helmet or other protective gear.
Always respect the trafc code and trafc-related rules and regulations that are applicable
to cyclists in the country of circulation.
The accelerator is activated once the forward speed exceeds 3 km/h.
For safety reasons, the scooter is initially set up to avoid a standing start.
NOTICE

05
3. Package contents
Assembled scooter, the handlebar has to be installed with the appropriate screws.
The pack includes:
- 1x hexagonal key (3mm)
- 2x M5 screws
- 1x washers
- 1x charger

0606
4. Product overview
brake lever
locking hook
footboard hook closure
motor with
electronic brake
rear wheel
rear
suspension fork
rear light
kickstand
charging
port
framedrum brakefront wheel
headlight
locking mechanism
bell
accelerator
display
front
suspension fork

0707
5. Control information/Control panel
1. Speedometer: Displays the current speed of the scooter.
2. Battery Level: The battery level is indicated by 4 bars. Each bar equals around 25% of
charge.
3. ODO: Total distance travelled.
4. TRIP: Single trip distance.
5. Headlights: Headlight indicator light.
6. Mode 3 - The display shows the number 3 (up to 25km/h)
7. Mode 2 - The display shows the number 2 (up to 20km/h)
8. Mode 1 - The display shows the number 1 (up to 6km/h)
9. Cruise Control: Maintenance of speed. It is activated after the same speed has been
maintained for a few seconds.
10. Bluetooth (always ON)
6
1
73 4
10
5
8
9
2

0808
• Power Button (B): Hold it for some seconds to turn the scooter ON/OFF.
• Accelerator (A): Use it to start the scooter and to accelerate.
• Brake (C): Press and hold to brake.
• Mode: Press button (B) once to select the speed mode.
• Headlight and rear light: Double press button (B) to switch them on. When the lights are
on, double press button (B) to turn them off.
• Rapidly press 3 times to switch from Km/h to Mph.
• Rapidly press 4 times the button (B) to switch from ODO to TRIP.
The accelerator is activated once the forward speed exceeds 3 km/h.
NOTICE
A
B
C
