Aristel 50 Series User manual

1
USER GUIDE
FOR 50 or 70 Series Keyphone
Table of Contents
KEY TELEPHONE LAYOUT .................................................................................................... 2
ANSWERING CALLS.................................................................................................................. 4
AUTOMATIC CO ACCESS.......................................................................................................... 4
BABY MONITORING .................................................................................................................. 4
BACKGROUND MUSIC............................................................................................................... 4
CALCULATOR FUNCTION........................................................................................................... 4
CALL FORWARD....................................................................................................................... 5
CALL FOLLOW ME.................................................................................................................... 5
CALL ID SEARCH ..................................................................................................................... 5
CALL TRANSFER ...................................................................................................................... 5
CHANGING SIGNAL................................................................................................................... 6
CONFERENCE CALLS................................................................................................................ 6
DAY SWITCH/NIGHT SWITCH .................................................................................................... 6
DATE/TIME SETTING ................................................................................................................ 6
DO NOT DISTURB..................................................................................................................... 7
DOOR PHONE .......................................................................................................................... 7
FIRE ALARM............................................................................................................................. 7
FORCED ACCOUNT CODE(S)..................................................................................................... 7
HOLD CALL.............................................................................................................................. 7
INDIVIDUAL ALARM/MORNING CALL (CONSOLE ONLY)................................................................ 7
INTERCOM CALL....................................................................................................................... 8
LOCK/UNLOCK YOUR TELEPHONE............................................................................................. 8
MACRO KEY ASSIGNMENT........................................................................................................ 8
MESSAGE LAMP ON................................................................................................................. 9
MESSAGE TEXT ....................................................................................................................... 9
MONITOR............................................................................................................................... 10
MUTE .................................................................................................................................... 10
OUTGOING CALL.................................................................................................................... 10
OVERRIDE ............................................................................................................................. 10
PAGING ................................................................................................................................. 11
PICK UP................................................................................................................................ 11
REDIAL.................................................................................................................................. 12
RELEASE CALL ...................................................................................................................... 12
RETRIEVE NORMAL CALL FROM HOLD .................................................................................... 12
SPEED DIAL........................................................................................................................... 13
STATION OPERATION HELP LIST ............................................................................................. 14
TRANSFER............................................................................................................................. 14
VOLUME/FREQUENCY CONTROL (STATIC CONTROL)................................................................ 14
VOLUME/FREQUENCY CONTROL (DYNAMIC CONTROL) ............................................................ 15
DSS BUTTON LAYOUT.......................................................................................................... 15

2
KEY TELEPHONE LAYOUT
For 50 Series Keyphone
Features:
1. Hook
2. Handpiece Wall Mount Clip
3. Speaker
4. Function Keys
5. Quick Reference Card
6. Handsfree Microphone
7. Dial Keypads
8. DSS Keys
9. Handset Cord Jack
10. Table/Wall Mount Bracket
11. Line Cord Jack
12. MW lamp
13. LCD Display
1
2
3
4
5
6
7
8
9
10
11
12
13

3
For 70 Series Keyphone
Features:
1. Hook Switch
2. LCD Display
3. DSS Keys
4. MW Lamp
5. Redial Key
6. Speed Dial Key
7. Transfer/Flash Key
8. Hold Key
9. Speaker Indicator
10. Speaker Key
11. Microphone
12. Volume Upwardly Adjustable Key
13. Volume Downwardly Adjustable Key
14. Function Key
15. Handpiece Wall Mount Clip
16. Speaker
17. Calculator
18. Pick Up Key (Remark) 23. Phone Cord
19. Dial Keypad 24. CO Cord Jack
20. Speaker 25. Handset Cord Jack
21. Microphone 26. Quick Reference Card
22. Plug Jack 27. Foot Rest
Remark: This key is defined as ”NAME”in some other countries.

4
Answering Calls
Lift handset or press [SPK] button on handsfree
models.
Answering Intercom Calls Lift handset or press [SPK] of [MIC] button on
handsfree models.
Automatic CO Access
Off Hook Lift handset and press [9] or [0] (depending on
programming).
Dial required telephone number.
On Hook Press [9] or [0]; or press [SPK]+[9] or [0].
Dial required telephone number.
CO Access through DSS Handset on/off hook.
Press any defined CO DSS button.
Dial required telephone number.
Baby Monitoring
(On a handsfree Models) Lift handset or press [SPK] (on a handsfree).
(Room to be Listened)
Dial [#]+[51]. (Room to Listen From)
Ring that extension number.
To Cancel Press [SPK] on listened phone.
Note: 1. Once the function is enabled, the
monitoring station’s microphone will be
turned on. When it is called, it will not
ring but the calling station will hear any
activity in the immediate area.
2. The monitoring station’s microphone is
activated when the function is initiated.
Background Music
To Start Press [#].
To Cancel Press [#] or [SPK].
Calculator Function
For 50 Series Display Models only:
Press [CAL] button to start/cancel calculator
function.
Functions: [＋] (Plus) located on [REDIAL] button
[－] (Minus) located on [SPD] button
[Ｘ] (Multiply) located on [FUNC] button
[ ] (Divide) located on [Trf/Fl] button
[﹦] (Equal) located on [HOLD] button
[．] (Decimal) located on [*] button
[Ｃ] (Clear Digit) located on [#] button

5
For 70 Series Display Models only:
Press [CAL] button to start/cancel calculator
function.
Functions: [＋] (Plus) located on [REDIAL] button
[－] (Minus) located on [SPD] button
[Ｘ] (Multiply) located on [Trf/Fl] button
[ ] (Divide) located on [HOLD] button
[﹦] (Equal) located on [SPK] button
[．] (Decimal) located on [*] button
[Ｃ] (Clear Digit) located on [#] button
Caller ID Search
Off hook.
For programming function FN92 refer to your
dealer
To search caller numbers, Press [6] to scroll
forward and [3] to scroll backwards.
Call Forward
General From own station: (Handset on Hook) Press
[FWD] button or [FUNC]+[2]+[*CF Code]
+[Destination Station Number].
Call Forward Codes: [1] Call Forward All
[2] Call Forward Busy
[3] Call Forward No Answer
[4] Call Forward Busy No Answer
[5] Call Follow Me
[6] Call Forward External
To Cancel From own station: Press [FWD] or
[FUNC]+[2]+[1]+[Own Station Number].
Call Follow Me From other station: Press [FWD] button or
[FUNC]+[2]+[5]+[Own Station Number].
To Cancel From own station: Press [FWD] or
[FUNC]+[2]+[1]+[Own Station Number].
Call Transfer
Unannounced Transfer Lift handset.
Press [HOLD].
Dial transferred station number.
Press [TRF/FL].
Replace handset.
Announced Transfer Lift handset.
Press [HOLD].
Dial transferred station number.
Wait for answer, then press [TRF/FL].
Replace handset.

6
Changing Signal
Voice to Ring or Ring to Voice
During Intercom call, press [*] to change signal.
Conference Calls
(Maximum of Three (3) Parties)
Supervised Lift handset.
Dial Party A.
Place Party A on hold.
Dial Party B.
When answered Press [CONF/DND].
Unsupervised Lift handset.
Dial Party A.
Place Party A on hold.
Dial Party B.
When answered Press [CONF/DND] button
twice.
Replace handset.
Note: A supervised conference becomes
unsupervised when the supervisor leaves the
conference. The conference supervisor can
re-access an unsupervised conference by
pressing [CONF/DND]. During unsupervised
conferences, outside parties have a 3-minute limit
for conversation. Pressing [#] when the 3-limit
warning tone sounds will increase the limit by a
further 3 minutes.
Day Switch/Night Switch
(Must be in Manual Mode)
Night Switching Press [FUNC]+[TRF/FL]+[TRF/FL]+[SPK].
Day Switching Press [FUNC]+[TRF/FL]+[TRF/FL]+[SPK].
Auto/Manual Switching (Console Only ie EXT 11,12,13,14)
Press [FUNC]+[TRF/FL]+[*] to toggle from Auto
to Manual mode.

7
Date/Time Setting
(Console Only ie EXT 11,12,13,14)
Press [FUNC]+[9]+[#].
Enter 00 for item.
Set Date/Time:
[MM]+[DD]+[YY]+[DW]+[hh]+[mm] or
[DD]+[MM]+[YY]+[DW]+[hh]+[mm]
(depending on EPROM Version).
Press [SAVE]+[SPK].
[MM] Month = 01 ~ 12
[DD] Day = 01 ~ 31
[YY] Year = 00 ~ 99
[DW] Day of Week = 01 ~ 07 (Monday = 01)
[hh] Hour = 00 ~ 23
[mm] Minute = 00 ~ 59
Do Not Disturb Press [CONF/DND] to enable or disable.
Note: [CONF/DND] LED will flash when Do Not
Disturb is enabled.
Door Phone
Call Door Phone Press [SPK]+[#]+[6]+[1] (for Door 1),
or [SPK]+[#]+[6]+[2] (for Door 2)
or
Press [DOOR] button on DSS panel to talk to
Door 1.
Door Lock Release While on door phone call, press [0] to release
door lock.
Fire Alarm
Turning Off Press [SPK] while alarm is ringing.
Press [#]+[5]+[2].
Forced Account Code(s)
Press [Forced Account Code] key or
[FUNC]+[1], then on entry of account number,
system will automatically access a free CO line.
Hold Call
Normal Call Hold Lift handset and answer call.
Press [HOLD].
Replace handset.
Exclusive Call Hold Lift handset and answer call.
Press [HOLD] twice.
Replace handset.

8
Individual Alarm/Morning Call
Individual Station Alarm Press [FUNC]+[REDIAL]+[Alarmed Station
Number].
Set Time and Duration: *[hh]+[mm]+[Duration].
Press [SAVE].
[hh] Hour = 00 ~ 23
[mm] Minute = 00 ~ 59
[Duration] = 01 ~ 99 (99 = Morning Call)
Note: If the Duration is not 99, then the Morning
Call function will become Alarm function.
Own Station Alarm (Must be a Display Handset)
Handset on Hook.
Press [FUNC]+[9]. If it is the Console, press
[FUNC]+[9]+[9].
Set Time and Duration: *[hh]+[mm]+[Duration].
Press [SAVE]+[SPK].
Note: If the Duration is not 99, then the Morning
Call function will become Alarm function.
Intercom Call
Normal Call Lift handset or press [SPK].
Dial Station Number or press DSS button.
Intercom Hot Line Call For programming function Zone 508, refer to
your dealer.
When programmed, lift handset or press [SPK].
Call Operator Lift handset or press [SPK].
Press [0] or [9] (depending on programming).
Hot Line Call Operator For programming function Zone 505, refer to
your dealer.
When programmed, lift handset or press [SPK].
Lock/Unlock Your Telephone
Lock/Unlock Press [FUNC]+[3].
Key in security number (maximum of 3 digits: For
programming function Zone 248 ,refer to your
dealer).
When programmed, press [SAVE].
Temporary Unlock Press [FUNC]+[4].
Key in security number (maximum of 3 digits: this
will provide CO access for one (1) call).

9
Macro Key Assignment
Handset on hook.
Press [FUNC]+[7].
Press one DSS key from DSS16 ~ DSS25.
Press keys in sequence.
Press [SAVE].
To Cancel Macro Key Handset on hook.
Press [FUNC]+[7].
Press one DSS key from DSS16 ~ DSS25 that
has already been programmed as a Macro Key.
Press [REDIAL].
Message Lamp On Call an internal station which is engaged or does
not answer.
Press DSS key assigned for [MW] button. If no
[MW] button, refer to your dealer for
programming.
Answering Message If the called station is busy, the Message Waiting
Lamp On Indicator will flash. After this station is free it
will recall to the station which leaves the
message. Once the leaving message station
answers the recall, these 2 stations can talk to
each other.
If the called station does not answer, the
Message Waiting indicator will flash. Once the
called station presses the [MW] key and recall to
the station which leaves the message, these 2
stations can talk to each other.
Message Text
Enable Press [FUNC]+[HOLD].
Select Message Code *[0 ~ 6].
Press [SAVE] (messages will be displayed on
caller’s display phone).
Message Codes
(depending on EPROM Version):
TYPE A: TYPE B:
0 In A Meeting 0 Reserved
1Do Not Disturb 1 Do Not Disturb
2 At Lunch 2 Back At
3 Will Be Back 3 Not in Office
4 Call 4 Return On
5 Vacation 5 Ring My Mobile
6 Business Trip 6 Call
Disable Press [FUNC]+[HOLD]+[SPK].

10
Monitor To activate Zone 504-ST-02 refer to your dealer
for programming.
Once programmed, lift handset and dial number.
If the station or CO line is busy, press [#].
During monitoring, the monitoring party can hear
the existing conversation from the two monitored
parties, but the monitored parties cannot hear
the monitoring party.
Mute Lift handset.
Press [SPK] to enable/disable Mute function.
Note: Enable Disconnects microphone
Disable Restores microphone if using
Handsfree, use [AT/MIC] button to
mute line.
Outgoing Call
Individual CO Access Lift handset or press [SPK]+[CO]
Dial required telephone number
or
Lift handset or press [SPK].
Press [#]+[*LR Code].
* Line Representative Codes:
DV-22……401 ~ 406
DV-38……401 ~ 412 (PSTN/BRI/GSM) ~ 432(PRI)
DV-96……401 ~ 416 (PSTN/BRI/GSM) ~ 442(PRI)
AV-20…….401 ~ 404
AV-38…….401 ~ 412
AV-48…….401 ~ 408
AV-64…….401 ~ 420
AV-96…….401 ~ 420
AV-256…...401 ~ 440
Dial required telephone number.
Hot Line Call To activate Zone 508 refer to your dealer for
programming.
Once programmed, press [#]+[5]+[0] to
start/cancel this function.
Override To activate Zone 504-ST-01 refer to your dealer
for Programming.
Once programmed, lift handset and dial number.
If the station or CO line is busy, press [0].
An override tone will be heard on the overridden
station. During overriding, three parties can
have a conference.

11
Paging
General Paging Lift handset.
Press [#].
Dial Paging Code*.
Paging Codes: 0 =All Internal and External Zone Paging
1 = All Internal Zone Paging
2= 2 + Internal Zone Number [1 ~ 8]
3= 3 + External Zone Number [1 ~ 8]
9 = All External Zone Paging
Quick Paging Lift handset.
Press [PAGE] (pages through all).
Page Answering Lift handset.
Press [#]+[*] or [BE PAGED].
Pick Up
General Pick Up Lift handset.
Press [*].
Insert Pick Up Code*.
Pick Up Codes: 0 = All Zone Pick Up
1 = Own Zone Pick Up
2= 2 + Station Zone Number [1 ~ 8]
3 = 3 + Ringing Zone Number [1 ~ 8]
4 = 4 + CO Number
Quick Pick Up
All Zones Lift handset.
Dial ringing station number.
Press [PICK UP] or press [*] + [0].
Own Zone Lift handset.
Press [PICK UP] or press [*] + [1].
Defined Zone Lift handset.
Press [PICK UP] or press [*] + [2].
Defined Station Lift handset.
Press [PICK UP] or press [*] + [3].
Defined CO lines Lift handset.
Press [PICK UP] or press [*] + [4].
Pick up CO lines Lift handset.
Refer to Programming Manual Zone
506-ST-06

12
Redial
Last Number Redial Press [REDIAL].
Caller Number Redial Search the correct caller ID number on display.
Press [REDIAL].
Auto Redial Refer to Programming Manual for programming
To Store Numbers of DSS button to Store Numbers function.
If the called party does not answer, press DSS
button programmed as SAVE (Auto Save) will
show on display handsets).
A maximum of five (5) telephone numbers can be
stored.
Auto Retry of Busy (Handset off Hook) Press DSS button + [SAVE].
Number (Handset on Hook) Press [SAVE] and system
will automatically retry the same number.
Auto Redial Stored Refer to Programming Manual for programming
Numbers of DSS button for Auto Redial Stored Numbers
function.
Press the DSS button programmed for Auto
Redial of Stored Numbers.
The numbers will be redialed in order until a
connection is made or the pre-programmed
number of attempts has been reached.
Release Calls
With handset
Replace handset.
Handsfree
Press [SPK].
Flash Function During external call dialing, press [TRF/FL] to
terminate call and retain the same CO line.
DSS CO LED will remain on.
Retrieve Normal Call From Hold
Internal Call Lift handset or press [SPK].
Press [ST] or [Held Station’s Number].
External Call Lift handset or press [SPK].
Press [CO] or [#]+[*CO Line Representative
Code].

13
* Line Representative Codes:
DV-22……401 ~ 406
DV-38……401 ~ 412 (PSTN/BRI/GSM) ~ 432(PRI)
DV-96……401 ~ 416 (PSTN/BRI/GSM) ~ 442(PRI)
AV-20……401 ~ 404
AV-38……401 ~ 412
AV-48…….401 ~ 408
AV-64…….401 ~ 420
AV-96…….401 ~ 420
AV-256…...401 ~ 440
Speed Dial
(There are two types of Speed Dial numbers)
System Speed Dial These numbers can be accessed by any
handset.
Personal Speed Dial A maximum of 20 numbers can be stored in each
handset:10 numbers = DSS1 ~ DSS10
Digit numbers = 0 ~ 9
System Speed Dial Press [FUNC]+[SPD]+[1].
Programming Enter a 3-digit number [100 ~ 699] (depending
(Console Only) on programming).
Enter [0]+[0].
Enter telephone number.
Press [SAVE] (if Name Speed Dialing enabled,
enter name then press [SAVE]).
Press [SPK] to end.
Personal Speed Dial Press [FUNC]+[SPD] (enter [2] if console).
Programming Press DSS button [DSS1 ~ DSS10] or dial
Speed Dial Number [0 ~ 9].
Enter telephone number.
Press [SAVE] (if Name Speed Dialing enabled,
enter name then press [SAVE]).
Press [SPK] to end.
Accessing Stored Speed Dial Numbers
System Speed Dial Press [SPD].
Operation Select Speed Dial Code [100 ~ 699] (Code is
dependent upon System Programming).
Personal Speed Dial Operation
Press [SPD].
Select Speed Dial Code [0]+[0 ~ 9] or [DSS1 ~
DSS10] key (as programmed).

14
Name Speed Dialing (Console Only Operation)
(Refer to System Administrator’s Manual)
Handset on Hook.
Press DSS button programmed for Name Speed
Dial.
Enter the first character of the name.
Press [DSS1] to confirm entry.
Press [DSS1] to search backwards, press [DSS2]
to search forward.
When the desired name is selected, press [SPK]
to run Name SPD function.
Station Operation Help List
(Display Phones Only) Press [FUNC]+[0].
Note: Pressing [0] when Station Operation
Function name is displayed will operate the same
as Station Operation Function.
Transfer
Direct Transfer Press [HOLD].
Dial extension number.
Press [TRF/FL] button.
Indirect Transfer Press [HOLD]
Dial extension number and make sure the called
party answered.
Press [TRF/FL] button.
Auto Transfer Press [PAGE]
Announce the Called Party and make sure the
called party answered.
Press [TRF/FL] button.
Volume/Frequency Control (Static Control)
Press [FUNC]+[8]+[Code]**. Refer codes 1 - 4
below.
Use indicators on [VOL] button to adjust
volume level/select ringing frequency.
Press [SAVE].
Codes:
1 = Ringing Volume Level Selection (1 ~ 8 levels)
2= Speaker Volume Level Selection (1 ~ 8
levels)
3= Handset Volume Level Selection (1 ~ 8
levels)
4= Ringing Frequency Selection (1 ~ 9 levels)

15
Volume/Frequency Control (Dynamic Control)
Ringing Volume Level During Ringing, press indicators on [VOL]
button to adjust Volume level.
Speaker Volume Level During hearing audio from speaker, press
indicators on [VOL] button to adjust Volume
level.
Handset Volume Level During hearing audio from Handset, press
indicators on [VOL] button to adjust Volume
level.

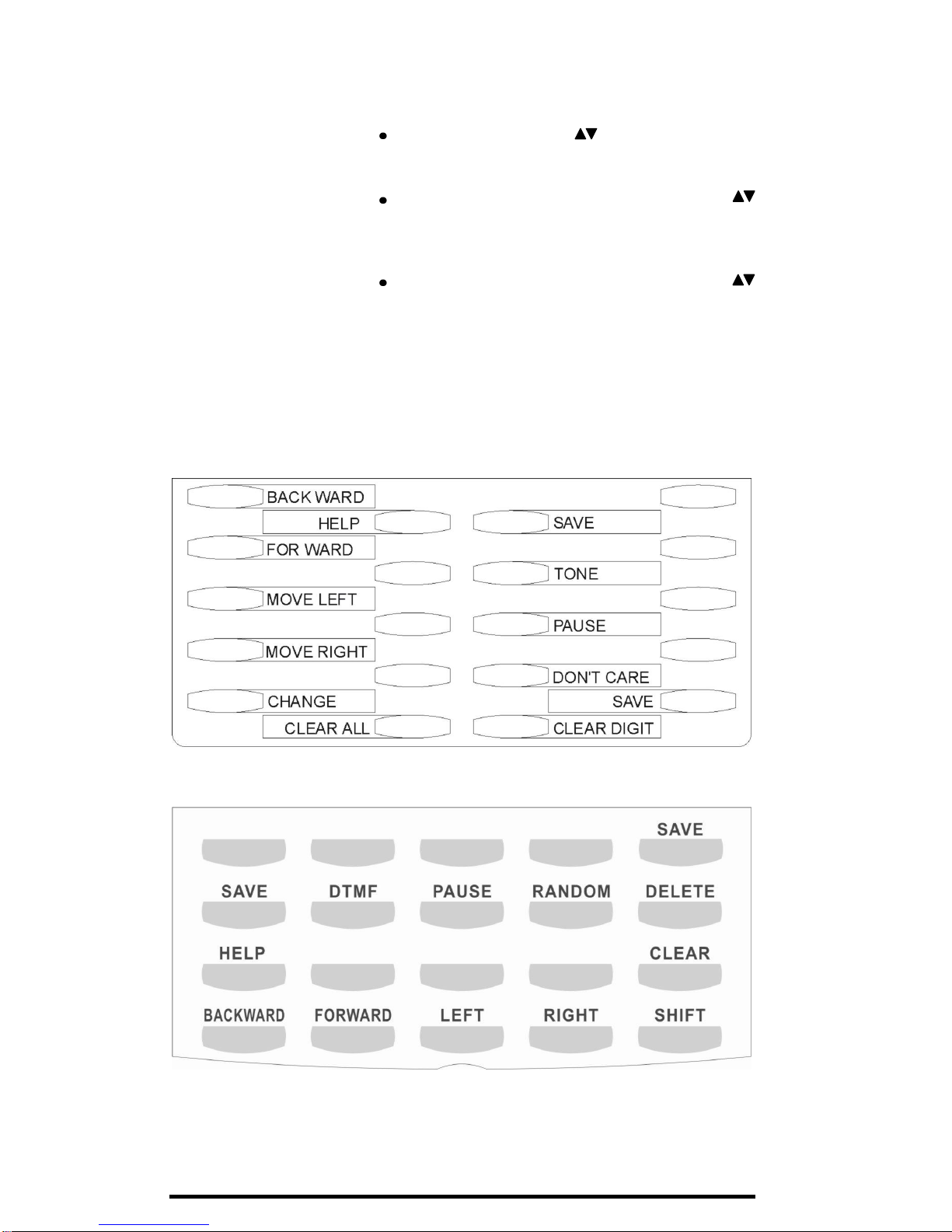

DSS Button Layout
(DSS For Programming Function)
For 50 Series Key Phones
For 70 Series Key Phones
