ARRI L10-C User manual

L-Series®
L10
User Manual
December 2017

© 2015 - 2017 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All rights reserved.
No part of this document may be used for distribution, reproduction, transmission, transcription, storage in a data retrieval sys-
tem, or translated into any language in any form by any means without the prior written permission of ARRI®. If you are down-
loading files from our web pages for your personal use, make sure to check for updated versions. ARRI®cannot take any
liability whatsoever for downloaded files, as technical data are subject to change without notice.
L5.0006896
L03124

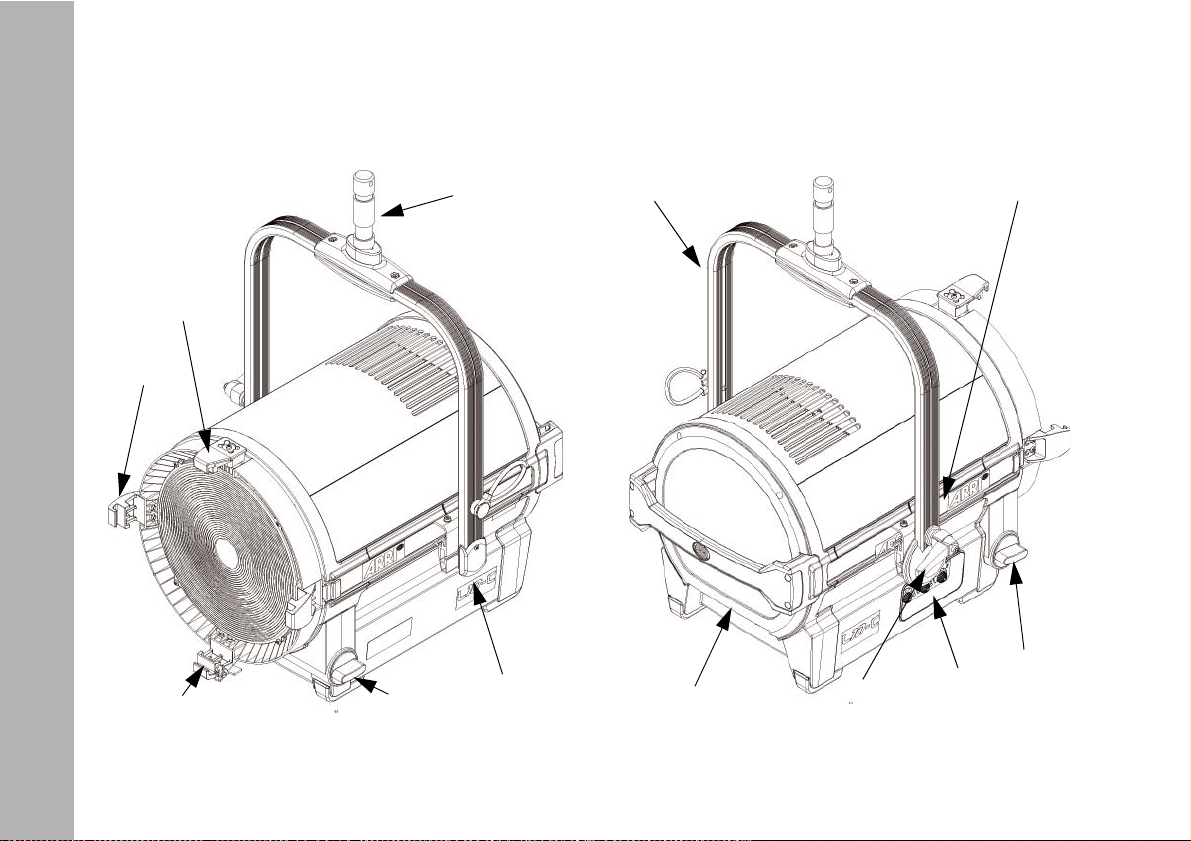

Dimensions
3
Dimensions

Content
4
Content
Dimensions ..................................................................................................................................................... 3
Safety Information .......................................................................................................................................... 6
Explanations of Warning Signs and Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Specific Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Legal disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Introduction .................................................................................................................................................. 10
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Overview ....................................................................................................................................................... 12
Physical Installation ..................................................................................................................................... 14
To adjust the stirrup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
To mount the spigot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Basic features ............................................................................................................................................... 15
Control options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Power ............................................................................................................................................................ 17
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Fixture menu ................................................................................................................................................. 18
Overview of the fixture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Features of the fixture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
To read out fixture information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Content
5
Short cuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DMX control .................................................................................................................................................. 23
DMX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
DMX data link ................................................................................................................................................ 24
Tips for reliable data transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
To connect the data link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Fixture Menu ................................................................................................................................................. 26
Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Fixture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
RDM commands ........................................................................................................................................... 29
Required RDM command extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Manufacturer commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ARRI Lighting Service Manager .................................................................................................................. 32
Error messages ............................................................................................................................................ 33
DMX protocol ................................................................................................................................................ 34
ARRI L10-TT (Tungsten Tuneable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ARRI L10-DT (Daylight Tuneable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ARRI L10-C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Specifications ............................................................................................................................................... 47

Safety Information
6
Safety Information
Always follow these instructions to protect against
injury to yourself and damage to the product or other
objects.
Explanations of Warning Signs and Indications
Possible risk of injury or damage to equipment.
Risk of fire or electric shock. Possible risk of injury or
damage to equipment.
Caution! Hot surface. Possible high surface tempera-
ture. Risk of injury through burns.
Caution! High intensity light emission. Risk of eye
injury.
Note: Indicates further information.
General Notes
• This document contains important instructions and notes to
handle the product safe.
• Always follow all safety information for your own protection.
• Please contact a trained ARRI®service technician to do any
service and maintenance not described in this manual
• Please follow the user manual of accessories and third party
accessories, like motorized yokes. They contain important
safety and security information.
• Read the user manual and installation manual which are
shipped with accessories for the ARRI®L-Series®.
• Retain this user manual and all user and installation manuals
shipped with the system for further reference and possible
new owners of this product.
• ARRI®L-Series®products are intended for professional use
and may only be operated by qualified persons. They are not
for household use.
• Help protecting the environment by disposing the package
material at your local recycling center.
• All components comply to the guidelines listed below:
Low voltage directive 2014/35/EU
EMC directive 2014/30/EU
RoHS directive 2011/65/EU

Safety Information
7
General Safety Information
Read and understand all safety information and oper-
ation instructions before you operate or install the
product or the system.
Use only genuine spare parts or accessories that
have been recommended or approved by ARRI.
Other accessories or spare parts may cause hazards,
damage the product or invalidate the warranty.
Check all cables and devices for visible damage
before you work with the system. Defective electric or
electronic devices must not be used. Take special
care of the following components:
If the product or accessory is visibly damaged, the
product or accessory must no longer be used.
Replace or repair the respective part. In case of
repairs, please contact an authorized ARRI service
center.
Never attempt to repair any part of the product on
your own. Maintenance and repair work is only to be
carried out by an authorized ARRI service center.
Do not operate the product if the ambient tempera-
ture exceeds 45° C (113° F). Observe all information
given in chapter “Specification” on page 47.
Do not expose the product to rain or moisture. Do not
use the product for 2 h when it was exposed to big
temperature differences as condensed moisture may
damage the product electrically when switched on.
Do not bypass any safety feature of the product.
Do not open the product. There are no user service-
able parts inside. The housing is sealed with an adhe-
sive seal that will break immediately when trying to
open the housing. Doing so will invalidate the war-
ranty.
Component Possible damage
Housing, lens Cracks, cuts, deformation
Cables Cuts, deformation, burns
Connectors Cracks, deformation, burns
Cable connectors Damaged
Threads Damaged

Safety Information
8
In addition to regular visible checks ARRI recom-
mends that all electric components are checked for
electrical safety by a professional every 12 month.
Keep the protocol of the check.
Specific Safety Information
Intensive use can cause the surface and the heat sink
to become warm. Let the product cool down complete
before you handle it.
Never cover air vents and the heat sink during opera-
tion. Keep a minimum clearance around the product
of 0.5 m (1.65 ft).
WARNING! Intense light. Never look direct into the
light source.
Never point a light beam from another luminaire into
the light source. Do not place the product on heat
sources. Intense heat cause automatic power off
during operation.
WARNING! The stirrup must be mounted hanging or
standing vertically. Lateral load can cause deforma-
tion or breaking of the spigot and the stirrup.
Devices and accessories must be secured against fall
when mounted above floor level. Always observe
common and local safety regulations.
Never use the cables for transportation. Never hang
the product on its cables.
CAUTION! High voltage! Always disconnect the prod-
uct complete from mains voltage before you connect
or disconnect a cable.
Always check that the local AC power matches the
voltage and frequency range printed on the type label
of the product before use. Never use the product
when the AC power does not match.
The product must not be used on a surface without a
skid (accessory) mounted. To do so causes overheat-
ing.
Never connect the product to a dimmer-system or a
dimmer-channel in non-dim mode. To do so will dam-
age the electronics. Damages caused by connecting
the product to a not suitable power source are not
covered by the warranty.
Always keep cables away from the product during
operation. Do not tilt the power cable directly after the
connector. Water could immerse and cause short cir-
cuits and damage the connector.
Disconnect all cables prior to transport.

Safety Information
9
Not to observe these safety information or to ignore
common sense may cause serious injury or even
death. Damage to the product or other devices is pos-
sible.
Please observe the information given in the „Safety leaflet
ARRI lampheads“ (L5.40731.E). The leaflet is available for
download on our web site www.arri.com.
Maintenance Information
• Do not clean the surface of theproduct with solventsorstrong
detergents.
• Clean the product with a soft cloth wetted with a mild deter-
gent. Do not rub the surface: lift stuck particles off with a soft
repeated press.
• Clean soiled electric contacts with cotton swabs wetted with
isopropyl alcohol.
• Keep electric contacts clean and replace corroded parts.
Legal disclaimer
© 2015 Arnold & Richter Cine Technik GmbH & Co. Betriebs
KG (ARRI). All rights reserved. Information subject to change
without notice. ARRI and all affiliated companies disclaim liabil-
ity for any injury, damage, direct or indirect loss, consequential
or economic loss or any other loss occasioned by the use of,
inability to use or reliance on the information contained in this
document. The ARRI logo, the ARRI name and all other trade-
marks in this document pertaining to services or products by
ARRI or its affiliates and subsidiaries are trademarks or li-
censed by ARRI or its affiliates or subsidiaries.
ARRI and the ARRI logo are registered trademarks of the
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
Intended use
This product is intended to illuminate persons and objects in a
dry environment.
Always follow the safety information.
Anyusageotherthan describedabove is notpermittedand can
damage the product and lead to associated risks such as short-
circuit, fire, electric shock, etc. You are not allowed to modify
the product.
This product fulfills European and national requirements.

Introduction
10
Introduction
Thank you for selecting a LED luminaire of the L-Series from
ARRI. The L10 is a fresnel-luminaire equipped with a high
precision, micro-processor controlled LED light source. LED
luminaires are much more efficient than light sources with
conventional tungsten lamps. They are a perfect and easy
replacement for conventional fresnel-luminaires with tungsten
lamps.
The L-Series LED luminaires combine the advantages of the
LED technology with the ease of use of a traditional fresnel-
luminaire. The L10 integrates seamless into established work-
ing practice. The optical system offers real fresnel characteris-
tics with an extreme smooth beam and clean shadows. The
half peak angle can be adjusted continuously from 15° - 50°.
The L10 emits white or colored light with adjustable color tem-
perature and adjustable green / magenta saturation. Please
find more detailed information in the section “Specification” on
page 47. The light spectrum is optimized for excellent color
rendition and fulfills perfect the demands of modern, digital
cameras. All models of the L10 can be controlled using the
common DMX512-A protocol or the fixture menu.
The L10 can be powered by AC power. Please find more de-
tailed information in the section “Power” on page 17.
Features
Focus
Traditional fresnel-luminaires are able to spot and flood the
beam as needed. Whether it is a flood field for a pullback or a
tight spot for a bright highlight, the continuous focusability of
the L10 performs just as expected.
Versatile beam characteristics
The L10 provides the same ability as conventional fresnel-lumi-
naires to cut set elements and shape the beam with barndoors
and flags.
Even light field
Clean, defined shadows have traditionally been a trait of single
source tungsten and daylight fixtures. L10 fresnel-luminaires
provide the same single shadow properties lighting designers
expect, delivering natural results.
Vibrant colors, full spectrum lighting
True-to-life color rendition is an outstanding feature of the
L10, comparable to a full spectrum tungsten source. The fully
tuneable white light of the L10-C can be adjusted for different
skin tones, camera sensors and mixed light environments. Full
gamut color mixing enables the rendition of all color shades,
making color filters dispensible.
Cool light beam
Like all LED light sources the L10 does emit nearly no infrared
or UV radiation and thus does not forward heat, making actors
feel comfortable in the light beam.

Introduction
11
Properties
Focus knob
The TRUE BLUE®style focus knobs provide precise adjust-
ment and rapid flood-to-spot with only a few turns. Knobs on
both sides of the fixture ensure easy access from all positions.
Sliding stirrup
The sliding stirrup design enables precise compensation for
front end accessories.
Yoke
With an extreme slim profile, the extruded aluminum yoke pro-
vides high strength without added weight. An optional, pole
operated yoke allows full operation of pan and tilt from the floor
and is therefore a popular choice for many studios.
Tilt-lock
The high strength tilt-lock provides extreme secure locking. It
eliminates movement and slippage and ensures that the light
beam will stay where you put it.
DMX-control
All functions of the L10 are controllable through DMX. The L10
is also fully RDM compatible and is equipped with a feedback
channel for reporting all set parameters including system sta-
tus.
Fixture menu
For location applications the L10 is equipped with a fixture
menu for manual adjustment of intensity, color temperature
and plus/minus green as well as hue and saturation (functions
available depending on type).
Unpacking
The L10 is supplied with:
• Power cable with power plug or bare ends
• Stirrup
• 28 mm spigot (mounted on p.o. stirrups)
• Short instruction
Please refer to the section “Accessories” on page 48 for more
information about optional accessories.

Overview
12
Overview
Stirrup bracket
Spigot
Top latch
Safety catch Focus knob
Latch
Stirrup Tilt lock
Tilt lock lever
Focus knob
Fixture menu
Connectors
Front view and back view, manual version

Overview
13
Pan
Tilt
Focus
Back view, p.o. version

Physical Installation
14
Physical Installation
WARNING! Attach an approved safety-cable to
secure the product against clamp or bracket failure.
Lead the safety-cable through the stirrup and keep it
as short as possible. The safety-cable needs to be
approved at least 10 times the weight of the product
including all accessories mounted at the product.
Secure all accessories mounted at the product with
additional safety-cables to protect them from fall
down and cause injuries and damages.
WARNING! The rigging structure needs to be
approved for at least 10 times the weight of all
devices, equipment and cables installed on it.
CAUTION! Block access below the work area and
work from a stable platform whenever installing, ser-
vicing or moving the product or accessories.
IMPORTANT! Do not illuminate the display and the
fresnel-lens by high power light beams from a short
distance. The display and the light engine are dam-
aged by high brightness and heat radiation within
very short time.
To adjust the stirrup
You need
• a Torx20 screw driver,
• a 10 mm allen key and
• a torque wrench (37 ft-lbs)
to adjust the stirrup.
On delivery the stirrup is in the basic position (tilted back).
Loosen the Torx20 screws on both sides of the stirrup bracket
slightly and pull the stirrup bracket towards the rear of the pro-
duct. Loosen the lever of the tilt-lock and tilt the stirrup
upwards.
Slide the stirrup to the point of balance. The point of balance is
dependent on the accessories mountedat the product. Tighten
both Torx20 screws of the stirrup brackets. Do not overtighten
the screws. Tilt the stirrup to the desired position and tighten
the tilt-lock by using the lever. For better leverage, press the
knob on the tilt-lock-lever and turn the lever to the desired po-
sition.
To mount the spigot
Place the spigot and the distance plate on the 13 mm hole in
the middle of the stirrup. Insert the allen screw with washer and
spring washer and tighten it with a torque wrench to 37 ft-lbs
torque.

Basic features
15
To mount the device
Alwaysobserveallsafety informationlistedinsection“Physical
Installation” on page 14 when you mount the product and
accessories:
• Be aware of the maximum tilt angle 90° upwards and 90°
downwards.
Ensure that you install all accessories correct when you mount
the product above floor level:
• Top latched locked, safety catch snapped in.
• Set up tripods in a stable position. Tripods need to be ap-
proved for the load they need to carry.
• Always observe the additional load of cables and accesso-
ries!
Please observe the information given in the „Safety leaflet
ARRI lampheads“ (L5.40731.E), which is available for down-
load on our web site www.arri.com.
Basic features
Pan and tilt
Loosethe mounting screw of the tripod orthe appropriate fixing
screw of the mounting clamp to pan the L10. Tighten the screw
toavoid unintendedmovement. Loosethe tilt-lockto tiltthe L10
to the desired angle. Tighten the tilt-lock-lever to avoid unin-
tended movement.
To adjust the beam angle
Turn one of the focus knobs beneath the lens tube to adjust the
beam angle continuously. The entire lens tube moves in and
out. Two mechanisms protect the product from being dam-
aged:
• A predetermined braking point prevents the product from
damage, when the focus knob is turned with too high torque
at either end of the focus range.
• The self-impeding focus gear prevents the lens tube to move
itself in or out when the product is operated in a tilted position.
Use of accessories for beam shaping and light design
You can mount accessories such as a barndoor, filter holder or
scrim on the front side of the L10:
• Firmly press the button at the side of the top latch to open the
top latch.
•Inserttheaccessoryfromtheupside intothebracketsuntilthe
safety catch engages. Slightly tilt the safety catch with your
finger for support.

Basic features
16
• Close the top latch. Make sure that the hook of the top latch
engages into the holding ring of the accessory.
DMX/RDM-interface
The L10 has a DMX/RDM-interface. It has 5-pin XLR connec-
tors for DMX/RDM data input andthroughput. Please find more
detailed information to establish a DMX/RDM data-link in sec-
tion “DMX data link” on page 24.
USB-interface
The L10 a mini-USB connector to upload firmware and set pa-
rameters. The USB-interface can be used for service purpose
like download error reports and set certain data. To do so you
need a software tool, the ARRI Lighting Service Manager
ALSM.
Download it free of charge from the ARRI web site
www.arri.com.
Please find more detailed information to work with the ALSM in
the user manual of the software. The manual is included in the
download package.
To turn on and use the product
Turn on the power switch or connect the L10 to AC power. The
L10initializesfor some secondsand is readyforoperation.The
L10 will operate with the settings made on the fixture menu or
received by DMX. Please observe the following section to use
the L10.
Control options
You can set up or control the L10 with the options listed in the
table below:
Connector Panel
Option Control Configuration Information
Fixture menu yes yes page 18
DMX yes no page 23
RDM no yes page 29
ALSM no yes page 32
1 Power connector
2 DMX input
3 DMX through
4 USB connector
134
2

Power
17
Power
WARNING! For protection from electric shock, always
connect the product electrically to ground (earth)
when connected to AC power. The AC mains power
supply must be fitted with a fuse or circuit breaker
and ground-fault (earth-fault) protection.
IMPORTANT! Ensure that persons do not look at the
light emission aperture when the product is con-
nected to AC power. The product can light up sud-
denly. The high intensity of the product can cause eye
irritation or injury when not respecting the safety dis-
tance.
IMPORTANT! Always connect the product direct to
AC power. Do not connect it to a dimmer-system.
Doing so will damage the product.
AC power
The L10 has an auto-sensing switch-mode power supply that
automatically adapts to AC power at
90 - 264 V ~, 45 - 65 Hz (nom.).
Before you connect the L10 to AC power, check that:
• the dimmer knob at the fixture menu is set to 0%, and
• no DMX signal is present at the DMX-input of the L10.
You can hard-wire the L10 to a building electrical installation.
You can install a power plug that is suitable for the local power
outlets on the power cable. Socket outlets or external power
switches that supply the L10 with power must be located near
the product and easily accessible so that the L10 can easily be
disconnected from power.
The L10 requires a power input cable with a Neutrik®
PowerCON®True1 NAC3FX-W cable connector. Cable
requirements are listed in section “Specification” on page 47.
ARRI offers power cables with PowerCON®cable connectors
and different plugs or bare ends (see “Accessories” on
page 48).
To insert and remove the PowerCON®cable connector
• Line up the raised key of the connector and the keyway of the
input socket. Insert the cable connector without force in the
power input socket.
To insert the cable connector:
• Turn it a full quarter-turn clockwise.
To remove the cable connector:
• Push the connector lock backwards and turn the cable con-
nector counter-clockwise. Pull the cable connector out of the
power input socket.

Fixture menu
18
Fixture menu
Overview of the fixture menu
Features of the fixture menu

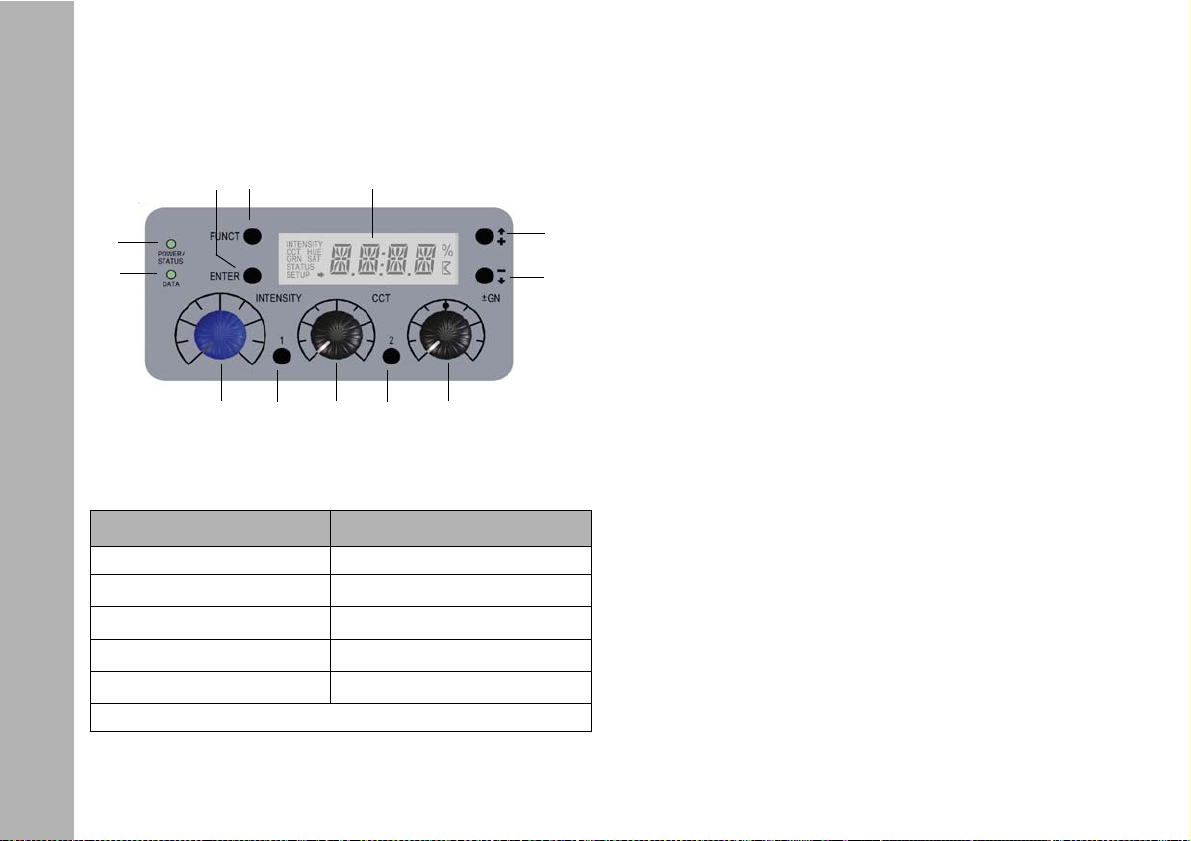

Status indicator POWER/STATUS (1):
DATA (2)
The DATA indicator lights blue, when a valid DMX signal
is detected on the DMX-input.
FUNCT (3)
The FUNCT button has two functions:
• Normal operation: Switches between CCT and HSI
mode (only ARRI L10-C).
• Fixture menu open: Jump UP one menu level.
ENTER (4)
The ENTER button has three functions:
• Normal operation: Activate blinking arrow for calling up
MEM1 or MEM2.
• Fixture menu open: OPEN next menu level, or
• Confirm a setting.
+ / [up] (5)
The + / [up] button navigates the menu or increases a value.
Press the button long to activate the fast-run feature.
- / [down](6)
The - / [down] button navigates the menu or decreases a value.
Press the button long to activate the fast-run feature.
INTENSITY (9)
The rotary knob sets the intensity level.
Color Indication
Green Fixture switched on. No error.
Red flashing (0,5s rhythm)*Warning fixture over temperature
Red*Fixture over temperature
Change from red to green*Fixture normal temperature
Red flashing (0,25s rhythm)*Calibration data not loaded
*Display lights up red when STATUS-LED is lit red
1
2
3
4
5
6
78 910 11
12

Fixture menu
19
CCT / HUE (10)
The rotary knob sets the color temperature (CCT) or the hue
(only ARRI L10-C in color mode).
GN / SAT (11)
The rotary knob sets the green/magenta saturation or the color
saturation (SAT, only ARRI L10-C in color mode).
MEMORY 1 and MEMORY 2 (7 and 8)
Activate or store a memory.
During operation the mode and recent values are displayed.
On the first menu level the values for INTENSITY, CCT/HUE
(only ARRI L10-C) and GN/SAT (only ARRI L10-C) can be re-
trieved via the + / [up]/- / [down] buttons. The menu STATUS,
confirmed with ENTER, calls up the next level which displays
information on faultless operation and the temperature of the
light engine. To retrieve values for operating hours, DMX-ver-
sion and firmware-version, press ENTER to call up the third
level. The FUNCT button jumps up one menu level.
A detailed overview of the fixture menu is listed in section
“Fixture Menu” on page 26.
To set the operation mode (only L10-C)
Press the FUNCT button to switch from CCT mode to HSI
mode and vice versa.
IN CCT mode the L10 generates white light with optimized col-
or rendition. In HSI mode the L10 generates colored light. If sat-
uration is set very low, the L10 generates white light, but not
with optimized color rendition.
To set the color temperature and green/magenta
saturation in CCT mode
Set the color temperature continuously with the rotary knob
CCT/HUE.Setthe green/magentasaturation continuouslywith
the rotary knob GN/SAT.
Press the + / [up] or - / [down] button until GRN is displayed left
in the display (e.g. +0.23) to retrieve the currently set green/
magenta value. The color temperature is always displayed
(e.g. 4.150K).
To set the color in HSI mode (only ARRI L10-C)
Set the hue continuously with the rotary knob CCT/HUE. Set
the saturation continuously with the rotary knob GN/SAT.
Press the + / [up] or - / [down] button until SAT is displayed left
in the display (e.g. 45) to retrieve the currently set saturation
value. The hue is always displayed (e.g. 118°).
To set the brightness in both operating modes
Set the brightness in both operating modes continuously with
the rotary knob INTENSITY
Press the + / [up] or - / [down] button until INTENSITY is dis-
played left in the display (e.g. 24%) to retrieve the currently set
brightness value.

Fixture menu
20
To set the fan mode
Set the fan mode using the fixture menu:
•Pressthe +/[up] or -/[down] button,untilSETUPisdisplayed
left in the display.
•Confirm withthe ENTER button. Pressthe +/ [up]or -/[down]
button until FAN is displayed.
• Confirm with the ENTER button. The current fan mode is
displayed.
• Press the + / [up] or - / [down] button to select the fan mode
(see the table below). Confirm the selected mode with the
ENTER button. The fan mode is activated immediately.
• Press the FUNCT button two times to leave the menu.
To set the DMX address
•Pressthe + /[up]or - /[down] button, untilSETUP is displayed
left in the display.
•Confirm withthe ENTERbutton. Press the+ / [up]or - / [down]
button until DMX is displayed.
•Confirm withthe ENTERbutton. Press the+ / [up]or - / [down]
button until CHAN is displayed.
• Confirm with the ENTER button. The current DMX address is
displayed.
• Press the + / [up] or - / [down] button to select the DMX ad-
dress. Confirm the selected address with the ENTER button.
The DMX address blinks three times for confirmation.
• Press the FUNCT button to leave the menu.
To set the Signal lost behavior
Set the signal lost behavior:
•Pressthe + /[up]or - /[down] button, untilSETUP is displayed
left in the display.
•Confirm withthe ENTERbutton. Press the+ / [up]or - / [down]
button until DMX is displayed.
•Confirm withthe ENTERbutton. Press the+ / [up]or - / [down]
button until LSIG is displayed.
• Confirm with the ENTER button. The current setting is
displayed.
Fan mode Description
LOW Fan operates constantly at low speed (silent)
VARI The temperature of the light engine controls the fan speed. The fan starts running at app. 70%
brightness.
HI45
Use this mode for ambient temperatures up to
45° C / 113° F. The fan runs at maximum speed.
The maximum brightness is reduced by app.
15%.
