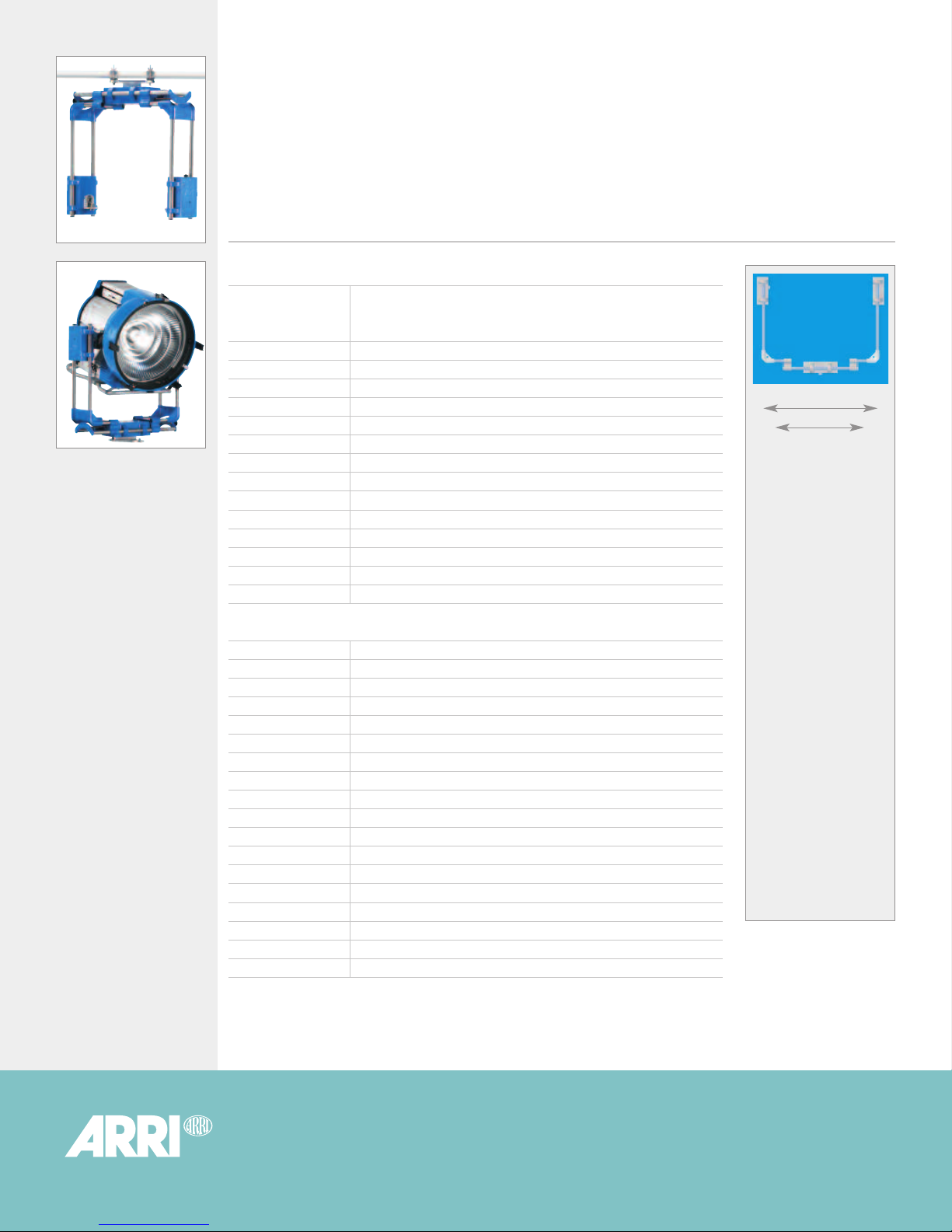

ARRI MAXMOVER Work Light User manual

MaxMover
.....
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........
........

Cat. No Description
563700 MaxMover; motorized stirrup (for 6kW-24kW ARRI lampheads), includes Universal
ARRI Adapter plate, Mega-Claw™mount, and ARRI analog controller for Pan,
Tilt & Focus with 130' (40m) control cable. Includes Roadcase.
563705 MaxMover Focus Unit; for 6kW-24kW ARRI lampheads
563710 DMX 512 Converter Control Box
563711 25' DMX Control Cable
563712 50' DMX Control Cable
563713 100' DMX Control Cable
563714 5' DMX Control Cable
563715 DMX 512 Hand Controller
563720 Adapter Plate for ARRISUN 60
563725 Adapter Plate for LTM 12/18kW Fresnel
563726 Adapter Plate for Mole 12/18kW Fresnel
563727 Adapter Plate for “Silver Bullet” 12/18kW Fresnel
563735 Adapter Plate for 12-Light Maxi Brute
563740 Mitchell Adapter Mount Plate
563790 Roadcase for MaxMover and Accessories (Included in 563700)
Specifications
Weight 82lb (37kg)
Size Height 38'' (965mm), Width 45.7'' (1160mm), Depth 11.8'' (300mm)
IP Rating IP54 / Protection class 1
Power Requirements 90-265V AC, 50/60Hz, 100VA
Max. Load 176lb (80kg)
Max. Fixture Width 34.6'' (0.88m)
Min. Fixture Width 21.2'' (0.54m)
Max. Speed: Pan/Tilt 360° /min. (1 rpm)
Min. Speed: Pan/Tilt 12.6° /min (0.035 rpm)
Max. Speed: Focus 16 rpm
Pivot Range: Pan Infinite: Adjustable slipping clutch stop (0-80Nm)
Pivot Range: Tilt Infinite: Adjustable slipping clutch stop (0-80Nm)
Pivot Range: Focus Infinite: Current overload/torque stops (5Nm)
Analog Controller ARRI Analog Controller for Pan, Tilt, & Focus (Standard)
DMX Controller Addressable Hand Controller (Optional)
DMX Interface DMX 512 Converter Control Box (Optional)
DMX Address Converter Box Assignment Buttons (Up/Down)
DMX Display Converter Box Address Display Window
For Use With:
ARRIMAX 18/12
ARRI 18/12 HMI Fresnel
ARRI 12000 HMI Fresnel
ARRI 6000 HMI Fresnel
ARRI 6000 Theatre Fresnel
ARRISUN 120
ARRISUN 60
(needs 563720)
ARRI X 60
ARRI T24
ARRI T12
ARRI T12 Theatre
LTM 12/18 Fresnel
(needs 563725)
Mole 12/18 Fresnel
(needs 563726)
“Silver Bullet” 12/18 Fresnel
(needs 563727)
12-Light Maxi Brute
(needs 563735)
34.6” (880mm)
21.2” (540mm)
Anew ARRI automated stirrup, MaxMover, offers remote pan, tilt and focus for large lighting fixtures. Most
large fixtures in your inventory can be fitted to the MaxMover and mounted on boom arms, tall platforms,
orin hard-to-reach positions. These fixtures can then be operated safely and conveniently from the ground using
asimple analog or optional DMX (wired or wireless) control. A convenient interlock system and variable width
adjustment feature allow for a variety of fixtures to be adapted to the MaxMover quickly on location.
MaxMover
At a Glance:
•Automated Stirrup
with Universal
Adapter Plate
•Variable Width
Adjustment
•Accommodates
Fixtures from
6kW-24kW
•Quick & Easy Set-up
•80kg/176lb Capacity
•Remote Control
included
•DMX Converter
optional
