Key Systems Technical Manual

Technical Manual
2
Table of Contents
The Access 3 Advantage ....................................................................................................... 3
AP Key Cuts.......................................................................................................................... 4
AS & AHS Key Cuts............................................................................................................... 5
Key Cutting Machines........................................................................................................... 6
Pinning Formula.................................................................................................................... 7
Construction Master Keying.................................................................................................. 8
Visual and Concealed Key Control ........................................................................................ 9
Access 3 Pin Kits ................................................................................................................. 10

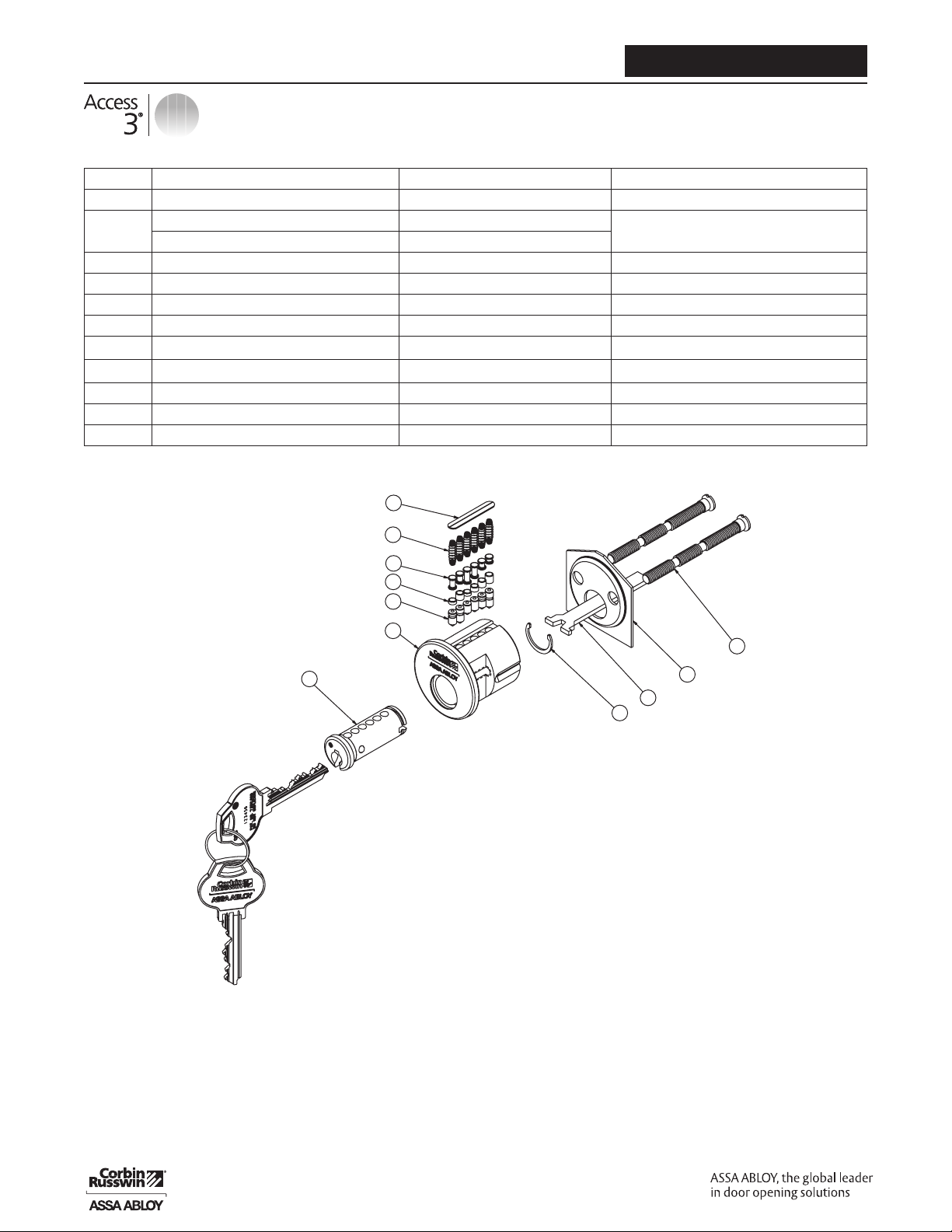

Cylinder Parts: AP - 3500 Series Rim.................................................................................... 11
Cylinder Parts: AS - 3600 Series Rim.................................................................................... 12
Cylinder Parts: AHS - 3700 Series Rim ................................................................................. 13
Cylinder Parts: AP - 1500 Series Mortise.............................................................................. 14
Cylinder Parts: AP - 1501 Series Mortise Hotel..................................................................... 15
Cylinder Parts: AS - 1600 Series Mortise.............................................................................. 16
Cylinder Parts: AS - 1601 Series Mortise Hotel..................................................................... 17
Cylinder Parts: AHS - 1700 Series Mortise .......................................................................... 18
Cylinder Parts: AHS - 1701 Series Mortise Hotel .................................................................. 19
Cylinder Parts: AP - 8500 Series LFIC Cores ......................................................................... 20
Cylinder Parts: AS - 8600 Series LFIC Cores ......................................................................... 21
Cylinder Parts: AHS - 8700 Series LFIC Cores....................................................................... 22
Cylinder Parts: AP - 2500 Series Component (Key-in-Knob/Lever) ........................................ 23
Cylinder Parts: AP - 2501 Series Component (Key-in-Knob/Lever) Hotel............................... 24
Cylinder Parts: AS - 2600 Series Component (Key-in-Knob/Lever) ........................................ 25
Cylinder Parts: AS - 2601 Series Component (Key-in-Knob/Lever) Hotel............................... 26
Cylinder Parts: AHS - 2700 Series Component (Key-in-Knob/Lever)...................................... 27
Cylinder Parts: AHS - 2701 Series Component (Key-in-Knob/Lever) Hotel ............................ 28

Technical Manual
3
The Access 3™Advantage
The Access 3 Key System
The patented Access 3 system from
Corbin Russwin provides the right level
of security for each opening in your
facility. Three levels of ANSI/BHMA Grade
1 protection, from patented keyway to
UL437 certified, secures every opening.
A common key for all three levels of
security enhances key control and
simplifies administrative procedures. Key
blanks are controlled through authorized
distribution and geographical protection
is available. Available for mortise,
rim, component and Large Format
Interchangeable Core (LFIC) cylinders,
Corbin Russwin offers the right Access 3
level of protection for every door in your
facility.
Benefits
• Patent protection from unauthorized
key duplication through 2027
• New keyway family protects system
integrity from legacy systems
• Keys are significantly stronger than
competitive systems
• User-friendly design with minimal
components provides easy field
service
• Availability in all existing Corbin
Russwin cylinder types provides cost-
effective upgrade for Corbin Russwin
facilities
• Bump resistance standard for all AP,
AS and AHS cylinders.
Access 3 (AP) features a utility patented
keyway. These cylinders easily retrofit into
existing hardware and are appropriate for
most applications. The keys for AP can
only open AP cylinders. AP cylinders are
protected against bumping.
Access 3 (AS) builds on the utility
patented keyway of AP and adds
patented side bar locking with unique
angled bottom pins that provide end
users with geographical exclusivity.
Cylinders provide protection against
bumping and picking. Because of
its superior key control and patent
protection until 2027, AS products are
recommended for use in conjunction
with AHS for new installations or when
retrofitting systems, including large
format interchangeable core systems.
Access 3 (AHS) combines the utility
patented keyway and side bar locking
with unique angled bottom pins that
provide end users with geographical
exclusivity, and adds certification to
UL437. They are classified as high security
because of their superior resistance to
physical attack and protection against
unauthorized key duplication. Because of
its superior key control, patent protection
until 2027, and physical strength, we
recommend AHS products for new high-
security installations or when retrofitting
systems, including large format
interchangeable core systems. Corbin
Russwin also offers anti-vandal and
high security locksets that complement
AHS cylinders for those openings most
vulnerable to attach.
IMPORTANT: Corbin Russwin AP key
systems are available with 7 depths of
cut while AS and AHS are only available
with 6 depths of cut. AP systems can
utilize all 7 depths in system design as
a way of increasing overall key system
size only if not integrated with AS and/
or AHS systems. If AP patent protection
is the only requirement in the key system
and there is no expectation of combining
with AS or AHS levels of security, then all
7 depths are available for use. If AP is to
be combined with AS and/or AHS only 6
depths of cut are available.

Technical Manual
4

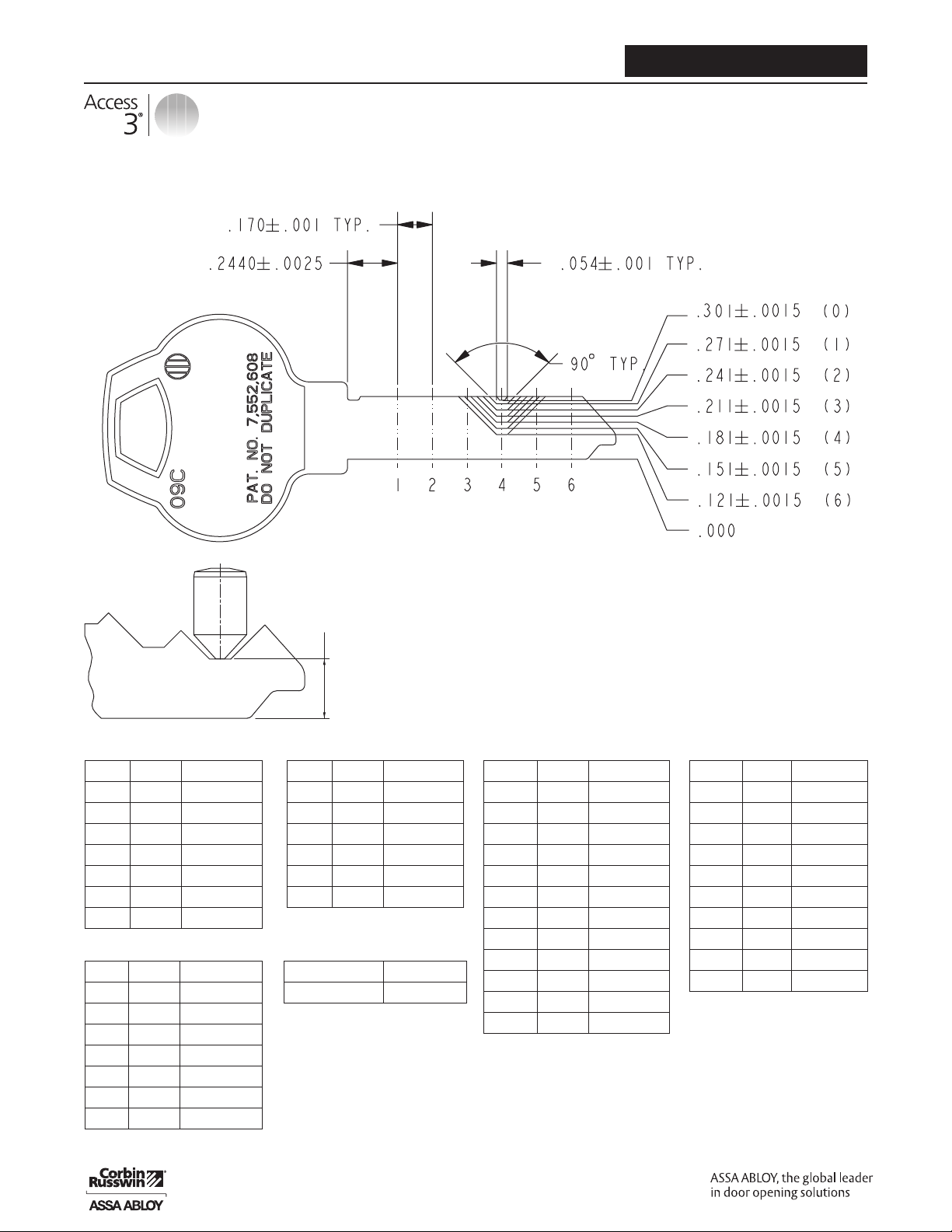

AP Key Cuts
AP cuts from Bow to Tip
MACS-4
Top Pin (TP)
Size # Length Part No.
Top #1 0.030 763F012030
Top #2 0.060 763F012060
Top #3 0.090 763F012090
Top #4 0.120 763F012120
Top #5 0.150 763F012150
Top #6 0.180 763F012180
Top #7 0.210 763F012210
Top #8 0.240 763F012240
Top #9 0.270 763F012270
Top #10 0.300 763F012300
Build Up Pins (BU)
Size # Length Part No.
BU #1 0.030 763F012030
BU #2 0.060 763F012060
BU #3 0.090 763F012090
BU #4 0.120 763F012120
BU #5 0.150 763F012150
BU #6 N/A N/A
BU #7 0.210 763F012210
BU #8 0.240 763F012240
BU #9 0.270 763F012270
BU #10 0.300 763F012300
BU #11 0.330 763F012330
BU #12 0.360 763F012360
Size # Length Part No.
0 .201 763F002213
1 .231 763F002243
2 .261 763F002273
3 .291 763F002303
4 .321 763F002333
5 .351 763F002363
6 .381 763F002393
Bottom Pins (BP)
Size # Length Part No.
1 .030 763F012030
2 .060 763F012060
3 .090 763F012090
4 .120 763F012120
5 .150 763F012150
6 .180 763F012180
Master Pins (MP)
Size # Length Part No.
BR #4 0.120 763F027120
BR #5 0.150 763F027150
BR#6 0.180 763F027180
BR#7 0.210 763F027210
BR#8 0.240 763F027240
BR#9 0.270 763F027270
BR#10 0.300 763F027300
Top Pin - Bump Resistant
Description Part No.
CMK 763F072
CMK Wafer
Depth Spec.
AP Key
Bottom Pin

Technical Manual
5
AS & AHS Key Cuts
AS & AHS cuts from Bow to Tip
MACS - 4
Bottom Pin (BP)
Size # Length Part No.
BP #1-C 0.231 763F052243
BP #1-L 0.231 763F042243
BP #1-R 0.231 763F062243
BP #2-C 0.261 763F052273
BP #2-L 0.261 763F042273
BP #2-R 0.261 763F062273
BP #3-C 0.291 763F052303
BP #3-L 0.291 763F042303
BP #3-R 0.291 763F062303
BP #4-C 0.321 763F052333
BP #4-L 0.321 763F042333
BP #4-R 0.321 763F062333
BP #5-C 0.351 763F052363
BP #5-L 0.351 763F042363
BP #5-R 0.351 763F062363
BP #6-C 0.381 763F052393
BP #6-L 0.381 763F042393
BP #6-R 0.381 763F062393
Top Pin (TP)
Size # Length Part No.
Top #1 0.030 763F012030
Top #2 0.060 763F012060
Top #3 0.090 763F012090
Top #4 0.120 763F032120
Top #5 0.150 763F037150
Top #6 0.180 763F037180
Top #7 0.210 763F032210
Top #8 0.240 763F032240
Top #9 0.270 763F032270
Build Up Pins (BU)
Size # Length Part No.
BU #1 0.030 763F012030
BU #2 0.060 763F012060
BU #3 0.090 763F012090
BU #4 0.120 763F012120
BU #5 0.150 763F012150
BU #6 N/A N/A
BU #7 0.210 763F012210
BU #8 0.240 763F012240
BU #9 0.270 763F012270
BU #10 0.300 763F012300
BU #11 0.330 763F012330
Size # Length Part No.
1 .030 763F012030
2 .060 763F012060
3 .090 763F012090
4 .120 763F012120
5 .150 763F012150
Master Pins (MP)
Description Part No.
CMK 763F072
CMK Wafer
Depth Spec
.
AS & AHS Key
Bottom Pin
Dimensions shown are to theoretical intersection

6
Key Cutting Machines Technical Manual
HPC Machines
Access 3
level
Key Cutting
Machine
Card # DSD# Cutter # Jaw
AP 1200 (Blitz) C391 N/A CW-90MC B
AS/AHS 1200 (Blitz) C392 N/A CW-1012 DJ-1
AP Code Max N/A DSD391 CW-90MC B
AS/AHS Code Max N/A DSD392 CW-1012 DJ-1
AP Tiger Shark N/A DSD391 CW-90MC STD
AS/AHS Tiger Shark N/A DSD392 CW-1012 DJ-1S
AP Blue Shark N/A DSD391 CW-90MC STD
AS/AHS Blue Shark N/A DSD392 CW-1012 DJ-1S
ITL Machines
Access 3
level
Key Cutting
Machine
Vice Insert Cutter #
AP 9700A 3 CW-1012
AS/AHS 9700A 3M3 CW-1012
Framon Machines
Access 3
level
Key Cutting
Machine
Kit*
AP KX-1 KX-DG104
AS/AHS KX-1 KX-DG204
* Each kit comes complete with cam, cutter, and vice insert

7
Pinning Formula Technical Manual
Instructions (Fixed Core and LFIC
Chambers 1,2, 5 & 6)
Bottom Pin = shallowest operating cut
Master Pin (if required) = Deepest minus
shallowest operating cut
(Plug Total = Bottom Pin + Master Pin)
Top Pin = 10 MINUS Plug Total
Note: “0” depth of cut only available for AP key
systems. Not used with AS or AHS.
Fixed Core Component Cylinders
Example
Master Key 1 2 3 4 6 4
Change Key 3 4 5 2 0 2
Top Pin (TP) 7 6 5 6 4 6
Master Pin (MP) 2 2 2 2 6 2
Bottom Pin (BP) 1 2 3 2 0 2
Large Format Interchangable Core Cylinders
Example
Control Key 1 5 5 4 3 2
Master Key 1 5 2 6 3 2
Change Key 3 1 4 3 1 5
Top Pin (TP) 7 5 2 3 7 5
Build Up Pin (BU) x x 7 4 x x
Master Pin (MP) 2 4 2 3 2 3
Bottom Pin (BP) 1 1 2 3 1 2
Bottom
Pin (BP) =
Shallowest
Operating Cut
Top Pin (TP)
10 MINUS
Plug Total
Fixed Core and
LFIC Chambers
1, 2, 5 & 6
Master Pin
(MP) =
Deepest Minus
Shallowest
Operating Cut
Plug Total (MP + BP)
Instructions (LFIC Control Chambers 3 & 4)
Bottom Pin = shallowest operating cut
Master Pin (if required) = Deepest minus
shallowest operating cut
(Plug Total = Bottom Pin + Master Pin)
Build Up Pin = Control Cut plus 6 minus Plug Total
Top Pin = 13 MINUS (PLUG TOTAL + BUILD UP PIN)
Note: “0” depth of cut only available for AP key systems.
Not used with AS or AHS.
Master Pin (MP) =
Deepest MINUS
Shallowest
Operating Cut
Top Pin (TP)
13 MINUS Plug
Total and
Build Up Pin
Build Up Pin (BU) =
Control Cut PLUS 6
MINUS Plug Total
LFIC Control
Chambers 3 & 4
Bottom
Pin (BP) =
Shallowest
Operating Cut
Plug Total (MP + BP)
Lost Ball/Wafer Construction Cylinder
1. In the construction lost wafer chamber use #5 cut for TMK and #6 cut for CMK
2. CMK cuts for the rest of the chambers are same as TMK cuts
3. “Donut” wafer is added in construction lost wafer chamber above bottom pin

8
Construction Master Keying Technical Manual
Access 3 cylinders when master keyed are offered with the
convenience of construction keying when specified. This is not
recommended with AHS key systems or any system where strict
key control and management is enforced.
Construction keying simplifies the process when the building
gets turned over. With this feature, the construction master
keyed cylinder is master keyed with a special construction
feature in one of the chambers. The plug is prepped in two
places along both sides of the same chamber containing the
construction feature. This allows the construction master key to
be used during the construction phases.
It is highly recommended that all construction keys are collected
and accounted for once the project is complete to protect the
integrity of the key system.
Construction master keys are to be specified and ordered
separately.
Construction master keyed orders will have all change keys
shipped separately from hardware.
Construction master keying is not available with hotel function
cylinders or large format interchangeable cores. If construction
keying is required for LFIC, specify temporary construction
keyed cores.
Construction Master Keying (Lost/Wafer Design) for AP, AS & AHS
Wafer
Cutaway cylinder showing construction
master key being used, putting the wafer
below the shear line while key is turned.
Note the two empty “donut” holes
on either side of the chamber.
Change key inserted in cylinder
putting the wafer above the shear line.
As change key rotates,
construction wafer falls into
“donut” hole in the side of plug.
Only construction wafer will
fall due to hole through its center.
This voids the construction feature.
Change key rotated to
position for extraction.
Construction key inserted after
wafer is trapped. Driver now
extends into plug chamber.
Construction key if used will not rotate.

9
Visual Key Control Technical Manual
For Multiplex Masterkey Systems (CR keyway family shown)
Nickel silver
Key Bow type 38
• Ordering example AP Key Blank:
XXXX-6PIN-38-AP
• Ordering example AS/AHS Key Blank:
XXXX-6PIN-38-AS60
• Ordering example Hotel Emergency key (Mortise Cylinders)
example: Keyway-6Pin-38-E2-AP
• Ordering example Hotel Emergency key (Key-in-lever cylinders)
example: Keyway-6Pin-38-E6-AS60
Back Side Stamping & Options
• Key set (VKC1), standard – unless otherwise indicated
• System registry number will be stamped on master keys unless otherwise indicated
• Concealed key control (CKC2) available on cylinders
• Visual Key Control VKC2 is available for level 1 (AP) only.
• Visual Key Control VKC3 and Concealed Key Control CKC3 not available
Key Section Code
(blind code
for keyway
designation)
Key Set Symbol
System
Registry
Number
Front Side Back Side
Keyway
Keyway

10
Access 3™Pin Kits Technical Manual
PK-30-AP Pinning Kit
The PK-30-AP Kit is used to pin AP fixed and LFIC cylinders. The heavy duty steel kit prevents pins from mixing.
The kit includes:
• 100 each of bottom pins sizes 0-6
• 100 each of build up pins 1-12
• 100 each of master pins sizes 1-6
• 100 each of top pins sizes 1-10
• 100 each of bump resistant pins sizes 4-10
• 100 tumbler springs – part number 763F617
• 100 sidebar spring - part number 756F817
• 50 #2-56 screw - part number 756F847
• 25 KIK/KIL spring cover – part number 756F858
• 25 each mortise/rim, LFIC spring cover – part number 756F722
• 10 Sidebar (8500 CYL.) – part number 763F565
• Tweezer – part number 239F368
• Access 3 Key decoder – part number 756F937
PK-30-MASTER Master Pinning Kit
The PK-30-MASTER “Master Kit” includes all pins needed to re-pin AP, AS and AHS cylinders.
The kit includes:
• 100 each of AP bottom pins sizes 0-6
• 100 each of angled bottom pins sizes 1-6 (L-C-R)
• 100 each of build up pins sizes 1-12
• 100 each of master pins sizes 1-6
• 100 each of top pins sizes 1-10
• 100 each of bump resistant pins sizes 4-10
• 100 tumbler springs – part number 763F617
• 50 #2-56 screw - part number 756F847
• 25 KIK/KIL spring cover – part number 756F858
• 25 mortise/rim, lfic spring cover – part number756F722
• 10 sidebar – part number756F807
• 10 sidebar (8500 CYL.) – part number 763F565
• 100 sidebar spring – part number756F817
• 50 slider spring – part number756F797
• Tweezer – part number 239F368
• Access 3 Key decoder – part number756F937
Note: CT-4 follower (size .509) may be ordered separately.

Technical Manual
11
Cylinder Parts:
AP - 3500 Series Rim Technical Manual
1
2
3
4
5
6
7
8
9
10
11
Item Description Part Number Comments
1 Plug SA 758K04MSECFIN Plug finishes: 606, 626
2 Shell SA (Not Slotted) 758F11MFIN Shell finishes: 605, 606, 611, 612, 613, 618, 619,
622, 625, 626 , 629, 630, 722, BSP, WSP
Shell SA (Slotted) 758F14MFIN
3 Bottom Pins 763F002
4 Master & Build Up Pins 763F012
5 Top Pins 763F027
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Plug Retainer 333F997
9 Tailpiece See Access 3 Catalog
10 Mounting Plate 253F758
11 Mounting Screws See Access 3 Catalog
Note: Items 3, 4 & 5 are in vial of 100 pins

12
Cylinder Parts:
AS - 3600 Series Rim Technical Manual
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Item Description Part Number Comments
1 Plug 758K02MSECFIN Plug finishes: 606, 626
2 Shell SA (Not Slotted) 758F12MFIN Shell finishes: 605, 606, 611, 612, 613, 618, 619,
622, 625, 626, 629, 630, 722, BSP, WSP
Shell SA (Slotted) 758F15MFIN
3
Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master & Build Up Pins 763F012
5 Top Pins 763F03M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Plug Retainer 333F997
9 Tailpiece See Access 3 Catalog
10 Mounting Plate 253F758
11 Mounting Screws See Access 3 Catalog
12 Slider 756F732-756F782
13 Slider Springs 756F797
14 Side Bar 756F807
15 Side Bar Springs 756F817
Note: Items 3, 4 & 5 are in vial of 100 pins

13

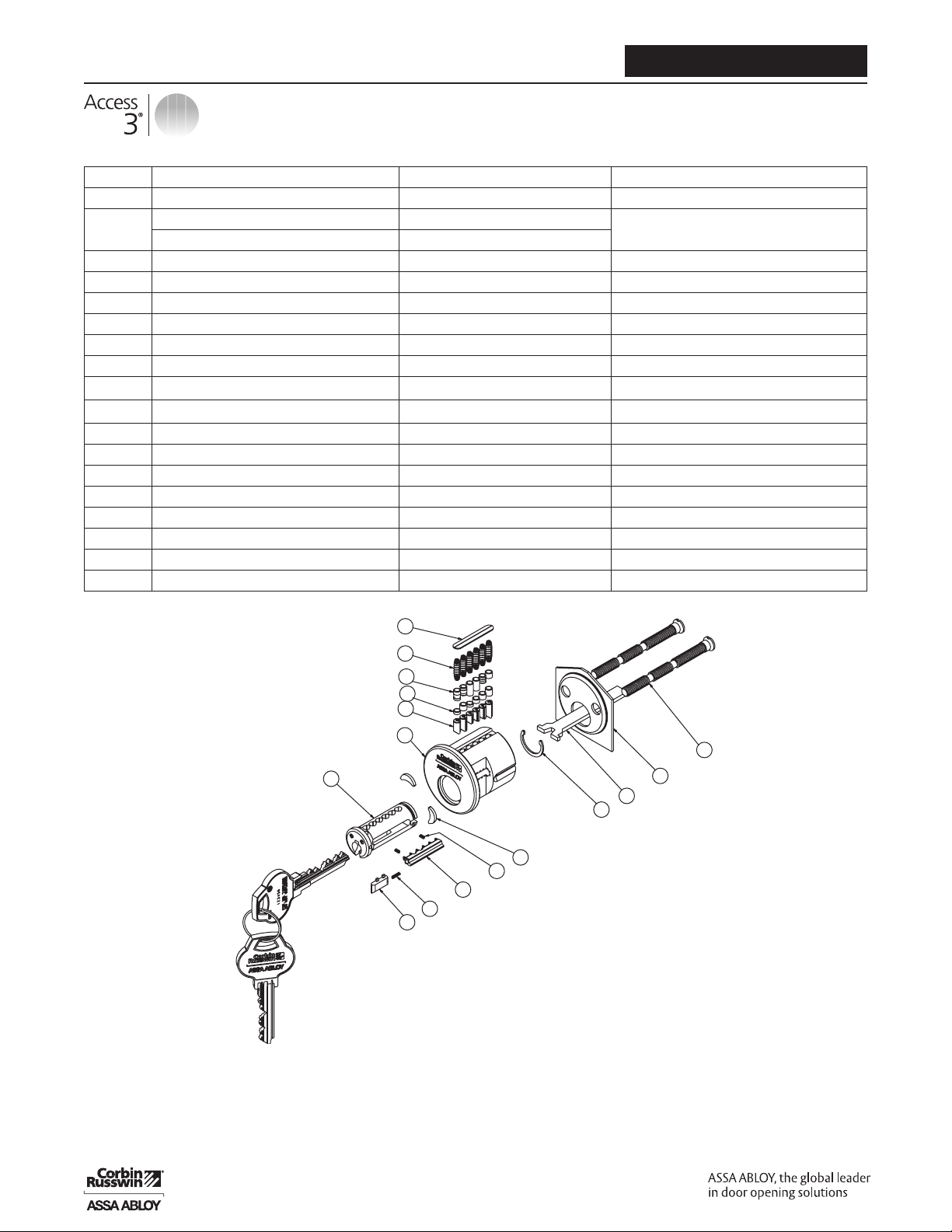

Cylinder Parts:
AHS - 3700 Series Rim Technical Manual
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Item Description Part Number Comments
1 Plug SA 758K03MSECFIN Plug finishes: 606, 626
2 Shell SA (Not Slotted) 758F13MFIN Shell finishes: 605, 606, 611, 612, 613, 618, 619,
622, 625, 626, 629, 630, 722, BSP, WSP
Shell SA (Slotted) 758F16MFIN
3 Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master & Build Up Pins 757F012
5 Top Pins 757F03M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Plug Retainer 333F997
9 Tailpiece See Access 3 Catalog
10 Mounting Plate 253F758
11 Mounting Screws See Access 3 Catalog
12 Slider 756F732-756F782
13 Slider Springs 756F797
14 Side Bar 756F807
15 Side Bar Springs 756F817
16 Security Plate 756F828
Note: Items 3, 4 & 5 are in vial of 100 pins

14

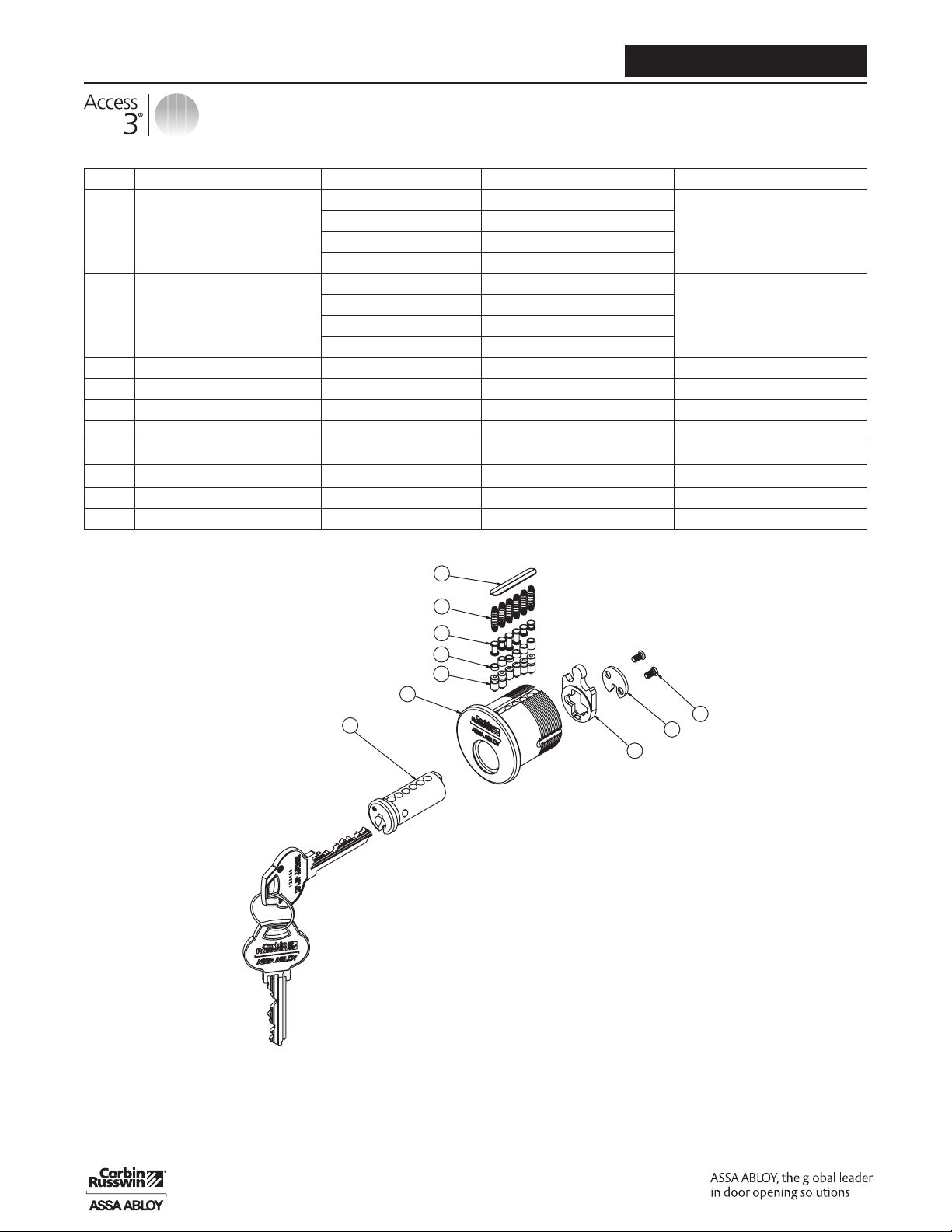

Cylinder Parts:
AP - 1500 Series Mortise Technical Manual
Item Description Part Number Cylinder Length Comments
1 Plug SA
757K64MSECFIN 1-1/4"
Plug finishes: 606, 626
757K74MSECFIN 1-3/8"
757K84MSECFIN 1-1/2"
757K94MSECFIN 1-3/4"
2 Shell SA
757F68MFIN 1-1/4"
Shell finishes: 605, 606, 611, 612,
613, 618, 619, 622, 625, 626,
629,630, 722, BSP, WSP
757F78MFIN 1-3/8"
757F88MFIN 1-1/2"
757F98MFIN 1-3/4"
3 Bottom Pins 763F002
4 Master & Build Up Pins 763F012
5 Top Pins 763F027
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
1
2
3
4
5
6
7
8
9
10
Note: Items 3, 4 & 5 are in vial of 100 pins

15

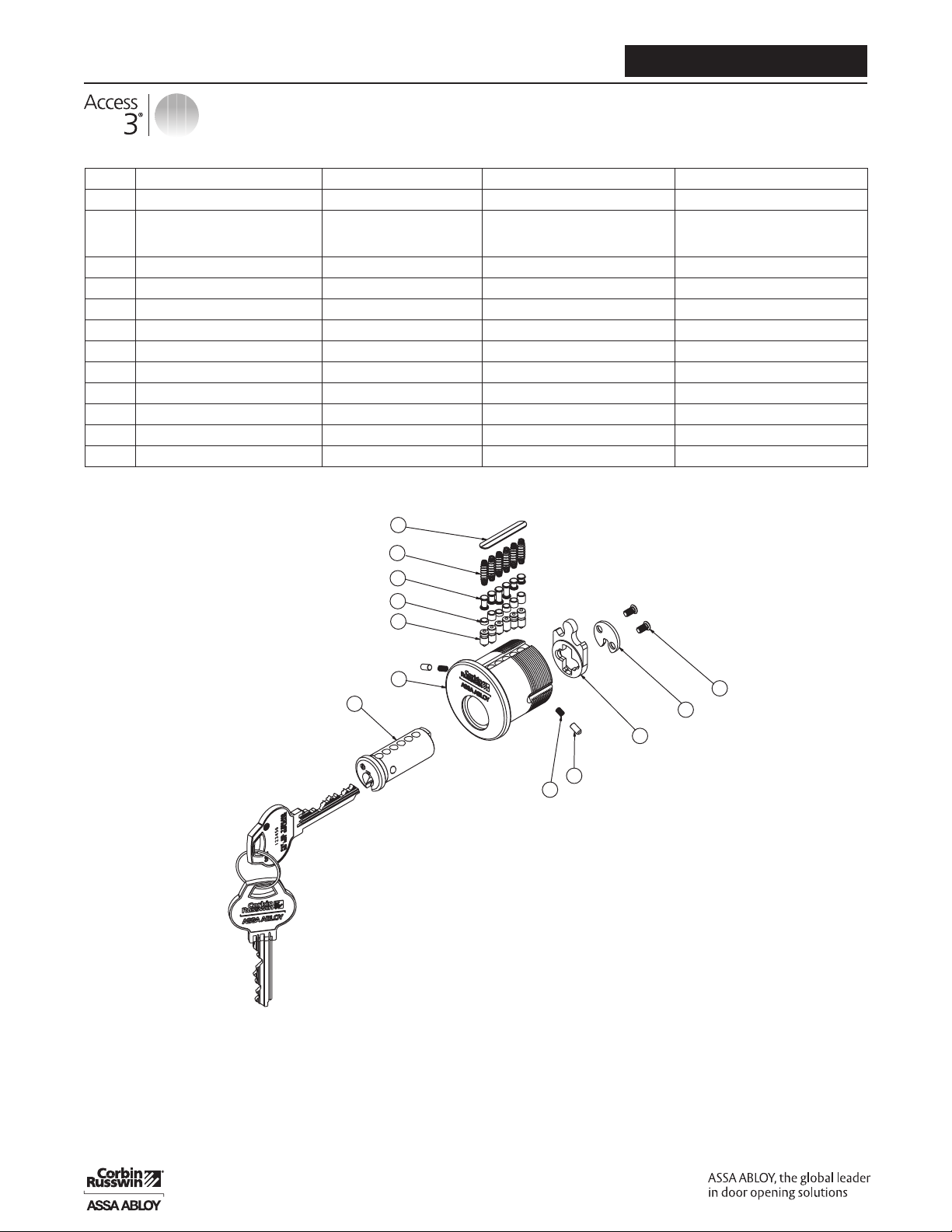

Cylinder Parts:
AP - 1501 Series Mortise Hotel Technical Manual
Item Description Part Number Cylinder Length Comments
1 Plug SA 758K59MSECFIN 1-1/4" Plug finishes: 606, 626
2 Shell SA 758F46MFIN 1-1/4"
Shell finishes: 606, 606, 611, 612,
613, 618, 619, 622, 625, 626, 629,
630, 722, BSP, WSP
3 Bottom Pins 763F002
4 Master Pins 763F012
5 Top Pins 763F027
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
11 Blocking Pin Springs 026F757
12 Blocking Pins 197F527
Note: Item 3, 4 & 5 are in vial of 100 pins
1
2
3
4
5
6
7
10
9
8
11
12

16
Cylinder Parts:
AS - 1600 Series Mortise Technical Manual
1
2
3
4
5
6
7
8
9
10
11 12
13
14
Item Description Part Number Cylinder Length Comments
1 Plug
757K62MSECFIN 1-1/4"
Plug finishes: 606, 626
757K72MSECFIN 1-3/8"
757K82MSECFIN 1-1/2"
757K92MSECFIN 1-3/4"
2 Shell SA
757F69MFIN 1-1/4"
Shell finishes: 605, 606, 611, 612,
613, 618, 619, 622, 625, 626, 629,
630, 722, BSP, WSP
757F79MFIN 1-3/8"
757F89MFIN 1-1/2"
757F99MFIN 1-3/4"
3
Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master & Build Up Pins 763F012
5 Top Pins 763F03M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
11 Slider 756F732-756F782
12 Slider Springs 756F797
13 Side Bar 756F807
14 Side Bar Springs 756F817
Note: Items 3, 4 & 5 are in vial of 100 pins

17
Cylinder Parts:
AS - 1601 Series Mortise Hotel Technical Manual
Item Description Part Number Cylinder Length Comments
1 Plug 758K57MSECFIN 1-1/4" Plug finishes: 606, 626
2 Shell SA 758F47MFIN 1-1/4"
Shell finishes: 606, 606, 611, 612,
613, 618, 619, 622, 625, 626, 629,
630, 722, BSP, WSP
3
Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master Pins 763F012
5 Top Pins 763F03M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
11 Slider 756F732-756F782
12 Slider Spring 756F797
13 Side Bar 756F807
14 Side Bar Spring 756F817
15 Blocking Pin Springs 026F757
16 Blocking Pins 197F527
Note: Items 3, 4 & 5 are in vial of 100 pins
1
2
3
4
5
6
7
10
9
8
11 12
13
14
15 16

18
Cylinder Parts:
AHS - 1700 Series Mortise Technical Manual
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Item Description Part Number Cylinder Length Comments
1 Plug SA
757K63MSECFIN 1-1/4"
Plug finishes: 606, 626
757K73MSECFIN 1-3/8"
757K83MSECFIN 1-1/2"
757K93MSECFIN 1-3/4"
2 Shell SA
757F70MFIN 1-1/4"
Shell finishes: 605, 606, 611, 612,
613, 618, 619, 622, 625, 626, 629,
630, 722, BSP, WSP
757F80MFIN 1-3/8"
757F90MFIN 1-1/2"
758F00MFIN 1-3/4"
3
Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master & Build Up Pins 763F012
5 Top Pins 763F01M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
11 Slider 756F732-756F782
12 Slider Springs 756F797
13 Side Bar 756F807
14 Side Bar Springs 756F817
15 Security Plate 756F828
Note: Items 3, 4 & 5 are in vial of 100 pins

19
Cylinder Parts:
AHS - 1701 Series Mortise Hotel Technical Manual
Item Description Part Number Cylinder Length Comments
1 Plug SA 758K58MSECFIN 1-1/4" Plug finishes: 606, 626
2 Shell SA 758F48MFIN 1-1/4"
Shell finishes: 606, 606, 611, 612,
613, 618, 619, 622, 625, 626, 629,
630, 722, BSP, WSP
3
Bottom Pins (L) 763F042
Bottom Pins (C) 763F052
Bottom Pins (R) 763F062
4 Master Pins 763F012
5 Top Pins 763F03M
6 Tumbler Springs 763F617
7 Spring Cover 756F722
8 Cam See Access 3 Catalog
9 Cam Retainer 756F838
10 Screws 756F847
11 Slider 756F732-756F782
12 Slider Spring 756F797
13 Side Bar 756F807
14 Side Bar Spring 756F817
15 Security Plate 756F828
16 Blocking Pin Springs 026F757
17 Blocking Pins 197F527
Note: Item 3, 4 & 5 are in vial of 100 pins
1
2
3
4
5
6
7
10
9
8
11 12
13
14
15
16
17

20

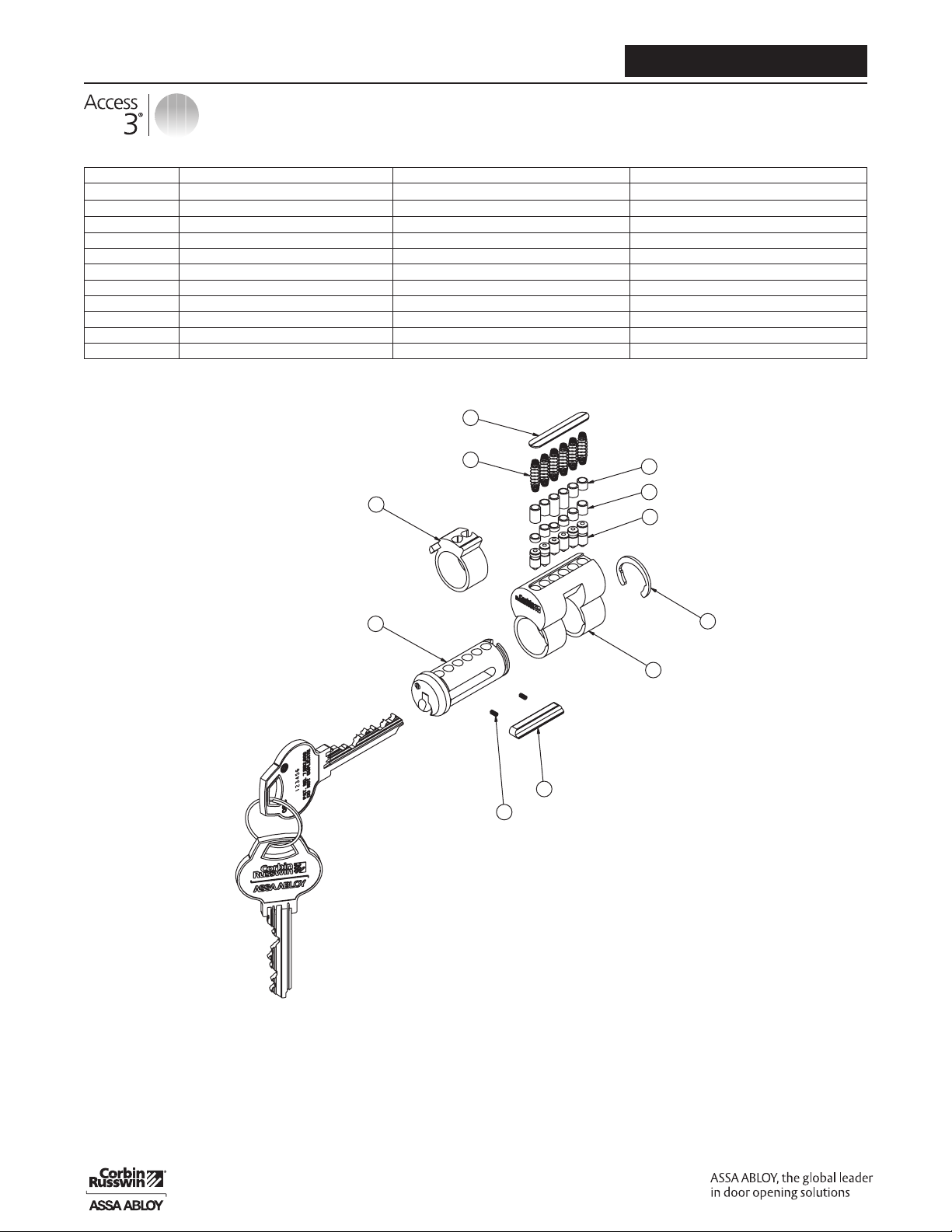

Cylinder Parts:
AP - 8500 Series LFIC Cores Technical Manual
Item Description Part Number Comments
1 Plug 757K50MSECFIN Plug finishes: 606, 626
2 Core 763F58MFIN Core finishes: 606, 626
3 Control Sleeve 763F572
4 Bottom Pins 763F002
5 Master & Build Up Pins 763F012
6 Top Pins 763F012
7 Tumbler Springs 763F617
8 Spring Cover 756F722
9 Retainer Ring 333F998
10 Side Bar (8500) 763F565
11 Side Bar Springs 756F817
10
11
1
3
2
9
7
8
4
5
6
Note: Items 3, 4 & 5 are in vial of 100 pins
