5700 LEO
Power Operator
with Optional Plug-in Power Input
Installation and Instruction Manual
Series
Item No. Description
8 120VAC Power Input (C14 Appliance)
9 Activation Inputs
10 Door Open/Closed Position Magnets
11 Optional RF Receiver
12 Power Supply - 1.1A 24V
13 18 inch max. Power Cord (not shown)
Item No. Description
1 Back plate
2 Door Closer (1601LAP or 1601BFLAP)
3 Motor Assembly (5700M)
4 Inverter (5700IN)
5 Cover (5700COV)
6 On/Off switch
7 Circuit Breaker
Tools required:
• 1/8” allen wrench (included) • Power drill and set of drill bits
• Flat blade screwdriver (potentiometer & terminal size) • Center punch
• Screwdriver (Phillips size 2) • Wire stripper
• Tape ruler • #7 drill 1/4-20 tap (metal frame install)
Patents 5,881,497; 7,316,096; 7,484,333
!If local code requires unit to be hard wired instead of using the
plug-in type power supply cord supplied with this version of the
unit, the unit MUST be returned to the manufacturer and
replaced with a unit designed to be hard wired.
!To reduce the risk of shock, this operator has a grounding type
plug, that has a third (grounding) pin. This plug will only fit into a
grounding type outlet. If the plug does not fit into the outlet,
contact a qualified electrician to install the proper outlet. Do not
change the plug in any way.
!Always disconnect the main power to the operator prior to
servicing or cleaning.
!This operator is for indoor use only.
!To reduce the risk of injury or person, use the operator only with
Pedestrian Swing doors.
!120VAC power supplied to the operator must be a dedicated
circuit from the main circuit breaker panel and must NOT be
connected into any building lighting system that operates
flourescent lights.
!Maximum door size: 48 in (1219mm) wide x 250 lb (113.4kg).
WARNINGS
!

Contents
Page 2 80-9357-0002-020 (01-12)
Component Layout
General Information
!UL labeled fire or smoke barrier door assemblies require that
the 120VAC (60Hz) power input to the LEO door operator be
supplied through normally closed alarm contacts of the alarm
system / alarm panel.
!All wiring must conform to standard wiring practice in
accordance with national and local wiring codes.
!Note: Unless otherwise noted, all dimensions are given in
inches (millimeters).
!Minimum suggested and required material thickness for
hollow metal frames (skin plus reinforcement) is charted on
below.
!Unit is Non-Handed.
!Door must be hung on butt hinges [5” (127mm) max. width]
or 3/4” (19mm) offset pivots. A separate door and frame
preparation template will be supplied for other conditions.
!Door must swing freely through the entire opening and
closing cycle before beginning the installation.
!Use of an auxiliary door stop (by others) is always
recommended.
!An incorrectly installed or improperly adjusted door operator
can cause property damage or personal injury. These
instructions should be followed to avoid the possibility of
misapplication or misadjustment.
WARNING: Make sure 120VAC (60Hz) input power is turned
off at facility’s main circuit breaker before proceeding with
installation.
General Templating Information:
!Before beginning the installation, verify that the door frame is
properly reinforced and is well anchored in the wall.
!Unreinforced hollow metal frames and aluminum frames
should be prepared and fitted with 1/4-20 blind rivet nuts,
furnished by others.
!Concealed electrical conduit and concealed switch or sensor
wires should be pulled to the frame before proceeding.
Fasteners for Frame:
!1/4-20 machine screws for hollow metal and aluminum.
!No. 14 x 2-3/4” (70mm) long sheet metal screws for wood.
Fasteners for Door:
!1/4-20 machine screws.
!3/8” diameter x 1-5/8” (41mm) long sex nut.
Electrical Information:
!Maximum current draw of unit is 0.6 amps.
!Breaker Switch protects the motor assembly and inverter;
and has a 5 amp rating.
!Maximum wire size is:
14AWG at terminals 1 thru 4 on Accessory Terminal.
!Conduit hole is only for low voltage Class 2 wiring.
!Input power is NOT to be hard wired into the unit.
!Power cord is to be routed so that it is NOT in any part of a
doorway, window opening, wall, ceiling, or floor, not attached
or otherwise secured to the building structure, and not
concealed behind walls.
Hollow Metal Door Frame Reinforcing
Frame
Material
12 Ga.
.1046
(2.66)
14 Ga.
.0747
(1.90)
16 Ga.
.0598
(1.52)
18 Ga.
.0478
(1.21)
12 Ga.
.1046
(2.66)
10 Ga.
.1343
(3.41)
10 Ga.
.1343
(3.41)
8 Ga.
.1644
(4.18)
18 Ga.
.0478
(1.21)
12 Ga.
.1046
(2.66)
12 Ga.
.1046
(2.66)
10 Ga.
.1343
(3.41)
Reinforcing
Recommended Min. Required
Frame Reinforcement Table
General 2
Frame Reinforcement Table 2
Component Layout 3
ADA / ANSI / UL 3
Hinge (Pull) Side Mounting 4
Hinge (Pull) Side Installation 4
Stop (Push) Side Mounting 6
Stop (Push) Side Installation 6
Electrical Installation 7
Input Power Configuration 8
Inverter Details 9
Accessory / Typical Installations 9
Troubleshooting 11

BACKPLATE
REED SWITCH
CHAIN
OPEN / CLOSE
POSITIONING
MAGNETS
POWER INPUT
IEC C14 APPLIANCE INLET
ACCESSORY
TERMINAL
(4-POSITION)
PINION EXTENSION /
CLUTCH ASSEMBLY
INVERTER
MOTOR ASSEMBLY
ON/OFF SWITCH
BREAKER SWITCH
1600 SERIES
CLOSER BODY
Included with 5710 and 5740 Included with 5730 and 5740
Component Layout
Page 3
80-9359-0002-020 (01-12)
ADA / ANSI / UL Information
Americans With Disabilities Act (A.D.A.)
These door operators can be installed and adjusted to conform with
A.D.A. regulations.
ANSI Standards
ANSI A117.1 – These door operators permit door
assemblies to conform to the requirements of this
specification "for buildings and facilities – providing
accessibility and usability for physically
handicapped people".
• ANSI A156.19 – These products are designed to conform to this
specification "for power assist and low energy power
operated doors".
– "PAS" Function is designed to meet or exceed all of the
requirements for the "Power Assist Door".
– "POR" Function is designed to meet or exceed all of the
requirements for the "Low Energy Power Operated Door".
U.L. Listing
Underwriters Laboratories, Inc. listed for use on
fire and smoke barrier door assemblies when the
120VAC (60Hz) power input is supplied through
the normally closed alarm contacts of a
compatible UL Listed alarm system or alarm
panel.
POWER SUPPLY CORD
(125V / 10A RATED 18AWG
18 INCHES MAX., NEMA 5-15P
AND IEC320-C13 CONNECTORS.
CORD MUST BE UL LISTED.)
CONNECTING LINK
BUSHING ASSEMBLY
SHOE
SHOE / ADJUSTING
ROD ASSEMBLY
FOREARM
SCREW
MAIN ARM
ADJUSTING
TUBE
MAIN ARM / SLIDE
UNIT ASSEMBLY
SLIDE TRACK
ASSEMBLY
SLIDER
BUFFER STOP
9/64” HEX
DRIVE SOCKET
SCREW
SLIDE ARM
TUBE
SLIDE ARM
ROD

Note: Door must be visible by person
operating activation switch(es)
Door Opening
Angle Dim “A”
Up to 110°
111° to 180°
15-1/2 (394)
13-1/4 (337)
Notes:
• All dimensions are given in inches (mm).
• Thickness recommended for reinforcements in hollow
metal doors and frames is charted on Page 2.
• Do not scale drawing.
• Right hand door shown.

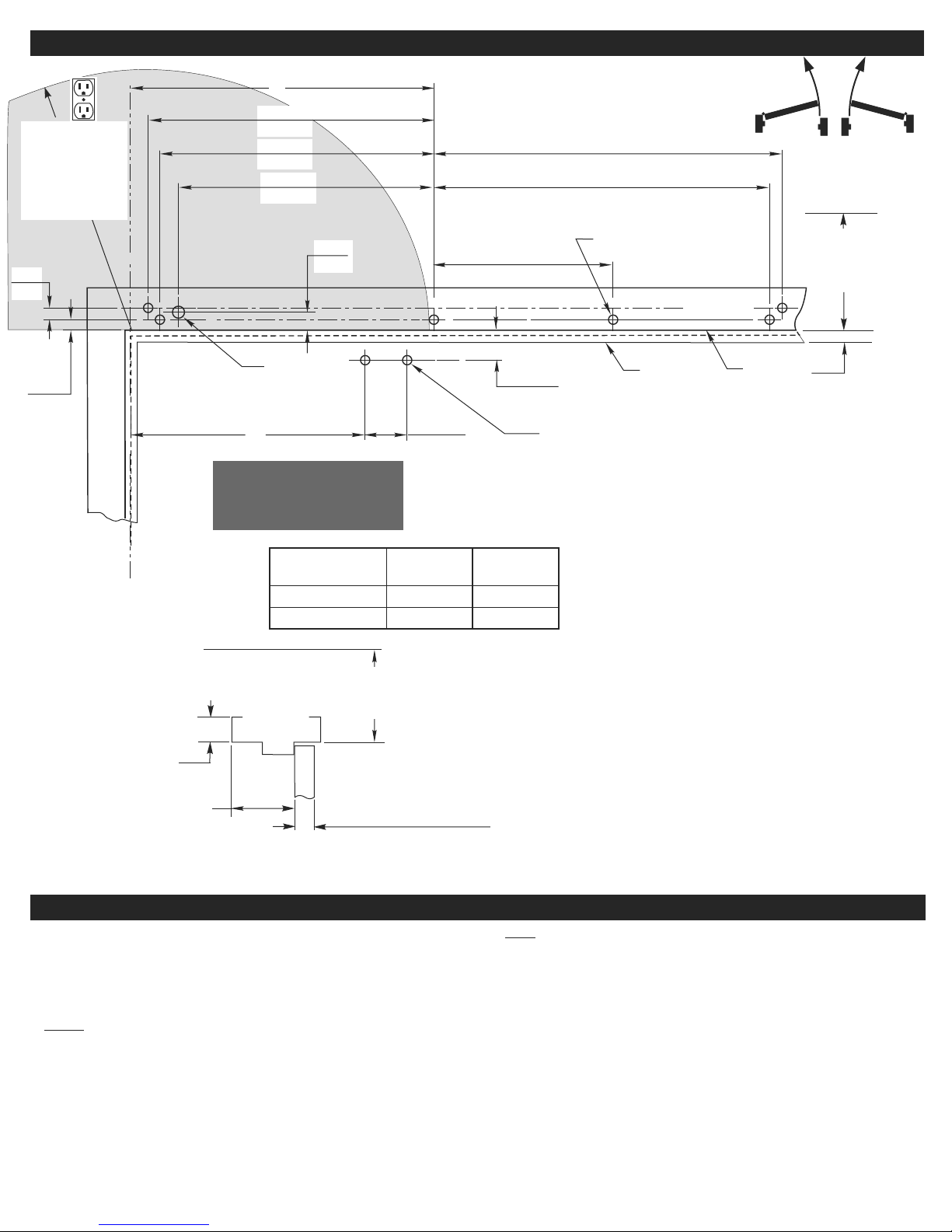

• This template information based upon use of 5"
(127mm) maximum width butt hinges. A separate
template is required for other conditions.
• Maximum frame reveal is 6-7/8” (175mm) for this
application.
• Conduit hole is Class 2 low voltage wiring ONLY.
!Due to the risk of the Power Cord becoming entrapped
in moving parts of the operator, door, or system, the
Power Cord must be kept clear of all moving parts.
2” (51mm)
Min.
Frame Face
1-1/8”
(29)
1-7/16
(37)
11
(279)
22
(559)
7-9/16
(192)
13-7/16
(341)
1-1/8
(29)
C
LHinge
1/4-20 Machine Screws
or No. 14 Wood Screws
(6 Places)
7/8 (23) Dia.
(Class 2
Wiring Only)
3/8 Dia.
Sex Nuts
(3 Places)
15 (381)
Max. Distance
for Placement
of Power Input
Receptical
(shaded region)
Frame
Rabbet
Frame
Stop/Soffit
3
(76)
13-13/16
(350)
1/2
(13)
A6”
(152mm)
Min.
Clearance
14-3/16
(360)
12-15/16
(329)
13-13/16
(351)
Right Hand Door
opening to 110° shown.
5/8
(15.9) Stop
1. Hinge (Pull) Side Mounting Instructions
Step 1: Determine hand of door from illustration on upper right of this
page.
Step 2: Using template above locate and prepare holes in the frame &
door:
Frame
A. Prepare six (6) holes for 1/4-20 machine screws or
No. 14 x 2-3/4" (70mm) wood screws. Blind rivet nuts (by others)
are suggested for unreinforced hollow metal frames or for
aluminum frames.
B. Concealed Class 2 Low Voltage Only: One (1) 7/8" (22mm)
diameter hole for conduit, for switch/sensor wires only.
NOTE: On new construction this hole will generally be drilled by
the frame supplier at their shop or at the time the frame is
installed in the wall.
Door
C. Prepare three (3) holes for 3/8" diameter sex nuts. Standard units
are supplied with sex nuts and screws for 1-3/4" (44mm) thick door.
Sex nuts and screws for other door thicknesses are available to
order.
Step 3: Remove cover from the unit and set cover & cover screws aside.
Step 4: Mount unit to door frame. Select A or B below.
A. Concealed Class 2 Low Voltage Only:
B. Surface Class 2 Low Voltage Only:
Step 5: Mount track assembly to door using 3 1/4-20 screws & sex nuts
with buffer assembly toward hinge. Open part of track to face
top of door.
(Continue to next page.)
Connect conduit to frame
side of backplate. Fasten unit to door frame (seven screws).
Fasten unit to door frame
(seven screws). Mount conduit bracket (found in screw pack) to
unit’s backplate with two screws provided. Connect wiring conduit
to bracket.
1A. Installation Sequence
Left
Hand
Door
Right
Hand
Door
2” (51mm)
Min. Frame
Face Frame Reveal
Door
6” (152mm)
Min. Ceiling
Clearance
1-3/4” (44mm) Min.
2-1/4” (57mm) Max.
Door Thickness
Page 4 80-9357-0002-020 (01-12)
Please verify desired mounting
requires Hinge (Pull) Side
application as shown on this
template.

1A. Installation Sequence Continued

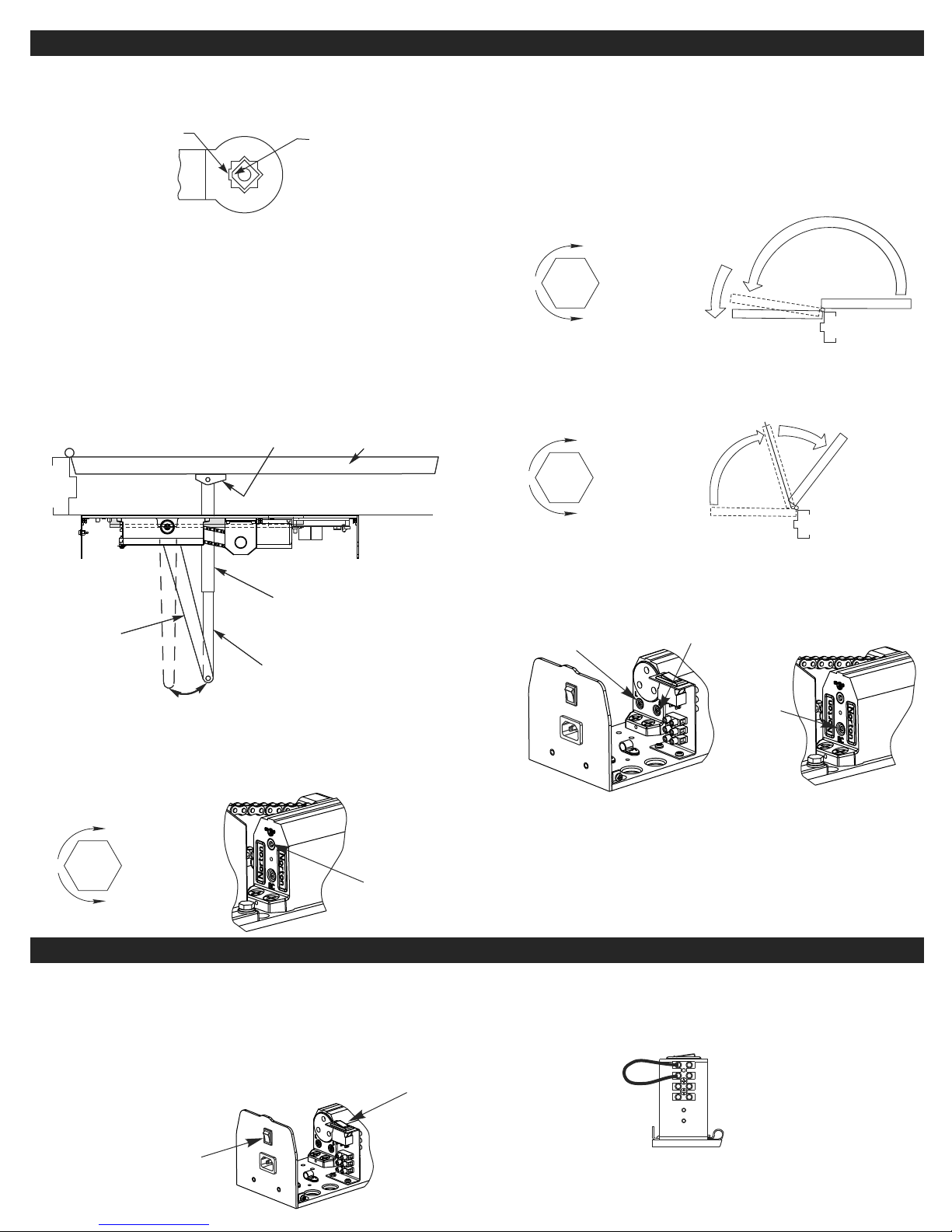

Step 6: Insert slide arm rod into slide arm tube setting the distance
between the pinion square and the slide stud at 13-1/2”
(343). Install 9/64” hex drive socket head screw from screw
pack. (See illustration below)
Step 7: Using an adjustable wrench, rotate pinion 45° toward hinge,
as shown below. With the arm assembly parallel to the
door, secure arm to pinion when square of the pinion aligns
with the square in the arm. Secure with countersunk
washer and 1/4-20 Flat Head Screw (with thread lock)
provided. Tighten screw with 7/16” wrench or socket.
Step 9:
to
increase door closing power. Door control is shipped set at
midpoint of power setting. Maximum closing power can be
achieved with 8 (360°) clockwise turns of the power
adjustment screw.
Step 8: Insert arm stud into slide block in track assembly. Secure by
pushing in on the retainer clip that extends from the slide
block in the track, until it is flush with the slide block (see
illustration below).
Adjust closing power of unit (See Fig. 1) - Using a 1/8” allen
wrench, turn the power adjustment shaft clockwise
Step 10: Adjust Hydraulic valves using a 1/8” hex wrench to obtain
proper door closing speeds. See following illustrations.
Refer to Table 1 below for recommended minimum opening /
closing times per ANSI/BHMA A156.19
Closing Cycle – Make adjustments, as necessary, to the
Sweep Speed "S" valve and Latch Speed "L" valve. See Fig.
2 below for location of valves. Turn valves clockwise to reduce
speed, counter clockwise to increase speed.
Opening Cycle – Adjust Backcheck, "B" valve, as
necessary, for hydraulic resistance to door opening in the
backcheck range. See illustration in Fig. 2 for location of
valve.
NOTE: Too much Backcheck, "B" valve, can affect the
operation of the units pump, preventing units from
fully opening the door. This valve may require fine
tuning after all other adjustments have been made.
Note: A.D.A. requires that from an open position of
70°, the door will take at least 3 seconds to move to a
point 3” (75mm) from the latched position, measured
at the leading edge of the door.
Step 11: Make wiring connections using Wiring Instructions on Page 7
and 8.
2
1
Attaching Arm Stud to Slide
Retainer Clip
Power Adjustment
1/8"
Hex
Key
Increase
Power
Decrease
Power
Figure 1
1/8"
Hex
Key
Slower
Closing
Faster
Closing Closing Cycle
Closed
10°
e
g
n
a
R
h
c
t
a
L
e
g
n
a
R
p
e
e
w
S
1/8"
Hex
Key
Increase
Cushion
Decrease
Cushion
Opening Cycle
B
a
c
k
c
h
e
c
k
g
n
i
n
e
p
O
1A. Installation Sequence Continued
13-1/2
(343)
Note: Center threaded hole of slider arm should
align with seventh hole of the slider tube
Page 5
80-9359-0002-020 (01-12)
Sweep Valve
Latch Valve
Backcheck
Valve
Figure 2
Table 1 - Minimum Opening / Closing Times for ANSI/BHMA A156.19
Backcheck - adjust the backcheck valve to
have a minimum opening time to backcheck
or 80 degrees (whichever comes first)
based on Table 1.
Closing Time - adjust Latch and Sweep
valves to have a minimum closing time from
90 degrees to Latch Check or 10 degrees
(whichever comes first) based on Table 1.
Door Weight in Pounds (kg)
Door Leaf
Width -
Inches (mm)
Matrix values are in seconds.

15 (381)
Max. Distance
for Placement
of Power Input
Receptical
(shaded region)
Door Opening
Angle Dim “A” Dim “B”
Up to 110°
111° to 170°
12 (305)
9-1/2 (241) 13-1/4 (337)
15-3/4 (400)
Notes:
• All dimensions are given in inches (mm).
• Thickness recommended for reinforcements in
hollow metal doors and frames is charted at the
left of this page.
• Do not scale drawing.
• Left hand door shown.
• This template information based upon use of 5"
(127mm) maximum width butt hinges or 3/4"
(19mm) offset pivots. A separate template will
be supplied for other conditions.
• Maximum frame reveal is 7” (178mm) for this
application.
• Conduit hole is Class 2 low voltage wiring
ONLY.
!Due to the risk of the Power Cord becoming
entrapped in moving parts of the operator, door,
or system, the Power Cord must be kept clear of
1-11/16
(43)
11/16
(17.5)
1-3/4
(44)
12-15/16
(329)
7-9/16
(192)
13-7/16
(341)
3/8
(10)
C
LHinge or Pivot
1/4-20 Machine Screws
or No. 14 Wood Screws
(6 Places)
7/8
(22)
(Class 2
Wiring Only)
Dia.
Frame
Rabbet
Frame
Stop/Soffit
A
13-13/16
(351)
1/2
(13)
B
5-1/4”
Min.
Clearance
3/8
(19)
14-3/16
(360)
13-13/16
(351)
Left Hand Door
open to 110° shown.
5/8
(15.9) Stop
Sex Nuts
(2 Places)

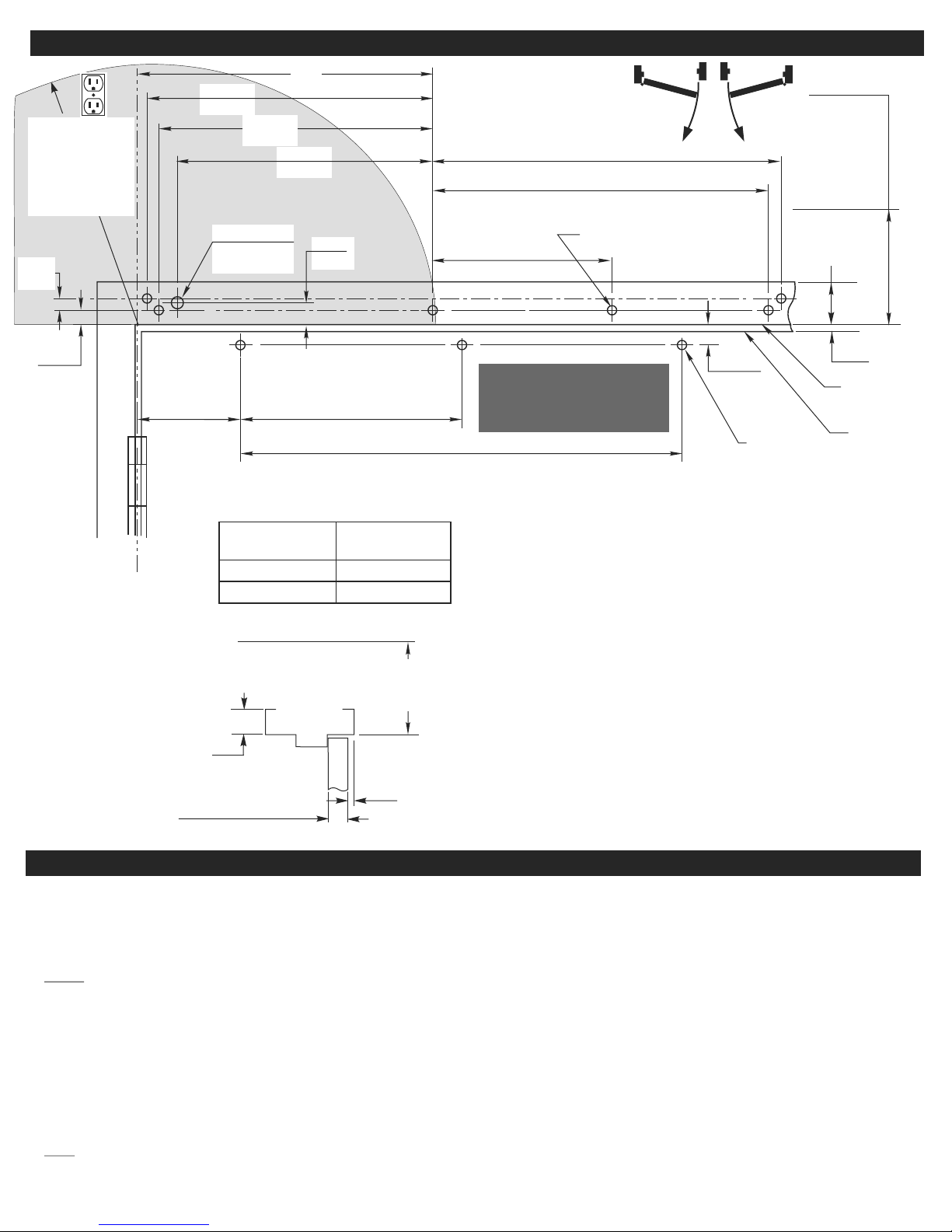

2. Stop (Push) Side Mounting Instructions
2A. Installation Sequence
Left
Hand
Door
Right
Hand
Door
1-1/2” (38mm)
Min. Frame Face
Frame Reveal*
Door
5-1/4” (133mm)
Min. Ceiling
Clearance
1-3/4” (44mm) Min.
2-1/4” (57mm) Max. Door Thickness
*For frame reveals less than 3" (76mm) the
arm adjusting rod can be field cut to a
length of 9-1/2" (241mm) measured from
centerline of connecting link bushing
assembly.
Note: Door must be visible by person operating activation switch(es)
Step 1: Determine hand of door from illustration on upper right of this
page.
Step 2: Using template above locate and prepare holes in the frame &
door:
Frame
A. Prepare six (6) holes for 1/4-20 machine screws or No. 14 x 2-3/4"
(70mm) wood screws. Blind rivet nuts (by others) are suggested
for unreinforced hollow metal frames or for aluminum frames.
B. Concealed Class 2 Low Voltage Only: One (1) 7/8" (22mm)
diameter holes for conduit, for power input and for switch/sensor
wires.
NOTE: On new construction these holes will generally be drilled
by the frame supplier at their shop or at the time the frame is
installed in the wall.
Door
C. Prepare two (2) holes for 3/8" diameter sex nuts. Standard units
are supplied with sex nuts and screws for 1-3/4" (44mm) thick
door. Sex nuts and screws for other door thicknesses are
available to order.
Step 3: Remove cover from the unit and set cover & cover screws
aside.
Step 4: Mount unit to door frame. Select A or B below.
A. Concealed Class 2 Low Voltage Only:
B. Surface Class 2 Low Voltage Only:
Connect conduit to frame
side of backplate. Fasten unit to door frame (six screws).
Fasten unit to door frame (six
screws). Mount conduit bracket (found in screw pack) to unit
backplate with two screws provided. Connect wiring conduit to
bracket.
Page 6 80-9357-0002-020 (01-12)
Please verify desired mounting
requires Stop (Push) Side
application as shown on this
template.

2A. Installation Sequence Continued
Step 5: Install main arm onto pinion shaft of unit at a 90° angle to the
door frame. Align arm mark “S” with the flat corner of the
pinion shaft square. (See Fig. 3 below.)
Step 6: Secure main arm to pinion with 1/4-20 Flange Head Screw
provided. Tighten screw with 7/16" wrench or socket.
Step 9:
to
increase door closing power. Door control is shipped set at
midpoint of power setting. Maximum closing power can be
achieved with 8 (360°) clockwise turns of the power
adjustment screw.
Step 7: Mount arm shoe to door using 2 1/4-20 screws & sex nuts
provided with screw pack.
Step 8: PRELOAD ARM (See Fig. 4, below): Remove 1/4-20 hex
head screw on adjusting rod and insert adjusting rod into
arm slide. Reinstall 1/4-20 screw and leave loose. Rotate
main arm in direction away from the hinge edge until the
adjusting rod and arm slide are perpendicular (at a 90°
angle) to the door frame. Tighten the 1/4-20 hex head screw
on the adjusting rod to secure arm in this new position.
Adjust closing power of unit (See Fig. 5) - Using a 1/8” allen
wrench, turn the power adjustment shaft clockwise
Step 10: Adjust Hydraulic valves using a 1/8” hex wrench to obtain
proper door closing speeds. See following illustrations. Refer
to Table 1 on page 5 for recommended minimum opening /
closing times per ANSI/BHMA A156.19
Note: A.D.A. requires that from an open position of 70°,
the door will take at least 3 seconds to move to a point
3” (75mm) from the latched position, measured at the
leading edge of the door.
Step 11: Make wiring connections using Wiring Instructions below and
on Page 8.
Closing Cycle – Make adjustments, as necessary, to the
Sweep Speed "S" valve and Latch Speed "L" valve. See
Fig. 6 below for location of valves. Turn valves clockwise to
reduce speed, counter clockwise to increase speed.
Opening Cycle – Adjust Backcheck, "B" valve, as
necessary, for hydraulic resistance to door opening in the
backcheck range. See illustration at bottom of this page for
location of valve.
NOTE: Too much Backcheck, "B" valve, can affect the
operation of the units pump, preventing units from fully
opening the door. This valve may require fine tuning
after all other adjustments have been made.
R
L
Y
S
Z
Arm Mark Pinion Flat
Figure 3
Adjusting
Rod
Arm
Slide
Door
Shoe
Main
Arm
Figure 4
Adjusting
Rod
Arm
Slide
Door
Shoe
Main
Arm
Power
Adjustment
1/8"
Hex
Key
Increase
Power
Decrease
Power
Figure 5
1/8"
Hex
Key
Slower
Closing
Faster
Closing Closing Cycle
Closed
10°
e
g
n
a
R
h
c
t
a
L
e
g
n
a
R
p
e
e
w
S
1/8"
Hex
Key
Increase
Cushion
Decrease
Cushion
Opening Cycle
B
a
c
k
c
h
e
c
k
g
n
i
n
e
p
O
Page 7
80-9359-0002-020 (01-12)
3. Electrical Connections and Final Setup
Step 1: Confirm all mechanical adjustments have been made.
Step 2: Plug Power Supply Cord C13 end into Power Inlet of unit.
Insert three (3) prong plug of opposite end of Power Supply
Cord into electrical outlet.
Step 3: Turn power to unit on at the Unit Power Switch and turn the
Breaker Switch to “RESET”.
Step 4: Using a short jumper cable, jump terminals 1 and 2, see Fig.
2 below, to activate unit. When door reaches 20°, switch
Breaker Switch to “OFF” position cutting power to the unit.
Allow door to fully close (door may be manually pulled
closed).
(Continue to next page.)
1
2
3
4
1
2
3
4
Figure 2
Figure 1
Sweep Valve
Latch Valve
Backcheck
Valve
Figure 6
Breaker
Switch
Unit Power Switch

“HOT” and “COM” of “T1”
Terminal Block are to only be
used by the factory for the
incoming power. These are not
to be handled / touched in the
field.
WARNING
!
3. Electrical Connections and Final Setup Continued
Step 5: Adjust Closing Position Magnet (See Fig. 3) - With door in the
closed position, use finger to slide Closed Position Magnet
so it aligns directly with the Reed Switch.
Step 6: Adjust Open Position Magnet - Use fingers to slide Open
Position Magnet 180° from Open Position Magnet.
Step 7: Flip Breaker Switch to “RESET” to turn power on. Jump
terminals 1 and 2 (as shown in Fig. 2) to activate door. Note
open position of the door. Allow door to close.
Step 8: Use finger to readjust the Open Position Magnet to desired
door open position.
Step 9: Repeat Step 7 to verify door open position.
Step 10: Make all connections necessary for any accessories to the
4-position Accessory Terminal (see Pages 9 - 118).
Step 11: Make necessary adjustments to inverter (see Page 9).
Replace cover and cover screws.
Reed Switch
Closed Position
Magnet
Open Position
Magnet
Position Ring
Figure 3
Page 8 80-9357-0002-020 (01-12)

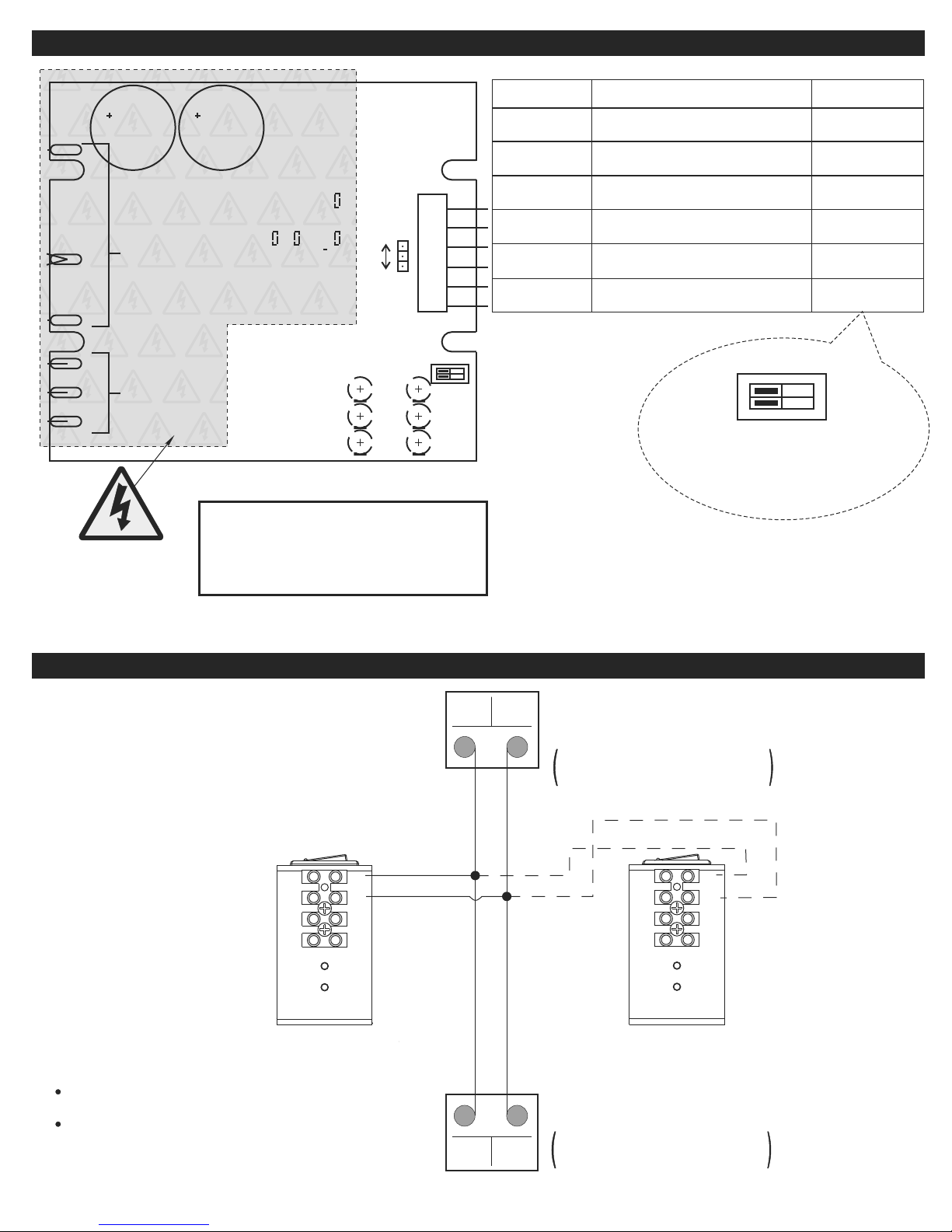

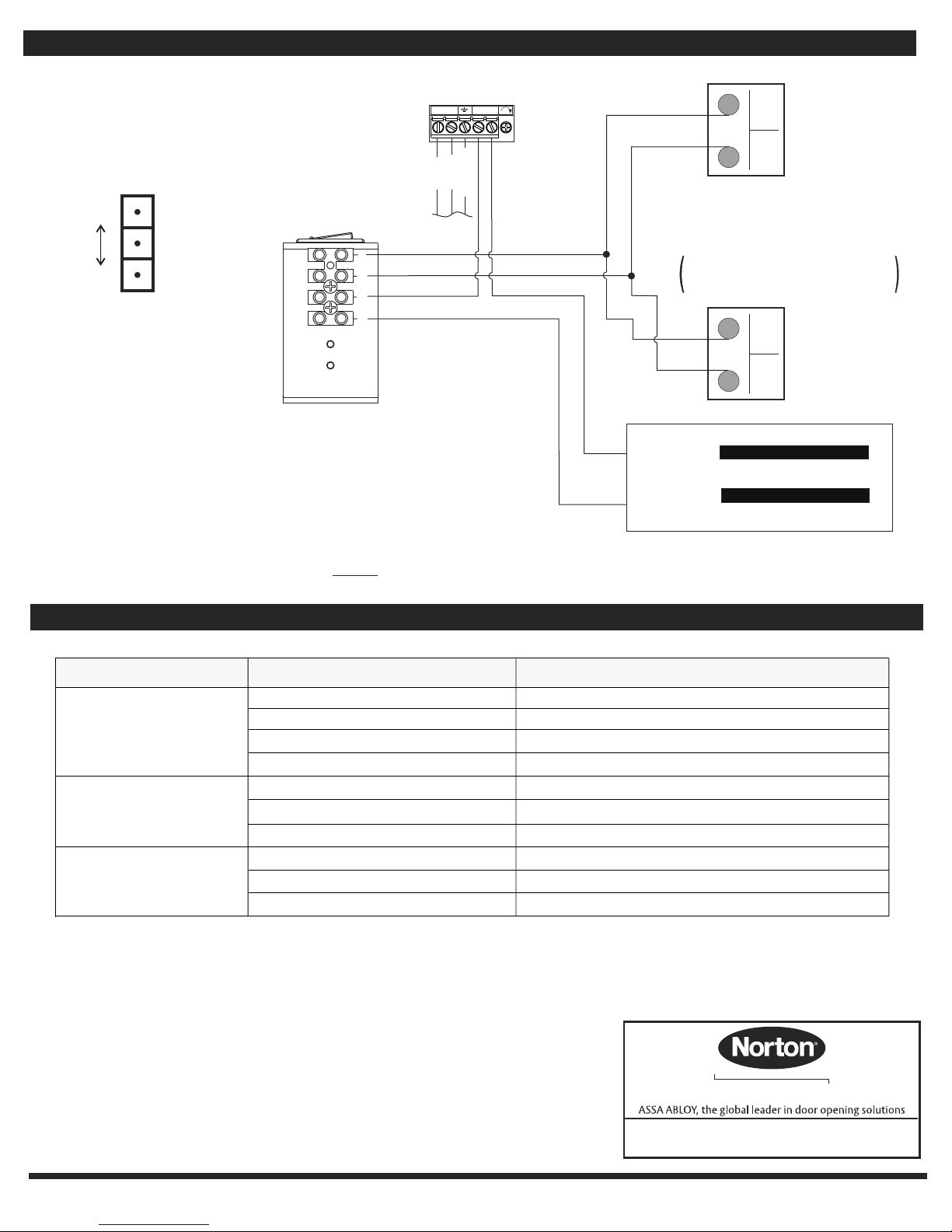

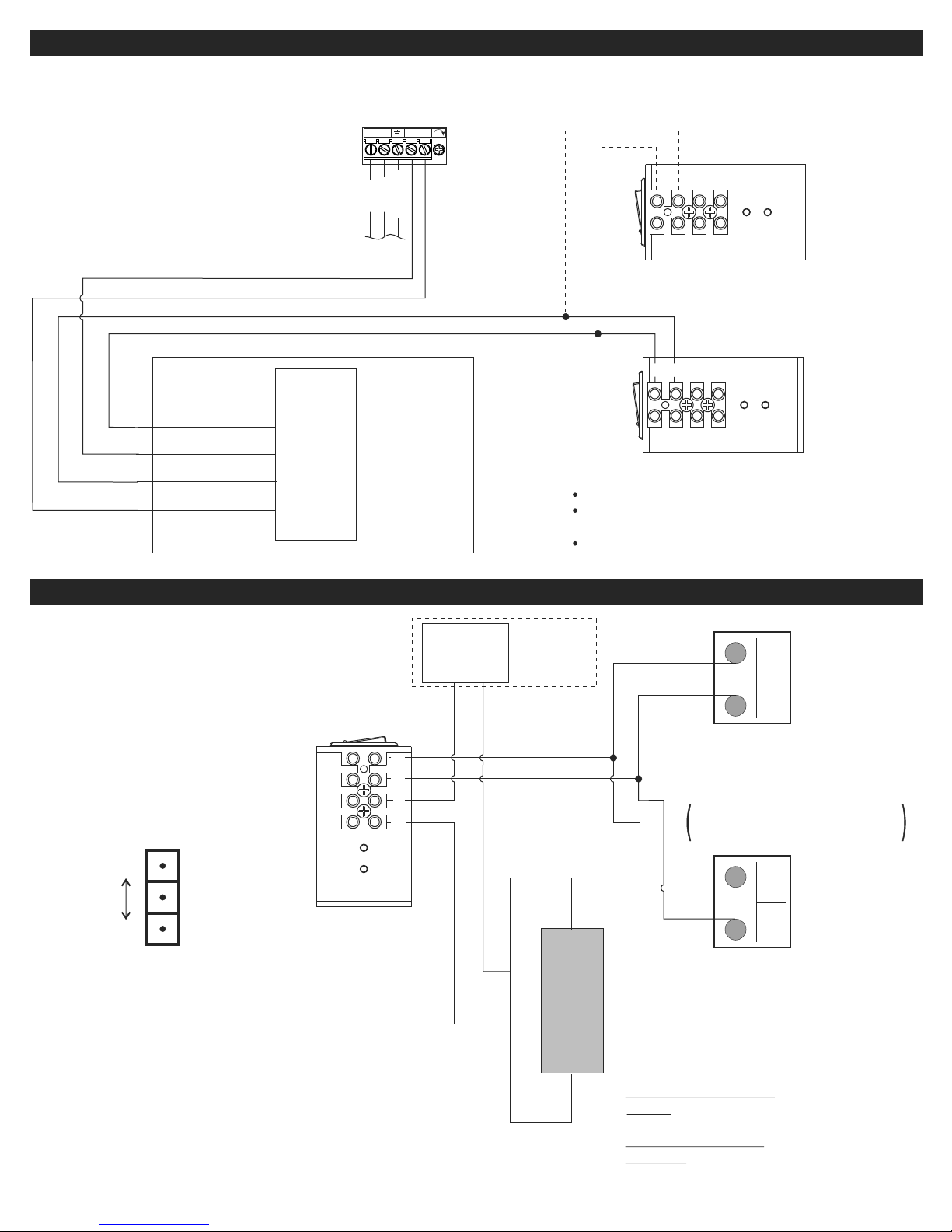

Low Voltage
Control
Wiring
Input Power Configurations
CONCEALED WIRING SURFACE WIRING
Optional Bracket
(for surface wiring)
Low
Voltage
Control
Wires
Cable
Clamps Conduit
by Others
(from top)
“1” and “2”
of “T1” Power
Input
Terminal
Ground Wire Connection – Ground wire must be secured to backplate
under head of (green) ground screw nearest to “T1” Power Input
Terminal. Screw labeled “GND”.
Stick conduit fitting thru backplate as shown and secure
with nut supplied with fitting. This conduit fitting is for low
voltage control wiring only. CHECK LOCAL CODES.
Pull conduit out of header and attach to conduit fitting
before mounting Operator to door frame. Attach low
voltage wiring as illustrated in “Surface Wiring” illustration
to the Right.
An optional bracket is provided for use with surface wiring.
Remove the two cable clamps screws and slip the bracket
under the cable clamps. Push the cable clamp screw
through the bracket holes and tighten. ½” conduit fittings
can now be installed on the bracket. Attach incoming ground
wire to backplate with ground screw as illustrated below.
24
23
22
25
HOT
COM
Breaker Switch
T1 Terminal
Block

Page 9
80-9359-0002-020 (01-12)
Standard Function with Switches
1
2
3
4
1
2
3
4
Notes:
1. Power input to Door Operator Unit is at
“T1” Power Input Terminal (not shown)
120VAC 60Hz.
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
1
2
3
4
1
2
3
4
Door 1 Door 2
Inverter Adjustments:
!Based on function adjustment desired, use table above to
determine which POT is to be adjusted.
POT FUNCTIONDESCRIPTION
OBSTR SENS Obstruction Detection on Open CW - Increase
CCW - Decrease
M/DLY Motor Delay on Opening CW - Increase
CCW - Decrease
REV SPD Motor Reversing Speed CW - Increase
CCW - Decrease
H/O TM Hold Open Time (5 - 30 Seconds) CW - Increase
CCW - Decrease
PUSH SENSE Push Recognition Sensitivity CW - Increase
CCW - Decrease
H/O TQ Motor Torque at Hold Open
Position
CW - Increase
CCW - Decrease
ON
12
WARNING
120 HIGH VOLT POTENTIAL PRESENT. MAKE
SURE POWER IS TURNED OFF DURING
INSTALLATION PROCEDURE.
Dip Switch Settings
1. Door Mounting -
2. Push Recognition -
ON - pull
OFF - push
ON - active
OFF - inactive
WARNING
Electric
Shock Risk
Operation:
€ Doors are normally closed.
€ Activating either switch will open both doors.
Door will close after hold open time delay has
elapsed.
L2
115Y
L1 115/230VAC IN
MOTOR OUT
L2
230Y
U
V
W
STATUS LEDS
PUSH PULL
SW501
ON
H/O TQ H/O TM
OBSTR
SENS
REV SPD
M/DLY PUSH
SENSE
12
Inverter Details
1 6
COM
SNS
COM
PB
K1
K2
11
JMP503
NC
NO
TB501
(Adjustments made in the shaded
area should be performed by
Authorized Factory Personnel.)

Page 10 80-9357-0002-020 (01-12)
Radio Frequency Function Option
Fail Secure / Fail Safe Electric Strike Wiring
120VAC
Supplied by
Others
-+
DC or AC
Output
AC or DC
Electric Strike
+
-
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
Notes:
1. Power input to Door Operator Unit is at “T1” Power
Input Terminal (not shown) 120VAC 60Hz.
2. Unit’s Relay Rating for strike interface: 30VDC @ 1A
or 125VAC @ .5A
Operation:
€ Door is normally closed and latched.
€ Activating switch will unlock the electric strike and
the door will automatically open. Door will close
after hold open time delay has elapsed.
€For Fail Secure Strike - The door will remain
locked during power failure.
!For Fail Safe Strike - The door will remain
unlocked during power failure.
1
2
3
4
1
2
3
4
JMP503
NC
NO
Jumper Settings
Place jumper to upper position
for normally closed operation
or to lower position for
normally open operation.
1 2 3 4
1 2 3 4
Optional Door 2
1 2 3 4
1 2 3 4
Door 1
ORANGE
BLACK
BROWN/WHITE
RED
RF
RECEIVER
BOARD
(PART OF
OPERATOR
UNIT)
WIRING FOR
MOMENTARY
HOLD OPEN
FUNCTION
Notes:
1. Power input to Door Operator Unit is at
“T1” Power Input Terminal (not shown)
120VAC 60Hz.
2. Radio Frequency Feature can be
purchased as a separate kit.
Operation:
€ Door is normally closed.
€ Activating wireless switch or hand held
wireless transmitter will open the door.
€ Door will close after hold open delay
elapses.
120
VAC
Ground
COM
HOT
L N
(AC) -V +V ADJ
+
Optional 1.1A 24V
Power Supply

Page 11
80-9359-0002-020 (01-12)
Fail Safe Electromagnetic Lock 24VDC Wiring
1
2
3
4
1
2
3
4
Wall Switch, Card
Reader, Key Switch,
etc.
Normally Open Momentary
dry contacts
+
-
24VDC Electromagnetic Lock
(Fail Safe)
Troubleshooting
Operation:
€ Door is normally closed and latched.
€ Activating switch will cut power to mag lock and
the door will automatically open. Door will close
after hold open time delay has elapsed.
!The door will unlock during power failure.
Notes:
1. Power input to Door Operator Unit is at “T1” Power
Input Terminal (not shown) 120VAC 60Hz.
2. Unit’s Relay Rating: 30VDC @ 1A or 125VAC @ .5A
Norton ® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2010, 2012 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
An ASSA ABLOY Group Co.
3000 Highway 74 East • Monroe, NC 28112
Tel: (877)- • Fax: [phone]
www.nortondoorcontrols.com
974-2255
ASSA ABLOY
Jumper Settings
Place jumper to upper position
for normally closed operation
or to lower position for
normally open operation.
JMP503
NC
NO
Jump activation input
Change the setting of the ON/OFF switch
Flip Door Mounting Dip Switch to other direction
Remove object
Re-time and re-install arm.
Increase spring tension per preceding instructions
Remove object
Fault Possible reasons why Remedies/Explanations
The door does not open
- The motor does not start
Control switch is set to OFF position
Electrical power is missing the electrical Check power switch
Activation unit does not function
- The motor starts Motor is driving in wrong direction
Something jammed beneath the door
Arm has come loose
The door does not close Spring tension too low
Arm has come loose Re-time and re-install arm.
Something jammed beneath the door
Circuit breaker is set to OFF position Reset circuit breaker to the ON position
120
VAC
Ground
COM
HOT
L N
(AC) -V +V ADJ
+
Optional 1.1A 24V
Power Supply

This page
intentionally left
blank.
