Assa Abloy Norton SafeZone 7100SZ Series Quick guide

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
1
ASSA ABLOY
Requirements:
Units are handed. Hand of unit and hand of door must be the same.
All dimensions shown in inches (mm).
Door must be hung on ball bearing butt hinges or ¾” (19) offset pivots.
Door thickness must be 1-3/4" (44) to 2-1/4" (64).
Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.
Frame face must be a minimum of 2" (51).
Ceiling clearance must be a minimum of 3 -1/2" (89) for push side application or 4” (102) for pull side application. See pages
3 and 7 for templates.
Power input to unit must be of the same voltage as that stated on the unit.
Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

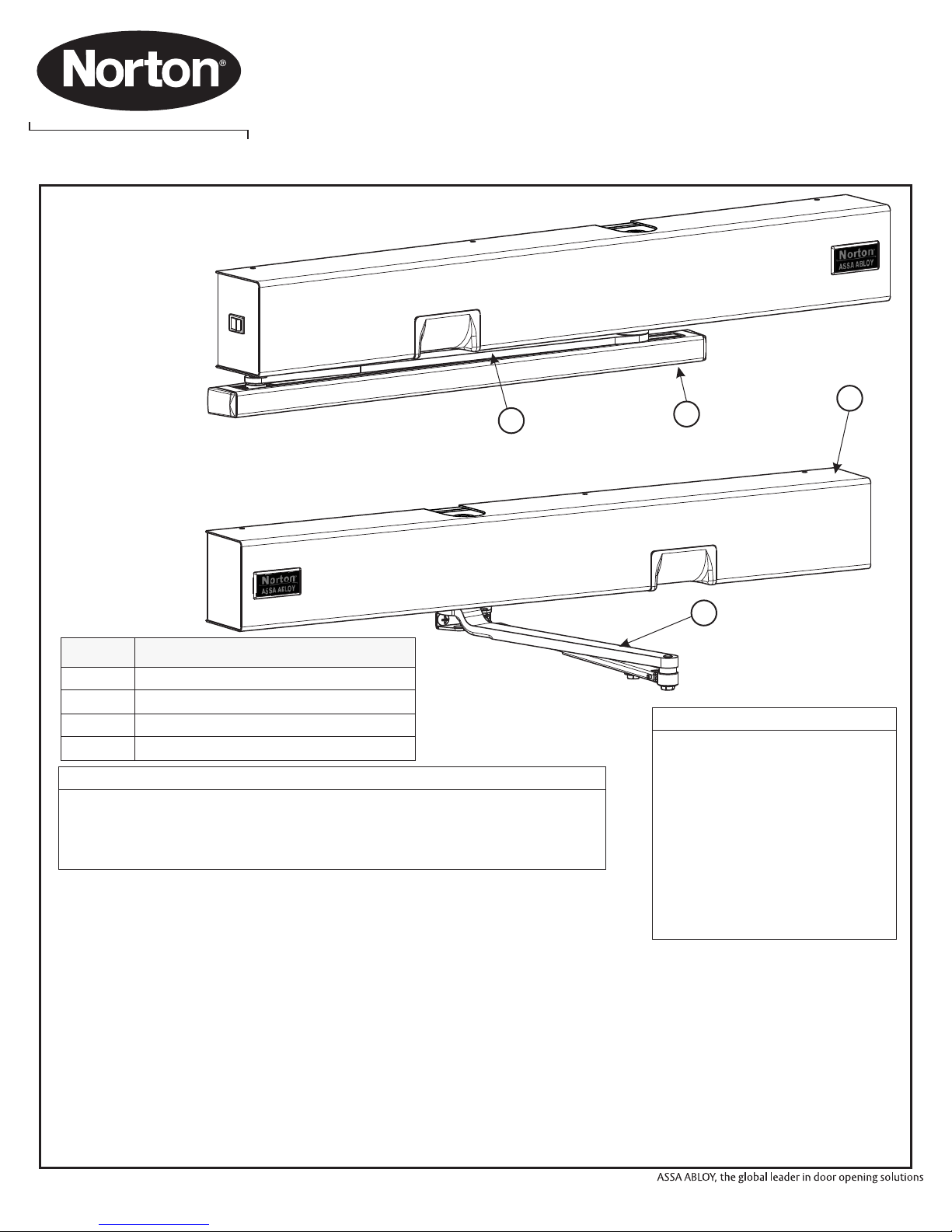

Pull Side Applications with Slide Track
(7110SZS, 7150SZS)
(see page 7 for template)
Patent Pending
Push Side Applications with Double Lever Arms
(7120SZS, 7130SZS)
(see page 3 for template)
Item No. Description
1 Track (Pull Side)
2 Cover
3 Track Arm (Pull Side)
4 Double Lever Arm (Push Side)
• Allen wrench set (inch)
• Flat blade screwdriver (potentiometer & terminal size)
• Screwdriver (Phillips size 2)
• Tape rule
• Power drill
• Center punch
• Wire stripper
Tools required:
Use screw pack and hardware provided to mount operator.
Table of Contents:
General Information...................2
Push Side Template...................3
Push Side Installation..............3-5
Closer Adjustments...................6
Pull Side Template.....................7
Pull Side Installation.................7-9
Closer Adjustments...................10
Electrical Connections...............11
Selective Hold Open..................12
Sensor Info and Set-up.........13-14
Troubleshooting.........................14
312
4
®
7100SZ Series SafeZone
With Selective Hold Open Option
Installation and Instruction Manual

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
2

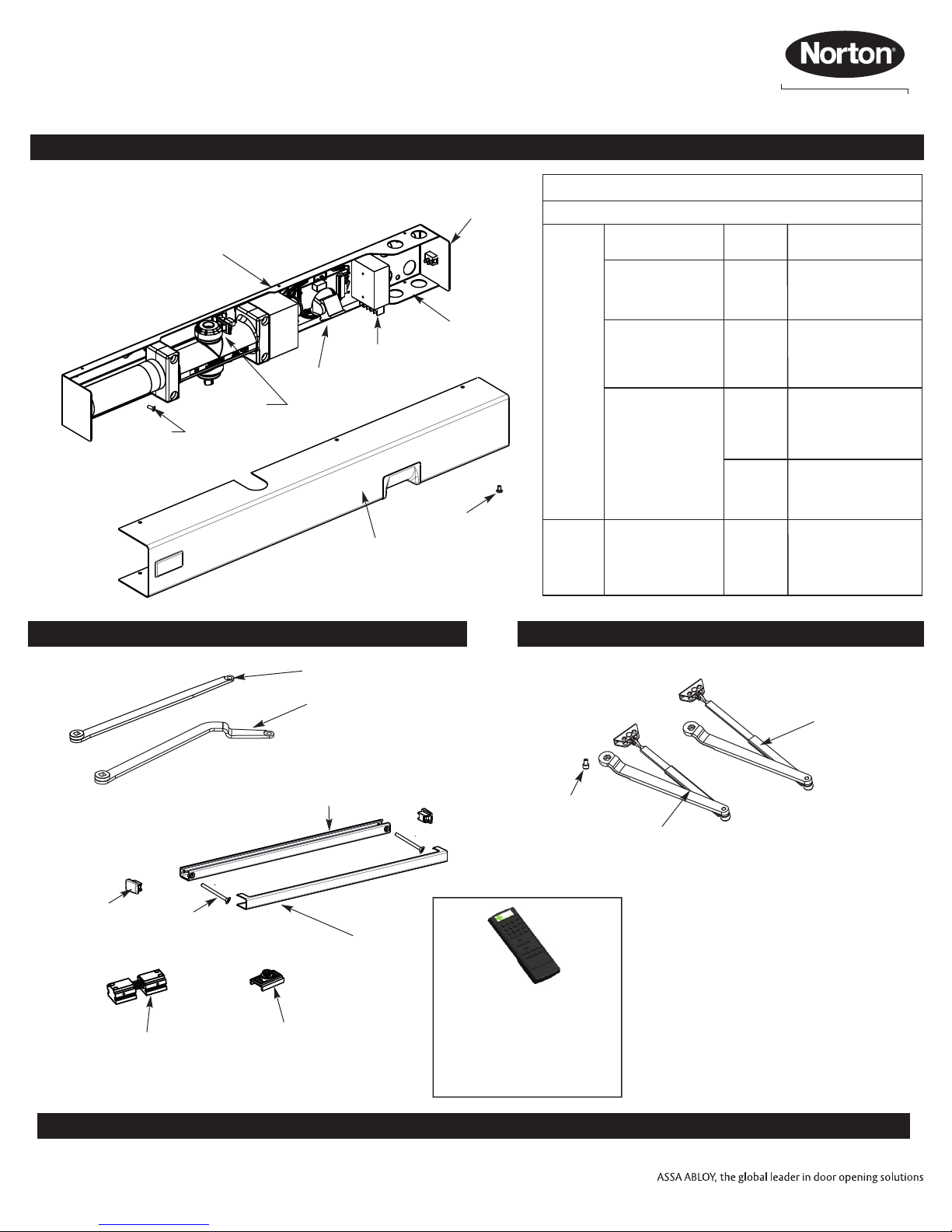

General Information
Certifications
UL228, UL10B
Included with 7110SZS and 7150SZS Included with 7120SZS and 7130SZS
7120 Arm
Assembly
(7701-1A)
7130 Arm
Assembly
(7701-1B)
Arm Screw
(7701-MAS)
Track End
Cap (2)
Slide Assembly
(7100SLD)
Track Cover
7110 Main Arm (7110-1A)
Slide Track
(7100-1T)
7150 Main Arm, Handed
(7150-1L: Left Hand
7150-1R: Right Hand)
Track Mtg
Screw (2)
Cushion Stop
Assembly
(7100CB)
NOTE: Optional remote
for Advanced Settings
(sensitivity, door control
mode) if required.
(7100REM)
9/32” (7 mm) thru;
3/8” (9.5 mm) dia. x
3/8” (9.5 mm) deep on
door opposite to closer
Standard
Optional Through-bolts and
grommet-nuts All
Preparation for Fasteners
Door or Frame
Fasteners Drill-Sizes
1/4” - 20 machine
screw Metal
Pre-Drill: 9/64 hole
Sleeve nuts and
bolts
(Shoe screws only)
Hollow
Metal
9/32” (7 mm) through;
3/8” (9.5 mm) door face
opposite to closer
Aluminum
or Wood 3/8” (9.5 mm) through
Self drilling screw
(Track screws only)
Drill: #7 (0.201” dia.)
Tap: 1/4” - 20
Metal
Self drilling screw
(Closer mounting
screws only)
Metal
Pre-Drill: 3/16 hole
Component Layout
Cover
LH = 7100CL
RH = 7100CR
Closer/Holder Unit Assembly
Backplate
Sensor
Power Supply
(120V units only)
Backplate
Mtg Screw (4)
Cover Mtg
Screw (6)
Test/Power
Switch
Selective
Hold Open

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
3

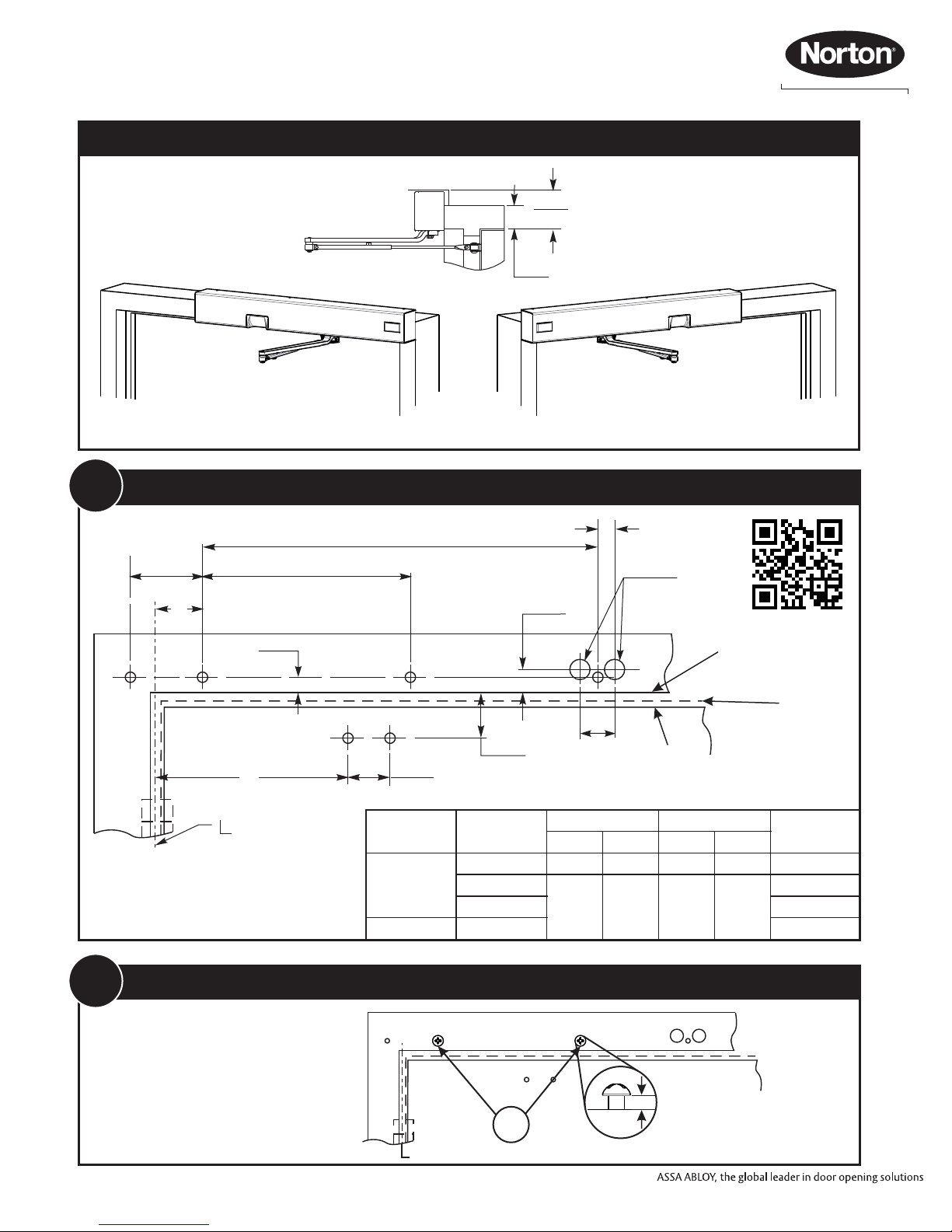

7120SZS, 7130SZS: Double Lever Arm (Push Side)
Operator Mounting
2
Prepare Frame
Right Hand Reverse - RHR
LHR - Left Hand Reverse
Ceiling Line
2
(51)
3-1/2
(89)
Min
Min
Use of an auxiliary door stop, by
others, is required for these applications.
Left Hand Door - LH
RH - Right Hand Door
Hinge
Edge
Of
Door
Hinge or Pivot
Drill #7; Tap 1/4-20 19-3/4
1-3/4
(44.5)
1-5/8
(41.3)
C
4
(101.6)
11-1/4
(285.8)
(501.7)
For Concealed
Wiring Only
7/8
(22.2) DIA THRU
11/16
(17.5)
5/16
(7.9)
A
Left hand door shown, right
hand opposite.
All dimensions shown in
inches (mm).
Install two screws in
the key slot locations
leaving 1/8" gap
between screw head
and frame as shown
(a).
C
1/8"
B
1
Top of
Door
Frame
Soffit
1-3/4
(44.5)
7/8
(22.2)
Frame
Model
Door Open
Angle
Dim “A”
Dim “B”
Reveal
Inches
(mm)
Inches
(mm)
712X SZ
100° Max.
5-7/8
149.2
13-3/8
339.7
2-3/4” - 7”
180° Max.
3-1/8
79.4
10-5/8
269.9
2-3/4 - 4”
165° Max.
4” - 7”
713X SZ
180° Max.
4” - 7”
a

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
4

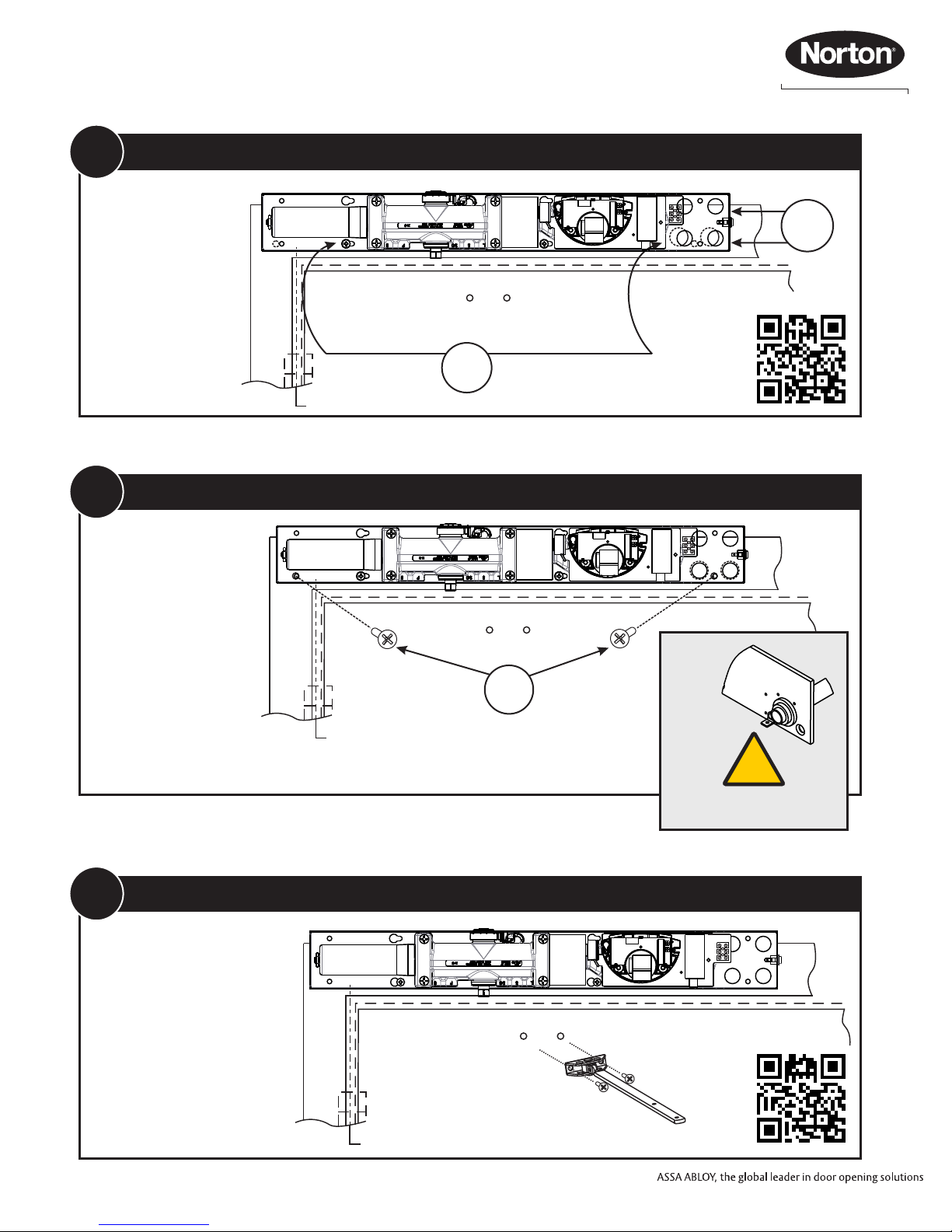

Operator Mounting
3
c
C
b
Hang closer body
by key hole slots (b)
and slide closer
toward hinge to
capture screw
heads (c).
Operator Mounting
4
d
C
Install remaining
mounting screws
through back plate and
tighten all four screws
(d). Pull wiring through
holes (if concealed
wired).
Arm Shoe Mounting
5
Mount closer arm shoe to
door face as shown.
For Concealed Wired Only
(If surface wired, see page 11)
!
C

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
5

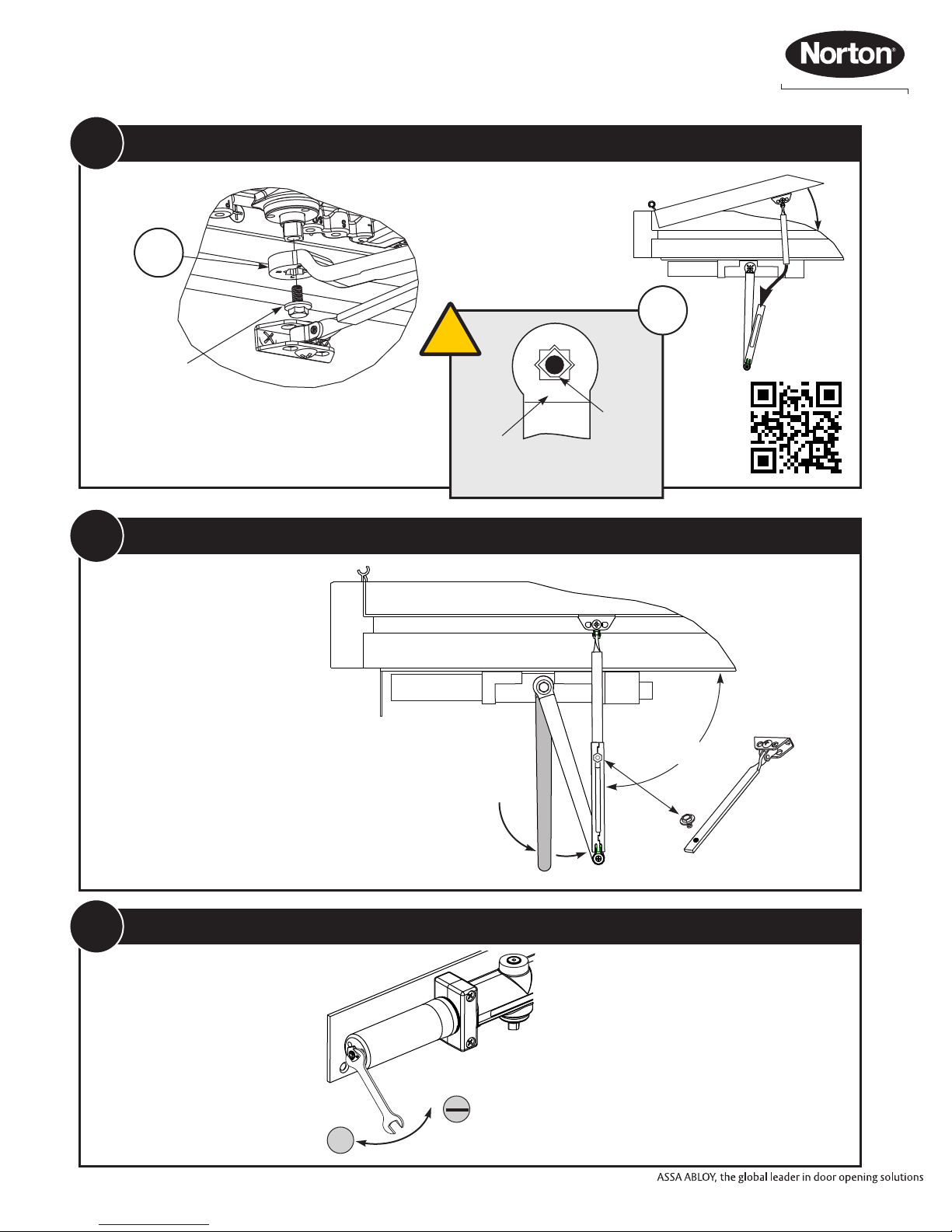

Attach Arm
36
Preload Closer Spring
37
Arm Screw
(7/16” Drive)
Main
Arm
Closer Spring Adjustment
38
11/16"
Wrench
+
Closing Force
Weaker
Stronger
L
R
Y
S
Z
Pinion
Flat
Arm
Mark
Align the pinion flat with
the letter "S".
Slowly increase closer power
until door closes consistently.
NOTE: A closer set to the ADA
required 5 lbs opening force
may not be strong enough to
close the door due to latching
hardware, air pressure, or
frame issues.
!
90°
With the door closed and
latched, rotate main arm until
secondary arm is perpendicular
to the door frame, then tighten
adjustment screw as shown with
7/16” wrench.
e
e

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
6

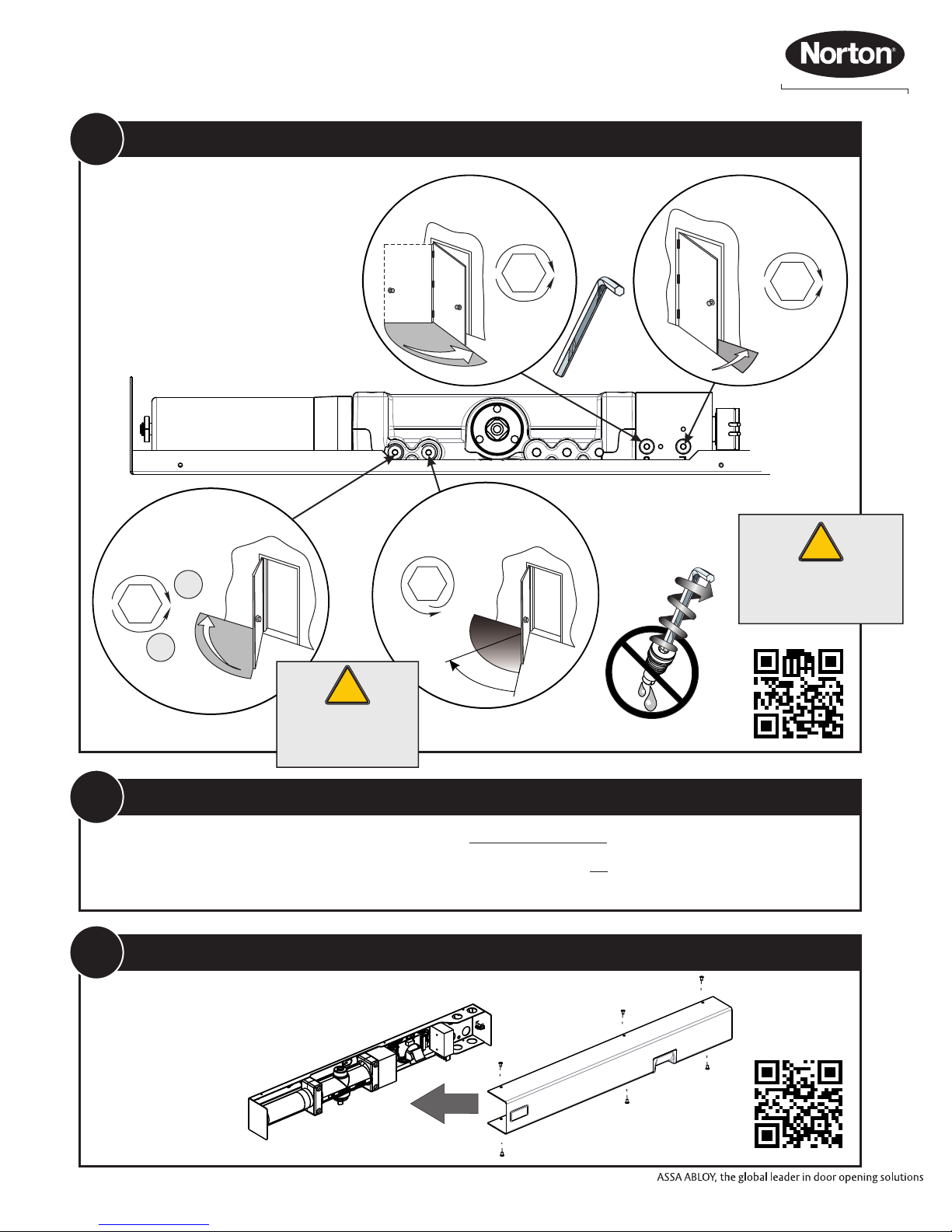

Closer Adjustments
39
+
-
1/8"
Hex
Key
"B"
Backcheck
75°
1/8"
Hex
Key
"P"
Backcheck
Position
75°
90°
Electrical Connections / Selective Hold Open Adjustments
3
Attach Cover
311
Attach cover using screws provided.
!
Never Close
backcheck valve
completely
!
Do not remove valves
from closer. Hydraulic
oil will escape.
10
Weaker
Stronger
Closing Speed Controls
• Valve "S" Controls Sweep Range from
full open to 5°.
• Valve "L" Controls Latch Range from 5°
to closed.
Opening Cycle
• Valve "B" controls the strength of
cushioning in Backcheck Range.
NEVER close this valve completely – it
is not to provide a positive stop.
• Valve "P" adjusts the angle that back-
check is felt in the open cycle.
Electrical Connections Page 11
Selective Hold Open Adjustments Page 12
"S"
Sweep
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e
"L"
Latch
0°
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
7
7110SZS, 7150SZS: Track Mount (Pull Side)
Operator Mounting
2
Prepare Frame
Ceiling Line
2
(51)
4
(102)
Min
Min
Left Hand Door - LH
Right Hand Reverse - RHR
RH - Right Hand Door
LHR - Left Hand Reverse
Track Mount Unit
6
(152.4)
19-1/8
(485.8)
CHinge or Pivot
3-1/4
(82.6)
3/4
(19)
For Concealed
Wiring Only
7/8
(22.2) DIA THRU
1-3/8
(34.9)
1-1/16
(27)
23
14-1/2
(368.3)
(584.2)
1-1/4 (31.8)
7110SZ Standard Arm
7150SZ Double Egress Arm
Series Dim "A"
5/8 (15.9)
Right hand door shown, left
hand opposite.
All dimensions shown in
inches (mm).
Install two screws in
the key slot locations
leaving 1/8" gap
between screw head
and frame as shown
(a).
C
1/8"
1
1/8
(3.2)
Top of
Door
Frame
Soffit
9/64 (3.6) Holes
for track screws
A
(44.5)
1-3/4
7/8
(22.2)
*9/64 (3.6) Holes
for track screws*
Prepare holes for mounting per instructions on page 2. *Track screws are
self tapping and are smaller than closer mounting screws*
a

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
8
Arm Mounting
5
Fully close Latch & Sweep
Valves with 1/8" wrench
provided.
Mount closer arm to pinion square as shown.
Use main arm to rotate pinion
until flat is visible.
RE-INSTALL
HERE
LEFT
HAND
RIGHT
HAND
PINION
FLAT
LEFT
HAND
RIGHT
HAND
Align the pinion flat as
shown.
!
*All views from floor looking upward*
Attach arm with provided
screw and washer.
Tighten arm screw with
5/32" Allen wrench.
Attach Arm
36
c
C
Hang closer body
by key hole slots (b)
and slide closer
toward hinge to
capture screw
heads (c).
Operator Mounting
3
Operator Mounting
4
Install remaining
mounting screws
through back plate
and tighten all four
screws (d). Pull
wiring through holes
(if concealed wired).
CFor Concealed Wired Only
(If surface wired, see page 11)
!
d
b

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
9
1) Insert slider into track.
2) Insert spring cushion stop on hinge side
of track for 125°or less opening angle.
!Do not use for openings greater
than 125°!
3) Insert end caps (both ends).
4) Secure track to door using provided
screws.
5) Snap on cover.
Set Screws
toward hinge
!
If opening angle greater than 125°, spring cushion stop cannot be used and an auxiliary stop
by others is required.
Mount Track
37
Connect Arm to Track
38
Open door to maximum desired
swing minus 5° and hold. Slide
spring cushion stop assembly
against slider assembly and
secure to track using 5/64" or
2mm wrench.
HINGE
Secure arm to slider
assembly using 3/16"
Wrench. Turn wrench
counterclockwise to
tighten.
Open Latch & Sweep Valves
with 1/8" wrench provided.
A
B
C
D
E
Closer Spring Adjustment
39
11/16"
Wrench
+
Closing Force
Weaker
Stronger
Slowly increase closer power
until door closes consistently.
NOTE: A closer set to the ADA
required 5 lbs opening force
may not be strong enough to
close the door due to latching
hardware, air pressure, or
frame issues.

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
10
Closer Adjustments
3
10
+
-
1/8"
Hex
Key
"B"
Backcheck
75°
1/8"
Hex
Key
"P"
Backcheck
Position
75°
90°
Electrical Connections
3
Attach Cover
312
Attach cover using screws provided.
!
Never Close
backcheck valve
completely
!
Do not remove valves
from closer. Hydraulic
oil will escape.
11
Weaker
Stronger
Closing Speed Controls
• Valve "S" Controls Sweep Range from
full open to 5°.
• Valve "L" Controls Latch Range from 5°
to closed.
Opening Cycle
• Valve "B" controls the strength of
cushioning in Backcheck Range.
NEVER close this valve completely – it
is not to provide a positive stop.
• Valve "P" adjusts the angle that back-
check is felt in the open cycle.
Electrical Connections Page 11
Selective Hold Open Adjustments Page 12
"L"
Latch
0°
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e
"S"
Sweep
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
11

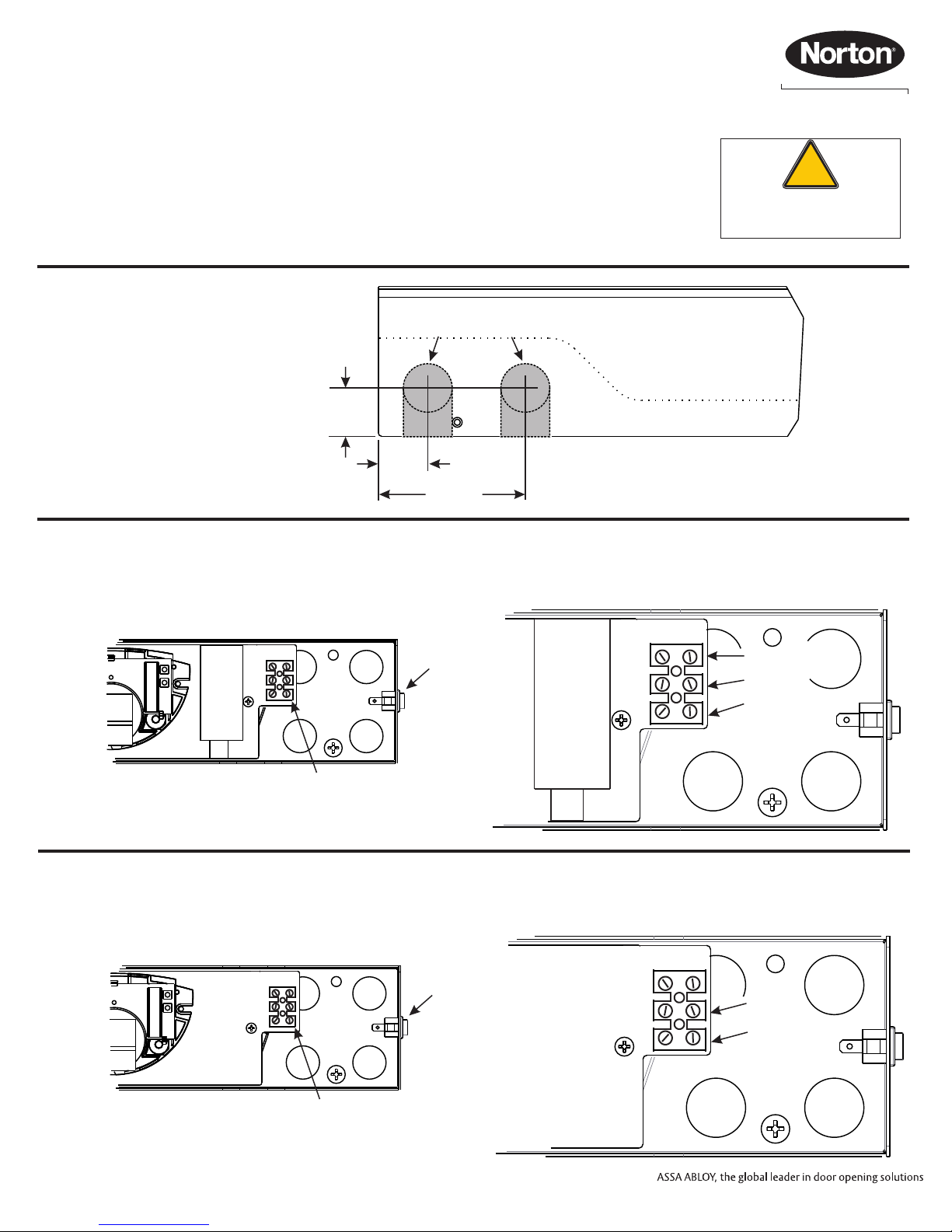

• Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice conforming to local wiring codes.
• Maximum wire size is 18AWG.
• Make input power connections to the terminal block or power supply using illustrations.
ELECTRICAL CONNECTIONS
120V AC INPUT
Surface mount power input:
Remove appropriate
shaded area from
cover for surface
wired installations
only. Repaint cut
edges as necessary
to prevent corrosion.
7/8"
7/8"
2-5/8"
Clearance
For Strain Relief Cover surface
facing ceiling.
!
Caution:
Determine proper
input power; 24V or 120V.
Make power connections as shown below.
Terminal Block
Make Connections
Here
On/Off
Switch
Live
Neutral
Ground
24V DC INPUT
Make power connections as shown below.
24V(+)
24V(-)
Terminal Block
Make Connections
Here
On/Off
Switch

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
12
a
5/32” hex
wrench
b
cd
5/32” hex
wrench
e
Right hand pull-side shown.
Switch shown in hold open position.
SHO switch in
open position.
Closer not in
hold open.
SHO switch in
closed position.
Closer in hold
open.
Un-used pin

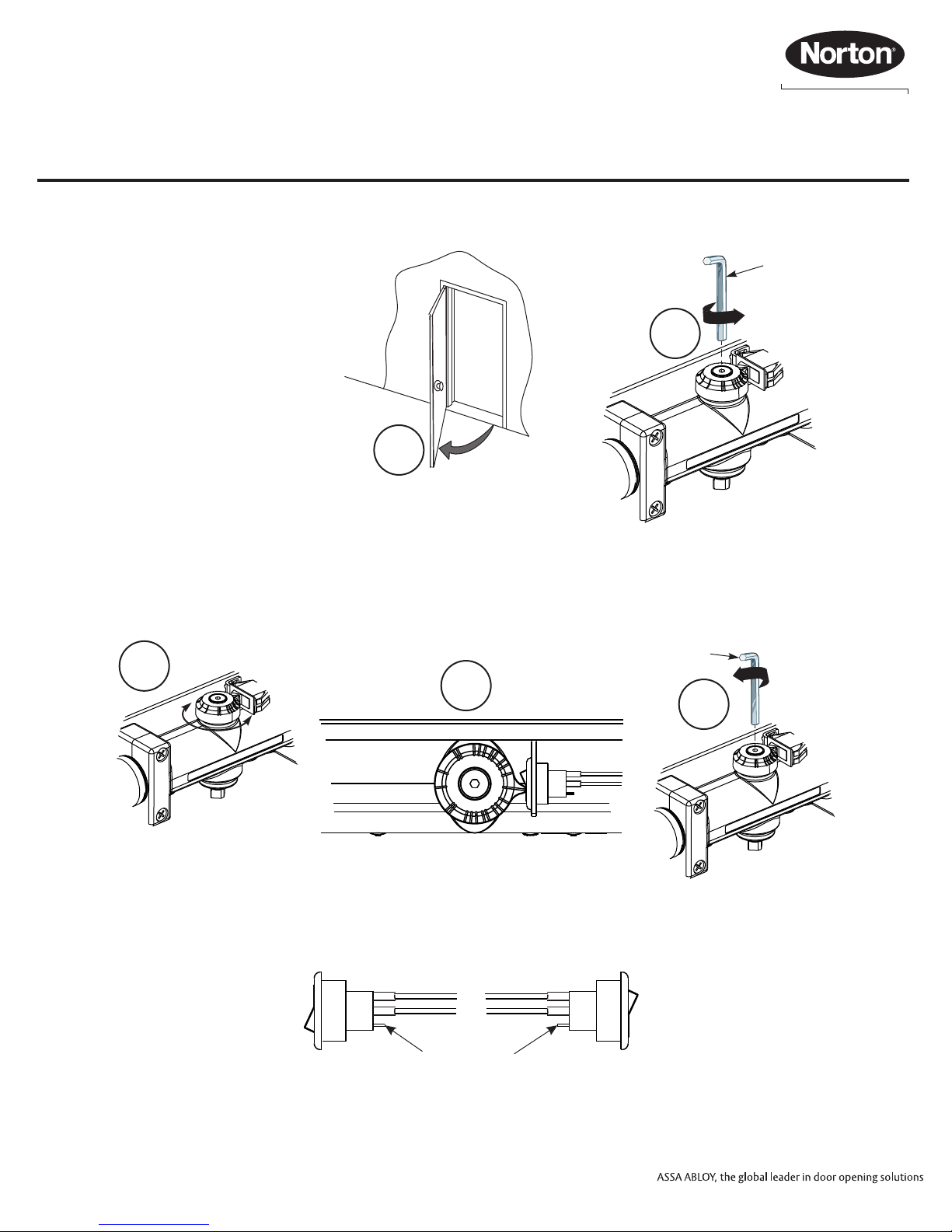

Setting Hold Open Angle
• Make all required electrical connections
and turn power switch to “ON” for non-
detectored units (Detectored units
cannot be turned off at the closer).
• Open door to desired hold open angle.
• Loosen cam screw and rotate cam until
switch closes and door holds open.
• Rotate cam until it touches the switch.
• Tighten cam screw but do not over
torque as this will cause damage to
cam.
• Force door out of hold open by closing
the door, then test hold open by opening
to hold open angle again.
SELECTIVE HOLD OPEN ADJUSTMENT

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
13
Sensor Technical Specifications
DESCRIPTION SPECIFICATION
Frequency: 24.125 GHz
Suppl voltage: y 12 t 24 V DC: -10% / +30%:
Mounting height: Normal: 7’; Maximum: 10’-0”
Tilt angle: 0 to 90 vertical
-15 to +15 lateral
Detection area:
Wide
Narrow
13ft (W) x 6.5ft (D)
6.5ft (W) x 8.2ft (D) (supplied as optional)
Minimum detection speed: 2 in/sec. (measured in axis)
Power consumption: < 2 W
Standard output relay:
Max contact voltage
Max contact current
Max s itching po ew w r
60 VDC / 125 VAC
1 A (resistive)
30W (DC / 60V) A (AC)
Hold time: 0.5 sec. to 9 sec. (adjustable)
Temperature range: -4°F to 131°F
Dimensions: 4.75in (W) x 3.15in (H) x 2.0in (D)
Weight: 0.5lbs
Material: ABS
®
SafeZone
Safety Precautions
• Shut off all power going to the header before attempting any wiring procedures.
• Maintain a clean & safe environment when working in public areas.
• Constantly be aware of pedestrian traffic around the door area.
• Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by
the door.
• Always check placement of all wiring and components before po ering upw to ensure that moving door parts will not
catch an w res and cause damay i ge to equipment.
• Ensure compliance w yith all applicable safet standards upon completion of installation.
ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS
Circuit board components are vulnerable to damage by electrostatic discharge
(ESD). ESD can cause immediate or subtle damage to sensitive electronic parts.
An electrostatic charge can build up on the human body and then discharge when
you touch a board. A discharge can be produced when walking across a carpet
and touching a board, for example. Before handling any board, make sure you
dissipate your body’s charge.
CAUTION: In the event a unit needs to be opened, observe the following precautions.
Ground yourself by touching a conductive surface of the door or other element connected to common earth
ground to discharge the static electricity present in your body.

Avoid walking around while replacing items inside the case, especially if you are on carpet or during
conditions of low temperature and low humidity.

Handle the board by the edges only to avoid touching electronic components.
Store a loose board in an anti-static bag.
•
•
•
•

Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9371-0085-020 (01-14)
ASSA ABLOY
14

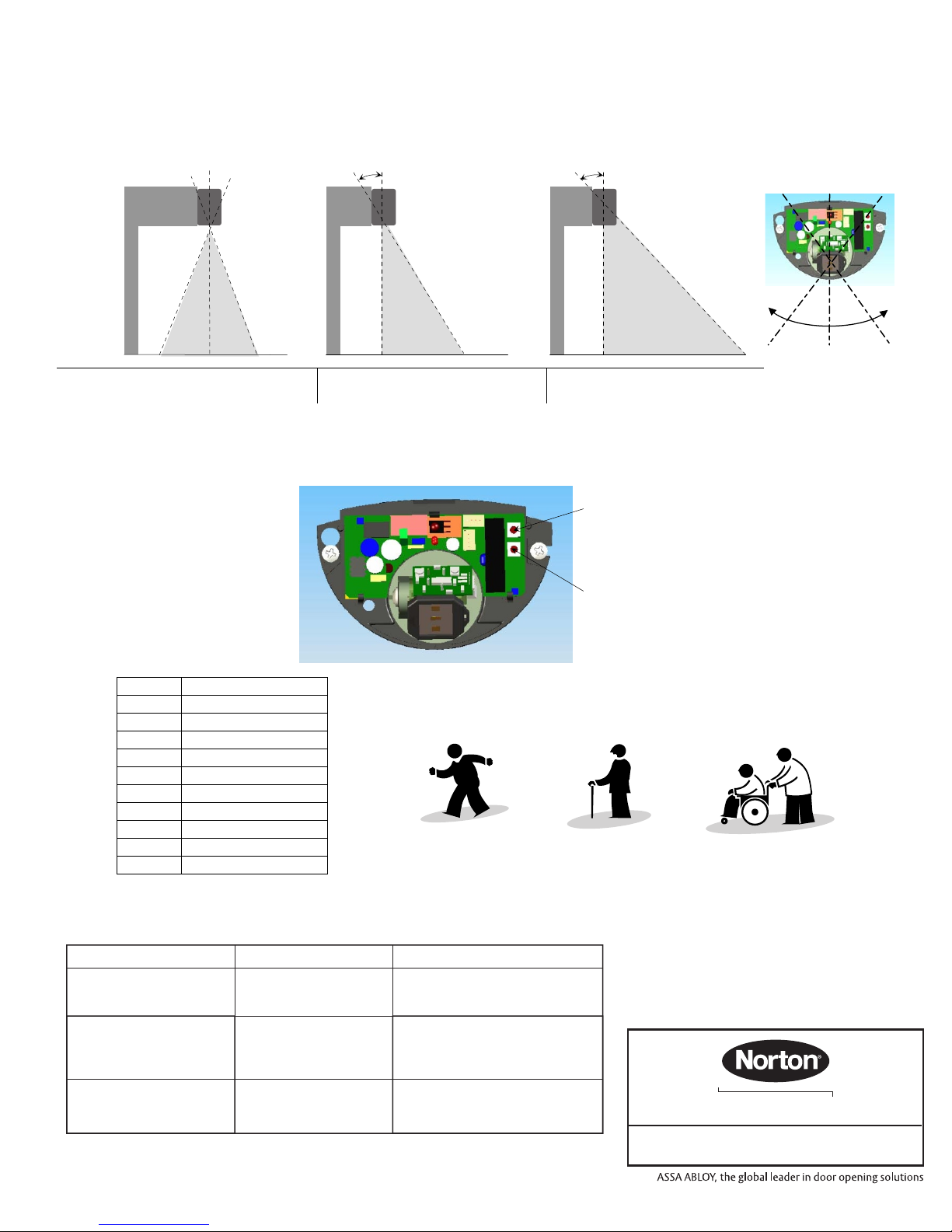

Hold Time Settings
Hold open time refers to the time the
door will remain open AFTER
movement is no longer detected.
Hold open time can be adjusted
manually by means of the push
buttons and .+ (more) - (less)
Pressing the two push
buttons, located on the
circuit board,
simultaneously for three
seconds, will restore all
default settings.
Troubleshooting
+ Press and release button
to increase hold open
setting (do not hold
button continuously).
(see table below)
-
Setting Time (Seconds)
1 5
2 6
3 7
4 8
5 (Default) 10
6 14
7 16
8 18
9 20
Recommended Settings:
Setting 4-6 Setting 1-3 Setting 7-9
Sensing Field Adjustments
THE OSITI SE DETERMINE THE VERTICP ON OF THE NSING FIELD IS D BY AL AND LATERAL ANGLE OF THE ANTENNA
Sensing field as close to the door
as possible:
-antenna set at the position of 0°
Sensing field close to the door:
-antenna set at the position of 30°
Sensing field far from the door:
-antenna set at the position of 45°
0º 30º
B
A
45º
C
+30-30º
0 0.5
Press and release button
to decrease hold open
setting (do not hold
button continuously).
Example: If the current setting is 5 and the
required setting is 8, press and release the button
3 times.
SYMPTOMS PROBABLE CORRECTIVE
CAUSE ACTION
Door Stops several times in
the same cycle without
sensing presence in the door
way.
Sensitivity is set too high Change sensitivity setting using
optional remote.
Door not closing when cover
installed.
Eye is sensing the closer
cover.
Adjust the sensing field away from
cover edge. (See “Sensing Field
Adjustments” above.
Power switch is off.
Loose wire connection.
Turn power switch to “ON” position.
Inspect wiring for loose connections.
Red LED does not light up.
(No power to sensor)
3000 Highway 74 East • Monroe, NC 28112
Tel: (877)- • Fax: [phone]-2255
www. no r to ndoorcontrols. com
ASSA ABLOY
