auna 10033215 User manual

10033215
Instruction Manual
Please read this instruction manual carefully before
usage and save it for future reference.

2
CONTENTS
WARNING ----------------------------------------------------------------------------------------------------- 3
COMPLIANCE WITH FCC REGULATIONS -------------------------------------------------------------- 4
SAFETY PRECAUTIONS------------------------------------------------------------------------------------- 5
INTRODUCTION --------------------------------------------------------------------------------------------- 6
INTRODUCTION----------------------------------------------------------------------------------------------7
USB/SD CARD OPERATION ------------------------------------------------------------------------------- 8
BLUETOOTH OPERATION --------------------------------------------------------------------------------- 9
AUX OPERATION -------------------------------------------------------------------------------------------- 9
TROUBLE SHOOTING ------------------------------------------------------------------------------------- 10
SPECIFICATIONS -------------------------------------------------------------------------------------------- 10

3

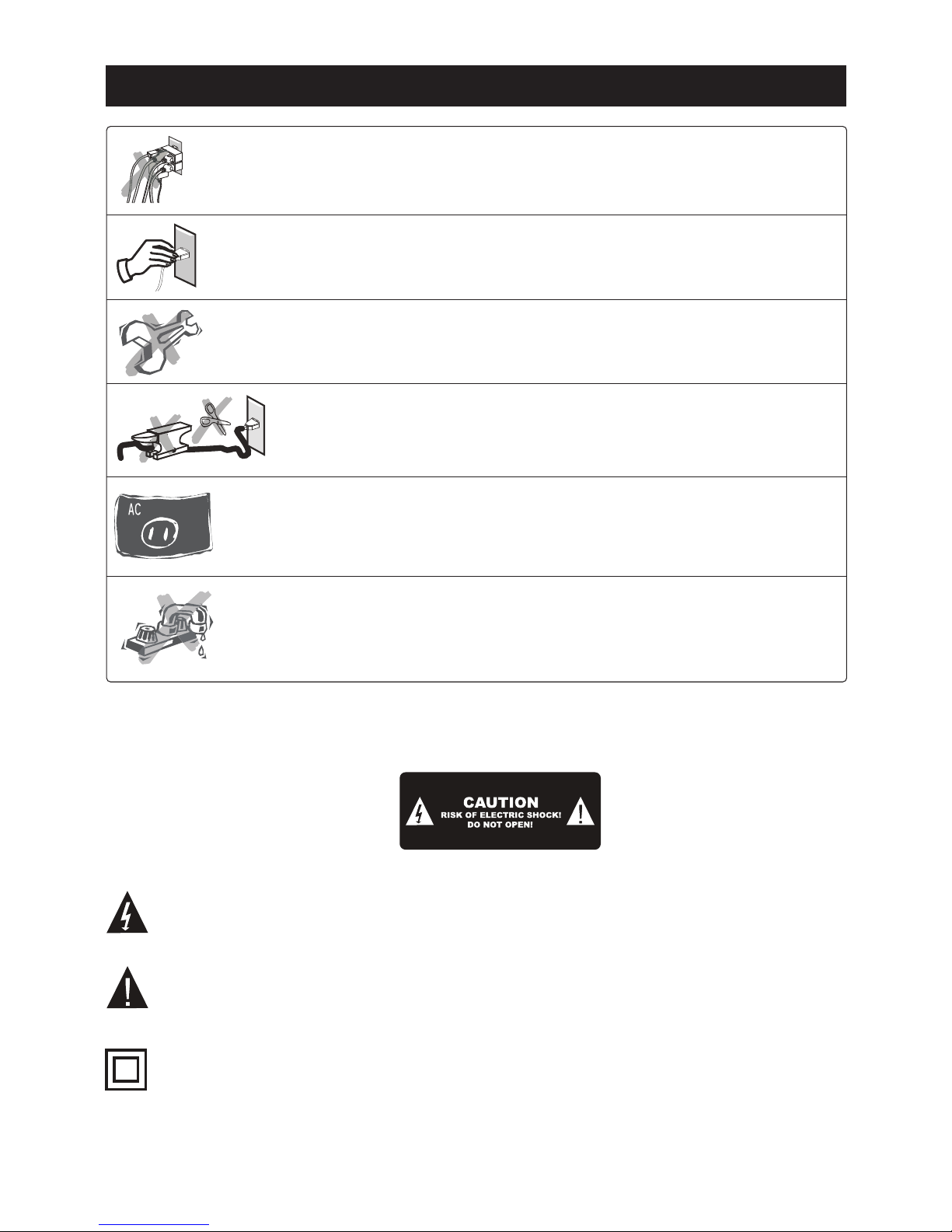

Do NOT connect the speaker to voltages below 100V or above 240V.
When the voltage is below 100V, the machine may not work and its useful
life period will be affected adversely. When the voltage is above 240V,the
machine may be burned down or cause fire.
Be careful of the wire and keep proper maintenance.
Do not press, twist, pull, lengthen or push the cable to avoid
electrical hazards and damage to the cable.
Do not share the power socket unit with other electrical appliances.
Pull off the power plug to save power in case the machine is not being used.
Do not clean or wash with water or use in the bathroom to avoid the possibility
of accidents or problems.
Do not dismantle the machine and try to repair it or reassemble it by yourself.
To prevent suffering an electrical shock or another accident, do not operate the
appliance in a rainy or humid environment.
This symbol indicates that dangerous voltages constituting a risk of electric shock
are present within this unit.
This symbol indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
This symbol indicates that this product incorporates double insulation between hazardous
mains voltage and user accessible parts. When servicing use only identical parts.
100~240V
WARNING

4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference
that may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
COMPLIANCE WITH FCC REGULATIONS

Leave sucient space around the speaker of at least 5cm from any wall/obstacle to ensure
proper ventilation and prevent the speaker from overheating.The following places are not
suitable installation locations for the speakers.
Installation location
Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker.
Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
Warning
To prevent suering an electrical shock or another accident,do not operate the speaker in a
rainy or humid environment.
Cleaning and maintenance
If the speaker is not working properly during a storm,Please disconnect the plug from the
power socket and reinsert it after a minute.
Storm
In the event that you nd small items or a liquid inside the speaker ,you see smoke or smell
an odour,immediately disconnect the speaker from the power grid .send the speaker to an
authorised service centre.
Do not drop small items or a liquid into the speaker
An unstable location
a location near a heat source or in direct sunlight.
In a wet or dusty environment
SAFETY PRECAUTIONS
5

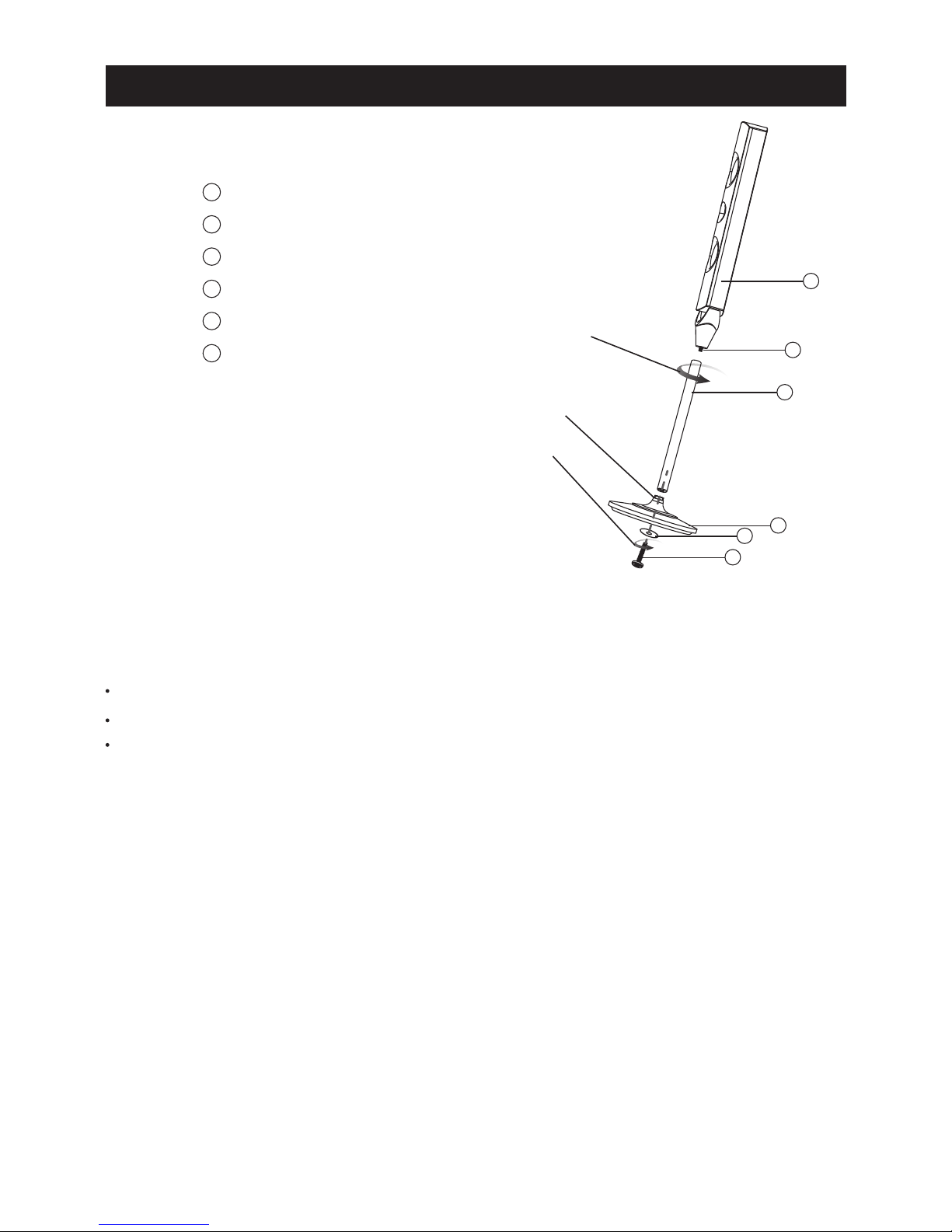

Satellite tower speaker assembly
1
2
3
4
5
6
Speaker box.
Screw
Metal pillar.
Base
Washer
Screw
1
2
3
4
5
6
Take base insert metal pillar.
Screw insert washer then
go through base,clockwise
rotated screw to base fasten.
Take metal pillar clockwise rotated
to screw of speaker box fasten

01. DISPLAY WINDOW
02. REMOTE RECEIVER WINDOW
03. USB
04. SD
05. STANDBY
06. MODE
07. PLAY/PAUSE
08. PREV/VOL-
09. NEXT/VOL+
INTRODUCTION
03
01
02
05
06
07
08
09
04
10. 5.1CH SURROUND RIGHT INPUT
11. 5.1CH SURROUND LEFT INPUT
12. 5.1CH SUBWOOFER INPUT
13. 5.1CH CENTER INPUT
14. 5.1CH FRONT LEFT INPUT
15. 5.1CH FRONT RIGHT INPUT
16. AUX
17. SPEAKER FRONT LEFT OUTPUT
18. SPEAKER FRONT RIGHT OUTPUT
19. SPEAKER SURROUND LEFT OUTPUT
20. SPEAKER SURROUND RIGHT OUTPUT
21. SPEAKER CENTER OUTPUT
22. POWER
23. AC IN
6
10
12
14
16
11
13
17
18
19
20
21
15
23
22

PABT IR
MODE
STANDBY MUTE
USB
EQ
Remote Control
Remote Control Use Ready
1
2
3
4
5
6
7
8
9
10
11
12
13
14
STANDBY : Switch to standby mode
Press to increase the volume level
Skip to the previous track
Press for play and pause function
Fast rewind button
Press for bluetooth mode
Press to switch modes
1.
2.
3.
4.
5.
6.
7.
Press to switch EQ mode
Press to mute audio playback
Skip to the next track
Press to decrease the volume level
Fast forward button
Press to switch USB input
Press to unpair a connected bluetooth device
8.
9.
10.
11.
12.
13.
14.
Lithium Battery
CR2025
3V
NOTE:
Before rst use ,please put the insulation piece out.
The remote control can be normal use.
Within approxinately
6 Meter
INTRODUCTION
7

Hold to seek fast forward.
Select “POWER” to “on” to turn on unit or to “OFF”to turn o unit.
Press to select between Bluetooth/AUX/USB/SD CARD modes,
please press to select to USB/SD CARD.
Press to select equalizer mode.
Press to skip to previous track.
Press to temporarily pause a playback, press it again to resume the playback.
Hold to seek fast rewind.
Press to skip to next track.
USB/SD CARD OPERATION
8

BLUETOOTH OPERATION
NOTE:
In Bluetooth mode, [PLAY/ PAUSE], [NEXT] and [PREVIOUS] buttons are also active.
Press to select between Bluetooth/AUX/SD CARD modes,
please press to select to AUX mode.
AUX OPERATION
Press to select between Bluetooth/AUX/SD CARD modes,please
press to select to Bluetooth. Please connect your cellphone or Bluetooth
device with unit.
Press to select equalizer mode.
Press to skip to previous track.
Press to temporarily pause a playback; press it again to resume the playback.
Hold to enter pairing mode
Press to dis-connect Bluetooth function with your mobile phone.
Press to select equalizer mode.
Press to skip to next track.
The model of the unit is “ Areal Nobility ”,press [MODE] button to switch to the
corresponding signal source (Bluetooth), use your enabled mobile device to search and pair
the the unit by selecting The unit will synchronize play songs with your mobile device after
connected successfully. Disconnect the Bluetooth connection by holding [PLAY/PAUSE] on
the front panel or the remote control.
NOTE:
In tuner mode, [VOLUME +/-],and [MUTE] buttons are also active.
9

TROUBLE SHOOTING
SPECIFICATIONS
Frequency response 40 Hz -20KHz
Bluetooth version
Output power 120W
USB/SD audio format MP3/WMA
S /N ratio >75dB
Bluetooth range >10 meters
BT3.0+EDR
Malfunction
No sound or
sound weak
Playback of USB/
SD/CARD,no sound
or hissing
Inspection and action
Turn “VOLUME” to up volume.
If the recordings are made in various formats in combination
with the MP3/WMA format and stored on the same USB/SD
CARD. The unit can play various recording formats
(apart from MP3/WMA) with hissing or it may not be able to
play them at all.
Check whether all the les on the USB/SD are in MP3/WMA
format. Skip the le and try to play dierent les.
10

The device contains battery covered by European
Directive 2013/56/EU and it cannot be disposed together
with domestic wastes. Please inform yourself about local
rules on separated disposal for batteries: a correct
disposal helps to avoid negative consequences for the
environment and health.
This marking indicates that this product should not be
disposed with other household wastes, but it should be disposed
separately from other wastes. Therefore, the user should bring the
product with all essential components to recycling centers for electrical
and electronic wastes, or return to retailer before to buy a new product
as equivalent type, in the ratio of 1 to 1, or 1 to 0 for products that have
larger side lesser of 25cm. Correct disposal of your old appliance will
help to prevent potential damage to the environment and to human
health and support materials recycling. The unlawful disposal of the
product should involve for users administrative sanctions based on
Legislative Decree no.49 dated 14th March, 2014.
Based on legislative decree no. 49 dated 14th March,
2014 “Execution of Directive 2012/19/UE about
electrical and electronic equipment waste (WEEE)”.
USERS ADVICES
Made in P.R.C
Double
Insulation

FCCWarningStatement
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto
correcttheinterferencebyoneormoreofthefollowingmeasures:
‐‐ Reorientorrelocatethereceivingantenna.
‐‐ Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.

