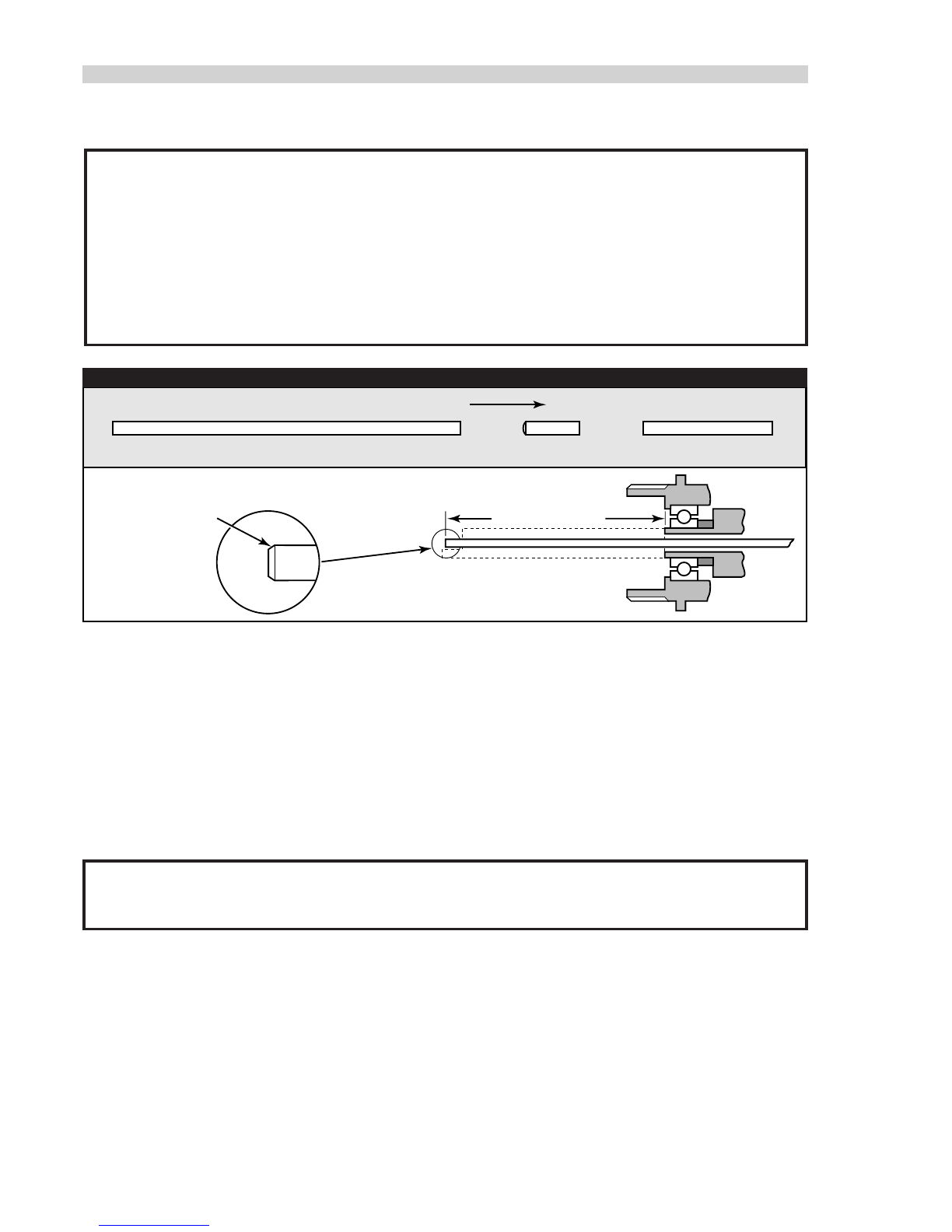

SPECIFICATIONS FOR 07572 TOOL
AIR PRESSURE
Minimum
-
Maximum
5 -
8 bar
•
75 - 120
lbf/in
2
FREE AIR VOLUME REQUIRED
•
@
5 bar / 75 lbf/in
2
I
288 litres/ min
•
10 ft
3
/min
MOTOR SPEED
•
@ 75
lb/in
2
minimum
I
900 RPM
•
(clockwise)
CYCLE TIME
•
Approximately
I
3 seconds
•
NOISE LEVEL
I
I
dB(A)
75
•
WEIGHT
I
Without nose equipment
I
1.15 kg
. 2.5
lb
VIBRATION
E
Less
than
I
2.5 m/ s
2
•
8 ft/s2
AVDEL policy is one of continuous development. Specifications shown in this document may be subject to changes which
may be introduced after publication. For the latest information always consult Avdel.
AIR PRESSURE Minimum - Maximum 5 - 8 bar 75 - 120 lbf/in2
FREE AIR VOLUME REQUIRED @ 5 bar / 75 lbf/in2288 litres/min 10 ft3 /min
MOTOR SPEED @ 75 lb/in2 minimum 900 RPM (clockwise)
CYCLE TIME Approximately 3 seconds
NOISE LEVEL 75 dB(A)
WEIGHT Without nose equipment 1.15 kg 2.5 lb
VIBRATION Less than 2.5 m/s28 ft/s2
S P E C I F I C A T I O N S F O R 0 7 5 7 2 T O O L
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
