Avdel 74401 User manual

Threaded Insert Power Tool
74401
Instruction Manual
Original Instruction

AIR PRESSURE Minimum - Maximum 4 - 7 bar 60 - 100 lbf/in2
INTENSIFICATION RATIO 51:1
AIR PRESSURE Minimum - Maximum 4 - 7 bar 60 - 100 lbf/in2
FREE AIR VOLUME REQUIRED @ 5 bar or 75 lbf/in215 litres .525 ft3
STROKE Maximum 12 mm .47 in
MOTOR SPEED SPIN ON 2500 RPM
SPIN OFF 3000 RPM
PULL FORCE @ 5 bar or 75 lbf/in235.93 kN 8077 lbf
CYCLE TIME Approximately 3 seconds
NOISE LEVEL Less than 70 dB(A)
WEIGHT w/o nose equipment or hose 2 kg 4.4 lb
VIBRATION Less than 2.5 m/s2
Avdel UK Limited policy is one of continuous development. Specifications shown in this document may be subject to
changes which may be introduced after publication. For the latest information always consult Avdel.
S P E C I F I C A T I O N S F O R T H E 7 4 4 0 1 I N T E N S I F I E R
S P E C I F I C A T I O N S F O R T H E 7 4 4 0 1 T O O L




































General 2
Specific to Type of Tool 3
General 4
Tool Dimensions 4
Air Supply 5
Stroke Adjustment 5
Operating Procedure 6
Connnecting the Foot Pedal 7
Fitting 8
Servicing 8

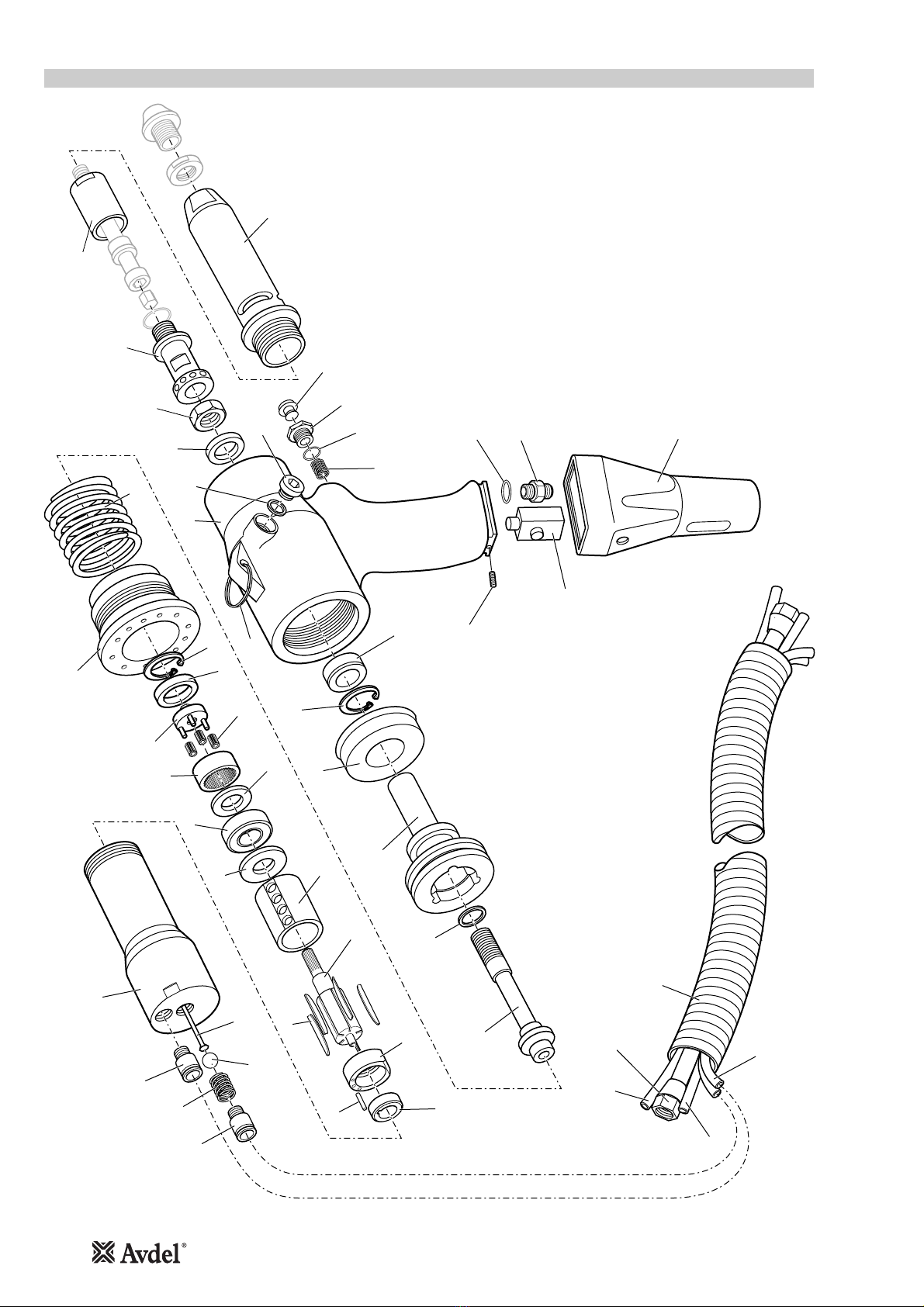

Components 9
Regular Servicing 10
Service Kit 10
Maintenance 11-13
General Assembly & Parts List 14-20
Priming Oil Details 22
Priming Procedure 22
Fault Diagnosis Table 23
S A F E T Y
I N T E N T O F U S E
P U T T I N G I N T O S E R V I C E
N O S E A S S E M B L I E S
S E R V I C I N G
P R I M I N G
F A U L T D I A G N O S I S
CO N T E N T S
1

S
A F E T Y
2
This instruction manual must be read with particular attention to the following safety rules,
by any person installing, operating, or servicing this tool.
DO NOT USE OUTSIDE THE DESIGN INTENT.
DO NOT USE EQUIPMENT WITH THIS TOOL/MACHINE OTHER THAN THAT
RECOMMENDED AND SUPPLIED BY AVDEL.
ANY MODIFICATION UNDERTAKEN BY THE CUSTOMER TO THE TOOL/MACHINE,
NOSE ASSEMBLIES, ACCESSORIES OR ANY EQUIPMENT SUPPLIED BY AVDEL OR THEIR
REPRESENTATIVES, SHALL BE THE CUSTOMER'S ENTIRE RESPONSIBILITY. AVDEL WILL BE
PLEASED TO ADVISE UPON ANY PROPOSED MODIFICATION.
THE TOOL/MACHINE MUST BE MAINTAINED IN A SAFE WORKING CONDITION AT
ALL TIMES AND EXAMINED AT REGULAR INTERVALS FOR DAMAGE AND FUNCTION BY
TRAINED COMPETENT PERSONNEL. ANY DISMANTLING PROCEDURE SHALL BE
UNDERTAKEN ONLY BY PERSONNEL TRAINED IN AVDEL PROCEDURES. DO NOT DISMANTLE
THIS TOOL/MACHINE WITHOUT PRIOR REFERENCE TO THE MAINTENANCE INSTRUCTIONS.
CONTACT AVDEL WITH YOUR TRAINING REQUIREMENTS.
THE TOOL/MACHINE SHALL AT ALL TIMES BE OPERATED IN ACCORDANCE WITH
RELEVANT HEALTH AND SAFETY LEGISLATION. IN THE U.K. THE “HEALTH AND SAFETY AT
WORK ETC. ACT 1974” APPLIES. ANY QUESTION REGARDING THE CORRECT OPERATION
OF THE TOOL/MACHINE AND OPERATOR SAFETY SHOULD BE DIRECTED TO AVDEL.
THE PRECAUTIONS TO BE OBSERVED WHEN USING THIS TOOL/MACHINE MUST BE
EXPLAINED BY THE CUSTOMER TO ALL OPERATORS.
ALWAYS DISCONNECT THE AIRLINE FROM THE TOOL/MACHINE INLET BEFORE
ATTEMPTING TO ADJUST, FIT OR REMOVE A NOSE ASSEMBLY.
DO NOT OPERATE A TOOL/MACHINE THAT IS DIRECTED TOWARDS ANY PERSON(S).
ALWAYS ADOPT A FIRM FOOTING OR A STABLE POSITION BEFORE OPERATING THE
TOOL/MACHINE.
ENSURE THAT VENT HOLES DO NOT BECOME BLOCKED OR COVERED AND THAT
HOSES ARE ALWAYS IN GOOD CONDITION.

3
In addition to the general safety rules opposite, the following specific safety points must also
be observed:
THE OPERATING PRESSURE SHALL NOT EXCEED 7 BAR - 100 LBF/IN2.
DO NOT OPERATE THE TOOL WITHOUT FULL NOSE EQUIPMENT, OIL PLUG AND OIL
BLEED SCREW IN PLACE.
WHEN USING THE TOOL, THE WEARING OF SAFETY GLASSES IS REQUIRED BOTH BY
THE OPERATOR AND OTHERS IN THE VICINITY TO PROTECT AGAINST FASTENER
PROJECTION, SHOULD A FASTENER BE PLACED ‘IN AIR’. WE RECOMMEND WEARING
GLOVES IF THERE ARE SHARP EDGES OR CORNERS ON THE APPLICATION.
TAKE CARE TO AVOID ENTANGLEMENT OF LOOSE CLOTHES, TIES, LONG HAIR,
CLEANING RAGS ETC… IN THE MOVING PARTS OF THE TOOL WHICH SHOULD BE KEPT
DRY AND CLEAN FOR BEST POSSIBLE GRIP.
WHEN CARRYING THE TOOL FROM PLACE TO PLACE KEEP HANDS AWAY FROM THE
TRIGGER/LEVER AND EMERGENCY SPIN-OFF BUTTON TO AVOID INADVERTENT START
UP.
EXCESSIVE CONTACT WITH HYDRAULIC OIL SHOULD BE AVOIDED. TO MINIMIZE THE
POSSIBILITY OF RASHES, CARE SHOULD BE TAKEN TO WASH THOROUGHLY.

The hydro-pneumatic 74401 tool is designed to place Avdel threaded inserts at high speed making it ideal for batch or flow-line
assembly in a wide variety of applications throughout all industries.
Use the selection chart page 7 to select a complete tool.
It is also possible to order the handle with no hoses, part number 74401-12000, or the cabinet only, part number 07265-03201.
Other items include : 74401-01000 Basic tool with 5m hose assembly
74401-13500 Hose assembly (5m)
74401-13900 Complete cabinet without intensifier
74401-13000 Complete cabinet with intensifier
4
I
N T E N T O F U S E

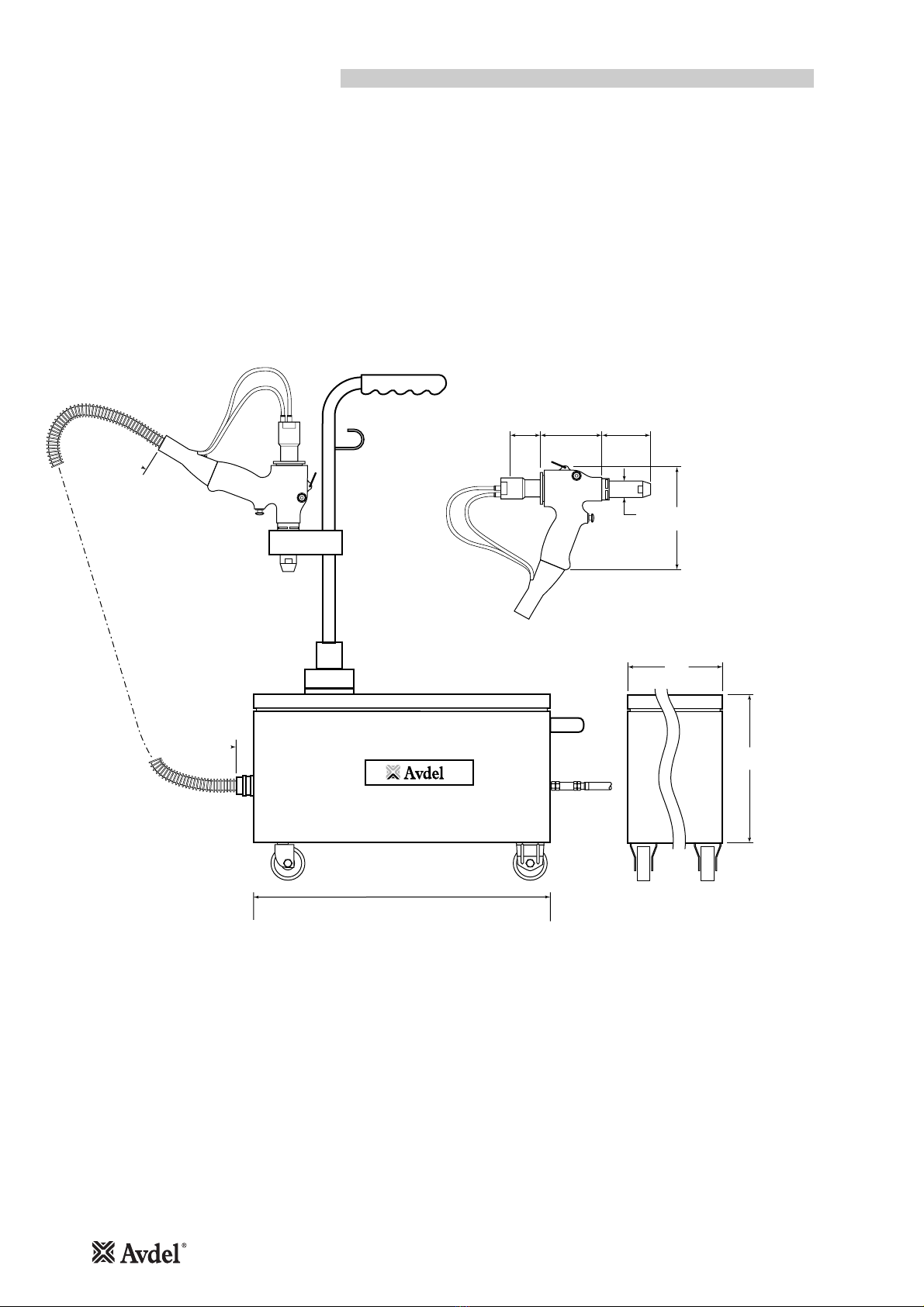

Dimensions shown in bold are millimetres. Other dimensions are in inches.
55
1.96
100
3.93
80
3.14
27
1.06
5000
196.85
170
6.7
250
9.84
400
15.74
500
19.68

5
P
U T T I N G I N T O S E R V I C E
A I R S U P P L Y
All tools are operated with compressed air at an optimum pressure of 5.5 bar. We recommend the use of pressure regulators and
automatic oiling/filtering systems on the main air supply. These should be fitted within 3 metres of the tool (see diagram below) to ensure
maximum tool life and minimum tool maintenance.
Air supply hoses should have a minimum working effective pressure rating of 150% of the maximum pressure produced in the system
or 10 bar, whichever is the highest. Air hoses should be oil resistant, have an abrasion resistant exterior and should be armoured where
operating conditions may result in hoses being damaged. All air hoses MUST have a minimum bore diameter of 6.4 mm or 1/4inch.
Read servicing daily details page 10.

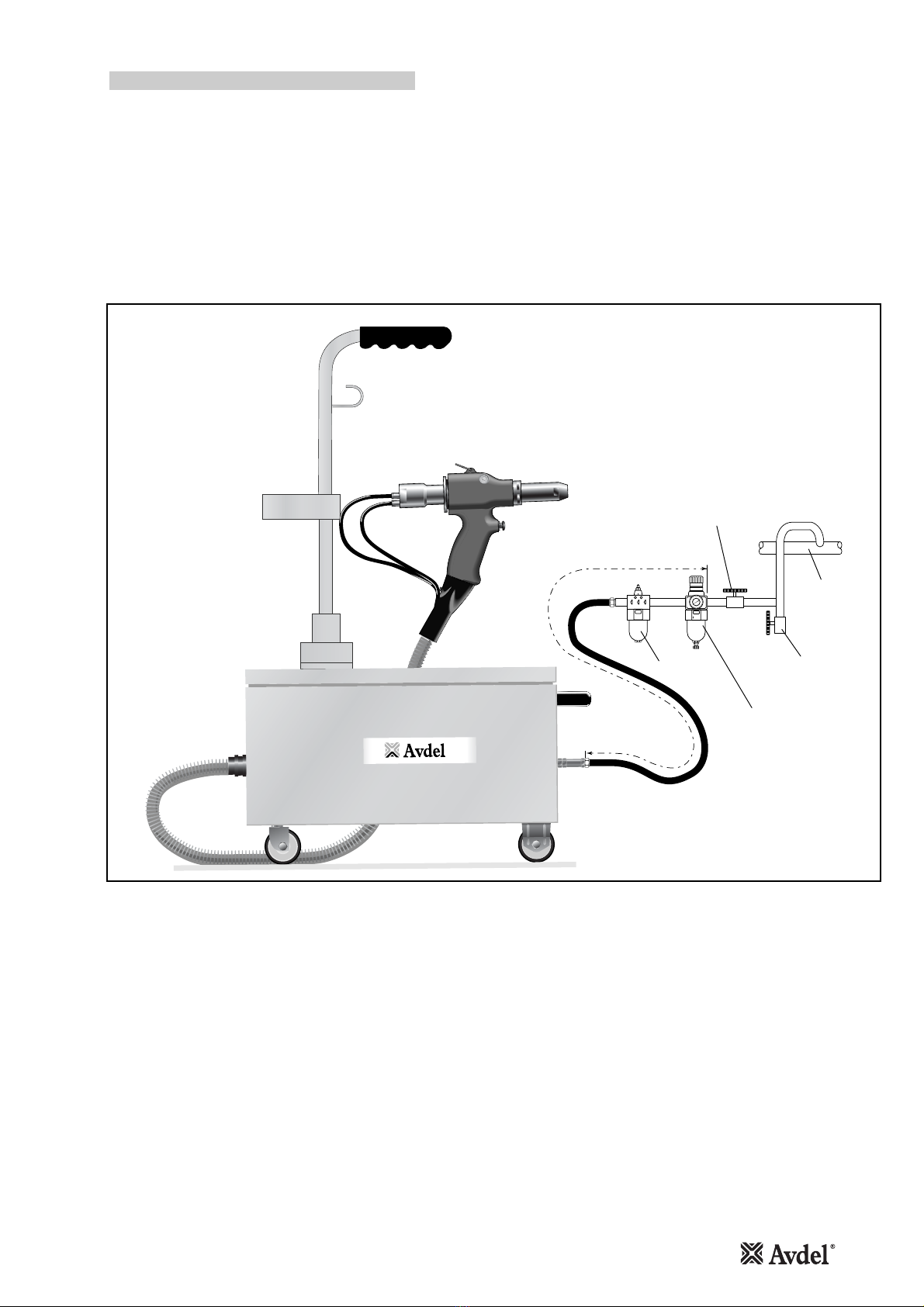

S T R O K E A D J U S T M E N T
This adjustment is necessary to ensure optimum insert deformation.
It is suggested, therefore, that a test plate with the same thickness
and hole size as workpiece be used.
If deformation is insufficient, the insert will rotate inside the
application.
If deformation is excessive, thread distortion will occur and
possibly drive screw fracture.
The stroke is adjusted by the amount the stroke adjustment locknut
12, (parts list page 15), is screwed in or out. To shorten stroke,
screw in; to lengthen stroke, unscrew the rear casing. Adjust until
optimum deformation is obtained.
8
6
4
2
0
10
12
14
16
TAKE OFF
POINT FROM
MAIN SUPPLY
STOP COCK
(USED DURING MAINTENANCE
OF FILTER/REGULATOR
OR LUBRICATION UNITS)
MAIN SUPPLY
DRAIN POINT
PRESSURE REGULATOR
AND FILTER
(DRAIN DAILY)
LUBRICATOR
3
M
E
T
R
E
S
M
A
X
I
M
U
M

O P E R A T I N G P R O C E D U R E
Connect tool to air supply.
Offer up insert, lip first to drive screw. A light pressure will start the motor and automatically thread the insert up against nose and
stop.
Insert fastener into application squarely.
Fully depress trigger. This will both place insert into the application and reverse it off the drive screw.




A C C E S S O R I E S
Two different accessories are available :
COMBINED HANDLE & HOLSTER

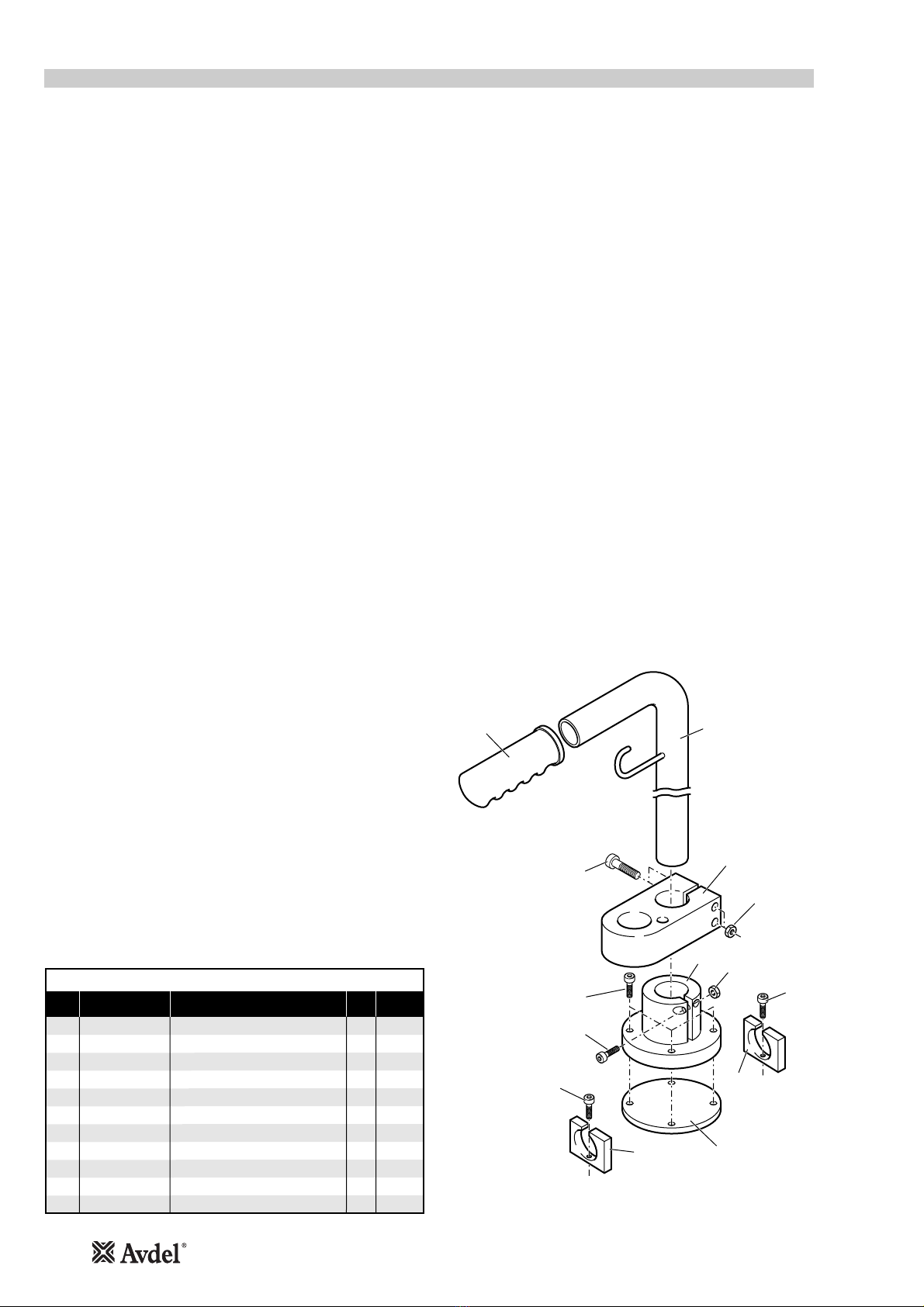

Refer to the illustration opposite for details.
Using the base 6 as a guide, spot through and drill four
5.5mm diameter holes in the position required on the cabinet
lid.
Place plate 12 on the inside of the cabinet lid.
Place base 6 on the outside of the cabinet and using screws 7,
screw the base / cabinet lid / and plate in position.
Insert tube with hook 2 into the holster 4 and secure the holster
4 in position by tightening bolt 3 into nut 5.
Insert tube and holster into base 6 and lock into position by
tightening bolt 8 into bolt 5.
Drill two 5.5mm holes, one at either end of the cabinet lid and
secure clips 10 in position with 5mm bolts 9.






6
12
3
4
5
9
10
5
7
8
6
11
9
10
07265-09500 PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES
1 07265-09501 RUBBER HANDLE 1 -
2 07265-09502 TUBE WITH HOOK 1 -
3 07265-09504 M5 BOLTS 2 -
4 07265-09503 HOLSTER 1 -
5 07265-09505 M5 NUTS 3 -
6 07265-09508 BASE 1 -
7 07265-09507 M5 BOLT 4 -
8 07265-09506 M5 BOLT 1 -
9 07265-09512 M5 BOLT 2 -
10 07265-09511 CLIPS 2 -
11 07265-09509 PLATE 1 -

CONNECTING THE FOOT PEDAL
Please refer to the illustration for details.
Disconnect the tool from the air supply.
Open base 53.
Identify valve 27 connected to the air pressure regulator
48 (point F on GA, page 16).
Disconnect the 4mm output hose which feeds the tool
trigger (hose 68, page 18).
Connect 4mm air hose 4to valve 27.
Connect the Y connector to air hose 4.
To one side of the Y connector, connect the hose from the
tool trigger.
To the other side of the Y connector, connect air hose 2.
Connect air hose 2to the foot pedal.
Close base 53 and reconnect air supply.
Tool can now be operated with the foot pedal or the trigger
and the emergency spin-off button 44 is still operable.












7
FROM
TRIGGER
1
4
3
2
74401-13800 PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES
1 07005-00077 FOOT PEDAL 1 -
2 74401-13801 4mm AIR HOSE (1000mm) 1 -
3 74401-13027 'Y' CONNECTOR 1 -
4 74401-13095 4mm AIR HOSE (250mm) 1 -

N
O S E A S S E M B L I E S
8
It is essential that the correct nose assembly is fitted prior to operating the tool. By knowing your original complete tool part number
or the details of the fastener to be placed, you will be able to order a new complete nose assembly using the selection tables on page 9.
* refers to items included in the Avdel service kit. For complete list see page 11.
SERVICING INSTRUCTIONS
Nose assemblies should be serviced at weekly intervals.
Remove the complete nose assembly using the reverse proce-
dure to the ‘Fitting Instructions’.
Any worn or damaged part should be replaced by a new
part.
Particularly check wear on drive screw.
Assemble according to fitting instructions.




FITTING INSTRUCTIONS
If still fitted remove the nose casing and the adaptor nut.
Insert drive shaft 4 into spindle.
Fit drive screw 3 onto drive shaft 4.
Insert reducing sleeve 5 (if required) into the adaptor nut.
Screw the adaptor nut onto the spindle.
Hold the spindle with a spanner* and tighten the adaptor nut clockwise.
While holding the adaptor nut with the spanner*, tighten the lock nut anti-clockwise.
Screw on the nose casing and nose tip 1 with the nose tip lock nut.
The reverse operation is carried out for equipment removal.
With tool still disconnected from air supply, screw one insert onto drive screw manually - making sure the insert is flush with the
end of drive screw.
Set nose tip in exact position and lock nose tip nut clockwise with a spanner*.
Remove the insert from drive screw.












lItems in grey are included in the base tool.
I M P O R T A N T
The air supply must be disconnected when fitting or removing nose assemblies unless specifically instructed
otherwise.
1
2
4
LOCK NUT SPINDLE FRICTION RING
ADAPTOR NUT NOSE CASING
3
5
74401-12028
74401-12029
74401-12030
ALTERNATIVE ITEMS REQUIRED TO PLACE M12 FASTENERS
ADAPTOR NUT
FRICTION RING
SPINDLE

9
NOSE ASSEMBLY COMPONENTS
Nose tips vary in shape according to the insert type. Each nose assembly represents a unique assembly of components which can be
ordered individually. All nose assemblies also include a nose tip locknut (part number 07555-00901). Component numbers refer to
the illustration on the opposite page. We recommend some stock as items will need regular replacement. Read the Nose Assemblies
servicing instructions opposite carefully.
74401-00083
74401-00084
74401-00485
74401-00085
74401-00086
74401-00088
74401-00080
74401-00054
74401-00056
74401-00058
74401-00050
74401-00048
74401-00040
74401-00042
74401-00070
74401-00068
74401-00060
74401-00062
LARGE FLANGE INSERTS (9408,9418,GK08,T.S.N.) + STANDARD NUTSERT + SQUARESERT + L.F. HEXSERT (OPEN AND CLOSED END)
74401-00183
74401-00184
74401-00185
74401-00186
74401-00188
74401-00180
74401-00154
74401-00156
74401-00158
74401-00150
74401-00148
74401-00140
74401-00170
74401-00168
74401-00160
M3
M4
M5
M6
M8
M10
4 UNC
6 UNC
8 UNC
10 UNC
1
/
4
UNC
5
/
16
UNC
10 UNF
1
/
4
UNF
5
/
16
UNF
THIN SHEET NUTSERT ( OPEN AND CLOSED END )
74401-00283
74401-00284
74401-00285
74401-00286
74401-00288
74401-00258
74401-00250
74401-00248
74401-00278
74401-00270
74401-00268
M3
M4
M5
M6
M8
8 UNC
10 UNC
1
/
4
UNC
8 UNF
10 UNF
1
/
4
UNF
SUPERSERT - OPEN AND CLOSED END
74401-00683
74401-00684
74401-00685
74401-00686
74401-00688
M3
M4
M5
M6
M8
07555-00903
07555-00904
07555-00915
07555-00905
07555-00906
07555-00908
07555-00910
07555-00854
07555-00856
07555-00858
07555-00850
07555-00848
07555-00840
07555-00842
07555-00850
07555-00848
07555-00840
07555-00842
07555-00993
07555-00994
07555-00995
07555-00996
07555-00998
07555-00999
07555-00954
07555-00956
07555-00958
07555-00950
07555-00948
07555-00940
07555-00950
07555-00948
07555-00940
07555-07103
07555-07104
07555-07105
07555-07106
07555-07108
07555-07158
07555-07150
07555-07148
07555-07158
07555-07150
07555-07148
07555-08103
07555-08104
07555-08105
07555-08106
07555-08108
07555-09003
07555-09004
07555-09005
07555-09005
07555-09006
07555-09008
07555-09010
07555-09054
07555-09056
07555-09058
07555-09050
07555-09048
07555-09040
07555-09042
07555-09070
07555-09068
07555-09060
07555-09062
07555-09003
07555-09004
07555-09005
07555-09006
07555-09008
07555-09010
07555-09054
07555-09056
07555-09058
07555-09050
07555-09048
07555-09040
07555-09070
07555-09068
07555-09060
07555-09003
07555-09004
07555-09005
07555-09006
07555-09008
07555-09058
07555-09050
07555-09048
07555-09078
07555-09070
07555-09068
07555-09003
07555-09004
07555-09005
07555-09006
07555-09008
07555-01003
07555-01004
07555-01005
07555-01005
07555-01006
07555-01008
07555-01010
07555-00754
07555-00756
07555-00758
07555-00750
07555-00748
07555-00740
07555-00742
07555-00750
07555-00748
07555-00740
07555-00742
07555-01003
07555-01004
07555-01005
07555-01006
07555-01008
07555-01010
07555-00754
07555-00756
07555-00758
07555-00750
07555-00748
07555-00740
07555-00750
07555-00748
07555-00740
07555-01003
07555-01004
07555-01005
07555-01006
07555-01008
07555-00758
07555-00750
07555-00748
07555-00758
07555-00750
07555-00748
07555-01003
07555-01004
07555-01005
07555-01006
07555-01008
07555-09103
07555-09104
07555-09105
07555-09105
07555-09106
07555-09108
–
07555-09154
07555-09156
07555-09158
07555-09150
07555-09148
07555-09140
–
07555-09150
07555-09148
07555-09140
–
07555-09103
07555-09104
07555-09105
07555-09106
07555-09108
–
07555-09154
07555-09156
07555-09158
07555-09150
07555-09148
07555-09140
07555-09150
07555-09148
07555-09140
07555-09103
07555-09104
07555-09105
07555-09106
07555-09108
07555-09158
07555-09150
07555-09148
07555-09158
07555-09150
07555-09148
07555-09103
07555-09104
07555-09105
07555-09106
07555-09108
HEXSERT ( OPEN AND CLOSED END )
•Places M5 large flange Thin Sheet Nutsert 09698-00516 ONLY
** Thin Sheet only


INSERT
SIZE
07555-09883
07555-09884
07555-09185
07555-09885
07555-09886
07555-09888
07555-09880
07555-09854
07555-09856
07555-09858
07555-09850
07555-09848
07555-09840
07555-09842
07555-09870
07555-09868
07555-09860
07555-09862
07555-09983
07555-09984
07555-09985
07555-09986
07555-09988
07555-09980
07555-09954
07555-09956
07555-09958
07555-09950
07555-09948
07555-09940
07555-09970
07555-09968
07555-09960
07555-09583
07555-09584
07555-09585
07555-09586
07555-09588
07555-09558
07555-09550
07555-09548
07555-09578
07555-09570
07555-09568
07555-09283
07555-09284
07555-09285
07555-09286
07555-09288
-
-
M12
** M12
07555-00912
07555-00992
74401-09012
74401-09012
07555-01012
07555-01012
-
-
ABOVE M12
-
-
COMPLETE TOOL NOSE ASSEMBLY 1

345
M3
M4
• M5
M5
M6
M8
M10
4 UNC
6 UNC
8 UNC
10 UNC
1
/
4
UNC
5
/
16
UNC
3
/
8
UNC
10 UNF
1
/
4
UNF
5
/
16
UNF
3
/
8
UNF


Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is
sooner.
10
S
E R V I C I N G T H E T O O L
I M P O R T A N T
The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel.
The operator should not be involved in maintenance or repair of the tool unless properly trained.
DAILY
Daily, before use or when first putting the tool into service, pour a few drops of clean, light lubricating oil into the air inlet of the
tool if no lubricator is fitted on air supply. If the tool is in continuous use, the air hose should be disconnected from the main air
supply and the tool lubricated every two to three hours.
Check for air leaks. If damaged, hoses and couplings should be replaced by new items.
If there is no filter on the pressure regulator, bleed the air line to clear it of accumulated dirt or water before connecting air hose
to tool.
Check that the nose assembly is correct.
Check the stroke of the tool is adequate to place selected insert. (see stroke adjustment page 5).
Inspect the drive screw in the nose assembly for wear or damage. If any, renew.
WEEKLY
Check for oil leaks and air leaks on air supply hose and fittings.







FIRST AID
SKIN: As the grease is completely water resistant it is best
removed with an approved emulsifying skin cleaner.
INGESTION: Make the individual drink 30ml Milk of
Magnesia, preferably in a cup of milk.
EYES: Irritant but not harmful. Irrigate with water and
seek medical attention.
ENVIRONMENT
Scrape up for burning or disposal on approved site.
M O L Y L I T H I U M G R E A S E E P 3 7 5 3 S A F E T Y D A T A
FIRE
FLASH POINT: Above 220°C.
Not classified as flammable.
Suitable extinguishing media: CO2, Halon or water spray
if applied by an experienced operator.
HANDLING
Use barrier cream or oil resistant gloves
STORAGE
Away from heat and oxidising agent.
Grease used during tool maintenance can be ordered as a single item, the part number is shown in the service kit above.
For all servicing we recommend the use of the service kit, part number 74401-13800, and the combination spanner kit, part number
74401-99993.
07900-00618 PUSHER 1
07900-00639 NYLON BUSH 1
07900-00640 METAL BUSH 1
07900-00641 BULLET 1
ITEM PART Nº DESCRIPTION Nº OFF
SERVICE KIT
07900-00409 12mm/13mm SPANNER 1
07900-00632 17mm/19mm SPANNER 2
07900-00426 COMBINATION SPANNER 1
07900-00624 4mm PIN PUNCH 1
74200-12196 17mm THIN SPANNER 1
07900-00642 27mm/30mm SPANNER 1
07900-00224 4mm ALLEN KEY 1
ITEM PART Nº DESCRIPTION Nº OFF
COMBINATION SPANNER KIT

HEAD ASSEMBLY
Using the pins of the combination spanner*, unscrew stroke adjustment locknut 12.
Withdraw stroke adjustment locknut 12, air motor casing 3, spring 13, movement pivot 22, shim adjustment ring 23, piston 24 and
lip seal 25.
Grip the flats on the air motor casing 3in a vice fitted with soft jaws and with a spanner* separate the air motor assembly from
the piston 24. Spring 13 and stroke adjustment locknut 12 can now be removed from air motor casing 3.
Using circlip pliers* remove circlip 26 and extract lip seal 46.
From the air motor casing 3remove centre connector 1using an Allen key* and extract spring 2, ball 4and pushrod 5.
Reassemble in reverse order of dismantling, observing the following:
Use nylon bush* and pusher* to fit lip seal 46 into its housing.
Use circlip pliers* to fit circlip 26.
Insert metal bush* into handle 28.
Fit lip seal 25 onto piston 24.
Screw bullet* onto piston 24 to ease insertion of lip seal 25 into the handle.
Insert piston 24 into the handle through the metal bush*, then remove the bush* and bullet* from piston.
11
M A I N T E N A N C E
Every 500000 cycles the tool should be completely dismantled and components replaced where worn, damaged or when recommended.
All ‘O’ rings and seals should be replaced with new ones and lubricated with Moly Lithium grease EP 3753 before assembling.
I M P O R T A N T
Safety Instructions appear on pages 2 & 3.
The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel.
The operator should not be involved in maintenance or repair of the tool unless properly trained.
The airline must be disconnected before any servicing or dismantling is attempted unless specifically instructed otherwise.
It is recommended that any dismantling operation be carried out in clean conditions.
Item numbers in bold refer to the handle assembly drawing and parts list, pages 14 - 15.
Prior to dismantling the tool it is necessary to remove the nose assembly. For simple removal instructions see the nose assemblies section,
pages 8 - 9.
Remove bleed screw 32 and washer 31 and drain oil from tool.
For total tool servicing we advise that you proceed with dismantling of sub-assemblies in the order shown below.
To disconnect the oil hose 46 and air delivery and return hoses 45 from the tool, disengage spiral protection sleeve 47 from sleeve 39
and lower sleeve 39 to gain access to the hoses. Disconnect air hoses by pushing and releasing the quick release connectors. Using
two spanners, undo oil hose 46 at connector 38 leaving the connector attached to the handle of the tool. Remove the tool.
Remove the nose equipment from the tool by loosening the nose tip locknut and unscrewing the nose tip. Unscrew nose casing 33, and
with the aid of spanners* remove the components of the nose assembly. Remove the two air tubes 48 from connectors 1.












* refers to items included in the Avdel service kit. For complete list see page 10.

AIR MOTOR ASSEMBLY
Tap the air motor casing gently on the bench to remove the air motor assembly from the casing.
Using circlip pliers*, remove circlip 14.
Remove bearing 15 and planet gear spindle 11, together with three planets 16 from planet gear 10.
Remove planet gear 10 and spacer 17.
Using a soft mallet, tap on splined head of rotor 19 and remove bearing 9and front end plate 8.
Tap out rotor 19 and rotor blades 7.
Place rear end plate 20 in the vice and using a pin punch*, tap on centre of rotor 19 to remove bearing 21. Take care not to lose
pin 6.
Remove bearing 21.
Assemble in reverse order of dismantling, observing the following:
Rear side of rotor 19 must just touch rear end plate 20 without any axial gap. Any existing gap will disappear when bearing 21
is fully located.
When inserting the air motor assembly into air motor casing 3, align components so that pin 6locates the centre hole between the
spin-on and spin-off ports of the air motor casing.
HANDLE AND TRIGGER ASSEMBLY
Using a spanner, undo locknut 35 and remove trigger 34, ‘O’ ring 36 and spring 2from handle 28.
Remove screw 45 to release emergency spin-off button 44.
Assemble in reverse order of dismantling.
CABINET
The cabinet comprises an intensifier, a pilot valve, a pressure regulator and filtering unit and an air pressure indicating assembly
together with the air hoses internal to the cabinet.
Servicing is limited to removal/replacement of complete assemblies and the renewal of seals within the pilot valve.
To dismantle the cabinet it is necessary to extract the base plate and the components installed on it. This is possible after
disconnecting all hoses and removing items restricting the withdrawal of the base plate.
INTENSIFIER
To remove the intensifier and oil reservoir, disconnect the oil hose 66 (page 18) using two spanners, (be prepared for oil spillage
from hose/intensifier), then remove the hose 70 (page 18) (quick release connector) connecting the intensifier to the pilot valve.
Using a spanner, remove the two nuts 7and associated washers 6securing the intensifier to the baseplate 62.
Lift intensifier clear of cabinet.
Replacement is in reverse order of removal.
12
* refers to items included in the Avdel service kit. For complete list see page 11.






















PILOT VALVE
Servicing of the valves 27 is limited to the removal/replacement of ‘O’ rings.
Remove screws 58 and remove pilot assembly .
Remove pilot valve 45 and discard ‘O’ rings 37, 44, 38 and 39.
Remove screws 55 & 60 and remove end caps 56 & 59.
Withdraw pistons 52 & 46 and remove ‘O’ rings 41 & 43 from pistons.
Withdraw spool 50 from bore, taking care not to damage surface of spool and remove location washers 48 & 51, ‘O’ ring
42, spacers 49 and ‘O’ ring 40 from each end of valve body.
Remove the five interface ‘O’ rings.
Discard ALL ‘O’ rings removed.
Clean all parts with paraffin or white spirit. DO NOT USE SOLVENTS, blow off and dry all parts.
Lightly smear bores of valve body 57, pilot valve body 53, both end caps 59 & 56 and all replacement ‘O’ rings with
“CENTOPLEX 2” grease.
Fit new seals 44, 38 and 39 to piston 45 and insert into pilot valve body 53.
Fit new seals 37, 44 and 40 to pilot valve body, place top cap 54 in position and secure pilot valve assembly to the main valve
body 57 with screws 58. Ensure that the interface seal housing faces upward with the G1/4 at the bottom. Ensure orientation
of pilot valve 45 is correct.
With main valve body 57 in the same position, fit green location washer 51 to the left hand side of the valve assembly.
Starting from the right hand side of the valve, assemble alternately the ‘O’ rings 42 and spacers 49 (6 seals and 5 spacers)
and finally complete the stack assembly with white location washer 48.
Lightly smear spool 50 with “CENTOPLEX 2” grease and slide spool through seal/spacer stack.
Fit seals 43 & 41 to respective pistons 52 & 46, fit seals 40 to ends of main valve body 57.
Insert pistons into end caps 56 & 59 and assemble end caps to valve, taking care to locate piston shafts into holes in the ends
of the spool 50.
Secure end cap assemblies to main valve body 57 with screws 55 & 60.
Fit interface ‘O’ rings into their housings in the main valve body 57.
If the pipe connection to the pilot assembly is damaged, replace the plastic collet 36 and lift out the ‘O’ ring from the cartridge 61.
Fit new ‘O’ ring 35 and insert plastic collet 36 into the cartridge.
PRESSURE REGULATOR AND FILTERING ASSEMBLY
To remove the assembly from the cabinet, disconnect the two hoses (items 71 and 76 on page 18) at the regulator.
Remove the two screws, spacers, washers and nuts securing the regulator to the cabinet.
Remove assembly from the cabinet.
Replacement is in reverse order of removal.
AIR PRESSURE INDICATOR ASSEMBLY
To remove the assembly, remove the air hose from the rear of the gauge 55.
Remove the clamp from the rear of the gauge and withdraw gauge from front of the cabinet.
Replacement is in reverse order of removal.
13
* refers to items included in the Avdel service kit. For complete list see page 11.




























I M P O R T A N T
Check the tool against daily and weekly servicing.
Priming is ALWAYS necessary after the tool has been dismantled and prior to operating.

14
GENERAL ASSEMBLY OF HANDLE ASSEMBLY 74401-12000
5M HOSE ASSEMBLY 74401-13500
1
2
1
3
5
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
34
31
32
35
36
37
41
40
38 39
48
45
45 46
47
33
2
42
30
43
44
29

15
1 07655-09220 CONNECTOR 2 - 2 07555-09219 SPRING 2 - 3 74401-12046 AIR MOTOR CASING 1 - 4 07555-09218 BALL 1 - 5 74401-12047 PUSH ROD 1 1 6 07555-09216 PIN 1 - 7 07555-09213 ROTOR BLADE 5 5 8 07555-09210 FRONT END PLATE 1 - 9 07555-09206 BEARING 1 - 10 74200-12065 PLANET GEAR 1 - 11 74200-12063 PLANET GEAR SPINDLE 1 - 12 74401-12026 STROKE ADJUSTMENT LOCKNUT 1 - 13 74401-12025 SPRING 1 - 14 74200-12061 CIRCLIP 1 1 15 74200-12062 BEARING 1 - 16 07555-09208 PLANET 1 - 17 74200-12066 SPACER 1 - 18 07555-09211 STATOR 1 - 19 74200-12070 ROTOR 1 - 20 07555-09214 REAR END PLATE 1 - 21 07555-09215 BEARING 1 - 22 74200-12056 MOVEMENT PIVOT 1 -
23 74200-12055 SHIM ADJUSTMENT RING 1 1 24 74401-12020 PISTON 1 - 25 74401-12021 LIP SEAL 1 - 26 07265-02005 CIRCLIP 1 - 27 07265-03021 SUSPENSION RING 1 - 28 74401-12001 FORGED HANDLE 1 - 29 74401-12054 SPACER 1 - 30 07655-00803 LOCKNUT 1 - 31 07265-02011 WASHER 1 - 32 07265-02010 BLEED SCREW 1 1 33 74401-12027 NOSE CASING 1 - 34 07265-03023 TRIGGER 1 - 35 07265-03022 LOCKNUT 1 - 36 07555-00502 'O' RING 1 - 37 07265-02031 WASHER 1 - 38 07265-02032 CONNECTOR 1 - 39 74401-12008 SLEEVE 1 - 40 74401-12003 EMERGENCY SPIN OFF BUTTON 1 - 41 74401-12002 SCREW 1 - 42 07265-02004 LIP SEAL 1 1 43 74200-12044 SPINDLE 1 - 44 74200-12092 ADAPTOR NUT 1 1
ITEM PART Nº DESCRIPTION QTY REC.
SPARES ITEM PART Nº DESCRIPTION QTY REC.
SPARES
74401-12000 PARTS LIST
45 07265-02063 AIR DELIVERY AND RETURN HOSE 2 - 46 07265-02061 OIL HOSE 1 -
47 07267-01502 SPIRAL PROTECTION SLEEVE 1 1 48 74401-12012 AIR HOSE 2 -
ITEM PART Nº DESCRIPTION QTY REC.
SPARES ITEM PART Nº DESCRIPTION QTY REC.
SPARES
74401-13500 PARTS LIST


16
GENERAL ASSEMBLY OF CABINET 74401-01300
H
62
67
63
53
N
C
N
K
F
G
A
J
D
B
N
B
L
M
N
HE
A
112
J
74
73
72
68
71
70
69
3
1
G
36
40
31
33
35
32
38
37
37
38
39
E
42
11
43
11
41
44
45
44
43
12
F
46
47
30
25
29
31
21
22
26
27
H
28
46
46
49
48
21 48
D
31
4
14 5
6
7
15
17
15
14
9
10
13
16
8
11
12
K
50
52
51
L
54
55
M
56
3858
57
3737
38
56
61
60
59
B
20
19
18
C
21
29
2431
30
46
22 23
28
22
23
22
28
22
22
25 26
24
27
N
64
66
65

17
74401-01300 CABINET PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES ITEM PART Nº DESCRIPTION QTY SPARES
1 07267-03211 CLAMP 4 -
2 07267-03212 OIL FILTER 1 -
3 07267-03210 HOSE CONNECTOR 2 -
4 07005-01652 INTENSIFIER 1 -
5 07265-02267 BOLT 2 -
6 07625-02268 WASHER 2 -
7 07265-02269 NUT 2 -
8 07265-03260 CONNECTOR 1 -
9 07265-03263 SILENCER 1 -
10 07265-03225 QUICK EXHAUST 1 -
11 07265-03261 WASHER 3 -
12 07267-03262 ELBOW CONNECTOR 2 -
13 07265-03259 WASHER 1 -
14 07265-03258 CONNECTOR 2 -
15 74401-13037 WASHER 2 -
16 07265-02055 QUICK RELEASE CONNECTOR 1 -
17 07265-02065 QUICK RELEASE NIPPLE 1 -
18 07265-02283 SCREW 4 -
19 07265-02284 WASHER 4 -
20 07265-03202 HANDLE 2 -
21 74401-13004 ELBOW CONNECTOR 3 -
22 74401-13078 WASHER 7 -
23 74401-13023 TWO WAY CONNECTOR 2 -
24 07265-03269 STRAIGHT CONNECTOR 2 -
25 07265-03268 WASHER 2 -
26 07265-03222 SUB BASE 2 -
27 07005-00590 VALVE 2 -
28 07265-03271 STRAIGHT CONNECTOR 3 -
29 07265-03266 SCREW 3 -
30 07267-03208 PLUG 2 -
31 07265-03270 SILENCER 4 -
32 74401-13027 'Y' CONNECTOR 1 -
33 74401-13082 WASHER 2 -
34 07265-09507 SCREW 2 -
35 74401-13075 TIMER 1 -
36 74401-13076 BRACKET 1 -
37 74401-13026 STRAIGHT CONNECTOR 4 -
38 74401-13079 WASHER 4 -
39 74401-13099 FLOW REGULATOR 1 -
40 74401-13083 SCREW 2 -
41 07267-03263 BUSH 1 -
42 07267-03264 AIR TUBE 1 -
43 07265-03253 CONNECTOR 2 -
44 07265-02076 CLAMP 2 -
45 07265-03219 AIR HOSE (2500 mm) 1 -
46 74401-13080 WASHER 4 -
47 74401-13025 STRAIGHT CONNECTOR 2 -
48 07265-03220 PRESSURE REG & FILTER ASSY 1 -
49 07265-03256 ELBOW CONNECTOR 1 -
50 07267-03251 RUBBER RING 1 -
51 07267-03252 SPACING WASHER 1 -
52 07265-03292 CLAMP 1 -
53 07265-03201 BOX (inc. Key) 1 -
54 07265-03255 ELBOW CONNECTOR 1 -
55 07265-03254 AIR PRESSURE INDICATOR 1 -
56 74401-13024 ELBOW CONNECTOR 2 -
57 07265-03904 'T' CONNECTOR 1 -
58 74401-13009 SPACER 1 -
59 74401-13021 SELECTOR 1 -
60 74401-13022 VALVE 1 -
61 74401-13020 SCREW 1 -
62 07265-03230 BASE PLATE 1 -
63 07265-03203 FIXED WHEEL 2 -
64 74401-13039 NUT 4 -
65 07265-03204 WASHER 8 -
66 07265-03205 NUT 8 -
67 07265-03207 SWIVELLING WHEEL 2 -
68 07267-03213 OIL RESERVOIR PLUG 1 -
69 07267-03214 OIL RESERVOIR 1 -
70 07267-03216 BOLT 2 -
71 07267-03218 WASHER 2 -
72 07267-03217 SPACER 2 -
73 07267-03219 NUT 2 -
74 07267-03215 OIL RESERVOIR BASE 1 -
80 74401-13074 4mm AIR HOSE (550mm) 1 -
81 07265-02063 4mm AIR HOSE (5500mm) 2 -
82 74401-13072 4mm AIR HOSE (170mm) 1 -
83 74401-12012 6mm AIR HOSE (5500mm) 2 -
84 74401-13073 4mm AIR HOSE (250mm) 1 -
85 74401-13065 9mm OIL HOSE (150mm) 2 -
86 74401-13093 4mm AIR HOSE (420mm) 1 -
87 74401-13067 10mm AIR HOSE (300mm) 1 -
88 07265-03215 10mm AIR HOSE (110mm) 1 -
89 74401-13096 4mm AIR HOSE (60mm) 1 -
90 74401-13095 4mm AIR HOSE (250mm) 1 -
91 74401-13098 4mm AIR HOSE (200mm) 1 -
92 74401-13069 10mm AIR HOSE (670mm) 1 -
93 74401-13068 10mm AIR HOSE (320mm) 1 -
94 74401-13071 4mm AIR HOSE (260mm) 1 -

18
PNEUMATIC DIAGRAM OF CABINET 74401-01300
81
81
83
83
81 86
83
83
80
80
82
84
87
90
59
SELECTOR
2
OIL FILTER
69
OIL RESERVOIR
60
VALVE
27
VALVE
26
SUB-BASE
26
SUB-BASE
23
TWO-WAY
CONNECTOR
32
'Y' CONNECTOR
39
FLOW
REGULATOR
35
TIMER
42
AIR TUBE
10
QUICK
EXHAUST
55
AIR PRESSURE
INDICATOR
4
INTENSIFIER
48
PRESSURE REGULATOR

AND FILTER ASSEMBLY
27
VALVE
85 85
TO TRIGGER
74401 HANDLE
74401 CABINET
TO PISTON
TO AIR MOTOR
TO AIR MOTOR
TO VALVE
91
92
92
93
88
94
89

