BEA FALCON User manual

75.5835.06 FALCON FAMILY 20230331 Page 1 of 475.5835.06 FALCON FAMILY 20230331 Page 1 of 4
FALCON
1
2
5
6
4
3
Activation Sensor for Automatic, Industrial Doors
1. push buttons
2. front face
3. radar antenna
4. angle indication
5. bracket
6. cable
FALCON: for normal to high mounting (11.5 - 23 ft)
FALCON XL: for low mounting (6.5 - 11.5 ft)
FALCON WIDE: for wide detection eld
TECHNICAL SPECIFICATIONS
Technology: microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm2
Mounting height: FALCON: 11.5 − 23 ft; FALCON XL: 6.5 − 11.5 ft; FALCON WIDE: 11.5 − 21 ft
Detection zone: FALCON: 13 x 16 ft @ 16ft; FALCON XL: 13 x 6.5 ft @ 8.2 ft
FALCON WIDE: 30 x 11ft @ 21ft. (typical at 30° and field size 9)
Min. detection speed: 2 in/s*
Supply voltage: 12 − 24 VAC ±10%; 12 − 24 VDC +30% / -10%
Mains frequency: 50 − 60 Hz
Power consumption: < 2W
Output:
max. contact voltage:
max. contact current:
max. switching power:
relay (free of potential change-over contact)
42V AC/DC
1A (resistive)
30 W (DC) / 60 VA(AC)
Temperature range: -22 − 140 °F
Degree of protection: IP65
Dimensions: 5 in (L) x 3.75 in (W) x 4 in (H)
Tilt adjustment angle: 0 − 180° vertical
Materials: ABS and polycarbonate
Weight: 0.875 lbs
Cable length: 33 ft
Norm conformity: R&TTE 1999/5/EC; EMC 2004/108/EC
Specifications are subject to change without prior notice.
All values measured in specific conditions.
DESCRIPTION
ENGLISH
* Measured in optimal conditions
Visit website for
available languages of
this document.

Page 2 of 4 75.5835.06 FALCON FAMILY 20230331Page 2 of 4 75.5835.06 FALCON FAMILY 20230331
1
2
12 3
0-9
12
FALCON (mtg ht: 16 ft)FALCON WIDE (mtg ht: 11.5 ft)FALCON XL (mtg ht: 8 ft)
• The sensor must be firmly fastened in order not to vibrate.
• The sensor must not be placed directly behind a panel or any kind of material.
• The sensor must not have any object likely to move or vibrate in its sensing field.
• The sensor must not have any fluorescent lighting in its sensing field.
MOUNTING & WIRING
MOUNTING ADJUSTMENT
INSTALLATION TIPS
RED
BLACK
WHITE
GREEN
YELLOW
COM
NO
12-24
VAC/VDC
NC
US 
red 
black 
white 
green 
yellow 
EURO
green
brown
white
yellow
gray
European wire color
cross-reference:
Position the sensor on the bracket
and fasten the screws firmly.
Remove the bracket from the
sensor. Drill 2 holes accordingly.
Mount the bracket firmly.
Connect the wires to the door controller.
Choose between NO and NC contact.
Adjust the angle of the sensor to position the detection field. Adjust the field size with the remote
control or the push buttons.
CEILING
WALL
All detection field
dimensions were measured
in optimal conditions and
with field size value 9.
Wall mounting Ceiling mounting Bracket dimensions
DIMENSIONS (inches)

75.5835.06 FALCON FAMILY 20230331 Page 3 of 475.5835.06 FALCON FAMILY 20230331 Page 3 of 4
3
X
X
XXS
0.5 s
XS
1 s
1
bi
A
S
2 s
2
uni
P
>
3 s
3
uni
AWAY
>
4 s
4
>
5 s
5
>
6 s
6
L
7 s
XL
8 s
XXL
9 s
RESETTING TO FACTORY VALUES:
DETECTION FILTER (REJECTION MODE)
LED flashes quickly LED flashes LED flashes slowly LED flashes x times LED is off
LED SIGNALS
NORMAL MODE
no LED no detection
red detection
red & green blinking power on / learn
red
red
red
red
red
green
off
off
POSSIBLE SETTINGS BY REMOTE CONTROL
ADJUSTING ONE OR MORE PARAMETERS
CHECKING A VALUE
x = number of flashes = value of parameter
FIELD SIZE
DETECTION MODE
OUTPUT
CONFIGURATION
FACTORY VALUES
HOLD-OPEN TIME
DETECTION FILTER
bi = two-way detection
uni = one-way detection towards sensor
uni AWAY = one-way detection away from sensor
A = active output; relay energizes upon detection
P = passive output; relay de-energizes upon detection
Choose the correct detection filter for your application with the remote control or push buttons.
Detection of all targets
(pedestrians and parallel traffic are detected)
Detection only of vehicles moving toward the sensor*
(pedestrians and parallel traffic are not detected + disturbances are filtered)
1 = no specific filter
2 = filter against disturbances
(recommended in case of vibrations, rain etc.)
Value recommendations according to angle and height:
Always check if the chosen value is
optimal for the application.
The object size and nature can
influence the detection.
23 ft − 11.5 ft 8 ft
3 3
4 4
5 4
6 5
XL
-15°
-30°
-45°
+45°
* The vehicle detection filter increases the response time of the sensor.

Page 4 of 4 75.5835.06 FALCON FAMILY 20230331Page 4 of 4 75.5835.06 FALCON FAMILY 20230331
(7)
(0)
(1)
(2)
(1)

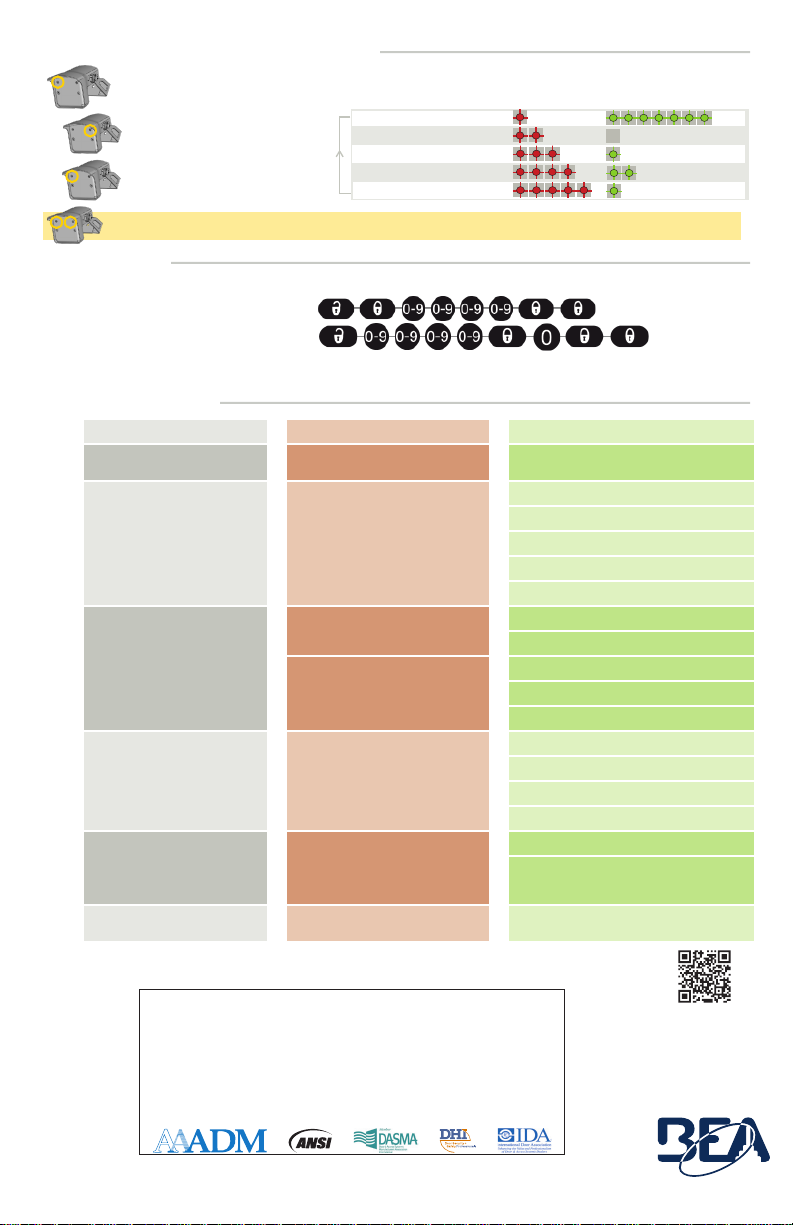

TO START OR END AN ADJUSTMENT SESSION, press and hold either push button until the LED flashes or
stops flashing.
1FIELD SIZE
Parameter number
2HOLD-OPEN TIME
3OUTPUT CONFIGURATION
4DETECTION MODE
5DETECTION FILTER
Value (factory values)
TO SCROLL THROUGH THE
PARAMETERS, press the right push
button.
TO CHANGE THE VALUE OF THE
CHOSEN PARAMETER, press the left
push button.
TO RESET TO FACTORY VALUES, press and hold both push buttons until both LEDs flash.
The access code (1 to 4 digits) is recommended to set sensors installed close to each other.
SAVING AN ACCESS CODE:
DELETING AN ACCESS CODE:
Once you have saved an access code, you always need to enter this code to unlock the sensor.
If you forget the access code, cycle the power. For the first minute, you can access the sensor without an access code.
POSSIBLE SETTINGS BY PUSH BUTTONS
ACCESS CODE
Door remains closed. LED is off. Sensor power is off. Check wiring and power supply.
Door does not react as expected. Improper output configuration on
sensor. Check the output configuration setting on each sensor connected to the door operator.
Door opens and closes
constantly. The sensor is disturbed by door motion or vibrations caused by door
motion.
Ensure sensor is secured properly.
Ensure detection mode is unidirectional.
Increase tilt angle.
Increase detection filter value.
Reduce field size.
Door opens for no apparent
reason. It rains and the sensor detects raindrops or vibrations. Ensure detection mode is unidirectional.
Increase detection filter value.
In highly reflective environments, the
sensor detects objects outside of its
detection field.
Change the antenna angle.
Reduce field size.
Increase detection filter value.
Vehicle detection filter is used,
but pedestrians are still detected. Chosen value is not optimal for the given application. Increase detection filter value.
Decrease sensor angle.
Increase mounting height.
Ensure detection mode is unidirectional.
LED flashes quickly after
unlocking. Sensor needs access code to unlock. Enter correct access code.
If you forgot the code, cycle the power to
access the sensor without access code.
Change or delete the access code.
Sensor does not respond to the
remote control. Batteries in the remote control are weak or installed improperly. Check batteries and change if necessary.
BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device;
therefore, BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose.
BEA, Inc. strongly recommends that installation and service technicians be AAADM-certified for pedestrian doors, IDA-certified for doors/
gates, and factory-trained for the type of door/gate system.
Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring
that the sensor/device system performance is compliant with local, national, and international regulations, codes, and standards.
Once installation or service work is complete, a safety inspection of the door/gate shall be performed per the door/gate manufacturer’s
recommendations and/or per AAADM/ANSI/DASMA guidelines (where applicable) for best industry practices. Safety inspections must
be performed during each service call – examples of these safety inspections can be found on an AAADM safety information label (e.g.
ANSI/DASMA 102, ANSI/DASMA 107, UL294, UL325, and International Building Code).
Verify that all appropriate industry signage, warning labels, and placards are in place.
BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS
©BEA | Original Instructions | PLEASE KEEP FOR FURTHER USE - DESIGNED FOR COLOR PRINTING
Can’t find your answer? Visit www.beainc.com or scan QR code for Frequently Asked Questions!
TROUBLESHOOTING
Tech Support & Customer Service: 1-800-523-2462
General Tech Questions: [email protected] | Tech Docs: www.BEAsensors.com
