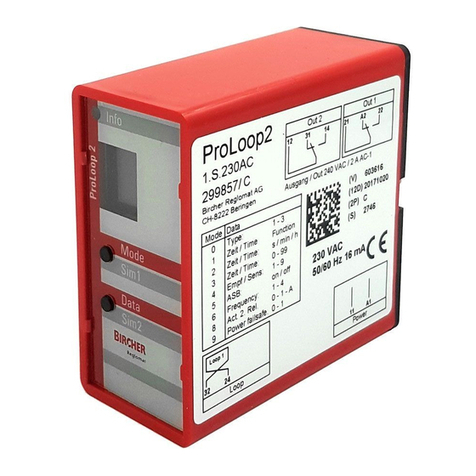

Bircher Reglomat ProLoop 2 User manual

Bircher Reglomat

Bircher Reglomat ProLoop 2 User manual

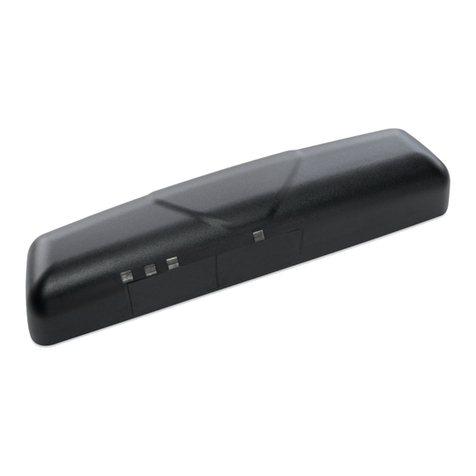

Bircher Reglomat PrimeTec B User manual

Bircher Reglomat

Bircher Reglomat PrimeTec B User manual

Bircher Reglomat ProLoop User manual

Bircher Reglomat

Bircher Reglomat ProLoop User manual

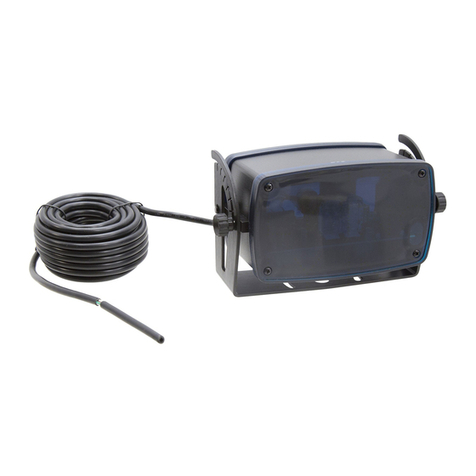

Bircher Reglomat Hercules 2 User manual

Bircher Reglomat

Bircher Reglomat Hercules 2 User manual

Bircher Reglomat Reflex ES User manual

Bircher Reglomat

Bircher Reglomat Reflex ES User manual

Bircher Reglomat ProLoop User manual

Bircher Reglomat

Bircher Reglomat ProLoop User manual

Bircher Reglomat ProLoop Lite User manual

Bircher Reglomat

Bircher Reglomat ProLoop Lite User manual

Bircher Reglomat RK 31C-PWH User manual

Bircher Reglomat

Bircher Reglomat RK 31C-PWH User manual

Bircher Reglomat EsGate 2 User manual

Bircher Reglomat

Bircher Reglomat EsGate 2 User manual

Bircher Reglomat MERKUR SE User manual

Bircher Reglomat

Bircher Reglomat MERKUR SE User manual

Bircher Reglomat Jupiter User manual

Bircher Reglomat

Bircher Reglomat Jupiter User manual

Bircher Reglomat ProxySwitch User manual

Bircher Reglomat

Bircher Reglomat ProxySwitch User manual

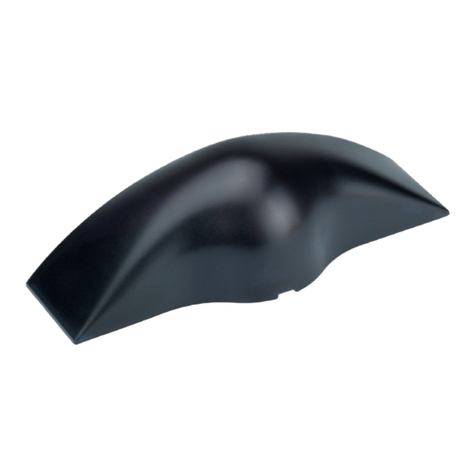

Bircher Reglomat MERKUR User manual

Bircher Reglomat

Bircher Reglomat MERKUR User manual

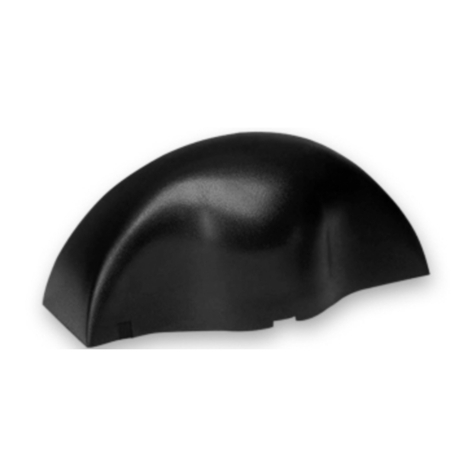

Bircher Reglomat EasyMotion User manual

Bircher Reglomat

Bircher Reglomat EasyMotion User manual

Bircher Reglomat RBM 2 User manual

Bircher Reglomat

Bircher Reglomat RBM 2 User manual

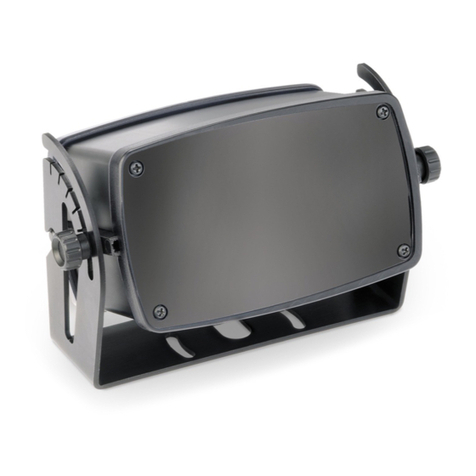

Bircher Reglomat Herkules 2E User manual

Bircher Reglomat

Bircher Reglomat Herkules 2E User manual

Bircher Reglomat Herkules 2 User manual

Bircher Reglomat

Bircher Reglomat Herkules 2 User manual

Bircher Reglomat PrimeScan B Supplement

Bircher Reglomat

Bircher Reglomat PrimeScan B Supplement

Bircher Reglomat PrimeTec B User manual

Bircher Reglomat

Bircher Reglomat PrimeTec B User manual

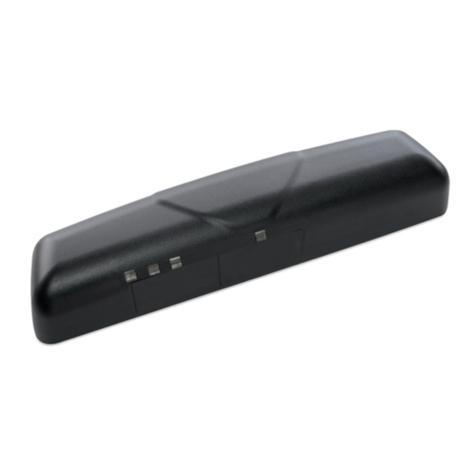

Bircher Reglomat Swissdoor PrimeMotion B User manual

Bircher Reglomat

Bircher Reglomat Swissdoor PrimeMotion B User manual

Bircher Reglomat DI1-Pro V2 User manual

Bircher Reglomat

Bircher Reglomat DI1-Pro V2 User manual

Bircher Reglomat PrimeMotion B User manual

Bircher Reglomat

Bircher Reglomat PrimeMotion B User manual

Popular Security Sensor manuals by other brands

Honeywell Home PROSiXCOCN Installation and setup guide

Honeywell Home

Honeywell Home PROSiXCOCN Installation and setup guide

Duevi SIRPZ-RB-868 Operation

Duevi

Duevi SIRPZ-RB-868 Operation

RKI 65-2483RK Operator's manual

RKI

RKI 65-2483RK Operator's manual

Nortech PD160 Enhanced Series user manual

Nortech

Nortech PD160 Enhanced Series user manual

Omron K8AC-H2 manual

Omron

Omron K8AC-H2 manual

Agilent Technologies G8610 Series Quick reference card

Agilent Technologies

Agilent Technologies G8610 Series Quick reference card

Shinko SE2EA-1-0-0 instruction manual

Shinko

Shinko SE2EA-1-0-0 instruction manual

Det-Tronics X Series instructions

Det-Tronics

Det-Tronics X Series instructions

ACR Electronics COBHAM RCL-300A Product support manual

ACR Electronics

ACR Electronics COBHAM RCL-300A Product support manual

TOOLCRAFT 1712612 operating instructions

TOOLCRAFT

TOOLCRAFT 1712612 operating instructions

Elkron IM600 Installation, programming and functions manual

Elkron

Elkron IM600 Installation, programming and functions manual

Bosch WEU PDO 6 Original instructions

Bosch

Bosch WEU PDO 6 Original instructions

THORLABS PDA10JT user guide

THORLABS

THORLABS PDA10JT user guide

Waeco UV-DETECT operating manual

Waeco

Waeco UV-DETECT operating manual

Intermatic IOS-DSIMF manual

Intermatic

Intermatic IOS-DSIMF manual

Siemens AZL66 Series manual

Siemens

Siemens AZL66 Series manual

BTI Profiline Multi Finder operating instructions

BTI

BTI Profiline Multi Finder operating instructions

Challenger SL01 instruction manual

Challenger

Challenger SL01 instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

PrimeMotion C
a
c b
Radarfeld fe
dg
e
e
d
h
Connecting
1
PrimeMotion C
Observe the national and international regulations on door safety.
Only trained, qualified personnel may mount and start up the detector.
The unit may only be opened and repaired by Bircher Reglomat.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom profile must be earthed correctly.
Start-up
2Montage
Translation of the original instructions
Recommended start-up sequence: I. Mounting II. Connection
Mounting
I
General
Safety instructions
1
1. Remove cover hood 2. Lay and connect cable 3. Mount detector
Microwave motion detector for opening
automatically controlled doors
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
ENGLISH
Mounting of the detector
II
Electrical connections
3
+
Mechanical fine tuning
4
–
+
Manual settings of the
inclination
0° ... +45° in 5° steps
Manual settings of the
pivoting
– 20° ... +20° in 5° steps
–
+
1m
2m
3m
1m 2m
0m
0m
1m
2m
3m
4m
Wide radar field
min. = 0.8 x 1.6, max. = 2.3 x 4.8 m (WxD)
+
–
–
Inclination angle: 35° Inclination angle: 35°
1m
2m
3m
1m 2m
0m
0m
1m
2m
3m
4m
2.2 m
2.2 m
–
b
a
90°
PrimeMotion C Controller
white
brown
green
yellow
white
Power
Supply
Potential-
free
output
12–36 VDC
12–28 VAC
GND
+
Controller input
brown
green
yellow
Cable
3m
Low Active
PrimeMotion C Controller
white
brown
green
yellow
white
Power
Supply
Potential-
free
output
12–36 VDC
12–28 VAC
GND
Controller input
brown
green
yellow
Cable
3m
+
High Active
Radar eld
a Hood
b Light window detector indication
c no function
d Cable bushing
e Mounting
f Microwave module
g LED microwave: green
h Potentiometer
min. = 1.6 x 0.8, max. = 4.8 x 2.3 m (WxD)
turn 90° Narrow radar field
298506E
05/17
5
Configuration by hand of radar field with potentiometer
2
Identification of the year of manufacture
8.2
Smallest radar field medium radar field Largest radar field
Year
15
Week
44
Factory settings
Potentiometer
Radar function Description
Field size
1 = Smallest radar field
2... 8 = Medium radar field
9 = Largest radar field size
green LED Fault Remedy
continuously
lit
Radar tripping when door is closing 1. Set angle of radar further away from the door.
2. Adjust radar field size.
Radar false tripping without
apparent external influence
1. Avoid light sources (e.g. fluorescent tubes) in the immediate vicinity of the detector.
2. No moving objects (plants, advertising posters, etc.) in the vicinity of the detector.
3. Avoid strong vibration at the radar detector
4. Possible influence from a second radar detector in the vicinity (very unlikely)
Manufacturer: Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen
Following directives have been observed: RoHS-Directive 2011/65/EU, RED 2014/53/EU
Product variant: PrimeMotion C
Bircher Reglomat AG
Wiesengasse 20
CH-8222 Beringen
www.bircher-reglomat.com
Manufacturer:
Contact data
9
Technology Radar 24.125 GHz
Mounting height 1.8 - 4 m
Operating voltage 12–36 VDC / 12–28 VAC
Operating current max. 32 mA at 24 VDC
Power consumption max. 1.3 W
Output radar
max. switching voltage: 48 VAC / VDC
max. switching current: 120 mA
max. switching capacity: 550 mW
Protection type Suitable for use acc. to IP54
Operating temperature -20° to 60° C
Dimensions 172 x 60 x 48 mm (LxWxD)
Weight 120 g
Cable length 3 m
7Technical data
Remedying malfunctions
6
Declaration of conformity, identification of the year of manufacture by means of the serial number
8
EC-Declaration of Conformity
8.1
Swissdoor ApS
Stenhuggervej 2
DK-5471 Soendersoe
Denmark
Tel.: +45 86 28 00 00
[email protected]
www.swissdoor.dk
Danish seller:
