Burkert 2101 User manual

Quickstart
English Deutsch Français
Type 2101
2/2-way globe valve
2/2-Wege-Geradsitzventil
Vanne à siège droit 2/2 voies

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© Bürkert Werke GmbH & Co. KG, 2013 - 2020
Operating Instructions 2008/05_EU-ML_00810250 / Original DE

3
Quickstart
1 QUICKSTART ........................................................................ 1
2 SYMBOLS ............................................................................. 2
3 INTENDED USE .................................................................... 2
4 BASIC SAFETY INSTRUCTIONS.......................................... 3
5 GENERAL NOTES................................................................. 4
6 TECHNICAL DATA................................................................. 5
7 INSTALLATION ...................................................................... 8
8 START-UP............................................................................ 13
9 MAINTENANCE WORK....................................................... 15
10 DISASSEMBLY.................................................................... 15
11 TRANSPORTATION, STORAGE, DISPOSAL ...................... 15
Type2101
1 QUICKSTART
The Quickstart describes the entire life cycle of the device. Keep
these instructions in a location which is easily accessible to every
user and make them available to every new owner of the device.
Important safety information!
Read the Quickstart carefully and fully. In particular, pay
attention to section “Basic safety instructions” and “Intended
use”.
▶The Quickstart must be read and understood.
The Quickstart provides an exemplary description of the installation
and start-up of the device.
The detailed description can be found in the operating instruc-
tions for Types2101.
The operating instructions can be found on the internet at:
www.country.burkert.com
1.1 Denition of terms/abbreviations
The term "device" used in these instructions always refers to the
Type2101 globe valve.
The abbreviation "Ex" used in these instructions always stands
for "explosion-proof".
In these instructions, the unit bar stands for relative pressure.
The absolute pressure is stated separately in bar(abs).
English

4
Symbols
Type2101
2 SYMBOLS
DANGER!
Warns of an immediate danger!
▶Failure to observe these instructions will result in death or
serious injuries.
WARNING!
Warns of a potentially hazardous situation!
▶Failure to observe these instructions may result in serious
injuries or death.
CAUTION!
Warns of a potential danger!
▶Failure to observe these instructions may result in moderate
or minor injuries.
NOTE!
Warns of damage!
Important tips and recommendations.
Refers to information in these operating instructions or in
other documentation.
▶Designates instructions to avoid a danger.
→Designates a procedure which you must carry out.
3 INTENDED USE
Unauthorised use of the Type2101 globe valve may be dan-
gerous to people, nearby equipment and the environment.
▶Use the Type2101 device only as intended. Non-intended use
of the device may be dangerous to people, nearby equipment
and the environment.
▶The device is designed to control the ow of liquid and gas-
eous media.
▶In the potentially explosive atmosphere, only use devices that
are approved for this purpose. These devices are identied by
a separate Ex type label. Before use, note the information on
the separate Ex type label and the Ex additional instructions
or the separate Ex operating Instructions.
▶To use the device, observe the permitted data, operating con-
ditions and application conditions. These specications can
be found in the contract documents, the operating instructions
and on the type label.
▶Protect device from harmful environmental inuences (e.g.
radiation, air humidity, fumes). For any matters requiring clari-
cation, contact the relevant sales department.
▶Use the device only in conjunction with third-party devices
and components recommended or approved by Bürkert.
▶Prerequisites for safe and trouble-free operation are correct
transport, correct storage and installation as well as careful
operation and maintenance.
▶The exhaust air can be contaminated by lubricants in the
actuator.
English

5
Intended use
Type2101
4 BASIC SAFETY INSTRUCTIONS
These safety instructions do not take account of any:
•Contingencies or events which may occur during installation,
operation and maintenance of the devices.
•Local safety regulations that are within the operator’s scope of
responsibility, including those relating to the installation personnel.
DANGER!
Risk of injury due to high pressure in the system or device!
▶Before working on the system or device, switch o the pres-
sure and vent or empty the lines.
Risk of injury due to electric shock. (with installed electrical
components)
▶Before working on the device or system, switch o the
power supply. Secure against reactivation.
▶Observe the applicable accident prevention and safety regu-
lations for electrical devices.
WARNING!
Risk of injury when opening the actuator!
The actuator contains a spring under tension. When the actuator is
opened, the spring will jump out and may cause injuries.
▶Do not open the actuator.
Risk of injury due to moving parts in the device!
▶Do not reach into openings in the device.
WARNING!
Danger due to loud noises.
▶Depending on the usage conditions, the device may generate loud
noises. Detailed information on the probability of loud noises is
available from the respective sales department.
▶Wear hearing protection when in the vicinity of the device.
CAUTION!
Risk of burns or re from hot device surfaces due to pro-
longed operation.
▶Only touch the device when wearing protective gloves.
▶Keep the device away from highly ammable substances and
media.
Discharge of medium if packing gland exhibits wear
▶Relief bore must be regularly inspected for any medium leakages.
▶If medium is leaking from the relief bore, the packing gland must
be replaced (see “9 Maintenance work”).
▶If the medium is hazardous, secure the area around the leakage
to prevent risks.
Risk of injury due to bursting lines and device.
▶Because of the risk of pressure surge, valves with the ow
direction above the seat must not be used for uid media.
▶Observe the type of ow and type of medium for operating
the device.
English

6
General notes
Type2101
General hazardous situations.
To prevent injuries, observe the following:
▶Secure device or system to prevent unintentional activation.
▶Only trained technicians may perform installation and main-
tenance work.
▶Perform installation work and maintenance work using suit-
able tools only.
▶Following interruption of the process, ensure that the
process is restarted in a controlled manner. Observe the
sequence:
1. Apply electrical or pneumatic supply.
2. Charge with medium.
▶Use the device only when it is in perfect condition and in
accordance with the operating instructions.
▶For applications planning and operation of the device, observe
the plant-specic safety regulations.
▶The plant owner is responsible for the safe operation and
handling of the plant.
▶Observe the general rules of technology.
Please observe the following in order to protect against
damage to the device:
▶Feed only those media listed in chapter “6 Technical data” into
the medium ports.
▶Do not make any changes to the device and do not subject it
to mechanical stress.
▶Transport, install and remove heavy device only with the aid of a
second person and using suitable tools.
5 GENERAL NOTES
5.1 Contact addresses
Germany
Bürkert Fluid Control Systems
Sales Centre
Christian-Bürkert-Str.13–17
D-74653 Ingelngen
Tel. +49(0)7940-1091111
Fax +49(0)7940-1091448
E-mail: [email protected]
International
The contact addresses can be found on the back pages of the
printed operating instructions.
They are also available online at: www.burkert.com
5.2 Warranty
A precondition for the warranty is that the device is used as
intended in consideration of the specied operating conditions.
5.3 Information on the Internet
Operating instructions and data sheets for Type2101 can be found
online at: www.country.burkert.com
English

7
Technical data
Type2101
6 TECHNICAL DATA
6.1 Conformity
The Type2101 conforms to the EU Directives as per the EU Dec-
laration of Conformity.
6.2 Standards
The applied standards as used to verify compliance with the EU
Directives can be found in the EC type examination certicate and/
or the EC Declaration of Conformity.
According to Pressure Equipment Directive observe the following
operating conditions:
Nominal diameter
port connection
Maximum pressure for compressible
uids of Group1 (dangerous gases and
vapours according to Art. 3, No.1.3,
letter a, rst dash)
DN65 15bar
6.3 Type label
WARNING!
Risk of injury from high pressure.
Important, device-specic technical data are listed on the type
label.
▶Note the permitted pressure range on the device type label.

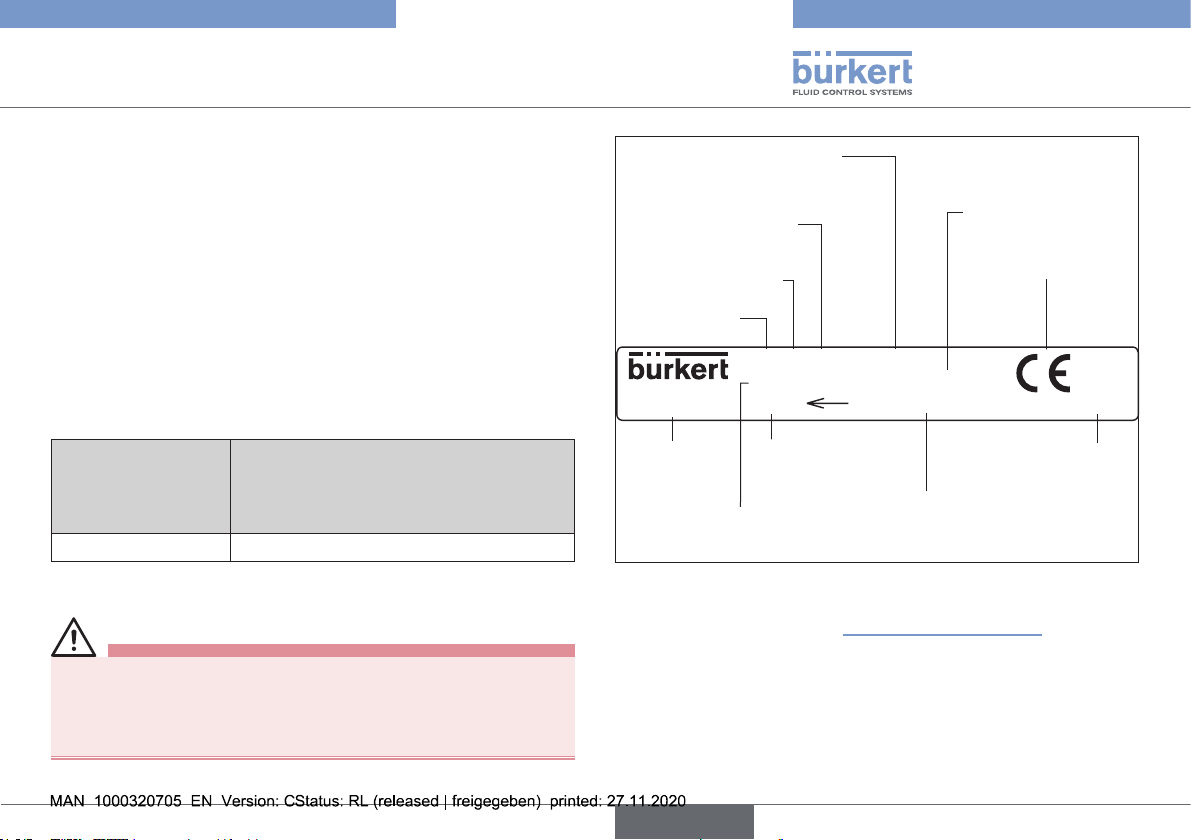

00253282
2101 A PTFE Kv19.5
PS 8,5bar Tmed -10°C - +185°C
Flow 1 2 see manual for derating W17AL
Made in Germany
CE marking
Permitted
medium temperature
Type
Control function
(CF)
Seal material1)
Flow coecient
Identication
number
of the device
Flow direction
Permitted
medium pressure
Manufacturer date
(encrypted)
See operating
instructions for
derating
Fig. 1: Type label (example)
1) For a variant description see “6.5 General technical data”
English

8
Technical data
Type2101
6.4 Operating conditions
Note the permitted ranges on the device type label!
6.4.1 Temperature ranges
The globe valve is suitable for steam sterilisation.
Actuator
size
Actuator
material
Medium
(for PTFE seal) Environment 2)
ø50mm
PPS –10 – +230°C –10 – +60°C 2)
–10 – +100°C 3)
ø70mm
ø90mm
ø130mm
Tab. 1: Temperature ranges
Derating pressure and temperature ranges
Usage limits of the valve (derating medium pressure)
Temperature Medium pressure
–10 – +50 °C 25bar
100°C 24.5bar
150°C 22.4bar
200°C 20.3bar
230°C 19bar
Tab. 2: Derating the medium pressure as per DINEN12516-1/PN25
Temperature Medium pressure
–29 – +38 °C 19bar
50°C 18.4bar
100°C 16.2bar
150°C 14.8bar
200°C 13.7bar
230°C 12.7bar
Tab. 3: Derating the medium pressure as per ASMEB16.5/
ASMEB16.34 Cl.150
Temperature Medium pressure
–10 – +50 °C 14bar
100°C 14bar
150°C 13.4bar
200°C 12.4bar
230°C 11.7bar
Tab. 4: Derating the medium pressure as per JISB222010K
English

9
Technical data
Type2101
0 20 40 60 80 100 120 140 160 180 200 220
50
60
110
100
90
80
70
Medium temperature [°C]
Ambient temperature [°C]
Fig. 2: Derating Element ANTG50, 70, 90, 130
2) When using a pilot valve the max. ambient temperature is
+55°C.
3) Pilot air ports as push-in connector
4) Pilot air ports as threaded bushing
6.4.2 Pressure ranges
Actuator size Maximum pilot pressure 5)
ø50mm
10barø70mm
ø90mm
ø130mm 7bar
Tab. 5: Pressure ranges
5) For device variant ø70/DN50/MC13
the max. pilot pressure is limited to 7bar.
Minimum pilot pressure values: Flow direction below seat
(medium ow against valve closing direction)
Required minimum pilot pressure Pmin with control functionA:
Actuator
size [mm]
50 70 90 130
≤ DN50
130
≥ DN65
Pmin [bar] 4.8 4.8 5.0 5.0 5.6
The required minimum pilot pressure Pmin for control functionB
andI (ow direction below seat) depends on the medium
pressure 6).
Minimum pressure values: Flow direction above the seat
(medium ow in valve closing direction)
The required minimum pilot pressure Pmin for control functionA
(ow direction above the seat) depends on the medium pressure
6).
6) The pressure graphs can be found in the operating
instructions online at www.country.burkert.com
English

10
Installation
Type2101
6.5 General technical data
Media
Control medium Neutral gases, air
Flow media Water, alcohols, oils, fuels, hydraulic
fluids, saline solutions, lyes, organic
solvents, vapour, air, neutral gases
For materials and
ports see data sheet or operating instructions
Installation position any, preferably actuator face up
Degree of protection IP67 as per IEC529/EN60529

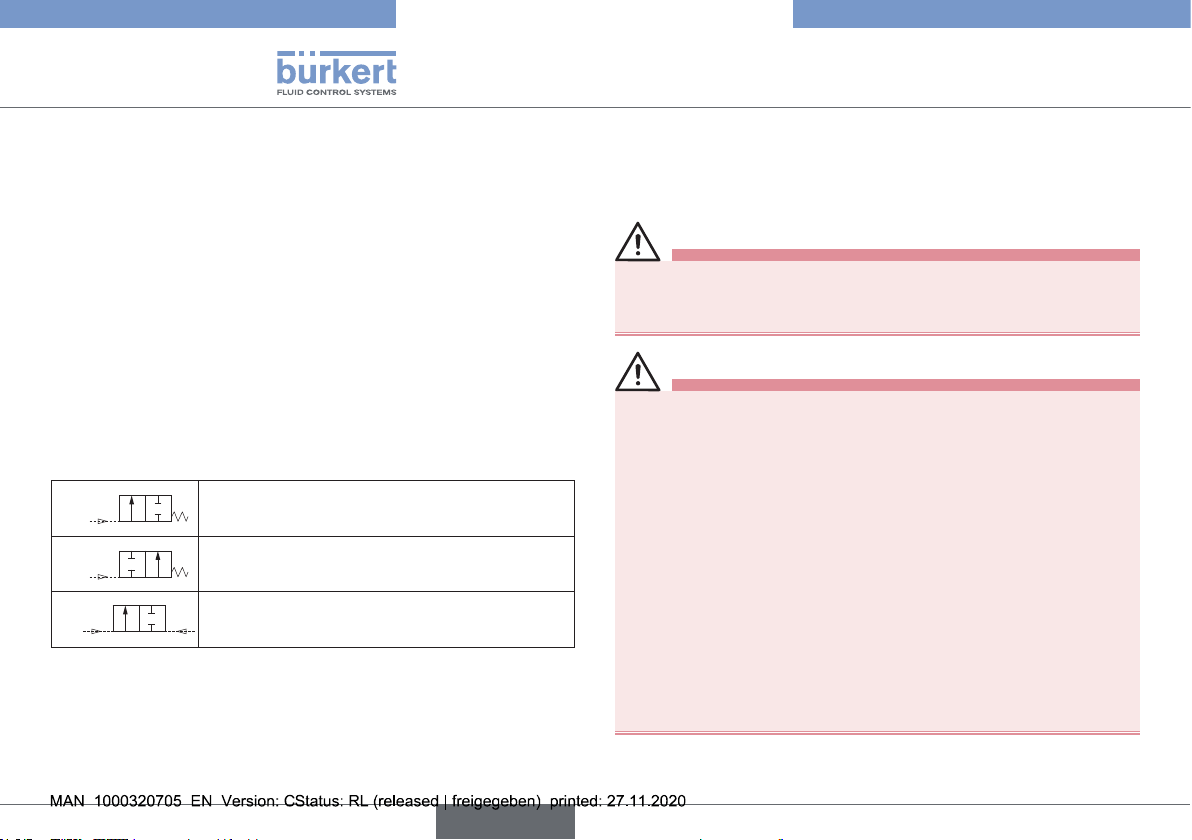

6.6 Control function (CF)
A
1(P)
2(A)
Closed by spring force in rest position
B
1(P)
2(B)
Opened by spring force in rest position
I
1(P)
2(A)
Actuating function via reciprocal
pressurisation
Tab. 6: Control functions
7 INSTALLATION
7.1 Safety instructions
DANGER!
Risk of injury from high pressure in the system!
▶Before loosening lines and valves, turn o the pressure and
vent the lines.
WARNING!
Risk of injury due to improper installation!
▶Installation may be carried out by authorised technicians only
and with the appropriate tools!
Risk of injury due to unintentional activation of the system
and uncontrolled restart!
▶Secure the system against unintentional activation.
▶Following installation, ensure a controlled restart.
For control function I – risk of pilot pressure failure!
With control functionI, the control unit and reset are pneumatic.
No dened position is reached during a pressure failure.
▶To ensure a controlled restart of the device, rst apply pilot
pressure and then activate the medium.
Risk of injury due to moving parts in the device!
▶Do not reach into openings.
English

11
Installation
Type2101
CAUTION!
Risk of injury due to heavy device.
During transportation or installation work, a heavy device may
fall down and cause injuries.
▶Transport, install and remove heavy device with the aid of a
second person only.
▶Use suitable tools.
7.2 Before installation
• Any installation position of the globe valve is possible, pref-
erably with the actuator facing upward.
• Ensure that pipelines are aligned before connecting the valve.
• Note ow direction (see type label).
7.2.1 Preparatory work
→Clear impurities from pipelines (sealants, metal chips, etc.).
Devices with welded connection
NOTE!
For valves with a mounted control unit:
When welding the valve body into the pipeline, the control unit
must not be installed.
▶Uninstall the control unit from the actuator (see chapter on
installation in the operating instructions of the corresponding
control unit).
Remove the actuator from the valve body:
→Clamp valve body into a holding device.
NOTE!
Damage to the seat seal or seat contour!
▶When removing the actuator, the valve must be in the open
position.
→For control function A pressurise the pilot air port1 with com-
pressed air (5bar): Valve opens.
→Place a suitable open-end wrench on the wrench at of the nipple.
→Unscrew actuator from the valve body.
Other device variants
→Only uninstall the actuator if required by the customer.
→For procedure see “Devices with welded connection”.

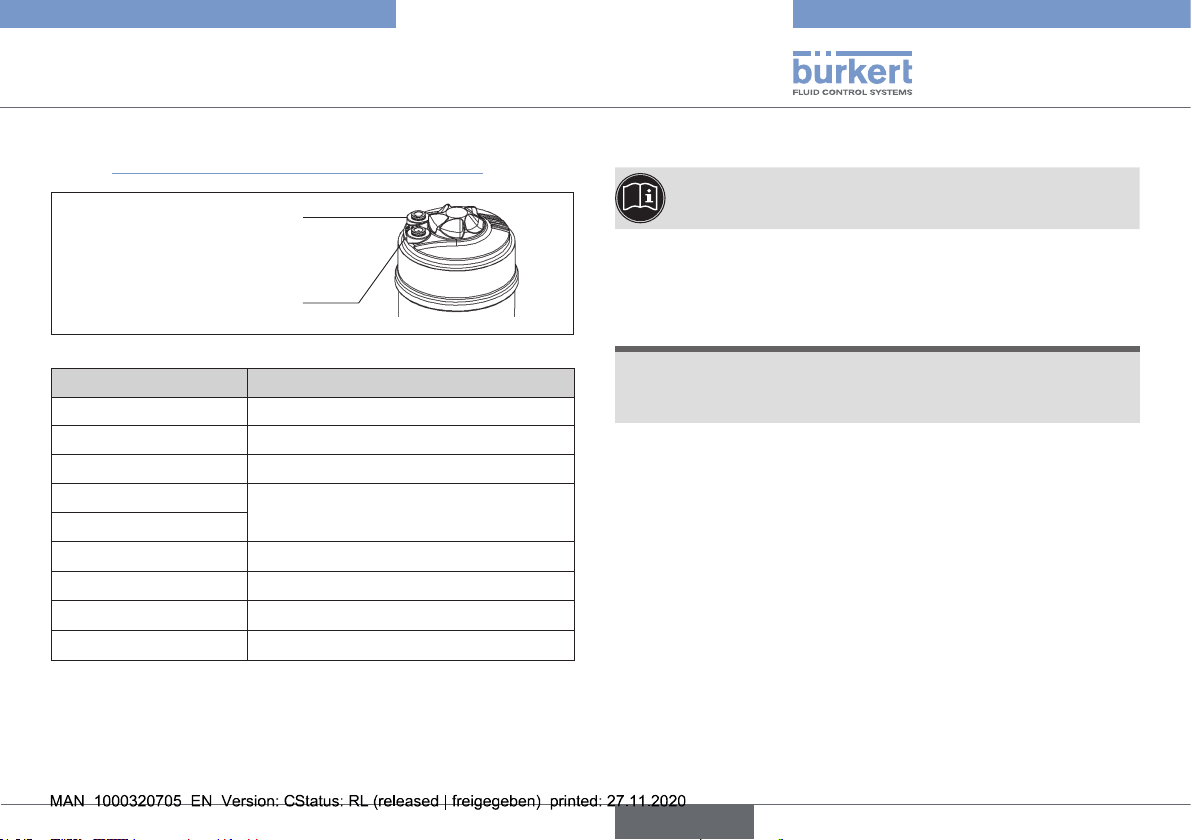

Actuator
Nipple
Valve body
Exhaust port
CFA, CFB
Pilot air port
CFI
Pilot air port
CFA, CFB, CFI
Wrench at for
open-end wrench
Relief bore
2
1
Fig. 3: Installation
English

12
Installation
Type2101
7.3 Installation
WARNING!
Risk of injury due to improper installation!
Failure to observe the tightening torque value is dangerous due
to the risk of damage to the device.
▶Use an open-end wrench for installation, never a pipe
wrench.
▶Observe tightening torque (see “Tab. 7: Tightening torques
valve body/nipple”).
Dirt trap for devices with approval according to DINEN161
According to DINEN161 "Automatic shut-o valves for gas burners
and gas appliances", a dirt trap, which prevents the penetration of
a 1mm test pin, must be installed upstream of the valve.
→If the approval also applies to the stainless steel valve body,
such a dirt trap must be attached in front of the globe valve.
7.3.1 Installing the body
Welded connection
→Weld or bond valve body in pipeline system.
Other body variants
→Connect valve body to pipeline.
7.3.2 Install actuator (welded connection)
Seal
Fig. 4: Seal
→Check seal and replace if required.
WARNING!
Risk due to incorrect lubricants!
Unsuitable lubricant may contaminate the medium. There is a
risk of explosion in oxygen applications!
▶For specic applications, e.g. oxygen or analysis applica-
tions, use approved lubricants only.
→Before re-installation, grease nipple thread of the actuator
(e.g. using Klüberpaste UH196-402 from Klüber).
NOTE!
Damage to the seat seal or seat contour!
▶When installing the actuator, the valve must be in the open
position.
→For control function A pressurise the pilot air port1 with com-
pressed air (5bar): Valve opens.
English

13
Installation
Type2101
→Screw actuator into the valve body. Observe tightening torque
(see “Tab. 7: Tightening torques valve body/nipple”).

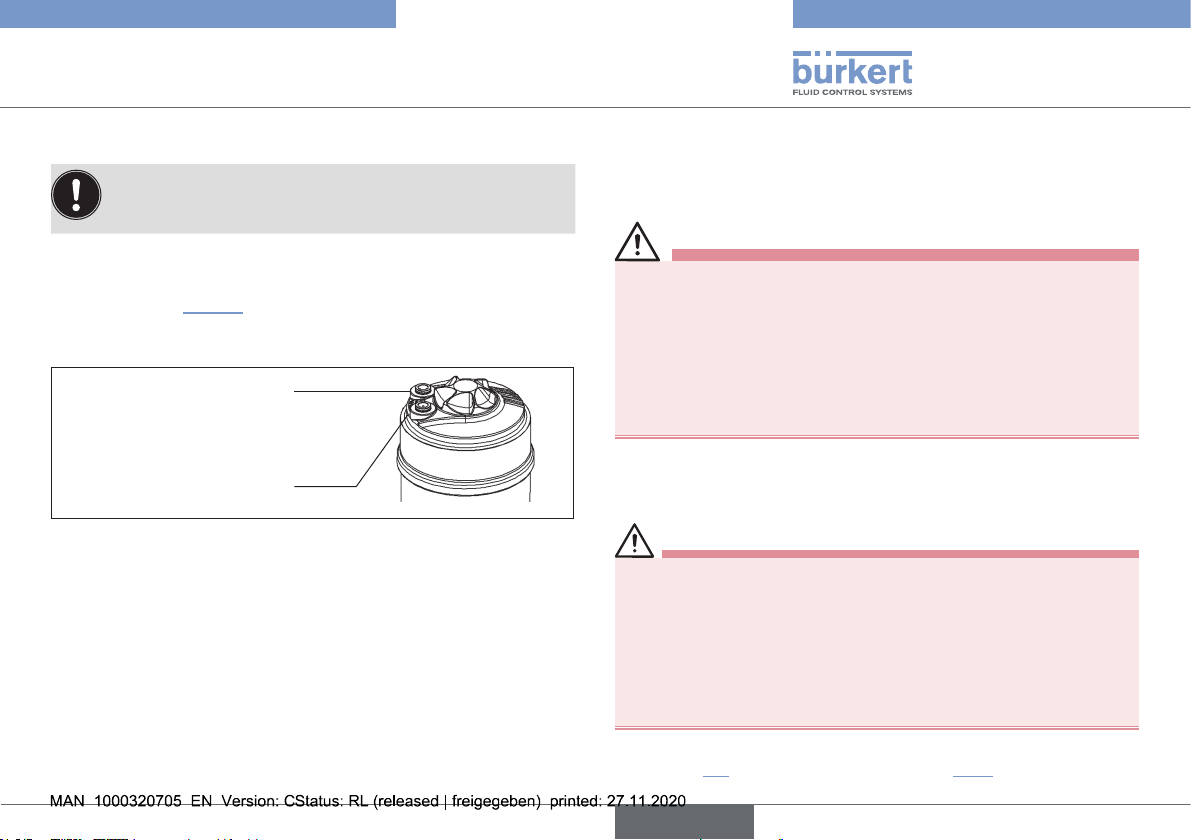

1
2
Pilot air port
CFA, CFB, CFI
Exhaust port
CFA, CFB
pilot air port
CFI
Fig. 5: Ports
DN Tightening torque [Nm]
15 45±3
20 50±3
25 60±3
32 65±3
40
50 70±3
65 100±3
80 120±5
100 150±5
Tab. 7: Tightening torques valve body/nipple
7.3.3 Install control unit
For a description see chapter "Installation" in the oper-
ating instructions for the corresponding control unit.
7.3.4 Turning actuator
The position of the ports can be seamlessly aligned by turning
the actuator 360°.
NOTE!
Damage to the seat seal or seat contour!
▶When turning the actuator, the valve must be in the open
position.
Procedure:
→Clamp valve body in a holding device (only for valves which
have not yet been installed).
→For control function A pressurise the pilot air port1 with com-
pressed air (5bar): Valve opens.
→Counter with a suitable open-end wrench on the wrench at of
the nipple.
→Actuator with hexagonal contour:
Place a suitable open-end wrench on the hexagon head of the
actuator.
English

14
Installation
Type2101
WARNING!
Risk of injury from discharge of pressure and escaping
medium!
The body connection can loosen when rotated incorrectly.
▶Only turn the actuator in the specied direction!
→Actuator with hexagonal contour:
Move the actuator into the required position by turning it
counterclockwise (seen from below).

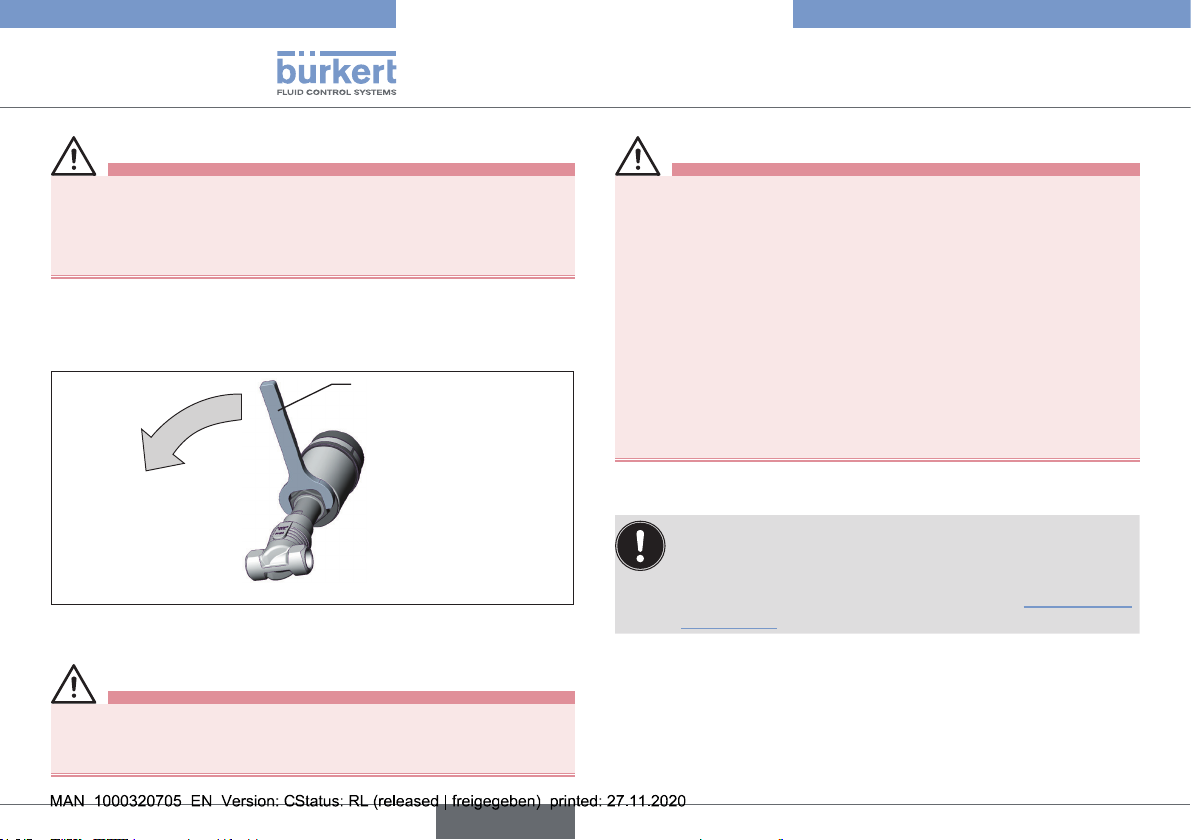

Open-end
wrench
Fig. 6: Rotating with open-end wrench
7.4 Pneumatic connection
DANGER!
Risk of injury from high pressure in the system!
▶Before loosening lines and valves, turn o the pressure and
vent the lines.
WARNING!
Risk of injury due to unsuitable connection hoses!
Hoses that cannot withstand the pressure and temperature range
can cause hazardous situations.
▶Only use hoses that are permitted for the specied pressure
and temperature range.
▶Note the data sheet information from the hose
manufacturers.
For control function I – risk of pilot pressure failure!
With control functionI, the control unit and reset are pneumatic.
No dened position is reached during a pressure failure.
▶To ensure a controlled restart of the device, rst apply pilot
pressure and then activate the medium.
7.4.1 Connecting the control medium
If the position of the pilot air ports is unfavourable for
installing the hoses, these can be seamlessly aligned by
rotating the actuator by 360°.
The procedure is described in chapter “7.3.3 Install
control unit”.
Control functionA andB:
→Connect control medium to pilot air port 1of the actuator.
Silencer
For devices with push-in connection, the silencer to reduce the
exhaust air volume is supplied unattached.
English

15
Start-up
Type2101
→Connect the silencer to the free exhaust port2.
For usage in an aggressive environment, we recommend
using a pneumatic hose to drain all free pneumatic ports
in a neutral atmosphere.
Control functionI:
→Connect control medium to pilot air port1 and2of the
actuator (see “Fig. 7”)
Pressure on pilot air port1 opens the valve.
Pressure on pilot air port2 closes the valve.
1
2
Pilot air port
CFA, CFB, CFI
Exhaust port
CFA, CFB
pilot air port
CFI
Fig. 7: Ports
Pilot air hose:
Pilot air hoses of sizes 6/4mm or ¼" can be used.
Optionally a pilot air port via G⅛" thread is possible.
8 START-UP
8.1 Safety instructions
WARNING!
Risk of injury due to improper installation!
▶Only trained technicians may perform installations.
▶Perform installations using suitable tools only.
Risk of injury due to unintentional activation of the system
and uncontrolled restart.
▶Secure equipment against unintentional activation.
▶Ensure that the system starts up in a controlled manner only.
8.2 Pilot pressure
WARNING!
For control function I – risk of pilot pressure failure.
The valve stays in an undened position in the event of a pilot
pressure failure.
▶To ensure a controlled restart of the device, apply pilot pressure
and activate the medium.
Risk of injury due to moving parts.
▶Do not reach into openings in the device.
→Set the pilot pressure according to the type label information,
chapter "5" and ow direction (chapter „8.3“).
English

16
Start-up
Type2101
8.3 Flow direction
CFA SFB/SFI
Flow direction below seat
(closing against medium)
Flow direction
1 2
Marking on the
housing
Fig. 8: Flow direction below seat
Flow direction above the seat
(closing with the medium)
CFA
Flow direction
1 2
Marking on the
housing
Fig. 9: Flow direction above the seat
8.3.1 Flow direction above the seat
Control functionA, CFA: closes with the medium ow via spring
force. The medium pressure supports the closing and sealing of
the valve seat. The valve opens via pilot pressure.
WARNING!
Risk of injury due to bursting lines and device!
▶Use valves with ow direction above the seat for gaseous
media and vapour only.
In order to ensure complete opening, the minimum pilot
pressure must be used!
8.3.2 Flow direction below seat
Control functionA, CFA: closes against the medium ow via spring
force. Control functionB, CFB: closes against the medium ow
via pilot pressure. The medium pressure aids in opening the valve.
WARNING!
Valve leak if there is too little minimum pilot pressure (for CFB
and CFI) or excessive medium pressure!
▶Note the minimum pilot pressure and medium pressure (see
“6.4.2 Pressure ranges”).
8.4 Start-up
Perform the Teach function after installing the device. This function
presets the closed-loop control parameters.
See control unit operating instructions for a description.
English

17
Start-up
Type2101
9 MAINTENANCE WORK
→Perform a visual inspection of the device once per year. Shorter
maintenance intervals are recommended depending on the
usage conditions.
Visual inspection:
According to the usage conditions, perform regular visual
inspections:
→Check medium ports for tightness.
→Check relief bore on the pipe for leaks.
Relief bore
Fig. 10: Relief bore
9.1 Spare parts
CAUTION!
Risk of injury and/or damage due to incorrect parts!
Incorrect accessories and unsuitable spare parts may cause injuries
and damage the device and the area around it.
▶Use only original accessories and original spare parts from
Bürkert.
Wearing parts: Seals and swivel plate.
→If leaks occur, replace the respective wearing part.
The maintenance and repair instructions can be found
online at: www.country.burkert.com
10 DISASSEMBLY
DANGER!
Risk of injury from high pressure in the system!
▶Before loosening lines or valves, switch o the pressure and
bleed the lines.
Risk of injury from electric shock!
▶Before reaching into the device or the system, switch o the
power supply and secure to prevent reactivation!
Procedure:
→Disconnect the pneumatic connection.
→Disassemble the device.
11 TRANSPORTATION, STORAGE,
DISPOSAL
NOTE!
Damage from transport and storage!
•Protect the device against moisture and dirt in shock-re-
sistant packaging during transportation and storage.
•Storage temperature –20 – +65°C.
Damage to the environment caused by device parts contam-
inated with media.
•Dispose of the device and packaging in an environmentally
friendly manner!
•Observe applicable disposal and environmental regulations.
English

18
Der Quickstart
Typ 2101
1 DER QUICKSTART................................................................ 3
2 DARSTELLUNGSMITTEL...................................................... 4
3 BESTIMMUNGSGEMÄSSE VERWENDUNG........................ 4
4 GRUNDLEGENDE SICHERHEITSHINWEISE....................... 5
5 ALLGEMEINE HINWEISE...................................................... 6
6 TECHNISCHE DATEN ........................................................... 7
7 MONTAGE ........................................................................... 10
8 INBETRIEBNAHME............................................................. 15
9 WARTUNGSARBEITEN ...................................................... 17
10 DEMONTAGE ...................................................................... 17
11 TRANSPORT, LAGERUNG, ENTSORGUNG ...................... 17
Typ 2101
1 DER QUICKSTART
Der Quickstart beschreibt den gesamten Lebenszyklus des Geräts.
Bewahren Sie diese Anleitung so auf, dass sie für jeden Benutzer
gut zugänglich ist und jedem neuen Eigentümer des Geräts wieder
zur Verfügung steht.
Wichtige Informationen zur Sicherheit!
Lesen Sie den Quickstart sorgfältig durch. Beachten Sie vor
allem die Kapitel „Grundlegende Sicherheitshinweise“ und
„Bestimmungsgemäße Verwendung“.
▶Der Quickstart muss gelesen und verstanden werden.
Der Quickstart erläutert beispielhaft die Montage und Inbetrieb-
nahme des Geräts.
Die ausführliche Beschreibung des Geräts nden Sie in der
Bedienungsanleitung für den Typ 2101.
Die Bedienungsanleitung nden Sie im Internet unter:
www.buerkert.de
1.1 Begrisdenition / Abkürzung
Der in dieser Anleitung verwendeten Begri „Gerät“ steht immer
für das Geradsitzventil Typ 2101.
Die in dieser Anleitung verwendete Abkürzung „Ex“ steht immer
für „explosionsgeschützt“.
In dieser Anleitung steht die Einheit bar für den Relativdruck. Der
Absolutdruck wird gesondert in bar(abs) angegeben.
deutsch

19
Darstellungsmittel
Typ 2101
2 DARSTELLUNGSMITTEL
GEFAHR!
Warnt vor einer unmittelbaren Gefahr!
▶Bei Nichtbeachtung sind Tod oder schwere Verletzungen die
Folge.
WARNUNG!
Warnt vor einer möglicherweise gefährlichen Situation!
▶Bei Nichtbeachtung können schwere Verletzungen oder Tod
die Folge sein.
VORSICHT!
Warnt vor einer möglichen Gefährdung!
▶Nichtbeachtung kann mittelschwere oder leichte Verletzun-
gen zur Folge haben.
HINWEIS!
Warnt vor Sachschäden!
Wichtige Tipps und Empfehlungen.
Verweist auf Informationen in dieser Bedienungsan-
leitung oder in anderen Dokumentationen.
▶markiert eine Anweisung zur Gefahrenvermeidung.
→markiert einen Arbeitsschritt den Sie ausführen müssen.
3 BESTIMMUNGSGEMÄSSE
VERWENDUNG
Bei nicht bestimmungsgemäßem Einsatz des Geradsitzventils
Typ 2101 können Gefahren für Personen, Anlagen in der
Umgebung und die Umwelt entstehen.
▶Den Typ 2101 nur bestimmungsgemäß einsetzen. Bei nicht
bestimmungsgemäßem Einsatz des Geräts können Gefahren
für Personen, Anlagen in der Umgebung und die Umwelt
entstehen.
▶Das Gerät ist für die Steuerung des Durchusses von üssi-
gen und gasförmigen Medien konzipiert.
▶Im explosionsgefährdeten Bereich nur Geräte einsetzen, die für
diesen Bereich zugelassen sind. Diese Geräte sind durch ein
separates Ex-Typschild gekennzeichnet. Für den Einsatz die
Angaben auf dem separaten Ex-Typschild und die Ex-Zusatz-
anleitung oder die separate Ex-Bedienungsanleitung beachten.
▶Für den Einsatz die zulässigen Daten, Betriebsbedingungen
und Einsatzbedingungen beachten. Diese Angaben stehen in
den Vertragsdokumenten, der Bedienungsanleitung und auf
dem Typschild.
▶Gerät vor schädlichen Umgebungseinüssen schützen (z.B.
Strahlung, Luftfeuchtigkeit, Dämpfe etc.). Bei Unklarheiten
Rücksprache mit der jeweiligen Vertriebsniederlassung halten.
▶Gerät nur in Verbindung mit von Bürkert empfohlenen bzw.
zugelassenen Fremdgeräten und -komponenten einsetzen.
▶Voraussetzungen für den sicheren und einwandfreien Betrieb
sind sachgemäßer Transport, sachgemäße Lagerung und
Installation sowie sorgfältige Bedienung und Instandhaltung.
▶Die Abluft kann durch Schmierstoe im Antrieb verunreinigt sein.
deutsch

20
Bestimmungsgemäße Verwendung
Typ 2101
4 GRUNDLEGENDE
SICHERHEITSHINWEISE
Diese Sicherheitshinweise berücksichtigen keine
•Zufälligkeiten und Ereignisse, die bei Montage, Betrieb und
Wartung der Geräte auftreten können.
•ortsbezogenen Sicherheitsbestimmungen, für deren Einhaltung,
auch in Bezug auf das Montagepersonal, der Betreiber verant-
wortlich ist.
GEFAHR!
Verletzungsgefahr durch hohen Druck in Anlage oder Gerät!
▶Vor Arbeiten an Anlage oder Gerät, den Druck abschalten
und Leitungen entlüften oder entleeren.
Verletzungsgefahr durch Stromschlag. (bei angbauter elektri-
scher Komponente)
▶Vor Arbeiten an Gerät oder Anlage die Spannung abschalten.
Vor Wiedereinschalten sichern.
▶Geltende Unfallverhütungsbestimmungen und Sicherheitsbe-
stimmungen für elektrische Geräte beachten.
WARNUNG!
Verletzungsgefahr beim Önen des Antriebs!
Der Antrieb enthält eine gespannte Feder. Wenn der Antrieb geönet
wird, kann die herausspringende Feder Verletzungen verursachen.
▶Antrieb nicht önen.
Verletzungsgefahr durch sich bewegende Teile im Gerät!
▶Nicht in Önungen des Geräts fassen.
WARNUNG!
Gefahr durch laute Geräusche.
▶Abhängig von den Einsatzbedingungen können durch das Gerät
laute Geräusche entstehen. Genauere Informationen zur Wahr-
scheinlichkeit von lauten Geräuschen erhalten Sie durch die
jeweilige Vertriebsniederlassung.
▶Bei Aufenthalt in der Nähe des Geräts Gehörschutz tragen.
VORSICHT!
Verbrennungsgefahr und Brandgefahr bei längerer Ein-
schaltzeit durch heiße Geräteoberäche.
▶Gerät nur mit Schutzhandschuhen berühren.
▶Gerät von leicht brennbaren Stoen und Medien fernhalten.
Austritt von Medium bei Verschleiß der Stopfbuchse
▶Entlastungsbohrung regelmäßig auf austretendes Medium prüfen.
▶Wenn Medium aus der Entlastungsbohrung austritt, die Stopf-
buchse wechseln (siehe„9 Wartungsarbeiten“).
▶Bei gefährlichen Medien, die Umgebung der Austrittstelle vor
Gefahren sichern.
Verletzungsgefahr durch Bersten von Leitungen und Gerät.
▶Wegen Schließschlaggefahr dürfen Ventile mit Anströmung
über Sitz nicht für üssige Medien eingesetzt werden.
▶Für den Betrieb des Geräts die Art der Anströmung und die
Art des Mediums beachten.
deutsch
