CC 9060 Time

2
1. General
Dear customer,
Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that
is extremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit.
If you have any further questions concerning installation or operation of your car kit, please contact
your dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines
Installation - who and where
We recommend to let a specialised workshop perform the installation.
Only professionals will observe the installation requirements of the au-
tomotive manufacturer (VAS 1978) correctly.
Power supply
This system has been designed for the use in vehicles with an on-board
supply system of 12 volts (passenger car). If you intend to install the
device in a vehicle with an on-board supply system of 24 volts (lorry),
please use a voltage converter. If you have queries regarding this sub-
ject, please contact our hotline.
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.
Introductory information

3
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to mois-
ture, extreme temperatures or shocks and carefully follow the proce-
dure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distriction.
The manufacturer strongly recommends that you useX
a hands-free solution when driving.

4
DVD
150 cm
8
9
10
150 cm
Installation of the hands-free car kit
3. Scope of supply

5
The hands-free car kit (HFCK) is supplied with different combinations of components, depending on
the sales regions (countries). The operating manual refers to all versions.

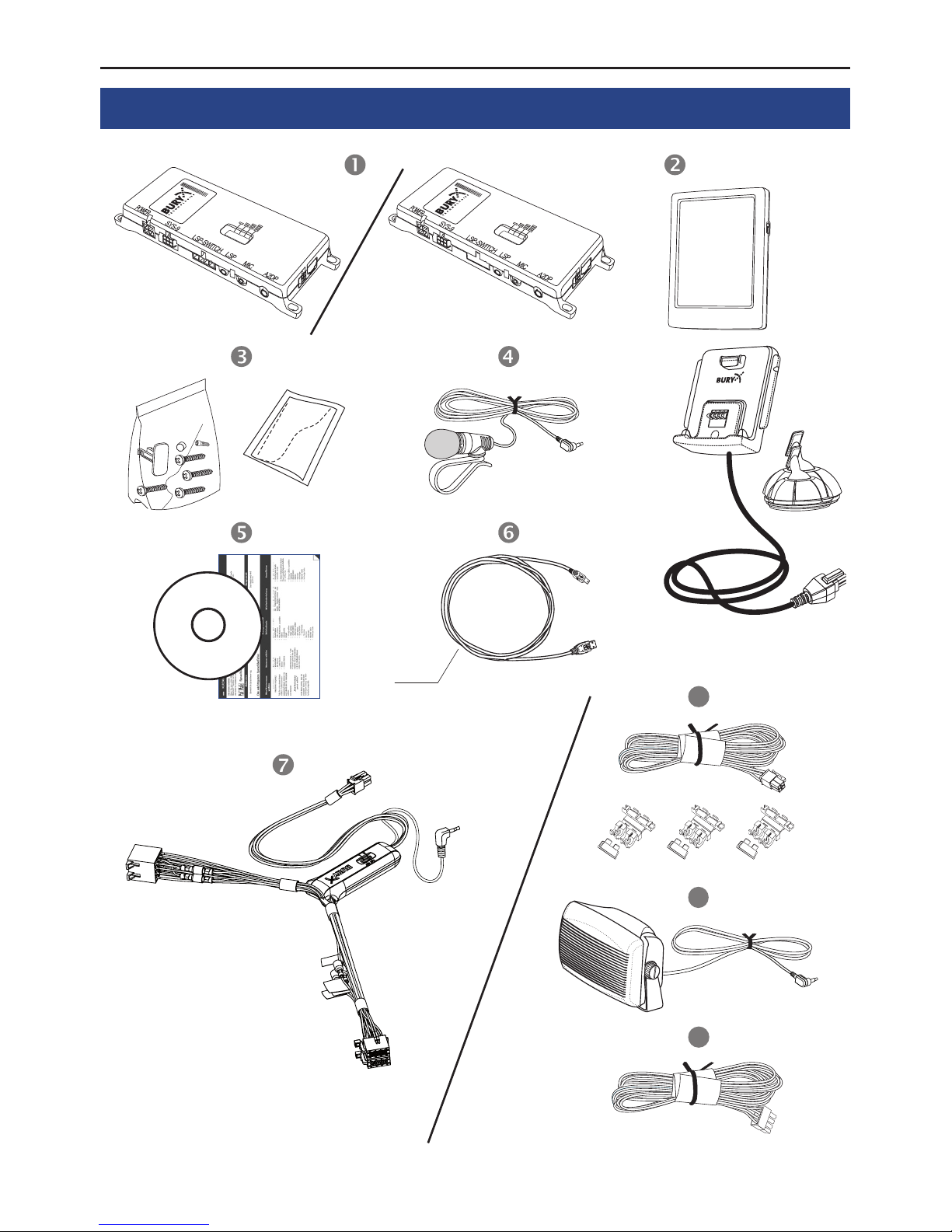

Description of the components:
1) Electronics box
2) Monitor, holder and installation pad
3) Mounting accessories
Fixing screws for electronics box, rider, screws for the holder and rubber cover, cleaning cloth
4) Microphone
5) Installation and Operating manual, software on DVD, printed Quick user guide
6) USB cable
7) External loudspeaker switch box AC 5120
8) Power supply cable with fuses
9) External loudspeaker
10) Loudspeaker connection cable
Version 1:
- Electronics box without integrated loudspeaker switch box
- with external loudspeaker switch box AC 5120
Version 2:
- Electronics box without integrated loudspeaker switch box
- with power supply cable
- with loudspeaker connection cable
Version 3:
- Electronics box with integrated loudspeaker switch box
- with power supply cable
- with loudspeaker connection cable
Note:
If certain components are added or omitted you will receive the corresponding informa-X
tion on a separate enclosure.

6Installation of the hands-free car kit
Step 1:
First of all, please choose the most convenient position for the attached
monitor on the holder and the installation pad in your vehicle by check-
ing different positions in the vehicle.
If you would like to use the device during your journey, positioning it in
the front area on the driver’s side is advisable. Sit in the vehicle and
check whether you can reach the device without difficulty.
To produce an electronic log, position data is required from your vehi-
cle. This is provided via NAVSTAR GPS, a global navigation satellite
system for determining position and timing, and is received by a GPS
receiver in the monitor. Therefore make sure when placing the device
that it can receive data of this kind, if possible via the windscreen.
When there is sufficient reception of GPS signals, the symbol of a dish
antenna appears in the main menu in the upper right-hand corner of
the display. If the reception is interrupted for a short time, e.g. when
driving through a tunnel, the symbol flashes.
Important:
Please note that heat insulation glass with vapor depos-X
ited metal layer blocks signals from outside to inside and
vice versa. Take a look at the vehicle documents to find out
about its equipment, as regards the windows.
Check the GPS reception of the system, before you firmlyX
install the installation pad.
GPS reception is usually impaired in underground garagesX
and in roofed parking areas.
4. Positioning and mounting

7
After having found a suitable position for the monitor in the vehicle you can mount / attach the the
installation pad / the holder accordingly. Please use a cleaning cloth for degreasing the surfaces you
want to attach the installation pad to.
The end of the cable with the small Molex plug is ideally suited for placing through small openings in
the dashboard area. This facilitates a practically invisible installation of the cable. Take the length of
the cable into account and make sure that it is of sufficient length to reach the intended location of the
electronics box.
Important:
When positioning the monitor please take care that the monitor does not impair theX
view onto the road, that it will not be installed in the impact zone of the passenger
compartment (amongst others in the airbag inflation zones) and that cables may be laid
without any problems.
The installation pad can be affixed just once, removing could damage the adhesiveX
area. In case of high variations in temperatures - depending on the structure and the
features - decolourisations of the surfaces can occur during the subsequent utilization.
Please avoid direct sunlight on the monitor or high internal temperatures, which can beX
rapidly reached in parked vehicles. In such cases, remove the monitor of the hands-free
car kit from the cradle and put it in the car glove pocket or glove box for instance.

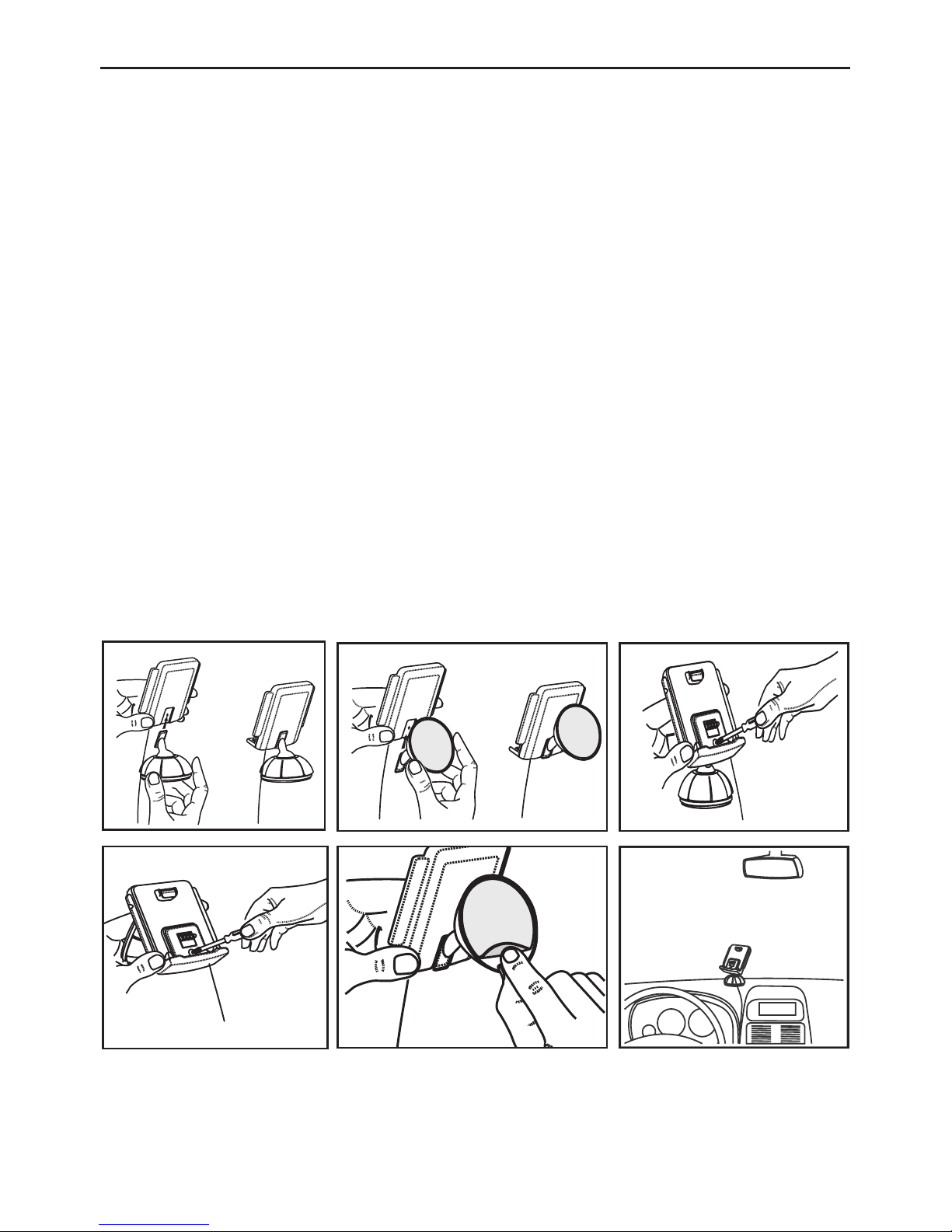

Example of installation:
123
4 5 6

8Installation of the hands-free car kit

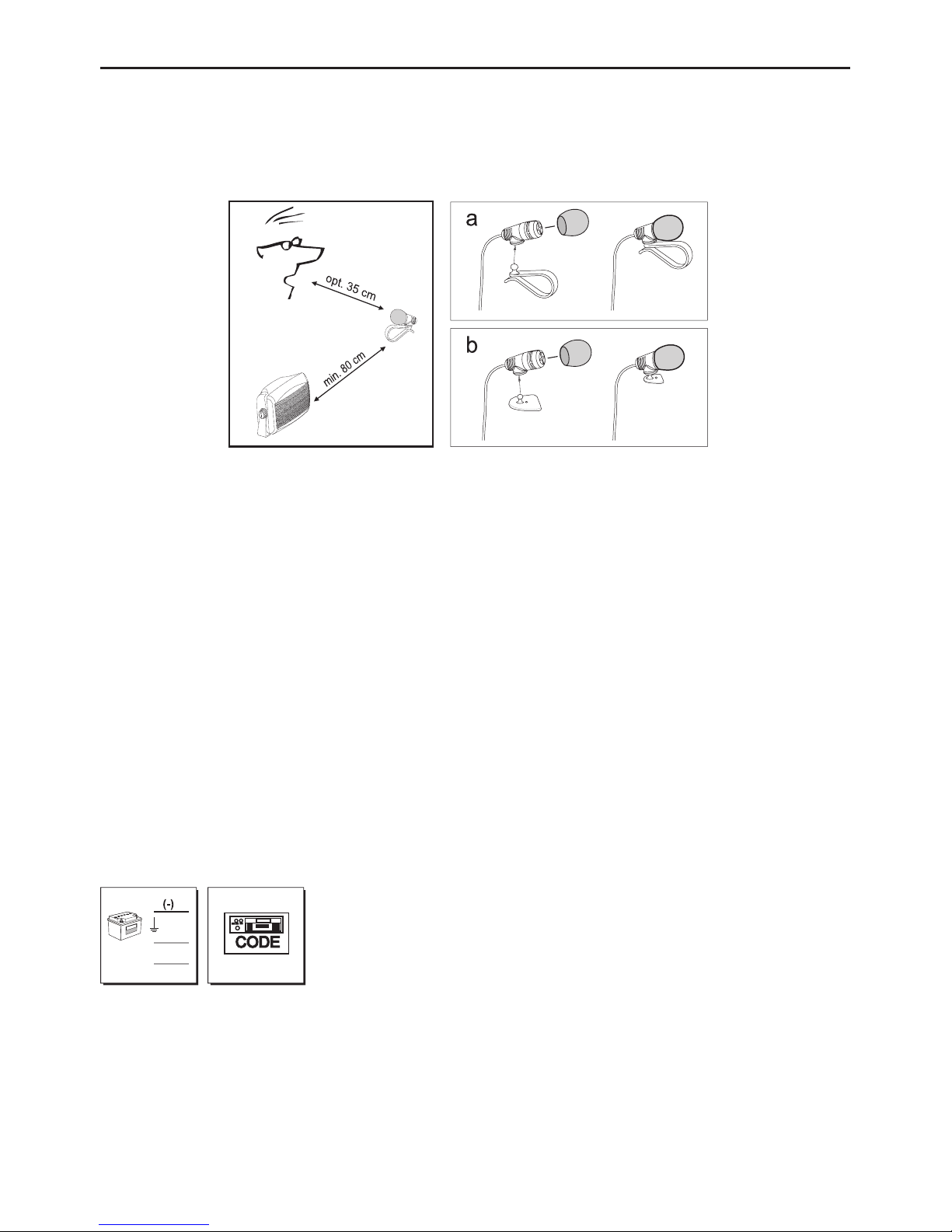

Step 2:
Depending on the vehicle type and its equipment (e.g. airbags), it is reasonable to install the micro-
phone either at the A-pillar, at the sun shield or at the roof interior. For details about the equipment
features please refer to the vehicle documents.
Step 3:
Remove or loosen up cladding and covers to be able to install all of the cables in the vehicle as comfort-
ably as possible. Please lay the cables in a way that they do not lie/hang unsecured in the vehicle and
that they may not influence the conducting of the vehicle. When laying a cable, please take care that
it is not under traction stress but that it has some tolerance. Avoid crushing the cable as damages of
the insulation can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can e.g. be behind the radio, in the
glove box, or in the centre console. Please mind that you can access the connections of the box without
difficulty. It is possible that you will have to connect the components before attaching the electronics
box, if it isn’t possible to do this afterwards due to a lack of space. A description of the connections is
provided in the next section.
Before connecting the components to the electronics box you should branch off the battery for safety
reasons. In doing so, take into account that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or so-X
mewhere you can only reach by opening or unfastening
a protective cover / a cover. The terminal box must not hang
loosely in the vehicle.

9
5. Connections on the electronics box

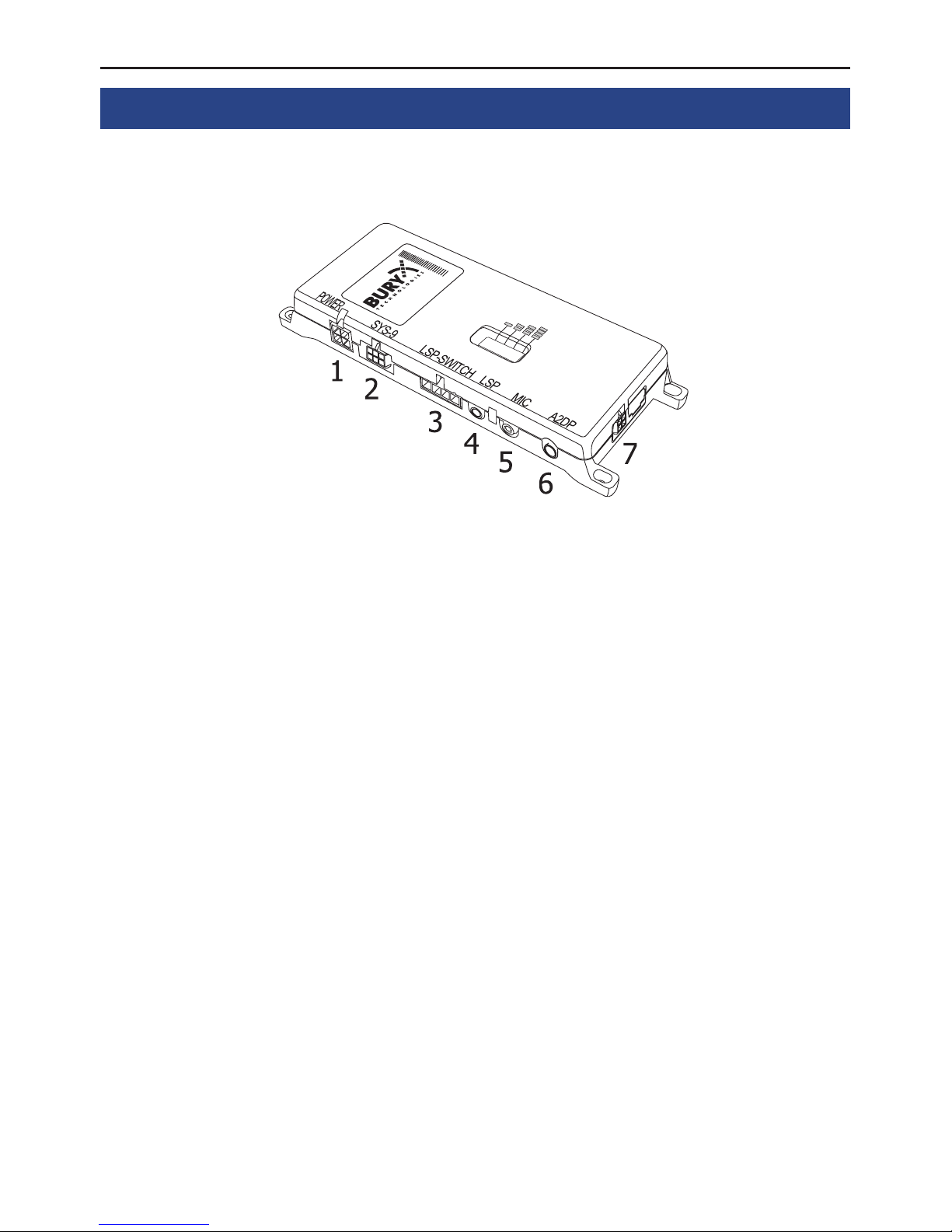

The additional components of the hands-free car kit are connected to the electronics box. The follow-
ing connections are provided:
Connection options:
1 Power supply / Mute
2 basePlate System 9 adapted for CC 9060 Time
3 Internal loudspeaker switch box (with or without an internal switch box, depending on version)
4 External loudspeaker
5 Mikrophone
6 AUX Out
7 Monitor / Touch screen
Connection 1 - Power supply / Mute
Version 1:
Refer to the separate chapter: Installation of the audio switch box AC 5120
Note:
If the DIN ISO plug of the AC 5120 does not fit in your vehicle, numerous adapters areX
available from dealers.
Version 2 and 3:
The power supply of the hands-free car kit is established via a 4-core cable. Connect the black (clamp
31 – minus), the red (clamp 30 – steady plus) and the blue cable (clamp 15 – ignition plus) to the
power supply of your radio (where required via the cigarette lighter or the fuse box). After connection
to the counterpart, the yellow cable provides for radio muting during a phone conversation. Please
connect the white Molex connector with connection 1.

10 Installation of the hands-free car kit
Attention:
If you also connect the blue cable to clamp 30, the hands-X
free car kit will be permanently supplied with power. If the
vehicle is not running for a longer period, this could lead to
a discharge of the car battery.
If you deviate from the specified connection descriptionsX
it may be the case that certain functions on the HFCK (e.g.
the on-call duty) will not function correctly.
Installation instructions for the fuses
Please cut through the red, the black and the blue cable by means of a wire cutter or scissors. Now
insert the two endings of the red cable resulting from the cut into one of the binders, then close it.
If you hear two clicking noises, the clamp snapped in properly. Now insert one of the fuses and then
repeat the procedure with the other cables.
Connection 2 - for System 9 basePlate compatible with the CC 9060 Time
This is where you connect the basePlate for the System 9. This basePlate is specially adapted for the
electronics box of the HFCK. The basePlate is supplied with power via the electronics box. You can
charge your mobile phone here and also leave it here for safekeeping.
