Calix BLM 1500 R13 User manual

Calix BLM 1500 R13
Trouble Shooting Guide
November 2015
#220-00687, Rev 10

Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Contents
About This Document..............................................................7
Revision History ........................................................................................................8
Conventions...............................................................................................................9
Terminology.............................................................................................................11
Document Scope .....................................................................................................12
Chapter 1: Getting Started with Troubleshooting ..............13
Roadmap of Processing Troubles .........................................................................14
Locating Troubles ...................................................................................................15
Recovery Requirements..........................................................................................16
Chapter 2: Connection to BLM 1500....................................17
TAP301 On-site Craft Connection Failure .............................................................19
TAP302 Remote Craft Connection Failure.............................................................20
Chapter 3: Faults on BLM 1500 ............................................23
Faults on FAB3 Packs.............................................................................................24
TAP201 FAULT Led Lit...................................................................................25
TAP202 MAINT LED Lit or Flashing...............................................................26
TAP203 SYSTEM ALARM CRIT or MAJ LED Lit ...........................................27
Faults on Application Packs...................................................................................28
TAP208 ALL LEDs Lit.....................................................................................29
TAP209 FAULT LED Lit..................................................................................30
TAP210 MAINT LED Lit..................................................................................30
TAP214 LASER LED Lit .................................................................................32

4
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
TAP211 LNK LED Out....................................................................................35
TAP212 ALM LED Lit......................................................................................36
Complementary TAPs .............................................................................................37
TAP261 Suspected Pack Failure....................................................................37
TAP262 Suspected Port Failure .....................................................................39
TAP263 Pack or Port in Mismatch State (MEA)..............................................40
TAP264 Pack or Port in Maintenance State (MT)...........................................41
TAP265 Pack Reset or Replacement .............................................................43
Chapter 4: Service Failures ..................................................45
TAP501 Voice Service Failure ................................................................................47
TAP502 Slow Data Service......................................................................................50
TAP503 Intermittent Data Service ..........................................................................53
TAP504 Loss of Data Service.................................................................................56
TAP505 Video Freezing...........................................................................................58
TAP506 Video Pixelating.........................................................................................65
TAP507 Loss of Video Service...............................................................................71
Complementary TAPs .............................................................................................73
TAP581 DSL Modem Failure..........................................................................73
TAP582 Packets Lost on G28.........................................................................75
Chapter 5: Basic Knowledge for
Troubleshooting BLM 1500 ...............................................79
Overview of BLM 1500 Network .............................................................................80
TNG301 Craft Connection to BLM 1500.................................................................81
TNG401 Understanding BLM 1500 Packs..............................................................82
TNG501 Identifying Troubles..................................................................................86
Commonly Used Commands in Troubleshooting............................................87
Chapter 6: Trouble Escalation..............................................89
Introduction to CSR.................................................................................................90

5
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Hot CSR..........................................................................................................90
Severity Emergency........................................................................................91
Severity High ..................................................................................................92
Severity Medium.............................................................................................93
Severity Low...................................................................................................94
Data Collection for CSR..........................................................................................95
Mandatory Enclosures for all CSRs.......................................................................96
Chapter 7: Glossary...............................................................97
Chapter 8: Reference List ...................................................101

6
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.

7
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
About This Document
This document is designed to assist technicians to troubleshoot the Broadband Loop
Multiplexer 1500 (BLM 1500™) gigabit passive optical network (GPON) optical line
termination (OLT) . BLM 1500 is a member of the BLM 1500™ product line, which
includes the BLM 1500 GPON OLT, the EntriView™ element management system (EMS),
and the T-Series optical network terminations (ONTs).
The BLM 1500 Trouble Shooting Guide includes:
Trouble Analysis Procedure (TAP) for each problem
Step-by-step instructions
BLM 1500 basic knowledge for reference

8
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Revision History
Revision Summary of Changes
10 Initial document release for BLM 1500 Release 13.

9
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Conventions
This document uses the following typographic conventions:
Convention Description/Example
User Input Text must be manually entered (input) via a keyboard by the user to issue a command.
An example of user input is a command you must enter in a Command Line Interface
(CLI) exactly as written.
cd $HOME
Command Variables Command variables, the values of which you must supply.
<home_directory>
[argument1|argument2] The brackets indicate that these arguments are optional and can be omitted. The |
indicate that either argument1 or argument2 is used. If used, the brackets must not be
typed.
{argument1|argument2} The braces indicate that argument1 or argument2 are required. The | indicate that either
argument1 or argument2 must be used as a value for this parameter.
Output Information Text that appears in Courier font either represents output text that appears on screen in
response to a user action or as the result of an alarm or event message.
System awaiting input
GUI Objects GUI objects, such as menus, fields, and buttons are bold in text.
On the File menu, click Exit.
Key Combinations Key combinations are described with bold text. The plus (+) sign indicates that the keys
must be pressed simultaneously.
Press Esc F S to save. Press Ctrl+X to delete the selected value.
System Elements Command, parameter, program, path, and directory names are written in Courier font.
The forward slash (/) is uses for UNIX systems. The backward slash (\) is used for
Windows systems.
The files are located in E:\Test
The files are located in /opt/calix/bin (1)
URL Uniform Resource Locators (URLs) are underlined and in blue.
For more information, go to https://www.calix.com/
Code Examples Code examples.
static char* months[]=\
{”Jan”,”Feb”};
(2)
(1) The use of the forward slash (/) is for UNIX systems, Windows systems use the backslash (\).
(2) The back slash (\) is used to show where long lines are split.
This document uses the following definitions for dangers, warnings, cautions, alerts, and
notes:
DANGER! Danger indicates the presence of a hazard that will cause severe
personal injury or death if not avoided
Dangers alert you to the possibility of severe personal injury or death.

10
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
DANGER! DANGER! CLASS 1 LASER PRODUCT. INVISIBLE LASER
RADIATION MAY BE PRESENT. Fiber optic radiation can cause severe
eye damage or blindness. Do not look into the open end of an optical fiber.
Dangers alert you to the hazards of laser radiation.
WARNING! Warning indicates the presence of a hazard that can cause
severe personal injury if not avoided.
Warnings alert you to the possibility of personal injury.
CAUTION! Caution indicates the presence of a hazard that can cause minor
to moderate personal injury if not avoided.
Cautions alert you to the possibility of damage to the equipment, service interruption, or
loss of data
ALERT! Alert indicates the presence of a hazard that can cause damage to
equipment or software, loss of data, or service interruption if not avoided.
Cautions alert you to the possibility of damage to the equipment, service interruption, or
loss of data
Note: Notes provide supplementary information to the text.

11
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Terminology
An Optical Network Termination (ONT) is a type of Optical Network Unit (ONU)
designed for single-subscriber applications. The GPON standards use the term ONT by
default unless a distinction is necessary. This documentation uses both terms, identifying
any units that use pluggable line cards as modular. The BLM 1500 software uses ONT
to generically indicate all types.
Fabric and application printed circuit boards in the BLM 1500 are referred to as
application packs in the software and in this documentation.

12
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Document Scope
The BLM 1500 Trouble Shooting Guide belongs to the set of troubleshooting guides for BLM
1500 network solution:
BLM 1500 Trouble Shooting Guide
EntriView Trouble Shooting Guide
The BLM 1500 Trouble Shooting Guide covers the faults that occur on the BLM 1500 OLT, and
service failures over the BLM 1500 network. When troubleshooting the BLM 1500 OLT, the
other aforementioned guide may be used as reference to get a full view of failure(s).

Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Chapter 1
Getting Started with Troubleshooting
This chapter introduces the structure of BLM 1500 Troubleshooting Guide and provides
navigation for each type of troubles.

14
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Roadmap of Processing Troubles

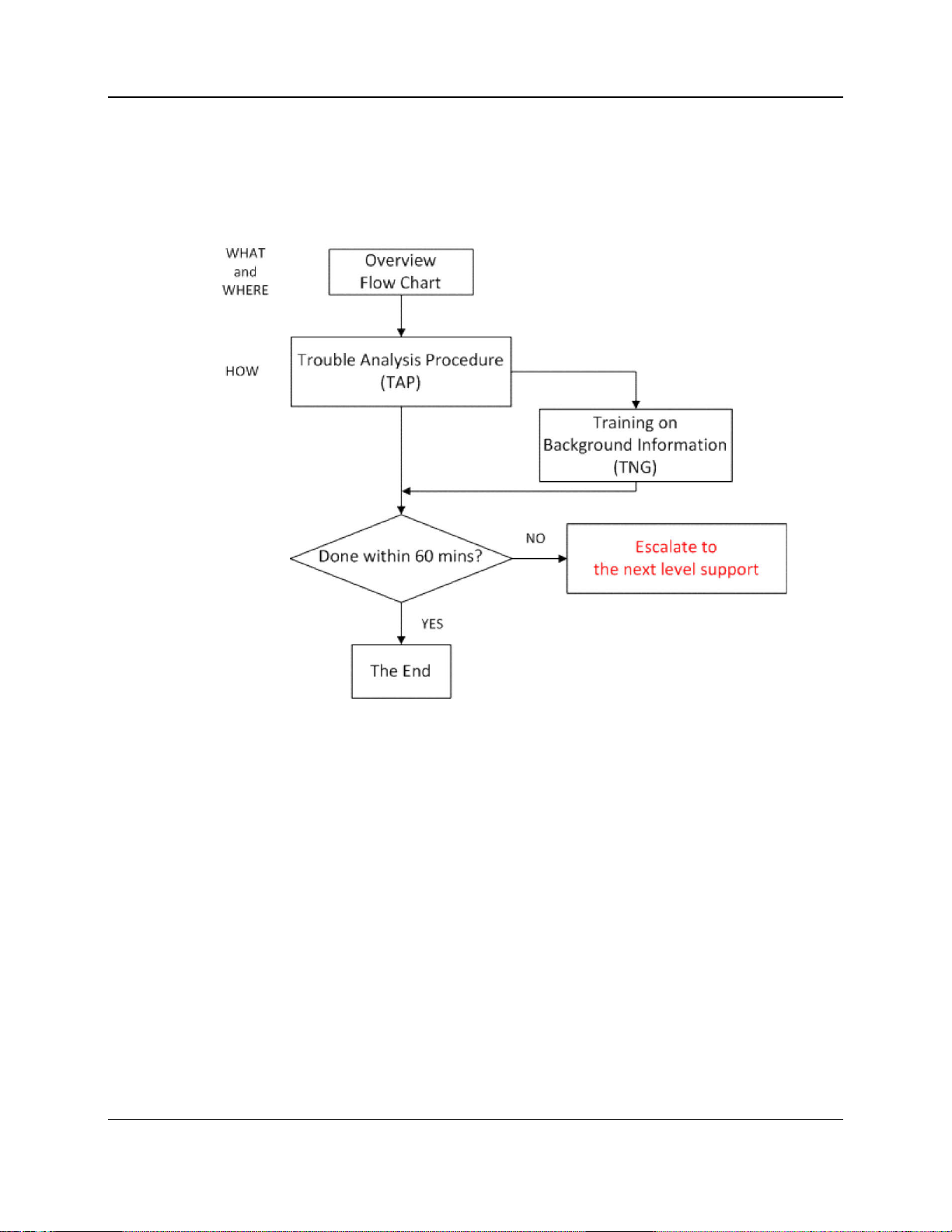

Figure Roadmap of Processing Troubles displays the structure of this guide as well as each
troubleshooting chapter. It visualizes the typical procedure to resolve troubles.
Roadmap of Processing Troubles

15
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Locating Troubles

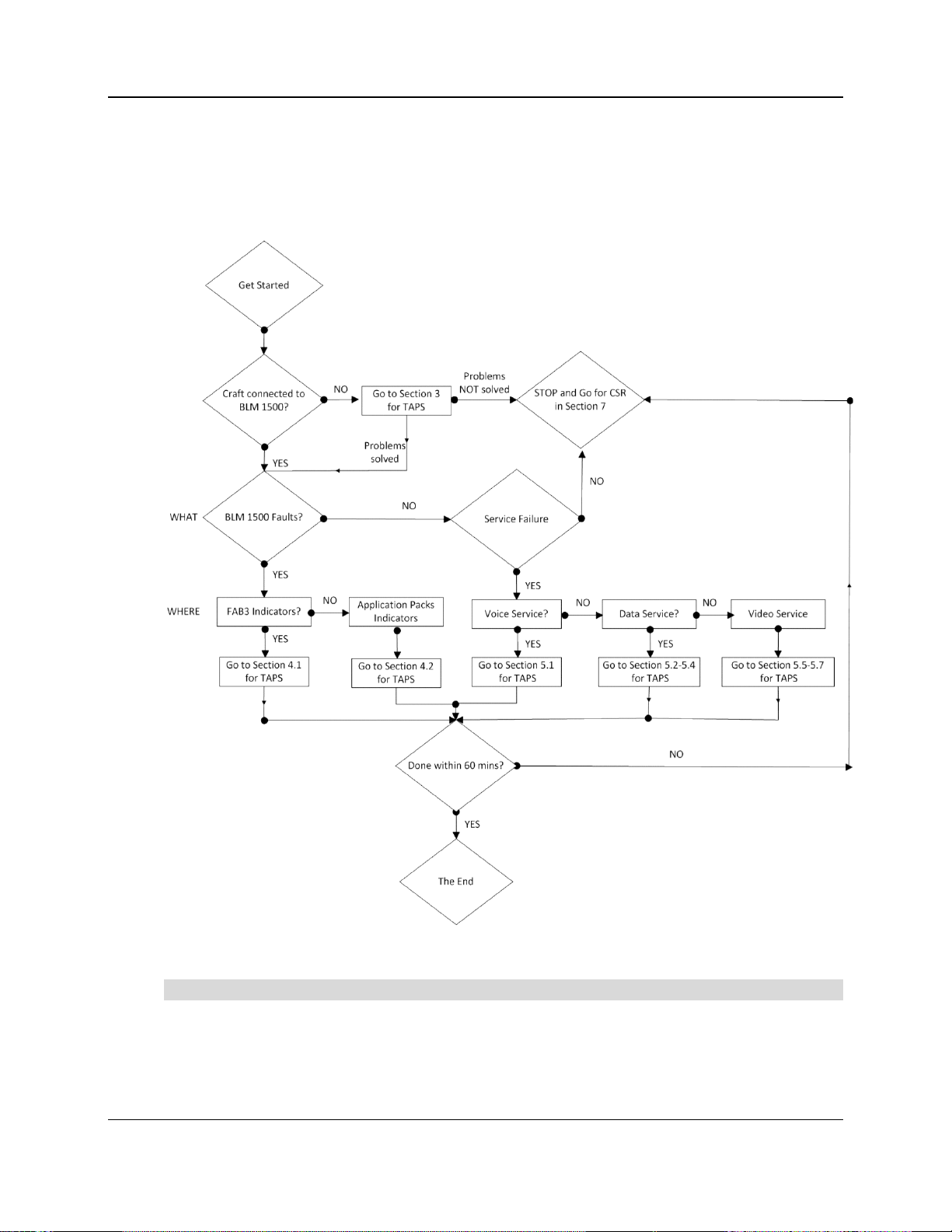

Figure How to Locate Troubles provides navigation to troubleshoot a specific type of
problem.
How to Locate Troubles
Note: Contact your next level support when troubleshooting lasts over 60 minutes.

16
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Recovery Requirements
Calix First Line Local Support (FLS) or Second Line Local Support (SLS) and the customer
will work to recover the system and return it to normal functioning in less than 60 minutes.
Personnel involved
In emergencies, Local Support, a Service Delivery Manager (SDM), Global Support, Front
Office and Technical Staff, a Recovery Leader, and Second Line Support engineers might be
involved. The customer may also be present.
When handling a non-emergency CSR, Local and Global Support are usually involved, and
an SDM might also be involved with a Hot CSR.
On site system access
Calix Local Support must be provided with all appropriate IP addresses, users, and
passwords required to log into the faulty system.
Remote system access
Remote Support Gateway (RSG) access must be provided to the engineers involved in the
case.
An RSG installation makes it possible to reach all nodes in a customer network and to
provide support services like updates and upgrades from a desk in any Calix office connected
to the global Calix Network. Almost all systems delivered by Calix to the customer network
are accessible remotely, for significant customer cost savings.
Tools for recovery
Go-To-Meeting and Remote Desktop over the RSG are the most important support tools
when dealing with emergencies. To facilitate information flow, SMS/Primus® and IBM®
Lotus® Sametime® connect availability are crucial during the service recovery activity. No
other remote access methods are supported by the Third Line Support organization.
Fault reporting
FLS must call the Global Front Office when a fault is present. Report all activities to the next
level of support for a follow-up Root Cause Analysis (RCA), to determine the source of the
problem. Refer to Trouble Escalation (on page 89) for escalation and data collection
procedures.

Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Chapter 2
Connection to BLM 1500
Before any troubleshooting started, enable communication with BLM 1500 to assess the
damage, and to identify and fix troubles.

18
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
Figure Troubleshooting Craft Connection to BLM 1500 navigates you to a specific BLM
1500 craft connection failure:
Troubleshooting Craft Connection to BLM 1500
TAP301 On-site Craft Connection Failure (on page 19)
TAP302 Remote Craft Connection Failure (on page 20)

19
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
TAP301 On-site Craft Connection Failure
1. Can you get a user prompt? For example:
BLM1500 - Broadband Loop Multiplexer
Copyright 2001-2007 Entrisphere Inc.
Fabric & Control Processor (ttyp0)
BLM1500_TPML5_01 (BLM1500_TPML5_01)
booted Thu Aug 20 00:22:07 SGT 2010, up for 674:11:23
user:
If yes, go to Step 2.
If no, go to Step 3.
2. Ensure that you are connecting to the correct chassis and using the correct login. You
might have been locked out, by the administrator or because of too many failed login
attempts (typo or incorrect password). Contact the appropriate department to ensure
your login is still valid.
Did this correct the problem?
If yes, STOP. You have completed this procedure.
If no, contact your next level Support.
3. Can you ping the IP address?
If yes, are you connecting on port 23? If so, contact your next level of Support.
If no, go to Step 4.
4. A traceroute should help you determine where the connection is failing. Adding a static
route to that link usually corrects the issue. If you are attempting to connect directly from
your PC to the Ethernet port on the front of the FAB3 pack, make sure you have a static
IP address in the same subnet as the FAB interface.
Did this correct the problem?
If yes, STOP. You have completed this procedure.
If no, contact your next level Support.

20
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© Calix. All Rights Reserved.
TAP302 Remote Craft Connection Failure
1. Is your remote Craft (serial) connected through a MODEM, an I/O LAN, or a router
Auxiliary port?
If a modem, go to Step 2.
If an I/O LAN type device, go to Step 4.
If a router Auxiliary port, go to Step 6.
2. Are you connecting to the MODEM?
If yes, go to Step 3.
If no, troubleshoot your connection software, modem port, and management
network.
3. Ensure that the MODEM is configured as follows:
9600 Baud
8 Data bits
No parity
One stop bit
Flow control off
Did this give you access?
If yes, go to Step 8.
If no, contact your next level Support.
4. Open a Terminal Emulator (such as telnet, Hyperterminal, PuTTY, or TeraTerm).
Ensure that you are using the correct IP address and port number for the BLM 1500 to
which you are attempting to connect.
5. Ensure that the I/O LAN port is configured as follows:
9600 Baud
8 Data bits
No parity
One stop bit
Flow control off
Did this give you access?
If yes, go to Step 8.
If no, contact your next level Support.
