CAS LP-2 User manual

2001, CAS®(USA) CORPORATION EAST RUTHERFORD, NEW JERSEY 07073
LP-II
Electronic Price Computing
Label/Receipt Printing Scale
REV: 2.00 Jan. 2002

Copyright©2001, by CAS Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior expressed written
permission of this company.
A
ttention:
This company makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties of merchantability or fitness fo
r
any particular purpose. Any software describes in this manual is sold or licensed “as is”. Should
the programs prove defective following their purchase, the buyer (and not this company, its
distributors, or its dealers) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software. Further, this
company reserves the right to revise this publication and to make changes from time to time in
the contents hereof without obligation to notify any person of such revision or changes.
Disclaimer:
Brand and product names are trademarks and/or registered trademarks of their respective companies.

TABLE OF CONTENTS
PAGE
iii
1 General.................................................................................................................................................1
1.1 Introduction.................................................................................................................................... 1
1.2 Model and Specifications ........................................................................................................... 2
1.3 Options and Accessories ............................................................................................................. 3
1.4 Dealers and Service...................................................................................................................... 4
2 Unpacking and Assembly ..................................................................................................................6
2.1Box Contents................................................................................................................................... 6
2.2 Assembly of Display Column ....................................................................................................... 7
3 Proper Operation .................................................................................................................................8
3.1 Environmental Considerations & Safety .........................................................................................8
3.2 Leveling and Location ................................................................................................................. 9
3.3 Dont’s ............................................................................................................................................ 10
3.4 Cleaning and Maintenance..................................................................................................... 11
3.5 Power Outlet and Requirements.............................................................................................. 12
4 Nomenclature ....................................................................................................................................14
4.1 Scale Overview ........................................................................................................................... 14
4.2 Display and Indicators................................................................................................................ 15
4.3 Printer ............................................................................................................................................ 16
4.4 The Sales Mode Numeric Key Pad Configuration ( Standard )........................................... 17
4.5 The Sales Mode Numeric Key Pad Configuration ( USA ) .................................................... 20
4.6 The Program Mode Numeric Key Pad Configuration........................................................... 22
4.7 The Sales Mode PLU Key Pad Configuration .......................................................................... 24
4.8 The Program Mode PLU Key Pad Configuration.................................................................... 25
5 Quick Set-Up ......................................................................................................................................27
5.1 Installation of the Label Roll ...................................................................................................... 27
5.2 Basic Quick Start.......................................................................................................................... 29
6 Programming .....................................................................................................................................32
6.1 Main Menu ................................................................................................................................... 32
6.1.1 Store Settings .................................................................................................................... 33
6.1.2 Store Name, Address, & Number .................................................................................. 33
6.1.3 Security Control ................................................................................................................ 34
6.1.4 Department Names ........................................................................................................ 36
6.1.5 Scale Assignments ........................................................................................................... 37
6.1.6 Date and Time.................................................................................................................. 37
6.2 Settings.......................................................................................................................................... 38
6.2.1 Print Inhibiting ................................................................................................................... 38
6.2.2 Sales Messages................................................................................................................. 39
6.2.3 Scrolling Message ............................................................................................................ 39
6.2.4 Scrolling Sequence.......................................................................................................... 40
6.2.5 Tax Rates ........................................................................................................................... 41
6.2.6 Label Type......................................................................................................................... 41
6.2.7 Adjust Feed Length.......................................................................................................... 42
6.2.8 Origin.................................................................................................................................. 43
6.3 PLU Programming........................................................................................................................ 44
6.3.1 PLU Price Change ............................................................................................................ 44
6.3.2 Creating PLUs.................................................................................................................... 47

TABLE OF CONTENTS
PAGE
iv
6.3.3 Copying PLUs ....................................................................................................................54
6.3.4 Renumbering PLUs ...........................................................................................................55
6.3.5 Listing PLUs .........................................................................................................................55
6.3.6 Edit PLUs .............................................................................................................................56
6.3.7 Deleting PLUs.....................................................................................................................56
6.3.8 Edit PLU Text.......................................................................................................................57
6.4 Speed Key Programming...........................................................................................................57
6.5 Global Settings.............................................................................................................................58
6.6 Network management ..............................................................................................................59
7 Sale Modes.........................................................................................................................................60
7.1 REG, MGR, and RPK Modes .......................................................................................................60
7.2 REG Mode.....................................................................................................................................60
7.2.1 ZERO Key............................................................................................................................61
7.2.2 TARE Key ............................................................................................................................61
7.2.3 lb/kg Key............................................................................................................................62
7.2.4 ON/OFF Key.......................................................................................................................62
7.2.5 PLU/SHIFT Key and Speed keys ......................................................................................63
7.2.6 MISC PLU keys ...................................................................................................................63
7.2.7 FOR key ..............................................................................................................................65
7.2.8 1/2, 1/4, and 100 g keys ..................................................................................................66
7.2.9 Clear key ...........................................................................................................................67
7.2.10 ADD, VOID, and ST/TTL keys..........................................................................................67
7.2.11 SAVE key ..........................................................................................................................68
7.2.12 AUTO/MANUAL key........................................................................................................68
7.2.13 PRE-PACK key .................................................................................................................69
7.2.14 X key .................................................................................................................................69
7.2.15 RETURN key ......................................................................................................................70
7.2.16 OVERRIDE key .................................................................................................................71
7.2.17 DEPT key...........................................................................................................................72
7.2.18 Temporary Date Change .............................................................................................73
7.2.19 Temporary Date Print Inhibit.........................................................................................73
7.2.20 Temporary PLU Data Change......................................................................................74
7.3 MGR Mode ...................................................................................................................................74
7.4 RPK Mode .....................................................................................................................................75
8 .X and Z Modes..................................................................................................................................76
8.1 Reading Sales Summaries: X mode..........................................................................................76
8.1.1 PLU Sales ............................................................................................................................76
8.1.2 MISC PLU Sales ..................................................................................................................78
8.1.3 Group Sales.......................................................................................................................78
8.1.4 Department Sales ............................................................................................................79
8.1.5 Scale Sales.........................................................................................................................79
8.1.6 Hourly Sales .......................................................................................................................80
8.1.7 Clerk Sales .........................................................................................................................80
8.1.8 Summary Report...............................................................................................................80
8.2 Resetting Sales Summaries: Z mode.........................................................................................81

TABLE OF CONTENTS
PAGE
v
Appendix A: Country Codes................................................................................................. 80
Appendix B: Label Formats ................................................................................................... 82
Appendix C: Brief Manual …………………………………………………………………………. 84
Warrantee

1 General
1
1 General
1.1 Introduction
Thank you for purchasing the CAS LP-2 price computing electronic printing scale. We have
designed this equipment with many advanced features, high quality construction, and user-friendly
menu driven programming. We are confident that you will find the CAS LP-2 scale will meet all of your
most demanding needs.
Sales data is easily acquired through many of the available reports which are quickly accessible
through the on-screen menus. Also available: 4 inch per second printing speed, 53 preset keys (106
using the SHIFT key), and several operation modes that enable you to control & limit access to the scale.
For larger operations, there is an in-store network that can have up to 32 scales. Another
powerful feature is RS-232 port, which can tie a scale to a personal computer (P.C.) for exporting or
importing program data. Because PLU and all other data files are kept locally in each scale’s RAM
memory, the scale’s speed is the same in a Network setting or as a stand-alone unit.
The LP-2 can be easily used with a wide variety of industry standard thermal labels. By simply
entering a label’s length and width dimensions, you can use practically any of them on the LP-2! You
can also use continuous strip labels or even thermal paper. You also can print logos, templates, Nutri-
Facts panels, ingredient messages, advertisement lines, and more.
Remember, for proper installation and maintenance please have your Authorized CAS Dealer
do the primary installation, programming, and demonstration. Your CAS Authorized Dealer also has a
wide variety of supplies, accessories, and expansion options for whatever your new and increasing
demands may require. Authorized CAS dealers are trained to help you with every aspect of the LP-2
and should you need servicing, they are expertly trained by CAS to assist you with virtually any problem.
The LP-2 also comes with a trial version the SP-2 software package. This software runs on any PC
using the Windows95/98/2000 operating system. You can use the SP-2 program for as long as you
would like. You can design your own label formats on your computer screen and save them to your
hard drive. With this WYSIWYG interface, the labels you see on-screen appear exactly “as they will
print.” You can also manage all of the LP-2’s programs and options like pricing, PLU programming, etc.
You can upload data from an LP-2 or download data, perfect as an emergency backup system. All
this and many more features are packed into the SP-2 software package. To purchase the full version
of the SP-2 system, contact the Authorized CAS Dealer nearest you.
To find the Authorized CAS Dealer nearest you, please visit our web-site at www.cas-usa.com.

1 General
2
1.2 Model and Specifications
MODEL LP-2, (version 1.01)
CHARACTERS PER PLU Ingredients: 2000 char. MAX, PLU Name: 114 char. MAX
DISPLAYS WEIGHT: 5 digits (5 max)
UNIT PRICE: 6 digits (8 max)
TOTAL PRICE: 7 digits (9 max)
GENERAL
PROGRAMMABLE DATA
 Scrolling Messages : 32 @ 80 Char

Sales Messages : 32 @ 40 Char
 Store Name : 150 Char

Departments : 32 @ 20 Char
 Users/Clerks : 99 @ 20 Char

Label Formats : 999 @ 30 Char
 Label Formats : Over 50 Built-In

Origin : 400 @ 25 Char
INTERFACES RS-232 Serial Ports: COM1, COM2
LABEL SIZES Width: 10mm~80 mm (0.40 in.~3.15 in.)
Length: 20mm~170 mm (0.94 in.~6.69 in.)
Length: 850 mm (33.46 in.) max length using linked formats.
MAX TARE FULL CAPACITY
MEASUREMENT TYPE LOAD CELL
MEMORY CAPACITY Over 800 PLUs Standard memory configuration.
MEMORY OPTION Over 4000 PLUs Expanded with optional memory card.
NETWORK
SPECIFICATIONS
 32 Scales MAX (TCP/IP 99MAX)
 99 Clerks MAX

100m (0.06 miles) max cable length
 4 Mbps Network Speed
 Optional Network card required
OPERATING TEMP. -10° C~ 40° C (14° F~ 104° F)
PLU PROGRAMMABLE
DATA
 Department # : 1~32

PLU # : 1~999999
 Commodity Name : 114 Char

Label Format # : 1~999

Sales Message # : 1~32
 Unit : lb, kg

Group Code : 0~99
 Tax Rates : 0~3

Country Code : 0~999
 Sell By Date : 0~999 days

Cook By Date : 0~999 days
 Tare Weight : 0~Capacity

Price : 0.00~9999.99
 Sale Weight : 0~Capacity

Sale Price : 0.00~9999.99

Net Weight : 0~99999
 Count : 1~99

Sale Count : 0~99
 UPC : 0~999999

Ingredients : 2000 Char
 Origin : 25 Char

Barcode Type/Format

Nutritional Information
PLATTER SIZE Length: 403 mm (15.87 in.), Width: 260 mm (10.24 in.)
POWER SOURCE 85~240VAC 50/60Hz ±5%
PRINT SPEED 100 mm/sec (4 in./sec)
PRINTER TYPE DIRECT THERMAL PRINT
SALES PERIODS Dual totals for daily/monthly or user selectable reporting periods.
SALES REPORT MODES Read: X1/X2 Modes, Read & Reset: Z1/Z2 Modes
SALES REPORT TYPES  Daily PLU & Misc. PLU Report

Daily Department Report
 Daily Scale Report

Daily Group Report
 Daily Hourly Report

Daily Detailed Report
 Monthly PLU & Misc. PLU Report

Monthly Department Report
 Monthly Scale Report

Monthly Group Report
 Monthly Hourly Report

Monthly Detailed Report
 Clerk Report
SHIPPING WEIGHT 13 kg (29 lb)
WEIGHING CAPITY 0~15 x 0.005 lb / 0~30 x 0.01 lb
0~30 x 0.01 lb / 30~60 x 0.02 lb
(0~6 x 0.002 kg / 0~15 x 0.005 kg, 0~15 x 0.005 kg / 15~30 x 0.01 kg
WEIGHING RANGE DUAL RANGE
WEIGHING UNITS Pound & Kilo push-button selectable.( Only USA version )

1 General
3
Note: Specifications are subject to change without notice.
1.3 Options and Accessories
1) Memory Upgrade Card: This memory upgrade card has 3 Megabytes of memory. The LP-2 uses NV-
RAM (Non-Volatile RAM) as the exclusive storehouse for PLUs and user-defined label formatting data.
Non-volatile memories do NOT require any power in order to maintain their information and are also
normally in a “protected” mode that prevents writing to it. This card allows you expand your PLU
capacity and add more custom label formats. It can provide you with over 3200 additional PLUs
above the 800 already available with the standard LP-2 memory.
Memory card upgrade
MUST
be installed by an Authorized CAS Dealer.
Description: LP-2 Memory expansion card, 3 MB NV- RAM Card
____________________________________________________________________________________________________
2) Scale Network: This upgrade allows you to connect up to 32 scales in a Master-Slave Network which
can provide you with consolidated sales reports, upload and download of program data, effect price
changes, and much more. Each LP-2 on the network needs a network card and assigned a scale
number as well as network wiring in order to network the scales. All the required wiring and connectors
are 10BASE-T Ethernet cable and connectors.
Network card installation
MUST
be installed by an Authorized CAS Dealer.
Description: LP-2 (Ethernet)Network card- Network Manual.
Network cabling
MUST
be installed by an Authorized CAS Dealer.
Description: LP-2 (Ethernet)Network cabling-Network Manual.
____________________________________________________________________________________________________
3) Accessories: The following accessories are available through your Authorized CAS Dealer:
Replacement Speed-Key pull-out template (left-side keyboard.)
Optional Fish Pan platter, stainless steel.
Replacement COM port door, left side.
Replacement Leveling feet, set of 4.
Replacement Numeric pull-out template (right-side keyboard.)
Replacement Platter Cushions, set of 4.
Replacement Printer door, right side.
Replacement Printer Label Roll-holding pin.
Replacement Printer Pick-up Spool.
Replacement Thermal Labels (12 rolls per case, minimum 1 case.)*†
Replacement Thermal Print Head Cleaner Pen.
*NOTE: When ordering labels, please be sure to specify label type and stock number.
1
NOTE: If you do not use the proper “CAS Approved” labels or other media for your scale’s printer, you
risk voiding your warranty. Please refer to your local Authorized CAS dealer for details.

1 General
4
1.4 Dealers and Service
1) Our Dealers: CAS Corporation is committed to offer the best products and the best service. To
offer the best products, CAS manufactures all of its products using only the best components
available and thoroughly tests all of its products to assure a maximum level of quality and
dependability. CAS feels that each of its valued customers should get the best service available.
Whether it’s the initial installation of our product, maintenance/repair work, or simply answering
questions about our products, CAS Corporation and all of its Authorized Dealers are highly trained
to assist you with any need regarding CAS products.
2) Our Service: CAS (USA) offers service and support to all of its US products through its vast network
of Authorized Dealers. If you cannot find or are unaware of any CAS Authorized Dealers in your
area, please visit us on the web at www.cas-usa.com. We will help you locate the CAS Authorized
Dealer nearest you.
3) Dealers and Service: The CAS family of Authorized Dealers is always ready to assist you. Should
you need warranty service, supplies, or even have some questions about our products, don’t
hesitate to call on us! Remember that your first contact should always be the local CAS Authorized
Dealer whom you purchased the product from. He is best able to quickly help you with any
problem or question you should have regarding our product. CAS Authorized Dealers have a vast
library of documentation, stock of replacement parts and supplies, and all of the training needed
to assist you. Whether it’s help programming or maintaining your CAS products, CAS Authorized
Dealers are always ready to assist!
Thank you again for making CAS your choice!

1 General
5

2 Unpacking and Assembly
6
2 Unpacking and Assembly

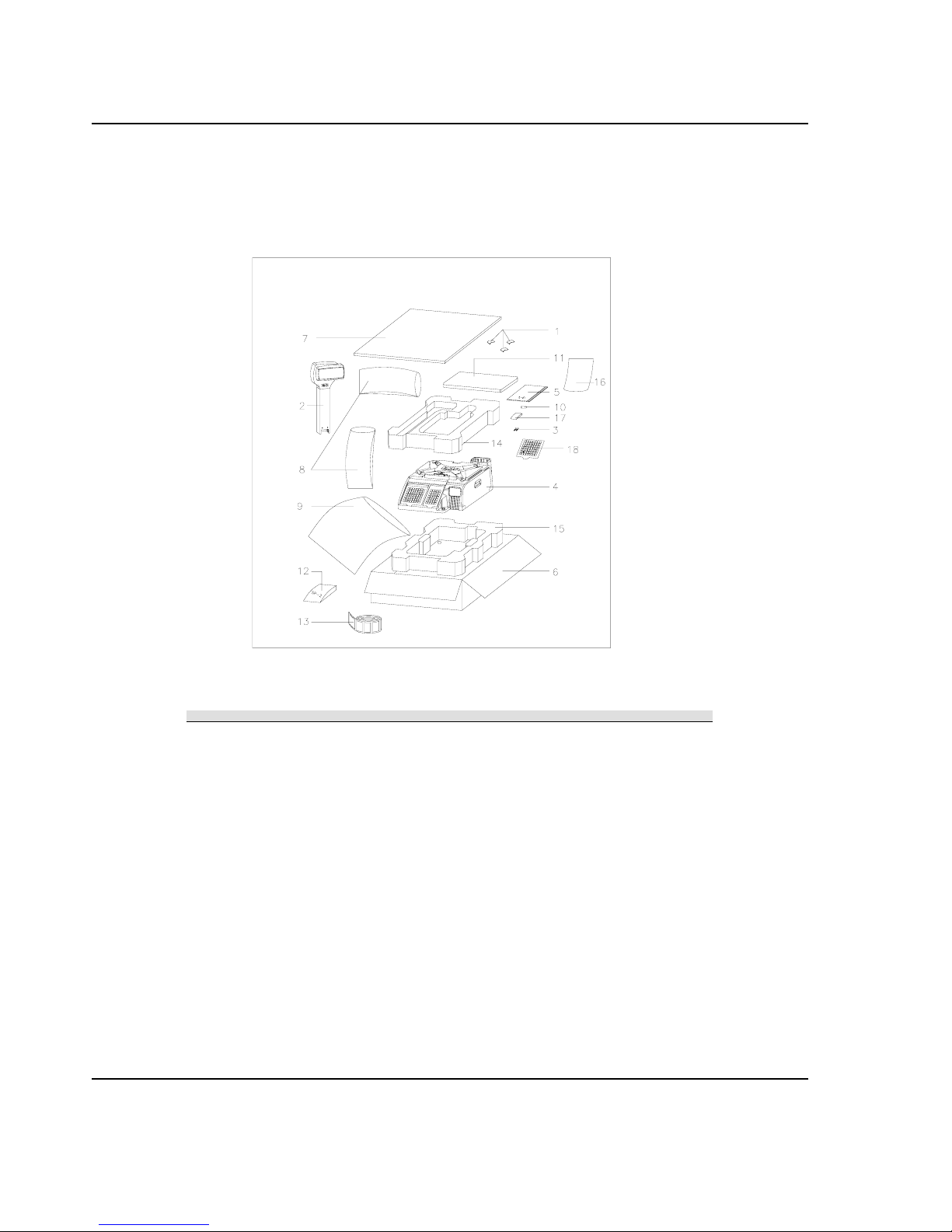

2.1Box Contents
# Part Number Description QTY
1 TBA Desiccant, silica bag 2
2 TBA LP-2, Display assembly 1
3 TBA LP-2, Display assembly screws 2
4 TBA LP-2, Scale body 1
5 TBA Owner’s Manual, LP-2 1
6 TBA Packing box 1
7 TBA Packing lid 1
8 TBA Plastic bag, display column 1
9 TBA Plastic bag, platter 1
10 TBA Plastic bag, scale 1
11 TBA Plastic lock-bag, screws 1
12 TBA Platter 1
13 TBA SP-2 software package 1
14 TBA Thermal labels, 1 roll 1
15 TBA Top form-fitted packing foam 1
16 TBA Bottom form-fitted packing foam 1

2 Unpacking and Assembly
7

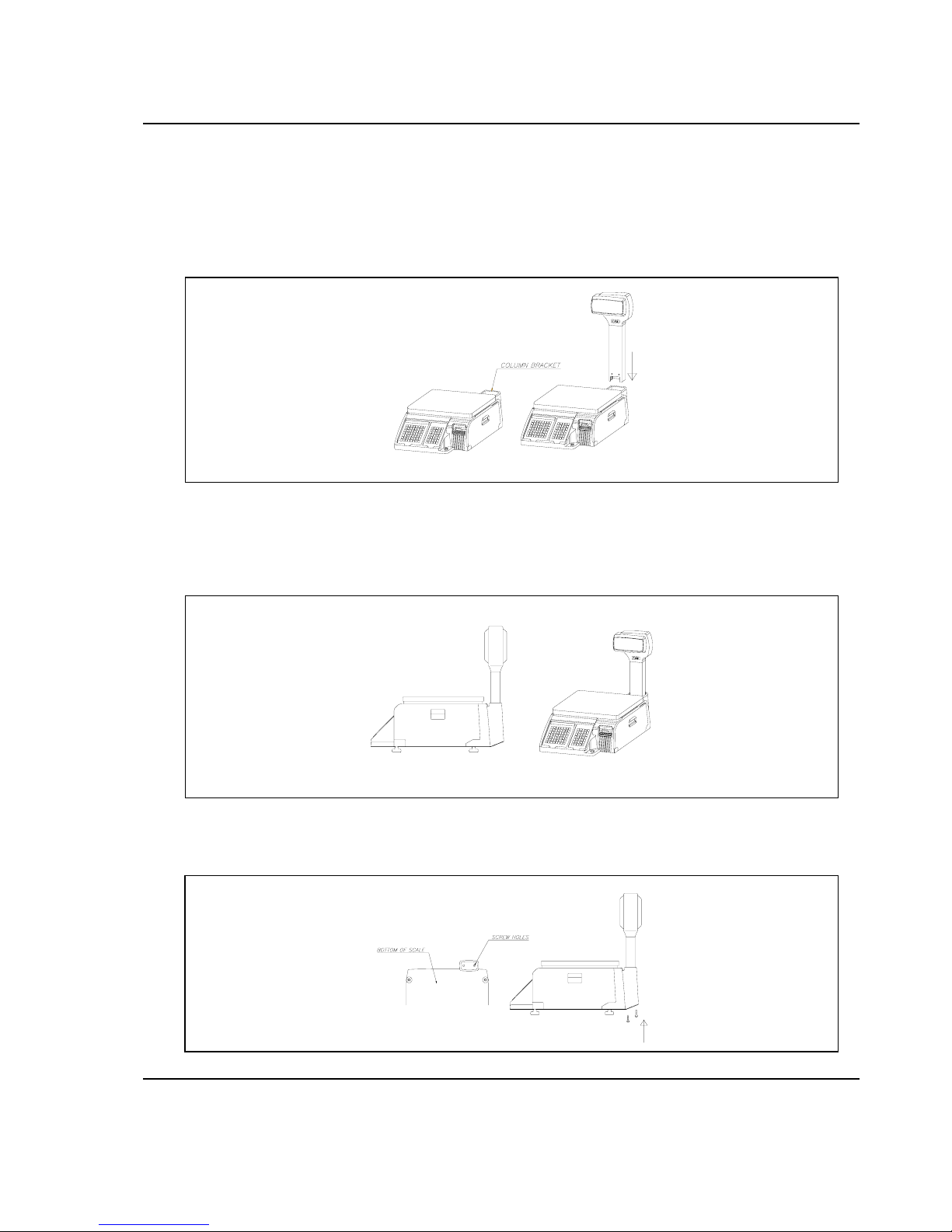

2.2 Assembly of Display Column
1) You must follow the instructions in this section in order to assemble the Display Assembly properly. To
begin the installation, make sure that the scale is unplugged from any electrical source. Your scale
body has a display column bracket in the rear that the display column slides into. (See fig.)
2) Hold the display assembly in front of you such that the display assembly forms the figure “7”. Next,
with the scale’s keyboard facing you, insert the display column into the display bracket. When the
display column reaches the bottom of the display bracket, you will “feel” the connectors “snap”
together. (See fig.)
3) Underneath the display bracket you will find 2 screw holes for the display assembly screws. Insert
and fasten the 2 display assembly screws. You are done! (See fig.)

3 Proper Operation
8
3 Proper Operation
3.1 Environmental Considerations & Safety
1) Please avoid the following hostile conditions:
 Temperatures below or exceeding:
-10º C ~ 40º C (14º F ~ 104º F)
 Ungrounded electrical outlet
 Excessive vibration  Unstable or flimsy surface
 Wind or fans functioning in direct
contact with weighing platform.
 Shared electrical outlet
 Direct sunlight  Dust or dirt
 High humidity  Poor ventilation
2) Environmental Protection: The scale should be installed in a dry and liquid free environment. When
the scale is installed in a high humidity or wet-type environment, be sure to avoid spilling or spraying
directly on any surface of the scale.
3) Personal Safety: It is extremely important to be aware of personal safety whenever maintaining or
operating this equipment. Wherever possible, we have tried to place warning labels and other
indicators at the actual location on the equipment where the danger is most likely to occur.
However, it is not always possible to foresee all dangerous situations. Warnings and cautions that are
necessary for the safe operation of the scale are contained in this manual. Please, make sure to
carefully read ALL warnings and cautions before operating the scale.
4) Observe the following safety precautions:

Shut the scale OFF and unplug the scale whenever you are changing the label
roll or whenever working in the printer bay.

The outlet that the scale is plugged into, should be properly grounded.
 Whenever connecting or disconnecting ANY cables from the scale, be sure to
hold the cables by the end connector. Failure to do so may cause a short
circuit.
 Maintain a static free work area.
 Never use any other equipment on the same line: it should be a dedicated line.

The outlet used must have the proper voltage ratings.

3 Proper Operation
9
3.2 Leveling and Location
1) Location: This scale must be placed on a flat and stable surface. Please keep the scale away
from the direct path of oscillating fans, ventilation systems, or strong drafts as these air disturbances
can be picked-up by the scale’s very sensitive weighing platform and may cause incorrect weight
readings.
2) Leveling: If the scale is not properly leveled, please adjust the 4 adjustable legs at the bottom of
the scale. Turn the legs clockwise or counterclockwise so as to center the bubble of the leveling
gauge inside the indicated circle. Turning the adjustable legs counter-clockwise (viewed from top of
scale) will lower that part of the scale. Turning the adjustable legs clockwise (viewed from top of
scale) will raise that part of the scale. (See Fig.)
7

3 Proper Operation
10
3.3 Dont’s
 DO NOT subject the platter to sudden shocks.

DO NOT drop anything on the platter.
 DO NOT store any thermal labels where they may be subject to:

direct sunlight

high humidity
 high temperature
 dust.
 DO NOT press the keys excessively hard. The keys will operate
correctly if they are pressed lightly. If any keys fail to work, contact
your Authorized CAS Dealer.
 DO NOT hold or attempt to carry the scale by the Pole Display.
 DO NOT pour water or ANY liquid directly on the scale.
 DO NOT use any label media that is not recommended by CAS Corp.
 DO NOT attempt to effect repairs to this equipment. Doing so is
against the law in most states. If any fault occurs that cannot be
rectified using this manual, unplug the scale and contact you
Authorized CAS Dealer.

3 Proper Operation
11
3.4 Cleaning and Maintenance
1) The LP-2’s exterior should be cleaned with a damp cloth and a mild soap solution. Do not spray
any chemicals directly onto the LP-2. Always spray any cleaning liquids onto the cloth rag you are
using to wipe the scale clean. Remember NEVER to hose-down the scale. Before doing any type
of cleaning, always make sure that the scale is turned OFF using the side COM Port Access Panel
ON/OFF switch. Using the keyboard’s ON/OFF switch is NOT enough.
The keyboards should be cleaned with a damp cloth rag soaked in a mild soap solution.
Never spray water or any liquid directly on to the keyboard as these may cause damage to the
keyboard’s seal and then further damage individual keys. DO NOT use solvents, harsh, or abrasive
chemicals or cleaning devices as these may discolor and even completely remove the trim paint
on the keyboards. If you require more thorough cleaning, contact your local Authorized CAS
Dealer for service.
The displays should be cleaned with a damp cloth rag soaked in a mild soap solution.
Never spray water or any liquid directly on to the displays as these may cause damage to the
display’s seal and possibly short out the scale’s electronic components. Also, these displays use
very high voltages so special care should be taken never to wet them. DO NOT use solvents, harsh,
or abrasive chemicals as these may discolor and even completely remove the wording on the
displays. If you require more thorough cleaning, contact your local Authorized CAS Dealer for
service.
2) To clean the LP-2’s platter, please make sure that the scale is turned OFF using the side COM Port
Access Panel ON/OFF switch. Using the keyboard’s ON/OFF switch is NOT enough. First, remove
the platter from the platform and place it in a large tub or sink. You can wash it down with soap
and high-pressure water and/or hot water. Before replacing the platter on the platform, make sure
that it is completely dry.
3) The printer compartment also needs cleaning; however, this process requires more careful
cleaning. There are many sensitive parts as well as moving parts in the printer bay. Whenever
doing anything in the printer bay, please make sure that the scale is turned OFF using the side
COM Port Access Panel ON/OFF switch. Using the keyboard’s ON/OFF switch is NOT enough.
To begin, turn the scale OFF via the ON/OFF switch located on the left side of the scale in
the COM Port Access Panel. Next, open and remove the Printer Side Access Panel. With a small
brush or toothbrush, remove all of the debris that has accumulated on the base of the printer bay.
DO NOT attempt to remove any dirt or debris from anywhere else in the printer bay area. If you
require more thorough cleaning, contact your local Authorized CAS Dealer for service. If you
attempt to effect cleaning of other printer parts yourself, you risk damage to components or even
electrical shock regardless of the scale’s ON/OFF status.
4) The thermal print head also requires cleaning. It is recommended to clean the thermal print head
every time you replace the label roll. You can clean the thermal print head with the Print Head
Cleaner Pen supplied with the LP-2. These Cleaning Pens have a limited shelf-life and should NOT
be used after there expiration dates. Each pen has instructions on their durability. Always follow
those guidelines. Detailed instructions on how to clean the thermal print head are shown in section
4.3 Printer.

3 Proper Operation
12
3.5 Power Outlet and Requirements
1) The LP-2 is designed to be used almost anywhere in the world! Like the many appliances of today,
the LP-2 is designed with an automatically switching power supply. This allows operation when
connected to an AC source from 85V to 240V at 50/60Hz with 5% tolerance.
Remember: a switching power supply does not imply that bad, noisy, or improperly wired power
lines will be problem free. With that in mind, please make sure that the power lines used for the LP-
2 are dedicated lines with no high-noise devices (such as compressors, motors, etc) running on it.
Also, make sure that the wiring to the electrical socket is correct. If you are uncertain as to the
state of your business’ electrical lines, please contact a certified electrician.
2) Once you are sure as to the safety of the electrical line, make sure to ONLY plug the scale into a 3-
prong outlet. The third prong is a safety ground and an electrician should properly wire this if it is
not correct or if you are unsure. Failure to this CAN result in electrical shock from use of this or any
electronic scale.
3) Do not use any 3-prong to 2-prong adapters or break-off the third prong from the LP-2 power cord.
The third prong is necessary and must be properly connected.
4) If you have any problems or questions regarding this matter, make sure to consult an Authorized
CAS Dealer or an electrician.

3 Proper Operation
13
Note: Be sure to check the LP-2’s serial number plate on the back of the scale for power specifications.

4 Nomenclature
14
4 Nomenclature
4.1 Scale Overview
1) Pictured below are important scale components and parts that you should be familiar with.
# Description # Description # Description
1 Advertisement Insert, rear 8 Fuse Cap 15 Power Switch
2 Connector, COM1 9 Gauge, Leveling 16 Printer
3 Connector, COM2 10 Keyboard, Numeric 17 Serial Number Plate
4 Connectors, Ethernet 11 Keyboard, Speed Keys 18 Side Access Door, Com port
5 Display Column 12 Leveling Feet 19 Side Access Door, printer
6 Display Window, customer 13 Platform 20 Template Sheet, Numeric
7 Display Window, user 14 Platter 21 Template Sheet, PLU
22 Connector, Cash Drawer
