Clevertronics L10 LWFLED Maintenance and service guide

1949317
V1.0
23 July 2019
Zoneworks and DATA Monitored Options
Supalites with part numbers –ZW and -DATA are fitted with Zoneworks communications modules
(nodes).These fittings are monitored using either Powerline Carrier Technology that utilises the power
cable to provide data communication or a dedicated data cable to/from data routers installed on a
dedicated data trunk connected to a central Server (can also be connected via Ethernet/Internet/Fibre).
Zoneworks software on the server is used to monitor, coordinate testing and collate test data from each
fitting. Zoneworks Supalites can be commissioned by a single push of the test switch or by scanning of
the supplied barcode. The LED Test Switch indicator provides a multifunction indication of the status of
the ‘Supalite during testing and normal operation:
State
LED Operation
Commissioned
LED on Solid (GREEN)
Un-commissioned
LED flashes at 0.5Hz (0.5s GREEN, 0.5s Yellow)
Emergency Light Test In Progress
LED flashes at 3s On (Yellow) & 0.5s Off
In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Supalites with part numbers -DALI are fitted with DALI modules (nodes) that facilitate connection and
integration to 3rd Party Lighting Control Systems. Before installing the -DALI Supalite, please confirm that
the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The Supalite will
be addressed and configured into the control system by the Lighting Control System Commissioning
Technicians and not Clevertronics.
State
LED Operation
Commissioned/ Un-commissioned
LED on Solid (GREEN)
Emergency Light Test in progress
LED flashes at 1s On (Yellow) & 1s Off
“IDENTIFY COMMAND”
Fitting goes into emergency mode for 10 seconds
A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a 5/6way
“structured wiring system” lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
L10™ Supalite Weatherproof Emergency Luminaire
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
Australia (Head Office)
195 Chesterville Rd
Moorabbin VIC 3189
Phone: [phone]
E-Mail: [e-mail]
IP65
UK OFFICE
362 Stockley Close
West Drayton UB7 9BL
Phone: [phone]
Models:
LWFLED-xx-yy
Testing:
Testing:
Manual Test
xx = Blank
Black
yy = BLK
Zoneworks
xx = ZW
Z/W DATA
xx = DATA
DALI Comp.
xx = DALI
Clevertest
xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol are activated with Clevertest PLUS
capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1530260
BATT: L10 6.6V 2.5Ah.200mm lead.SBS.Brkt
1100550
WP Led Head, c/w Led's & Loom
UKM01370100001
LED Power Pack, 17V 300mA, IP Loom, L10
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.

1949317
V1.0
23 July 2019
Installation:
The Weatherproof Supalite (LWFLED) is Wall Mounted. The LWFLED is housed in a weatherproof
enclosure. The enclosure base is attached to the wall using screws installed through the 4 isolated holes.
Please follow the steps below to install the product:
•Remove the enclosure cover.
•Remove the gear tray.
•Determine power entry.
•Drill power access (240VAC supply) hole in the box base to suit cable gland, conduit or entry
method being used.
•Position the box base in the mounting position.
•Mark the 4 holes for mounting. Install the base using appropriate fixings (not supplied).
•Route the 240VAC supply cable through the entry hole.
•Seal the 240VAC supply cable entry hole appropriately using a suitable compound such as
silicone.
•Connect the 240VAC supply to the terminal block on the gear tray.
•Reinstall the gear tray.
•Reinstall the enclosure cover.
•This product contains a non-user replaceable light source and battery.
•If the CTP capabilities are activated, please affix the CTP Status Label to a visible surface.
Networking:
When installing the product on a monitored network, (ZONEWORKS, DATA, DALI) simply insert the
relevant Smart Node PCA.

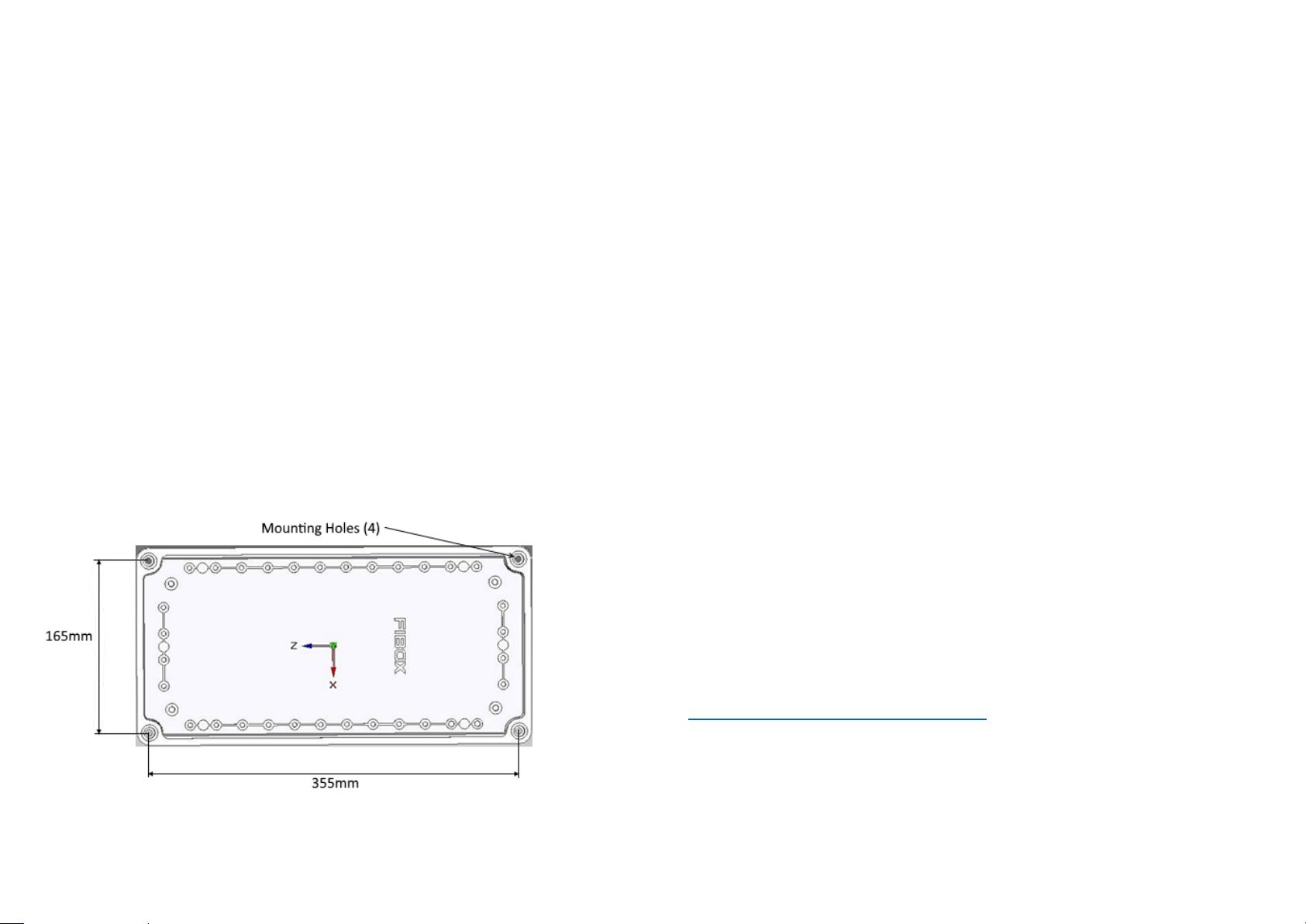

Images and Dimensions:
Testing Procedure:
When the unit is connected to the un-switched active, it must be allowed to charge the battery for at
least 24 hours. The emergency lamp only illuminates during a power fail. Conduct the following tests:
•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the
unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation
and once completed, the unit must pass a subsequent test.
•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.
•Release the Test Button or switch On Mains Supply, check that the emergency lamp is Off (Non-
maintained operation).
Below are a list of common problems and their possible causes:
Fault: The Green LED indicator is not illuminated.
Check: A.C. is connected and is turned On.
Battery is connected.
Test Switch for damage.
Fault: Lamp does not illuminate in emergency mode.
Check: A.C. is connected.
Lamp is correctly inserted.
Battery is connected
Fault: Lamp illuminates in emergency mode, but only stays on for a short period.
Check: Battery has been allowed to charge for at least 24 hours.
Battery for damage.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Supalite units, on these circuits, will have their batteries discharged or
“cycled”. The Li-ion battery in the Supalite has been selected to give excellent long life performance in a
controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce through-life
performance and may lead to premature battery failure. Battery warranty claims as a result of such
abuse, are specifically EXCLUDED from Clevertronics warranty terms.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
https://clevertronics.co.uk/product-warranty-statement/
