Cocraft HC85 User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
HC85
FOR 1/4”, 3/8”AND .325” CHAINSAW CHAINS
85 W
18-3057 ∙30-9678
CHAINSAW SHARPENER
KEDJESLIPMASKIN
KJEDESLIPEMASKIN
TERÄKETJUN HIOMAKONE
KETTENSCHLEIFMASCHINE
Ver. 20161020
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
18-3057 2002-UK
30-9678 2002

ENGLISH
3
Chainsaw Sharpener
Art.no 18-3057 Model 2002-UK
30-9678 2002
Please read theentire instruction manual before using and save for future use. We apologise for
any text or photo errors and any changes of technical data. If you have any questions concerning
technical problems please contact our Customer Service Department (see address on reverse.)
Safety
General Safety Instructions
Warning:
When using this tool all basic safety precautions must be followed to avoid therisk of fire,
electrocution and personal injury. Read these instructions carefully before using theproduct
and keep them for future reference.
• Keep theworking area clean. Cluttered areas and benches invite accidents.
• Consider your work area environment. Do not expose thetool to rain. Do not use thetool
in moist or wet areas. Keep theworking area well lit. Never operate thetool near flammable
liquid or gas.
• Avoid electric shocks. Avoid body contact with earthed objects, such as pipes, radiators,
ovens or refrigerators.
• Keep other people at asafe distance. Do not allow anyone not involved in thework process
to touch thetool or its electric cable, especially children. Keep all bystanders at adistance.
• Store thetool in asafe place. When your tools are not in use, keep them in alocked, dry
area, away from children.
• Do not overload thetool. Thecorrect feed rate makes thetool work better and safer.
• Use thecorrect tool for thejob. Do not try to use small tools to perform jobs requiring more
powerful tools. Do not use atool for apurpose for which it was not designed, e.g. using
acircular saw for lopping branches off trees.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery, that could get caught in
moving parts. Non-slip shoes are recommended for outdoor work. Wear ahairnet or similar if
you have long hair.
• Always use safetywear. Wear safety glasses. Use aface mask or dust filter when working in
dusty environments.
• Use dust extractors. If thetool is equipped with or connected to adust extractor/collector,
make sure that it is turned on and used correctly.
• Do not abuse thelead. Do not jerk thelead, grip theplug itself when disconnecting thepower.
Make sure that themains lead does not come into contact with heat, oil, or sharp edges.
• Firmly secure theworkpiece. If possible use vices or clamps to hold theworkpiece in place.
This is much safer than holding theworkpiece in one hand.
• Do not overreach. Make sure that you stand steady and balanced all times.

ENGLISH
4
• Look after you tools. Make sure that they are clean and that theedges are sharp for
maximum effect and best results. Follow themanuals recommendations regarding lubrication
and replacement of accessories. Inspect themains lead regularly. If it is damaged it should
be replaced by aqualified service technician. Inspect all leads and cables regularly to check
for any damage. Make sure that themachine’s/tool’s handles and controls are clean, dry and
free from oil and grease.
• Turn thepower off. Pull out theplug and push in theemergency stop button before servicing
or changing any blades, drill bits, cutters or sanding discs.
• Remove all spanners and repair tools. Make ahabit of checking to make sure that
themachine is free of all spanners and tools before turning thepower on.
• Avoid accidental starting. Do not walk around with your finger on thetrigger of apower tool
if it is plugged in. Make sure that theon/off switch is set to OFF before plugging in any power
tool.
• Use thecorrect extension leads. If you use extension leads outdoors, only use those
designed for outdoor use. Only use extension leads with thick enough diameter core wires
and roll out thewhole lead.
• Use common sense and be careful. Think before carrying out any task, so that it is carried
out safely. Never operate machines/power tools when you are tired or under theinfluence
of medicine.
• Check thefollowing before turning thetool on:
- That all guards and other parts are whole and in working order.
- That moving parts are free and correctly aligned.
- That no moving parts can get caught.
- That no defects are apparent.
Other factors that can influence work execution. Asafety guard or any other part that is
damaged should be repaired by atradesman or replaced. Damaged power leads and
switches must always be replaced by atradesman. Never operate atool if you cannot stop
or start thetool comfortably.
• Use only recommended accessories. Theuse of non-recommended accessories can cause
accidents and personal injury.
• Should only be repaired by aqualified technician. Thetool conforms to current safety
requirements. Repairs to thetool should only be carried out by atradesman using original
spares; otherwise thetool could cause accidents and personal injury.
Specic Safety Rules
• Always use safety glasses.
• Never use damaged grinding discs.
• Never use thechainsaw sharpener unless theguard is attached and undamaged.
• Only use grindings discs recommended by themanufacturer and that are rated at thesame
or higher speed than themaximum rated speed of themachine.
• Read themanufacturer’s instructions accompanying thegrinding disc.

ENGLISH
5
Before Starting the Machine
• Make sure that thepower switch is set on 0before connecting themachine to awall socket.
Only connect themachine to anearthed wall socket.
• Make sure that thegrinding wheel is well centred and undamaged and that theguard is
attached and intact before use.
• Use only grinding wheels with thecorrect diameter and which are approved for thespeed of
themachine.
• Protect thegrinding wheel from moisture and blows.
• Make sure that thegrinding wheel can rotate freely before starting themachine.
• Always pull theplug out of thewall socket before servicing and adjusting thechainsaw sharpener.
Whilst Operating the Machine
• Pull out theplug if themachine is left unattended.
• Stand steady and hold themachine firmly in both hands.
• Keep aneye on theelectric cable whilst using themachine so that it is not damaged by
thegrinding wheel or thesharp edges of thechain.
• Grip thechain securely in thevice before starting to grind.
• Do not use themachine around flammable materials. Thegrinding process causes sparks
which can ignite fires or explosions.
• Position thesharpener below eye level in awell-lit place.
• Wait until thegrinding wheel arm is completely raised before feeding thechain forward to
thenext link.
• Bear in mind that thelinks of thechain are sharp, keep fingers well clear when feeding
thechain forward to thenext link.
• This sharpener is only intended for sharpening chainsaw chains, thegrinding or cutting of items
other than these chains is not permitted. Do not use grinding tools other than grinding wheels.
Turn the machine off immediately if…
• Themachine starts to behave strangely, e.g. emits smoke, sparks, strange noises or starts
vibrating.
• Themachine’s power switch or electric cable is damaged.
Product safety symbols and their meaning
Read theentire instruction manual before using theproduct.
Always use safety glasses. Always use ear protection.

ENGLISH
6
6
1
9
4
4
7
7
2
10
5
8
3

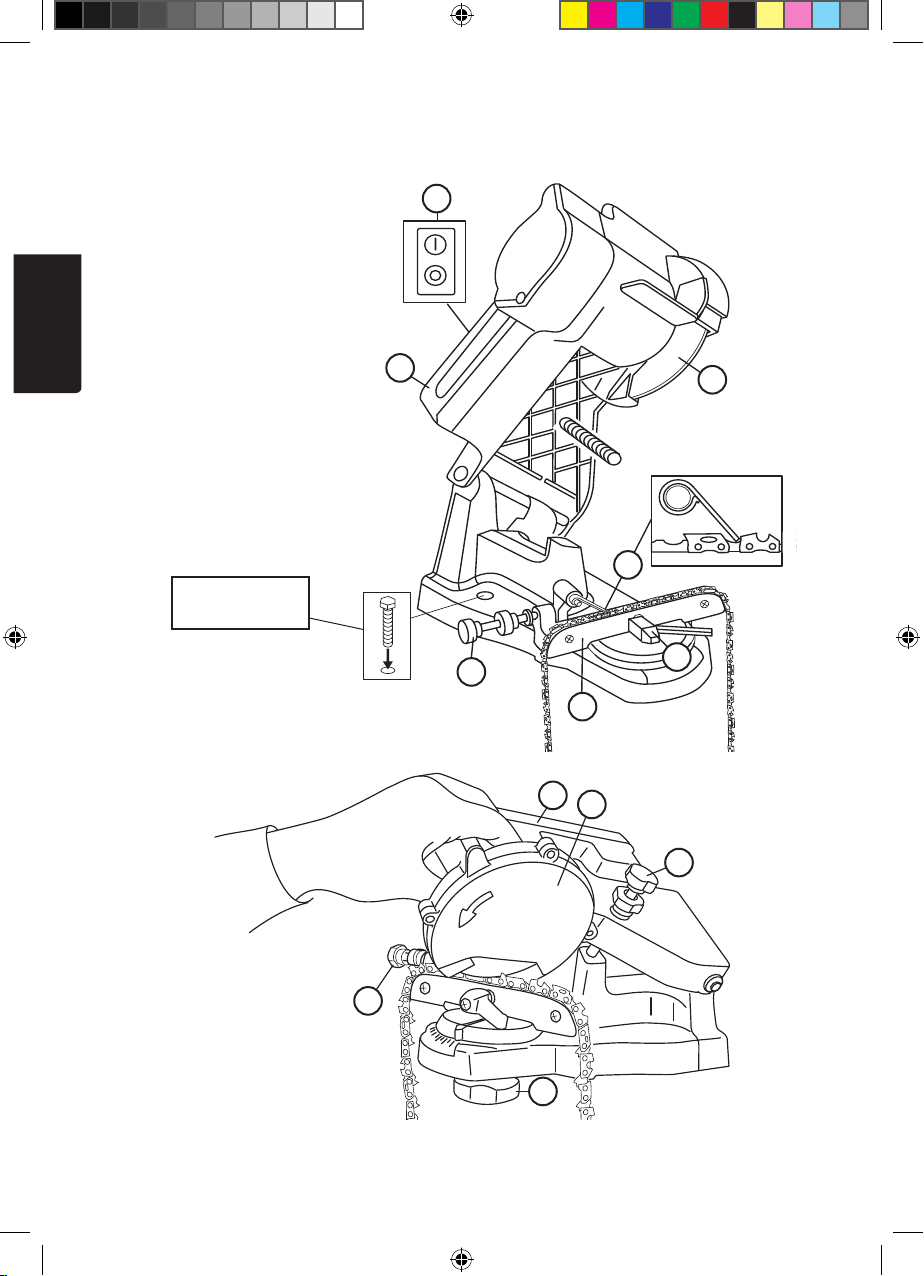

Product Description
1. Power Switch Off (0) / On (I)
2. Vice Locking Knob
3. Grinding Wheel Guard
4. Grinding Wheel Arm
5. Grinding Wheel
6. Depth Stop with Lock Nut
7. Length Adjustment Screw
with Lock Nut
8. Chain Stop
9. Chain Vice
10. Chain Locking Lever
Not included

ENGLISH
7
11 5
Installation, mounting
1. Position thesharpener on theworkbench in such away that thetwo feet on thebottom rest
against thelip of theworkbench and thevice locking knob (2) is accessible. Bear in mind that
work area needs to be well-lit for adjusting and using thesharpener.
2. Bolt thechainsaw sharpener to theworkbench using thetwo holes in thebase.

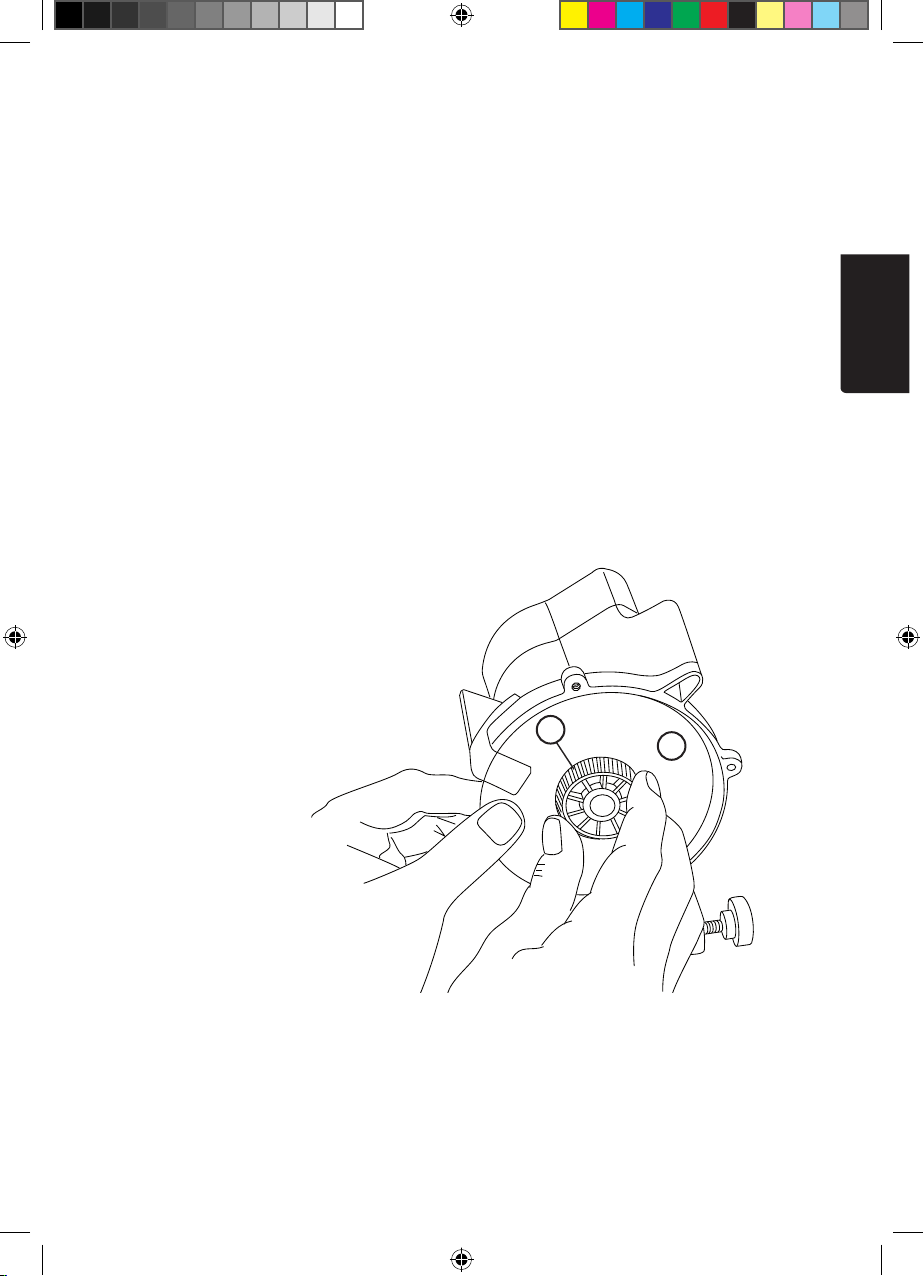

Fitting and replacing the grinding wheel
1. Raise thegrinding wheel arm (4) to maximum elevation.
2. Undo thetwo screws holding thegrinding wheel guard (3) in place and remove it,
keep thescrews safe.
3. Unscrew theflange nut (11) holding thegrinding wheel (5) in place and remove both thelock
nut and grinding wheel. (turn thelock nut anticlockwise to undo it).
4. Insert anew grinding wheel onto thespindle making sure that it is centred and that
theflanges are clean and flat. Tighten theflange nut (11) by hand, if theflanges are tightened
too much thegrinding wheel could become damaged, which could lead to theoperator
being seriously injured if thewheel shatters during use. Use only recommended grinding
wheels according to thespecifications. Make sure that theflange nut (11) is theright way
round; thecupped side should be facing thegrinding wheel.
5. Screw thegrinding wheel guard (3) back on.
6. Always test newly attached wheels by starting
themotor and letting thewheel spin for
aminute or two before starting work.
Whilst testing thewheel you should
remain at asafe distance and not
allow anyone else to come close in
case thedisc shatters.
If you notice that thewheel
vibrates when turned on
or during operation,
themachine should be
stopped immediately
and thewheel
should be inspected.
Warning:
Never try to stop thegrinding wheel with your hand even if you are wearing safety gloves.
Contact with agrinding wheel spinning at high speed can cause burns and scrapes.

ENGLISH
8
7.
10.
8.
7
8
10
43
6
7
2
Adjustment
Warning:
All adjustments should be made when themachine is turned off and unplugged.
1. Check which type of chain you have, set thecorrect filing angle (most chains have afiling
angle of 30° or 35°), tighten thelocking knob (2) on thebottom.
2. Lay thechain in thevice and lower thechain stop (8) behind thelink to be sharpened first.
3. Carefully lower thegrinding wheel arm (4) (all adjustments should be made with themotor
turned off). Thechain stop (8) should rest against theback of thelink to be sharpened, adjust
thechain stop (8) using thelength adjuster screw (7) so that thegrinding wheel will come into
contact with thecutting edge of thelink when it is lowered.
4. Fix thelength adjuster screw (7) by tightening thelock nut.
5. Tighten thevice lock knob to hold thechain in place, if it gets caught on your arm it can be
adjusted as follows: Undo thechain locking lever and move it to thedesired position.
6. Carefully lower thegrinding wheel arm (4) again and set thedesired cutting depth using
thedepth stop (6), tighten thelock nut.
7. Lower thegrinding wheel arm (4) and test if thesetting is correct before starting themotor.
8. Thesharpener is now set up.

ENGLISH
9

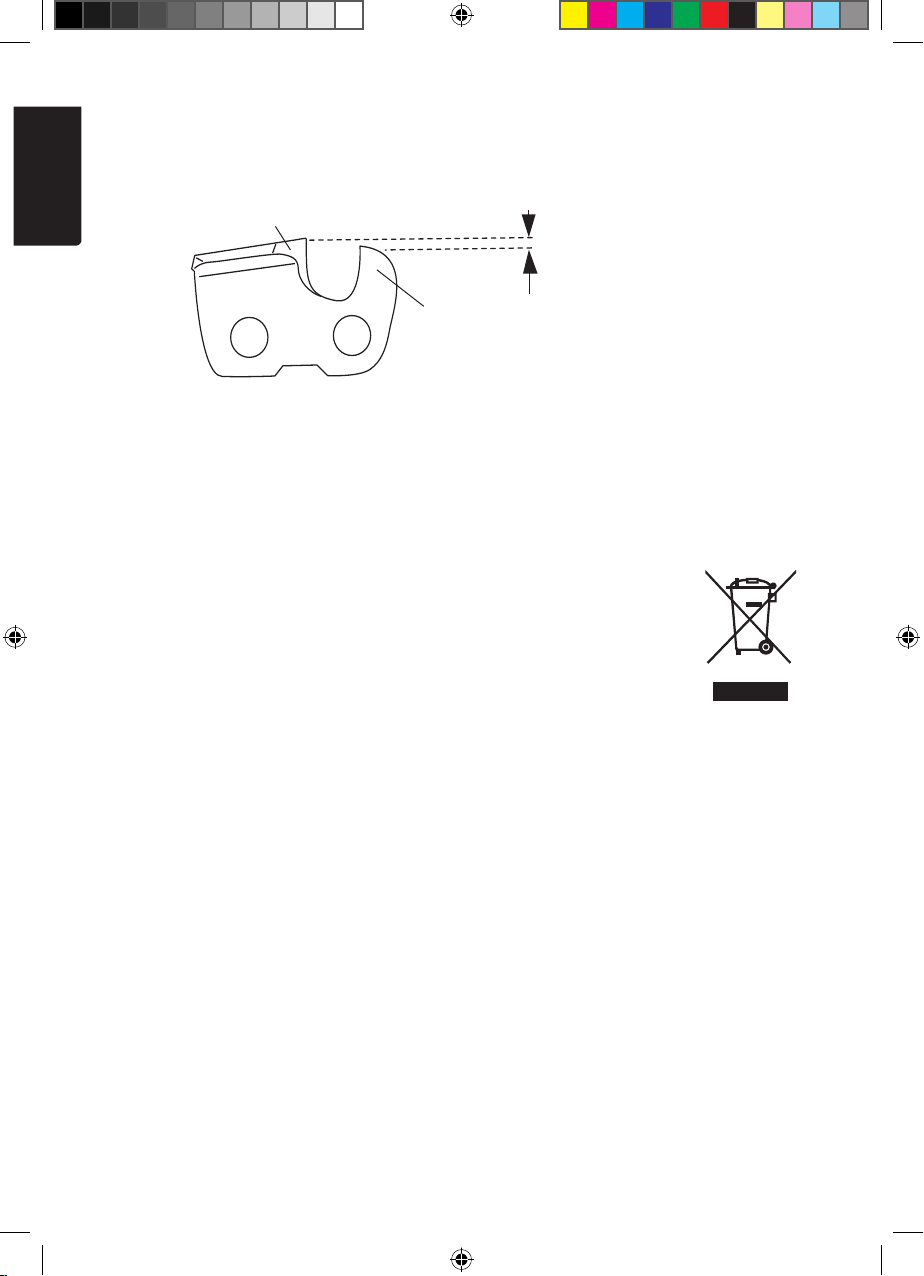

min 3 mm (1/8″)
Use
Warning:
Never try to stop thegrinding wheel with your hand even if you are wearing safety gloves.
Contact with agrinding wheel spinning at high speed can cause burns and scrapes.
1. Clean thechain thoroughly before sharpening, do not use aflammable solvent.
Allow thechain to dry before starting to sharpen it.
2. Lay thechain in thevice (9), lower thechain stop (8) against theback of thelink and stretch
thechain backwards toward thechain stop, tighten thevice locking lever (10) so that
thechain is locked in place.
3. Lower thegrinding wheel arm (4) and test if thesetting is correct before starting themotor.
Remember to put your safety glasses on before starting themotor!
4. Push thegreen start button to start themotor and let it come up to speed.
5. Carefully lower thegrinding wheel arm and test it on one of thelinks, carefully raise thearm
again, check theresults, turn themotor off and adjust if necessary. If thesettings are correct
you can continue sharpening. Bear in mind that best results are achieved if thecontact
between thegrinding wheel and thechain link occurs gradually and gently, do not grind
thesame link for too long.
6. Fully elevate thegrinding wheel arm, undo thevice locking lever (10) and move thechain
forwards to thenext link (which is facing thesame way) stretch thechain backwards against
thechain stop (8), tighten thevice locking lever (10).
7. Take your hand off thechain and continue sharpening.
8. Continue in thesame way with all thecutting links that are facing thesame way.
9. Undo thelocking knob (2) on thebottom, turn thevice (9) and set thecorrect filing angle
for therest of thecutting links that face theother way, tighten thelocking knob (2) on
thebottom. Continue until thewhole chain is sharpened. Remember to unplug themachine
after use.
10. Discard thechain if thecutting edge is ground down to under 3 mm.
Raker Clearance, Setting the Cutting Depth of the Chain
It is therelationship between thecutting edge of thelink and theheight of theraker that
determines how much material is removed by thechain. It is therefore very important that this
relationship is maintained for thelife of thechain. Thecorrect clearance is very important both for
safety and optimum stock removal.
If thechain has been grinded 2 to 4 times (depending upon how much material has been ground
away) therakers might need to be filed down to maintain thesame raker clearance (and depth of
cut). Use aflat file and afile guide/depth gauge to file therakers.

ENGLISH
10
Cutting Edge Raker Clearance
Raker
If you do not have afile guide for setting theraker clearance you can use aflat file and file two
strokes off each of therakers as shown in thefigure.
Care and Maintenance
• Keep thesharpener free of dust and metal filings.
• Replace thegrinding wheel when it is worn down to Ø 75 mm.
• Store thesharpener in adry place out of children’s reach.
Responsible disposal
This symbol indicates that this product should not be disposed of with general
household waste. This applies throughout theentire EU. In order to prevent
any harm to theenvironment or health hazards caused by incorrect waste
disposal, theproduct must be handed in for recycling so that thematerial can
be disposed of in aresponsible manner. When recycling your product, take it to
your local collection facility or contact theplace of purchase. They will ensure that
theproduct is disposed of in anenvironmentally sound manner.
Transportation
Thepackaging that this machine comes in can be recycled. Thepackage should be handled with
care as it must not be subjected to knocks during its transportation.
Specications
Electrical grinder for sharpening chainsaw chains.
Power Supply 230 V AC, 50 Hz, 85 W
Output Power 85 W
Weight 2.4 kg
Grinding Wheel Size Outer diameter 108 mm, inner diameter (bore) 23 mm
Grinding Wheel Thickness 3.2 mm
Max. Speed 4800 RPM
Sound Power (Lwa) 93 dB(A)
Sound Pressure (LpA) 80 dB(A)
Compatible with these sizes of chain: Chain Pitch 1/4″– 0.325″– 3/8″– 0.404″
