CAT250ARR Rev. 2/9/16
CAT250ARR
1/4" Mini
Air Ratchet
Operating Instructions • Warning Information
• Parts Breakdown
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
Free Speed ................................... 270 RPM
Torque ..................................... 30 ft.-lbs.
Air Inlet Size ............................. 1/4" - 18 NPT
Maximum Air Pressure ................... 90 psig, 6.2 bar
Average Air Consumption .......................3.22 CFM
Overall Length ................................... 7.36"
Vibration Level............................. 5.61 m/sec²
Sound Pressure Level ........................... 89 dBA
Sound Power Level ............................. 97 dBA
Weight ...................................... 1.26 Lbs.
SPECIFICATIONS
Copyright © Professional Tool Products, 2016
All rights reserved
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
• MAXIMUM RPM OF 270
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
• USE ONLY IMPACT SOCKETS
AND ACCESSORIES ON THIS
TOOL. DO NOT USE HAND
SOCKETS AND ACCESSORIES.
WARNING

CAT250ARR 2 Rev. 2/9/16
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
WARNING
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL.
• It is the responsibility of the owner to make sure all
personnel read this manual prior to using this air tool.
It is also the responsibility of the air tool owner to
keep this manual intact and in a convenient location
for all to see and read. If the manual or product labels
are lost or not legible, contact Cornwell for replacements.
If the operator is not fluent in English, the product and
safety instructions shall be read to and discussed
with the operator in the operator's native language by
the purchaser/owner or his designee, making sure
that the operator comprehends its contents.
• Always operate, inspect and maintain this tool in
accordance with American National Standards
Institute Safety Code of Portable Air Tools (ANSI B186.1)
and any other applicable safety codes and regulations.
• For safety, top performance and maximum durability
of parts, operate this tool at 90 psig: 6.2 bar max air
pressure with 3/8" diameter air supply hose.
• Always wear impact-resistant eye protection when
operating or performing maintenance on this tool
(users and bystanders).
• Always wear hearing protection when using this tool
(users and bystanders). High sound levels can cause
permanent hearing loss.Use hearing protection as
recommended by your employer or OSHA regulation.
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must be
physically able to handle the bulk, weight and power
of this tool.
• Air under pressure can cause severe injury. Never
direct air at yourself or others. Always turn off the air
supply, drain hose of air pressure and detach tool
from air supply before installing, removing or
adjusting any accessory on this tool, or before
performing any maintenance on this tool. Failure to
do so could result in injury.Whip hoses can cause
serious injury.Always check for damaged, frayed or
loose hoses and fittings, and replace immediately.
Do not use quick detach couplings at tool. See
instructions for correct set-up on page 4.
• Air powered tools can vibrate during use. Vibration,
repetitive motions or uncomfortable positions over
extended periods of time may be harmful to your
hands and arms. Discontinue use of tool if discomfort,
tingling feeling or pain occurs. Seek medical advice
before resuming use.
• Slipping, tripping and/or falling while operating air tools
can be a major cause of serious injury or death. Be aware
of excess hose left on the walking or work surface.
• Keep body working stance balanced and firm.
Do not overreach when operating the tool.
• Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.
• Do not carry tool by the hose. Protect the hose
from sharp objects and heat.
• Tool shaft may continue to rotate briefly after throttle
is released.Avoid direct contact with accessories
during and after use. Gloves will reduce the risk of
cuts or burns.
• Keep away from rotating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping
can occur if hair is not kept away from tool and
accessories. Choking can occur if neckwear is not
kept away from tool and accessories.
• Note direction of rotation BEFORE operating tool.
• Do not use (or modify) the tool for any other purpose
than that for which it was designed without consulting
the manufacturer's authorized representative.
• Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel.
• This tool is not insulated against electric shock.
• This tool must not be used in explosive atmospheres.
• Servicing and repairs should only be made by an
authorized service center.
• Do not force tool beyond its rated capacity.
• Use accessories recommended by Cornwell Tools.
• Use only impact sockets and accessories on this tool.
Do not use hand sockets and accessories.
• Keep tool out of reach of children.
• Do not remove any labels. Replace any damaged
labels.
• This product may contain one or more chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm. Wash hands
thoroughly after handling.
• Failure to heed these warnings may result in personal
injury and/or property damage.

CAT250ARR 3 Rev. 2/9/16
PARTS BREAKDOWN - CAT250ARR
Only parts identified by part number above are available for purchase.
Ref. # Item # DESCRIPTION QTY
1 RS250ARR01 Housing with Bushing 1
2 RS250ARR02 Throttle Lever 1
3 RS848002 Pin (3x22mm) 1
4 RS305A04 O-Ring (3.5 x 1.5mm) 1
5 RS305A05 O-Ring (4.5 x 1.7mm) 1
6 RS305A06 Throttle Pin 1
7 RS305A07 Spring 1
8 RS305A08 Air Regulator 1
9 RS305A09 O-Ring (6x2mm) 2
10 RS305A10 O-Ring (12x2mm) 1
11 RS250ARR11 Valve Plug 1
12 RS250ARR12 Air Inlet 1
13 RS32237 Muffler 1
14 RS30516 Ball Bearing (696ZZ) 1
15 RS32217 Rear End Plate (Incl. #16) 1
16 RS26216 Steel Ball (3/32") 3
17 RS281418 Cylinder 1
18 RS250ARR18 Rotor 1
19 RS305A19 Rotor Blade 4
20 RS250ARR20 Front End Plate (Incl. #16) 1
21 RS30524 Ball Bearing (608ZZ) 1
22 RS250ARR22 Internal Gear 1
23 RS281424A Planet Gear (4mm) 3
24 RS250ARR24A Planet Gear Carrier (4mm) 1
Ref. # Item # DESCRIPTION QTY
25 RS250ARR25 Lock Ring 1
26 RS250ARR26 Retainer Ring 1
27 RS250ARR27 Ratchet Housing 1
28 RS250ARR28 Needle Bearing 1
29 RS250ARR29 Crank Shaft 1
30 RS281430 Drive Bushing 1
31 RS250ARR31 Ratchet Yoke 1
32 * Reverse Button 1
33 * Spring 1
34 * Lock Pin 1
35 * Washer 1
36 * Roll Pin 1
37 * Pin 1
38 * 1/4"Ratchet Anvil 1
39 * Ratchet Pawl 1
40 * Wave Washer 1
41 * Thrust Washer 1
42 * Retaining Ring 1
43 RS250ARR43 Comfort Grip 1
44 RS250ARR44 Spacer 1
45 RS250ARR45 Bushing 1
RSCAT250ARRPLK Product Label Kit (not shown) 1
* Head Kit available: CAT250ARRRHK (includes #32 - 42)

CAT250ARR 4 Rev. 2/9/16

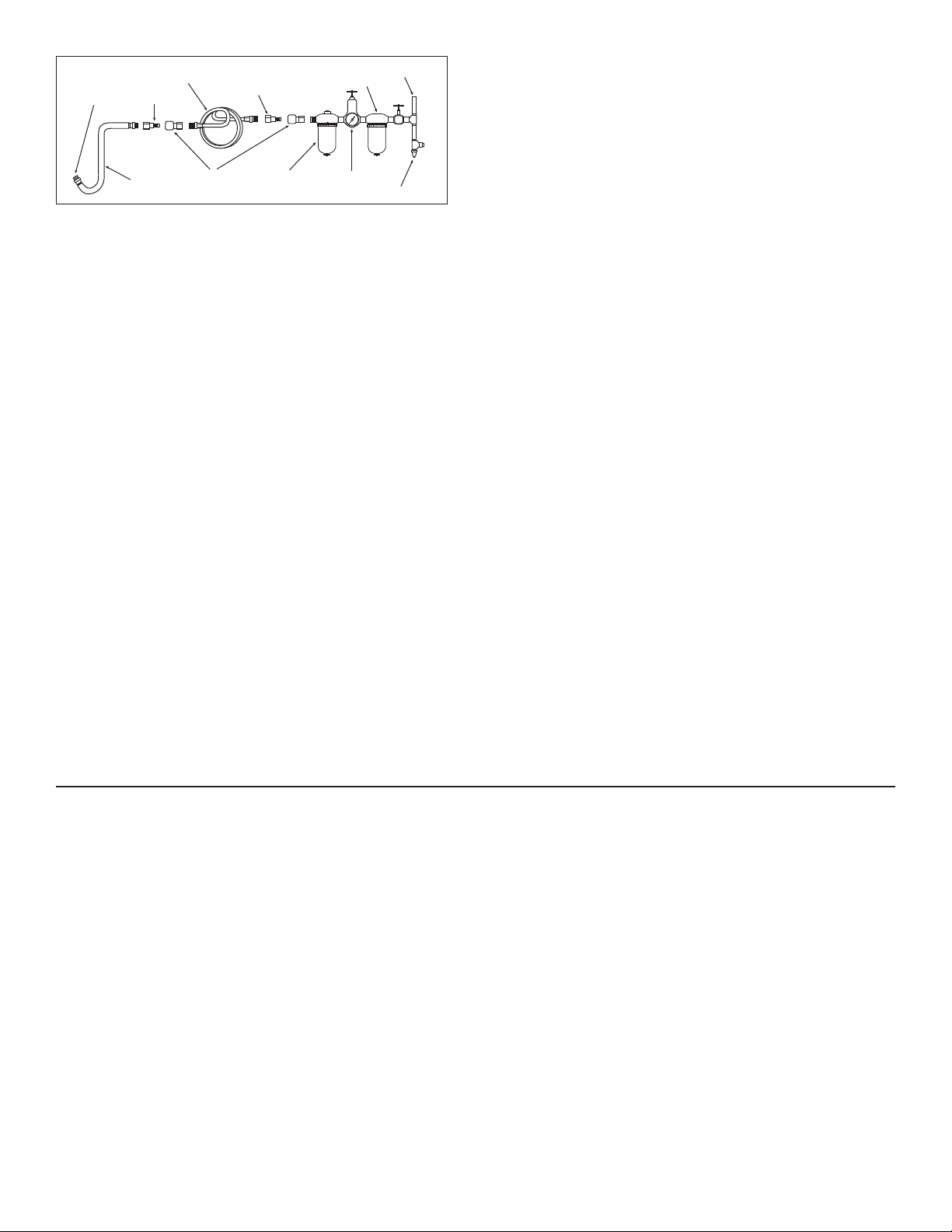

Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
AIR SUPPLY
Tools operate on a wide range of air pressures. It is recommended
that air pressure measures 90 psig at the tool with the trigger fully
depressed and no load applied to the tool. Higher pressure (over 90
psig; 6.2 bar) raises performance beyond the rated capacity of the
tool, which will shorten tool life and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the
air line will cause damage to the tool. Drain water from air lines and
compressor prior to running tool. Clean the air inlet filter screen
weekly. The recommended hookup procedure can be viewed in the
above figure.
The air inlet used for connecting air supply has standard 1/4" NPT.
Line pressure should be increased to compensate for unusually long
air hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D.
and fittings should have the same inside dimensions and be tightly
secured.
Ensure an accessible emergency shut off valve has been
installed in the air supply line and make others aware of its
location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air
line oiler is used, run 1/2 oz. of oil through the tool. The oil can
be squirted into the tool air inlet or into the hose at the nearest
connection to the air supply, then run the tool. A rust inhibitive oil is
acceptable for air tools.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
OPERATION
This ratchet is rated at 1/4" USS bolt size. Rating must be down
graded for spring U bolts, tie bolts, long cap screws, double depth
nuts, badly rusted conditions and spring fasteners as they absorb
much of the impact power. When possible, clamp or wedge the bolt
to prevent springback.
Soak rusted nuts in penetrating oil and break rust seal before
removing with impact ratchet. If nut does not start to move in three
to five seconds use a larger size impact ratchet. Do not use impact
ratchet beyond rated capacity as this will drastically reduce tool life.
The reverse button is used to change the direction of the tool. When
the button is turned to the left, the tool is in a forward or right hand
direction. When the button is turned to the right, the direction is in
reverse or left hand direction.
NOTE: Actual torque on a fastener is directly related to joint
hardness, tool speed, condition of socket and the time the tool is
allowed to impact. Use the simplest possible tool-to-socket hook
up. Every connection absorbs energy and reduces power.
NOTE: Always turn off the air supply, drain hose of air pressure
and detach tool from air supply before installing, removing or
adjusting any part or accessory on this tool,or before performing
any maintenance on this tool.
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air line,
moisture or restrictions in air pipes or the use of hose connections
of improper size or poor conditions may reduce air supply. Grit or
gum deposits in the tool may cut power and may be corrected
by cleaning the air strainer and flushing out the tool with gum
solvent oil or an equal mixture of SAE #10 and kerosene. If outside
conditions are in order, disconnect tool from hose and take tool to
your nearest authorized service center.
WARRANTY
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase.
Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper
workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly, repair, or
modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description
of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge, and the repaired tool will
be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST
REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan.
