Cornwell Tools CAT4250AHBP User manual

CAT4250AHBP / CAT4250AHBPG 06/04/18
CAT4250AHBP
CAT4250AHBPG
3" Stroke
Air Hammer
Operating Instructions • Warning Information
• Parts Breakdown
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Blows per minute .......................... 2,500 BPM
Stroke Length ....................................3"
Shank Opening ................................0.401"
Bore Diameter .................................. 3/4"
Air Inlet ....................................1/4" NPT
Minimum Hose Size........................... 3/8" I.D.
Average Air Consumption ...................... 2.8 CFM
Length .......................................10.63"
Weight .....................................5.42 Lbs
Sound Pressure Level .......................... 99 dBA
SPECIFICATIONS
Copyright © Professional Tool Products, 2018
All rights reserved
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
WARNING

CAT4250AHBP / CAT4250AHBPG 2 06/04/18
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
WARNING
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL.
• Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric
shock, fire, explosion and/or serious personal injury.
It is the responsibility of the owner to make sure all
personnel read this manual prior to using the tool. It is
also the responsibility of the tool owner to keep this
manual intact and in a convenient location for all to
see and read. If the manual or product labels are lost
or not legible, contact Cornwell Tools for replacements.
If the operator is not fluent in English, the product
and safety instructions shall be read and discussed
with the operator in the operator's native language by
the purchaser/owner or his designee, making sure that
the operator comprehends its contents.
• Always operate, inspect and maintain this tool in
accordance with American National Standards Institute
Safety Code of Portable Air Tools (ANSI B186.1) and any
other applicable safety codes and regulations.
• For safety, top performance and maximum durability of
parts, operate this tool at 90 psig; 6.2 bar max air
pressure with 3/8" diameter air supply hose.
• Always wear impact-resistant eye protection when
operating or performing maintenance on this tool (users
and bystanders).
• High sound levels can cause permanent hearing loss.
Always use hearing protection as recommended by your
employer an OSHA regulations while using this tool
(users and bystanders).
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must be
physically able to handle the bulk, weight and power of
this tool.
• Air under pressure can cause severe injury. Never direct
air at yourself or others. Always turn off the air supply,
drain hose of air pressure and detach tool from air supply
before installing, removing or adjusting any accessory
on this tool, or before performing any maintenance on
this tool. Failure to do so could result in injury. Whip
hoses can cause serious injury. Always check for
damaged, frayed or loose hoses and fittings, and replace
immediately. Do not use quick detach couplings at tool.
See instructions for correct set-up.
• Keep tool out of reach of children.
• Air powered tools can vibrate in use. Vibration, repetitive
motions or uncomfortable positions over extended
periods of time may be harmful to your hands and arms.
Discontinue use of tool if discomfort, tingling feeling or
pain occurs. Seek medical advice before resuming use.
• Slipping, tripping and/or falling while operating air
tools can be a major cause of serious injury or
death. Be aware of excess hose left on the walking
or work surface.
• Keep body working stance balanced and firm. Do
not overreach when operating the tool.
• Place the tool on the work before starting the tool. Do not
point or indulge in any horseplay with this tool.
• Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.
• Do not carry tool by the hose. Protect the hose from
sharp objects and heat.
• Tool shaft may continue to reciprocate briefly after
throttle is released. Avoid direct contact with
accessories during andafter use. Gloves will
reduce the risk of cuts or burns.
• Keep away from reciprocating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping
can occur if hair is not kept away from tool and
accessories. Choking can occur if neckwear is not
kept away from tool and accessories.
• Do not use (or modify) the tool for any other purpose
than that for which it was designed without consulting
the manufacturer's authorized representative.
• Never use a chisel as a handstruck tool. They are
designed and heat treated to be used only in air
hammers. Select the correct shank and retainer for the
tool.
• Never operate tool without chisel retainer.
• Never use dull, chipped or damaged accessories.
Never cool a hot accessory in water as brittleness
and early failure can result. Accessory breakage or
tool damage may result from prying. Take smaller bites
to avoid getting stuck.
• Use accessories recommended by Cornwell Tools.
• Do not lubricate tools with flammable or volatile liquids
such as kerosene, diesel or jet fuel.
• This tool is not insulated against electric shock.
• This tool must not be used in explosive atmospheres.
• Servicing and repairs should only be made by an
authorized service center.
• Do not force tool beyond its rated capacity.
• Do not remove any labels. Replace damaged labels.
• Failure to heed these warnings may result in personal
injury and/or property damage.
WARNING: This product can expose you to
chemicals including nickel, which is known to the
State of California to cause cancer and birth defects
or other reproductive harm. For more information
go to www.P65Warnings.ca.gov.

CAT4250AHBP / CAT4250AHBPG 3 06/04/18
PARTS BREAKDOWN - CAT4250AHBP / CAT4250AHBPG
Ref. # Item # DESCRIPTION QTY
1 RS1120101 Housing - Blue 1
1 RS1120101G Housing - Green 1
2 RS501805 Throttle Seat 1
3 RS501804 Throttle Valve 1
4 RS4001704 Spring 1
5 RS4001805 Air Inlet 1
6 RS4002206 Rubber Bumper 1
7 RS4001107 Cylinder Sleeve 1
8 RS181110 O-Ring (42 x 2mm) 2
Ref. # Item # DESCRIPTION QTY
10 RS1121010 Trigger Button 1
11 RS848019 Piston 1
12 RS1121212 Cylinder 1
13 RS848023 Exhaust Deflector 1
14 RS1121414A Lock Nut 1
15 CCR130 Chisel Retainer 1
16 RS1121616 Comfort Grip 1
RS4250AHBPWL Warning Label for CAT4250AHBP
RS4250AHBPGWL Warning Label for CAT4250AHBPG
Not Shown: RSCAT4250AHK6CS Blow Mold Case Only

CAT4250AHBP / CAT4250AHBPG 4 06/04/18

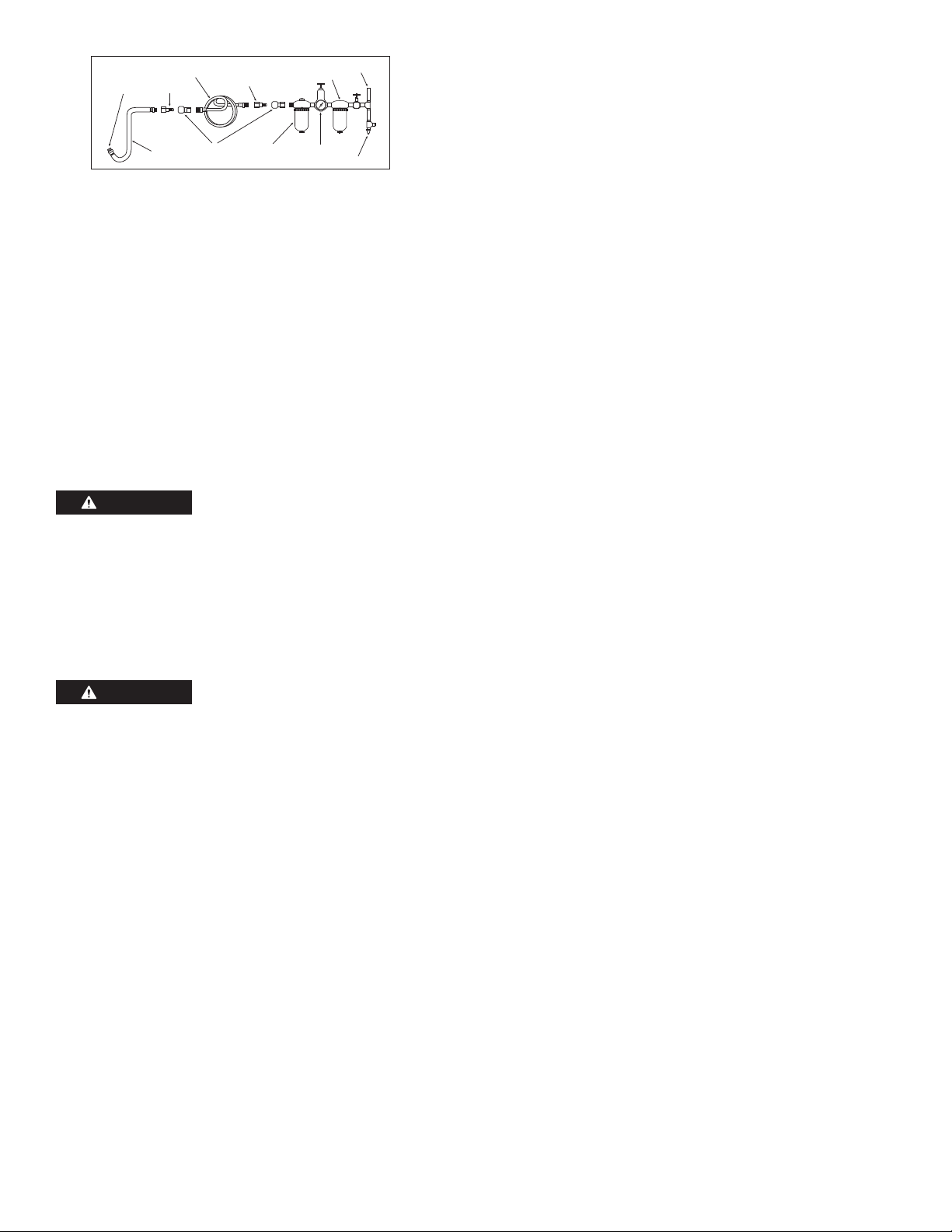

Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
AIR SUPPLY
Tools of this class operate on a wide range of air pressures.
It is recommended that air pressure measures 90 psig at the tool
with the trigger fully depressed and no load applied to the tool. Higher
pressure (over 90 psig; 6.2 bar) raises performance beyond the rated
capacity of the tool, which will shorten tool life and could cause injury.
Always use clean,dry air. Dust,corrosive fumes and/or water in the air line
will cause damage to the tool. Drain water from air lines and compres-
sor prior to running tool daily. Clean the air inlet filter screen weekly. The
recommended hookup procedure can be viewed in the above figure.
The air inlet used for connecting air supply has standard 1/4" NPT. Line
pressure should be increased to compensate for unusually long air
hoses (over 25 feet). Minimum hose diameter should be 3/8" I.D. and
fittings should have the same inside dimensions and be tightly secured.
Ensure an accessible emergency shut off valve has been installed in the
air supply line and make others aware of its location.
Ensure an accessible emergency shut off valve has been installed in the
air supply line and make others aware of its location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air line
oiler is used, run 1/2 oz. of oil through the tool. The oil can be squirted
into the tool air inlet or into the hose at the nearest connection to the air
supply, then run the tool. A rust inhibitive oil is acceptable for air tools.
After an air tool has been lubricated, oil will discharge through the
exhaust port during the first few seconds of operation. The exhaust port
must be covered with a towel before applying air pressure to prevent
serious injury.
OPERATION
Always turn off the air supply, drain hose of air pressure and detach
tool from air supply before installing, removing or adjusting any
accessory on this tool, or before performing any maintenance on this
tool.
Always place a chisel in the hammer and hold the tool down to the work
before operating. Damage to the tool or the retainer may result if this
precaution is not followed.
The chisel retainers are not designed for complete safety against
accidental release of chisels or hammers. To avoid injury, the
throttle must never be depressed unless the chisel is held firmly against
the work place. When tool is not in actual use, the chisel must be removed.
When using tool, regulate the speed so that the chisel is not being driven
out of the cylinder. If piston is allowed to strike the cylinder wall, internal
damage will result.
To change chisel, pull back on spring hook and insert chisel. Release
spring hook.
To regulate air, turn air regulator knob out for maximum air pressure and
in for minimum.
Use the simplest possible tool-to-socket hook up. Every connection
absorbs energy and reduces power.
NOTE: During operation, safety goggles must always be worn to
guard against flying debris (users and bystanders).
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air line,
moisture or restrictions in air pipes or the use of hose connec-
tions of improper size or poor conditions may reduce air supply.
Grit or gum deposits in the tool may cut power and may be cor-
rected by cleaning the air strainer and flushing out the tool with gum
solvent oil or an equal mixture of SAE #10 and kerosene. If outside
conditions are in order, disconnect tool from hose and take tool to your
nearest authorized service center.
WARRANTY
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase.
Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper
workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly, repair, or
modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description
of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge, and the repaired tool will
be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH IMPLIED
WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST REVENUES,
LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan.
Cornwell Quality Tools Company
667 Seville Road • Wadsworth, OH 44281-1094
WARNING
WARNING
