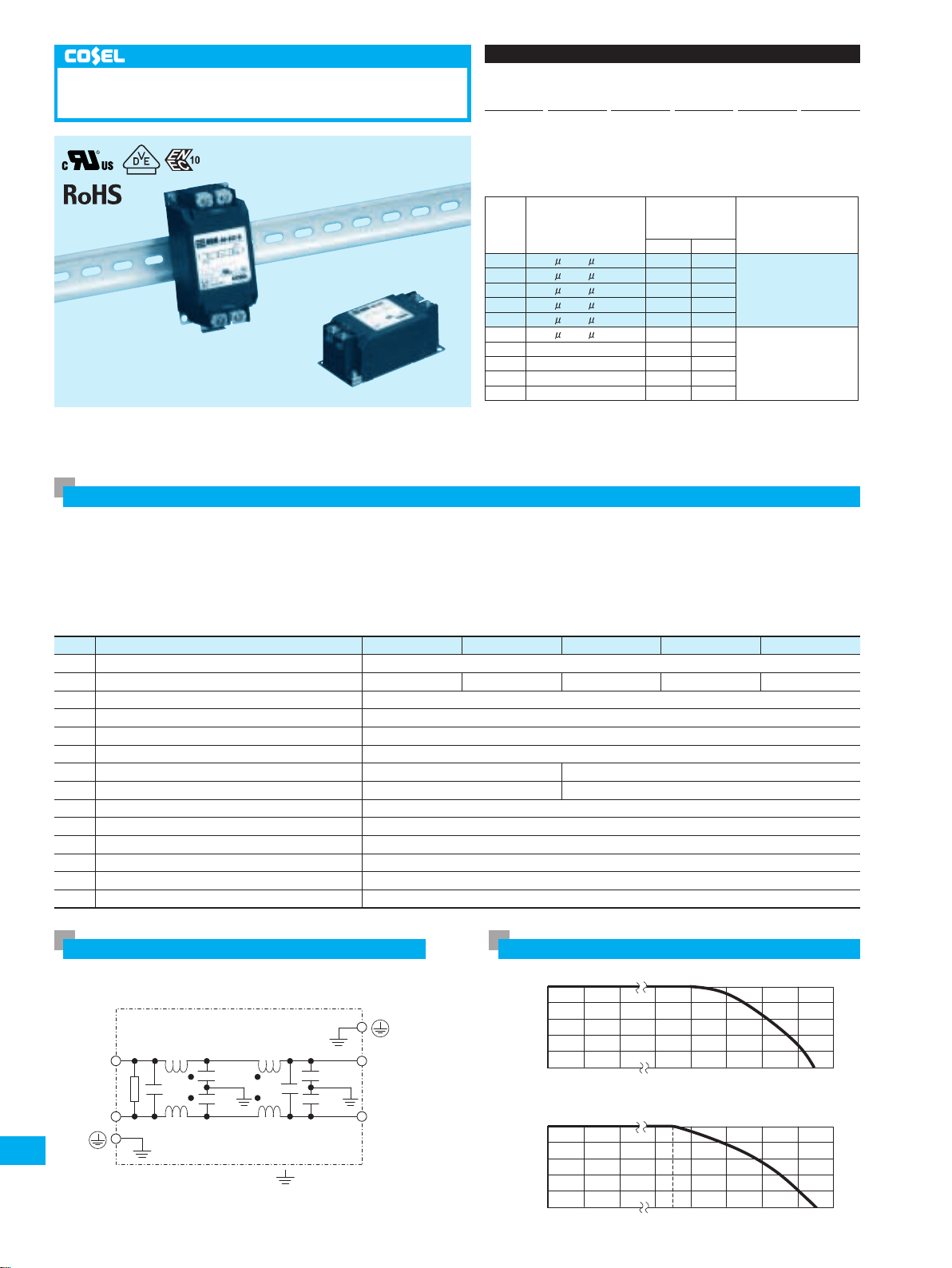

I-2
Noise
Filter
NBH series
Ultra high-attenuation type of common mode noise from 10kHz to 10MHz (2-stage filter)
NBH -10 -432 -O
Ordering information
1Model Name
2Rated Current
3Line to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code Leakage Current
(Input 125/250V 60Hz)
Line to ground
capacitor
(nominal value)
Test voltage
(Terminal- Mounting Plate)
CY1 CY2
000 5 A/ 10 A max
Not Provided Not Provided
4,000VAC
101 12.5 A/ 25 A max 100pF
Not Provided
221 25 A/ 50 A max 220pF
Not Provided
331 37.5 A/ 75 A max 330pF
Not Provided
471 50 A/100 A max 470pF
Not Provided
681 75.5 A/150 A max 680pF
Not Provided
2,500VAC
102 0.13mA/0.25mA max 1000pF
Not Provided
202 0.25mA/0.5 mA max 1000pF 1000pF
322 0.38mA/0.75mA max 2200pF 1000pF
432 0.5 mA/1.0 mA max 3300pF 1000pF
*When the line to ground capacitor code is different, the attenuation
characteristic is different.
4Options
D :DIN rail installation type
*
The dimensions change when the option is set.
Refer to External view.
1 2 3 4
Features of NBH series
Circuit Diagram Derating Curve
LINE
Case
: Mounting Plate
1
24
3
CY2
CY2
CY1,CY2 : Line to ground capacitor
CY1
CY1
LOAD
Ultra high-attenuation type of common mode noise from 10kHz to 10MHz (2-stage filter)
-Single Phase 250 VAC -Quick and easy push-down terminal
-Withstand voltage 4,000 VAC Just connect the wires, push down and tighten
the screws with a screwdriver
9050 60 70 80 85
20
0
-40 40-30 -20
100
80
60
40
Ambient Temperature [C]
Load Factor [%]
Specifications
No. Items NBH-06-432 NBH-10-432 NBH-16-432 NBH-20-432 NBH-30-432
1 Rated Voltage[V] AC 1f250 / DC250
2 Rated Current[A] 6 10162030
3 Test Voltage (Terminal-Mounting Plate) *12,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
4 Isolation Resistance (Terminal-Mounting Plate) 500 VDC 100MWmin at room temperature and humidity
5 Leakage current 125/250V 60Hz 0.5mA/1.0mA max
6 Voltage drop 1.0V max
7 Safety agency approval temperatures
-25 to +85C(Refer to Derating Curve A)
-25 to +85C(Refer to Derating Curve B)
8 Operating temperature
-40 to +85C(Refer to Derating Curve A)
-40 to +85C(Refer to Derating Curve B)
9 Operating humidity 20 to 95%RH (Non condensing)
10 Storage temperature/humidity -40 to +85C/20 to 95%RH (Non condensing)
11 Vibration 10 to 55Hz, 19.6m/s2(2G), 3min. Period, 1hour each X, Y and Z axis
12 Impact 196.1m/s2(20G), 11ms Once each X, Y and Z axis
13 Safety agency approvals UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
14 Case size (without projection) /Mass 53X43X104 mm (WXHXD) /320g max (Option : -D refer to external view)
*1 When the line to ground capacitor code is different, the test voltage characteristic is different. (See table 1.1)
DIN rail installation type is option The terminal cover is retracted inside the unit
9050 60 70 80 85
20
0
-40 40-30 -20
100
80
60
40
45
Ambient Temperature [C]
Load Factor [%]
Derating Curve (A) 6,10A
Derating Curve (B) 16 to 30A
(Line to ground capacitor code -000 to -471)
