D-Link DPH-100H
IPPhone
Version 1.10

2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Features andBenefits ...........................................................................5
GettingStarted......................................................................................6
Configuration ......................................................................................10
AdditionalFeatures.............................................................................25
TechnicalSpecifications ......................................................................28
Waranty...............................................................................................30
Registration ........................................................................................33
ContactingTechnicalSupport ..............................................................34

3
Package Contents
Operation Requirements:


Contents of Package:
D-Link DPH-100H IP Phone
Handset
Handset cord
Power adapter (12V DC at 1A)
If any of the above items are missing, please contact your reseller.


Local power outlet
Internet connection (via ISP)



4
Introduction
The DPH-100H is a fully featured IP telephone that allows both business and
residential customers to benefit from IP telephony services. It reduces costs
by providing access to local and long-distance voice and data services over a
single network connection.
Thiseasy-to-useIP phoneplugsdirectlyinto alocalareanetwork (LAN)through
a standard Ethernet jack. The IP phone utilizes 10/100-Mbps Ethernet for
connectivityandsupports afullrangeof telephonenetworkfeatures.In addition,
it provides access to a host of features for business applications, including
hold, mute, and speakerphone operation. The DPH-100H is equipped with a
LCD panel for easy configuration and use.

5
Features and Benefits
Designed for versatility and performance, the DPH-100H IP Phone provides
the following features:


Connects directly to 10/100-Mbps Fast Ethernet ports

Compliant with H.323v2
Operates as an Internet IP phone
DHCP (Dynamic Host Configuration Protocol) client or static IP
addressing
Large LCD panel (2 lines x 16 characters)
Configurable through LCD-driven menu prompts
Speakerphone function with automatic echo cancellation
Supports QoS to ensure voice quality
DTMFtonegeneration
Remote software upgrade and support







Visual status indicators
Communication interface:
PC jack: RJ-45 for Ethernet (MDI-X)
LANjack:RJ-45forEthernet(MDI-II)
User-adjustable volume control
Communications protocols: TCIP/IP, UDP




Voice compression: complies with 6.711 -law,G.711A-law, G.723 and
G.729 µ


6
Getting Started
Identifying External Components

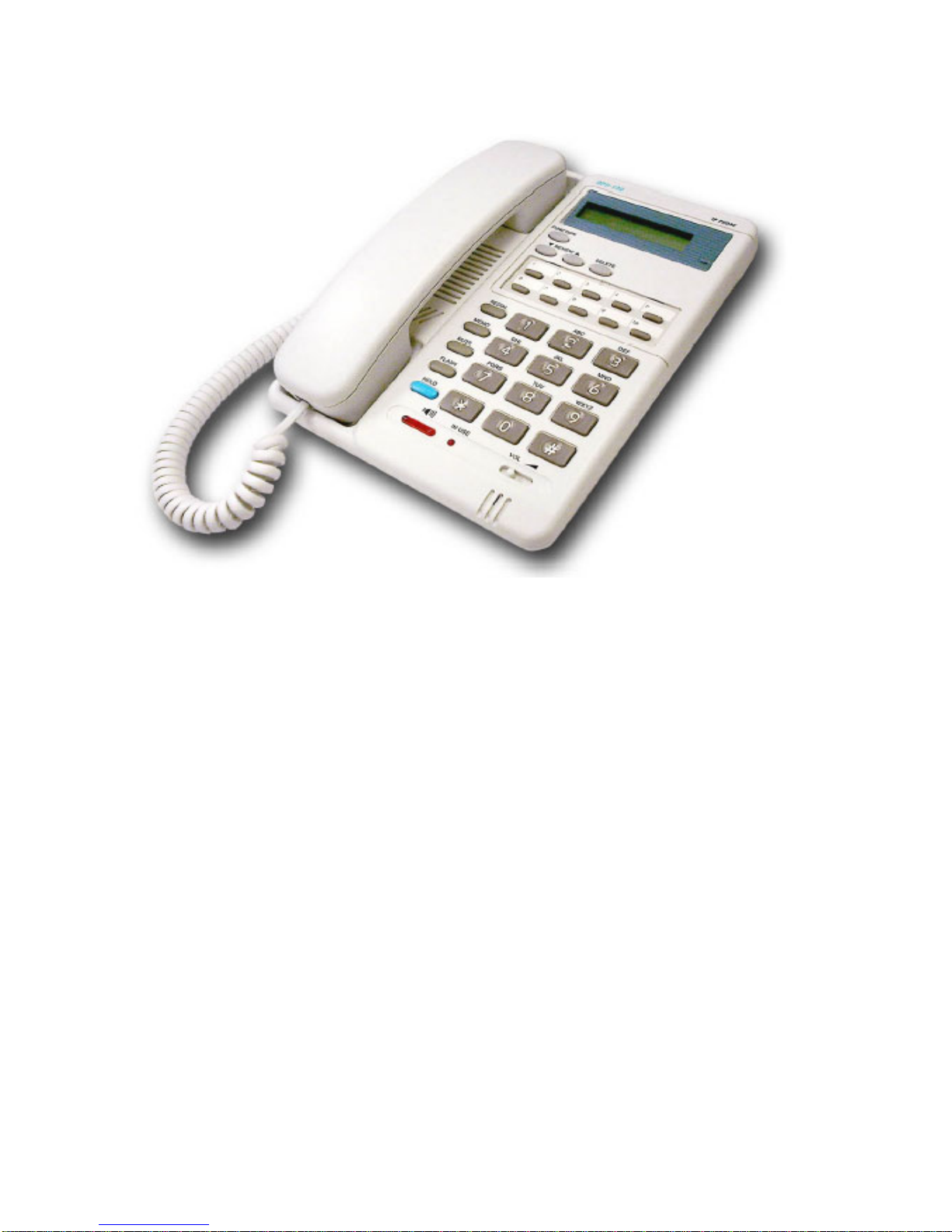

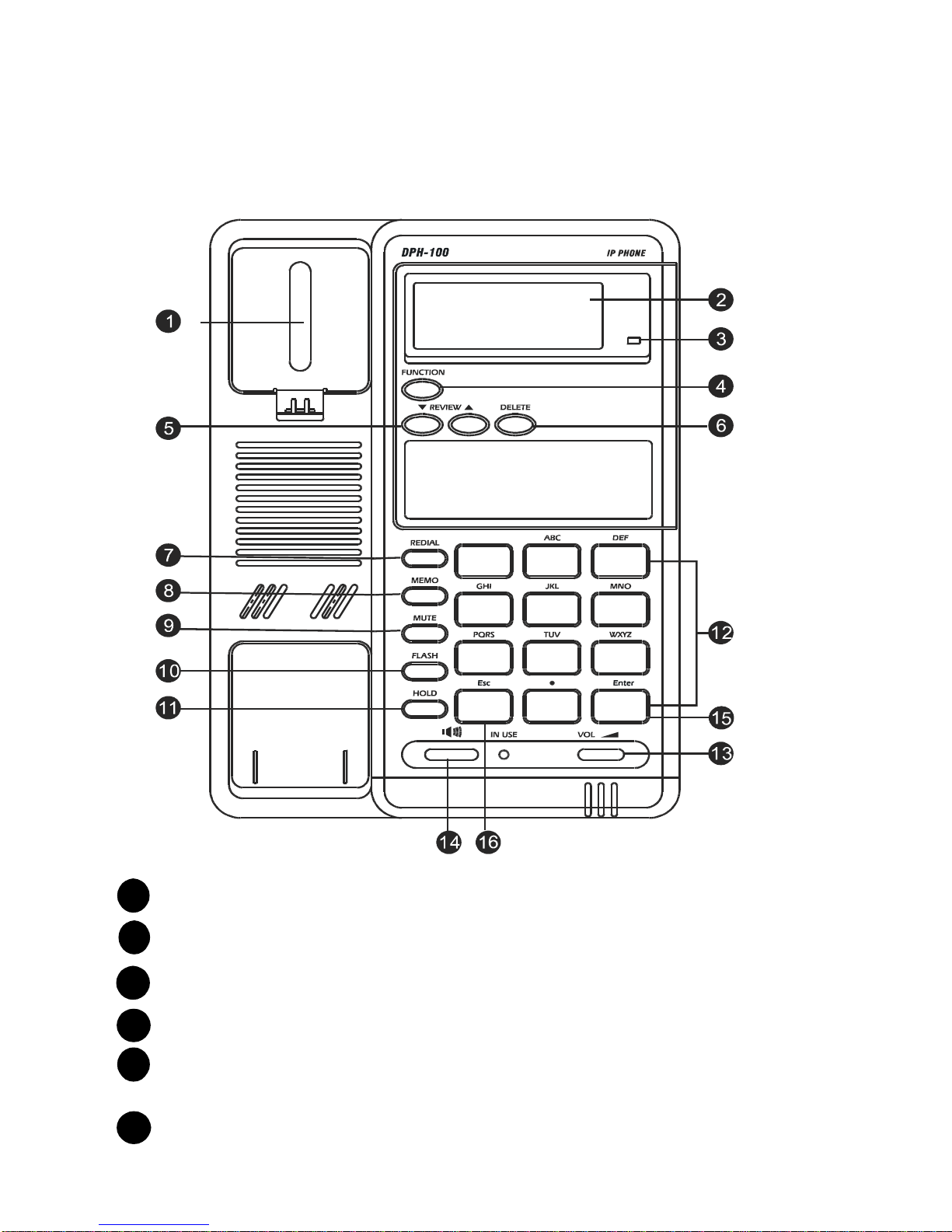

Parts of the Phone
HOOK SWITCH: Switches the phone off/on hook.
LCD Screen: Presents on-line messages and configuration settings.
HOLD INDICATOR: On when the HOLD function is in effect.
FUNCTION: Selects configuration menus.
REVIEW UP/DOWN: Movefowardand backwardthroughmenuitems;
move the cursor up and down.
DELETE: Deletes the character to the left of the cursor.
1
2
3
4
5
6

7
Getting Started
Identifying External Components
REDIAL: Dials the last number you called.
MEMO: Shifts the state to editing the name and number of the Speed
Dial and Address Book, or stores the configuration in non-volatile
memory.
MUTE: Turns sound pickup off and on.
FLASH: Transfers the call or clears the input string.
HOLD: Turns sound transmission and reception off and on.
DIAL PAD: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #.
RING/SPEAKER VOLUME CONTROL: Increases or decreases ring
volume or speakerphone volume during a call.
SPEAKER PHONE: Enables/disables the speakerphone function.
ENTER: Confirms input or goes to the displayed submenu.
ESC: Cancels input or returns to the previous menu.

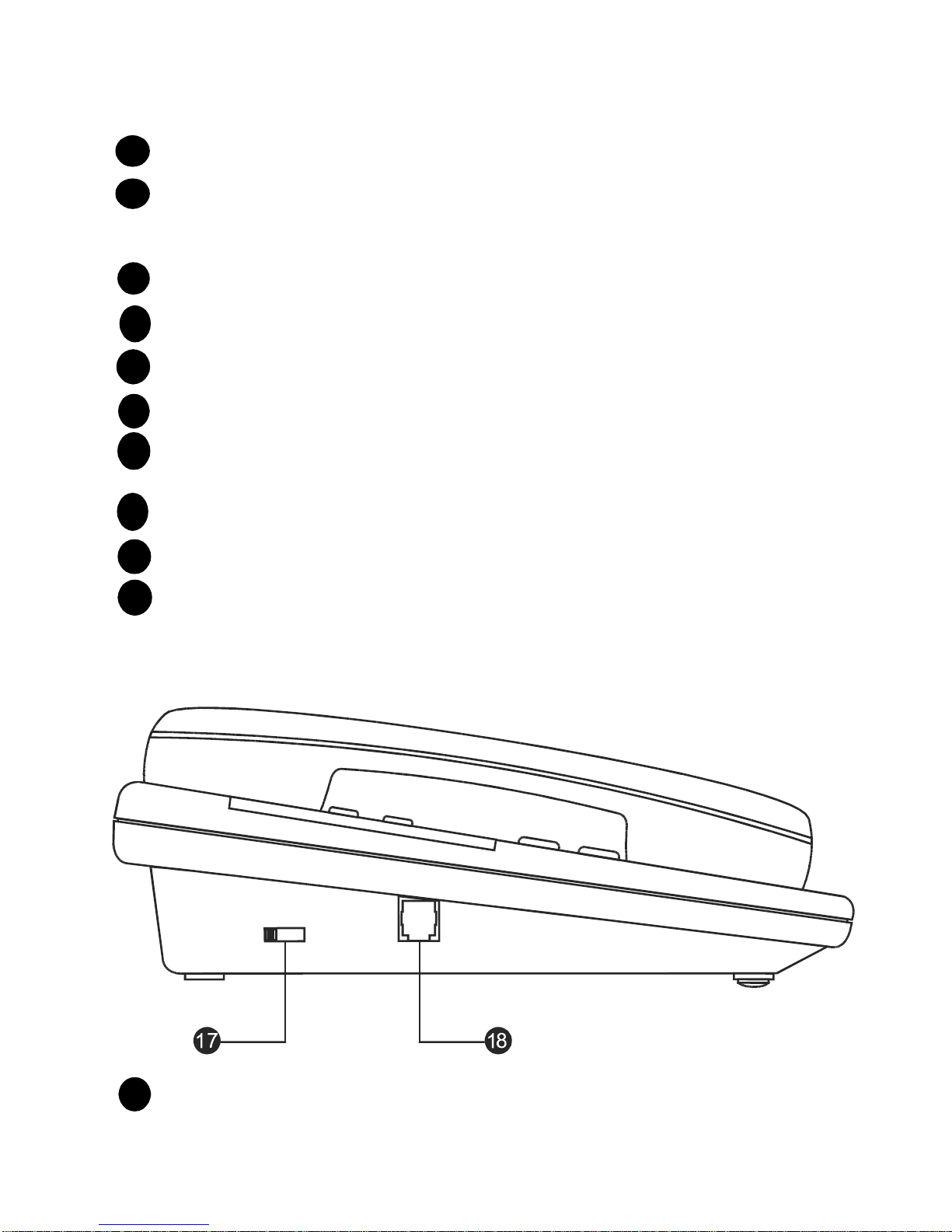

Handset Controls
HANDSET VOLUME CONTROL: Adjusts listening volume on a call
to Low, Medium, or High (default setting is Medium).
7
8
9
10
11
12
13
14
15
16
17

8
Getting Started
Identifying External Components

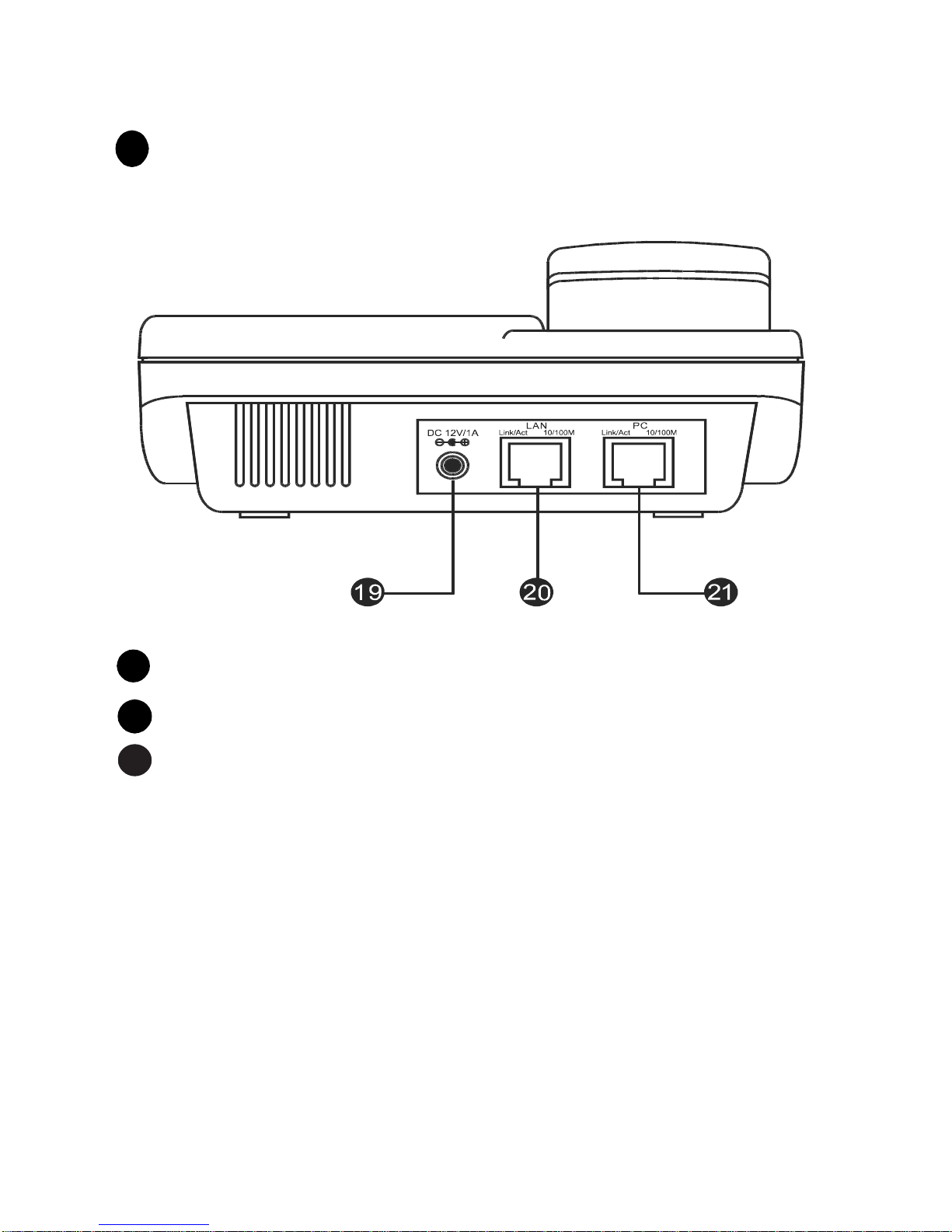

Connectors
HANDSET CONNECTOR: Connector for the handset cord.
POWER: Power adapter receptor
LAN ETHERNET: 10/100BASE-TX LAN to ITSP Internet connection.
PC ETHERNET: 10/100BASE-TX connection to PC.
Installation
The following are steps to install and power on your DPH-100H IP Phone:



Plug the RJ-45 Ethernet cable into the LAN jack.
Plug the power adapter into the appropriate wall outlet.
Plug the power adapter plug into the power jack (DC 12V/1A).
18
19
20
21

9
Getting Started
Installation

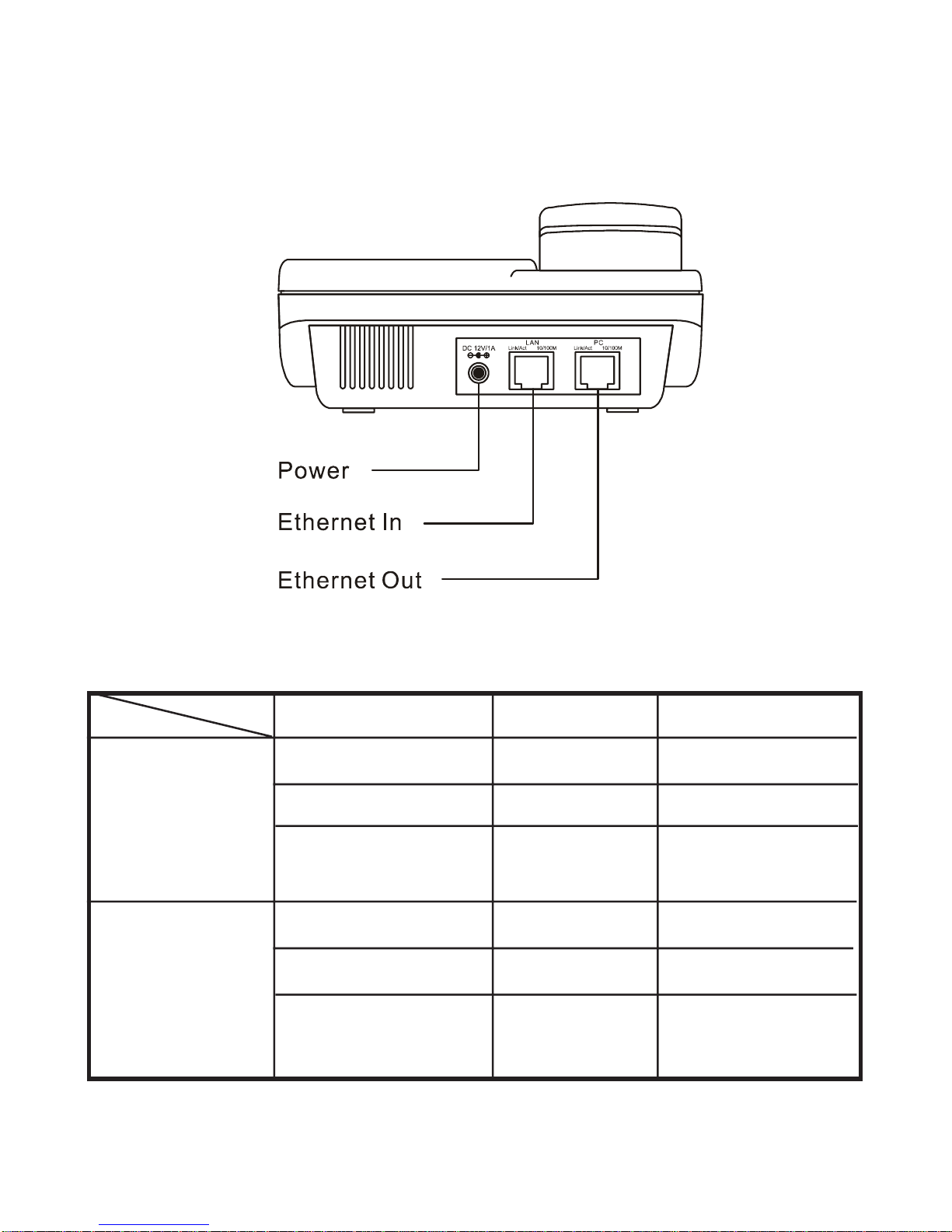

Installation Connections
LED Indicators
ON: 100 Mpbs
OFF: 10 Mbps
Condition Color
LAN Port LED
PC Port LED
Link OK
Link OK
Green
Green
Green
Green
Green
Green
Activity (Link in Use)
Activity (Link in Use)
Speed 10/100 Mbps
Speed 10/100 Mbps ON: 100 Mpbs
OFF: 10 Mbps
ON: 100 Mbps
OFF: 10 Mbps
Timing
Steady
Steady
Flashing
Flashing

10
Configuration
Configuring the Phone Using a Web Browser
Setting up the Connection
In order to use a Web browser to configure the DPH-100H IP phone, you must
make sure the phone has a valid Ethernet connection to a PC or LAN via its
Ethernet port. We recommend using a recent version of any widely used
browser. The browser must have JavaScript enabled.

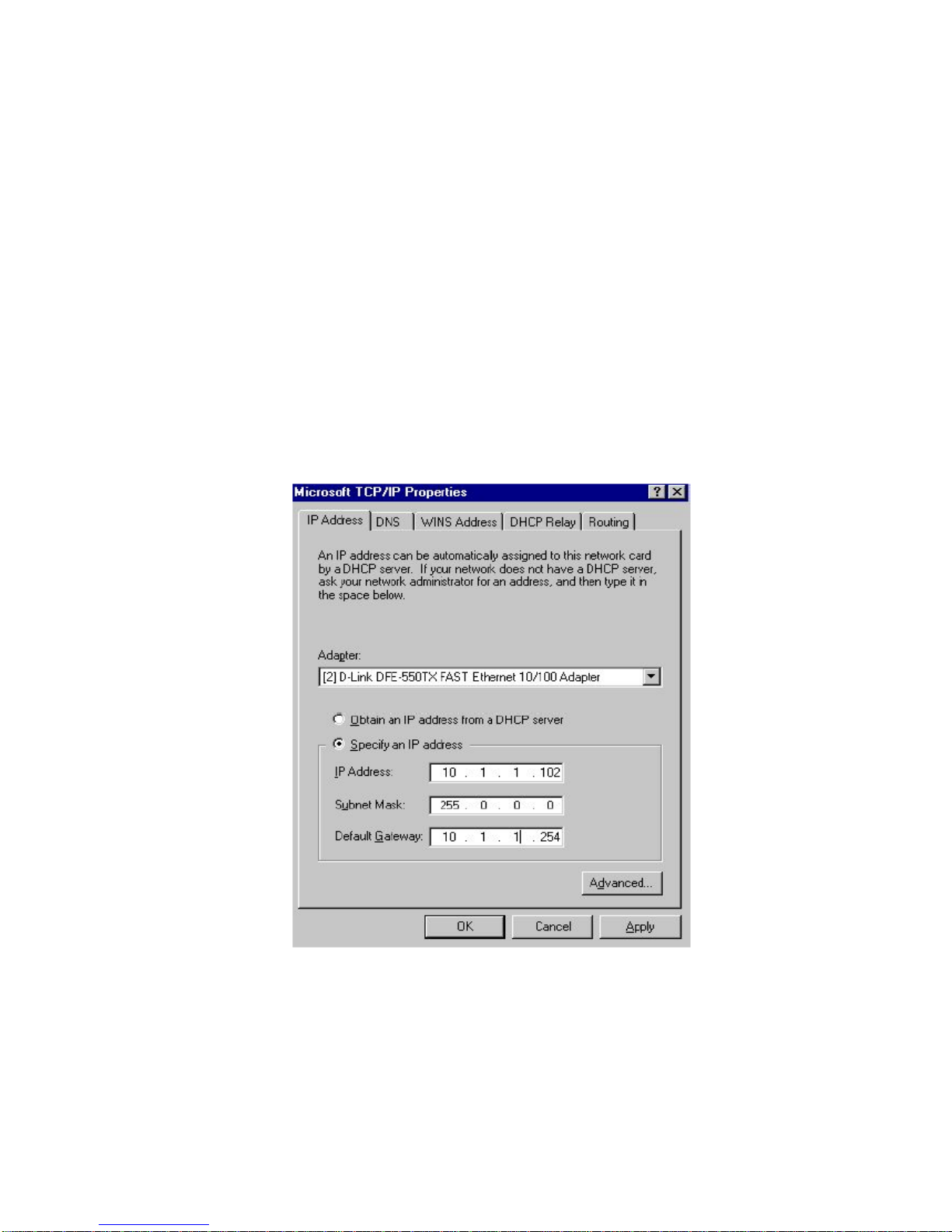

ThephonecomeswithadefaultIPaddress of 10.1.1.100.Youmustmakesure
the computer is in the same IP domain as the IP phone. You can do this by
changing the IP address of the computer as shown below.
Oncethisisdone, run anyrecent,JavaScript-enabledbrowseron the computer
and point it to the default IP address of the phone as shown below:

11
Configuration
Configuring the Phone Using a Web Browser

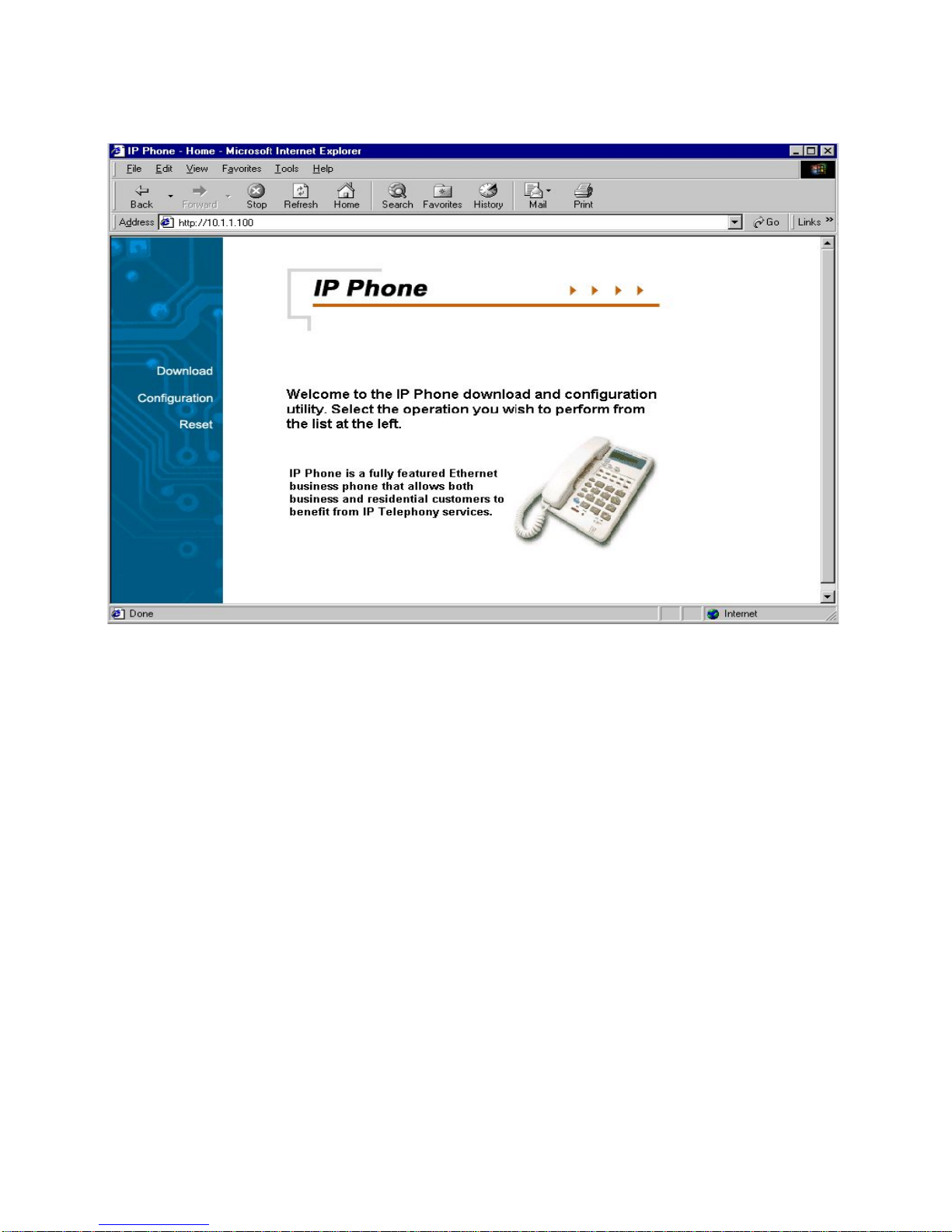

Thisisthemain pageof the phone’sembedded Web-basedconfigurationutility.
This page shows you a welcome message and information about the phone
for your reference. There are three choices for you on this page: Download,
Configuration and Reset.

12
Configuration
Configuring the Phone Using a Web Browser

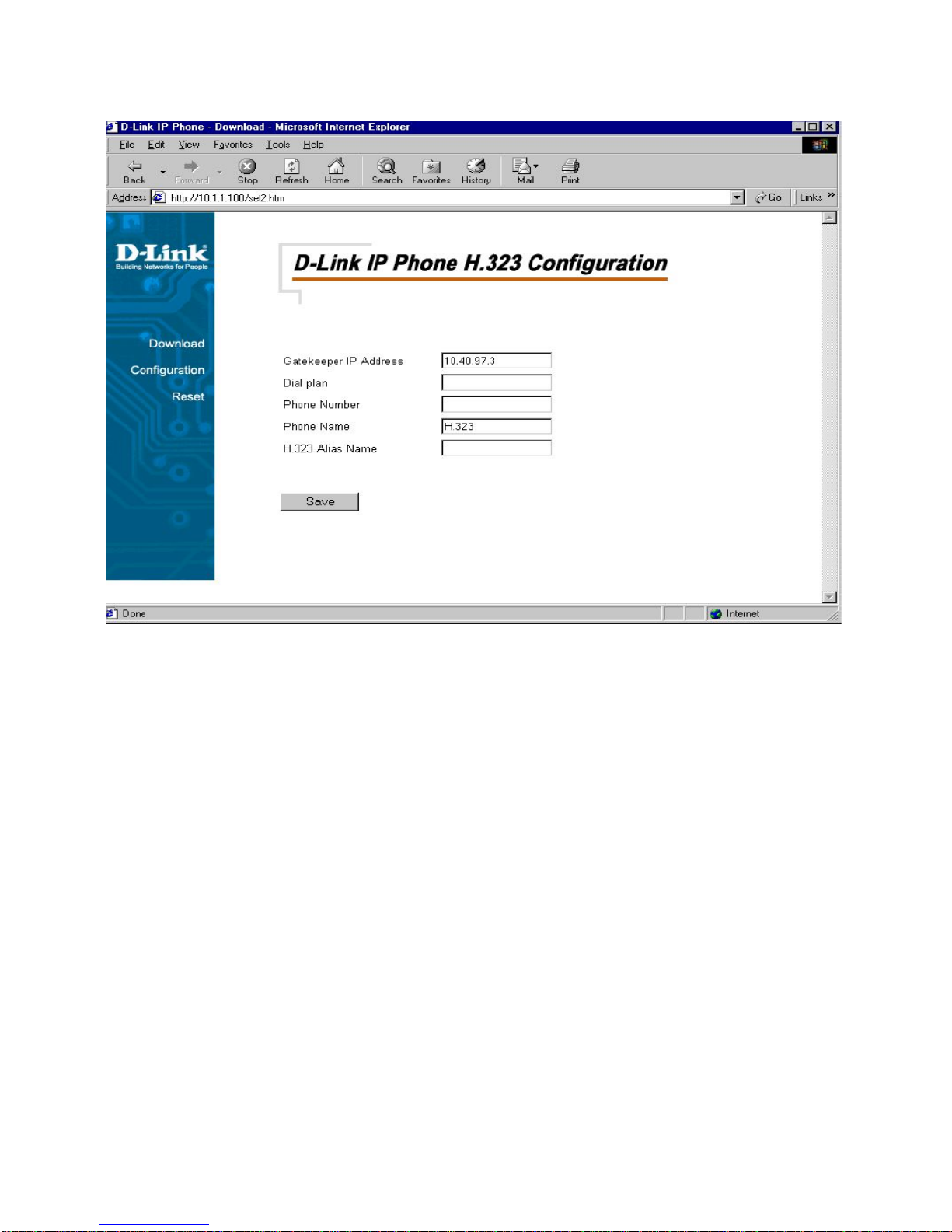

H.323 Configuration Page
On this page you can set the network, security, H.323, CODEC and clock
configuration settings according to your requirements. After completing
configuration, you must choose the Save button to store the settings in the
phone’s memory, then reset the phone to activate the new configuration.

13
Configuration
Network Configuration Page
Configuring the Phone Using a Web Browser

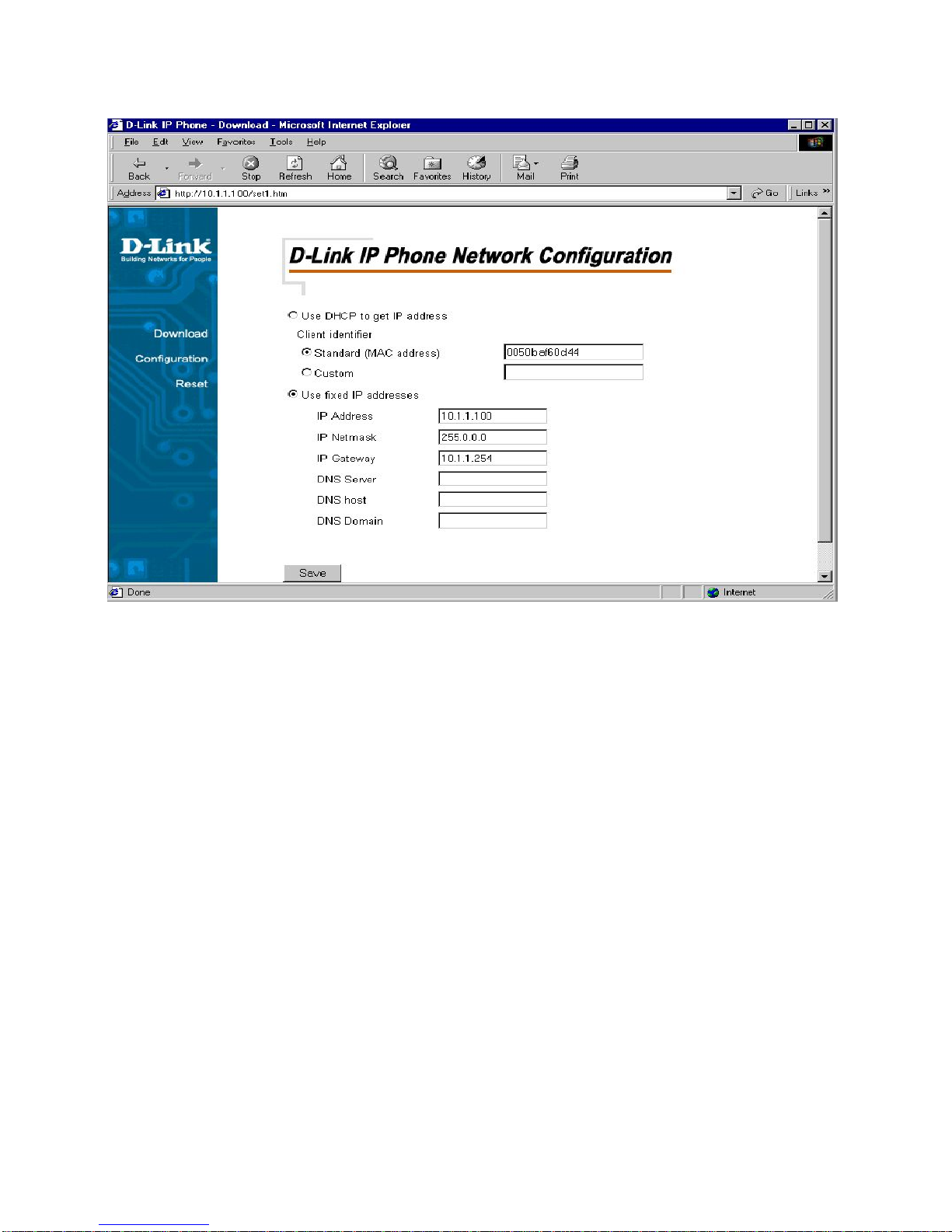

ThisistheIPphonenetworkconfiguration web page. On this page,youcanset
thenetworkparametersaccordingtoyournetwork environment. These include
theDHCPoption andfixed-IPaddress/subnet/gateway settings.After adjusting
the settings, you must click the Save button to save your new configuration.
Using DHCP to get an IP address: WhenDHCP ischosen,theIPphone
will attempt to obtain its IP settings from a DHCP server.
Using a fixed IP address:


DNS Domain: Enter a DNS server domain name.*
IPAddress: Enter a valid IP address for the phone.
IP Netmask: Enter the correct subnet mask for the phone.
IP Gateway: Enter an IP gateway for the phone.
DNS Server: Enter a DNS server IP address.*
DNS Host: Enter a DNS server host name.*
You can set the phone to get its IP address from a DHCP server or to use a
fixed IP address.
*This information is provided by your Internet Service Provider (ISP).

14
Configuration
Configuring the Phone Using a Web Browser
Security Configuration Page

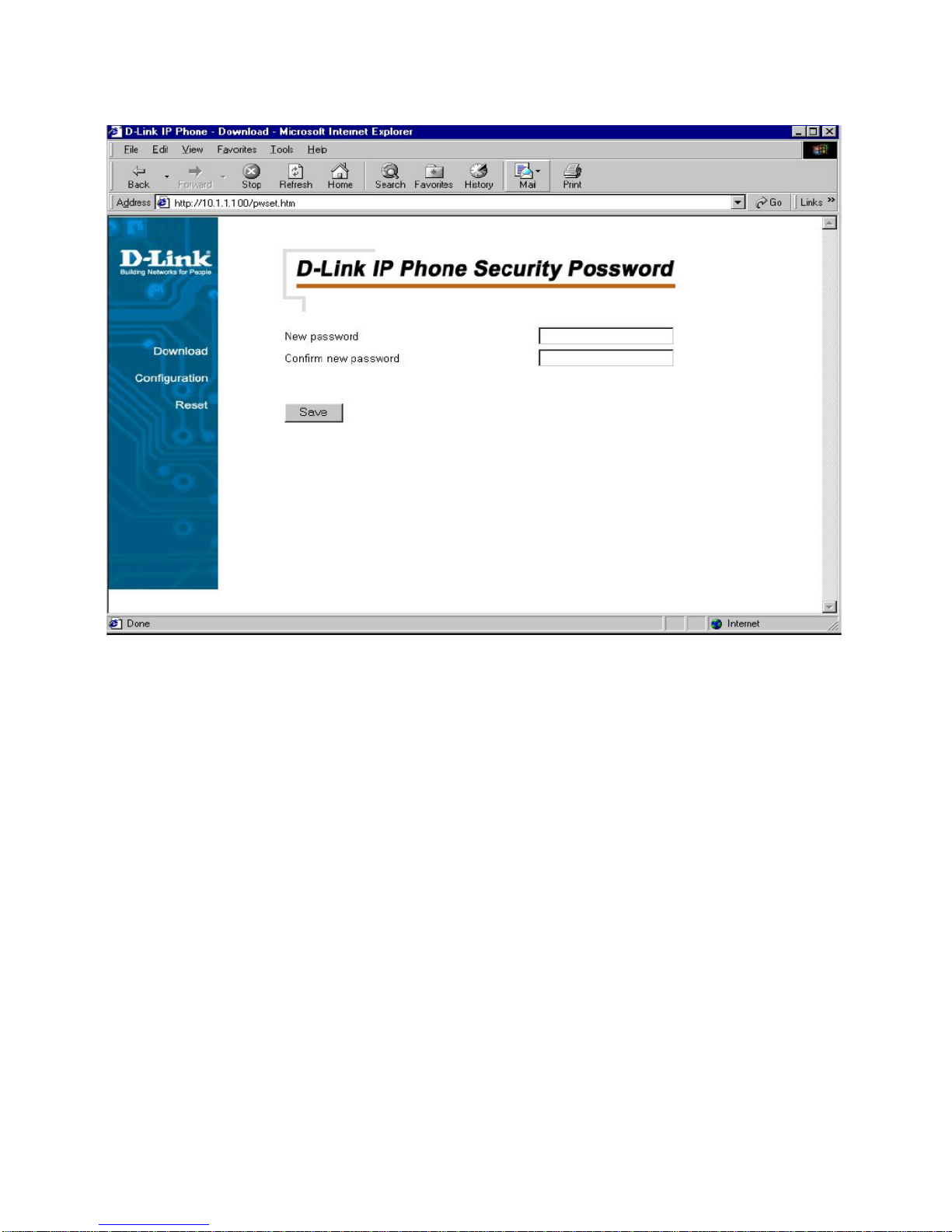

ThisistheIP phone’s securitypasswordconfigurationpage.It is recommended
thatyousetapassword to protectyourIPphone’sconfigurationfrom unwanted
tampering by other users. After changing the setting, you must click the Save
button to save your new configuration. The default password setting shows
empty fields for “New password” and “Confirm new password”.

15
Configuration
Configuring the Phone Using a Web Browser
H.323 Parameter Configuration Page
Thisis the H.323 configuration page.You canset the Gatekeeper IPaddress, dial plan,
phone number, and phone name. After completing configuration, you must click the
Savebutton to saveyour new configurationsettings.
Dial Plan: The DPH-100H allows provisioning of the dial plan via a Web
browser. A dial plan gives the unit a map to determine when a complete
number has been entered and should be passed to the gatekeeper for
resolution into an IP address. Dial plans are expressed using the syntax
described in the MGCP NCS specification.
Gatekeeper IP Address: Enter the IP address of the Gatekeeper for
thephone.
The Timer T is activated when it is all that is required to produce a
match. The period of timer T defaults to four seconds.
Example:Adialplan of (x.T|xxxxx)will matchimmediately if 5digitsare
entered; it will also match after a four-second pause during which no
digits are entered.



16
Configuration
Configuring the Phone Using a Web Browser
Phone Number: Enter the phone number for the IP phone.
Phone Name: Enter the phone name for the IP phone.



H.323 Alias Name: Enter the H.323 alias name for the IP phone.

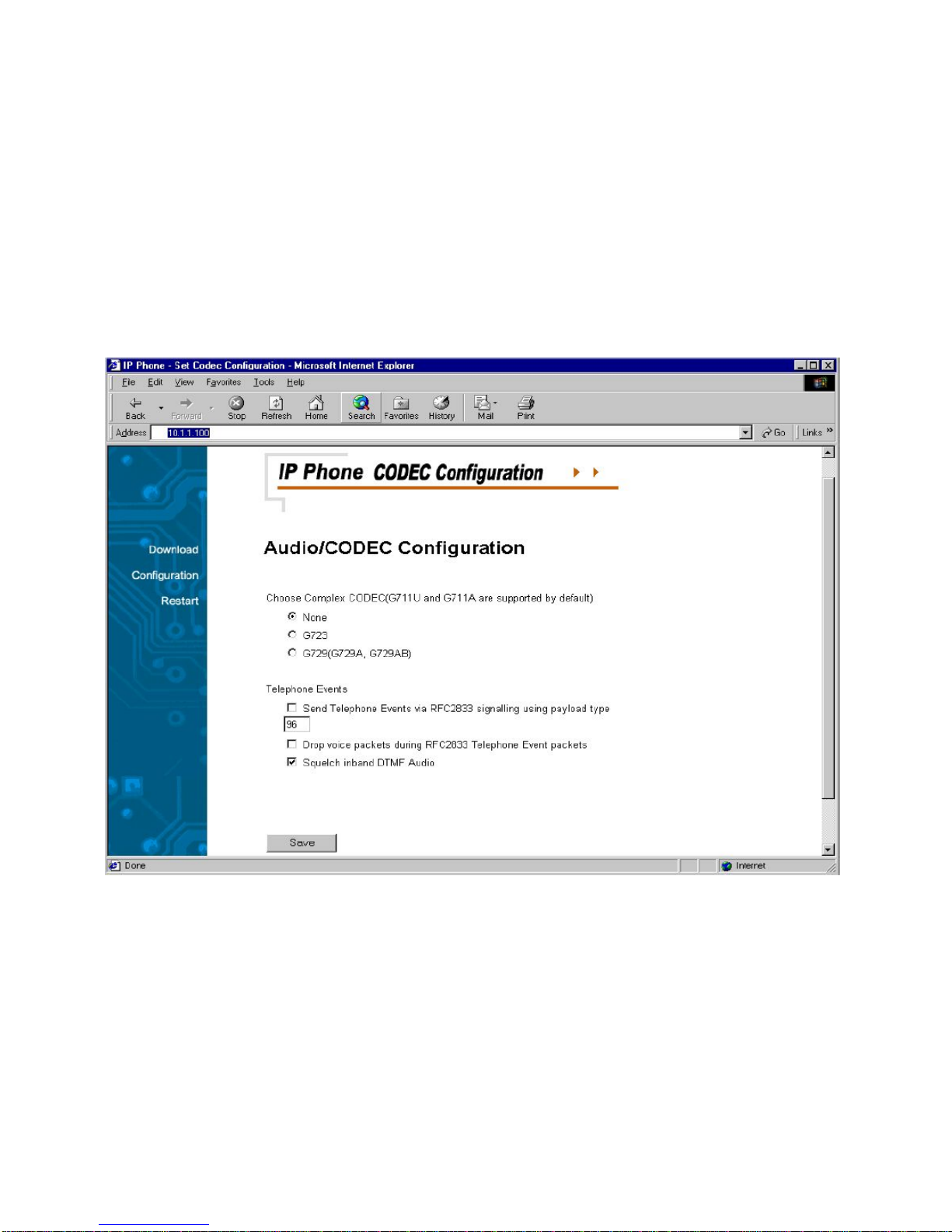

AUDIO/CODECConfigurationPage
This is the codec (compression/decompression) configuration page. You can
select the voice codecs G.711 µ-law, G.711 A-law, G.723 and G.729 on this
page.After configuration, click the Save button.
Note: Please contact your VoIP Service Provider for detailed information.

17
Configuration
Configuring the Phone Using a Web Browser

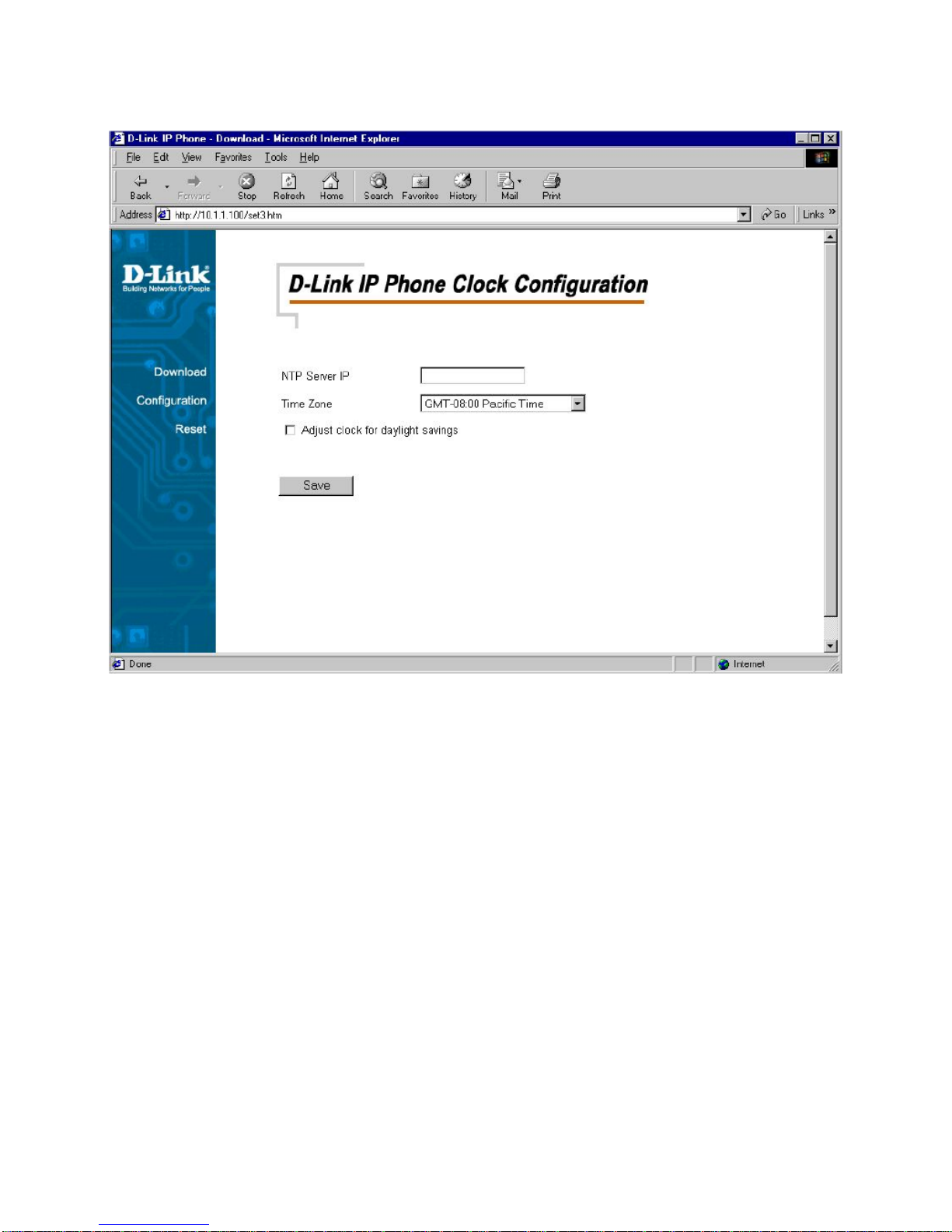

This is the clock configuration page. You can specify an NTP (Network Time
Protocol) server, select the time zone of your region, and enable or disable
adjustment for Daylight Savings Time to ensure that the phone displays the
correct local time. After configuration, click the “Save” button.
NTP Server IP: Enter the IP address of the NTP server for the phone.
The NTP Server IPmay be provided by your ISP.
Time Zone: Select the appropriate time zone from the scrollable list.

Clock Configuration Page

18
Configuration
Configuring the Phone Using a Web Browser

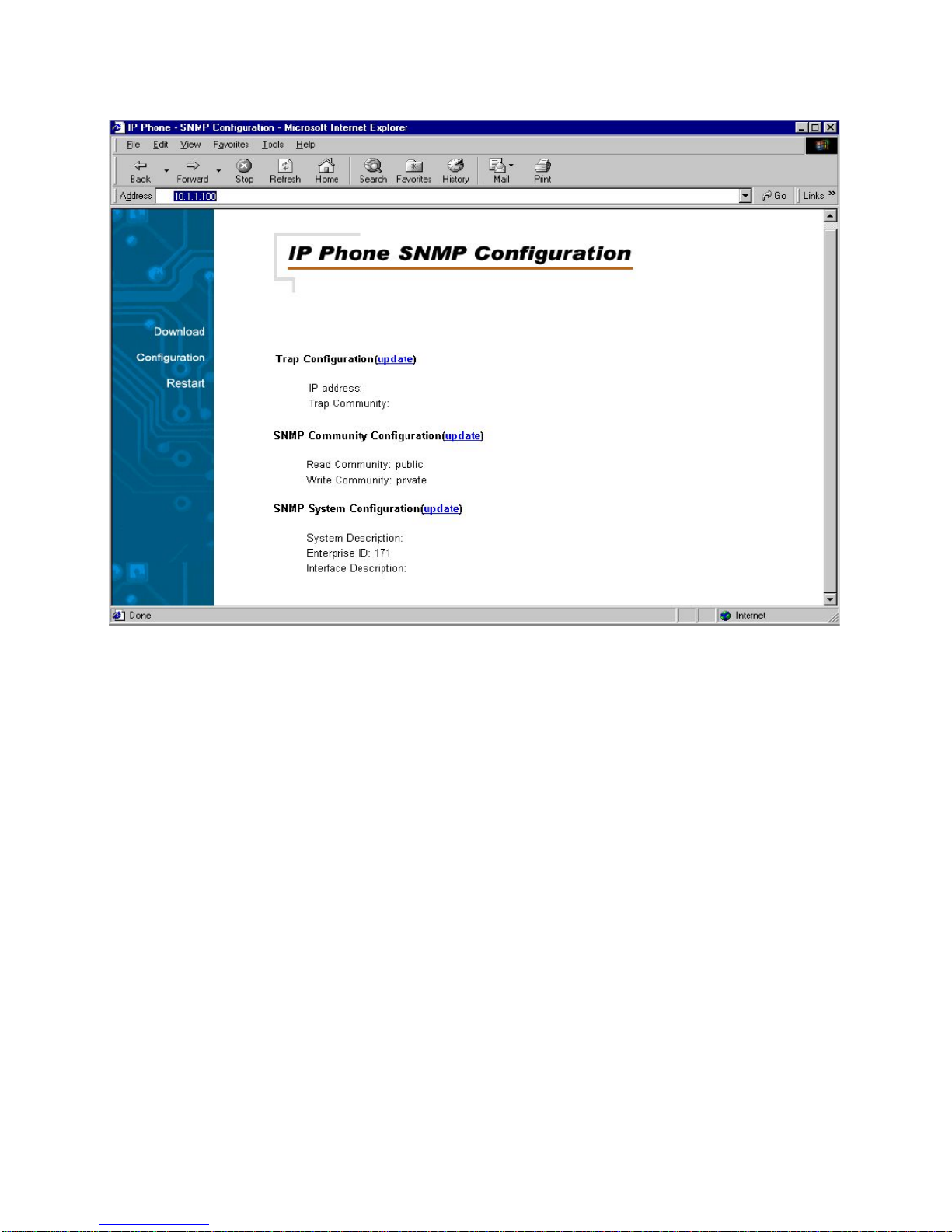

SNMPConfigurationPage
Trap Configuration: Enter the Trap server IP address and the
community name of the trap manager.
SNMP Community Configuration: Enter the community string for
access right.
SNMP System Configuration: Enter the system description and
interface description.


Note: Please contact your VoIP Service Provider for detailed information.

19
Configuration
Configuring the Phone Using a Web Browser
Download Page

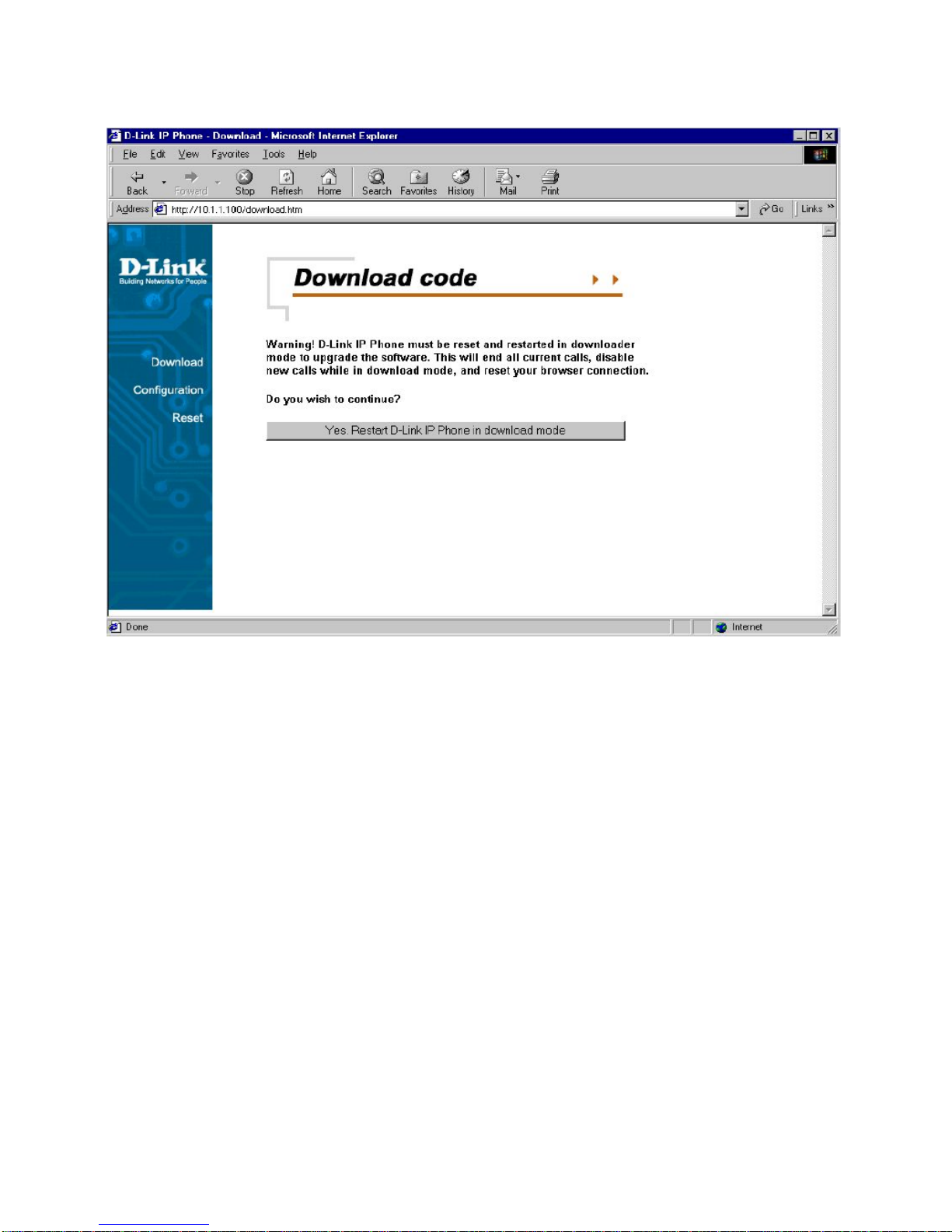

This page is used to upgrade the phone’s H.323 application software image.
Whenyouclick thispage’ssingle button,youwill betakento theTFTPdownload
page,and the phonewill be restarted indownload mode (see below for details).

20
%
Configuration
Configuring the Phone Using a Web Browser
TFTP Download Page
This is the TFTP download page. Both of the input boxes on this page must be
filled in for the TFTP download function to work.
Fill in the IP address of your TFTP server and the full path and name of the
software image file to be downloaded to the phone. Click Start Download to
make the phone request the file from the server. When the download is
finished, click the Reset button on the Reset page.
TFTP Server: This is the IP address of the TFTP server where the
application software image (also known as the “runtime file”) is located.
Filename: This is the complete name, including the path, of the runtime
image file on your TFTP server that is to be downloaded to the device.

Note: Please contact your VoIP Service Provider for detailed information.
