D-Link DPH-400S User manual

Safety Notices
Please read the following safety notices before installing or using this phone.
They are crucial for the safe and reliable operation of the device.
 Please use the external power supply that is included in the package. Other
power supplies may cause damage to the phone, affect the behavior or
induce noise.
 Before using the external power supply in the package, please check with
home power voltage. Inaccurate power voltage may cause fire and damage.
 Please do not damage the power cord. If power cord or plug is impaired, do
not use it, it may cause fire or electric shock.
 The plug-socket combination must be accessible at all times because it
serves as the main disconnecting device.
 Do not drop, knock or shake it. Rough handling can break internal circuit
boards.
 Do not install the device in places where there is direct sunlight. Also do not
put the device on carpets or cushions. It may cause fire or breakdown.
 Avoid exposure the phone to high temperature, below 0℃ or high humidity.
Avoid wetting the unit with any liquid.
 Do not attempt to open it. Non-expert handling of the device could damage it.
Consult your authorized dealer for help, or else it may cause fire, electric
shock and breakdown.
 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
it. Wipe it with a soft cloth that has been slightly dampened in a mild soap
and water solution.
 When lightning, do not touch power plug or phone line, it may cause an
electric shock.
 Do not install this phone in an ill-ventilated place.
 You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents.

Table of Content
1 INTRODUCING VOIP PHONE.................................................................................................6
1.1 SIMPLE INTRODUCTION...........................................................................................................6
1.2 DELIVERY CONTENT...............................................................................................................6
1.3 KEYPAD .................................................................................................................................7
1.4 PORT FOR CONNECTING ..........................................................................................................8
1.5 ICON INTRODUCTION ..............................................................................................................9
1.6 LED INTRODUCTION.............................................................................................................10
2 INITIAL CONNECTING AND SETTING...............................................................................10
2.1 CONNECT THE PHONE ...........................................................................................................10
2.1.1 Connect to network ..........................................................................................................10
2.1.2 Power adaptor connection ............................................................................................... 11
2.2 BASIC INITIALIZATION ..........................................................................................................12
2.2.1 Network settings ..............................................................................................................12
3 BASIC FUNCTION................................................................................................................... 13
3.1 MAKING A CALL ...................................................................................................................13
3.1.1 Call Device......................................................................................................................13
3.1.2 Call Methods ...................................................................................................................13
3.2 ANSWERING A CALL .............................................................................................................14
3.3 DND ...................................................................................................................................14
3.4 CALL FORWARD ...................................................................................................................14
3.5 CALL HOLD.......................................................................................................................... 14
3.6 CALL WAITING ....................................................................................................................15
3.7 MUTE ..................................................................................................................................15
3.8 CALL TRANSFER ................................................................................................................... 15
3.9 3-WAY CONFERENCE CALL ....................................................................................................15
3.10 MULTIPLE-WAY CALL............................................................................................................16
4 ADVANCED FUNCTION.........................................................................................................17
4.1 CALL PICKUP........................................................................................................................17
4.2 JOIN CALL ............................................................................................................................17
4.3 REDIAL / UNREDIAL .............................................................................................................17
4.4 CLICK TO DIAL .....................................................................................................................18
4.5 CALL BACK .......................................................................................................................... 18
4.6 AUTO ANSWER ..................................................................................................................... 18
4.7 HOTLINE ..............................................................................................................................18
4.8 APPLICATION .......................................................................................................................18
4.8.1 SMS.................................................................................................................................18
4.8.2 Memo ..............................................................................................................................19
4.8.3 Voice Mail....................................................................................................................... 19
4.9 PROGRAMMABLE KEY CONFIGURATION ................................................................................19

5 OTHER FUNCTIONS...............................................................................................................22
5.1 AUTO HANDDOWN ...............................................................................................................22
5.2 BAN ANONYMOUS CALL.......................................................................................................22
5.3 DIAL PLAN ...........................................................................................................................22
5.4 DIAL PEER ........................................................................................................................... 22
5.5 AUTO REDIAL ......................................................................................................................22
5.6 CALL COMPLETION ...............................................................................................................23
5.7 RING FROM HEADSET ...........................................................................................................23
5.8 POWER LIGHT ......................................................................................................................23
5.9 HIDE DTMF.........................................................................................................................23
5.10 PASSWORD DIAL...................................................................................................................23
6 BASIC SETTING ......................................................................................................................24
6.1 KEYBOAD ............................................................................................................................24
6.2 SCREEN SET .........................................................................................................................24
6.3 RINGER SET .........................................................................................................................24
6.4 VOICE VOLUME....................................................................................................................24
6.5 TIME & DATE.......................................................................................................................24
6.6 GREETING WORD .................................................................................................................25
6.7 LANGUAGE SETTING.............................................................................................................25
7 ADVANCED SETTINGS..........................................................................................................26
7.1 ACCOUNT ............................................................................................................................ 26
7.2 NETWORK ............................................................................................................................26
7.3 SECURITY ............................................................................................................................ 26
7.4 MAINTENANCE.....................................................................................................................26
7.5 FACTORY RESET ...................................................................................................................26
8 WEB CONFIGURATION.........................................................................................................27
8.1 INTRODUCTION OF CONFIGURATION ......................................................................................27
8.1.1 Ways to configure............................................................................................................27
8.1.2 Password Configuration ..................................................................................................27
8.2 SETTING VIA WEB BROWSER..................................................................................................27
8.3 CONFIGURATION VIA WEB...................................................................................................28
8.3.1 BASIC ............................................................................................................................. 28
8.3.1.1 Status ................................................................................................................................... 28
8.3.1.2 Wizard.................................................................................................................................. 29
8.3.1.3 Call Log ............................................................................................................................... 32
8.3.1.4 LANGUAGE........................................................................................................................ 32
8.3.2 Network...........................................................................................................................33
8.3.2.1 WAN.................................................................................................................................... 33
8.3.2.2 LAN..................................................................................................................................... 35
8.3.2.3 Qos&VLAN ......................................................................................................................... 36
8.3.2.4 Service Port .......................................................................................................................... 39
8.3.2.5 DHCP SEVICE .................................................................................................................... 41

8.3.2.6 TIME&DATE ...................................................................................................................... 42
8.3.3 VOIP ............................................................................................................................... 44
8.3.3.1 SIP....................................................................................................................................... 44
8.3.3.2 STUN................................................................................................................................... 52
8.3.3.3 DIAL PEER ......................................................................................................................... 54
8.3.4 Phone..............................................................................................................................57
8.3.4.1 Audio ................................................................................................................................... 57
8.3.4.2 FEATURE............................................................................................................................ 59
8.3.4.3 DIAL PLAN......................................................................................................................... 63
8.3.4.4 CONTACT ........................................................................................................................... 65
8.3.4.5 REMOTE CONTACT .......................................................................................................... 68
8.3.4.6 WEB DIAL .......................................................................................................................... 69
8.3.5 Function Key ...................................................................................................................70
8.3.6 Maintenance....................................................................................................................73
8.3.6.1 Auto Provision...................................................................................................................... 73
8.3.6.2 Syslog Config ....................................................................................................................... 76
8.3.6.3 Config .................................................................................................................................. 78
8.3.6.4 Update.................................................................................................................................. 78
8.3.6.5 ACCESS .............................................................................................................................. 80
8.4 REBOOT ............................................................................................................................... 82
8.4.1 Security ...........................................................................................................................82
8.4.1.1 Web Filter ............................................................................................................................ 82
8.4.1.2 Firewall................................................................................................................................ 83
8.4.1.3 NAT..................................................................................................................................... 84
8.4.1.4 VPN..................................................................................................................................... 87
8.4.1.5 Security................................................................................................................................ 89
8.4.2 Logout.............................................................................................................................90
9 APPENDIX ................................................................................................................................ 91
9.1 SPECIFICATION .....................................................................................................................91
9.1.1 Hardware ........................................................................................................................ 91
9.1.2 Voice features..................................................................................................................91
9.1.3 Network features..............................................................................................................92
9.1.4 Maintenance and management......................................................................................... 93
9.2 DIGIT-CHARACTER MAP TABLE .............................................................................................93

1 Introducing VoIP Phone
1.1 Simple Introduction
Thank you for your purchasing DPH-400S/DPH-400SE.DPH-400S/ DPH-400SE
is a full-feature telephone that provides voice communication over the same data
network that your computer uses. This phone functions not only much like a
traditional phone, allowing to place and receive calls, and enjoy other features
that traditional phone has, but also it owns many data services features which
you could not expect from a traditional telephone.
This guide will help you easily using the various features and services available
on your phone.
1.2 Delivery Content
Please check whether the delivery contains the following parts:
IP Phone are designed to look like conventional phones, the following photo
shows a broad overview of the IP Phone.
Item Description
IP Phone DPH-400S/DPH-400SE Phone with display and
keypad.
Power Adapter Power supply for telephone.
Network Cable Used to access network for the phone.
Handset Make phone calls with the phone’s basic functions.
Handset Cord Connected with the handset and the phone.
Quick Installation Guide Quick install the DPH-400S/DPH-400SE guide.
CD Containing manual and quick installation guide.
Warranty Safety Information Warranty Safety Information for DPH-400S/
DPH-400SE.
Base Bracket Base bracket for the phone.
Wall-mounting Screws Screws for Wall-mounting.

1.3 Keypad

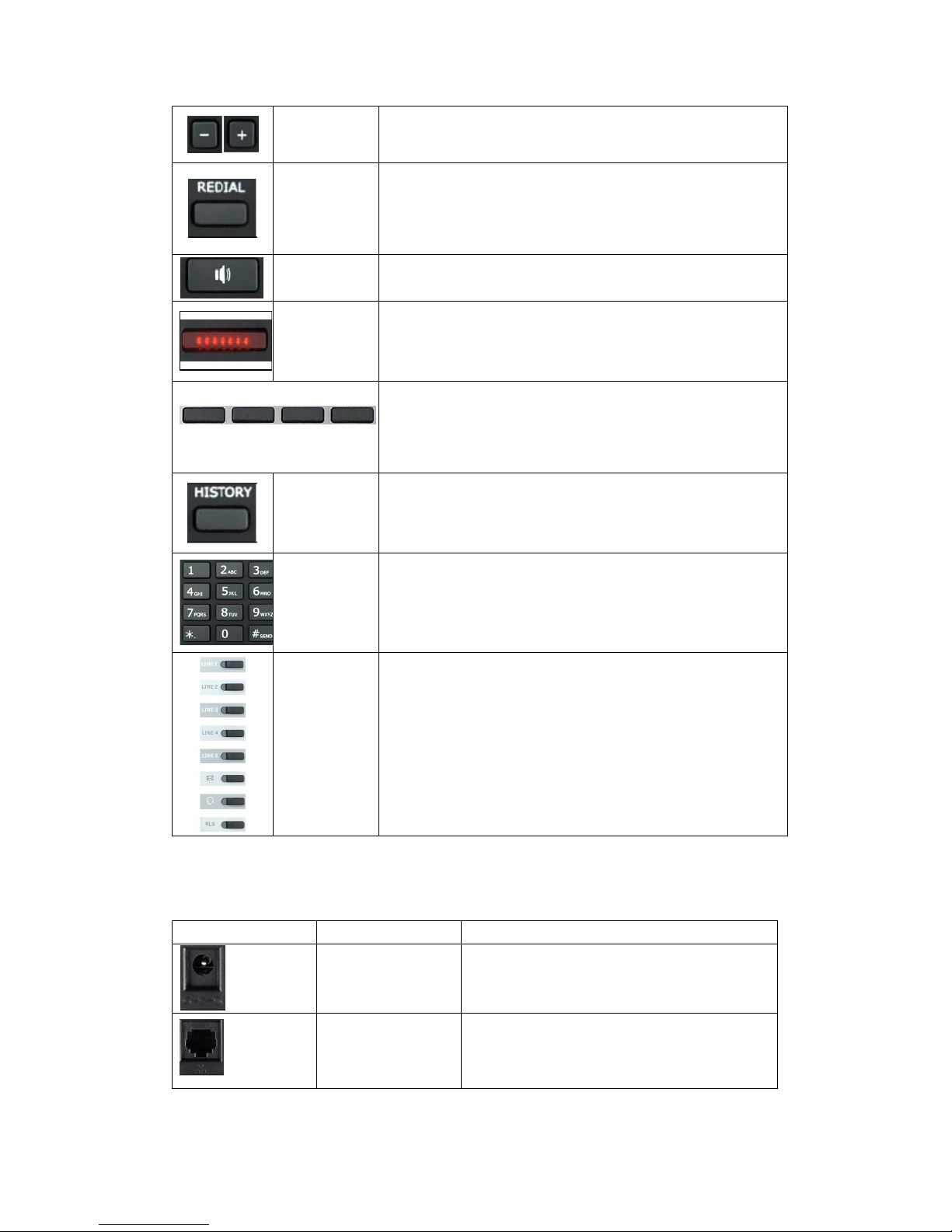

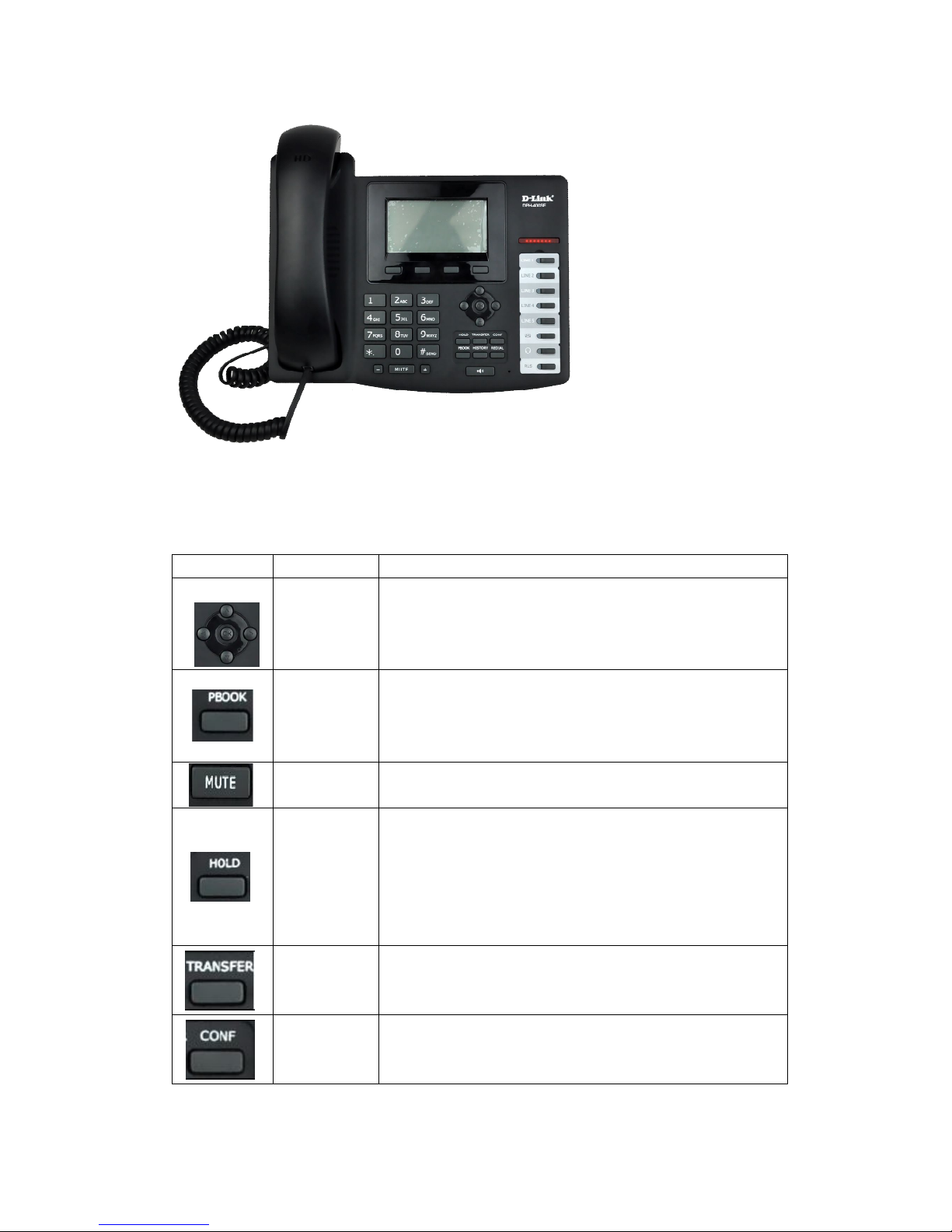

Key Key name Function Description
Navigation
Navigation keys assist users for operating.
In idle state they have special function.
You can configure through the web page according
to your patterns of use.
Phonebook
Access to phone book, check the record list and
add new records and revise the record. When check
the phone book record, press this key again will
return to idle mode.
Mute Press this key in calling mode, you can hear the
other side, and the other side cannot hear you.
Hold
Temporarily hold the active call during the talking;
press the key again to unhold the call. You also can
press this key then input the third party’s phone
number and end with the # key during calling; you
can make a call with the third party and hold the
previous calling.
Transfer
Use the key to realize blind transfer or attended
transfer.
Conference
Use this key to realize the three party call.

Volume -/+
Turn down or turn up the volume by pressing these
two keys.
Redial
1. In the hook off /hands-free mode, use the key
to dial the last call number.
2. In stand-by mode, it has a function to check the
Outgoing Call.
Hands-free
Make the phone into hands-free mode.
Indicator
light
If power on, the indicator is light.
Soft key 1/2/3/4
Keys combination, include functions such as
History/PBook /DND /Menu /Del /Redial /Send /
Quit/Answer/Divert/Reject/Hold/Transfer/Conf/Cl
ose and so on.
Call logs
View the Missed call, Incoming Call and dialed
Call.
Digital
keyboard
Inputting the phone number or DTMF.
DSS keys
Programmable keys to let you customize with
different functions. You can configure them in the
web page.
1.4 Port for connecting
Port Port name description
Power switch Input: 5V AC, 1A.
WAN 10/100M Connect it to Network.

LAN 10/100M Connect it to PC.
Headset Port type: RJ-9 connector.
Handset Port type: RJ-9 connector.
External console
interface Port type: RJ-11 direct connector.

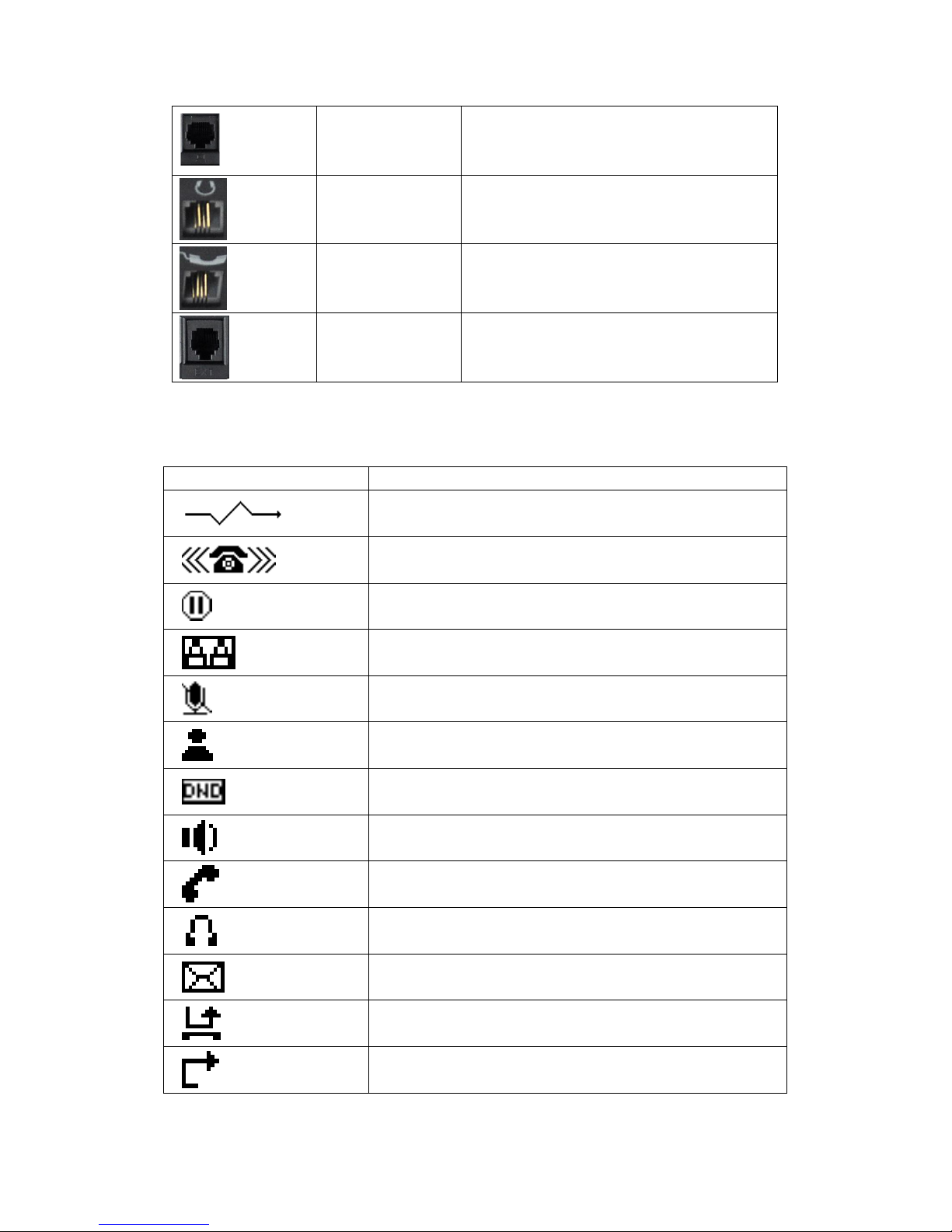

1.5 Icon introduction
Icon Description
Call out.
Call in.
Call hold.
Auto answer.
Call mute.
Contact.
DND(Do not Disturb).
In hand free mode.
In handset mode.
In headset mode.
SMS.
Missed call.
Call forward.

1.6 LED introduction
Table 1 Programmable key LEDs for BLF
LED Status Description
Steady green The object is in idle status.
Slow blinking red The object is ringing.
Steady red The object is active.
Fast blinking red The object is failed.
Off No subscribe.
Table 2 Programmable key LEDs for Presence
LED Status Description
Steady green The object is online.
Slow blinking red The object is ringing.
Steady red The object is active.
Fast blinking red The object is failed.
Off No subscribe.
Table 3 Power Indication LED
LED Status Description
Steady red Power on.
Fast Blinking red There is an incoming call.
Off Power off.
2 Initial connecting and Setting
2.1 Connect the phone
2.1.1 Connect to network
Step 1: Connect the IP Phone to the corporate IP telephony network. Before you
connect the phone to the network, please check if your network can work
normally.
You can do this in one of two ways, depending on how your workspace is set up.
Direct network connection—by this method, you need at least one available
Ethernet port in your workspace. Use the Ethernet cable in the package to
connect WAN port on the back of your phone to the Ethernet port in your
workspace. Since this VoIP Phone has router functionality, whether you have a

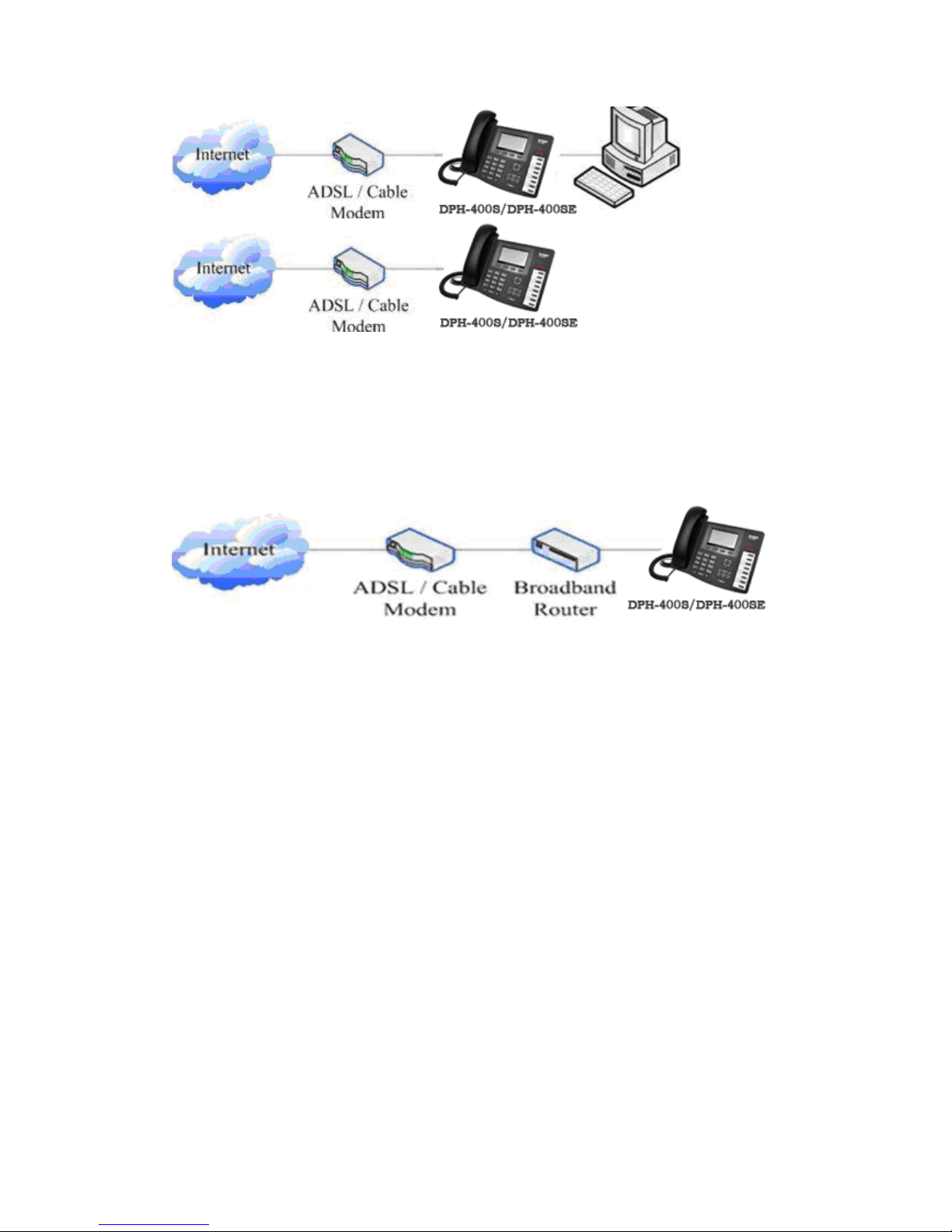

broadband router or not, you can make direct network connect. The following
two figures are for your reference.

Shared network connection—Use this method if you have a single Ethernet port
in your workspace with your desktop computer already connected to it. First,
disconnect the Ethernet cable from the computer and attach it to the WAN port
on the back of your phone. Next, use the Ethernet cable in the package to
connect LAN port on the back of your phone to your desktop computer. Your IP
Phone now shares a network connection with your computer. The following
figure is for your reference.
Step 2: Connect the handset to the handset port by the handset cable in the
package.
Step 3: connect the power supply plug to the DC 5V adapter port on the back
of the phone. Use the power cable to connect the power supply to a standard
power outlet in your workspace.
Step 4: push the on/off switch on the back of the phone to the one side, then
the phone’s LCD screen displays “INITIAZING”. Later, a ready screen typically
displays the date, time.
If your LCD screen displays different information from the above, you need
refer to the next section “Initial setting” to set your network online mode.
If your VoIP phone registers into corporate IP telephony Server, your phone is
ready to use.
2.1.2 Power adaptor connection
Make sure that the power you use is comply with the parameters of power
adaptor.
1. Plug power adaptor to power socket.
2. Plug power adaptor’s DC output to the DC5V port of
DPH-400S/DPH-400SE to start up.
3. There will be displayed black line and “INITIALIZING” on the screen. After

finishing startup, phone will show greeting, current date and time and so forth.
4. If phone has registered to the server, you can place or answer calls.
2.2 Basic Initialization
DPH-400S/DPH-400SE is provided with a plenty of functions and parameters
for configuration. User needs some network and VoIP knowledge so that user
could understand the meanings of parameters. In order to make user use the
phone more easily and convenient, there are basic configurations introduced
which is mandatory to ensure phone calls.
2.2.1 Network settings
Make sure that network is connected already before setting network of phone.
DPH-400S/DPH-400SE uses DHCP to get WAN IP configurations, so phone
could access to network as long as there is DHCP server in it. If there is no
DHCP server available, phone has to be changed WAN network setting to Static
IP or PPPoE.
Setting PPPoE mode (for ADSL connection)
1. Get PPPoE account and password first.
2. Press Menu->Settings->Advanced Setting, then enter passwords, and choose
network ->WAN->Net Mode, enter and choose PPPoE through navigation keys
and press the Save key.
3. Press Quit, then choose PPPoE Set, press Enter.
4. The screen will show the current information. Press Del to delete it, then input
your PPPoE user and password and press Save.
5. Press Quit six times to return to the idle screen.
6. Check the status. If the screen shows “Negotiating…” it shows that the phone
is trying to access to the PPPoE Server; if it shows an IP address, then the phone
has already get IP with PPPoE.
Setting Static IP mode (static ADSL/Cable, or no PPPoE / DHCP network)
1. Prepare the network’s parameters first, such as IP Address, Net mask,
Default Gateway and DNS server IP address. If you don’t know this information,
please contact the service provider or technician of network.
2. Press Menu->Settings->Advanced Setting, then enter passwords, and choose
network ->WAN->Net Mode, enter and choose Static through navigation keys
and press the Save key.
3. Press Quit, then choose Static Set, press Enter.
4. The screen will show the current information, and then press Del to delete.
Input your IP address, Mask, Gateway, DNS and press Save to save what you
input.

5. Press Quit six times to return to the idle screen.
6. Check the status, the screen shows “Static” .the screen shows the IP address
and gateway which were set just now, if the phone could display the right time, it
shows that Static IP mode takes effect.
Setting DHCP mode
1. Press Menu->Settings->Advanced Setting, then enter passwords, and choose
network ->WAN->Net Mode, enter and choose DHCP through navigation keys
and press the Save key.
2. Press Quit six times to return to the idle screen.
3. Check the status, the screen shows “DHCP”，If the screen shows the IP
address and gateway which were set just now, it shows that DHCP mode takes
effect.
3 Basic function
3.1 Making a call
3.1.1 Call Device
You can make a phone call via the following devices:
1. Pick up the handset, icon will be showed in the idle screen.
2. Press the Speaker button, icon will be showed in the idle screen.
3. Press the Headset button if the headset is connected to the Headset Port in
advance. The icon will be showed in the idle screen.
You can also dial the number first, and then choose the method you will use to
speak to the other party.
3.1.2 Call Methods
You can press an available line button if there is more than one account, then
1. Dial the number you want to call.
2. Press History softkey, use the navigation buttons to highlight your choice
(press Left/Right button to choose Missed Calls, Incoming Calls and
Outgoing Calls.
3. Press the RD button to call the last number called.
4. Press the programmable keys which are set as speed dial button.
Then press the Send button or Send softkey to make the call if necessary.

3.2 Answering a call
Answering an incoming call
1. If you are not on another phone, lift the handset using, or press the Speaker
button/ Answer softkey to answer using the speakerphone, or press the headset
button to answer the headset.
2. If you are on another call, press the answer softkey.
During the conversation, you can alternate between Headset, Handset and
Speaker phone by pressing the corresponding buttons or picking up the handset.
3.3 DND
Press DND softkey to active DND Mode. Further incoming calls will be rejected
and the display shows: icon. Press DND softkey again to deactivate DND
mode. You can find the incoming call record in the Call History.
3.4 Call Forward
This feature allows you to forward an incoming call to another phone number.
The display showed icon.
The following call forwarding events can be configured:
Off: Call forwarding is deactivated by default.
Always: Incoming calls are immediately forwarded.
Busy: Incoming calls are immediately forwarded when the phone is busy.
No Answer: Incoming calls are forwarded when the phone is not answered
after a specific period.
To configure Call Forward via Phone interface:
1. Press Menu ->Features->Enter->Call Forward->Enter.
2. There are 4 options: Off, Always, Busy, No Answer.
3. If you choose one of them (except Off), enter the phone number you want to
forward your calls to. Press Save to save the changes.
3.5 Call Hold
1. Press the Hold button or Hold softkey to put your active call on hold.
2. If there is only one call on hold, press the hold softkey to retrieve the call.
3. If there are more than one call on hold, press the line button, and the
Up/Down button to highlight the call, then press the Unhold button to retrieve
the call.

3.6 Call Waiting
1. Press Menu ->Features->Enter->Call Waiting->Enter.
2. Use the navigation keys to active or inactive call waiting.
3. Then press the Save to save the changes.
3.7 Mute
Press Mute button during the conversation, icon will be showed in the LCD.
Then the called will not hear you, but you can hear the called. Press it again to
get the phone to normal conversation.
3.8 Call transfer
1. Blind Transfer
During talk, press the key Transf, and then dial the number that you want to
transfer to, and finished by "#". Phone will transfer the current call to the third
party. After finishing transfer, the call you talk to will be hanged up. User cannot
select SIP line when phone transfers call.
2. Attended Transfer
During talk, press the key Transf, then input the number that you want to transfer
to and press Send. After that third party answers, then press Transfer to complete
the transfer. (You need enable call waiting and call transfer first). If there are two
calls, you can just talk to one, and keep hold to the other one. The one who is
keep hold cannot speak to you or hear from you. In other way, if user wants to
invite the third party during the call, they can press Conf to make calls mode in
conference mode. If user wants to stop conference, user can press Split. (User
must enable call waiting and three way call first).
Note: the server that user uses must support RFC3515 or it might not be used
3. Semi-attended Transfer
During the talk, press Transf firstly, and then press Send after inputting the
number that you want to transfer. You are waiting for connection, now, press
Transf and the transfer will be done. (To use this feature, you need enable call
waiting and call transfer first).
3.9 3-way conference call
1. Press the Conf softkey during an active call.
2. The first call is placed on hold. Then you will hear a dial tone. Dial the
number to conference in, then press Send key.

3. When the call is answered, press Conf and add the first call to the
conference.
4. If you want to release the conference, press Split key.
3.10 Multiple-way call
If user has 4 line calls and wants to invite the five party during the call, they can
press Conf or Transf “New Call”, press OK, enter the number ,then press Send
and wait for the other party to answer. When the multiple-way calls, you can
press the arrow keys to select a call.

4 Advanced function
4.1 Call pickup
Call pickup is implemented by simulating pickup function of PBX. it’s that,
when A calls B, B rings but no answer, at this moment, C can hook off and input
an appointed prefix plus B’s number, pick up A’s call and talk with A.
The following chart shows how to configure an appointed prefix in dial peer to
have call pick up function.
*1* means appointed prefix code. After making the above configuration, C can
dial *1* plus B’s phone number to pick up A’s call. User can set prefix in
random, in the case of no affecting current dialing rules.
4.2 Join call
When B is calling C, A can join in the existing call by inputting an appointed
prefix numbers plus B or C number, if B or C also supports join call.
The following chart shows how to configure an appointed prefix in dial peer to
have join call function.
*2* means appointed prefix code. After making the above configuration, A can
dial *2* plus B or C number to join B and C’s call. User can set prefix in random,
in the case of no affecting current dialing rules.
4.3 Redial / Unredial
If B is in busy line when A calls B, A will get notice: busy, please hang up. If A
want to connect B as soon as B is in idle, he can use redial function at the
moment and he can dials an appointed prefix number plus B’s number to realize
redial function.
What is redial function? A can’t not build a call with B when B is in busy, then
A will subscribe B’s calling mode at 60 second intervals. Once B is available, A
will get reminder of rings to hook off, while A hooks off, A will call B
automatically. If at this time A is occupied temporarily and unwilling to contact
B, A also can cancel the redial function by dialing an appointed prefix plus B’s
number before making the redial function.

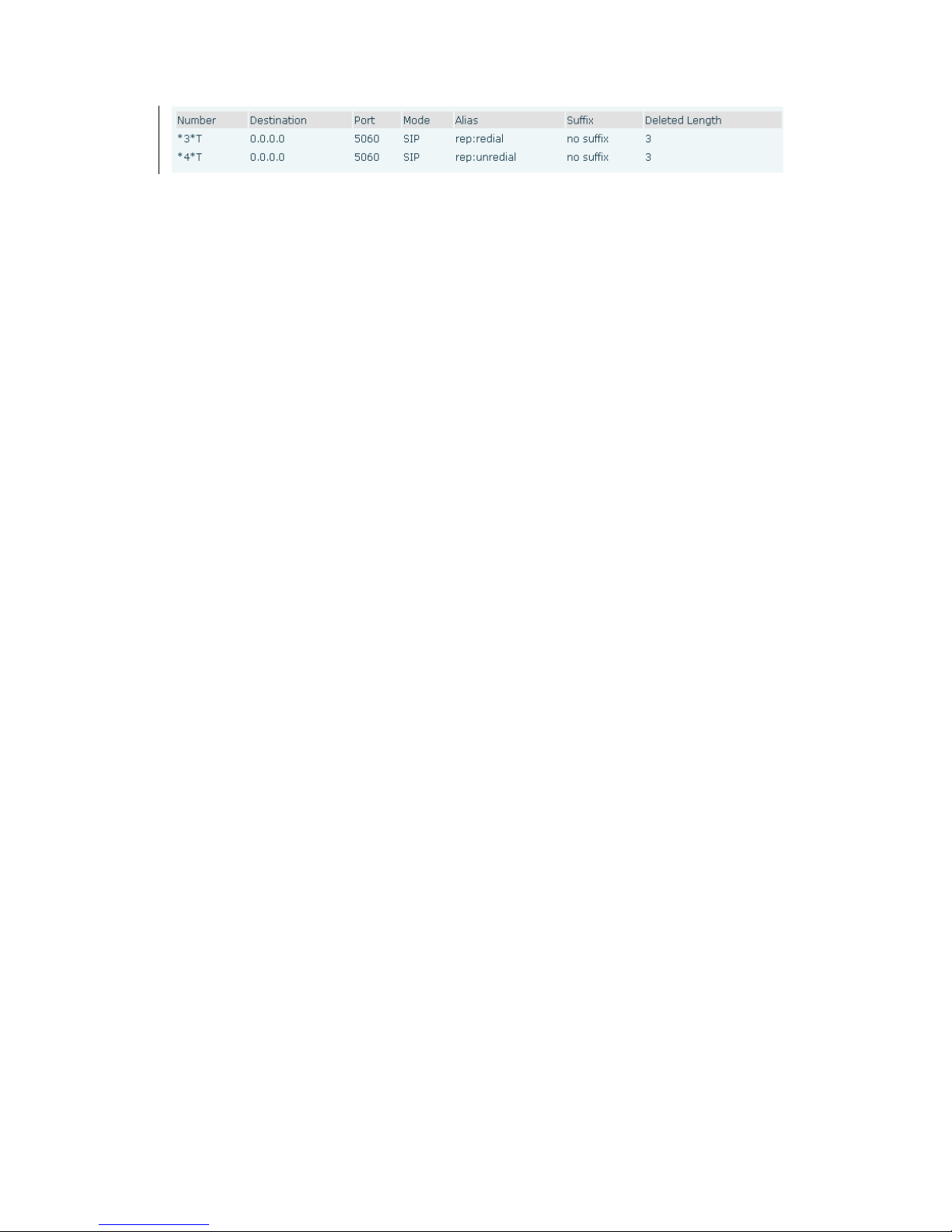

*3* is appointed prefix code. After making the above configuration, A can dial
*3* plus B’s phone number to make the redial function.
*4* is appointed prefix code. After configuration, A can dial *4* to cancel redial
function.
User can set prefix in random, in the case of no affecting current dialing rules.
4.4 Click to dial
When user A browses in an appointed Web page, user A can click to call user B
via a link (this link to user B), then user A’s phone will ring, after A hooks off,
the phone will dial to B.
4.5 Call back
This function allows you dial out the last phone call you received.
4.6 Auto answer
When there is an incoming call, after no answer time, the phone will answer the
call automatically.
4.7 Hotline
You can set hotline number for every sip, and then enter the dialer interface and
after Warm Line Time, the phone will call out the hotline number automatically.
4.8 Application
4.8.1 SMS
1) Press Menu ->Application->Enter->SMS->Enter.
2) Use the navigation keys to highlight the options. You can read the message in
the Inbox/Outbox.
3) After view the new message, you can press Reply to reply the message, and
use the 123 softkey to change the Input Method, when enter the reply message,
press OK, then use the navigation keys to select the line from which you want to
send, then Send.

4) If you want to write a message, you can press New and enter message. Use the
123 softkey to change the Input Method. When you input the message you want
to send, press OK, then use the navigation keys to select the line from which you
want to send, then Send.
5) If you want to delete the message, after view the message, press Del, then you
have three options to choose: Yes, All, No.
4.8.2 Memo
You can add some memos to record some important things to remind you.
Press Menu->Application->Memo->Enter->Add.
There are some options to configure: Mode, Date, Time, text, Ring. When the
configuration is completed, press Save.
4.8.3 Voice Mail
1) Press Menu->Voice Mail->Enter.
2) Use the navigation keys to highlight the line for which you want to set, press
Edit, and use the navigation key to turn on the mode, and the input the number.
Press 123 softkey to choose the proper input method.
3) Press Save to save the change.
4) To view the new voicemail, Press the Voicemail softkey directly. Press Dial,
then you may be prompted to enter the password, then you can listen to your
new and old messages.
4.9 Programmable Key Configuration
The phone has 12 programmable keys which are able to set up to many functions
per key. The following list shows the functions you can set on the programmable
keys and provides a description for each function. The default configuration for
each key is N/A which means the key hasn’t been set for any functions.
1. Set the type as Memory Key
Press Menu->Settings->Basic Setting->Enter->DSS Key, you have two options:
Line As DSS Keys and Memory As DSS Keys, choose one you want to make
the assignment, use the navigation key to choose the type as memory key. In the
Dial field, you have some options, such as Normal, Speed Dial, Intercom, BLF,
Presence, and MWI.
Speed dial
You can configure the key as a simplified speed dial key. This key function
allows you to easily access your most dialed numbers.
Push to talk
You can configure the key for Push to talk code and it is useful in an office

environment as a quick access to connect to the operator or the secretary.
BLF
BLF is also called “Busy lamp field”, and it is used to prompt the user to pay
attention to the state of the object than has been subscribed, and used to
cooperate with the server to pick up the phone call. You can configure the key
for Busy Lamp Field (BLF) which allows you to monitor the status (idle, ringing,
or busy) of other SIP account. User can dial out on a BLF configured key. Please
refer to “LED Instruction” for more detail about the LED status in different
situation.
Note: In the Web interface, you can also set the pickup number to active the
pickup function. For example, if you set the BLF number as 212, and the pickup
number is 189, then when there is an incoming call to 212, press the BLF key, it
will call out the 189 automatically to pick up the incoming call on 212.
Presence
Presence is called present, and compared to the BLF, it can also check whether
object online.
Note: You can subscribe the BLF and presence station of the same number at the
same time.
MWI
When the key is configured as MWI, you are allowed to access voicemail
quickly by pressing this key.
2. Set the type as Line
You can set these keys as line keys, and press it, it will enter dialer interface.
3. Set the type as Key Event
You can set these keys as Key Event, and the subtype have many options.
Choose one and it will have corresponding function.
 None
 MWI
 DND (Do Not Disable)
 Hold
 Auto Redial On
 Auto Redial Off
 Transfer
 Phone Book
 Redial
 Pick up
 Join
 Call Forward
 History
 Flash
 Memo
 Headset
 Release: Press the key you can end the call.
 Lock: Press the key you can lock the keyboard.
