D-Link DPH-80 User manual

DPH-80 IP Phone
User’s Guide
Version 1.0
Copyright©2003 D-Link Corporation
Printed in Taiwan

Warranty and Registration
Trademarks
Copyright 2003 D-Link Corporation.
Contents subject to change without prior notice.
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. All other
trademarks belong to their respective proprietors.
Copyright Statement
No part of this publication may be reproduced in any form or by any means or used to
make any derivative such as translation, transformation, or adaptation without
permission from D-Link Corporation/D-Link Systems Inc., as stipulated by the United
States Copyright Act of 1976.
Hardware:
D-Link warrants each of its hardware products to be free from defects in workmanship
and materials under normal use and service for a period commencing on the date of
purchase from D-Link or its Authorized Reseller and extending for the length of time
stipulated by the Authorized Reseller or D-Link Branch Office nearest to the place of
purchase.
This Warranty applies on the condition that the product Registration Card is filled out
and returned to a D-Link office within ninety (90) days of purchase. A list of D-Link
offices is provided at the back of this manual, together with a copy of the Registration
Card.
If the product proves defective within the applicable warranty period, D-Link will
provide repair or replacement of the product. D-Link shall have the sole discretion
whether to repair or replace, and replacement product may be new or reconditioned.
Replacement product shall be of equivalent or better specifications, relative to the
defective product, but need not be identical. Any product or part repaired by D-Link
pursuant to this warranty shall have a warranty period of not less than 90 days, from
date of such repair, irrespective of any earlier expiration of original warranty period.
When D-Link provides replacement, then the defective product becomes the property of
D-Link.
Warranty service may be obtained by contacting a D-Link office within the applicable
warranty period, and requesting a Return Material Authorization (RMA) number. If a
Registration Card for the product in question has not been returned to D-Link, then a
proof of purchase (such as a copy of the dated purchase invoice) must be provided. If
Purchaser's circumstances require special handling of warranty correction, then at the
time of requesting RMA number, Purchaser may also propose special procedure as may
be suitable to the case.
After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in
transit, and the RMA number must be prominently marked on the outside of the
package. The package must be mailed or otherwise shipped to D-Link with all costs of
mailing/shipping/insurance prepaid. D-Link shall never be responsible for any software,
firmware, information, or memory data of Purchaser contained in, stored on, or
integrated with any product returned to D-Link pursuant to this warranty.

Any package returned to D-Link without an RMA number will be rejected and shipped
back to Purchaser at Purchaser's expense, and D-Link reserves the right in such a case
to levy a reasonable handling charge in addition mailing or shipping costs.
Software:
Warranty service for software products may be obtained by contacting a D-Link office
within the applicable warranty period. A list of D-Link offices is provided at the back of
this manual, together with a copy of the Registration Card. If a Registration Card for
the product in question has not been returned to a D-Link office, then a proof of
purchase (such as a copy of the dated purchase invoice) must be provided when
requesting warranty service. The term "purchase" in this software warranty refers to
the purchase transaction and resulting license to use such software.
D-Link warrants that its software products will perform in substantial conformance
with the applicable product documentation provided by D-Link with such software
product, for a period of ninety (90) days from the date of purchase from D-Link or its
Authorized Reseller. D-Link warrants the magnetic media, on which D-Link provides
its software product, against failure during the same warranty period. This warranty
applies to purchased software, and to replacement software provided by D-Link
pursuant to this warranty, but shall not apply to any update or replacement which may
be provided for download via the Internet, or to any update which may otherwise be
provided free of charge.
D-Link's sole obligation under this software warranty shall be to replace any defective
software product with product which substantially conforms to D-Link's applicable
product documentation. Purchaser assumes responsibility for the selection of
appropriate application and system/platform software and associated reference
materials. D-Link makes no warranty that its software products will work in
combination with any hardware, or any application or system/platform software product
provided by any third party, excepting only such products as are expressly represented,
in D-Link's applicable product documentation as being compatible. D-Link's obligation
under this warranty shall be a reasonable effort to provide compatibility, but D-Link
shall have no obligation to provide compatibility when there is fault in the third-party
hardware or software. D-Link makes no warranty that operation of its software
products will be uninterrupted or absolutely error-free, and no warranty that all defects
in the software product, within or without the scope of D-Link's applicable product
documentation, will be corrected.
D-Link Offices for Registration and Warranty Service
The product's Registration Card, provided at the back of this manual, must be sent to a
D-Link office. To obtain an RMA number for warranty service as to a hardware product,
or to obtain warranty service as to a software product, contact the D-Link office nearest
you. An addresses/telephone/fax list of D-Link offices is provided in the back of this
manual.
2

LIMITATION OF WARRANTIES
IF THE D-LINK PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE
CUSTOMER'S SOLE REMEDY SHALL BE, AT D-LINK'S OPTION, REPAIR OR
REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR
OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. D-LINK NEITHER ASSUMES NOR AUTHORIZES
ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF
D-LINK'S PRODUCTS
D-LINK SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT
DOES NOT EXIST OR WAS CAUSED BY THE CUSTOMER'S OR ANY THIRD
PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING,
UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR
OTHER HAZARD.
LIMITATION OF LIABILITY
IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS
OF DATA, LOSS OF PROFITS, COST OF COVER OR OTHER INCIDENTAL,
CONSEQUENTIAL OR INDIRECT DAMAGES ARISING OUT THE INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE OR INTERRUPTION OF A
D-LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY.
THIS LIMITATION WILL APPLY EVEN IF D-LINK HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
IF YOU PURCHASED A D-LINK PRODUCT IN THE UNITED STATES, SOME
STATES DO NOT ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
3

The device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
4

Table of Contents
Warranty and Registration___________________________________________________________ 1
1. Introduction ____________________________________________________________________ 8
2. Features _______________________________________________________________________ 9
3. Technical Features______________________________________________________________ 9
4. Overview_______________________________________________________________________ 9
5. Installation ____________________________________________________________________ 10
5.1. Unpacking_________________________________________________________________ 10
5.2. System Requirements______________________________________________________ 10
5.3. Installation Procedure______________________________________________________ 10
6. Basic Configuration____________________________________________________________ 10
6.1. IP Address ________________________________________________________________ 10
7. Final Configuration_____________________________________________________________ 13
8. MGCP (Media Gateway Control Protocol) ________________________________________ 14
8.1. IP Phone Configuration_____________________________________________________ 14
8.1.1. Infrastructure Requirements ______________________________________________ 14
8.2. Configuring the MGCP phone _______________________________________________ 14

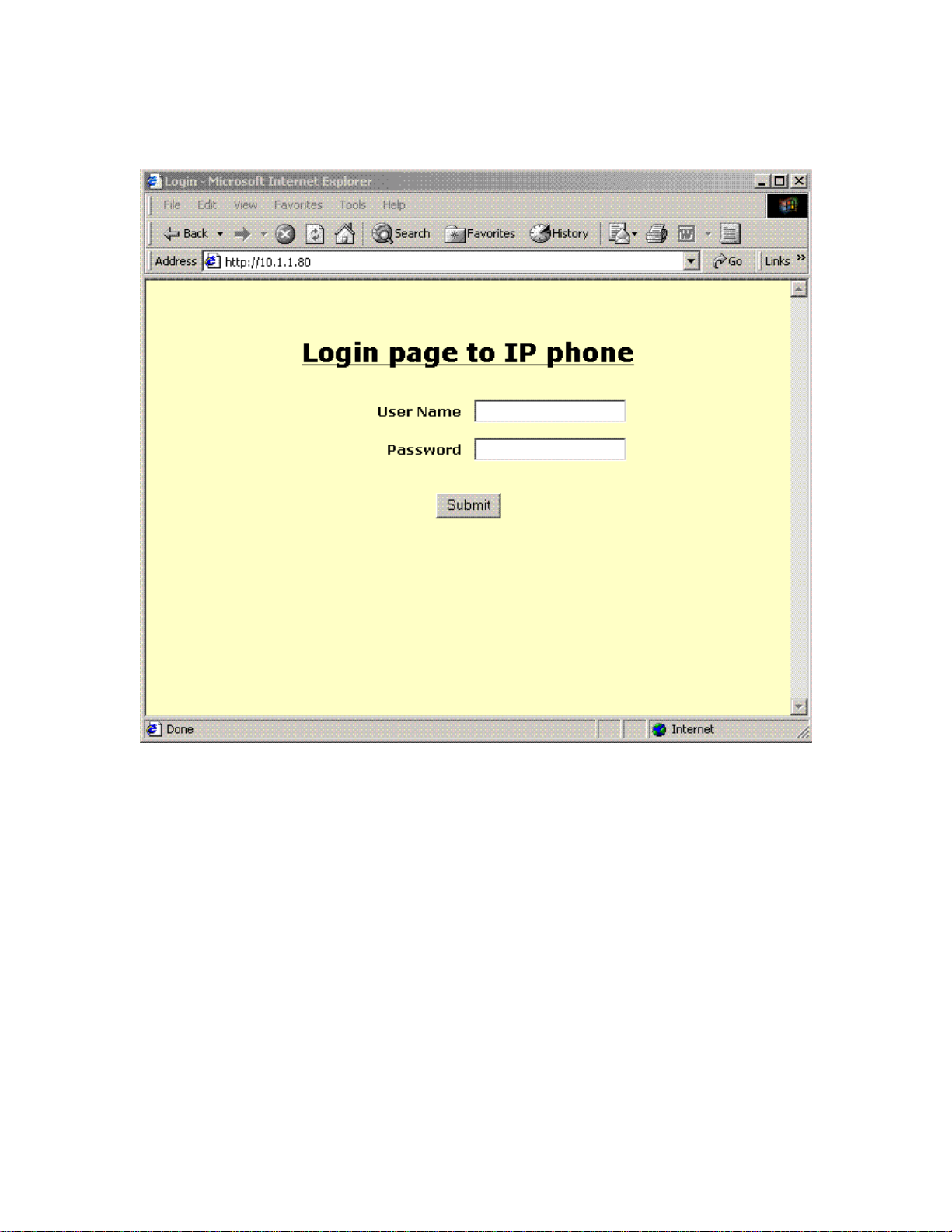

8.2.1. Login Page to IP phone __________________________________________________ 15

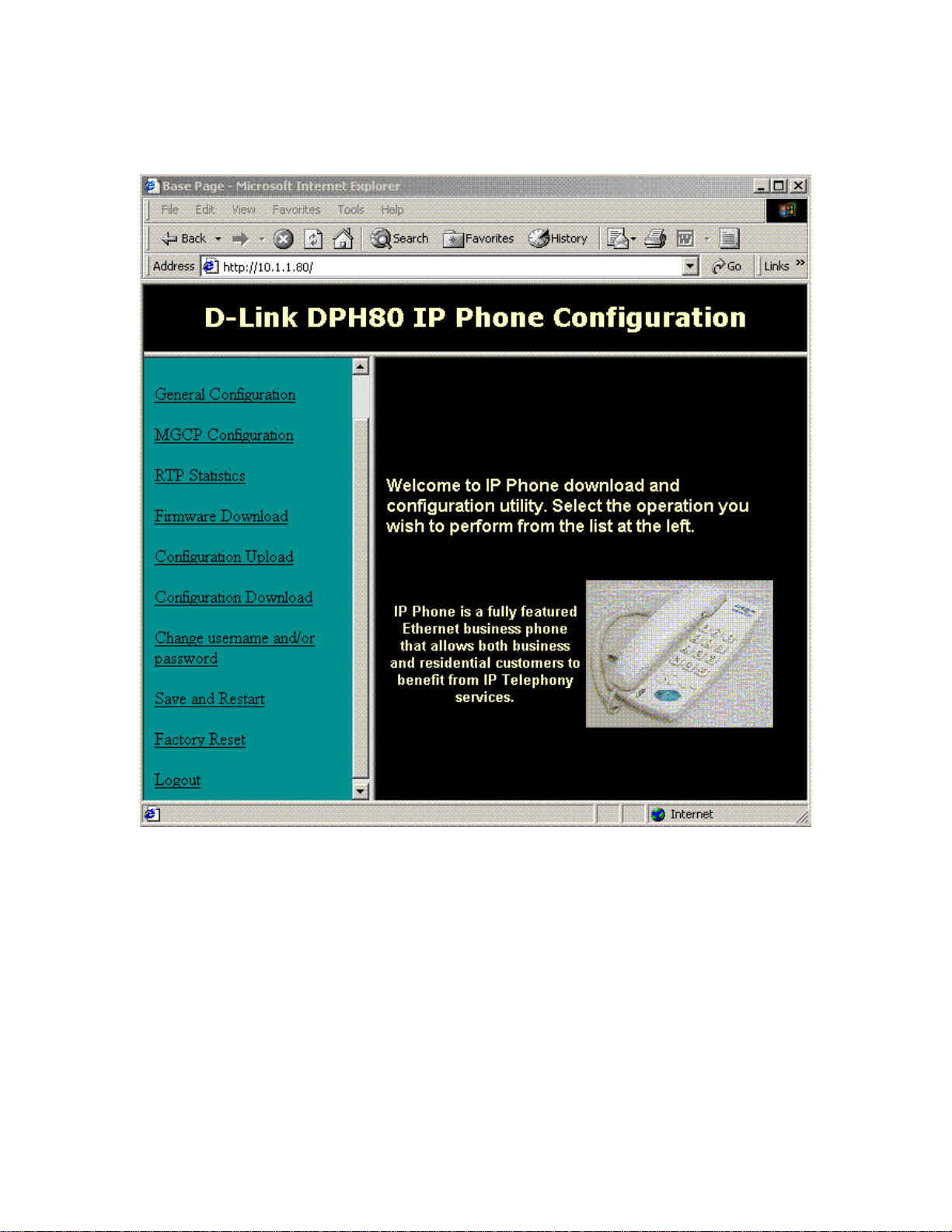

8.2.2. Configuration Main Page _________________________________________________ 16

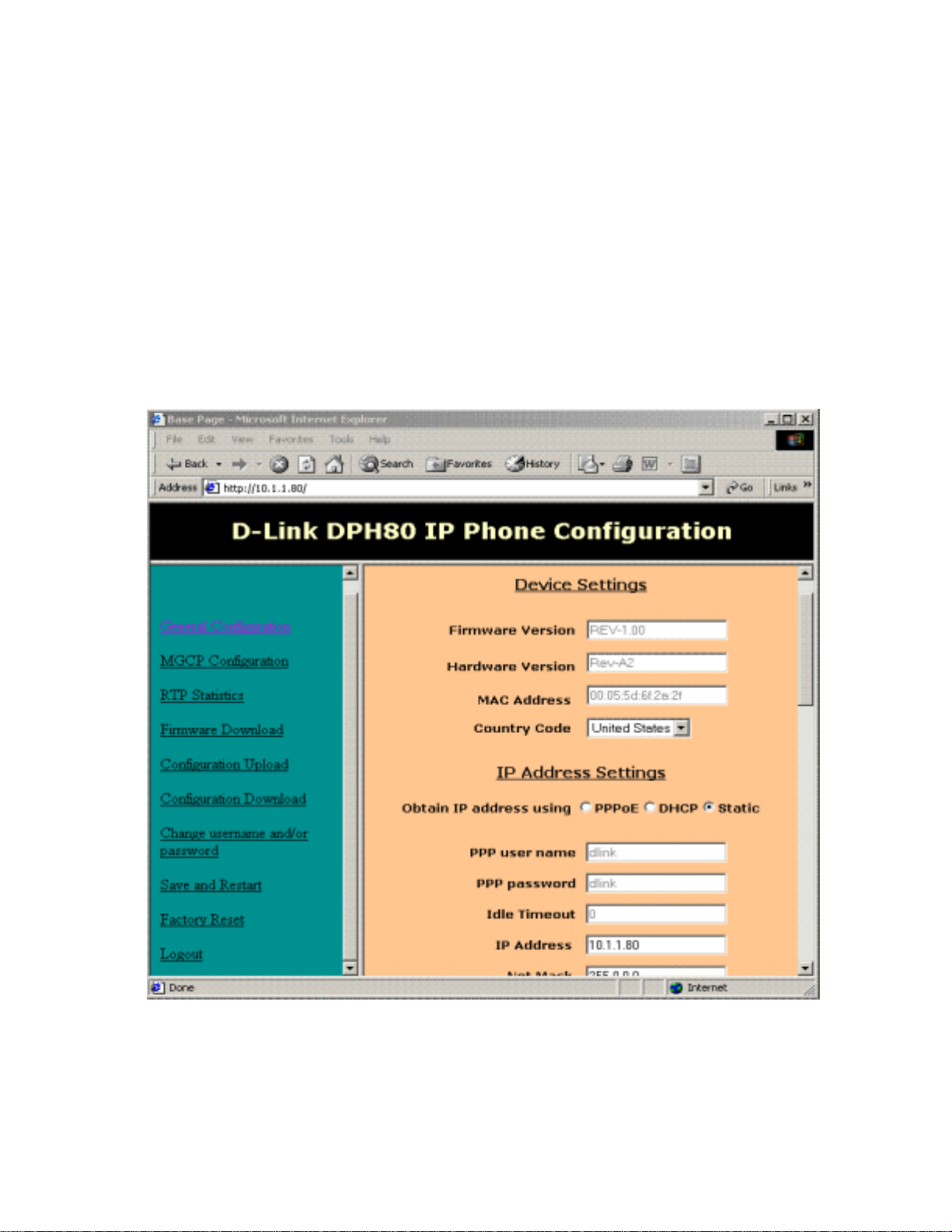

8.2.3. General Configuration ___________________________________________________ 16

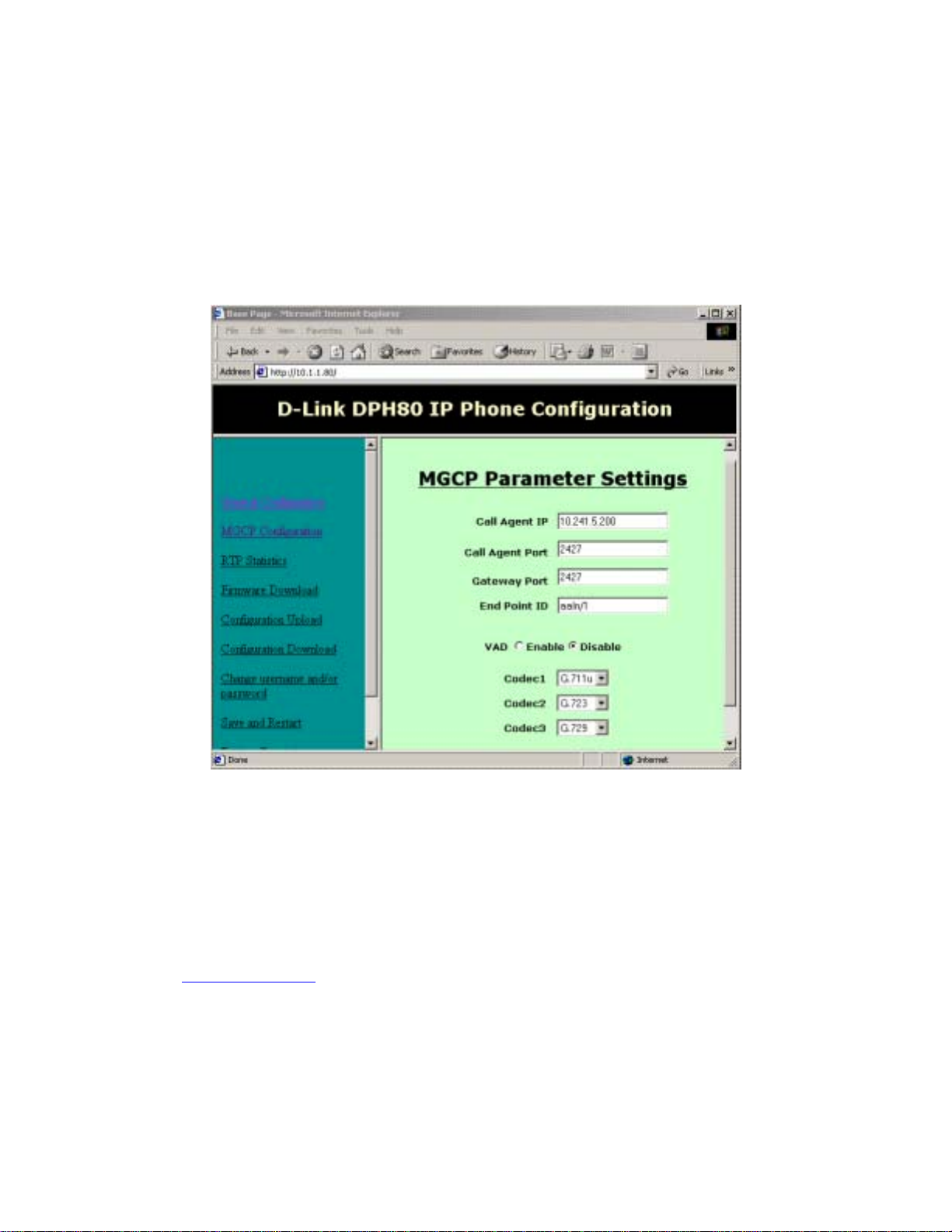

8.2.4. MCGP Configuration ____________________________________________________ 19
8.2.5. RTP Statistics __________________________________________________________ 21
8.2.6. Firmware Download _____________________________________________________ 21
8.2.7. Configuration Upload ____________________________________________________ 23
8.2.8. Configuration Download__________________________________________________ 23
8.2.9. Change Login Name and Password _______________________________________ 24
8.2.10. Save and Restart _______________________________________________________ 25
8.2.11. Factory Reset __________________________________________________________ 25
8.2.12. Logout_________________________________________________________________ 26
8.3. Using the MGCP Phone_____________________________________________________ 26
8.3.1. MGCP Phone Features __________________________________________________ 26
8.3.2. Tones _________________________________________________________________ 26
8.3.3. Calling Features ________________________________________________________ 27
8.3.4. Algorithms _____________________________________________________________ 27
8.3.5. Other features __________________________________________________________ 27
8.4. MGCP Troubleshooting_____________________________________________________ 28
8.4.1. Error Conditions ________________________________________________________ 28
8.4.2. Power-up ______________________________________________________________ 28
8.4.3. Making a call ___________________________________________________________ 28
8.4.4. Browser access_________________________________________________________ 29
8.4.5. Other functions _________________________________________________________ 29
9. DPH-80 SIP (Session Initiation Protocol) _________________________________________ 31
9.1. IP Phone Configuration_____________________________________________________ 31
5

9.1.1. Infrastructure Requirements ______________________________________________ 31
9.2. Configuring the SIP phone__________________________________________________ 31
9.2.1. Login page to IP phone __________________________________________________ 32
9.3. Configuration Main Page ___________________________________________________ 33
9.3.1. General Configuration ___________________________________________________ 33
9.4. SIP Configuration __________________________________________________________ 36
9.4.1. RTP Statistics __________________________________________________________ 38
9.4.2. Firmware Download _____________________________________________________ 38
9.4.3. Configuration Upload ____________________________________________________ 39
9.4.4. Configuration Download__________________________________________________ 40
9.4.5. Change Login Name and Password _______________________________________ 40
9.4.6. Save and Restart _______________________________________________________ 41
9.4.7. Factory Reset __________________________________________________________ 42
9.4.8. Logout_________________________________________________________________ 42
9.5. Using the SIP Phone _______________________________________________________ 43
9.5.1. LEDs__________________________________________________________________ 43
9.5.2. Tones _________________________________________________________________ 43
9.5.3. SIP phone Features _____________________________________________________ 43
9.5.4. Algorithms _____________________________________________________________ 44
9.5.5. Other features __________________________________________________________ 44
9.6. SIP Troubleshooting _______________________________________________________ 44
9.6.1. Error Conditions ________________________________________________________ 44
9.6.2. Power up ______________________________________________________________ 45
9.6.3. Making a call ___________________________________________________________ 45
9.6.4. Browser access_________________________________________________________ 45
9.6.5. Other functions _________________________________________________________ 46
10. DPH-80 H.323 Protocol _______________________________________________________ 47
10.1. IP Phone Configuration___________________________________________________ 47
10.1.1. Infrastructure Requirements ______________________________________________ 47
10.2. Configuring the H.323 phone______________________________________________ 47
10.2.1. Login Page_____________________________________________________________ 48
10.3. Configuration Main Page _________________________________________________ 49
10.3.1. General Configuration ___________________________________________________ 49
10.3.2. H.323 Parameters_______________________________________________________ 52
10.3.3. RTP Statistics __________________________________________________________ 53
10.3.4. Firmware Download _____________________________________________________ 53
10.3.5. Configuration Upload ____________________________________________________ 55
10.3.6. Configuration Download__________________________________________________ 55
10.3.7. Change Login Name and Password _______________________________________ 56
10.3.8. Save and Restart _______________________________________________________ 57
10.3.9. Factory Reset __________________________________________________________ 57
10.3.10. Logout_______________________________________________________________ 58
10.4. Using the H.323 Phone ___________________________________________________ 58
10.4.1. LEDs__________________________________________________________________ 58
10.4.2. Tones _________________________________________________________________ 58
10.4.3. Phone Features_________________________________________________________ 59
10.4.4. Algorithms _____________________________________________________________ 59
10.4.5. Other features __________________________________________________________ 59
10.5. Error Conditions _________________________________________________________ 60
6

10.6. H.323 Troubleshooting ___________________________________________________ 60
10.6.1. Power up ______________________________________________________________ 60
10.6.2. Making a call ___________________________________________________________ 60
10.6.3. Browser access_________________________________________________________ 61
10.6.4. Other functions _________________________________________________________ 61
11. DPH80 New Firmware Download Procedure____________________________________ 63
11.1. New Firmware Release ___________________________________________________ 63
11.2. Configuration____________________________________________________________ 63
11.3. Downloading ____________________________________________________________ 64
12. Configuration Upload and Download __________________________________________ 65
12.1. Configuration Upload ____________________________________________________ 65
12.1.1. Upload configuration_____________________________________________________ 65
12.1.2. Upload procedure _______________________________________________________ 65
12.2. Configuration Download__________________________________________________ 65
12.2.1. Download configuration __________________________________________________ 66
12.2.2. Download procedure ____________________________________________________ 66
13. SIP and H.323 Phone Book ___________________________________________________ 67
13.1. SIP phone book__________________________________________________________ 67
13.2. H.323 phone book________________________________________________________ 67
7

1. Introduction

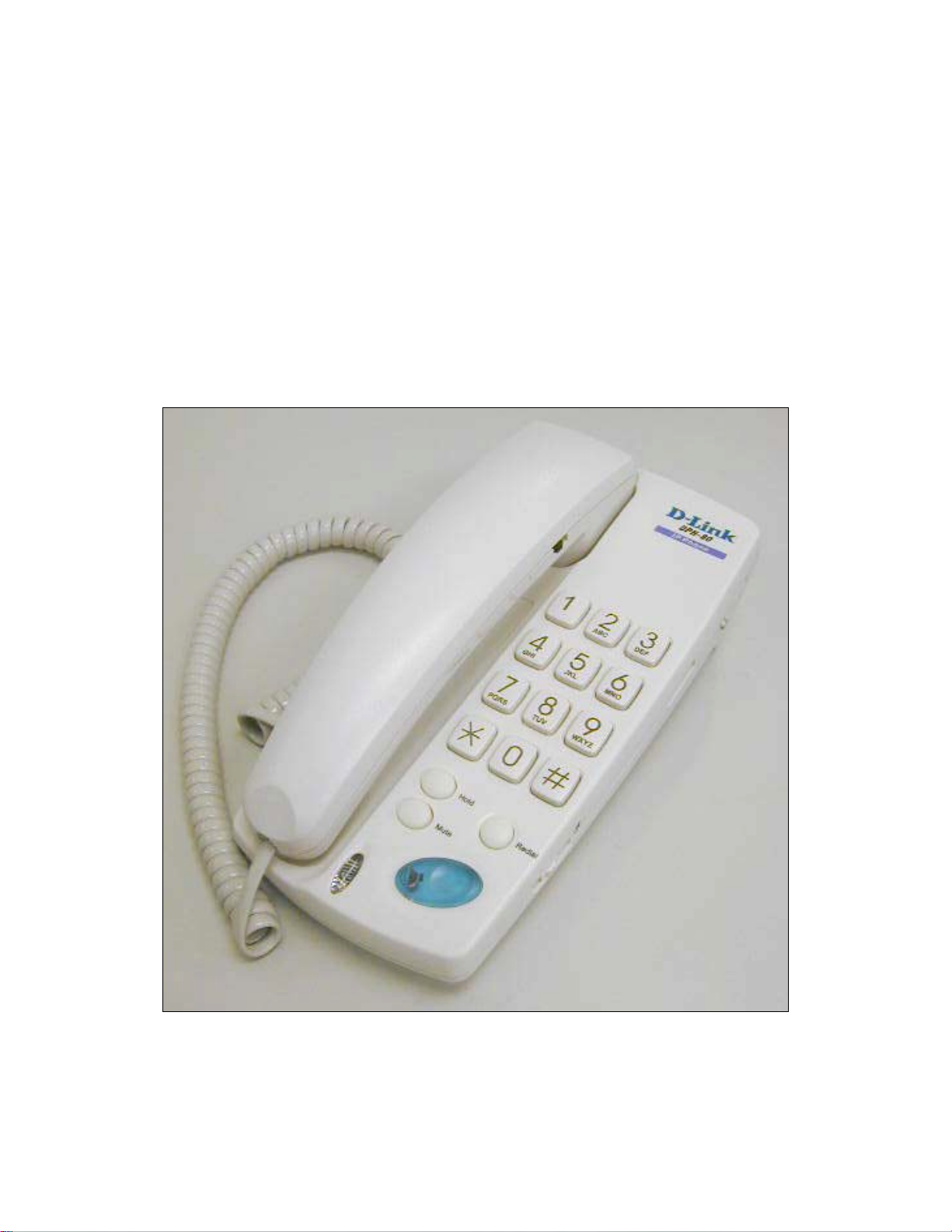

The D-Link DPH-80 is a fully featured Ethernet business phone that allows both
business and residential customers to benefit from IP Telephony services. It reduces
costs by receiving local and long distance voice services and data services over a single
network connection.
This easy to use IP Phone simply plugs right into the local area network through a
standard RJ45 interface. The DPH-80 utilizes 10/100BASE-TX for Ethernet
connectivity and supports telephone network features such as Call Redial. In addition,
it provides access to a host of features for business applications, including hold, mute
and one-touch dialing.
8

2. Features
• IP address assignment using DHCP (Dynamic Host Configuration Protocol),
PPPoE, or static configuration
• Silence suppression and comfort noise generation that make the user feel
natural when connected
• Adaptive jitter buffer for a smooth voice reception
• DTMF tone generation
• Lost packet recovery ability for improved voice quality
• Adjustable speaker/ringer volume control
• Remote software update support
• Easy to install
• One-touch dialing (Note: this feature is not a speakerphone. It allows you to
dial a number without using the handset. Once the party you are calling picks
up, you must use the handset to talk.)
• Call hold
• Last number redial
• Mute
• Call transfer
3. Technical Features
• Call control protocols: H.323, SIP, MGCP
• Voice compression: G.711 (A-Law/W-Law), G.723.1, G729A/AB
• WAN connection: through 10/100 Mpbs Fast Ethernet port
• H.450 Call transfer/Call on hold (for H.323)
4. Overview
The D-Link DPH-80 is a low cost, simple to use and extremely versatile IP phone with
the look and feel of a normal PSTN phone.
The D-Link IP Phone can operate under any of the three main Internet telephony
protocols: Media Gateway Control Protocol (MGCP); Session Initiation Protocol (SIP);
and the H.323 protocol. These protocols are used for signaling, maintaining, and tearing
down voice calls. The D-Link IP phone allows voice data to be carried over the same
path used by your computer for the Internet or Local Area Network (LAN).
The D-Link DPH-80 phone is easy to install and supports plug and play features of the
IP network. Out of the box, your IP phone will work in any of the above-mentioned
three protocol infrastructures with minimal configuration. Advanced, customized
configuration is easily achieved through a web-browser configuration utility.
D-Link IP phones support remote maintenance, allowing software to be upgraded
remotely for new features and any bug fixes. The DPH-80 supports a unique remote
diagnostic feature to monitor phone functions and performance.
9

The DPH-80 implements a sophisticated low-latency adaptive jitter buffer algorithm to
combat packet loss and jitter in inter-arrival time of voice transmissions.
This User Manual describes the features and functions of the D-Link IP Phone, with
separate sections for MGCP, SIP, and H.323 configuration and troubleshooting.
5. Installation
5.1. Unpacking
Open the shipping carton and carefully remove all items. In addition to this User's
Guide, make sure you have received all of the following items:
• IP phone
• Handset
• Handset cord
• Power adapter
If any item appears to be missing or damaged, please contact your local reseller.
5.2. System Requirements
• Internet connection or LAN
• Local power outlet
• RJ-45 Ethernet cable
5.3. Installation Procedure
The following are steps will install and power-on your DPH-80 IP phone.
1. Connect the RJ-45 Ethernet cable from the DPH-80 to a LAN jack.
2. Plug the power adapter into the appropriate wall outlet.
3. Plug the power adapter plug into the power jack.
6. Basic Configuration
6.1. IP Address
In order to use a Web browser to configure the DPH-80 IP phone, you must make sure
the phone has a valid Ethernet connection to a PC or LAN via its Ethernet port. We
recommend using a recent version of any widely used browser such as Netscape or
Internet Explorer. The browser must have JavaScript enabled. The following
illustrations use Windows 2000 and Internet Explorer 5.5.
The DPH-80 comes with a default IP address of 10.1.1.80. You must make sure the PC
is in the same IP domain as the IP phone. You can do this by changing the IP address of
the PC as shown below.

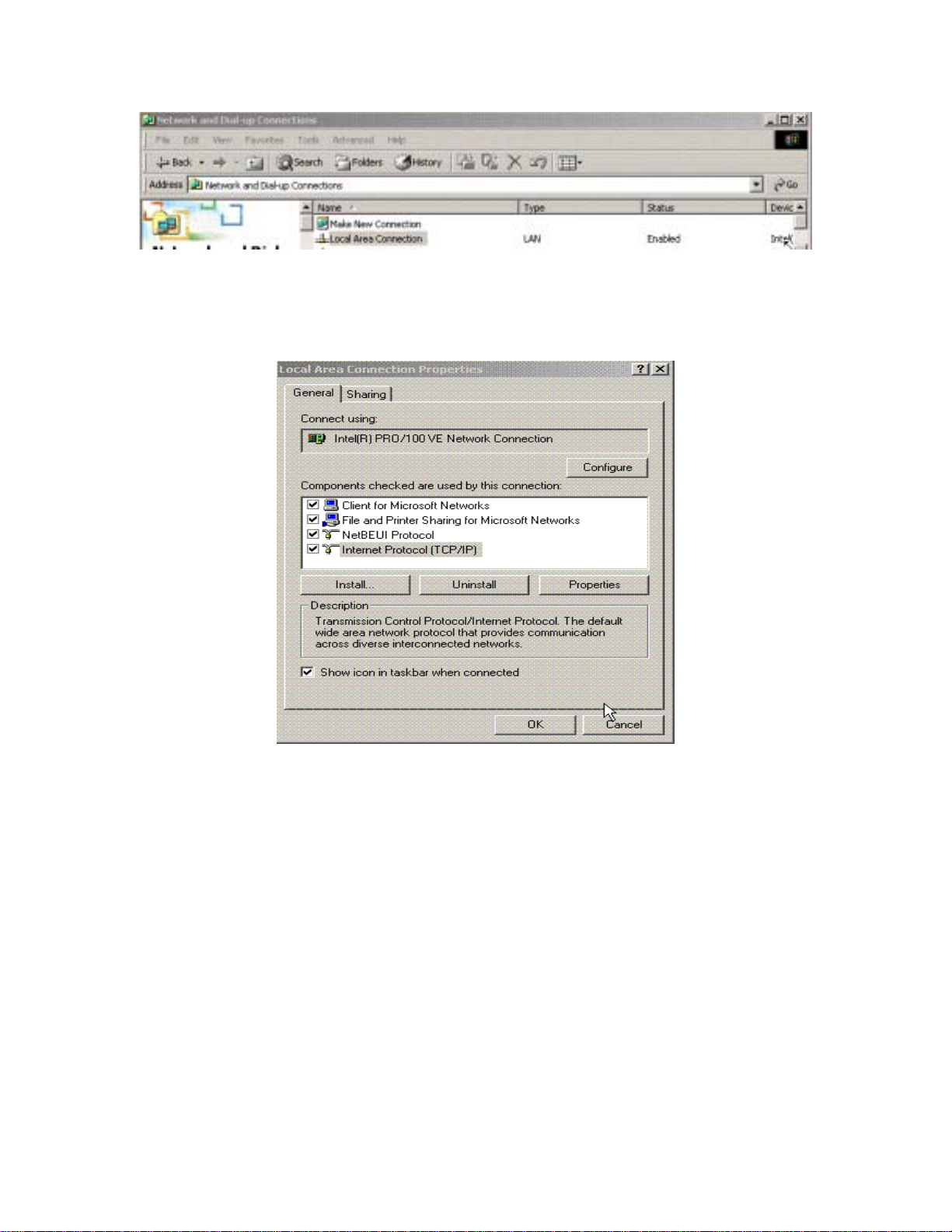

• In Windows, go to Start/Settings/Control Panel/Network and Dial-Up
Connections.
10

Right-click on Local Area Connection (LAN).
Click on Properties.
• In the General Tab, click on Internet Protocol (TCP/IP).
• Click on Properties.
11

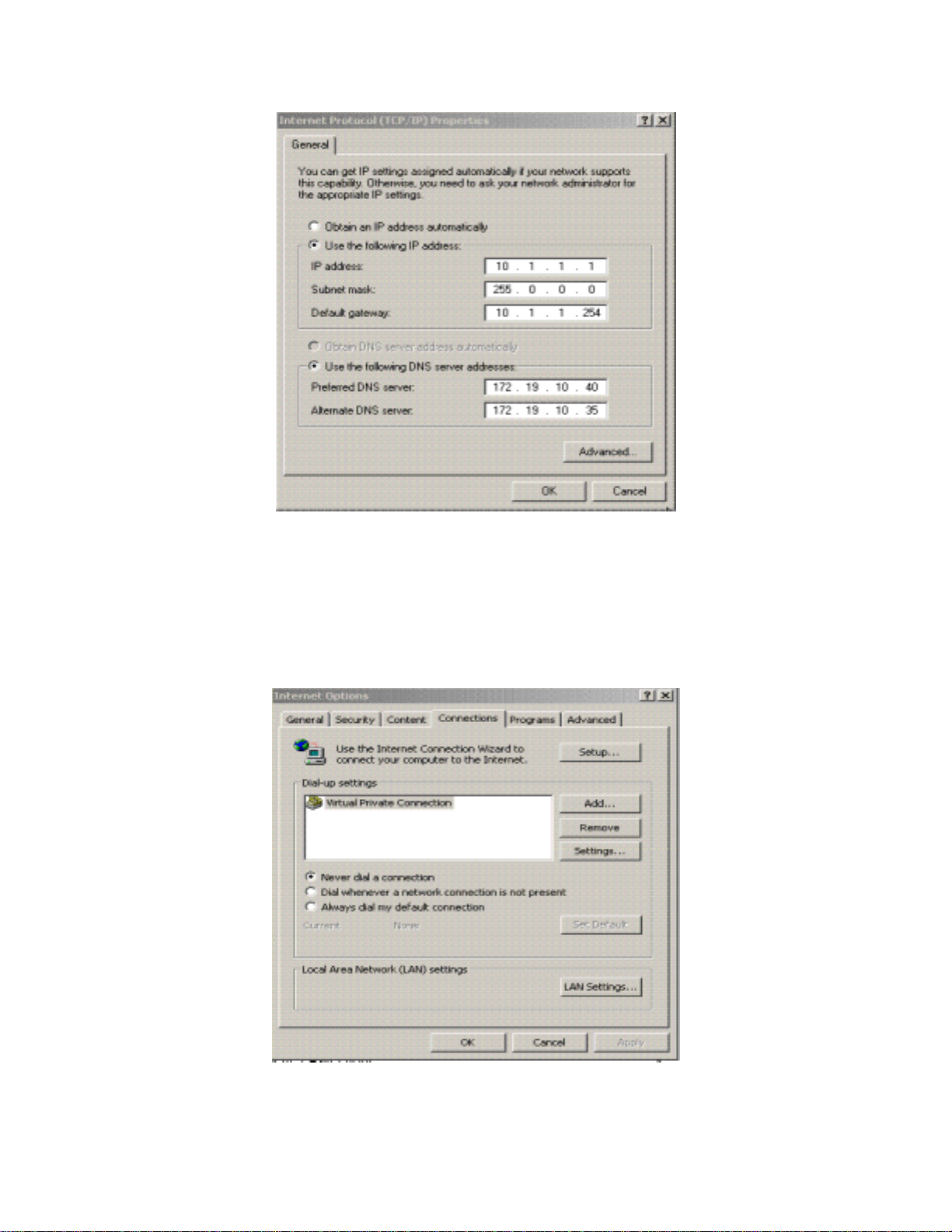

• Click on Use the following IP address, and enter a value in the 10.1.1.xx
range. (Do not use the IP address 10.1.1.80; that address is already in use by
the DPH-80 as a default address.) If necessary, change the Subnet mask and
the Default gateway to match the values shown above.
• Click OK.
• Open Internet Explorer. Click on Tools/Internet Options/Connections

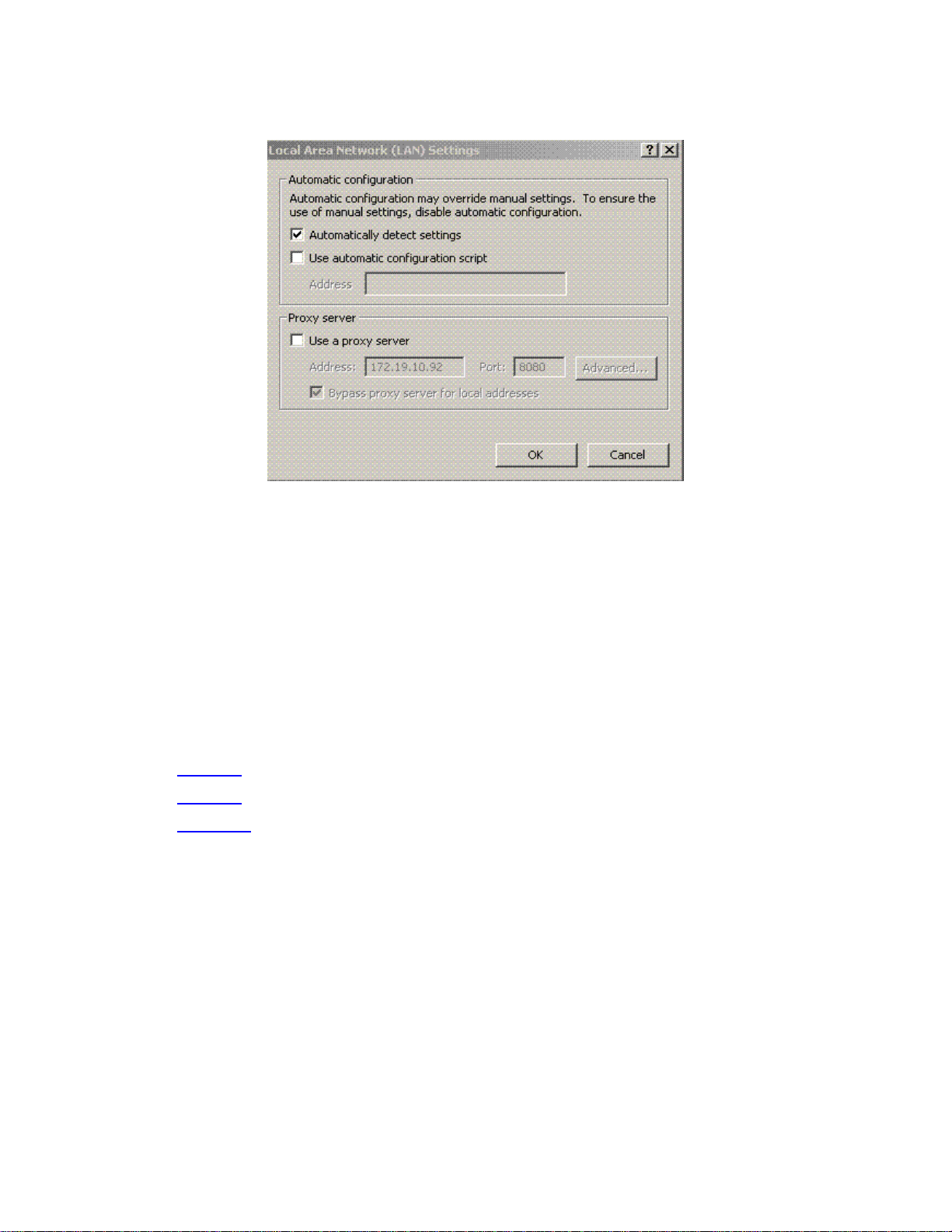

• Click on LAN Settings.
12

• Make sure Use a proxy server is disabled.
• Click OK.
7. Final Configuration
The DPH-80 is highly versatile and can be configured to operate in any of the three
main Internet telephony protocols – MCGP, SIP, and H.323.
Please click on the hyperlink for the appropriate protocol and follow the directions
indicated in the Web-based configuration utility.
Section 8 MGCP (Media Gateway Control Protocol)
Section 9 SIP (Session Initiation Protocol)
Section 10 H.323 Protocol
Each appropriate protocol section contains configuration details, instructions for use,
and a troubleshooting guide.
13

8. MGCP (Media Gateway Control Protocol)
8.1. IP Phone Configuration
8.1.1. Infrastructure Requirements
Though the DPH-80 MGCP phone will work in any type of LAN network, a 100mbps,
switched network is more suitable for providing good quality voice communications.
MGCP phones need a Media Gateway Controller or Call Agent or Notified Entity.
To operate properly, the DPH-80 needs a set of IP parameters such as IP address,
subnet mask, gateway address, and DNS server address. These parameters can be
configured either statically through a browser or dynamically through DHCP or PPPoE.
A DHCP or PPPoE server in the local LAN is required to provide these parameters.
The D-Link MGCP phone has many configurable parameters. These parameters can be
configured through any Java-enabled Internet browser (Netscape 6.2 or above, IE 5.0 or
above).
If your LAN network has a firewall and NAT, they should support MGCP to make and
receive calls from outside your LAN network.
A TFTP server is required to support remote software upgrading. The TFTP server
should have the two software image files (dph80v1.tfp and dph80v2.tfp) from D-Link in
the current directory of the TFTP server selected by ‘set path’.
8.2. Configuring the MGCP phone
Once you have the above infrastructure in place, you can power up the MGCP phone.
The MGCP phone will play the progress tone
ill it gets the response from Media
Gateway Controller
. If it does not get the dial tone within the expected time, the MGCP
phone is not configured. However, the MGCP phone is accessible through an Internet
browser for configuration.
t
To access the web interface for the D-Link DPH-80:
Use a JavaScript-enabled Internet browser (Netscape 6.2 or above, IE 5.0 or above)
with the default IP address of the DPH-80 entered in the address box (
http://10.1.1.80 ).
The following page will appear.

8.2.1. Login Page to IP phone
The following two parameters control access to MGCP phone. Default value for both will
be "dlink". These values can be changed later using the
Change Login Name and
Password Page .
User Name: This is case-insensitive with a maximum of 20 characters.
Password: This is case-insensitive with a maximum of 20 characters .
After logging in the D-Link DPH-80 phone configuration page is displayed and this
page provides access to the DPH-80.
Click Submit.
15

8.2.2. Configuration Main Page
Click on General Configuration. A new page containing information about your system
and the DPH-80 will appear.
8.2.3. General Configuration
Firmware Version : It shows the current firmware version of the IP phone. It is updated
whenever the MGCP phone software is updated. It cannot be modified.
Hardware Version: It shows the current hardware version of the IP phone. It cannot be
modified.
MAC Address: This shows the MAC address of the board in colon-separated hex form.
If it contains the default value ff:ff:ff:ff:ff:ff, it can be modified once to a non-default
value. Otherwise, it cannot be changed.
Once modified, it will be grayed out and canno
be changed again. t
16

Country Code: This is a drop-down menu. Select the appropriate country. This field
controls the type of tones played by MGCP phone.
Obtain IP address using:
• If
static option is selected, then a user-configured IP address, Net Mask, Default
gateway, and DNS server address would be used for the phone.
• If
DHCP is selected, then these values will be obtained using DHCP.
• If the PPPoE is selected, and using the PPP username and password for
authentication, PPPoE obtains an IP address for the phone. Default selection is
Static-enabled.
PPP user name: This is the user name used for PPP authentication with the PPP server
while obtaining an IP address via PPPoE.
PPP passwo d: This is the password used for PPP authentication with the PPP server
while obtaining an IP address via PPPoE.
r
Idle Timeout: This is the time interval in seconds of session inactivity after which the
PPP session should be terminated. If this is set to 0, then the session will never be
terminated. This field is grayed out at the moment so that it can’t be modified. This will
17

allow the PPP session to be on permanently unless the server closes the connection.
This field can be made active later to enable a configuration of timeout value.
IP Address: This should have the IP address of the phone in dot-separated IP address
form. An illegal IP address won't be allowed for this field.
Net Mask: This will have the Net Mask of the network to which the IP phone is
connected. It must be in dot-separated form. An illegal IP address mask won't be
allowed for this field.
Default Gateway: This is the default gateway for the IP phone. An illegal IP address
won't be allowed for this field.
DNS server Address: This is the IP address of the DNS server, which will respond to
the DNS queries from the IP phone. It must be in dot-separated form. An illegal IP
address won't be allowed for this field.
TFTP Server: This has the IP address of the host where TFTP server is running. It must
be in dot-separated form. An illegal IP address won't be allowed for this field.
Firmware Filename (up to 6 characters): This is the filename which you want to
download from the TFTP server. It may be 6 characters long at maximum. It should
start with a letter and should consist of digits, letters and underscore.
Upload Filename (up to 6 characters): This is the filename to upload the configuration
parameters from the phone to the TFTP server. It may be 6 characters long at
maximum. It should start with a letter and should consist of digits, letters and
underscore.
Download Filename (up to 6 characters): This is the filename to download the
configuration parameters from the TFTP server to the phone. It may be 6 characters
long at maximum. It should start with a letter and should consist of digits, letters and
underscore.
Adaptive Jitter: If this is enabled then Jitter Buffer will be adaptive, otherwise it will
use a fixed buffer of a size specified in Maximum Buffer Size.
Maximum Buffer Size: If adaptive jitter is disabled, the phone will use this static value
for Jitter Buffer size. This should be in the range of 0-300 in ms.
Log Server: This flag is turned on in case the user wants to log all debug messages for
viewing.
Log Server Address: This has the IP address of the machine where all the log messages
should be sent. It must be in dot-separated form. An illegal IP address won't be allowed
for this field.
Log Server Port: This is the port number on the log server to which the log messages are
to be sent. It should be a valid port number in the range of 0-65535. The user should
make sure that it is not one of the reserved port numbers.
Microphone Gain: This will show the microphone gain in the range of -14 to 14 (unit of
dB)
Speaker Gain: This will show the speaker gain in the range of -14 to 14 (unit of dB)
Access Settings: The following three key sequences should be unique.
Factory Default: This is the key sequence the user should dial on the phone to get the
phone to use all the default values of the parameters. After entering this key sequence
on the MGCP phone it will restore the parameters to default upon next restart.
18

Production Key: This is the key sequence the user should dial on the phone to get to
production-test mode. After entering this key sequence, MGCP phone will start in
production-test mode upon next restart.
TFTP upload: This is the key sequence the user should dial on the phone to start the
TFTP software update. After getting the new image, the phone will start itself using the
new image.
8.2.4. MCGP Configuration
Call Agent IP: It must be in dot-separated form. An illegal IP address won't be allowed
for this field. (Ex: 10.241.5.200).
Call Agent Port Number: This is the port at which the Call Agent receives and sends
packets.(Ex: 2427).
Gateway Port: This is the port number at which the MGCP Phone will open the socket
to send and receive packets. (Ex: 2427).
Endpoint ID: This is the endpoint identifier as defined in rfc 2705
(endpointname@[IP Address or domain name]). Here we can specify only the
endpoint name (up to @) or full identifier with either domain name or IP address. If
only the endpoint name (up to @) is given, the identifier will be formed
automatically by software by appending the IP address.
• Example 1: If the endpoint name is “dlink/1” the identifier will be formed by
software by appending IP address like “dlink/1@[10.241.5.231].
