Introduction
VoIP (Voice over Internet Protocol; also known as Internet Phone) is a technology that allows anyone to make a telephone call over the Internet
environment. This is an operation manual for the DPH-150SE IP Phone. It is intended to help you configure the telephone. Please follow the user
guide carefully as troubleshooting the telephone can be very difficult and time consuming.
1. Getting Started
1.1. Package Contents

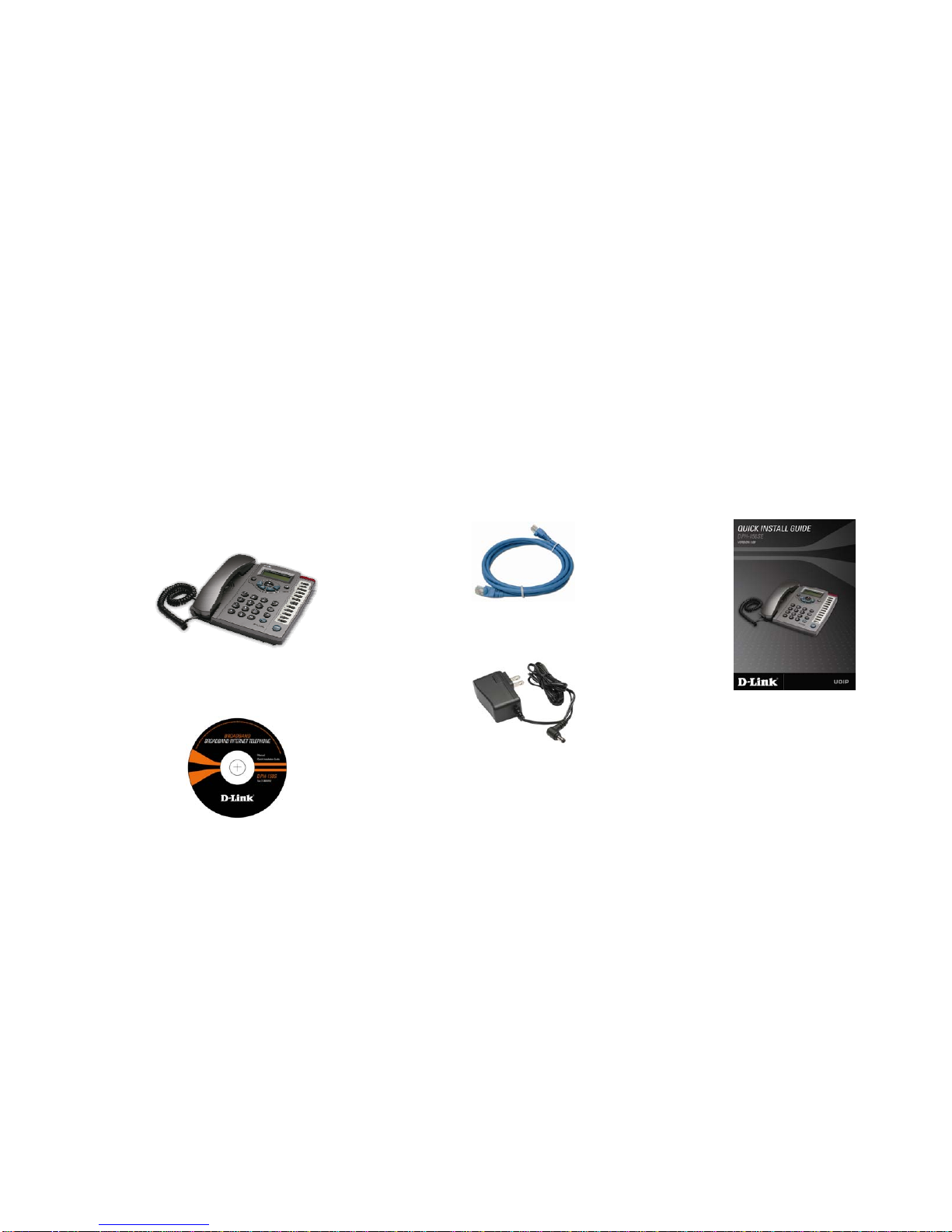

The following materials are included in the package. Please check the package to ensure that all the materials are present, as listed below.
Contact your supplier immediately if any item is missing.
DPH-150SE VoIP Phone
CD for User Manual
Ethernet Cable (1.5 meter)
Power Adapter (DC 9V)
Quick Installation Guide

6
1.2. Phone Specifications
Protocol
IETF SIP (RFC3261)
Network Interface
RJ45 x 2, 10/100BaseT
LCD Display
2 x 16 characters
Key Pad
37 keys
Call Features
Call Hold / Resume
Call Mute
Call Transfer (Unattended / Blind
& Attended)
Call Waiting
Call Forward (Busy / No
Answer / Unconditional)
Caller ID Display
Anonymous Call
Anonymous Call Blocking
In band DTMF / Out-of-band
DTMF (RFC 2833) / SIP
INFO
3-way Conference
Redial
Message Waiting Indicator
(RFC3842)
SMS (RFC 3428)
Call Park / Retrieve (RF3515)
Direct Station Selection (DSS)
Busy Lamp Field (BLF)
Call Pickup (Support SIP server
required)
Auto Answer (Support SIP server
required)
Codec
Handset / Speakerphone
Volume adjustment
Speed dial (10 records)
Phone book (200 records)
Multi-line (up to 12 lines)
Call history (Incoming calls /
Outgoing calls / Missed
calls)
MP3 Ringer
Internet Radio
Security
HTTP 1.1 basic/digest
authentication for Web
setup
MD5 for SIP authentication
(RFC 2069/ RFC 2617)
Dial Methods
Direct IP call without SIP
registration
Dial number via SIP server
Dial URI from phone book /
speed dial
Voice Quality
VAD (Voice Activity
Detection)
CNG (Comfort Noise
Generation)
AEC (Acoustic Echo
Cancellation)
G.168
Jitter buffer
QoS ToS field
IEEE 802.1Q VLAN
Tone
NAT Traversal
UPnP
STUN
Static port mapping
TCP/IP
IP/TCP/UDP/DHCP/RTP/
FTP/ICMP/HTTP/SNTP/TFTP/
DNS
Configuration
Key & LCD configuration
Web browser configuration
(Multi-Language)
Auto/Manual provisioning
system (Support
TFTP/HTTP/FTP)
Firmware Upgrade
TFTP
Auto/Manual provisioning
system
(Support TFTP/HTTP/FTP)
Power
Adaptor
Input AC 100-120V / 220-240V
Output DC 9V
LAN Port
Power over Ethernet
(IEEE 802.3af)
Environmental
Operating temperature: 0～
40℃
Storage temperature: -20～
60℃
Operating humidity: 20%～
80%

7
G.711µ-law
G.711a-law
G.729a/b
Phone Functions
Multi-user (4 SIP accounts)
One-Touch Dial (up to
11 records)
Speakerphone communication
Pre-dial before sending
Hot Line
DTMF
Ring Tone, 9 selectable
tones
Ring Back Tone
(local and remote)
Dial Tone
Busy Tone
IP Assignment
Static IP
DHCP
PPPoE
Physical Dimensions
Size: 200(L) x 220(W) x 100
(H) mm
Wall Mount
Weight: 860g
Color: Dark Gray
Certification Compliance
FCC Part 15 Class B
CE Class B
VCCI Class B
EN60950-1

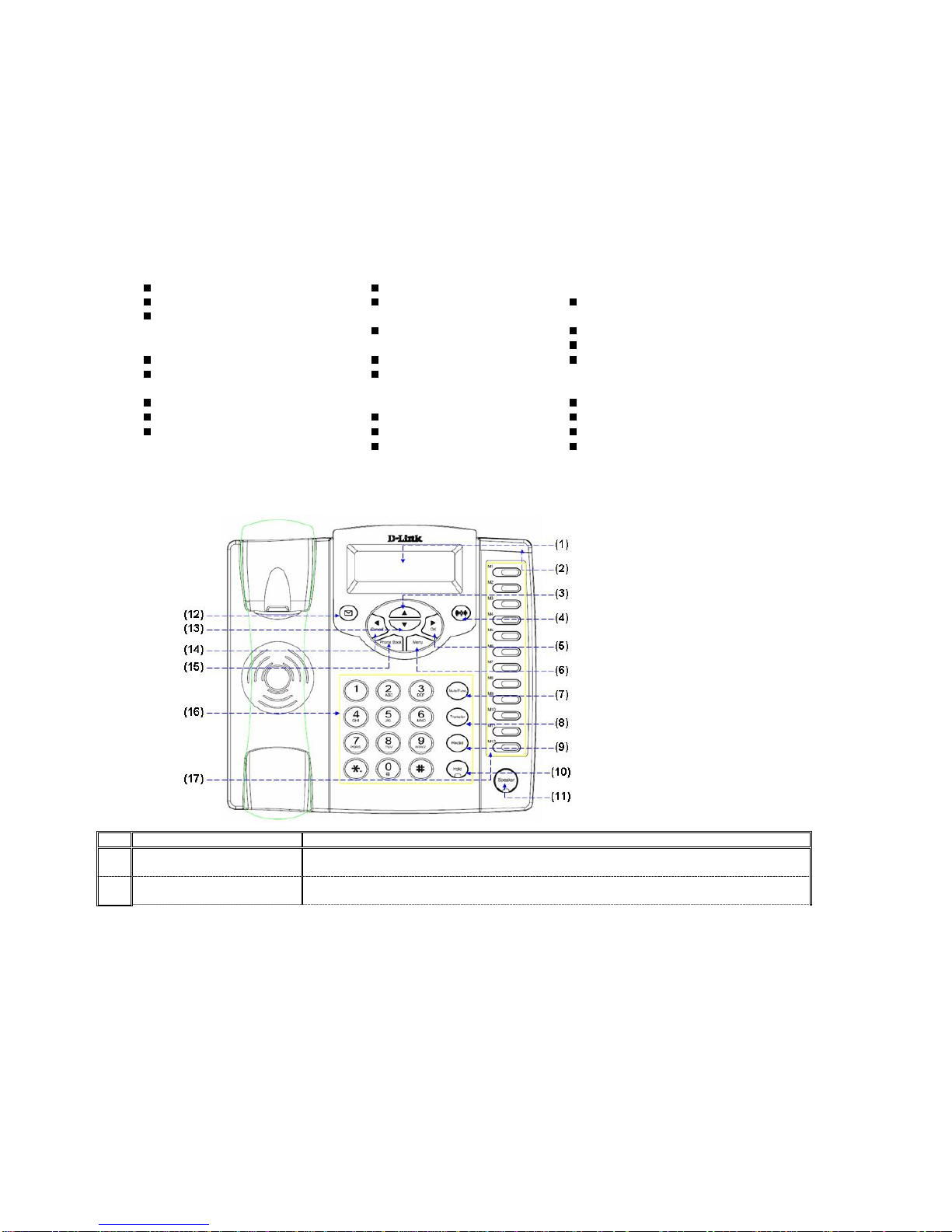

1.3. Phone Diagram
No. Key Function
(1) 2 x 16 Characters LCD
Display Displays menu, time, clock, name, phone number, call status
(2) LED Indicator Indicates that phone is currently in use or ringing

8
(3) Up Cycle through the phone menu, adjust volume
(4) 3-Way Conference Enable 3-way conference
(5) OK / Right Confirm setting change, exit menu, dial, save changes
(6) Menu Access the phone menu
(7) Mute/Function Disable user’s microphone so that the person on the other line can not hear anything, access the language selection, access the time format
(8) Transfer Transfer the person you are currently having a conversation with to another line
(9) Redial/Call History Redial last dialed number, access redial menu
(10) Hold Place the person on the other line on hold, answer call waiting
(11) Speaker Phone Enable user to use the phone without using the handset
(12) Voice Message Check for voice messages
(13) Down Cycle through the phone menu, adjust volume
(14) Cancel / Left Deny changes, cancel phone calls, ignore phone calls, backspace
(15) Phone Book Access the phonebook
(16) Numeric Keypad Input IP/phone number/alphabet character
(17) Local Multi-Line Switch to different lines
1.4. Key Pad Definition and Text Entry

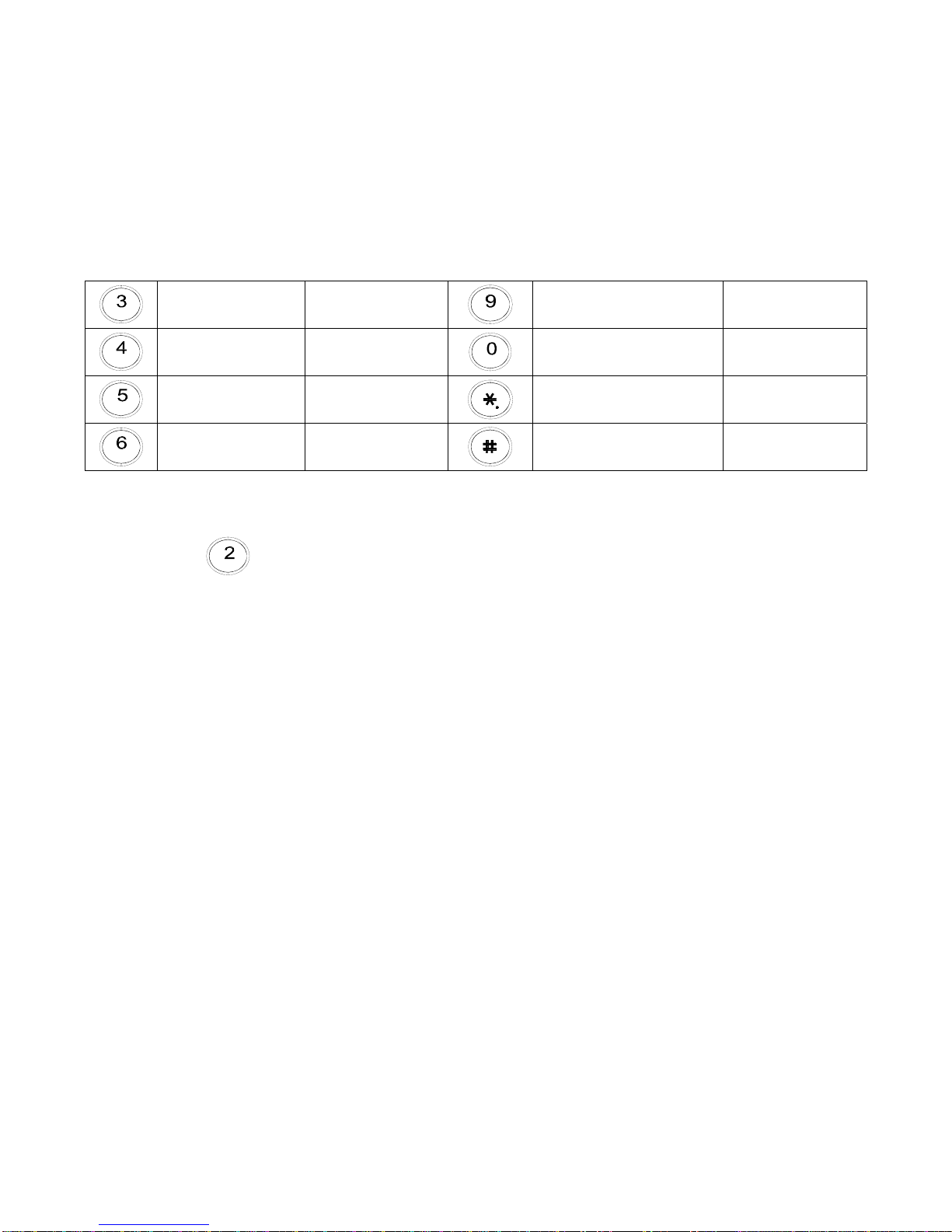

You can use alphanumeric characters to enter details into the phone, including the phone book and other settings. The table below shows the
characters that you can enter in the different text modes.
Text Mode Text Mode
Key Normal (ABC) Numeric (0-9) Key Normal (ABC) Numeric (0-9)
1
PQRS pqrsPQRS 7
ABC abcABC 2
TUV tuvTUV 8

9
DEF defDEF 3
WXYZ wxyzWXYZ 9
GHI ghiGHI 4
@
＠. ＿－＊＃（）％ ＆＋
／＄, 0
JKL jklJKL 5
. *
MNO mnoMNO 6
#
In Normal and Numeric modes, each time you quickly enter the same key, the next character available on that key will be displayed. If you do
not press a key for more then 1 sec, the current character will be selected and the cursor will move right for the next selection. For example, to enter
“c” you need to press ABC quickly four times. To enter the displayed character, release the key or press another key.

10
2. Connecting the IP Phone

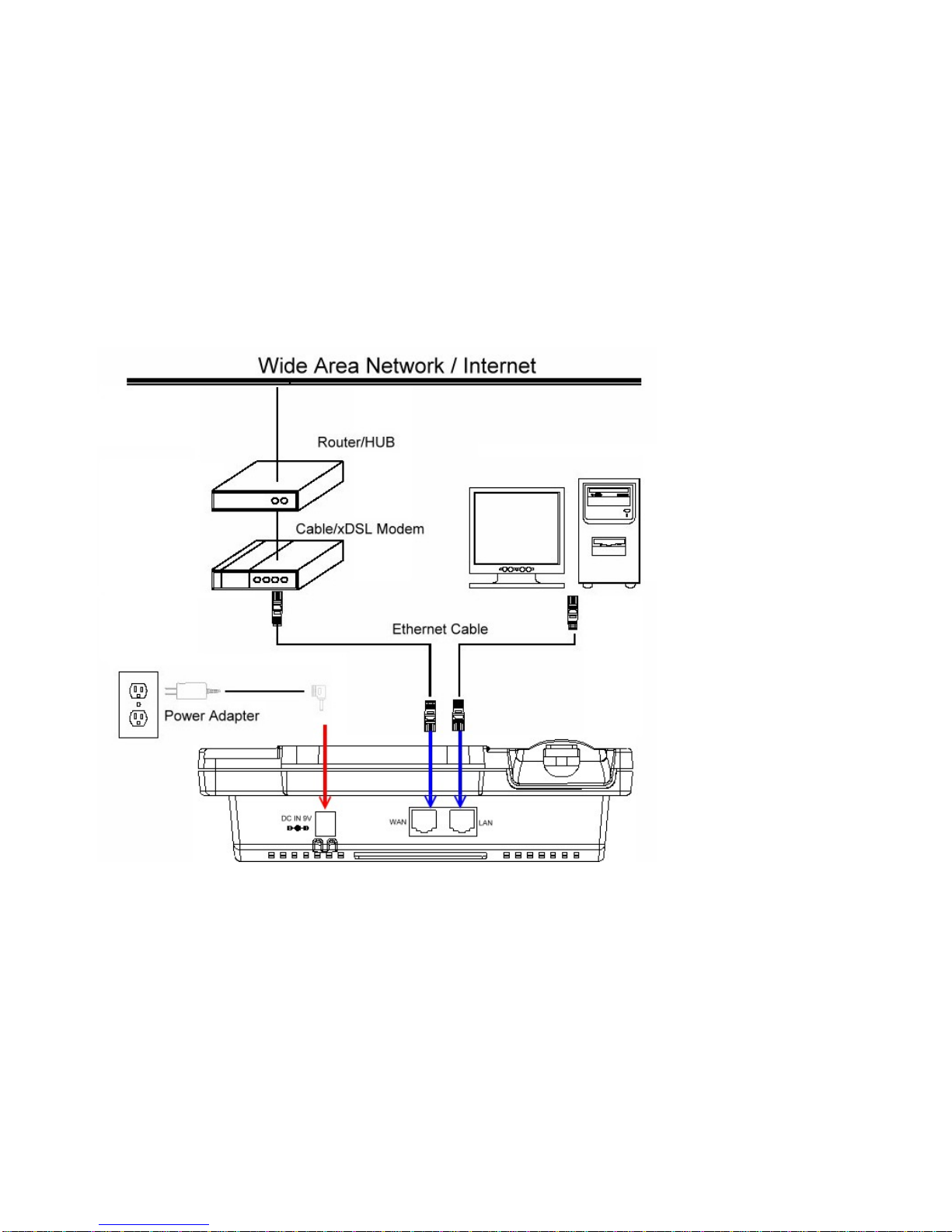

Connect the IP Phone as shown in the following diagram:

11
3. Initial Setup

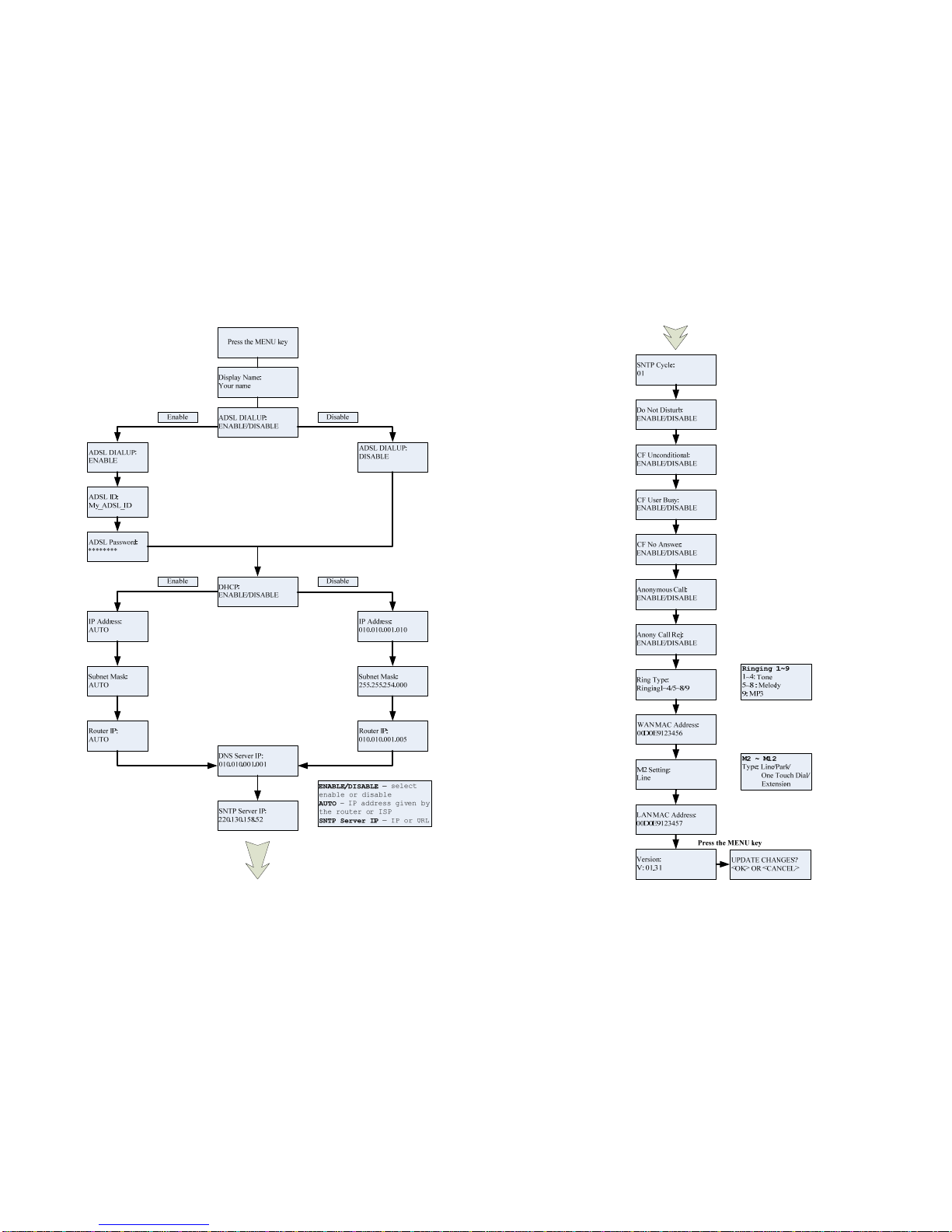

3.1. IP Phone Setup Map
NOTE 1: If you made any modifications, you may quit setup at any time by pressing MENU + OK to save and exit or MENU + CANCEL to quit

12
without saving. The phone will automatically exit from the menu screen if there are no inputs from the user.
NOTE 2: Use or to select ENABLE or DISABLE.
NOTE 3: The left arrow key can be used as the Backspace key.
3.2. Display Name
zPress
zEnter the display name
3.3. ADSL Dialup
Some Internet Service Providers (mostly ADSL) use PPPoE, which requires the user to enter an ID and a password to access the Internet. In
this case, enable ADSL DIALUP and enter the PPPoE ID and PPPoE password.
3.3.1.Enable ADSL Dialup
zPress
zUse to select “Enable”
3.3.2.Setup ADSL ID
zPress
zUse to select “Enable”
Display Name:
Your name
ADSL ID:
MY_ADSL_ID
ADSL DIALUP:
ENABLE

13
3.3.3.Setup ADSL Password
zPress
zEnter ADSL Password
3.3.4.Disable ADSL Dialup
zPress
zUse to select “Disable”
3.4. DHCP (Dynamic Host Configuration Protocol)
DHCP allows the network administrator to distribute IP addresses when a computer is plugged into a different place in the network. If your ISP
provides a static IP address, you must disable DHCP and enter the IP address provided.
3.4.1.Enable DHCP
zPress
zUse or to set DHCP “Enable”
zPress
zIP address automatically acquired
ADSL Password:
*
******
ADSL DIALUP:
DISABLE
DHCP:
ENABLE
IP Address:
192.168.001.161

14
zPress
zSubnet mask automatically acquired
zPress
zRouter IP automatically acquired
3.4.2.Disable DHCP
zPress
zUse or to set DHCP “Disable”
zPress
zEnter the IP address
zPress
zEnter the subnet mask
zPress
zEnter the router IP address
Subnet Mask:
255.255.255. 0
Router IP:
192.168.001.161
DHCP:
DISABLE
IP Address:
192.168.001.161
Subnet Mask:
255.255.255.000
Router IP:
192.168.001.001

15

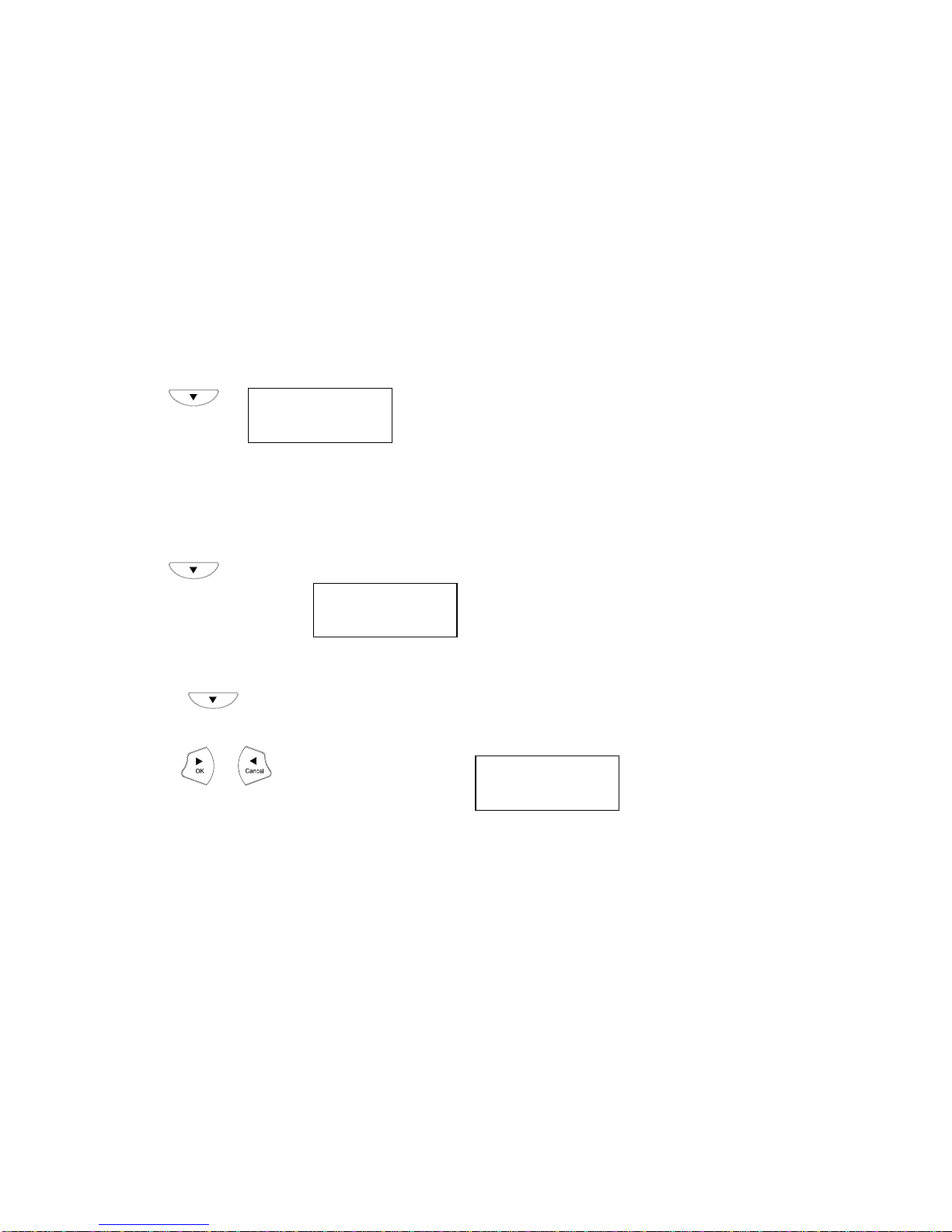

3.5. DNS Server IP
The domain name system (DNS) is the way that Internet domain names are located and translated into Internet Protocol addresses. There is
probably a DNS server within close geographic proximity to your ISP that maps the domain names in your Internet requests or forwards them to
other servers on the Internet.
zPress
3.6. SNTP Server IP
Simple Network Time Protocol (SNTP) is a protocol used to help synchronize your system clock with an accurate time source. If you do not
know your SNTP Server IP, please ignore this section. The SNTP Server IP address can be either URL or IP.
zPress
zEnter SNTP server IP or URL
3.7. Do not Disturb
This setting allows the user to reject all incoming phone calls.
zPress
zUse or to select “Enable” or “Disable”

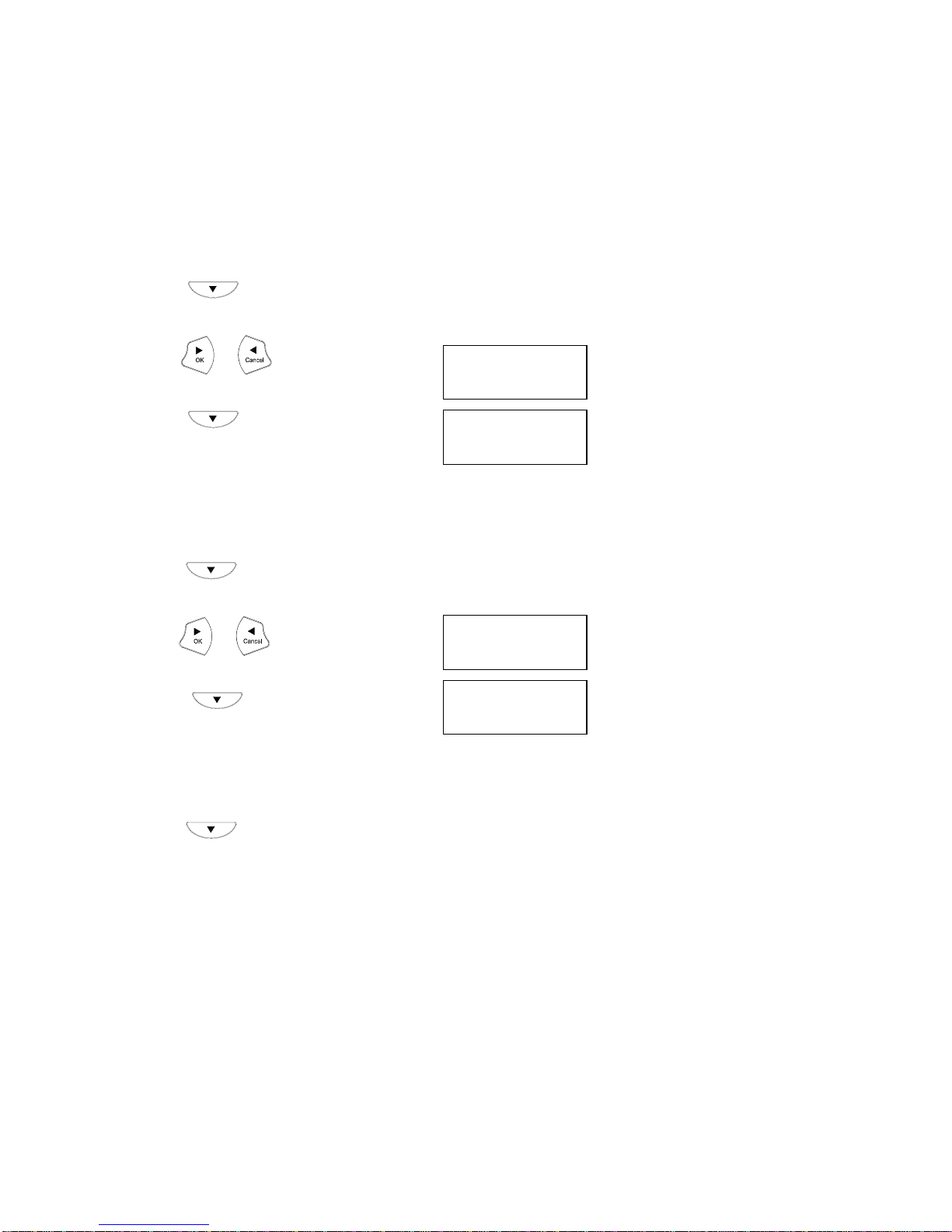

3.8. CF (Call Forward) Unconditional
Enable CF Unconditional to forward all the incoming calls to another number. Otherwise set to disable. You will need to use a
web-browser to input the forwarding phone number. Refer to section 6 for more information on using the web configuration.
DNS Server IP:
192. 76.144. 66
SNTP Server IP:
220.130.158.52
Do Not Disturb:
ENABLE /DISABLE

16
zPress
zUse or to select “Enable” or “Disable”
zPress to enter the number where the call
will be forwarded
3.9. CF (Call Forward) Busy
Forward all the incoming calls to another number when user is busy on the phone.
zPress
zUse or to select “Enable” or “Disable”
zPress to enter the number where the call
will be forwarded
3.10. CF (Call Forward) No Answer
Forward all incoming calls to another phone number after a certain number of rings.
zPress
CF Unconditional:
ENABLE / DISABLE
CF User Busy:
ENABLE / DISABLE
Unconditional No
_
User Busy No
_

17
zUse or to select “Enable” or “Disable”
zPress to enter the number where the call
will be forwarded

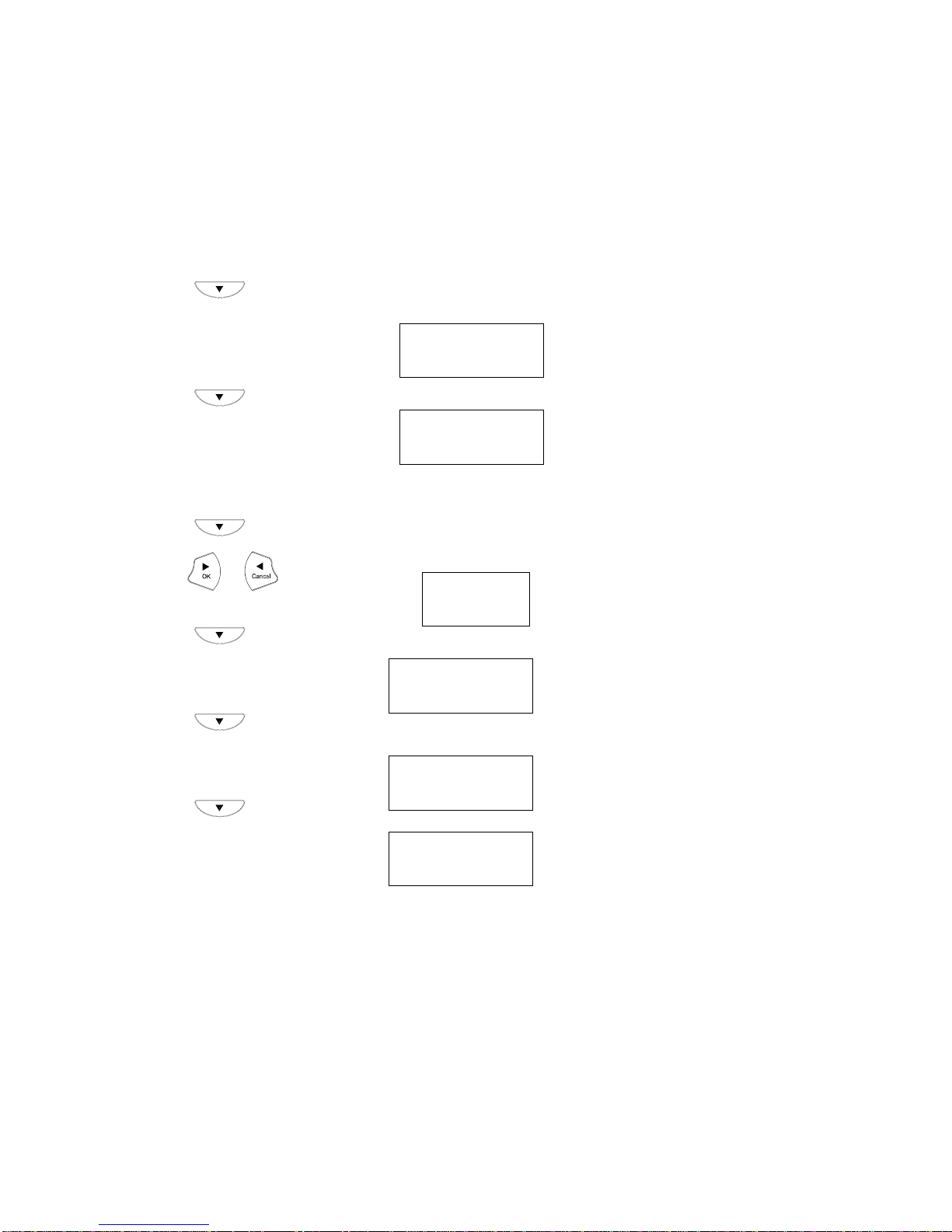

3.11. Anonymous Call
Enables the caller (user) to hide the name and phone number from the receiver.
zPress
zUse or o select “Enable” or “Disable”
3.12. Anony Call Rej. (Anonymous Call Rejection)
Reject any anonymous incoming calls.
zPress
zUse or to select “Enable” or “Disable”
3.13. Ringing Type
Select the ring tone. There are 9 ring tones in total.
zPress
zUse or to select the ring type
CF No Answer:
ENABLE / DISABLE
Anonymous Call:
ENABLE / DISABLE
Anony Call Rej:
ENABLE / DISABLE
Ring Type:
Ringing 1/2/3/4/5/6/7/8/9
No Answer No
_

18
NOTE: At this point, you may save the settings and exit. The next two sections explain how to obtain the MAC address and firmware version.
zPress to exit the menu
zWhen asked to save or cancel, press to save

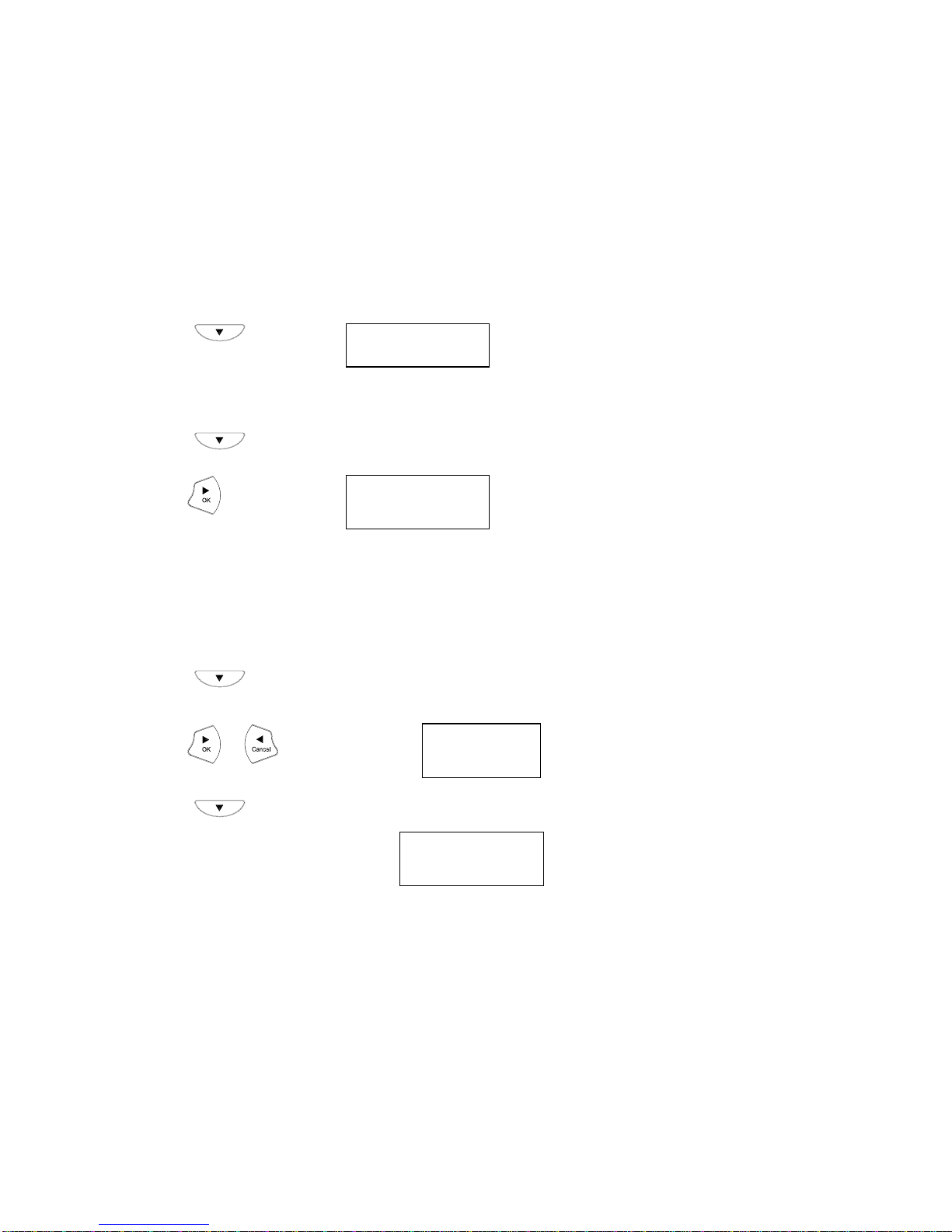

3.14. M2~M12 Setting
Select the functionality of the line keys. (Four types: Line / Park / One-Touch Dial / Extension)
zPress
zUse or to select the functionality
zPress to enter the number
(Number of the parking area, destination of One-Touch-Dial or the monitored extension)
3.15. MAC Address
This menu displays the MAC address. You cannot modify the MAC address.
zPress
zThe MAC address is displayed on the
screen
WAN MAC Address:
000FC9017D4A
LAN MAC Address:
000FC9017D4B
M2 Setting: (M2~M12)
Line/Park/One Touch Dial/Extension
WAN MAC Address:
000FC9017D4A

19
3.16. Version
The version menu displays the firmware version. You cannot modify the version number.
zPress
zThe firmware version is displayed on the screen

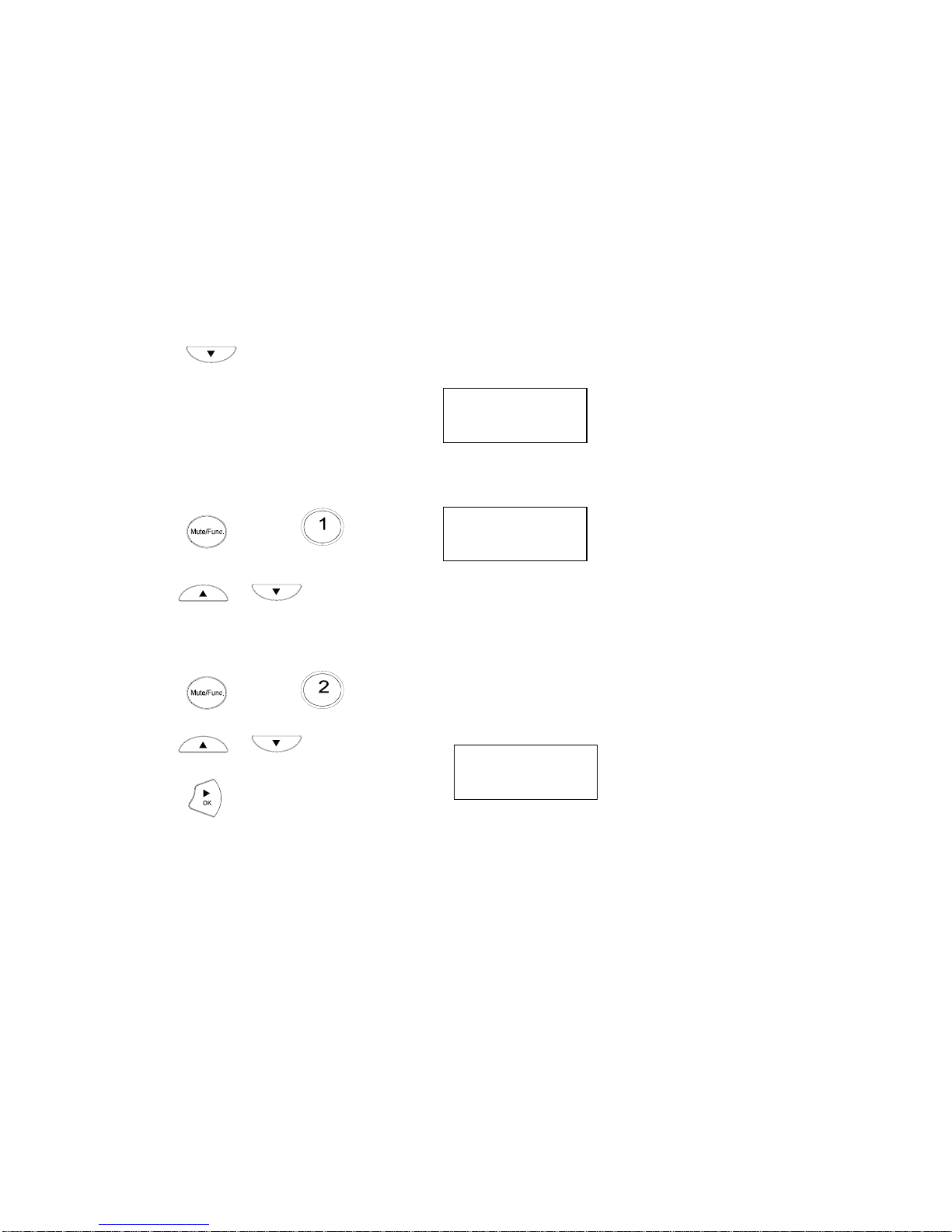

3.17. Language Selection
The VoIP Phone supports 2 languages: English and Russian.
zPress followed by
zUse or to select the preferred language
3.18. Time Format
You may select the 12hr or 24hr time format.
zPress followed by ABC
zUse or to select the time format
zPress when done
Version:
V: 01.00
Language:
English
Time Format:
24Hours
