D-Link DPH-150S User manual

1
Contents

2
1. GENERAL INFORMATION................................................................................................................................................................................ 11
1.1. Package list........................................................................................................................................................................................................ 11
1.2. Power supply.................................................................................................................................................................................................... 11
1.3. Environment condition.......................................................................................................................................................................... 11
2.YOUR PHONE..............................................................................................................................................................................................................12
2.1. Using the keys.................................................................................................................................................................................................12
2.1.1 Telephone appearance....................................................................................................................................................................................... 12
2.1.2 LCD........................................................................................................................................................................................................................................... 13
2.1.3 Key board.......................................................................................................................................................................................................................... 15
2.1.4 Text input definitions......................................................................................................................................................................................... 17
2.2. Display....................................................................................................................................................................................................................21
2.2.1 Cursor.................................................................................................................................................................................................................................... 21
2.2.2 Display in view mode.......................................................................................................................................................................................... 21
2.2.3 Display in edit mode............................................................................................................................................................................................ 22
2.2.4 Insert a character.................................................................................................................................................................................................... 22
2.2.5 Rapid delete.................................................................................................................................................................................................................... 23

3
2.2.6 Cursor advance.......................................................................................................................................................................................................... 23
2.2.7 Exit edit mode.............................................................................................................................................................................................................. 23
2.3. Using the menu..............................................................................................................................................................................................23
2.3.1.Menu operation......................................................................................................................................................................................................... 23
2.3.2.Menu tree view........................................................................................................................................................................................................... 24
3. GETTING STARTED................................................................................................................................................................................................25
3.1. Prepare network settings.....................................................................................................................................................................25
3.2. Prepare VoIP settings.............................................................................................................................................................................. 25
4. BASIC FUNCTIONS..................................................................................................................................................................................................26
4.1. Making a call....................................................................................................................................................................................................26
4.1.1 Dialing.................................................................................................................................................................................................................................... 26
4.1.2. Handset/Hands free/Headset switching.................................................................................................................................... 27
4.1.3. Ending a call................................................................................................................................................................................................................ 28
4.2. Answering a call............................................................................................................................................................................................ 28
4.2.1. By operation menu.............................................................................................................................................................................................. 28
4.2.2.Answering a call in idle state.................................................................................................................................................................. 28

4
4.2.3.Answering a call during another conversation............................................................................................................... 28
4.3. Muting a call.....................................................................................................................................................................................................28
4.4. Holding/resuming a call........................................................................................................................................................................ 29
4.5. Switching between active line.........................................................................................................................................................29
4.6. Transferring a call......................................................................................................................................................................................29
4.7. Setting up a conference call.............................................................................................................................................................. 29
4.7.1. Start a conference call..................................................................................................................................................................................... 29
4.7.2. Hold a conference call..................................................................................................................................................................................... 30
4.7.3. End a conference call........................................................................................................................................................................................ 30
4.8. Volume adjustment....................................................................................................................................................................................30
5. MENU OPERATION................................................................................................................................................................................................. 31
5.1. Phone Book........................................................................................................................................................................................................31
5.1.1. View entry....................................................................................................................................................................................................................... 31
5.1.2. New entry......................................................................................................................................................................................................................... 31
5.1.3. Search entry................................................................................................................................................................................................................. 32
5.1.4. Memory check........................................................................................................................................................................................................... 32

5
5.1.5. Delete all............................................................................................................................................................................................................................ 32
5.2. Call records....................................................................................................................................................................................................... 33
5.2.1. Missed Calls.................................................................................................................................................................................................................. 33
5.2.2. Received calls.............................................................................................................................................................................................................. 33
5.2.3. Dialed calls..................................................................................................................................................................................................................... 33
5.2.4. Delete all............................................................................................................................................................................................................................ 34
5.3. DND List............................................................................................................................................................................................................... 34
5.3.1. View entry....................................................................................................................................................................................................................... 34
5.3.2. New entry......................................................................................................................................................................................................................... 34
5.3.3. Search entry................................................................................................................................................................................................................. 35
5.3.4. Memory check........................................................................................................................................................................................................... 35
5.3.5. Delete all............................................................................................................................................................................................................................ 35
5.4. Network setting............................................................................................................................................................................................. 36
5.4.1. Set IP mode.................................................................................................................................................................................................................... 36
5.4.2. IPaddress........................................................................................................................................................................................................................ 36
5.4.3. IPmask............................................................................................................................................................................................................................... 36

6
5.4.4. Default GW................................................................................................................................................................................................................... 36
5.4.5. DNS setting.................................................................................................................................................................................................................... 37
5.4.6. PPPoE setting............................................................................................................................................................................................................. 37
5.4.7. NTP setting.................................................................................................................................................................................................................... 37
5.5. SIP setting........................................................................................................................................................................................................... 38
5.5.1. Proxy setting................................................................................................................................................................................................................ 38
5.5.2. User Info........................................................................................................................................................................................................................... 38
5.6. Phone Setting................................................................................................................................................................................................... 39
5.6.1. Language.......................................................................................................................................................................................................................... 39
5.6.2. Forward............................................................................................................................................................................................................................. 39
5.6.3.Alarm..................................................................................................................................................................................................................................... 40
5.6.4. Time........................................................................................................................................................................................................................................ 41
5.6.5. Ring......................................................................................................................................................................................................................................... 41
5.6.6. Volume................................................................................................................................................................................................................................. 42
5.7. Program key.....................................................................................................................................................................................................42
5.7.1. Function key................................................................................................................................................................................................................ 42

7
5.7.2. Memory key.................................................................................................................................................................................................................. 42
5.8. Factory default...............................................................................................................................................................................................43
5.9. Reboot..................................................................................................................................................................................................................... 43
6.WEB SETTING......................................................................................................................................................................................................43
6.1. How to land web........................................................................................................................................................................................... 43
6.2. Default User name and Password.............................................................................................................................................. 44
6.3. About Note message..................................................................................................................................................................................45
6.4. About Reset button....................................................................................................................................................................................45
6.5. WIZARD..............................................................................................................................................................................................................46
6.5.1. Static IP setting......................................................................................................................................................................................................... 47
6.5.2. DHCP setting.............................................................................................................................................................................................................. 49
6.5.3. PPPoE setting............................................................................................................................................................................................................. 49
6.6. Network.................................................................................................................................................................................................................51
6.6.1. Bridge mode................................................................................................................................................................................................................. 51
6.6.2. Router mode................................................................................................................................................................................................................. 54
6.7. VOIP.........................................................................................................................................................................................................................57

8
6.7.1.Advanced Setting................................................................................................................................................................................................... 57
6.7.2.Account Setting........................................................................................................................................................................................................ 59
6.7.3. Server Settings.......................................................................................................................................................................................................... 60
6.7.4. NAT Traversal........................................................................................................................................................................................................... 60
6.7.5. Security............................................................................................................................................................................................................................... 61
6.7.6. Voice Settings.............................................................................................................................................................................................................. 61
6.8. Phone........................................................................................................................................................................................................................ 63
6.8.1. General Settings...................................................................................................................................................................................................... 63
6.8.2. Forward Settings.................................................................................................................................................................................................... 65
6.8.3. Function Keys............................................................................................................................................................................................................ 66
6.8.4.Alarm Settings........................................................................................................................................................................................................... 67
6.8.5. Phone book.................................................................................................................................................................................................................... 68
6.8.6. DND........................................................................................................................................................................................................................................ 69
6.9. Information.......................................................................................................................................................................................................70
6.9.1. System information............................................................................................................................................................................................. 70
6.9.2. Routing Table............................................................................................................................................................................................................. 72

9
6.9.3. Missed Calls.................................................................................................................................................................................................................. 73
6.9.4. Redial List....................................................................................................................................................................................................................... 73
6.9.5. Received Calls............................................................................................................................................................................................................ 74
6.10. Management..................................................................................................................................................................................................74
6.10.1. Account Control................................................................................................................................................................................................... 75
6.10.2. System Log Settings........................................................................................................................................................................................ 75
6.10.3. Date and Time........................................................................................................................................................................................................ 76
6.10.4. Ping Test......................................................................................................................................................................................................................... 77
6.10.5. Configuration.......................................................................................................................................................................................................... 78
6.10.6. Firmware Update............................................................................................................................................................................................... 78
6.11. Logout..................................................................................................................................................................................................................80
6.11.1. Logout............................................................................................................................................................................................................................... 81
6.11.2. Reboot............................................................................................................................................................................................................................... 81
7. EXAMPLE CONFIGURE..........................................................................................................................................................................81
7.1. Function Key....................................................................................................................................................................................................81
7.1.1. Hold......................................................................................................................................................................................................................................... 81

10
7.1.2. Transfer.............................................................................................................................................................................................................................. 82
7.1.3. Conference..................................................................................................................................................................................................................... 84
7.1.4. Missed calls.................................................................................................................................................................................................................... 85
7.1.5. Received calls.............................................................................................................................................................................................................. 86
7.1.6. DND........................................................................................................................................................................................................................................ 87
7.1.7. Headset............................................................................................................................................................................................................................... 88
8.TROUBLESHOOTING............................................................................................................................................................................................ 89

11
1. General information
1.1. Package list
DPH-150SE (with PoE) or DPH-150S(without PoE) IP Phone unit 1
Handset 1
Handset Cord 1
Power Adapter 1
Ethernet Cable 1
Quick Install Guide 1
CD-ROM 1
1.2. Power supply
zPower adapter: AC/DC Input 110-220V Output [email protected], with maximum power consumption of 6 Watt.
zPOE : DC/DC Input 48V Output [email protected].
1.3. Environment condition
zEnvironmental temperature: -10 ºC ~ + 40ºC
zRelative humidity: 10% ~ 95%
zEnvironmental noise: <= 60 dB(a)
zAir pressure: 86 ~ 106 kPa

12
2. Your phone
2.1. Using the keys

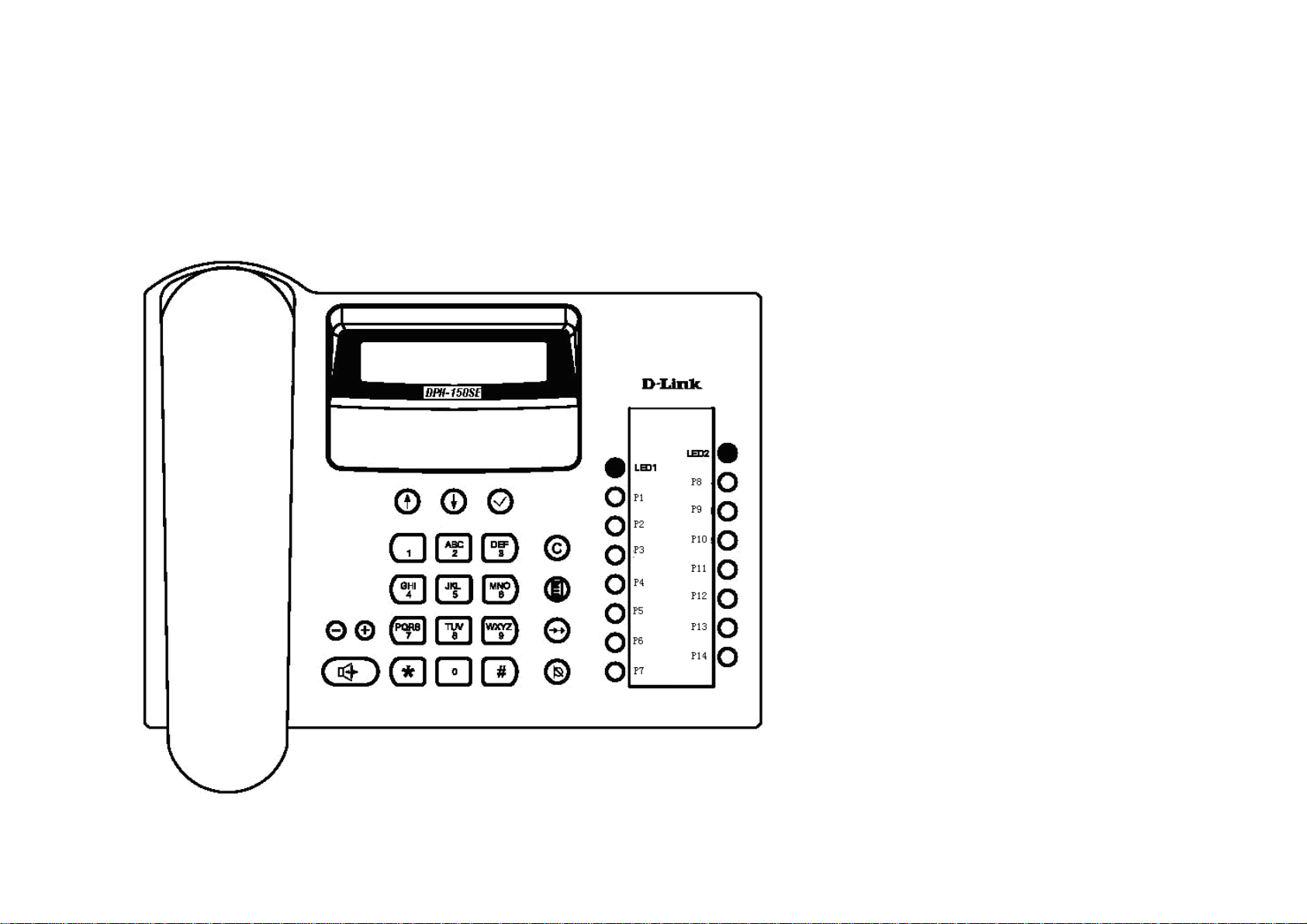

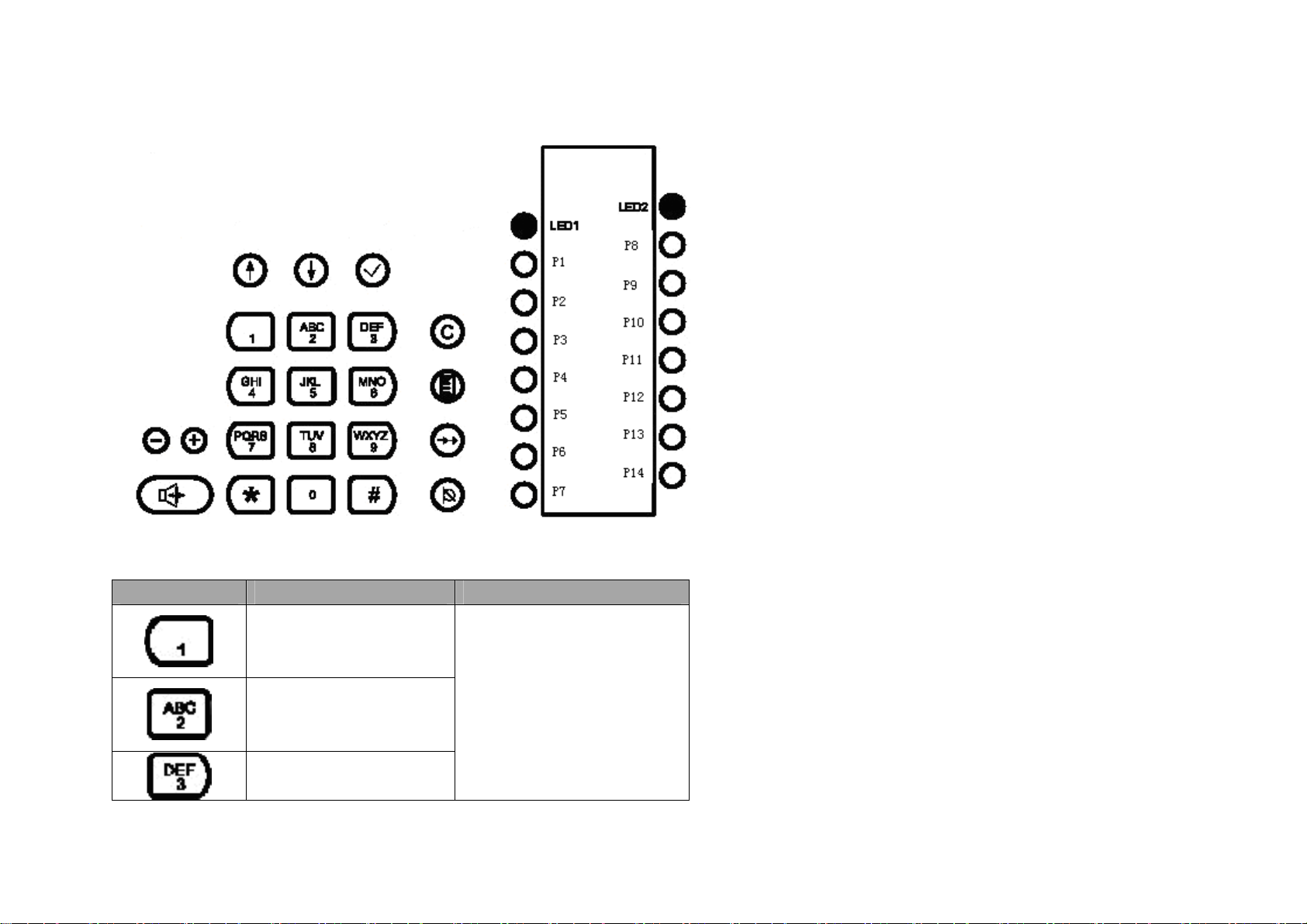

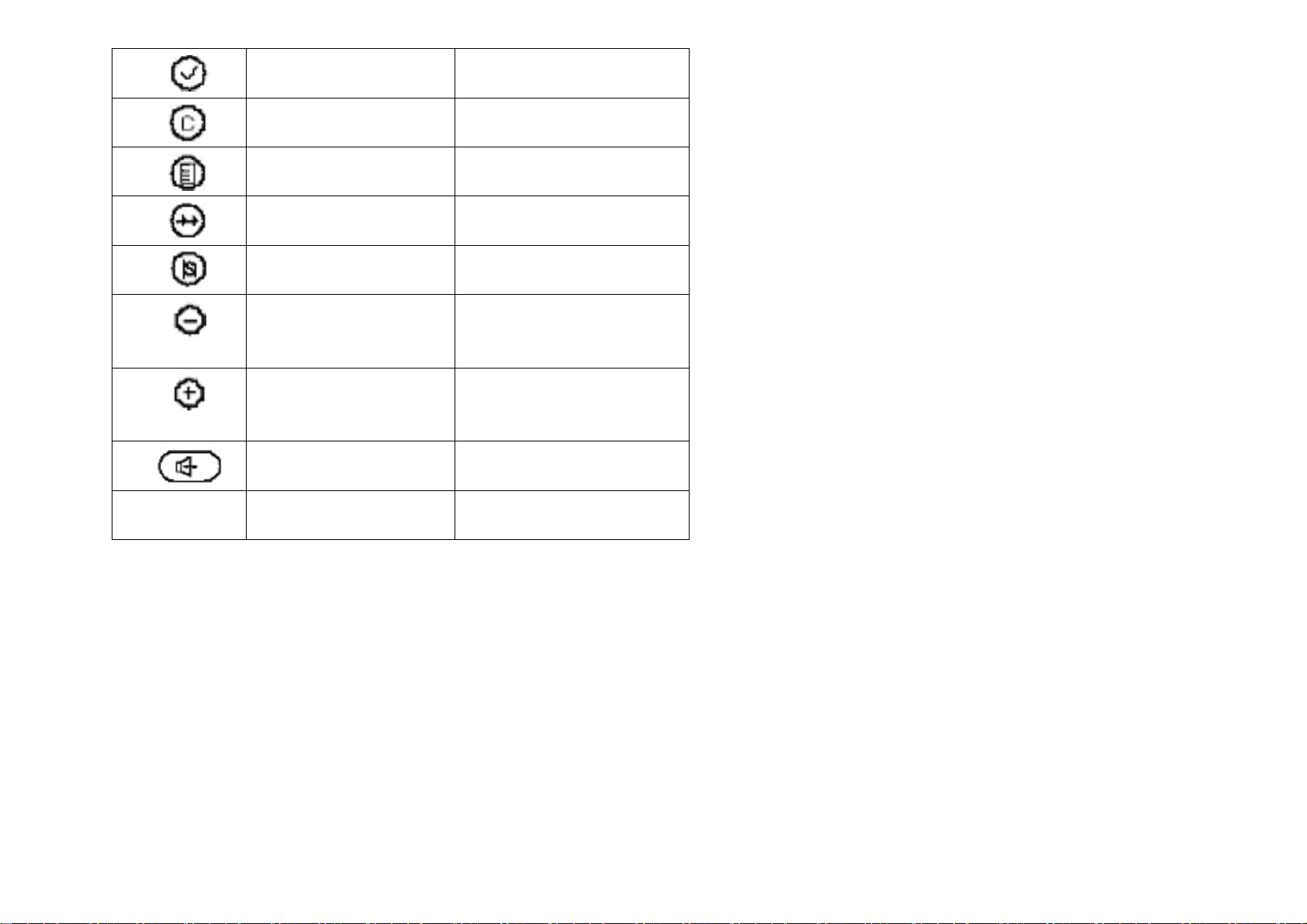

2.1.1 Telephone appearance

13
2.1.2 LCD

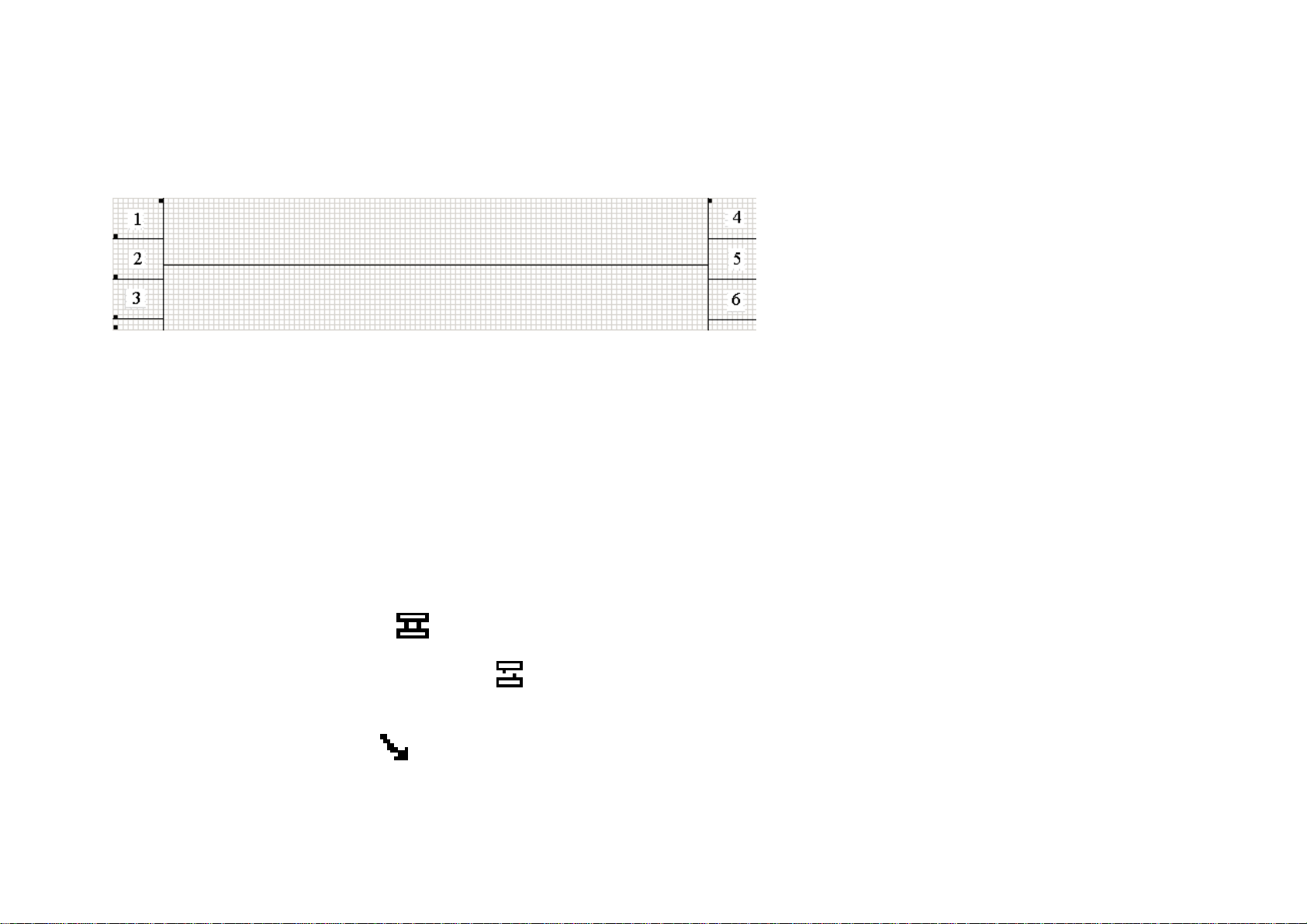

The information of system, user, etc., will be displayed clearly in two lines. (128x26 Dot matrix)
On the LCD, there are 6 icon fields.
LCD will leave 20 columns for displaying icons, 10 columns on each side. Each icon size is 10x8 . So there’re six positions, numbered from No.1 to No.6, on LCD
for indication of different status.
zRegion No.1: Ethernet Link indication
zRegion No.2: Call Forward indication
zRegion No.3: Missed call indication
zRegion No.4: DND/Mute indication
zRegion No.5: Line1 status indication
zRegion No.6: Line2 / Alarm status indication
The 6 field icons are described as following:
zEthernetLinkindicator
If network connector is ok, icon will be shown at Region No.1.
Else if network connector is disconnected, icon will be shown.
zCallforward
When call forward is set, icon will be shown at Region No.2.
zMissed call

14
When there’re new missed calls (have not read), icon will be shown at the Region No.3.
zDND/Mute
If Mute is activated (only in talking ), icon will be shown at region 4.
If DND is activated and not in talking state, icon will be shown at Region No.4.
zLine1 status icon
If the line1’s status is Call waiting, icon will be shown at region No.5.
If the line1’s status is Call holding, icon will be shown at region No.5.
zLine2 status icon
If the line2’s status is Call waiting, icon will be shown at region No.6.
If the line2’s status is Call holding, icon will be shown at region No.6.
zAlarm status icon
If Alarm is valid (have set alarm and any alarm time is not reached) and the state is on hook or menu operation or view missed/received/dialed calls,
the alarm icon will be displayed. If hook off, the alarm icon will be off until the state returns to on hook. If an alarm time is reached and none
other alarm, the alarm icon will be off.

15
2.1.3 Key board
As shown in Figure DPH-150S(SE) total has 36 keys.
Their definitions are given in Table

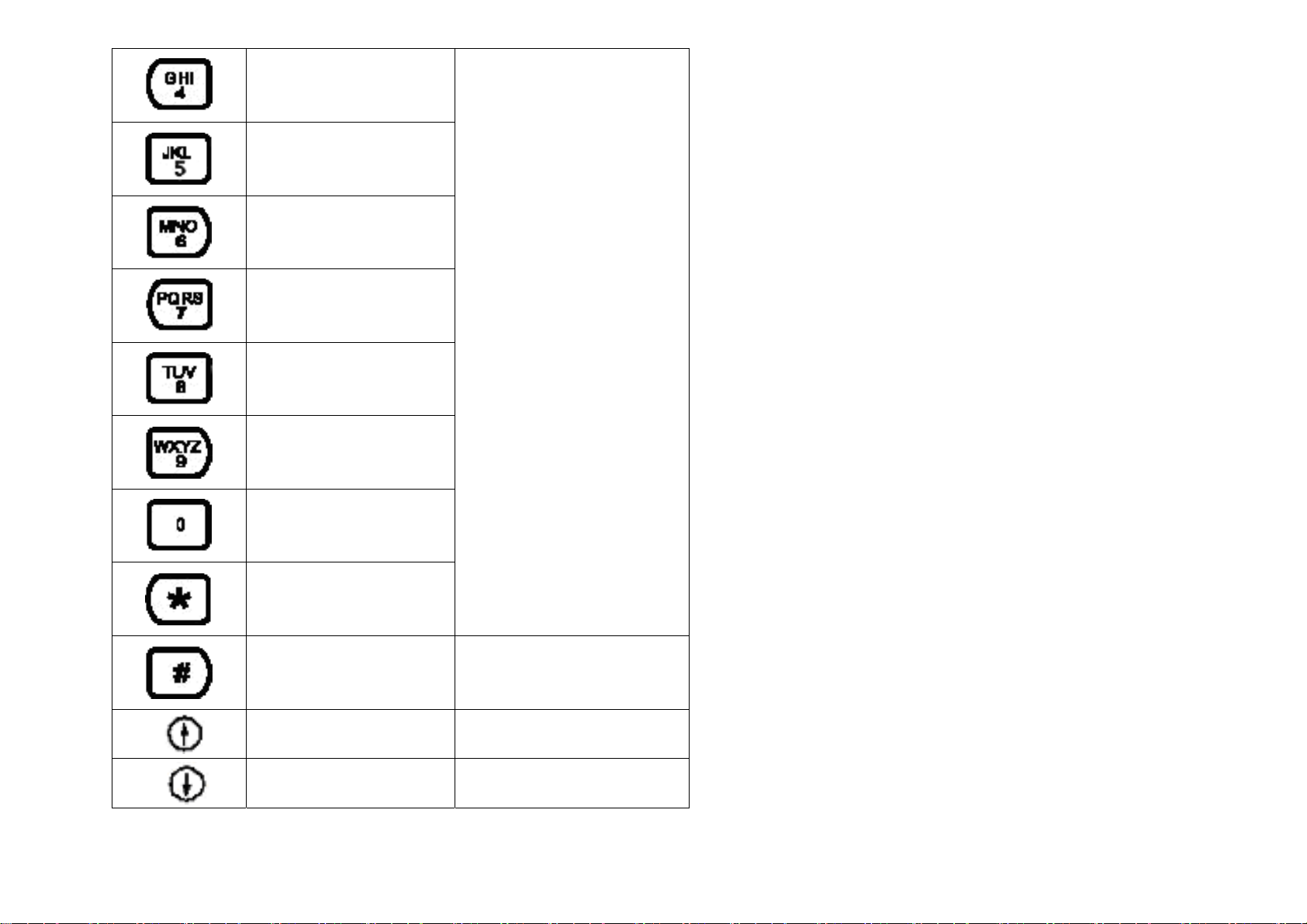

Key button Key definition Function description
1 ．，：；/ - _ @
& ? ¿ ! ¡ ‘ “
2 a b c A B C
3 d e f D E F

16
4 g h I G H I
5 j k l J K L
6 m n o M N O
7 p q r s P Q R S
8 t u v T U V
9 w x y z W X Y Z
0 blank key
. * + / （）< = > % ¥ ￡﹩
Dial finish key/switch
input mode Dial finish key/switch input mode
shift key 1. Up arrow key;
2. Left arrow key;
shift key 1. Down arrow key;
2. Right arrow key;

17
Ok Confirm or enter
delete Cancel or delete
menu Go to menu
Redial key Redial or show dialed list
mute Mute/Unmute the call
Adjust volume Reduce
handset/handfree/headset
volume
Adjust volume Enhance
handset/handfree/headset
volume
handfree On/Off handfree
P1~P14 Function key Program keys(Function/Memory
keys)
2.1.4 Text input definitions
The telephone has three text input methods: “ABC” and “abc” and “123”. Where “ABC” means uppercase character input, “abc” means lowercase character input
and “123”means numeric character.
You can switch three input methods by press “#” key.

18
2.1.4.1 “abc” character input mode
In “abc” input mode, user can input lowercase characters. The input character will change according to the pressing times. For example, if user presses 2 times
on 2
ABC , it will be ‘b’. The definition of the key in “abc” method is shown in Table.
Definition of the key in “abc” method
Key Characters in “abc” input method
1. , : ; / - _ @ & ? ! \ " 1
2
ABC a b c 2
3
DEF d e f 3
4
GHI g h i 4
5
JKL j k l 5
6
MNO m n o 6
7
PQRS p q r s 7
8
TUV t u v 8
9
WXYZ w x y z 9
**+ ( ) < = > % $
0Space 0

19
#Input method switch key
2.1.4.2 “ABC” character input mode
In “ABC” input mode, user can input uppercase characters. The input character will change according to the pressing times. For example, if user presses 2 times
on 2
ABC , it will be ‘B’. The definition of the key in “ABC” method is shown in Table.
Definition of the key in “ABC” method
Key Characters in “ABC” input method
1. , : ; / - _ @ & ? ! \ " 1
2
ABC A B C 2
3
DEF D E F 3
4
GHI G H I 4
5
JKL J K L 5
6
MNO M N O 6
7
PQRS P Q R S 7
8
TUV T U V 8

20
9
WXYZ W X Y Z 9
**+ ( ) < = > % $
0Space 0
#Input method switch key
2.1.4.3 “123” character input mode
In “123” input mode, user can input numeric characters.. The definition of the key in “123” method is shown in Table.
Definition of the key in “123” method
Key Characters in “ABC” input method
11
2
ABC 2
3
DEF 3
4
GHI 4
5
JKL 5
6
MNO 6
