daviteq WS433-TAG User manual

WS433-TAG-MN-EN-01
DEC-2020
SKU
WS433-TAG
HW Ver.
2.5
FW Ver.
2.0
Item Code
WS433-TAG-01

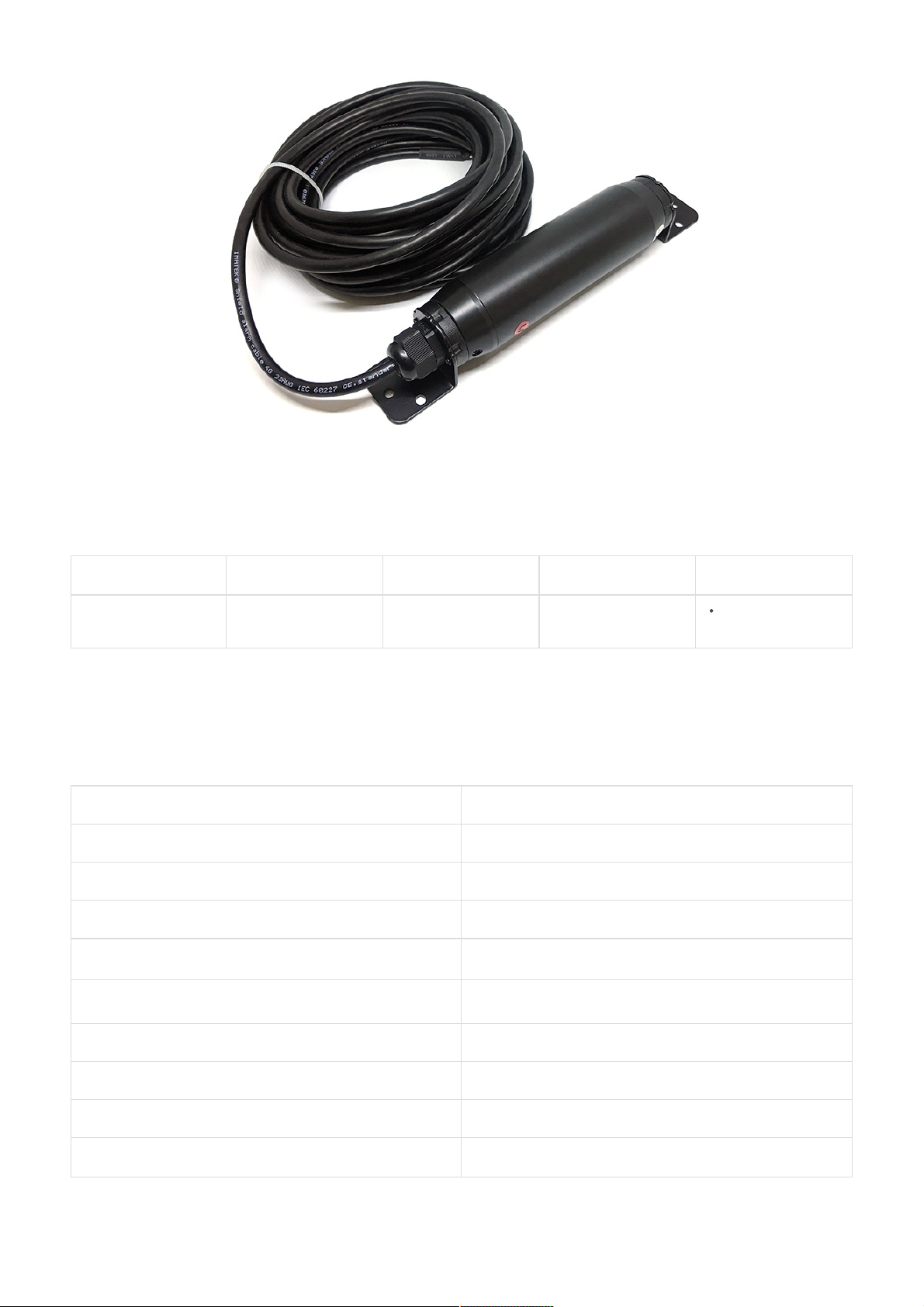

WIRELESS ACTIVE SENSOR TAG 433MHZ, AA 1.5-3.6VDC BATTERY, IP67, C/W STEEL BRACKETS
SKU
WS433-CL
HW Ver.
2.5
FW Ver.
2.0
Item Code
WS433-CL-07
WIRELESS SENSOR TAG RECEIVER, INTERNAL ANTENNA, 7M CABLE, RS232, S2X PROTOCOL, C/W
STEEL BRACKETS
USER GUIDE FOR WIRELESS
ACTIVE TAG 433MHZ WS433-TAG
This document is applied for the following products
WS433-TAG-01
WS433-CL-07

Product
HW Ver.
FW Ver.
Release Date
Functions Change
WS433-TAG-01
2.5
5.0
DEC-2019
Change RF data
rate by button
Data speed
Up to 50kbps
Antenna
Internal Antenna
Battery
01 x AA 1.5 - 3.6VDC, working time up to 10 years (depends on
configuration)
Frequency Band
ISM 433Mhz, Sub-GHz technology from Texas Instrument, USA
International Compliance
ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB
STD-T108 (Japan)
Vietnam Type Approval Certification
QCVN 73:2013/BTTTT, QCVN 96:2015/BTTT (EMC Compliance)
Security Standard
AES-128
Operating temperature
-40oC..+60oC (with AA L91 Energizer battery)
Housing
Poly-carbonate, IP67
Installation method
Mounted buy screw on a trailer chassis
1. Functions Change Log
2. Specification of SENSOR TAG, WS433-
TAG-01
3. Specification of SENSOR TAG

Communication
RS232
Data speed
Up to 50kbps
Antenna
Internal Antenna
Power supply
7..48 VDC, max 200mA
Electrical connector
Cable 7m length with PG9 cable gland
RF frequency band
Free license ISM 433.92Mhz (for others 868, 915, 920Mhz, refer related
datasheets)
Ready to comply
ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB
STD-T108 (Japan)
Vietnam Type Approval Certification
QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019)
Security Standard
AES-128
Operating temperature
-40oC..+85oC
Housing
Poly-carbonate, IP67
Installation method
Mounted on trailer truck
The following batteries can be used for this sensor tag.
RECEIVER, WS433-CL-07
4. Operation Principle of SENSOR TAG,
WS433-TAG-01

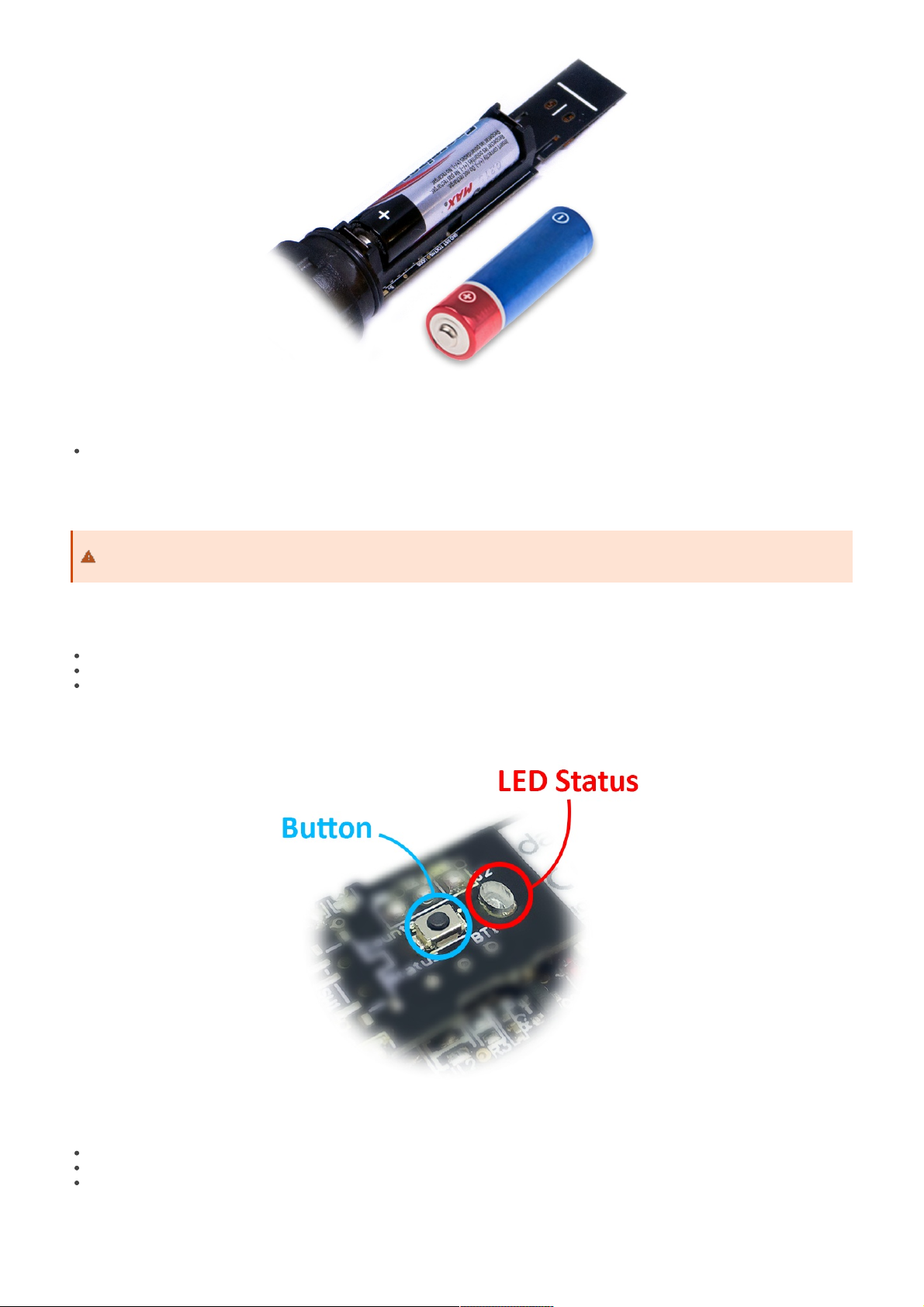

4.1 Insert the battery

Step 1: Open the sensor cover with a Phillips screwdriver;
Step 2: Insert 01 x AA 1.5 or 3.6VDC battery, please take note of the poles of the battery;
ATTENTION: REVERSED POLARITY OF BATTERY IN 10 SECONDS CAN DAMAGE THE SENSOR
CIRCUIT!!!

Step 3: Insert the top plastic housing and locking by M2 screw.
Open the cover of the sensor then use the push button to set the data transfer speed for the first 30 seconds when the
battery is first installed, after 30 seconds the push button function does not work.
Press and hold the button for 2 seconds => LED blinks once => Release the button to set Data rate RF 50kbps.
Press and hold the button for 5 seconds => LED blinks twice => Release the button to set Data rate RF 625bps.
Press and hold the button for 10 seconds => LED blinks 3 times => Release the button to reset RF parameters
(frequency, RF output power, data rate), if held for more than 30 seconds then the button function does not
work.
Reset default WS433:
Frequency: 433.92 MHz
RF transmit power: -10 dBm
RF data rate: 50 kbps
4.2 Button Function
The Sensor tag had been pre-configured, only use this feature if you really want to change the data
rate RF.
4.3 Modbus register of WS433-TAG-01

Modbus
Register
Hex address
# of Registers
Description
Range
Default
Format
Property
395
18B
1
RSSI threshold
to detect
(-100)-0
-60
uint16
Read/Write
396
18C
1
ASCII send
cycle (second)
1-3600
300
uint16
Read/Write
397
18D
1
ASCII send
enable
0-1
1
uint16
Read/Write
The WS433-TAG will send the signal to WS433-CL-07 every 60 seconds (default setting).
WS433-CL-07 sends data back to the black box according to the ASCII send_cycle configured time cycle, the default
setting is 300 seconds.
- When [error code] = 1 means that WS433-CL-07 has no wireless sensor tag connected yet.
- When the WS433-CL-07 is not connected to the WS433-TAG, if there is a sensor tag nearby, it will sends all 3 packets
with RSSI > RSSI threshold, the WS433-CL-07 receives that sensor tag and [error code] = 0, the buzzer of WS433-
CL-07 will beep once.
- When the WS433-CL-07 is not connected to the WS433-TAG, If there are ≥2 nearby sensor tags, the WS433-CL-07 will
receive the sensor tag which has the largest RSSI.
- When [error code] = 0 means that WS433-CL-07 has connected to a sensor tag. At that moment, WS433-CL-07 will
lock this sensor tag, not accept other sensor tag even if that sensor tag has a bigger RSSI.
- When [error code] = 0 means that WS433-CL-07 has connected to a certain sensor tag. If within 5 minutes, this
sensor tag is separated and not sent back to the WS433-CL-07. Then [error code] = 1 and WS433-CL-07 will return to
the state with no sensor tag connected, then ready to connect to a new nearby sensor tag.
Red: PWR+(7...48VDC)
Black: PWR-(0VDC)
4.4 Datagram from Tx pin of RS232 port:
DV,[Sensor Type],[ID Sensor tag],[% sensor battery],[RF signal strength],[error code],[value 1],
[value 2],[Checksum][\r\n]
5. Operation Principle of WS433-CL-07
5.1 IO Wiring
Each cable includes wires which are marked labels according to types of connection. (user should not cut these
labels before installation to avoid confusion).
The signal wire Tx (WS433-CL-07) will connect to the Rx (Black box) wire and vice versa.

Green: RX
White: TX
The signal cable from the sensor should be protected by a corrugated hose or the Φ16 protection tube, keep the cable
avoid high-temperature areas.
Press and hold the push button or bring the magnet near the Hall sensor:
For 2s => see the LED blink once or the buzzer will ring 1 Beep => Release the push button or Take the
magnet out to set RF data rate RF 50 kbps
For 5s => see the LED blink twice or the buzzer beep 2 Beep => release the push button or take the magnet
out to set RF data rate RF 625 bps
For 10s => see the LED blinking 3 times or the buzzer buzzes 3 Beep => release the push button or take the
magnet to perform the User factory reset (User factory reset = reset frequency, RF transmit power, data rate,
Slave ID, Modbus operating parameters, compare time for data status).
If it takes more than 30 seconds, the button will be deactivated.
Description
Explain
5.2 Hall sensor and button function
Button and Hall sensor (using magnets for activation) have the same function and are only
available for the first 5 minutes after power on.
5.3 Datagram from Tx pin of RS232 port:
DV,[Sensor Type],[ID Sensor tag],[% sensor battery],[RF signal strength],[error code],[value 1],
[value 2],[Checksum][\r\n]

DV
Product of DAVITEQ
Sensor Type
Type of sensor connected
ID Sensor tag
ID of sensor
% sensor battery
Sensor battery percentage (value = 10, 30, 60, 99%)
RF
Signal strength: 0 .. 4 (4 is strongest)
Error code
0: No error
1: Error
Value 1 and Value 2
The value of wireless sensor (wireless tag), each value has 04 bytes in
HEXA
Calculation for Checksum
Sum of bytes in the string of { DV,[Sensor Type],[ID Sensor tag],[% of
sensor battery],[RF signal strength],[error code],[value 1],[value 2], }
→ Then perform AND with 0xFF then convert to HEXA code.
[\r\n]
for ending, Enter and new line
For Example:
1. Wireless tag for trailer WS33-TAG:
Description
Explain
15
wireless tag for trailer WS433-TAG
020201112
ID Sensor tag
99
% sensor battery
2
RF signal strength
0
No error
00000000
→ not used for this sensor
00000000
→ not used for this sensor
ED
checksum
2. Wireless temperature sensor WS433-M12F-ATE:
Description
Explain
01
temperature sensor
020201111
ID Sensor tag
99
% sensor battery
4
RF signal strength
0
No error
DV,15,020201112,99,2,0,00000000,00000000,ED\r\n
DV,01,020201111,99,4,0,41D9999A,41D9999A,85\r\n

41D9999A
Convert to Float* → 27.2°C
*Because the sensor Type 01 specifies: both HEXA value of value
1 and value 2 are Float.
41D9999A
85
checksum
All the device such as WS433-TAG-01 and WS433-CL-07 should be fixed on trailers or tractors with screws;
6. Installation
ATTENTION:
DO NOT install the Wireless sensor tag inside a completed metallic box or housing, because the RF signal can
not pass through the metallic material. The housing is made from Non-metallic materials like plastic, glass,
wood,... is acceptable.
NOTE:

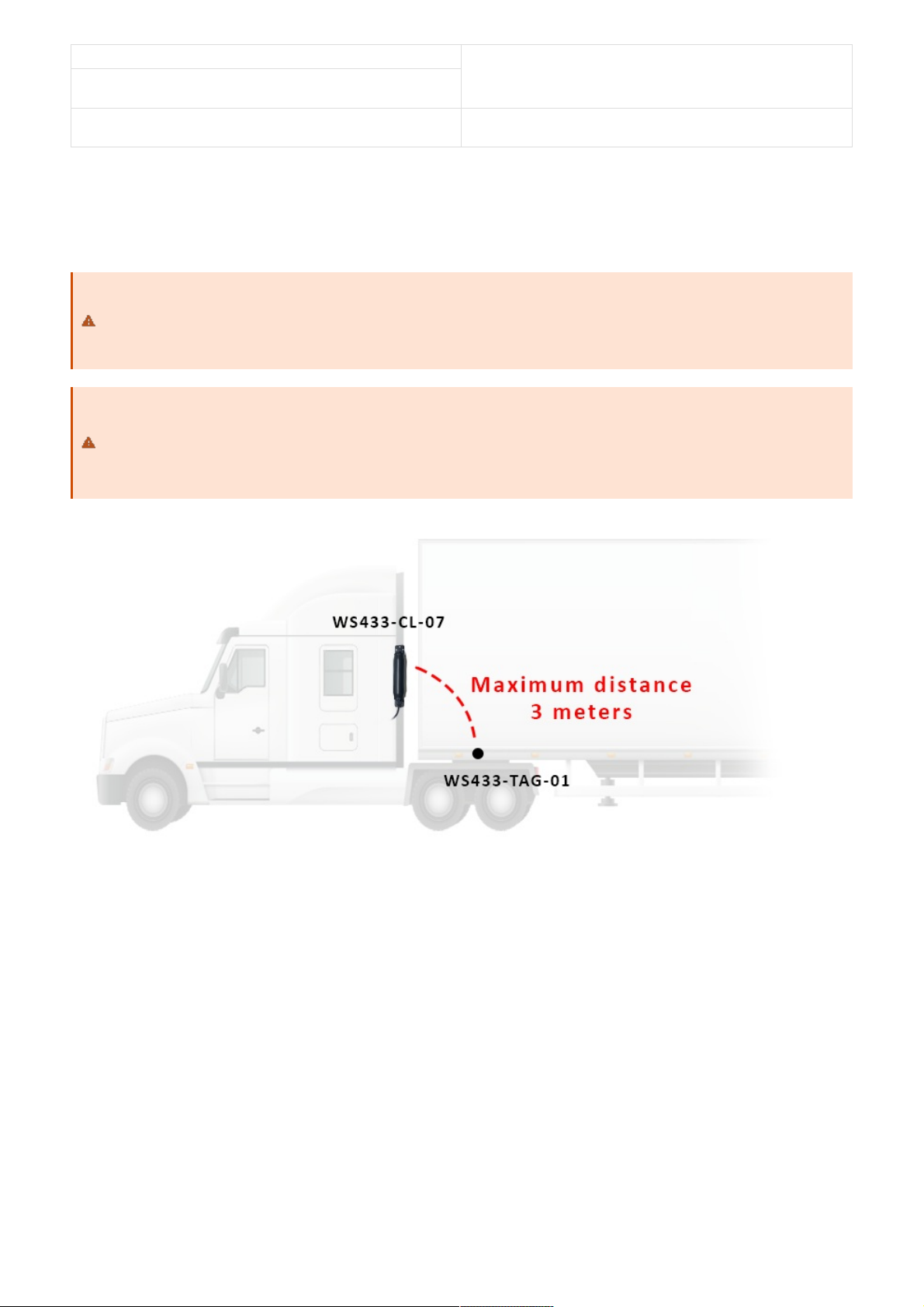

The WS433-TAG and WS433-CL-07 sensors should be installed as close together as possible;
The maximum distance to connect is 3 meters (If installed outside this distance, WS433-TAG and WS433-CL-07
will lose connection).

No.
Phenomena
Reason
Solutions
7. Troubleshooting

1
Wireless sensor WS433-TAG not
connected to WS433-CL-07
No power supply;
The distance was too far
beyond 3 meters.
Check that the battery is
empty or not installed
correctly;
Reinstall sensor within 3-
meter distance.
2
Can't read Tx signal from WS433-
CL-07
No power supply;
Wrong connection of signal
wire Tx and Rx.
Check the power supply;
Reconnect the Tx and Rx
wires as instructed.
Manufacturer
Daviteq Technologies Inc
No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho
Chi Minh City, Vietnam.
Tel: [phone] (ext.122)
Email: [e-mail] | www.daviteq.com
Distributor in Australia and New Zealand
Templogger Pty Ltd
Tel: 1800 LOGGER
Email: [e-mail]
