Beeper Collar
The remote training system
will give you the ability to keep track of your dog’s
location when he/she is out of sight or on point.
The is also a training collar
that can be used for behavior management.
The Dogtra training & beeper collars are waterproof,
lightweight, and reliable. They are built to withstand
the most rugged conditions that your dog may
encounter.
The beeper has an audible 400-yard range, which
may vary with tough terrain and wind conditions.
The use of microcomputer technology, digital
circuitry and Lithium-Polymer batteries make both
the collar and transmitter compact and very reliable.
THANK YOU FOR PURCHASING
THE WORLD’S FINEST E-COLLAR
3
OVERVIEW
The features nick and
constant stimulations, which can be controlled from
the transmitter. Turning the knob on the top of the
transmitter adjusts the intensity of the stimulation.
The LCD screen will display the intensity level on the
front of the transmitter (0 thru 127). It also has a
remote beeper with three different modes.
To activate the transmitter, press and hold the blue
button on the right side of the transmitter until both
the LCD and LED window illuminates. Next, hold the
two red dots on the transmitter and receiver together
until the receiver light starts blinking.
The receiver/collar’s LED window will blink green
every 4 seconds to show that the unit is on and fully
charged.
Your has three beeper modes:
Run/point, Point-Only, and Locate. Locate is
available anytime by pressing the top orange button
on the left side of the transmitter. To activate the other
beeper modes, press the MODE button on the side of
the transmitter. The first time you press the MODE
button, the collar will beep twice.
The beeper unit is now in the Run/Point mode.
The beeper will always start in this mode, but can
easily be changed to the Point-Only mode by pressing
the MODE button a second time. In the Run/Point
mode, it will double beep every 7 seconds while the
dog is running. When the dog is on point or stationary
it double beeps every 2 seconds.
OVERVIEW

By pushing the MODE button a second time, the unit
will go into the Point-Only mode. While the dog is
moving, the unit will not beep (you can use the Locate
mode for locating your dog). When the dog points or
becomes stationary, the unit will emit a double beep
every 2 seconds. The Locate feature can be used at any
time, it will beep as long as you press and hold the
button. To turn the beeper unit off, press the MODE
button a third time. The unit will emit three rapid
beeps, thereafter; the unit will be turned off.
Remember, the Locate button can still be used at any
time!!
There are two beeper tones: High and Low. The tone of
the beeper can be selected with a toggle switch located
on the transmitter. The beeper volume for the
Run/Point mode and Point-Only modes can be
increased or decreased by holding the Locate button
down while pressing the Mode button abruptly.
*Please refer to page 22 & 23 for a detailed chart on
Mode and Beeper Volume level variations.
The is a two-dog model.
The collars are color-coded (green and orange) you can
select between the two collars with a toggle switch
located on the transmitter.
The orange collar emits a low-tone double beep in all
modes and the green collar emits a high-tone single
beep in all modes. This gives you the ability to
differentiate between dogs when both are out of sight.
4
OVERVIEW
5
Easy-to-use, ergonomically fitted transmitter.
Rheostat dial that allows for gradual adjustments
in stimulation intensity with no jumps between
levels (0-127 levels).
Two-dog models allow the trainer to control two
different dogs from one transmitter.
The has a 1-mile range.
2 different stimulation types - “Nick” &
400-yard audible remote-controlled beeper.
The freedom to choose between a High and Low
tone beeper (Single-dog unit only).
Three beeper modes - “Run & Point”, “Point”,
and “Locate”.
features a new,
innovative, Beeper Volume Control. You may
now select between 2 different tones and 3
volume levels for each tone.
combines the receiver
with the beeper horn into one small, compact unit.
uses Lithium Polymer
batteries that provide a 2-hour rapid charge.
MAIN FEATURES
MAIN FEATURES
“Constant”

6
Fully waterproof receiver/collar and transmitter.
No bothersome external antenna on the
receiver/collar.
One-charging system allows the transmitter and
receiver(s) to be charged at the same time.
Over 8000 different identity codes to prevent
signal match-up with other e-collars.
Easily visible blue LCD screen displays the exact
level of stimulation and can even be seen clearly in
the dark.
A Three bar battery life indicator and LED colored
indicator to show the remaining battery life.
MAIN FEATURES
7
PRODUCT SAFETY AND HEALTH STATEMENTS
Proper e-collar use
Dogtra e-collars are intended for the sole purpose of
behavior modification of dogs. They are not intended
for human use or use on other animals. Dogtra
Company does not assume any liability for improper
use of the Dogtra e-collar.
Aggressive dogs
Dogtra does not recommend using the e-collar to
correct dogs that are aggressive towards other dogs
or people. In many such cases the dog will associate
the stimulation with the other dog or individual and
become even more aggressive. Dog aggression is
best treated by a dog-training specialist.
Interference with other electronic devices
Dogtra’s industry-leading technology filtering
system ensures minimal interference with other
electronic devices (garage door openers, pacemakers,
etc.). Our digital microprocessor offers thousands of
unique codes to eliminate frequency match-up with
other Dogtra e-collars.
Inadvertent activation
If the constant button is held down for 12 seconds or
more the unit will automatically shut down. It will
reactivate when the button is released.
PRODUCT SAFETY AND HEALTH STATEMENTS

Transmitter
Receiver (two receiver/collars for Dogtra
two-dog models)
Lithium Polymer Battery charger and
splitter cable
Test light
Owner’s manual
Carrying case
Metal belt clip accessory
PACKAGE CONTENTS
8
PACKAGE CONTENTS
9
DESCRIPTION OF TRANSMITTER PARTS
DESCRIPTION OF
TRANSMITTER PARTS

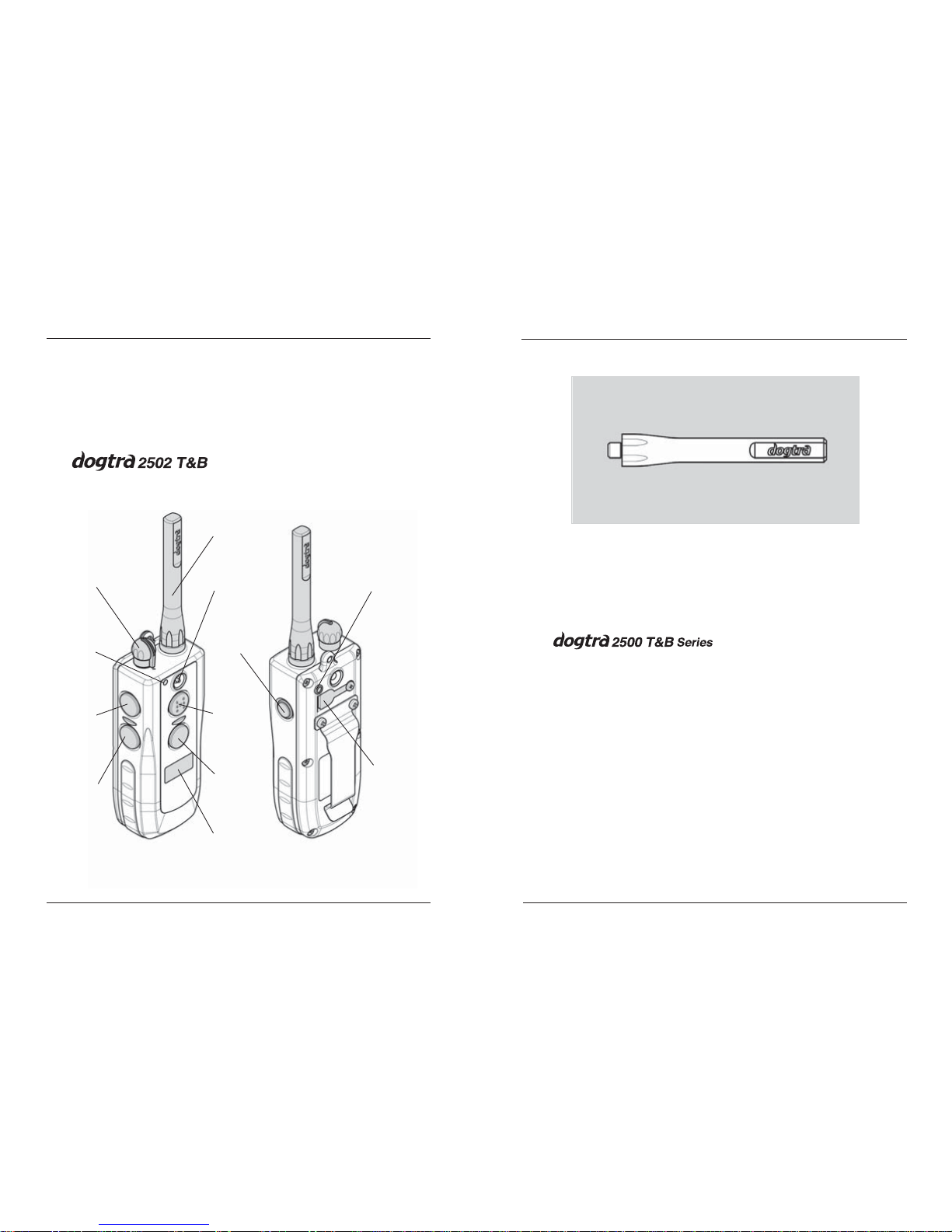

transmitter (1-dog)
Antenna
Beeper Sound
Toggle Switch
On/Off Magnatic
Red Dot
Battery Charging
Receptacle &
Rubber Plug
Nick
Constant
ON/OFF
Switch
LCD
Screen
Rheostat
Intensity Dial
Indicator Light
(LED Window)
Locate
Mode

10
DESCRIPTION OF TRANSMITTER PARTS
DESCRIPTION OF
TRANSMITTER PARTS
transmitter (2-dog)
Antenna
Dog Collar
Toggle Switch
On/Off Magnatic
Red Dot
Battery Charging
Receptacle &
Rubber Plug
Nick
Constant
ON/OFF
Switch
LCD Screen
Rheostat
Intensity Dial
Indicator Light
(LED Window)
Locate
Mode
11
DESCRIPTION OF TRANSMITTER PARTS

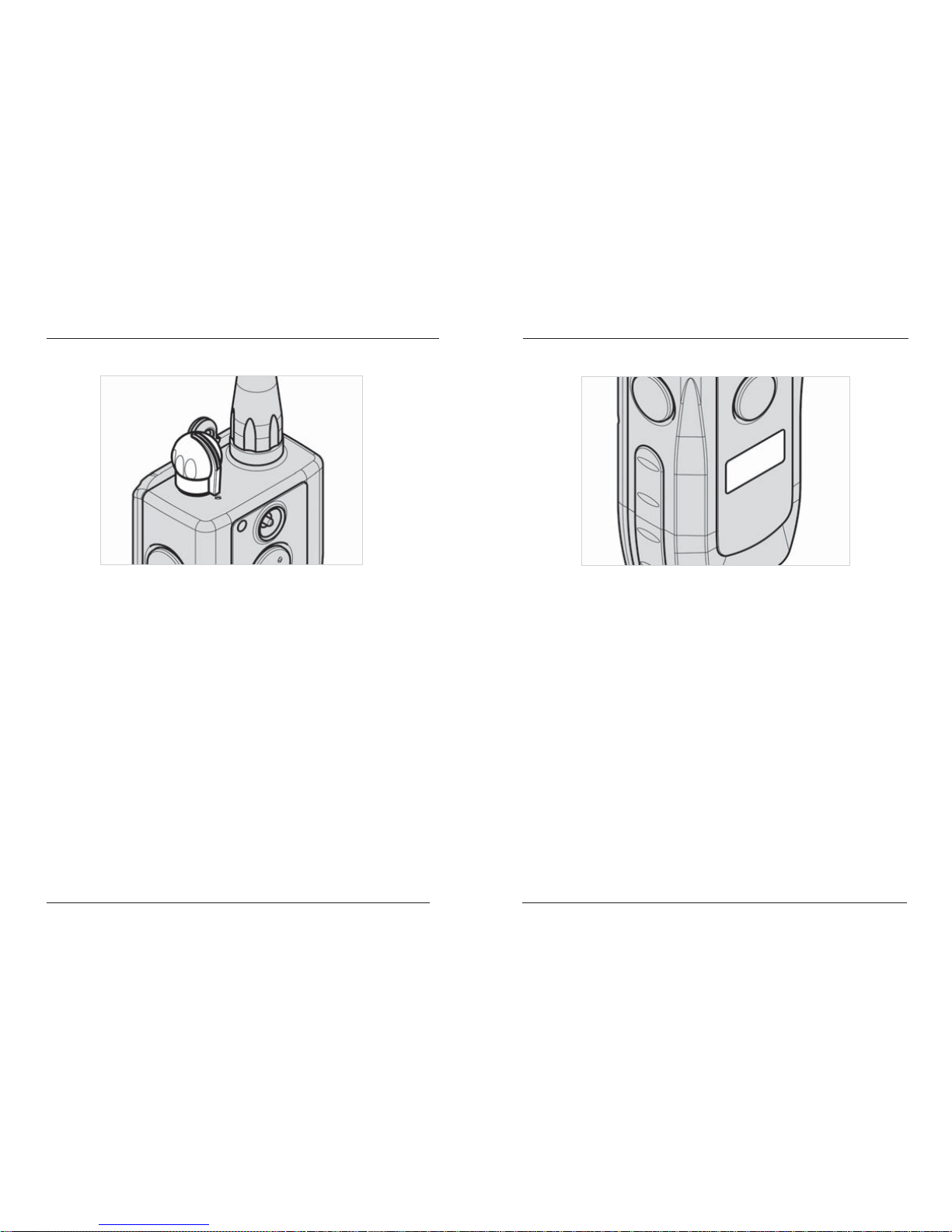

Transmitter Antenna
A 3.2” antenna is supplied with the
transmitter.
The antenna must be fastened to the transmitter
before using the unit.

12
DESCRIPTION OF TRANSMITTER PARTS
Beeper Sound Toggle Switch on the
One-Dog Models
The one-dog model has a Beeper Sound toggle
switch on the face of the transmitter located above
the “Nick” button, which is designed to easily select
a beeper tone, either High or Low.
Set the toggle switch on the High position to select
the High tone and the Low position to select the
Low tone.
Beeper Sound
Toggle Switch
13
DESCRIPTION OF TRANSMITTER PARTS
Dog Collar Toggle Switch on the
Two-Dog Models
The two-dog model has a toggle switch on the face
of the transmitter located above the “Nick” button.
The toggle switch allows for selection of either
collar.
Set the toggle switch on the Green position to select
the Green collar and the Orange position to select
the Orange collar.
Stimulation (Nick and Constant) along with the
beeper and locate modes will only operate when the
toggle is in the desired position for the appropriate
receiver/collar.
Dog Collar
Toggle Switch

14
DESCRIPTION OF TRANSMITTER PARTS
Rheostat Intensity Dial
The Rheostat Intensity Dial is located on the top of
the transmitter: (0) being the lowest level and (127)
being the highest. The LCD screen on the
transmitter indicates the intensity level and battery
life.
15
DESCRIPTION OF TRANSMITTER PARTS
LCD Screen
The LCD screen indicates the stimulation level on
the screen ranging from (0-127). The battery life
indicator shows: 3 bars = full charge, 2 bars =
medium charge, and 1 bar = needs charge.
When pressing the MODE button, the selected
beeper volume level is shown on the LCD
(Note: Pressing the MODE button once will also
set the unit in the Run/Point mode.). When the
toggle switch is set on low tone the LCD will read:
L1= lowest volume, L2 = medium volume and L3
= highest volume. When the toggle switch is set on
high tone, the LCD will read: H1 = lowest volume,
H2 = medium volume and H3 = highest volume.

16
DESCRIPTION OF TRANSMITTER PARTS
Care for LCD Transmitters in Cold Temperature
In cold temperatures (10 degrees F or below), the
Liquid Crystal Display (LCD) on your transmitter
may be dim or slow to respond. Wait until the
display becomes visible before selecting any training
level.
Even though the LCD screen might be dim or slow
to respond when you push the Nick or Constant
button, the transmitter will still function properly. In
the occurrence of extremely cold weather, the LCD
screen might take a moment to respond causing the
intensity level to freeze at that current level. In this
situation, if you turn the rheostat intensity dial, the
level on the screen may not change but the actual
intensity from the receiver/coller will change in
agreement with the dial.
In this situation, it is ideal to either wait until your
transmitter is back to working order before emitting
a correction, or while holding the constant button
down slowly turn the Rheostat Intensity Dial while
watching your dog’s reaction. Do not turn the
Rheostat Intensity Dial at a rapid increase because
the receiver/collar will emit a static correction based
on the level of the Rheostat Intensity Dial, which
might not be correctly reflected on the LCD screen.
Suggestion: Carry your remote close to your body
as your body’s warmth can improve operation and
viewing of the LCD screen.
17
DESCRIPTION OF TRANSMITTER PARTS
Transmitter Indicator Light (LED Window)
The transmitter LED indicator light is located near
the Rheostat Intensity Dial. It will flash every 4
seconds when the transmitter has been turned on.
The color of the light indicates the status of battery
life. It flashes green when the battery is fully
charged and turns to amber when the battery is at
medium charge. It is acceptable to charge your unit
even at medium charge without any damage
incurred to your collar. When the transmitter
indicator emits a blinking red light, the battery
needs to be recharged.
(Green = full charge, Amber = medium charge,
Red = needs charge)

18
DESCRIPTION OF TRANSMITTER PARTS
Transmitter Battery Charging Receptacle &
Rubber Plug
Located on the backside of the transmitter, the
charging receptacle is covered by a rubber plug.
Insert one end of the battery charging cable into the
receptacle to charge the battery (See Battery
Charging Procedure on page 38~40.).
After charging is completed, close the receptacle
with its rubber plug to make sure dirt or water does
not get inside.
19
BUTTON FUNCTION
The transmitter for the
has five buttons (two on the face of the
transmitter, two on the left side, and one on the
right side.).
“Nick” Button
When the “Nick” button is pushed, the receiver
emits a single rapid pulse of electrical stimulation.
BUTTON FUNCTION
Lccate
Nick
Beeper Sound
Toggle Switch
ON/OFF
Switch
Mode
Constant
*The unit will be fully waterproof with or without
the rubber plug.

20
BUTTON FUNCTION
“Constant” Button
Pressing the “Constant” button gives continuous
stimulation as long as the button is pushed, for up
to 12 seconds. If the button is not released after 12
seconds, the stimulation will automatically turn off
as a safety feature. The collar will be ready to be
reactivated once the button has been released.
“Locate” Button
The “Locate” button is located on the left side. It
causes the collar’s beeper horn to emit a series of
beeps when pushed and it gives you the ability to
keep track of your dog’s location. On one-dog
models, the beeper can be adjusted between high
and low tones.
NOTE: The high/low tone is not an option on two
dog units. On two-dog models, the Green collar
emits the high tone and the Orange collar the low
tone automatically.
“Mode” Button
Your Dogtra 2500T&B has three different modes.
Locate, Run/Point, and Point-Only. The
“LOCATE” mode can be activated at any time,
even when another mode is set, by pressing the top
orange button labeled “LOCATE” on the left side
of the transmitter. To set the beeper unit to
21
BUTTON FUNCTION
Run/Point mode, press the orange “MODE”
button. This button is located on the left side of the
transmitter, under the “LOCATE” button.
When you press the “MODE” button the first time,
the collar will beep twice. The beeper unit will
always start in Run/Point mode. It is now in
Run/Point mode. The beeper will sound every
7 seconds while the dog is running, and every
2 seconds when the dog is gone on point or
become stationary.
The second time you push the “MODE” button, it
will beep once, remain silent while the dog is
running and beep every 2 seconds when the dog is
on point or stationary.
To turn the beeper unit off, press the MODE button
a third time. The unit will emit three rapid beeps,
and the beeper will turn off. The Locate mode can
still be used!
When the toggle switch is set on Low tone, the
beeper will emit a double beep when it is in
Run/Point mode or Point-only mode. If the toggle
switch is set on the High tone, a single beep will
sound when using Run/Point or Point-Only mode.

22
BUTTON FUNCTION
* Note : The locate button can be used in any
mode you are in.
Initial Beeper
Sound
Press 1st
Time 2 Beeps
Run/
Point
Mode
-Dog running: Double
beep every 7 seconds.
-Dog on-point: Double
beep every 2 seconds.
Press 2nd
Time
Press 3rd
Time 3 Beeps Beeper Unit Turned off
1 Beep
Point-
Only
Mode
-Dog running : Remains
Silent.
-Dog on-point : Double
beep every 2 seconds
Mode Action
23
BUTTON FUNCTION
Beeper Volume Adjustment
The Beeper Volume level for the Run/Point mode
and Point-Only mode can be increased or
decreased by holding the LOCATE button down
while briefly pushing the MODE button. The tone
of the beeper can be selected with a toggle switch
located on the face of the transmitter. There are
two beeper tones: High (H1 = lowest volume, H2
= medium volume, and H3 = highest volume) and
Low: (L1 = lowest volume, L2 = medium volume,
and L3 = highest volume).
* Note : The Locate mode beeper volume is not
adjustable; it is always on the highest level, L3
on Low tone, or H3 on High tone.
Toggle Switch
High
LCD Displays
H I
H 2
H 3
L I
L 2
L 3
Toggle Switch
Low
LCD Displays
Press Mode Once
(While holding down the
locate button)
Press Mode 2nd Time
(While holding down the
locate button)
Press Mode 3rd Time
(While holding down the
locate button)

Transmitter Power ON/OFF
The button on the right side of the transmitter is
the “ON/OFF” button that activates the transmitter
and LCD screen only.
To turn the transmitter on, press the “ON/OFF”
button on the right side until the LCD screen
illuminates.
To turn the transmitter off, press the “ON/OFF”
button on the right side of the transmitter. When
the LCD screen displays “OFF” release the button.
24
BUTTON FUNCTION
25
DESCRIPTION OF RECEIVER / COLLAR PARTS
DESCRIPTION OF
RECEIVER / COLLAR PARTS
On/Off Magnetic Switch
(Red Dot)
Contact Points
Indicator Light
(LED Window)
Battery Charging
Receptacle
and Cover
Collar strap

26

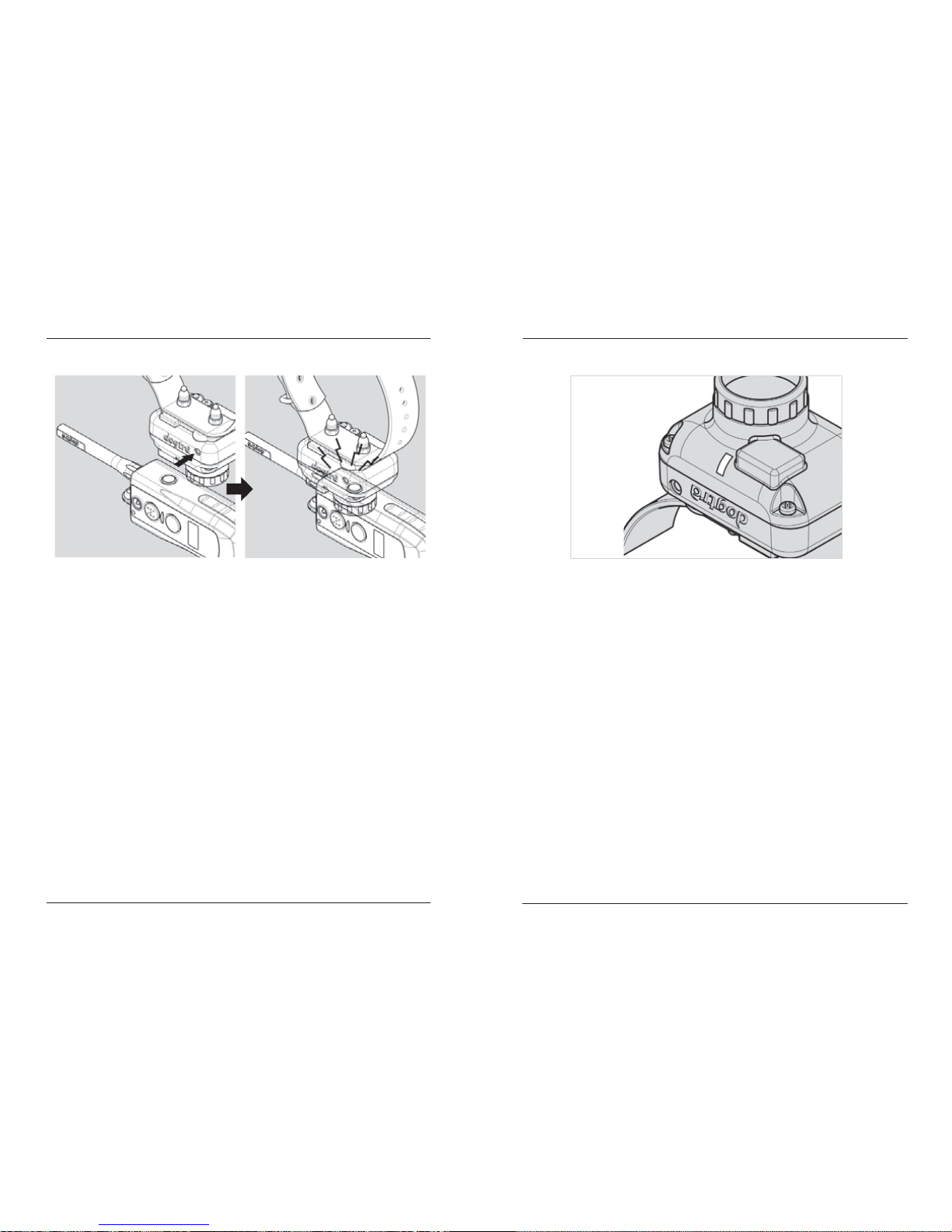

DESCRIPTION OF RECEIVER / COLLAR PARTS
Receiver ON/OFF Magnetic Red Dot
To activate the receiver/collar, place the red dot on
the back of the transmitter to the red dot on the
receiver/collar. Hold the two red dots together for a
moment until the LED light on the receiver/collar
comes on.
To deactivate the unit, repeat the same procedure
holding the two red dots together momentarily.
The LED light will turn red for a brief moment
indicating that the receiver/collar is now shut off.
Receiver Indicator Light (LED window)
Located on the front of the receiver/collar, the
indicator light comes on and blinks once every
4 seconds after the collar has been turned on. The
color of the LED indicates the battery life of the
receiver.
(Green = full charge, Amber = medium charge,
Red = needs charge)
When the “Constant” button on the transmitter is
pushed, the collar indicator light will glow steadily
(either green, amber, or red based on the remaining
battery life), as long as you hold the button down,
for up to 12 seconds.
When the “Nick” button is pushed, the light comes
on for a fraction of a second.
27
DESCRIPTION OF RECEIVER / COLLAR PARTS

28
DESCRIPTION OF RECEIVER / COLLAR PARTS
Receiver Battery Charging Receptacle and
Rubber Plug
On the inside of the receiver/collar, next to the
collar strap, is a battery-charging receptacle with a
rubber plug.
29
BATTERY CHARGER
The battery charger and charging cables allow you
to charge both the transmitter and receiver at the
same time. The battery charger is designed for a
120-volt wall outlet (European 230-volt AC
chargers and 10-volt car charger for Lithium-
Polymer batteries are also available.).
To use the battery charger for the two-dog unit,
combine both sets of battery charging (splitter)
cables as shown. This enables you to charge the
transmitter and both receivers at the same time.
Note: Only use Dogtra-approved Lithium-Polymer
Battery Chargers for your Dogtra e-collar. This will
prevent any damage that can be incurred from
attempting to use a different charger.
BATTERY CHARGER
Charging Cable
120 volt
Charger
Wall Outlet
Two-dog unit only
*The unit will be fully waterproof with or
without the rubber plug. If the dog was in salt-
water, be sure to rinse the receiver and
charging port with clean water, and let air dry.

30
TESTING
1. To activate the receiver/collar, place the red dot on
the back of the transmitter to the red dot on the
receiver/collar. Hold the two red dots together for
a moment until the LED light on the receiver/collar
comes on. The indicator light will come on for a
moment then blink once every 4 seconds, showing
that the collar is ready to use (If the indicator light
is red, or if there is only 1 bar showing on the
battery icon on the LCD transmitter screen, the
unit needs to be charged.).
TESTING YOUR
COLLAR
31
TESTING
2. Place the test light, included in the package
contents, on the contact points as shown in the
diagram.
3. Turn the transmitter on by pressing the blue button
on the right side of the transmitter until the LCD
screen illuminates. The LCD screen shows the
amount of battery life remaining and the LED
blinks once every 4 seconds.
4. Watch the test light as you push the “Nick” button
on the transmitter. It should light for just a
moment. The higher the intensity, the brighter the
test light will be.
5. Watch the test light as you push the “Constant”
button on the transmitter. It should light for as
long as the button is pressed. However, as a safety
feature, the receiver/collar will automatically stop
stimulation if the constant button is depressed for
12 seconds or longer.
6. Turn the Rheostat Intensity Dial on the transmitter
clockwise and then counterclockwise. The test
light should glow brighter with higher levels of
stimulation and dimmer with lower levels. When
you change the intensity dial, the number on the
LCD screen will change as well.

32
TESTING
Note : The test lamp may not be visible if the
intensity level is set below level ten.
7. To make sure that your beeper is working
properly, press the Locate button once with the
horn portion facing away from you (or place your
hand over the horn). The sound may be extremely
loud and may cause discomfort to your ears. If
you do hear an audible beeper sound, your
location button is in working order.
8. Press the Mode button once; you should hear 2
rapid beeps. This will put you into the Run/Point
Mode. Keep the receiver/collar steady to mimic
your dog at a standstill point. Wait for a moment
until you hear a double beep in 2-second intervals.
You may proceed to the next step if the double
beep occurs.
9. Press the Mode button a second time; you should
hear 1 rapid beep. This will put you into the
Point-Only Mode. Once again, keep your
receiver/collar steady and wait for a moment until
the collar emits a double beep every 2 seconds. If
it is audible, move onto the next step.
10. Press the Mode button a third time; you should
hear 3 rapid beeps. This mode will turn off your
beeper and remain silent.
33
TESTING
Note 1 : The sound that the beeper will emit will vary
depending on your selection with the (High/Low)
toggle switch. The two-dog model: Dogtra 2502 T&B
has a fixed beeper sound based on the color of the
collar.
Note 2 : When using the Run/Point mode or the Point-
Only mode, the beeper volume level reverts back to
the volume level that was last used.
Note 3 : In the Run/Point or Point-Only mode the tone
can be changed by holding down the “Locate” button
and then pressing the “Mode” button when the
High/Low toggle switch is in the desired position.
The unit must be activated and in the Run/Point or
Point-Only mode first.
Note 4 : In the Run/Point or Point-Only mode it is still
possible to use electrical stimulation.
*To make sure that your Beeper Volume is in
working condition, please refer to page 23 for
further testing instructions.

34
TESTING
The two-dog unit operates just
like the single-dog unit.
The difference between the one-dog and two-dog
collar is noticeable on the transmitter where a toggle
switch allows you to select either collar.
The toggle switch is color-coded with green and
orange to match the green and orange collar straps.
The orange collar emits a low tone double beep and
the green collar gives a high tone single beep so you
can distinguish between dogs when they are out of
sight.
The two-dog models have a toggle switch on the
face of the transmitter located above the “Nick”
button. The toggle switch allows for selection of
either collar.
Set the toggle switch on the orange position to select
the orange collar and the green position to select the
green collar.
Ornage Collar : Double beep with low tone
Green Collar : Single beep with high tone
TESTING YOUR
35
FITTING THE COLLAR ON THE DOG
PROPER FIT
The collar should be fitted so that the surgical
stainless steel contact points press firmly against
the dog’s skin. You should be able to fit a finger in
between the contact point and your dog’s skin.
The best location is either side of the dog’s
windpipe.
FITTING THE COLLAR ON THE DOG

36
FITTING THE COLLAR ON THE DOG
IMPROPER FIT
A loose fit can allow the collar to move around on
the dog’s neck. When this happens, the contact
points may rub against the skin and cause irritation.
If the collar is too loose, electrical contact will be
inconsistent causing your corrections to be
inconsistent.
Dogtra uses surgical stainless steel contact points and
anti-microbial plastic to protect the dog’s skin.
ATTENTION!
Leaving the receiver/collar in the same location on
the dog’s neck, for an extended period of time can
cause skin irritation. If the dog is to wear the e-collar
for long periods, occasionally reposition the collar so
that the contact points are moved to a different
location on the dog’s neck. Make sure you check for
skin irritation, each time you use the unit.
37
FITTING THE COLLAR ON THE DOG
INTENSITY SELECTION
The has a Rheostat Intensity
Dial on the top of the transmitter (0 is the lowest and
127 is the highest). Remember that you will need to
adjust the setting (upward or downward) depending
on your dog’s temperament and threshold for
stimulation. Also, as the dog’s attitude changes,
especially during times of increased excitement or
distraction, you may need to adjust the intensity level.
Note : The stimulation intensity can be adjusted even
while the stimulation is in use.
FAMILIARIZING THE DOG TO THE BEEPER
SOUND
Turn the beeper collar on and leave it outside the
dog’s kennel area for about a half-hour.
Repeat this several times, until you can see that the
dog disregards the beeper.
Next, adjust the beeper volume level to level L1, the
lowest level. Fit the beeper collar on the dog. Select
the desired beeper volume level as the dog becomes
accustomed to the beeping sound.
