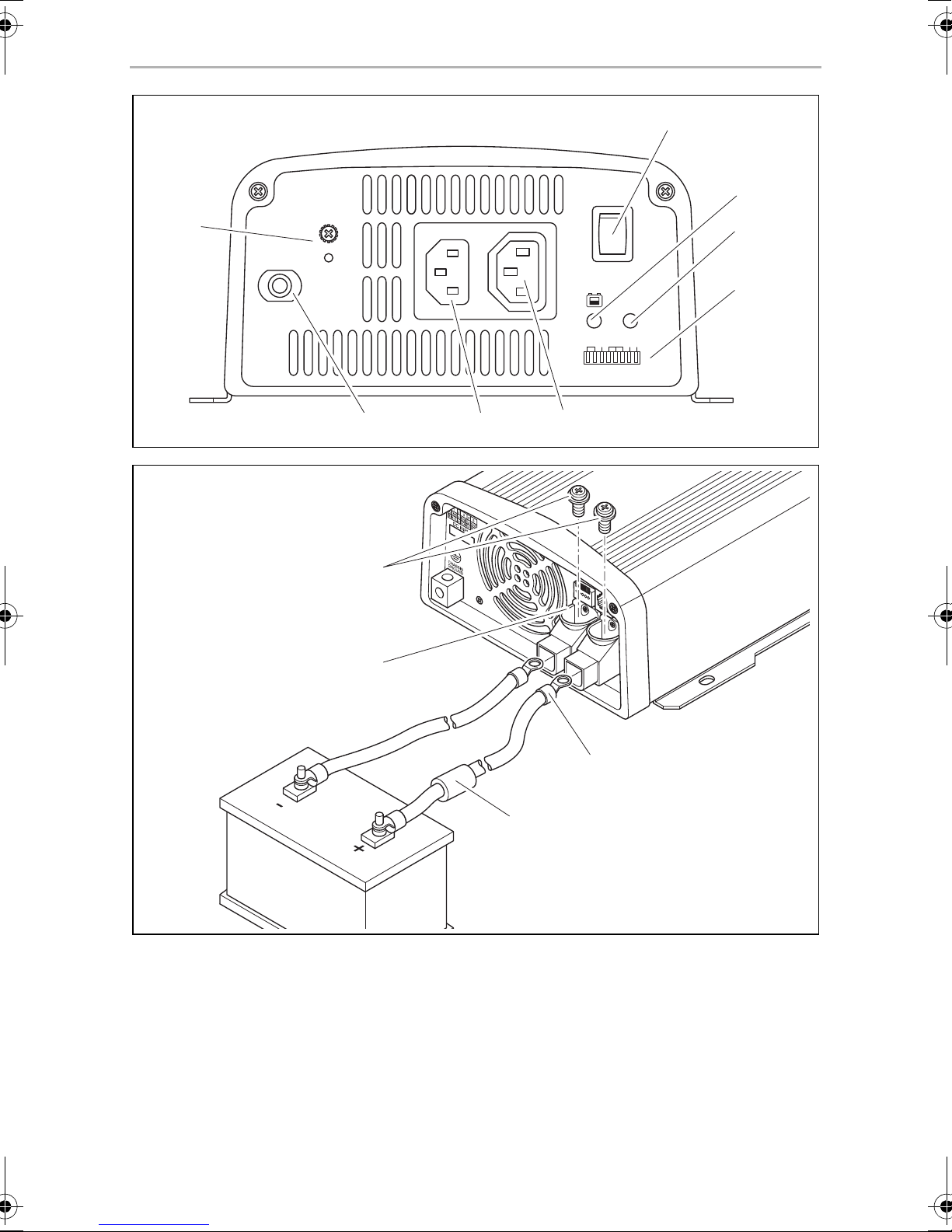

SinePower
3
1
1
BREAKER
1
32
2
BREAKER
25 cm
25 cm
3
MSI900-1800--IO-16s.book Seite 3 Montag, 15. August 2016 1:50 13

SinePower
4
AC
INPUT
AC
OUTPUT
BREAKER
AB
4
NEG (-)
REMOTE
CHASSIS
DC INPUT
GROUND
B
A
1
POS (+)
1
A
B
ENB
N.O.
ENB
COM
GND
N.C.
2
x
x
x
x
345
5
1
2
4 3
5
ON
OUT VOLT. FREQ. POWER SAVING N.A. OPTION
1
0
12345678
OFF
REMOTE
LOAD
STATUS
AC OUTPUT
5
1
2
3
4
MSI900, MSI1300, MSI1800
6
MSI900-1800--IO-16s.book Seite 4 Montag, 15. August 2016 1:50 13

SinePower
5
ON
OUT VOLT. FREQ. POWER SAVING N.A. OPTION
1
0
12345678
OFF
REMOTE
LOAD
STATUS
AC OUTPUTAC INPUT
BREAKER
67
1
3
4
MSI1800T
5
2
8
7
1
4
2
3
8
MSI900-1800--IO-16s.book Seite 5 Montag, 15. August 2016 1:50 13

SinePower
6
Input
230 V AC
Output
230 Vw
N
MSI
DC
Input
DC
230 Vw
FI 2
RCD
FI 1
RCD
PE L1
N PE
L1
N PE
L1
N PE
L1
654
1 3
7
2
9
MSI900-1800--IO-16s.book Seite 6 Montag, 15. August 2016 1:50 13

SinePower
7
ENB
GND
OFF
ON
OFF:INV.
ON:INV.
0
GND
ENB
HI:INV. ON
(TR ON)
LOW:INV. OFF
(TR OFF)
TR
a
ENB
BAT+
BAT–
OFF
ON
OFF:INV.
ON:INV.
b
DC POWER
GND
ENB
+
–
OFF
ON
OFF:INV.
ON:INV.
c
MSI900-1800--IO-16s.book Seite 7 Montag, 15. August 2016 1:50 13

SinePower
8
NEG (-)
REMOTE
CHASSIS
DC INPUT
GROUND
B
A
1
POS (+)
1
A
B
ENB
N.O.
ENB
COM
GND
N.C.
2
x
x
x
x
345
ON
OUT VOLT. FREQ. POWER SAVING N.A. OPTION
1
0
12345678
OFF
REMOTE
LOAD
STATUS
AC OUTPUTAC INPUT
BREAKER
ON
OUT VOLT. FREQ. POWER SAVING N.A. OPTION
1
0
12345678
OFF
REMOTE
LOAD
STAT US
AC OUTPUT
MSI900, MSI1300, MSI1800MSI1800T

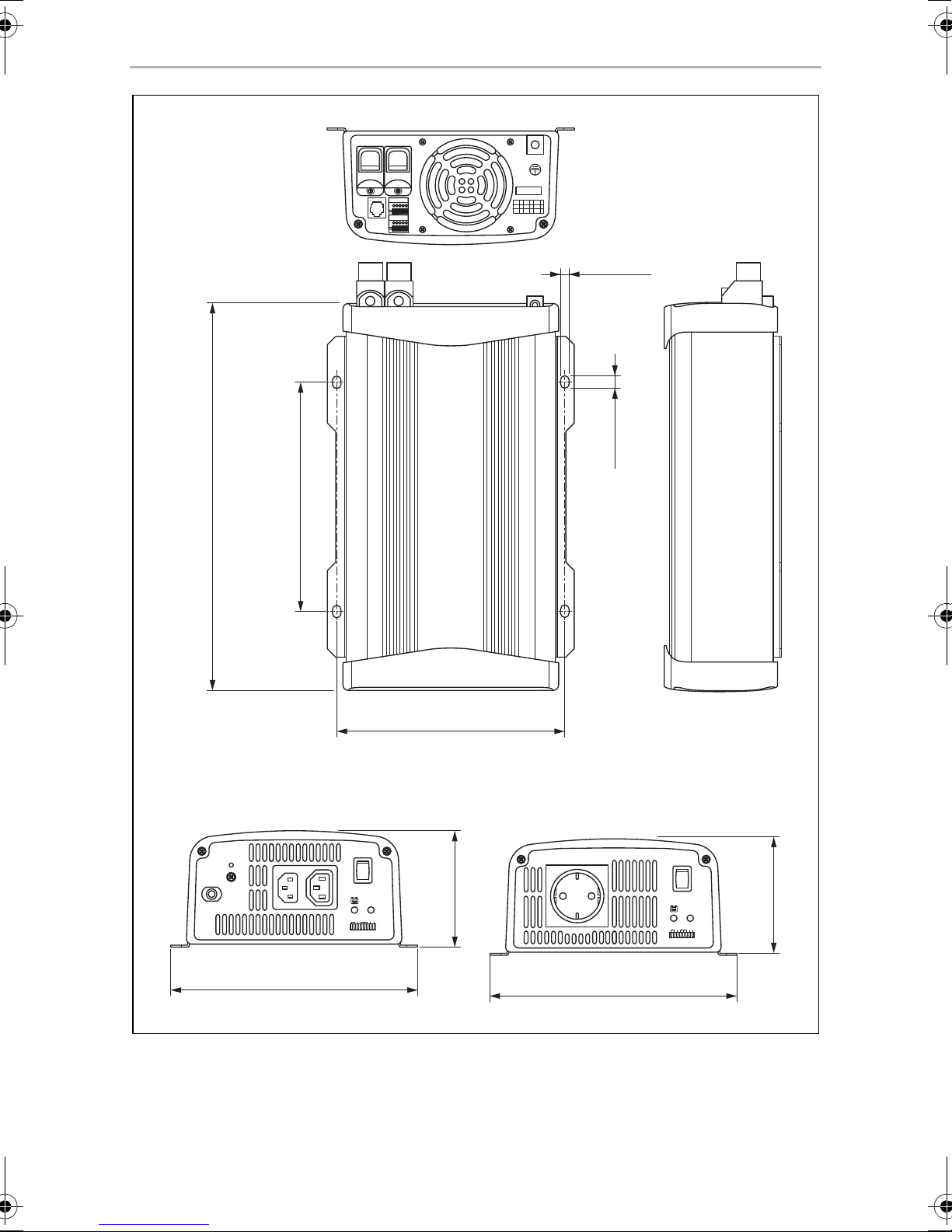

186,6 mm
200,6 mm
10 mm
Ø7 mm
MSI900: 186,5 mm
MSI1300: 220 mm
MSI1800: 245 mm
MSI1800T: 284 mm
MSI900: 313 mm, MSI1300: 342 mm
MSI1800: 367 mm, MSI1800T: 406 mm
94,5 mm
200,6 mm
94,5 mm
d
MSI900-1800--IO-16s.book Seite 8 Montag, 15. August 2016 1:50 13

EN
SinePower
9
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
11 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
14 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MSI900-1800--IO-16s.book Seite 9 Montag, 15. August 2016 1:50 13

EN
Explanation of symbols SinePower
10
1 Explanation of symbols
!
A
I
2 General safety instructions
2.1 General safety
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•Only use the device as intended.
•Do not operate the device in a damp or wet environment.
•Do not operate the device near any flammable materials.
•Do not operate the device in areas that are potentially explosive.
•Maintenance and repair work may only be carried out by qualified per-
sonnel who are familiar with the risks involved and the relevant regula-
tions.
•People (including children) whose physical, sensory or mental capac-
ities or whose lack of experience or knowledge prevent them from
using this product safely should not use it without the supervision or
instruction of a responsible person.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MSI900-1800--IO-16s.book Seite 10 Montag, 15. August 2016 1:50 13

EN
SinePower General safety instructions
11
•Electrical devices are not toys
Always keep and use the device out of the reach of children.
2.2 Safety when installing the device
!WARNING!
•Installing the device may only be performed by qualified personnel
who are familiar with the guidelines and safety precautions to be
applied.
•If electrical devices are incorrectly installed on boats, corrosion dam-
age might occur. The device should be installed by a specialist
(marine) electrician.
ANOTICE!
•Ensure that the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
•Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or tubes to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the 230 V mains cable and the 12/24 V DC cable in the
same duct.
•Fasten the cables securely.
•Lay the cables so that they cannot be tripped over or damaged.
2.3 Operating the device safely
!WARNING!
•Operate the device only if you are certain that the housing and the
cables are undamaged.
•Even after the fuse triggers, parts of the inverter remain live.
•Always disconnect the power supply when working on the device.
MSI900-1800--IO-16s.book Seite 11 Montag, 15. August 2016 1:50 13

EN
Scope of delivery SinePower
12
ANOTICE!
•Make sure the air inlets and outlets of the device are not covered.
•Ensure good ventilation. The inverter produces dissipated heat which
has to be diverted.
•Do not connect the 230 V output of the inverter (fig. 65, page 4 and
fig. 75, page 5) to a different 230 V source.

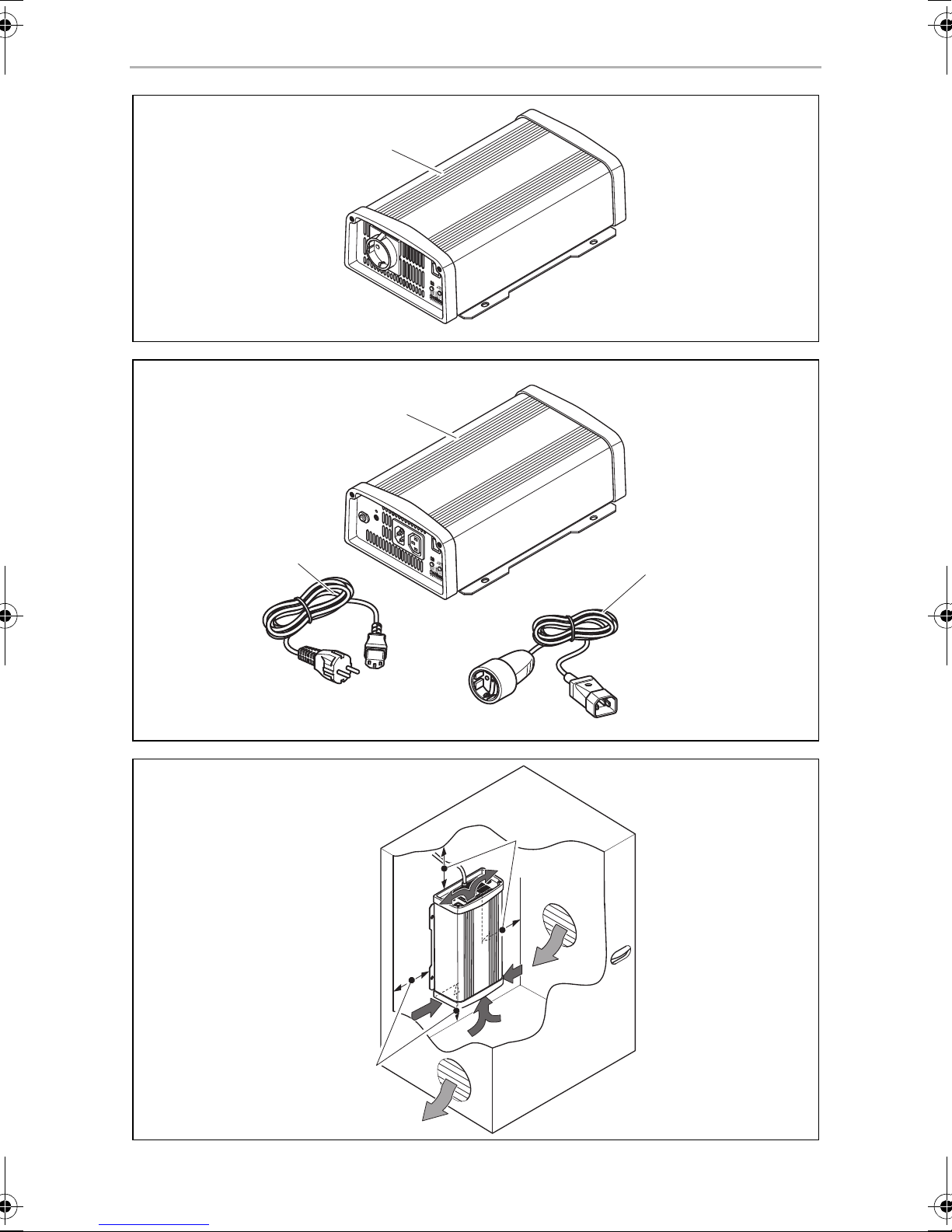

3Scopeofdelivery
MSI900, MSI1300, MSI1800
MSI1800T
4Accessories
No. in
fig. 1,
page 3
Designation
1 Sine wave inverter
– Operating manual
No. in
fig. 2,
page 3
Designation
1 Sine wave inverter
2 Connection cable with safety coupling (for 230 Vwoutput)
3 Connection cable with safety plug (for 230 Vwsupply)
– Operating manual
Designation Ref. no.
Remote control MCR7 9600000090
Remote control MCR9 9600000091
MSI900-1800--IO-16s.book Seite 12 Montag, 15. August 2016 1:50 13

EN
SinePower Target group for this manual
13
5 Target group for this manual
The electrical installation (chapter “Connecting the inverter” on page 18) is intended
for professionals who are familiar with the applicable regulations of the country in
which the equipment is to be installed and/or used.
All other chapters are intended for the users.
6 Intended use
!
The wave inverter converts direct current of
•12 Vg:
SinePower MSI912
SinePower MSI1312
SinePower MSI1812
SinePower MSI1812T
•24 Vg:
SinePower MSI924
SinePower MSI1324
SinePower MSI1824
SinePower MSI1824T
into a 200 – 240 V AC supply of 50 Hz or 60 Hz.
WARNING!
Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
MSI900-1800--IO-16s.book Seite 13 Montag, 15. August 2016 1:50 13

EN
Technical description SinePower
14
7 Technical description
The inverters can be operated wherever
•a 12 Vgconnection (MSI912, MSI1312, MSI1812, MSI1812T)
•a 24 Vgconnection (MSI924, MSI1324, MSI1824, MSI1824T)
is available. The light-weight and compact construction of this device allows for easy
installation in mobile homes, commercial vehicles or motor and sailing yachts.
The output voltage corresponds to the household voltage from the socket (pure sine
wave, THD < 3 %).
Please observe the values for constant output power and peak output power as
indicated in chapter “Technical data” on page 31 . Never connect devices that have
a higher power requirement.
I
The inverter has various protective mechanisms.
•Overvoltage shutdown: The inverter shuts itself off when the voltage exceeds
the cut-off value. It restarts when the voltage returns to the restart value.
•Undervoltage shutdown: The inverter shuts itself off when the voltage sinks
below the cut-off value. It restarts when the voltage rises to the restart value.
•Excess temperature shutdown: The inverter switches off when the tempera-
ture inside the device or the temperature on the cooling element exceeds a cut-
off value. It restarts when the voltage rises to the restart value.
•Overload shutdown: The LED on the inverter indicates an operating fault
(constant red light) when an excess load is connected or a short circuit has
occurred. The fuse in the device must be pressed in again by hand after it is
triggered by excess current.
•Incorrect polarity protection: The incorrect polarity protection prevents the
wrong polarity when connecting the inverter.
•Fuses (MSI1812T and MSI1824T only): The LED on the inverter indicates an
operating fault (constant red light). The fuse in the device must be pressed in
again by hand after it is triggered.
I
NOTE
Note when connecting devices with an electrical drive (such as power
drills and refrigerators), that they often require more power than is
indicated on the type plate.
NOTE
The individual values are found in the chapter “Technical data” on
page 31.
MSI900-1800--IO-16s.book Seite 14 Montag, 15. August 2016 1:50 13

EN
SinePower Technical description
15
The device can also be configured with a PC via an RS-232 interface and using the
DIP switches on the device.
The inverter can be switched to an energy-saving mode to prevent the connected
battery from discharging too quickly.
The inverter can be easily controlled using the remote control (accessory).
The SinePower MSI1812T and SinePower MSI1824T inverters are fitted with a
230 Vwpriority circuit. If an external 230 Vwvoltage is available, this will have pri-
ority. If no external 230 Vwvoltage is connected, then the connected battery will be
used as the power supply.
7.1 Control elements
I
The inverter has the following connections, displays and control elements on the
back:
NOTE
The version for continental Europe is depicted.
No. in
fig. 5,
page 4
Designation Description
1 Terminal Setup operation via remote control
2 RS-232 port,
REMOTE port
Connection of a PC using a serial RS-232 interface or
connection of the MCR-7 or MCR-9 remote control
3 POS+ Positive terminal
4 NEG– Negative terminal
5 Earth terminal Earthing on the vehicle bodywork
MSI900-1800--IO-16s.book Seite 15 Montag, 15. August 2016 1:50 13

EN
Technical description SinePower
16
MSI900, MSI1300, MSI1800
The inverter has the following connections, displays and control elements on the
front:
MSI1800T
The inverter has the following connections, displays and control elements on the
front:
No. in
fig. 6,
page 4
Designation Description
1 Main switch
“ON/OFF/REMOTE”
switch:
Switches the device on, off or to operation via the
remote control (accessory)
2 “Input Level” LED Displays the input voltage range
3 “Load Level” LED Displays the power being supplied
4 Dip switch Makes settings on the inverter (such as mains voltage,
mains frequency, energy-saving mode).
5 Safety socket 230 V output
No. in
fig. 7,
page 5
Designation Description
1 Main switch
“ON/OFF/REMOTE”
Switches the device on, off or to operation via the
remote control (accessory)
2 “Input Level” LED Displays the input voltage range
3 “Load Level” LED Displays the power being supplied
4 Dip switch Makes settings on the inverter (such as mains voltage,
mains frequency, energy-saving mode).
5 AC output 230 V output
6 AC input 230 V input
7 Fuse Protects the inverter from overload.
The fuse can be pressed in again once it has trig-
gered.
8 Grounding screw Sets or removes the grounding bridge
MSI900-1800--IO-16s.book Seite 16 Montag, 15. August 2016 1:50 13

EN
SinePower Fitting the inverter
17
8 Fitting the inverter
8.1 Tools required
For the electrical connection you will need the following tools:
•Crimping tool
•3multi-coloured, flexible connection cables. Determine the necessary thickness
from the table in chapter “Connecting the inverter” on page 18.
•Cable lugs and conductor sleeves
For fastening you will require the following tools:
•Machine bolts (M4) with washers and self-locking nuts or
•self-tapping screws or wood screws.
8.2 Mounting instructions
When selecting the installation location, observe the following instructions:
•The inverter can be mounted horizontally or vertically.
•The inverter must be installed in a place that is protected from moisture.
•The inverter may not be installed in the presence of flammable materials.
•The inverter may not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. The minimum clearance
around the inverter must be at least 25 cm (fig. 3, page 3).
•The air intake on the underside or the air outlet on the back of the inverter must
remain clear.
•For ambient temperatures higher than 40 °C (such as in engine or heating com-
partments, or direct sunlight), the heat from the inverter under load can lead to
automatic shutdown.
•The device must be installed on a level and sufficiently sturdy surface.
ANOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
MSI900-1800--IO-16s.book Seite 17 Montag, 15. August 2016 1:50 13

EN
Connecting the inverter SinePower
18
8.3 Mounting the inverter
➤Hold the inverter against the installation location and mark the fastening points
(fig. 4A, page 4).
➤Attach the inverter using your chosen fastening method (fig. 4B, page 4).
9 Connecting the inverter
9.1 General instructions
!
•When installed in vehicles or boats, the inverter must be connected to the chassis
or earth.
•When setting up a socket distribution circuit (mains setup), comply with the appli-
cable regulations.
•Only use copper cables.
•Keep the cables as short as possible (< 1.8 m).
WARNING!
•The inverter may only be connected by a qualified workshop. The
following information is intended for technicians who are familiar
with the guidelines and safety precautions to be applied.
•Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
•If you do not fit a fuse to the positive cable, the cables can over-
load, which might result in a fire.
•Reversed polarity can damage the inverter.
•MSI900, MSI1300, MSI1800 only: The inverter should not be
used to connect to a ring main, it must only be used to power individ-
ual appliances that are plugged into the inverter outlet either directly
or using a purpose-made, moulded extension lead
MSI900-1800--IO-16s.book Seite 18 Montag, 15. August 2016 1:50 13

EN
SinePower Connecting the inverter
19
•Keep to the specified cable cross section and fit a cable fuse (fig. 83, page 5)
as close to the battery as possible on the positive cable (see the table).
9.2 Connecting the inverter to the battery
I
➤Set the main switch (fig. 61, page 4 and fig. 71, page 5) to “OFF”.
➤Loosen the screw (fig. 81, page 5) from the red positive terminal (fig. 82,
page 5).
➤Push the cable lug (fig. 82, page 5) of the positive cable into the red positive
terminal and fasten it with the screw.
➤Connect the negative cable to the black negative terminal (fig. 84, page 5).
➤Lay the positive cable from the inverter to the positive terminal of the vehicle
battery and connect it.
➤Lay the negative cable from the inverter to the negative terminal of the vehicle
battery and connect it.
➤Connect the earth terminal to the vehicle chassis.
Device Required cable
cross section
Cable fuse
(fig. 83, page 5)
MSI912 25 mm² 115 A
MSI924 25 mm² 75 A
MSI1312 35 mm² 170 A
MSI1324 35 mm² 85 A
MSI1812/MSI1812T 35 mm² 228 A
MSI1824/MSI1824T 35 mm² 115 A
NOTE
Tighten the nuts and bolts to a maximum torque of 12 – 13 Nm. Loose
connections may cause overheating.
MSI900-1800--IO-16s.book Seite 19 Montag, 15. August 2016 1:50 13

EN
Connecting the inverter SinePower
20
9.3 Connecting the 230 V power cable
(MSI1800T only)
➤Connect the 230 Vwconnection cable with safety plug to the 230 Vwinput jack
(fig. 76, page 5).
➤Connect the safety plug to the 230 V AC mains.
9.4 Connecting the 230 V output cable
(MSI1800T only)
!
➤Connect the 230 Vwconnection cable with safety plug to the 230 Vwoutput
jack (fig. 75, page 5).
9.5 Connect multiple appliances
(MSI1800T only)
The device is equipped at delivery with galvanic isolation. For the safe operation of
multiple appliances, it is essential that a circuit breaker (residual current circuit
breaker) is built into the socket distribution circuit, see sample circuit diagram in
fig. 8, page 5.
Sample circuit diagram legend:
WARNING!
Before connecting the 230V output cable, make sure the inverter is
switched off at the main switch.
No. in
fig. 8,
page 5
Explanation
1 230 Vwpower source
2 additional devices, e.g. battery charger, refrigerator
3 DC power source (battery)
4Inverter
5 Set grounding bridge (At delivery: not set, shown by dotted line)
6 Circuit breaker (residual current circuit breaker)
7 Socket distribution circuit for appliances
MSI900-1800--IO-16s.book Seite 20 Montag, 15. August 2016 1:50 13
