7350 Series Side Mount
Nose Bar Drive Packages
Installation, Maintenance and Parts Manual

Dorner Mfg. Corp. 2 851-680 Rev. A
7350 Series Side Mount Nose Bar Drive Packages
Table of Contents
Introduction ......................................................................... 2
Warnings – General Safety.................................................. 3
Product Description............................................................. 4
Specifications ...................................................................... 4
Gearmotor Mounting Package Models............................ 4
Table 1: Gearmotor Specifications .................................. 5
Table 2: Belt Speeds for Fixed Speed 90° Painted
Gearmotors....................................................................... 5
Table 3: Belt Speeds for Variable Speed 90° Painted
Gearmotors....................................................................... 5
Table 4: Belt Speeds for Fixed Speed 90° Stainless
Gearmotors....................................................................... 6
Table 5: Belt Speeds for Variable Speed 90° Stainless
Gearmotors....................................................................... 6
Installation........................................................................... 7
Required Tools ................................................................. 7
Nose Bar Drive Package................................................... 7
Preventive Maintenance and Adjustment ............................ 9
Required Tools ................................................................. 9
Checklist........................................................................... 9
Gear Reducer Replacement.............................................. 9
Motor Replacement........................................................ 11
Service Parts....................................................................... 13
Horizontal Nose Bar Drive............................................. 13
Gearmotor Assembly ..................................................... 14
Notes .................................................................................. 15
Return Policy...................................................................... 16
Introduction
Upon receipt of shipment:
• Compare shipment with packing slip. Contact factory
regarding discrepancies.
• Inspect packages for shipping damage. Contact carrier
regarding damage.Accessories may be shipped loose.
• See accessory instructions for installation.
The Dorner Limited Warranty applies.
Dorner reserves the right to make changes at any time
without notice or obligation.
Dorner has convenient, pre-configured kits of Key Service
Parts for all conveyor products. These time saving kits are
easy to order, designed for fast installation, and guarantee
you will have what you need when you need it. Key Parts
and Kits are marked in the Service Parts section of this
manual with the Performance Parts Kits logo .
Intralox is a registered trademark of Laitram L.L.C. in the
United States and / or other countries.
CAUTION
Some illustrations may show guards
removed. DO NOT operate equipment without
guards.

851-680 Rev. A 3 Dorner Mfg. Corp.
7350 Series Side Mount Nose Bar Drive Packages
Warnings – General Safety
DANGER
SEVERE HAZARD!
KEEP OFF CONVEYORS. Climbing, sitting,
walking or riding on conveyor will result in
death or serious injury.
DANGER
EXPLOSION HAZARD!
• DO NOT OPERATE CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT. The electric
gearmotor generates heat and could ignite
combustible vapors.
• Failure to comply will result in death or
serious injury.
WARNING
CRUSH HAZARD!
• DO NOT place hands or fingers inside the
conveyor while it is running.
• DO NOT wear loose garments while
operating the conveyor. Loose garments
can become caught up in the conveyor.
• Failure to comply could result in serious
injury.
WARNING
CRUSH HAZARD!
• SUPPORT CONVEYOR SECTIONS PRIOR
TO LOOSENING STAND HEIGHT OR
ANGLE ADJUSTMENT SCREWS.
• Loosening stand height or angle
adjustment screws may cause conveyor
sections to drop down, causing serious
injury.
WARNING
SEVERE HAZARD!
LOCK OUT POWER before removing guards
or performing maintenance. Exposed moving
parts can cause serious injury.
WARNING
BURN HAZARD!
DO NOT TOUCH the motor while operating, or
shortly after being turned off. Motors may be
HOT and can cause serious burn injuries.
WARNING
PUNCTURE HAZARD!
Handle drive shaft keyway with care. It may
be sharp and could puncture the skin,
causing serious injury.
WARNING
SEVERE HAZARD!
• Dorner cannot control the physical
installation and application of conveyors.
Taking protective measures is the
responsibility of the user.
• When conveyors are used in conjunction
with other equipment or as part of a
multiple conveyor system, CHECK FOR
POTENTIAL PINCH POINTS and other
mechanical hazards before system start-
up.
• Failure to comply could result in serious
injury.

Dorner Mfg. Corp. 4 851-680 Rev. A
7350 Series Side Mount Nose Bar Drive Packages
Product Description
Refer to (Figure 1) for typical gearmotor assembly
components.
Figure 1
Specifications
Gearmotor Mounting Package Models
* Refer to “Ordering and Specifications” Catalog for details.
Typical Components
1Conveyor
2 Mounting bars
3 Motor
4 Gear reducer
5 Gear reducer mounting bracket
1
2
3
5
4
735
28
A
M
Drive Position
Gearmotor Size
Gearmotor Type
Language
Conveyor Sprocket
S
Drive Type
P28
S
Gearmotor Sprocket
D
A

851-680 Rev. A 5 Dorner Mfg. Corp.
7350 Series Side Mount Nose Bar Drive Packages
Specifications
Table 1: Gearmotor Specifications
Table 2: Belt Speeds for Fixed Speed 90° Painted Gearmotors
(vp) = voltage and phase
11 = 115/208-230, 1-phase
23 = 0.5 HP – 230/460 V, 3-phase
1.0 & 1.5 HP – 208-230/460 V, 3-phase
Table 3: Belt Speeds for Variable Speed 90° Painted Gearmotors
Singe Phase Three Phase
Output Power 0.50 hp (0.37 kW) .50 hp (.37 kW) /1 hp (.74 KW) / 1.5 hp (1.11 kW)
Input Voltage 115 V A.C. 208 - 230 / 460 V.A.C.
Input Frequency 60 Hz 6 – 60 Hz
Motor RPM 22 - 44 22 - 233
Gearmotor Ratios 5:1, 7:1, 10:1, 15:1, 20:1, 30:1, 40:1, 60:1, 80:1
Frame Size NEMA 56 C
Motor Type Totally Enclosed, Non-ventilated
(Except 1.5 hp Stainless Steel Gearmotor = Totally Enclosed, Fan Cooled)
Part Number Belt Speed RPM 1 Phase 3 Phase in-lbs N-m
Ft/min M/min HP Kw FLA HP Kw FLA
74M080HS4(vp)FN 22 6.7 22 0.5 0.37 6.8/3.7-3.4 0.5 0.37 1.6/0.8 356 40.2
74M060HS4(vp)FN 29 8.8 29 0.5 0.37 6.8/3.7-3.4 0.5 0.37 1.6/0.8 442 49.9
74M040HS4(vp)FN 44 13.2 44 0.5 0.37 6.8/3.7-3.4 0.5 0.37 1.6/0.8 486 54.9
74M030HS4(vp)FN 58 17.7 58 N/A N/A N/A 1 0.74 3.5-3.2/1.6 487 55.0
74M020HS4(vp)FN 87 26.5 87 N/A N/A N/A 1 0.74 3.5-3.2/1.6 407 46.0
74M015HS4(vp)FN 117 35.7 117 N/A N/A N/A 1 0.74 3.5-3.2/1.6 470 53.1
74M010HS4(vp)FN 175 53.3 175 N/A N/A N/A 1.5 1.11 4.6-4.2/2.1 442 49.9
74M007HS4(vp)FN 233 71.0 233 N/A N/A N/A 1.5 1.11 4.6-4.2/2.1 360 40.7
Part Number Belt Speed RPM 3 Phase in-lbs N-m
Ft/min M/min HP Kw Volts FLA
74M080HS423EN 2 to 22 0.6 to 6.7 22 0.5 0.37 230/460 1.6/0.8 356 40.2
74M060HS423EN 3 to 29 0.9 to 8.8 29 0.5 0.37 230/460 1.6/0.8 442 49.9
74M040HS423EN 5 to 44 1.3 to13.4 44 0.5 0.37 230/460 1.6/0.8 486 54.9
74M030HS423EN 6 to 58 2 to 17.7 58 1 0.74 208-230/460 3.5-3.2/1.6 487 55.0
74M020HS423EN 9 to 87 2.6 to 26.5 87 1 0.74 208-230/460 3.5-3.2/1.6 487 55.0
74M015HS423EN 12 to 117 3.6 to 35.7 117 1 0.74 208-230/460 3.5-3.2/1.6 470 53.1
74M010HS423EN 18 to 175 5.3 to 53.3 175 1.5 1.11 208-230/460 4.6-4.2/2.1 442 49.9
74M007HS423EN 23 to 233 7.1 to 71.0 233 1.5 1.11 208-230/460 4.6-4.2/2.1 360 40.7

Dorner Mfg. Corp. 6 851-680 Rev. A
7350 Series Side Mount Nose Bar Drive Packages
Specifications
Table 4: Belt Speeds for Fixed Speed 90° Stainless Gearmotors
Table 5: Belt Speeds for Variable Speed 90° Stainless Gearmotors
Part Number Belt Speed RPM 3 Phase in-lbs N-m
Ft/min M/min HP Kw Volts FLA
74M080HZS423FN 22 6.7 22 0.5 0.37 230/460 1.6/0.8 356 40.2
74M060HZS423FN 29 8.8 29 0.5 0.37 230/460 1.6/0.8 442 49.9
74M040HZS423FN 44 13.4 44 0.5 0.37 230/460 1.6/0.8 486 54.9
74M030HZS423FN 58 17.7 58 1 0.74 208-230/460 3.2-3/1.5 487 55.0
74M020HZS423FN 87 26.5 87 1 0.74 208-230/460 3.2-3/1.5 407 46.0
74M015HZS423FN 117 35.7 117 1 0.74 208-230/460 3.2-3/1.5 470 53.1
74M010HZS423FN 175 53.3 175 1.5 1.11 208-230/460 5.8-5.4/2.7 442 49.9
74M007HZS423FN 233 71.0 233 1.5 1.11 208-230/460 5.8-5.4/2.7 360 40.7
Part Number Belt Speed RPM 3 Phase in-lbs N-m
Ft/min M/min HP Kw Volts FLA
74M080HZS423EN 2 to 22 0.6 to 6.7 22 0.5 0.37 230/460 1.6/0.8 356 40.2
74M060HZS423EN 3 to 29 0.9 to 8.8 29 0.5 0.37 230/460 1.6/0.8 442 49.9
74M040HZS423EN 5 to 44 1.3 to13.4 44 0.5 0.37 230/460 1.6/0.8 486 54.9
74M030HZS423EN 6 to 58 2 to 17.7 58 1 0.74 208-230/460 3.2-3/1.5 487 55.0
74M020HZS423EN 9 to 87 2.6 to 26.5 87 1 0.74 208-230/460 3.2-3/1.5 487 55.0
74M015HZS423EN 12 to 117 3.6 to 35.7 117 1 0.74 208-230/460 3.2-3/1.5 470 53.1
74M010HZS423EN 18 to 175 5.3 to 53.3 175 1.5 1.11 208-230/460 5.3-5.4/2.7 442 49.9
74M007HZS423EN 23 to 233 7.1 to 71.0 233 1.5 1.11 208-230/460 5.3-5.4/2.7 360 40.7
NOTE
For belt speed other than those listed, contact
factory for details.

851-680 Rev. A 7 Dorner Mfg. Corp.
7350 Series Side Mount Nose Bar Drive Packages
Installation
Required Tools
•5/16" wrench
• 4 mm wrench
• 13 mm wrench
• 14 mm wrench
• Large flat head screwdriver
• Torque wrench
Nose Bar Drive Package
Nose Bar Drive Mounting Positions
Figure 2

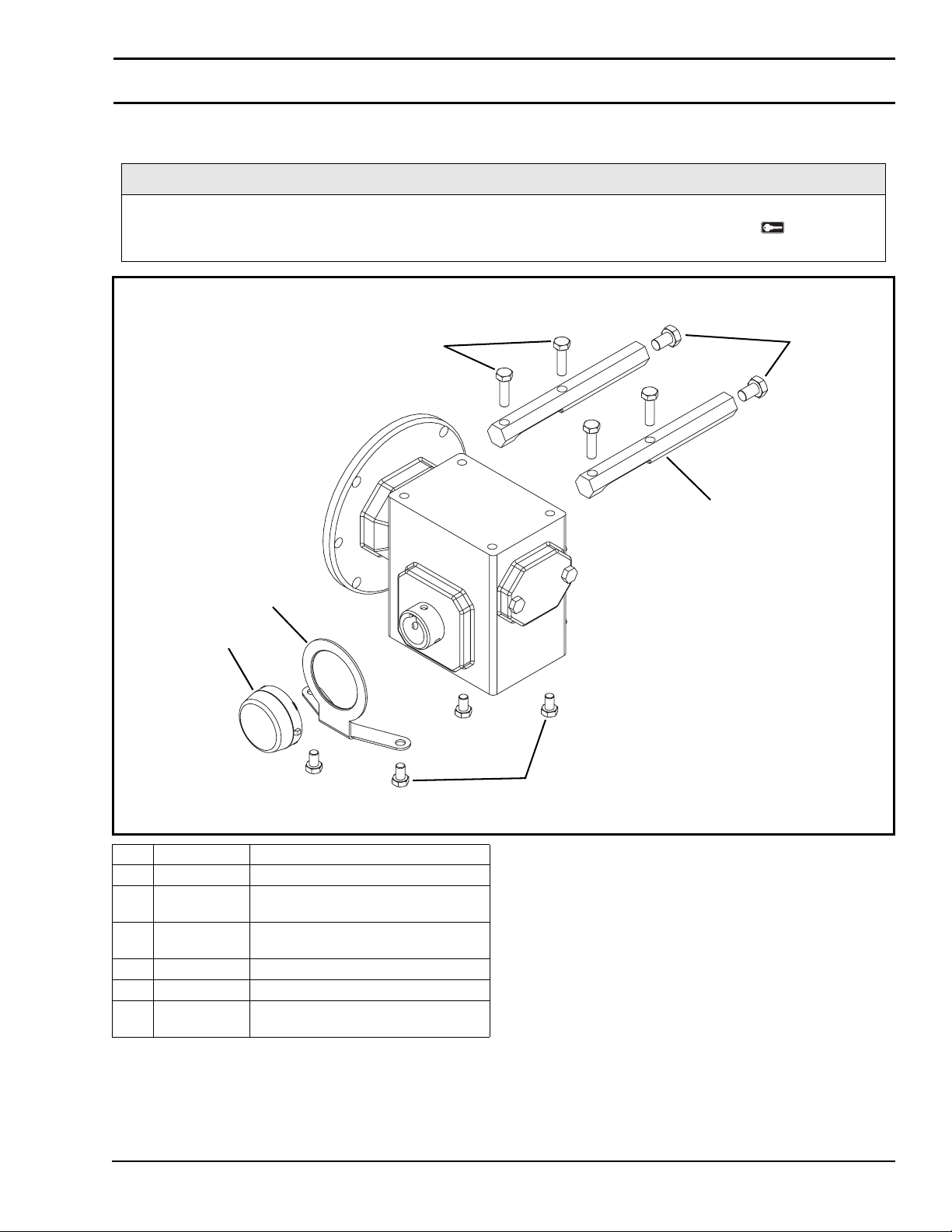

Typical Nose Bar Drive Package Components (Figure 3)
Figure 3
1. Attach the gear reducer hex mounting posts
(Figure 4, item 1) to the nose bar side plate
(Figure 4, item 2).
Figure 4
WARNING
SEVERE HAZARD!
LOCK OUT POWER before removing guards
or performing maintenance. Exposed moving
parts can cause serious injury.
WARNING
PUNCTURE HAZARD!
Handle drive shaft keyway with care. It may
be sharp and could puncture the skin,
causing serious injury.
TOP VIEW
A
B
1Cover
2 Cover bracket
3 Hex head cap screw 5 / 16 - 18 x .50" (x4)
4 Nose bar gear reducer hex mounting post (x2)
5 Hex head cap screw 5 / 16 - 18 x 1.12" (x4)
6 Hex head cap screw M10 - 1.5 x 16 mm (x2)
7 Gearmotor assembly
756
4
2
1
3
2
1

Dorner Mfg. Corp. 8 851-680 Rev. A
7350 Series Side Mount Nose Bar Drive Packages
Installation

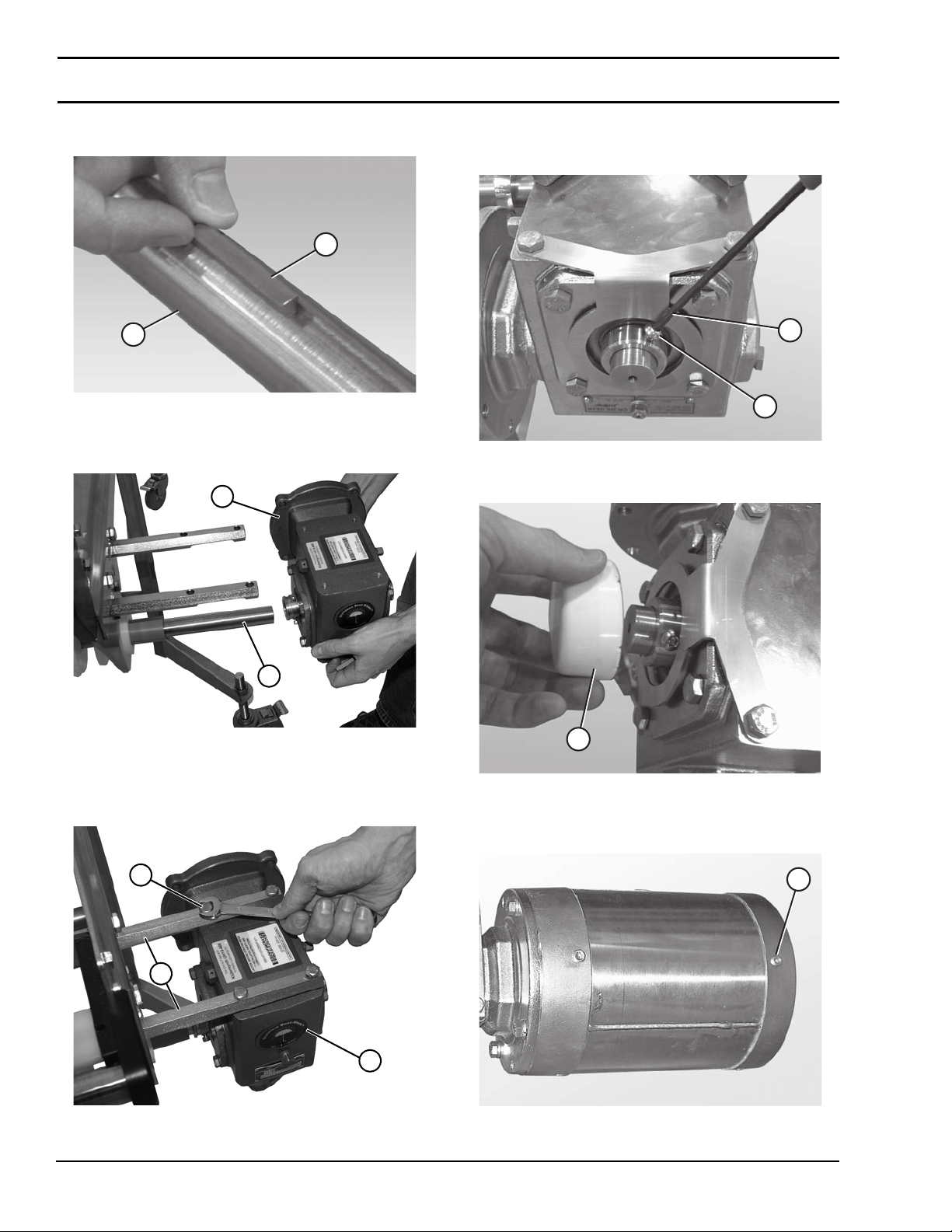

2. Insert the drive spindle key (Figure 5, item 1) into the
drive spindle keyway (Figure 5, item 2).
Figure 5
3. Slide the gearmotor assembly (Figure 6, item 1) onto
the drive spindle (Figure 6, item 2).
Figure 6
4. Attach the gearmotor assembly (Figure 7, item 1) to the
gear reducer hex mounting posts (Figure 7, item 2)
with four bolts (Figure 7, item 3).
Figure 7
5. Tighten the drive spindle fasteners (Figure 8, item 1)
located on the inside and outside of the gearmotor using
a hex wrench (Figure 8, item 2).
Figure 8
6. Attach the gearmotor cover (Figure 9, item 1).
Figure 9
7. Remove the drainage plugs (Figure 10, item 1) on the
bottom side of the motor.
Figure 10
1
2
2
1
2
3
1
2
1
1
1

851-680 Rev. A 9 Dorner Mfg. Corp.
7350 Series Side Mount Nose Bar Drive Packages
Preventive Maintenance and Adjustment
Required Tools
•5/16" wrench
• 4 mm wrench
• 13 mm wrench
• 14 mm wrench
• Large flat head screwdriver
• Torque wrench
Checklist
• Keep service parts on hand. Refer to the "Service Parts"
section starting on page 13 for recommendations.
• Replace any worn or damaged parts.
Gear Reducer Replacement
1. Remove the bolts (Figure 11, item 1) that connect the
motor (Figure 11, item 2) to the gear reducer
(Figure 11, item 3).
Figure 11
2. Detach the motor (Figure 12, item 1) from the gear
reducer (Figure 12, item 2) and set the motor aside.
Figure 12
WARNING
SEVERE HAZARD!
LOCK OUT POWER before removing guards
or performing maintenance. Exposed moving
parts can cause serious injury.
WARNING
BURN HAZARD!
DO NOT TOUCH the motor while operating, or
shortly after being turned off. Motors may be
HOT and can cause serious burn injuries.
WARNING
CRUSH HAZARD!
• SUPPORT MOTOR PRIOR TO LOOSENING
THE BOLTS.
• Loosening motor bolts may cause it to drop
down, causing serious injury.
NOTE
Be sure to retain the motor output shaft key.
1
2
3
1
2

Dorner Mfg. Corp. 10 851-680 Rev. A
7350 Series Side Mount Nose Bar Drive Packages
Preventive Maintenance and Adjustment
3. Remove the gearmotor cover (Figure 13, item 1). Use a
screwdriver to pry it loose, if necessary.
Figure 13
4. Loosen the drive spindle fasteners (Figure 14, item 1)
located on the inside and outside of the gearmotor
assembly using a hex wrench (Figure 14, item 2).
Figure 14
5. Unbolt the gear reducer hex mounting posts
(Figure 15, item 1) from the gear reducer
(Figure 15, item 2).
Figure 15
6. Slide the gearmotor assembly (Figure 16, item 1) off
the drive spindle (Figure 16, item 2).
Figure 16
7. Replace the gear reducer.
8. Insert the gearmotor output shaft key
(Figure 17, item 1) into the gearmotor output shaft
keyway (Figure 17, item 2).
Figure 17
9. Connect the new gear reducer to the motor.
1
2
1
1
2
WARNING
PUNCTURE HAZARD!
Handle drive shaft keyway with care. It may
be sharp and could puncture the skin,
causing serious injury.
NOTE
Be sure to retain the drive spindle key.
1
2
1
2
