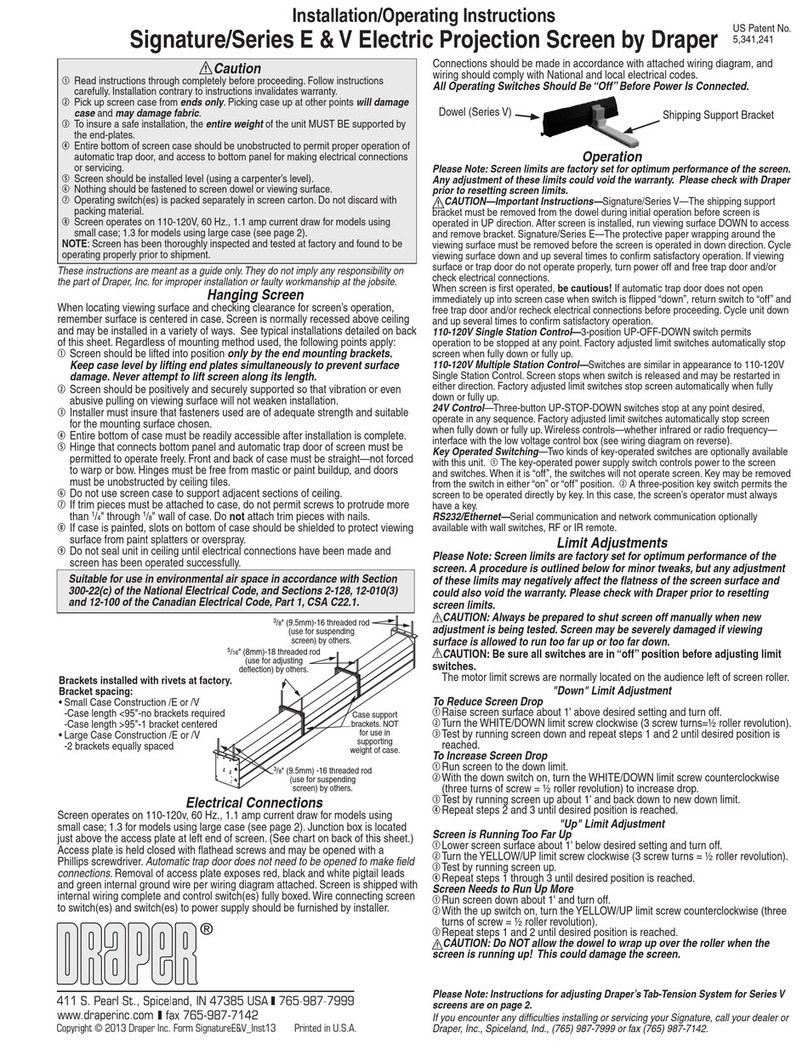

Draper Signature E Series Manual

Installation/Operating Instructions
Signature/Series E & V Electric Projection Screen by DRAPER
Operation
CAUTION—Important Instructions— Signature/Series V—The shipping
support brackets must be removed from each end of dowel during initial
operation before screen is operated in UP direction. After screen is installed,
run viewing surface DOWN to access screws that hold brackets to dowel.
Loosen hex head screw, remove bracket and retighten screw at each end of
dowel. Signature/Series E—The protective paper wrapping around the
viewing surface must be removed before the screen is operated in down
direction. Cycle viewing surface down and up several times to confirm
satisfactory operation. If viewing surface or trap door do not operate properly,
turn power off and free trap door and/or check electrical connections.
When screen is first operated, be cautious! If automatic trap door does not
open immediately up into screen case when switch is flipped “down”, return
switch to “off” and free trap door and/or recheck electrical connections before
proceeding. Cycle unit down and up several times to confirm satisfactory
operation.
110-120v Single Station Control —3-position UP-OFF-DOWN switch permits
operation to be stopped at any point. Factory adjusted limit switches
automatically stop screen when fully down or fully up.
110-120v Multiple Station Control— Switches are similar in appearance to
110-120v Single Station Control. Screen stops when switch is released and
may be restarted in either direction. Factory adjusted limit switches stop
screen automatically when fully up or fully down.
24v Control— Three-button UP-STOP-DOWN switches stop at any point
desired, operate in any sequence. Factory adjusted limit switches
automatically stop screen when fully up or fully down. Wireless controls—
whether infrared or radio frequency—interface with the low voltage control
box. (See wiring diagram on reverse.)
Key Operated Switching— Two kinds of key-operated switches are optionally
available with this unit.
➀The key-operated power supply switch controls power to the screen and
switches. When it is “off”, the switches will not operate screen. Key may
be removed from the switch in either “on” or “off” position.
➁A three-position key switch permits the screen to be operated directly by
key. In this case, the screen’s operator must always have a key.
Adjustments
Screen has been factory set and should not normally require further
adjustment. However, if you desire to change the “up” and “down” stopping
positions, proceed as follows:
CAUTION: Be sure all switches are in “off” position before adjusting limit
switches. Always be prepared to shut screen off manually when new
adjustment is being tested. Screen may be severely damaged if viewing
surface is allowed to run too far up or too far down.
Adjusting “Fully Up” Position —“Up” stopping position may be adjusted by
turning the yellow limit switch adjustment socket. The yellow socket is located
on left end of screen roller and is accessible to a screwdriver/Allen wrench
(4mm or
5
/ 32 "). Turning the socket counterclockwise will allow the viewing
surface to retract farther into the case. Turning it clockwise will cause the
surface to stop farther out of the case. One full revolution of the socket will
alter the stopping position of the viewing surface by approximately 1
1
/ 2 ".
Adjusting “Fully Down” Position —“Down” stopping position may be
adjusted by turning the white limit switch adjustment socket. The white socket
is located on the left end of screen roller and is accessible to a small flat
screwdriver/Allen wrench (4mm or
5
/ 32 "). Turning the socket counterclockwise
will allow the viewing surface to run farther down. Turning it clockwise will
shorten the viewing surface, causing it to stop in a less extended position. At
no time should viewing surface be unrolled enough to expose any part of
screen roller.
Hanging Screen
When locating viewing surface and checking clearance for screen’s operation,
remember surface is centered in case.
Screen is normally recessed above ceiling and may be installed in a variety of
ways. See typical installations detailed on back of this sheet. Regardless of
mounting method used, the following points apply:
➀Screen should be positively and securely supported so that vibration or
even abusive pulling on viewing surface will not weaken installation.
➁Installer must insure that fasteners used are of adequate strength and
suitable for the mounting surface chosen.
➂Entire bottom of case must be readily accessible after installation is
complete.
➃Hinge that connects bottom panel and automatic trap door of screen must
be permitted to operate freely. Front and back of case must be straight—
not forced to warp or bow. Hinges must be free from mastic or paint
buildup, and doors must be unobstructed by ceiling tiles.
➄Do not use screen case to support adjacent sections of ceiling.
➅If trim pieces must be attached to case, do not permit screws to protrude
through ¼" wall of case. Do not attach trim with nails.
➆If case is painted, slots on bottom of case should be shielded to protect
viewing surface from paint splatters or overspray.
➇Do not seal unit in ceiling until electrical connections have been made and
screen has been operated successfully.
Electrical Connections
Screen operates on 110-120v, 60 Hz. current.
Junction box is located just above the access plate at right or left end of
screen. (See chart on back of this sheet.) Access plate is held closed with
flathead screws and may be opened with a Phillips screwdriver. ( Automatic
trap door does not need to be opened to make field connections .) Removal of
access plate exposes red, black and white pigtail leads and green internal
ground wire per wiring diagram attached.
Screen is shipped with internal wiring complete and control switch(es) fully
boxed. Wire connecting screen to switch(es) and switch(es) to power supply
should be furnished by installer. Connections should be made in accordance
with attached wiring diagram, and wiring should comply with National and
local electrical codes.
All Operating Switches Should Be “Off” Before Power Is Connected.
Copyright © 2002 Draper Inc. Form SignatureE&V_Inst02 Printed in U.S.A.
Caution
➀Read instructions through completely before proceeding.
➁Follow instructions carefully. Installation contrary to instructions
invalidates warranty.
➂Entire bottom of screen case should be unobstructed to permit proper
operation of automatic trap door, and access to bottom panel for making
electrical connections or servicing.
➃Screen should be installed level (using a carpenter’s level).
➄Nothing should be fastened to screen dowel or viewing surface.
➅Operating switch(es) is packed separately in screen carton. Do not
discard with packing material.
➆Screen operates on 110-120v, 60 Hz. current.
NOTE: Screen has been thoroughly inspected and tested at factory and
found to be operating properly prior to shipment.
These instructions are meant as a guide only. They do not imply any
responsibility on the part of Draper, Inc. for improper installation or faulty
workmanship at the jobsite.
Please Note: Instructions for adjusting Draper’s Tab-Tension System for
Series V screens are on page 2.

Case Dimensions & Methds of Installation
SCREEN SIZE CASE STYLE
Total Drop <148" or viewing width <144" "S"
Total drop >148" or viewing width >144" "L"
Case Style “S”
Case Style “L”
Wiring Diagrams
Signature/Series E & V by DRAPER Page 2 of 2
If you encounter any difficulties installing or servicing your Signature/Series E or V,
call your dealer or Draper, Inc., Spiceland, Ind., [phone], fax [phone],
or e-mail [email protected].
NOTE: Viewing surface shown is Series V with tab tensioning.
Series E, without tab tensioning, is also available.
Tab-Tension Adjustment
Procedure for Signature/Series V
➀Determine which side requires adjustment.
➁Secure dowel with one hand.
Caution: Do not touch or bend surface.
➂Using Philips-head screwdriver, depress
spring-loaded adjustment screw (see
drawing) and slowly turn clockwise to
tighten tension, or counterclockwise
to loosen tension. The screw adjusts
in ¼ turn increments. Adjust only one
increment (¼ turn).
➃If problem is not corrected, leave screen in
position for 24 hours to allow surface
material to stretch into position.
➄If problem still is not corrected, repeat steps
2 and 3.
Dowel Adjustment
Screw
Tensioning
Cable
9
1/8"
7"
11"
Audience
Electrical connection
to internal splice box
on left end of case. 7/8"
knockout for 1/2" conduit.
J-Box cover located under
splice box.
Shown with 1/2"
threaded rod (by
others). Other
mounting hardware
options feasible.
Ceiling Tile and grid
(by others)
Case length
Viewing surface
1
1
/ 2 " Typ
2
1
/ 8 "
Ceiling grid and
tile (by others)
STOP
Single Station Control
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Dashed wiring
by electrician
Control
switch
Single gang box by others
Min. 4" x 2
1 / 8 " x 1 7 / 8 " deep
Blue
Black
Red
Location of key
operated on-off
switch if furnished
To 110-120V Line
Multiple Station Control
Internal Screen Wiring
White (Common)
Black (Down)
Red (Up)
Green (Ground)
Dashed wiring
by electrician
Red
Red
Black
Blue
Blue
Cap off with wire
nut and tape
Black
Red Blue
Black Single gang box by others
Min. 4" x 2
1 / 8 " x 1 7 / 8 " deep.
3 shown. More or less equally
feasible.
Location of key
operated on-off
switch if furnished
To 110-120V Line
Low Voltage (& Wireless) Control Wiring Diagram
Control
Switches
24v DC
Black (DN)
Red (UP)
White (COM)
Black (DN)
Red (UP)
White (COM)
Black (DN)
Red (UP)
White (COM)
STOP
Black
Red
White
White
Red
Brown
Black
Yellow
Green
Low Voltage Control Module Internal Screen Wiring
White (Common)
Red (Up)
Black (Down)
Green (Ground)
Dashed wiring by electricianOptional Infrared
Receiver Package
Optional
Radio
Receiver
Package
Location of key
operated on-off
switch if furnished
To 110-120V Line
9
1/8"
7"
9
3/4"
Audience
Electrical connection
to internal splice box
on right end of case. 7/8"
knockout for 1/2" conduit.
J-Box cover located under
splice box.
Shown with 3/8"
threaded rod (by
others). Other
mounting hardware
options feasible.
Ceiling Tile and grid
(by others)
