Drive 13085LN User manual

seat lift
chair table
item # 13085LN
lifetime limited
warranty
Your Drive branded product is warrantied to be free
of defects in materials and workmanship for the
lifetime of the product for the original consumer
purchaser.
This device was built to exacting standards and
carefully inspected prior to shipment. This Lifetime
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of years of
dependable service.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and tear.
The warranty does not extend to non-durable compo-
nents, such as rubber accessories, casters, and grips,
which are subject to normal wear and need periodic
replacement.
If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.
© 2014 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
www.drivemedical.com
EU Authorized Representative
Drive Medical LTD
Ainley’s Industrial Estate
Elland, West Yorkshire,
United Kingdom HX5 9JP
www.drivemedical.com
Rev.6.05.15.14

THIS TABLE IS TO BE USED WITH
HEAVIER CHAIRS AND COUCHES.
INCORRECT POSITIONING OF
TABLE BASE (#7) UNDER THE
CHAIR OR COUCH MAY RESULT
IN THE TABLE TIPPING OVER.
(REF. ASSEMBLY STEP 1)

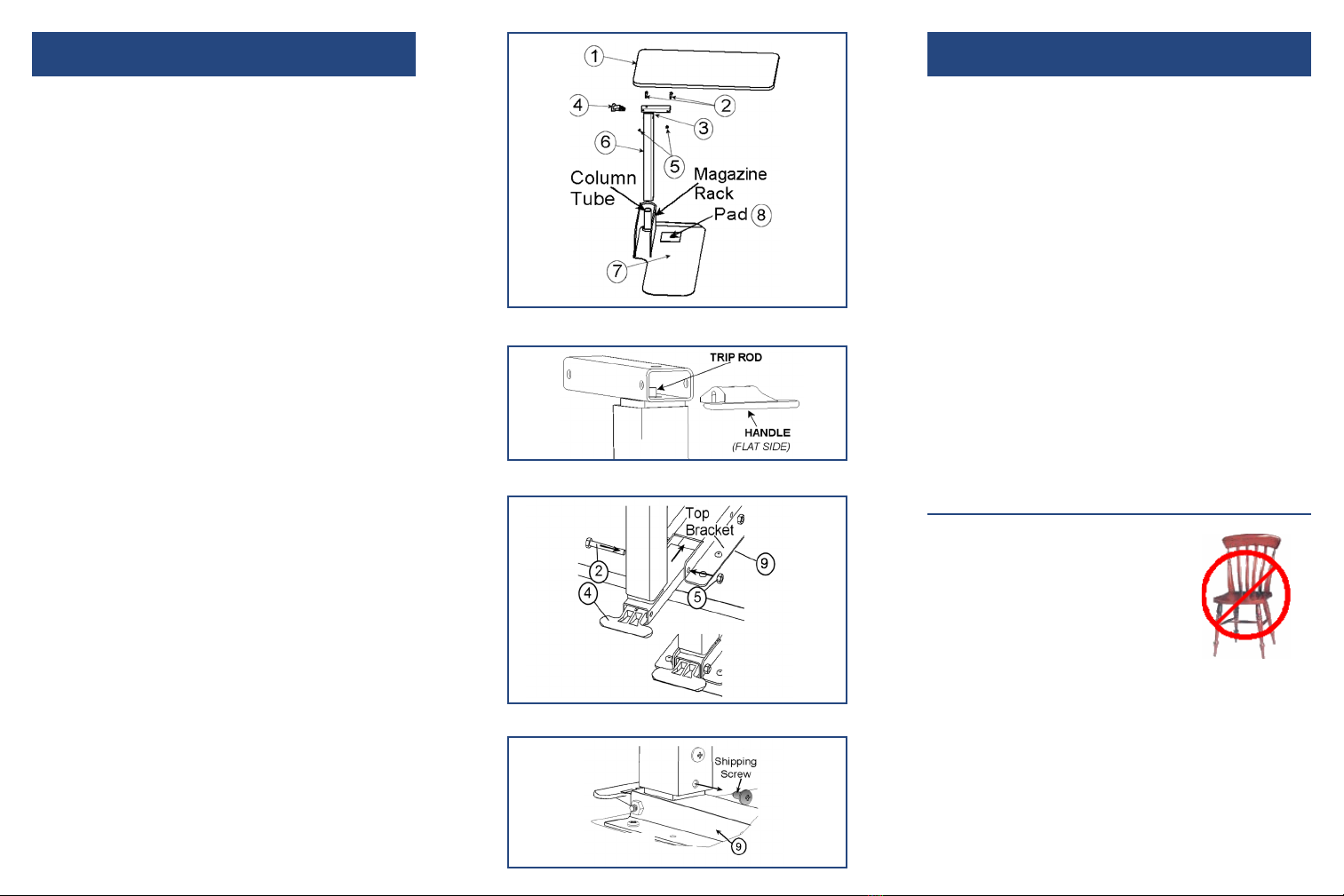

assembly instructions
CAUTION--SPRING LOADED ASSEMBLY
Do not remove the black shipping screw
before completing assembly steps 1- 5.
Removing the shipping screw before this can
result in personal injury and spring damage.
PRODUCT IS NOT TO BE USED AS A LIFT
ASSIST OR TO HOLD MORE THAN 25 LBS.
Tools Necessary For Assembly:
Phillips Screwdriver
(2) 7/16” Wrenches
FIGURE 1
FIGURE 2
FIGURE 3
TO ELEVATE THE TABLE:
Push upwards at any position on the underside
of the top, until the top has reached the desired
height.
TO LOWER THE TABLE:
Squeeze the trip handle up and push the top down
to the desired height. The table will operate best
if the downward pressure is placed at the column
end of the top.
Occasional application of light oil lubrication
between the inner and outer columns will help
keep your Table operating smoothly. Penetrating
oils with rust inhibitors are recommended.
The table will swing a full 360º around on the base
to be used as an end table or a lap tray as needed.
operating instructions
1. Place the base (#7) under the le side of chair
with the magazine rack opening facing the
rear of chair. Place the front le leg of the
chair on the positioning pad (#8) located near
the magazine rack.
2. Stand the Column (#6) on end, making sure
the Trip Rod is visible in the rectangular tube
but not protruding out of the top, as shown in
Fig. 1. If necessary, shake the Column (#6) until
the rod drops.
3. Insert Trip Handle (#4) into the Column (#6)
with the rounded side up. Be sure that the
Trip Handle (#4) rests on top of the rod inside
the Column (#6). Fig. 1
4. Place the Top (#1) on a flat surface, with the
Top Bracket (#9) facing upward. Then, while
holding the Trip Handle (#4) in place so it
doesn’t fall out, insert the Column (#6) into the
Top Bracket (#9). Align the holes in the
Column foot (#6), the Trip Handle (#4) and the
Top Bracket (#9). Install both bolts (#2) and
both nuts (#5) thru these aligned holes with
the two (2) 7/16” wrenches. Fig. 2
5. Pick up the Top (#1) and Column (#6) and place
over the round tube on the Base (#7) inside of
the magazine rack. Be sure the Column (#6)
has dropped down all the way!
6. Remove the black shipping screw in the
column and replace it with the zinc plated
screw (#3), using a Phillips screwdriver. Fig. 3
9
9
Rev.6.05.15.14

seat lift
chair table
item # 13085RN
lifetime limited
warranty
Your Drive brand product is warranted to be free
of defects in materials and workmanship for the
lifetime of the original consumer purchaser.
This device was built to exacting standards
and carefully inspected prior to shipment. This
Lifetime Limited Warranty is an expression of our
confidence in the materials and workmanship of
our products and our assurance to the consumer
of years of dependable service.
This warranty does not cover device failure
due to owner misuse or negligence, or normal
wear and tear. The warranty does not extend to
non-durable components, such as rubber
accessories, casters, and grips, which are subject
to normal wear and need periodic replacement.
If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.
© 2012 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
www.drivemedical.com
www.drivemedical.com
EU Authorized Representative
Drive Medical LTD
Ainley’s Industrial Estate
Elland, West Yorkshire,
United Kingdom HX5 9JP

THIS TABLE IS TO BE USED WITH
HEAVIER CHAIRS AND COUCHES.
INCORRECT POSITIONING OF
TABLE BASE (#7) UNDER THE
CHAIR OR COUCH MAY RESULT
IN THE TABLE TIPPING OVER.
(REF. ASSEMBLY STEP 1)
assembly instructions
CAUTION--SPRING LOADED ASSEMBLY
Do not remove the black shipping screw
before completing assembly steps 1- 5.
Removing the shipping screw before this can
result in personal injury and spring damage.
1. Place the base (#7) under the right side of
chair with the magazine rack opening facing
the rear of chair. Place the front right leg of
the chair on the positioning pad (#8) located
near the magazine rack.
2. Stand the Column (#6) on end, making sure
the Trip Rod is visible in the rectangular tube
but not protruding out of the top, as shown in
Fig. 1. If necessary, shake the Column (#6) until
the rod drops.
3. Insert Trip Handle (#4) into the Column (#6)
with the rounded side up. Be sure the Trip
Handle (#4) rests on top of the rod inside the
Column foot (#6). Fig. 1
4. Place the Top (#1) on a flat surface, with the
Top Bracket (#8) facing upward. Then, while
holding the Trip Handle (#4) in place so it
doesn’t fall out, insert the Column (#6) into the
Top Bracket (#8). Align the holes in the
Column foot (#6), the Trip Handle (#4) and the
Top Bracket (#8). Install both bolts (#2) and
both nuts (#5) thru these aligned holes with
the two (2) 7/16” wrenches. Fig. 2
5. Pick up the Top (#1) and Column (#6) and place
over the round tube on the Base (#7) inside of
the magazine rack. Be sure the Column (#6)
has dropped down all the way!
6. Remove the black shipping screw in the
column and replace it with the zinc plated
screw (#3), using a Phillips screwdriver. Fig. 3
Product is NOT to be used as a le assist or to
hold more than 25 lbs.
Tools Necessary For Assembly:
Phillips Screwdriver
(2) 7/16” Wrenches
TO ELEVATE THE TABLE:
Push upwards at any position on the underside
of the top, until the top has reached the desired
height.
TO LOWER THE TABLE:
Squeeze the trip handle up towards and push the
top down to the desired height. The table will
operate best if the downward pressure is placed at
the column end of the top.
Occasional application of light oil lubrication
between the inner and outer columns will help
keep your Over Bed Table operating smoothly.
Penetrating oils with rust inhibitors are
recommended.
The table will swing a full 360º around on the base
to be used as an end table or a lap tray as needed.
operating instructions
FIGURE 1
FIGURE 2
FIGURE 3
