Dsc New classic pc585 User manual

• W A R N I N G •

This manual contains information on limitations regarding product use and function and information on the

limitations as to liability of the manufacturer. The entire manual should be carefully read.

Software Version 2.1

DLS-1 v6.5 and up

Installation

Manual

LIMITED WARRANTY

Digital Security Controls Ltd. warrants the original purchaser that for a period of twelve

months from the date of purchase, the product shall be free of defects in materials and

workmanship under normal use. During the warranty period, Digital Security Controls

Ltd. shall, at its option, repair or replace any defective product upon return of the product

to its factory, at no charge for labour and materials. Any replacement and/or repaired

parts are warranted for the remainder of the original warranty or ninety (90) days, which-

ever is longer.The original owner must promptly notify Digital Security Controls Ltd. in

writing that there is defect in material or workmanship, such written notice to be received

in all events prior to expiration of the warranty period.

International Warranty

The warranty for international customers is the same as for any customer within Canada

and the United States, with the exception that Digital Security Controls Ltd. shall not be

responsible for any customs fees, taxes, or VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the item(s) in question to the point of

purchase. All authorized distributors and dealers have a warranty program. Anyone re-

turning goods to Digital Security Controls Ltd. must first obtain an authorization num-

ber. Digital Security Controls Ltd. will not accept any shipment whatsoever for which

prior authorization has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship relating to normal use. It

does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earthquake or lightning;

• damage due to causes beyond the control of Digital Security Controls Ltd. such as

excessive voltage, mechanical shock or water damage;

• damage caused by unauthorized attachment, alterations, modifications or foreign objects;

• damage caused by peripherals (unless such peripherals were supplied by Digital Secu-

rity Controls Ltd.);

• defects caused by failure to provide a suitable installation environment for the prod-

ucts;

• damage caused by use of the products for purposes other than those for which it was

designed;

• damage from improper maintenance;

• damage arising out of any other abuse, mishandling or improper application of the

products.

Digital Security Controls Ltd.’s liability for failure to repair the product under this war-

ranty after a reasonable number of attempts will be limited to a replacement of the prod-

uct, as the exclusive remedy for breach of warranty. Under no circumstances shall Digital

Security Controls Ltd. be liable for any special, incidental, or consequential damages

based upon breach of warranty, breach of contract, negligence, strict liability, or any

other legal theory. Such damages include, but are not limited to, loss of profits, loss of

the product or any associated equipment, cost of capital, cost of substitute or replace-

ment equipment, facilities or services, down time, purchaser’s time, the claims of third

parties, including customers, and injury to property.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu of any and all other

warranties, whether expressed or implied (including all implied warranties of mer-

chantability or fitness for a particular purpose) And of all other obligations or li-

abilities on the part of Digital Security Controls Ltd. Digital Security Controls Ltd.

neither assumes nor authorizes any other person purporting to act on its behalf to

modify or to change this warranty, nor to assume for it any other warranty or liabil-

ity concerning this product.

This disclaimer of warranties and limited warranty are governed by the laws of the

province of Ontario, Canada.

WARNING: Digital Security Controls Ltd. recommends that the entire system be com-

pletely tested on a regular basis. However, despite frequent testing, and due to, but not

limited to, criminal tampering or electrical disruption, it is possible for this product to

fail to perform as expected.

Installer’s Lockout

Any products returned to DSC which have the Installer’s Lockout option enabled and

exhibit no other problems will be subject to a service charge.

Out of Warranty Repairs

Digital Security Controls Ltd. will at its option repair or replace out-of-warranty prod-

ucts which are returned to its factory according to the following conditions. Anyone

returning goods to Digital Security Controls Ltd. must first obtain an authorization num-

ber. Digital Security Controls Ltd. will not accept any shipment whatsoever for which

prior authorization has not been obtained.

Products which Digital Security Controls Ltd. determines to be repairable will be repaired

and returned. A set fee which Digital Security Controls Ltd. has predetermined and which

may be revised from time to time, will be charged for each unit repaired.

Products which Digital Security Controls Ltd. determines not to be repairable will be

replaced by the nearest equivalent product available at that time. The current market

price of the replacement product will be charged for each replacement unit.

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in contact with system users, it is your

responsibility to bring each item in this warning to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possible.There are circumstances, how-

ever, involving fire, burglary, or other types of emergencies where it may not provide protection. Any

alarm system of any type may be compromised deliberately or may fail to operate as expected for a

variety of reasons. Some but not all of these reasons may be:

■■

■Inadequate Installation

A security system must be installed properly in order to provide adequate protection. Every installation

should be evaluated by a security professional to ensure that all access points and areas are covered.

Locks and latches on windows and doors must be secure and operate as intended. Windows, doors,

walls, ceilings and other building materials must be of sufficient strength and construction to provide

the level of protection expected.A reevaluation must be done during and after any construction activity.

An evaluation by the fire and/or police department is highly recommended if this service is available.

■■

■Criminal Knowledge

This system contains security features which were known to be effective at the time of manufacture. It

is possible for persons with criminal intent to develop techniques which reduce the effectiveness of

these features. It is important that a security system be reviewed periodically to ensure that its features

remain effective and that it be updated or replaced if it is found that it does not provide the protection

expected.

■■

■Access by Intruders

Intruders may enter through an unprotected access point, circumvent a sensing device, evade detection

by moving through an area of insufficient coverage, disconnect a warning device, or interfere with or

prevent the proper operation of the system.

■■

■Power Failure

Control units, intrusion detectors, smoke detectors and many other security devices require an adequate

power supply for proper operation. If a device operates from batteries, it is possible for the batteries to fail.

Even if the batteries have not failed, they must be charged, in good condition and installed correctly. If a

device operates only by AC power, any interruption, however brief, will render that device inoperative

while it does not have power. Power interruptions of any length are often accompanied by voltage fluctua-

tions which may damage electronic equipment such as a security system. After a power interruption has

occurred, immediately conduct a complete system test to ensure that the system operates as intended.

■■

■Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide several years of battery life under normal

conditions. The expected battery life is a function of the device environment, usage and type. Ambient

conditions such as high humidity, high or low temperatures, or large temperature fluctuations may reduce the

expected battery life. While each transmitting device has a low battery monitor which identifies when the

batteries need to be replaced, this monitor may fail to operate as expected. Regular testing and maintenance

will keep the system in good operating condition.

■■

■Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which could include metal objects placed on or

near the radio path or deliberate jamming or other inadvertent radio signal interference.

■■

■System Users

A user may not be able to operate a panic or emergency switch possibly due to permanent or temporary

physical disability, inability to reach the device in time, or unfamiliarity with the correct operation. It is

important that all system users be trained in the correct operation of the alarm system and that they

know how to respond when the system indicates an alarm.

■■

■Smoke Detectors

Smoke detectors that are a part of this system may not properly alert occupants of a fire for a number of

reasons, some of which follow. The smoke detectors may have been improperly installed or positioned.

Smoke may not be able to reach the smoke detectors, such as when the fire is in a chimney, walls or roofs,

or on the other side of closed doors. Smoke detectors may not detect smoke from fires on another level of

the residence or building.

Every fire is different in the amount of smoke produced and the rate of burning. Smoke detectors cannot

sense all types of fires equally well. Smoke detectors may not provide timely warning of fires caused by

carelessness or safety hazards such as smoking in bed, violent explosions, escaping gas, improper storage

of flammable materials, overloaded electrical circuits, children playing with matches or arson.

Even if the smoke detector operates as intended, there may be circumstances when there is insufficient

warning to allow all occupants to escape in time to avoid injury or death.

■■

■Motion Detectors

Motion detectors can only detect motion within the designated areas as shown in their respective installa-

tion instructions. They cannot discriminate between intruders and intended occupants. Motion detectors

do not provide volumetric area protection.They have multiple beams of detection and motion can only be

detected in unobstructed areas covered by these beams. They cannot detect motion which occurs behind

walls, ceilings, floor, closed doors, glass partitions, glass doors or windows.Any type of tampering whether

intentional or unintentional such as masking, painting, or spraying of any material on the lenses, mirrors,

windows or any other part of the detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in temperature. However their effective-

ness can be reduced when the ambient temperature rises near or above body temperature or if there are

intentional or unintentional sources of heat in or near the detection area. Some of these heat sources

could be heaters, radiators, stoves, barbeques, fireplaces, sunlight, steam vents, lighting and so on.

■■

■Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not warn people or waken someone sleeping if

there is an intervening wall or door. If warning devices are located on a different level of the residence or

premise, then it is less likely that the occupants will be alerted or awakened. Audible warning devices may be

interfered with by other noise sources such as stereos, radios, televisions, air conditioners or other appliances,

or passing traffic. Audible warning devices, however loud, may not be heard by a hearing-impaired person.

■■

■Telephone Lines

If telephone lines are used to transmit alarms, they may be out of service or busy for certain periods of

time. Also an intruder may cut the telephone line or defeat its operation by more sophisticated means

which may be difficult to detect.

■■

■Insufficient Time

There may be circumstances when the system will operate as intended, yet the occupants will not be

protected from the emergency due to their inability to respond to the warnings in a timely manner. If the

system is monitored, the response may not occur in time to protect the occupants or their belongings.

■■

■Component Failure

Although every effort has been made to make this system as reliable as possible, the system may fail to

function as intended due to the failure of a component.

■■

■Inadequate Testing

Most problems that would prevent an alarm system from operating as intended can be found by regular

testing and maintenance. The complete system should be tested weekly and immediately after a break-

in, an attempted break-in, a fire, a storm, an earthquake, an accident, or any kind of construction

activity inside or outside the premises. The testing should include all sensing devices, keypads, con-

soles, alarm indicating devices and any other operational devices that are part of the system.

■■

■Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for property or life insurance. An alarm

system also is not a substitute for property owners, renters, or other occupants to act prudently to prevent

or minimize the harmful effects of an emergency situation.

Table of Contents

PC585 Control PanelWiring Diagram ii

Section 1: System Introduction 1

1.1 Specifications...................................................................... 1

1.2 Additional Devices .............................................................. 2

1.3 Out of the Box ..................................................................... 2

Section 2: Getting Started 3

2.1 Installation Steps ................................................................. 3

2.2 Terminal Descriptions.......................................................... 3

2.3 Keybus Operation and Wiring............................................. 4

2.4 Current Ratings – Modules and Accessories ..................... 4

2.5 Keypad Assignment............................................................ 4

2.6 Supervision.......................................................................... 5

2.7 Removing Modules ............................................................. 5

2.8 Zone Wiring ......................................................................... 5

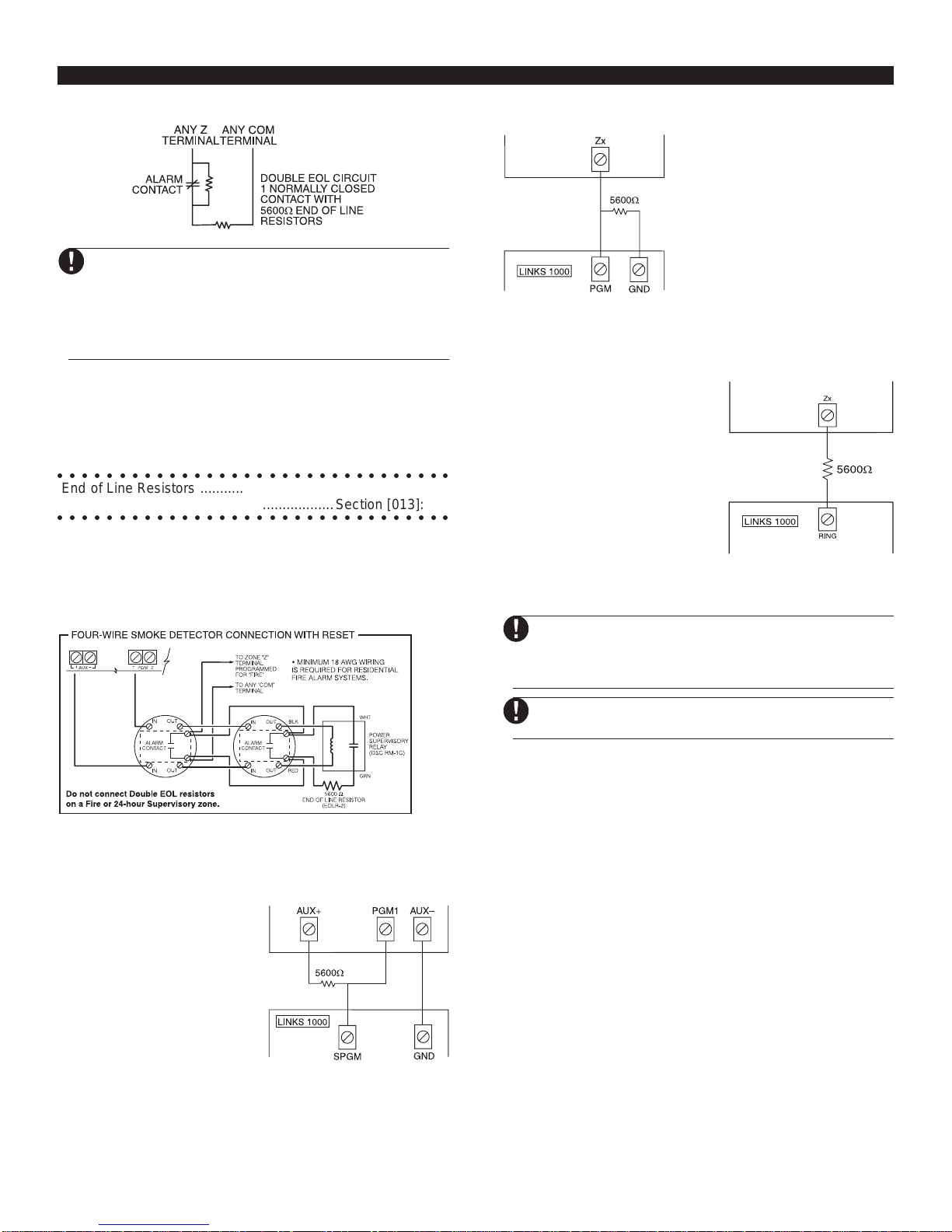

2.9 Fire Zone Wiring .................................................................. 6

2.10 LINKS Zone Wiring.............................................................. 6

2.11 Keypad Zones..................................................................... 6

Section 3: Keypad Commands 8

3.1 Arming and Disarming ........................................................ 8

3.2 Auto Bypass – Stay Arming ................................................ 8

3.3 Automatic Arming ............................................................... 8

3.4 [✱] Commands.................................................................... 8

3.5 Function Keys ................................................................... 11

3.6 Features Available for the LCD5500Z ............................... 11

Section 4: How to Program 12

4.1 Installer’s Programming .................................................... 12

4.2 Programming Decimal Data.............................................. 12

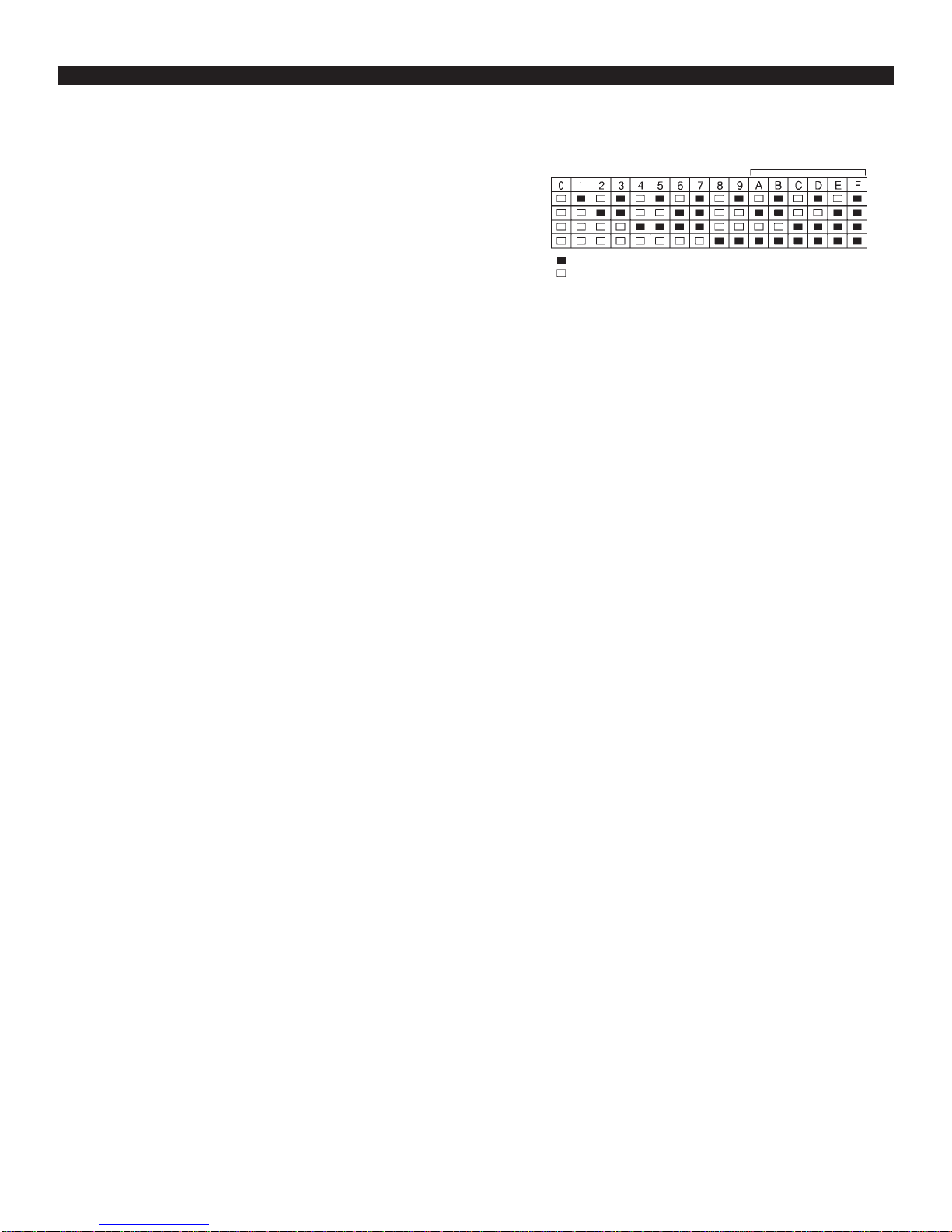

4.3 Programming HEX Data .................................................... 12

4.4 Programming Toggle Option Sections .............................. 13

4.5 Viewing Programming ....................................................... 13

Section 5: Program Descriptions 14

5.1 Programming Security Codes........................................... 14

5.2 Zone Programming ........................................................... 14

5.3 Zone Attributes.................................................................. 15

5.4 Assigning Keypad Zones.................................................. 16

5.5 Communicator – Dialing.................................................... 16

5.6 Communicator – Account Numbers.................................. 16

5.7 Communicator – Telephone Numbers .............................. 16

5.8 Communicator – Reporting Codes ................................... 17

5.9 Communicator – Reporting Formats................................. 18

5.10 Downloading ..................................................................... 19

5.11 PGM Output Options......................................................... 20

5.12 Telephone Line Monitor (TLM) .......................................... 22

5.13 Siren .................................................................................. 22

5.14 Test Transmission .............................................................. 22

5.15 Transmission Delay ........................................................... 22

5.16 Fire, Auxiliary and Panic Keys .......................................... 23

5.17 Arming/Disarming Options ............................................... 23

5.18 Entry/Exit Delay Options ................................................... 23

5.19 Swinger Shutdown ............................................................ 24

5.20 Event Buffer....................................................................... 24

5.21 Keypad Lockout Options .................................................. 24

5.22 Keypad Blanking............................................................... 24

5.23 Keypad Backlighting......................................................... 24

5.24 Loop Response................................................................. 24

5.25 Keypad Tampers ............................................................... 24

5.26 LINKS1000 Cellular Communicator.................................. 25

5.27 Additional System Modules .............................................. 25

5.28 Clock Adjust ...................................................................... 25

5.29 Timebase .......................................................................... 26

5.30 Resetting Factory Defaults................................................ 26

5.31 Installer’s Lockout ............................................................. 26

5.32 Walk Test (Installer) ........................................................... 26

ProgrammingWorksheets 27

For the Record ............................................................................ 27

Keypad Programming ................................................................ 28

Basic Programming .................................................................... 28

Advanced System Programming................................................ 31

Communicator Programming ..................................................... 33

Downloading Options ................................................................. 38

International Programming ......................................................... 39

Module Programming ................................................................. 39

Special Installer Functions.......................................................... 39

Appendix A: Reporting Codes 40

Appendix B: Programming LCD Keypads 42

PC585 v2.1 Module Compatibility Back Cover

LimitedWarranty,Warning Inside Front Cover

PC585 Control Panel Wiring Diagram

Incorrect connections may

resultin fuse failureorimproper

operation. Inspect wiring and

ensure connections are correct

before applying power.Do not

route any wiring over circuit

boards. Maintain at least 1”

(25.4mm) distance.

PC585 Control Panel Wiring Diagram

1.1 Specifications

Downloading Software Support

• PC585 uses DLS-1 v6.5 and up.

Flexible Zone Configuration

• Four fully programmable zones; system expandable to eight

zones using keypad zone inputs and wireless zones

• 38 access codes: one master code, one maintenance code,

two duress codes, two supervision codes and 32 general

access codes

• 27 zone types; 8 programmable zone attributes

• Normally closed, single EOL and double EOL zone wiring

• Eight wireless zones available using the PC5132 Wireless

Receiver

Audible Alarm Output

• 700mA Supervised Bell Output (current limited at 3 amps),

12VDC

• Steady or Pulsed Output

EEPROM Memory

• DoesnotloseprogrammingorsystemstatusoncompleteAC

and Battery failure

Programmable Outputs

• Twoprogrammablevoltageoutputs;18programmableoptions

• PGM1 = 300mA; PGM2 = 50mA

Powerful 1.5 Amp Regulated Power Supply

• 550 mA Auxiliary Supply, 12 VDC

• Positive Temperature Coefficient (PTC) components replace

fuses

• Supervision for loss of AC power, low battery

• Internal clock locked to AC power frequency

Power Requirements

• Transformer = 16.5 VAC, 1.5A

• Battery = 12 volt 4 Ah minimum rechargeable sealed lead

acid battery

Remote Keypad Specifications

• Three keypads available:

- PC1555RKZ eight zone LED keypad with zone input

- PC5508Z eight zone LED keypad with zone input

- LCD5500Z Alphanumeric keypad with zone input

• All keypads have five programmable function keys

• Connect up to eight keypads

• 4-wire (Quad) connection to Keybus

• Built in piezoelectric buzzer

Digital Communicator Specifications

• Supports major communication formats including SIA and

Contact ID

• Event-initiated personal paging

• Three programmable telephone numbers

• Two account numbers

• Supports LINKS1000 cellular communication

• Supports LINKS2X50 Long Range Radio Transmitter

• DTMF and pulse dialing

• DPDT line seizure

• Anti-jam feature

• Split reporting of selected transmissions to each telephone

number

System Supervision Features

The PC585 continuously monitors a number of possible trouble

conditions including:

• AC power failure

• Trouble by zone

• Tamper by zone

• Fire trouble

• Telephone line trouble

• Failure to communicate

• Low battery condition

• Bell output trouble

• Module fault (supervisory or loss of internal clock)

• AUX Power Supply Trouble

False Alarm Prevention Features

• Audible Exit Delay

• Audible Exit Fault

• Communication Delay

• Urgency on Entry Delay

• Quick Exit

• Cross Zone Burglary Alarm

• Rotating Keypress Buffer

Additional Features

• Auto Arm at specified time

• Keypad-activated alarm output and communicator test

• All modules connect to the system via a four wire Keybus up

to 1000’/305m from main panel

• An event buffer which records the past 128 events with both

the time and date at which they occurred; buffer can be

printed using PC5400 serial interface module, or viewed with

the LCD5500Z keypad.

• Supports the addition of the PC5132 Wireless receiver for

integration of wireless devices

• Uploading and downloading capability

• LocaldownloadingcapabilitythroughtheuseofthePC-LINK

adaptor

• Added Keybus fault protection: clock and data outputs have

been programmed to withstand shorts to +12v to prevent

control panel damage

System Introduction

S E C T I O N 1

SYSTEMVINTRODUCTION

1.2 Additional Devices

In addition to the information below, see the back cover for a

DSC module compatibility table.

PC5132 Wireless Receiver

The PC5132 Wireless Receiver can be used to connect up to 8

wirelessdevicestothesystem.Alldevicesarespreadspectrum,

900MHz, fully supervised deviceswhichuse standard ‘AAA’ or

‘AA’ alkaline batteries

Seven additional devices are available. They are as follows:

WLS904 Wireless Motion Detector

WLS905 Wireless Universal Transmitter

Adds wireless door or window contacts to your system.

WLS906 Wireless Smoke Detector

WLS907 Wireless Slimline Universal Transmitter

A smaller wireless door or window contact.

WLS908 Wireless Panic Pendant

Addspersonalprotectiontothesystem.Whenused,theunitwill

indicate a non-medical emergency to the central station.

WLS909 Wireless Key

Addsasimple and mobilemethod of armingand disarming to the

system, as well as one-button access to several programmable

functions.

WLS910 Wireless Handheld Keypad

PC5400 Printer Module

The PC5400 Printer Module will allow the panel to print out all

events that occur on the system to any serial printer. The

printout will contain the time, date and the event that occurred.

LINKS1000 Cellular Communicator

The LINKS1000 Cellular Communicator can be used three

different ways: as the sole communicator for the panel, as a

backup for either or both telephone numbers or as a redundant

backup to the land line communicator where the panel will call

both the land line and via the LINKS.

LINKS2X50

Either the LINKS2150 or LINKS2450 may be used to transmit

alarm information over a long range radio network.

Cabinets

Severaldifferent cabinets are available for thePC585 modules.

They are as follows:

PC5003C Cabinet

Main control cabinet for the PC585 main panel. Dimensions

288mm x 298mm x 78mm / 11.3” x 11.7” x 3” approximately.

PC500 Cabinet

Main control cabinet for the PC585 main panel. Dimensions

213mm x 235mm x 78mm / 8.4” x 9.25” x 3” approximately.

PC5004C Cabinet

Cabinet to house the PC5400 Printer Module. Dimensions

229mm x 178mm x 65mm / 9” x 7” x 2.6” approximately.

1.3 Out of the Box

Please verify that the following components are included in

your system:

• one PC500 main control cabinet

• one PC585 main control circuit board

• one PC1555RKZ keypad with zone input

• one Installation Manual with programming worksheets

• one Instruction Manual for the end user

• one hardware pack consisting of:

- one mylar cabinet label

- four plastic circuit board standoffs

- ten 5600Ω(5.6K) resistors

- one 2200Ω(2.2K) resistor

- one 1000Ω(1K) resistor

- ground connection assembly

- one cabinet door plug

Getting Started

S E C T I O N 2

Thefollowing sections provideathorough description ofhowto

wire and configure devices and zones.

2.1 Installation Steps

Read this section completely before you begin. Once you have

an overall understanding of the installation process, carefully

work through each step.

Step 1: Create a Layout

Draw a rough sketch of the building to get an idea of where all

alarm detection devices, keypads and other modules are to be

located.

Step 2: Mounting the Panel

Locatethepanelinadry areacloseto anunswitchedAC power

source and the incoming telephone line. Before attaching the

cabinet to the wall, be sure to press the four circuit board

mounting studs into the cabinet from the back. After you have

attached the cabinet to the wall, stick the provided DSC logo

sticker on the front of the cabinet.

You must complete all wiring before connecting

the battery, or applying AC to the panel

.....

Step 3: Wiring the Keybus

(Section 2.3)

WiretheKeybustoeachofthemodulesfollowingtheguidelines

provided in Section 2.3 of this manual.

Step 4: Zone Wiring

(Section 2.8)

You must power down the control panel to complete all zone

wiring.PleaserefertoSection2.8whenconnectingzonesusing

normallyclosedloops,singleEOLresistors,doubleEOLresistors,

Fire zones and Keyswitch Arming zones.

Step 5: Complete Wiring

(Section 2.2)

Complete all other wiring including bells or sirens, telephone

line connections, and ground connections following the

guidelines provided in Section 2.2 (“Terminal Descriptions”).

Step 6: Power up the Control

Once all zone and Keybus wiring is complete, power up the

control panel. First, connect the red battery lead to the positive

terminal and the black lead to negative. Then, connect the AC.

Connect the battery before connecting the AC.

The panel will not power up on the battery

connection alone.

Step 7: Keypad Assignment

(Section 2.5)

In order for keypads to be properly supervised, each must be

assignedtoadifferentslot.Pleasefollowtheguidelinesprovided

in Section 2.5 when assigning keypads.

Step 8: Supervision (

Section 2.6

)

The supervision of every module by the panel is automatically

enabled upon power up. Please verify that all modules appear

on the system according to the instructions in Section 2.6.

Step 9: Programming the System

(Sections 4 and 5)

Section4explainshowtoprogramthepanel.Section5contains

a complete description of the various programmable features,

which options are available and how they function. The

ProgrammingWorksheetsshouldbefilledoutcompletelybefore

attempting to program the system.

Step 10: Testing the System

The panel must be thoroughly tested to ensure that all features

and functions are operating as programmed.

2.2 Terminal Descriptions

Battery Connection

A 12V 4Ah rechargable battery is used as a backup source of

power in the event of an AC power failure. The battery also

provides additional current when the panel’s demands exceed

the power output of the transformer, such as when the panel is

in alarm.

The High Current Charge/Standard Battery Charge option

(section [701], option [7]) allows you to choose between a high

current battery charge and the standard battery charge rate.

Do not connect the battery until all other wiring is

complete. Connect the battery before connecting

the AC.

Connect the RED battery lead to the positive battery terminal;

connect the BLACK lead to negative.

AC Terminals – AC

The panel requires a 16.5 volt, 1.5 VA transformer. Connect the

transformer to an unswitched AC source and connect the

transformer to these terminals.

Thepanelcanbeprogrammedtoacceptapowerlinefrequency

of either 50Hz AC or 60Hz AC in programming section [701],

option [1].

Do not connect the transformer until all other

wiring is complete

.....

Auxiliary Power Terminals – AUX+ and AUX-

Theseterminalsprovideupto550mAofadditionalcurrentat12

VDC for devices requiring power. Connect the positive side of

any device requiring power to the AUX+ terminal, the negative

sidetoAUX-(ground).TheAUXoutputisprotected.Thismeans

that if too much current is drawn from these terminals (such as

awiring short),the panelwill temporarilyshutoff theoutput until

the problem is corrected.

Bell Output Terminals – BELL+ and BELL-

These terminals provide up to 700 mA of continuous current at

12VDC for powering bells, sirens,strobesor other warning-type

equipment. Connect the positive side of any alarm warning

device to BELL+, the negative side to BELL–. Please note that

the Bell output is protected: if too much current is drawn from

these terminals (such as a wiring short), the Bell PTC will open.

Three amps can be drawn for short periods only.

The Bell output is supervised. If no alarm warning devices are

in use, connect a 1000Ωresistor across BELL+ and BELL– to

prevent the panel from displaying a trouble condition. For more

information,pleaserefertoSection3.4(“[✱][2]TroubleDisplay”).

Keybus Terminals – AUX+, AUX-, YEL, GRN

The Keybus is used by the panel to communicate with modules

and vice versa. Each module has four Keybus terminals that

must be connected to the four Keybus terminals on the panel.

For more information, see Section 2.3 (“Keybus Operation and

Wiring”).

G E T T I N G S T A R T E D

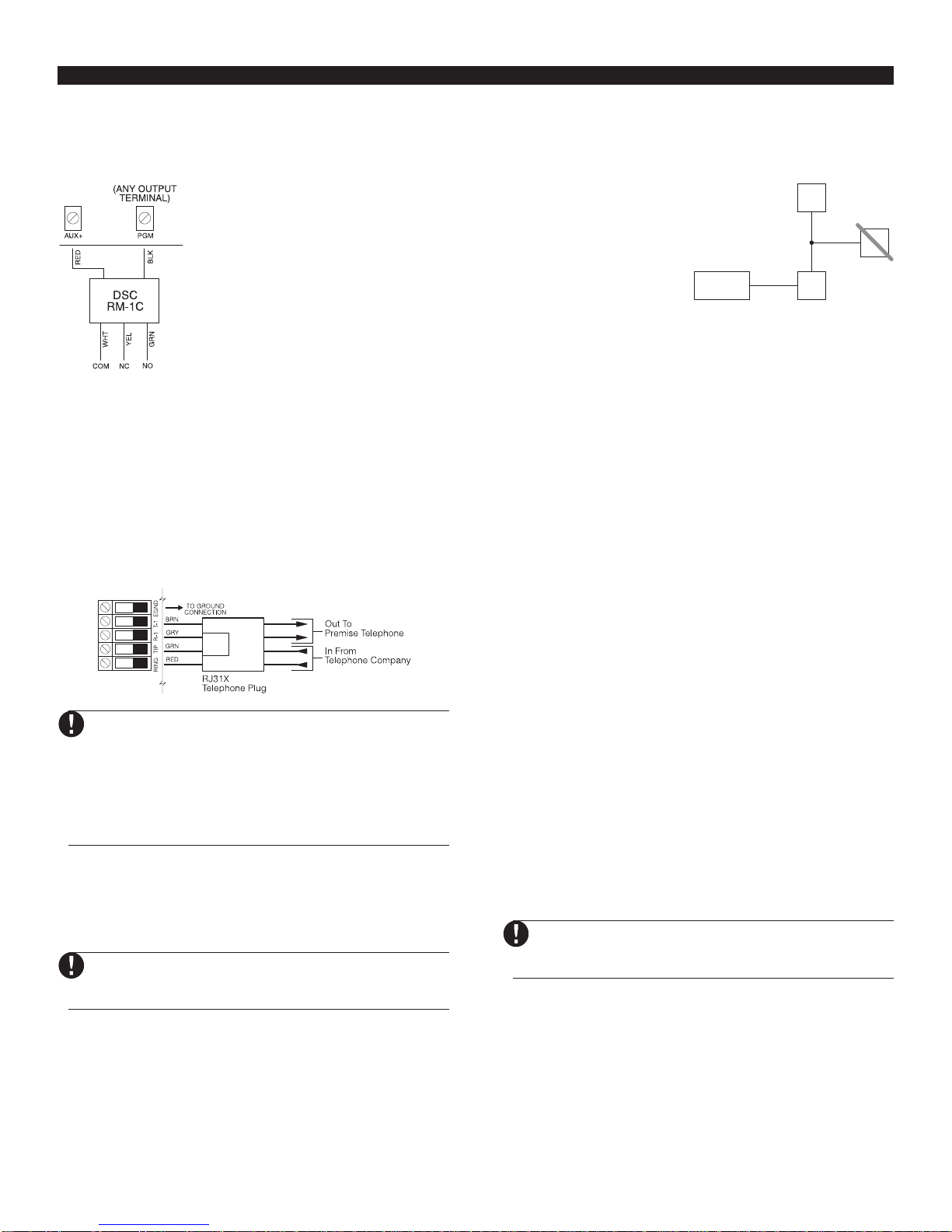

Programmable Output Terminals – PGM1 and

PGM2

Each PGM output is designed so that when activated by the

panel, the terminal will switch to ground.

PGM1 can sink up to 300mA of current.

Connect the positive side of the LED or

buzzer to AUX+, the negative side to

PGM1. If more than 300 mA of current are

required, a relay must be used. Please

study PGM wiring in the accompanying

diagram.

PGM2 operates similarly to PGM1.

However,PGM2 can only sink up to50mA

of current. For a list of the programmable

output options, please see Section 5.11

“PGM Output Options.”

Zone Input Terminals – Z1 to Z4

Each detection device must be connected to a zone on the

control panel. We suggest that one detection device be

connected to each zone; wiring multiple detection devices to a

single zone, however, is possible. For zone wiring specifics,

please see Section 2.8 (“Zone Wiring”).

Telephone Connection Terminals –

TIP, RING, T-1, R-1

If a telephone line is required for central station communication

or downloading, connect an RJ-31X telephone jack in the

following manner:

For proper operation, no other telephone equipment

should be connected between the control panel and

the telephone company facilities

Do not connect the

alarm panel communicator to telephone lines

intended for use with a fax machine.These lines may

incorporate a voice filter which disconnects the line

if anything other than fax signals are detected,

resulting in incomplete transmissions

2.3 Keybus Operation and Wiring

The Keybus is used by the panel to communicate with all

connected modules and vice versa. The red (AUX+) and black

(AUX-) terminals are used to provide power, while the yellow

(YEL)andgreen(GRN)terminalsareclockanddatarespectively.

The four Keybus terminals of the panel must be

connected to the four Keybus terminals or wires

of all modules.

The following restrictions apply to Keybus wiring:

• Keybus should be run in minimum 22 gauge quad (0.5mm);

two pair twist is preferred.

• The modules should be home-run to the panel but can be

connected in series or T-tapped.

• AnymodulecanbeconnectedanywherealongtheKeybus.You

do not need to run a separate Keybus wire for keypads, etc.

• No module can be more than 1,000'/305m (in wire length)

from the panel.

• Shielded wire should not be used.

Example of Keybus Wiring

NOTE:

Module (A) is correctly

wired within 1,000'/305m of

wire from the panel.

Module (B) is correctly

wired within 1,000'/305m of

wire from the panel.

Module (C) is NOT wired correctly as it is further than 1,000'/

305m from the panel, in wire distance.

2.4 Current Ratings – Modules and

Accessories

InorderforthePC585systemtooperateproperly,thepoweroutput

capabilitiesofthemaincontroland theexpansiondevices mustnot

be exceeded. Use the data presented below to ensure that no part

of the system is overloaded and cannot function properly.

PC585 (12 VDC)

AUX+: ...........550mA: Subtract the listed rating for each keypad,

expansion module and accessory connected to

AUX+or Keybus.

BELL: ...........700mA continuous rating; 3.0A short term.

Available only with standby battery connected.

PC585 Device Ratings (at 12 VDC)

• LCD5500Z Keypad: 75-85mA

• PC1555RKZ Keypad: 75-85mA

• PC5508Z Keypad: 75-85mA

• PC5400 Serial Module: 65mA

• PC5132 Wireless Receiver: 125mA

Other Devices

Please read the manufacturer’s literature carefully to determine

the maximum current requirements for each device—during

activation or alarm—and include the proper values for loading

calculations. Connected devices must not exceed system

capabilities during any possible operational mode.

2.5 Keypad Assignment

There are eight available slots for keypads. LED keypads by

default are always assigned to slot 1. LCD5500Z keypads are

always assigned to slot 8. You will need to assign each keypad

toits own slot (1 to 8). Keypad assignment is required, as it tells

thepanelwhichslotsareoccupied.Thepanelcanthengenerate

a fault when a keypad supervisory is not present.

One LCD keypad must be assigned to slot 8 in

order to upload keypad programming using

DLS-1 software.

How to Assign Keypads

Do the following at each keypad installed on the system:

1. Enter [✱][8][installer’s code] to go to installer programming

2. Enter [000] for Keypad Programming

3. Enter [0] for Slot Assignment

4. Enteratwodigitnumber(11-18)tospecifywhichsupervisory

slot the keypad will occupy.

5. Press [#] twice to exit installer programming.

PANEL

500’

150’

PANEL

500’

150’

G E T T I N G S T A R T E D

After assigning all keypads, perform a supervisory reset by

enteringsection[902]in installer’sprogramming.Thepanelwill

now supervise all assigned keypads and enrolled modules on

the system.

How to Program Function Keys

Bydefault,the5functionkeysoneachkeypadareprogrammed

as Stay Arm (03), Away Arm (04), Chime (06), Quick Exit (14)

andSensorReset(16).Youcanchangethefunctionofeachkey

on every keypad:

1. Go to the keypad where you want to change the function key

programming and enter Installer Programming.

2. Press [000] for Keypad Programming.

3. Enter [1] to [5] to select a function key to program.

4. Enter the 2 digit number, [00] to [17] to select the feature you

want the function key to have. For a complete list of Function

Key options

See Section 3.5 “Function Keys” .

5. Continue from step 3 until all function keys are programmed.

6. To exit Installer Programming, press [#] twice.

2.6 Supervision

By default, all modules are supervised upon installation.

Supervisionisenabledatalltimessothatthepanelcanindicate

a trouble if a module is removed from the system.

To check on which modules are currently connected and

supervised, enter programming section [903] from installer’s

programming. The LCD keypad will allow you to scroll through

the display of connected modules. A connected module which

does not show as being present will appear as a trouble

condition and the Trouble light on the keypad will turn ON. This

condition may be due to one or more of the following reasons:

• the module is not connected to the Keybus

• there is a Keybus wiring problem

• the module is more than 1,000'/305m from the panel

• the module does not have enough power

For more information regarding module supervision troubles,

please refer to Section 3.4 (“[✱] [2] Trouble Conditions”).

2.7 Removing Modules

The panel must be instructed to no longer supervise a module

beingremovedfromthesystem.Toremovethemodule,disconnect

itfromtheKeybusandresetthesupervisionfieldbyentering[902]

intheinstaller’sprogramming

Thepanelwillberesettorecognize

and supervise all existing modules on the system.

2.8 Zone Wiring

For a complete description of the operation of all zone types,

please refer to Section 5.2 (“Zone Programming”).

There are several different ways in which zones may be wired,

depending on which programming options have been selected.

The panel can be programmed to supervise normally closed, End

of Line, or Double End of Line loops. Please refer to the following

diagramstostudyeach typeofindividually supervisedzonewiring.

Any zone programmed for Fire or 24 Hour Supervi-

sory must be wired with a single End of Line (EOL)

resistor regardless of the type of zone wiring

supervision selected for the panel (section [013]:

[1] -[2]). See Section 5.2“Zone Programming.”

If you change the zone supervision options from

DEOL to EOL or from NC to DEOL (section [013],

options [1] or [2]), you should power down the

system completely, and then power it back up. If

you do not, the zones may not work correctly.

Normally Closed (NC) Loops

To enable normally closed loops, programming section [013],

option [1] must be ON.

This option should only be selected if Normally

Closed (NC) detection devices or contacts are

being used

.....

Single End Of Line (EOL) Resistors (5600Ω)

To enable panel detection of single end of line resistors,

programming section [013], options [1] and [2] must be OFF.

This option should be selected if either Normally

Closed (NC) or Normally Open (NO) detection

devices or contacts are being used

Double End of Line (DEOL) Resistors

Double End of Line resistors allow the panel to determine if the

zone is in alarm, tampered or faulted.

To enable panel detection of double end of line resistors,

programming section [013], option [1] must be OFF and option

[2] must be ON.

If the Double EOL supervision option is enabled,

all hardwire zones on the main panel must be

wired for Double EOL resistors, except for Fire

and 24 Hour Supervisory zones.

Do not wire DEOL resistors on keypad zones.

Do not use DEOL resistors for Fire zones or 24

Hour Supervisory zones. Do not wire Fire zones

to keypad zone terminals if the DEOL supervision

option is selected.

G E T T I N G S T A R T E D

This option can only be selected if Normally

Closed (NC) detection devices or contacts are

being used.

Only one NC contact can be connected to each

zone.Wiring multiple detection devices or con-

tacts on a single loop is not allowed

Thefollowingchartshowszonestatusundercertainconditions:

Loop Resistance Loop Status

0Ω(shorted wire, loop shorted) Fault

5600Ω(contact closed) Secure

Infinite (broken wire, loop open) Tamper

11200Ω(contact open) Violated

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

End of Line Resistors ..................................Section [013]: [1]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Double End of Line Resistors......................Section [013]: [2]

2.9 Fire Zone Wiring

4-Wire Smoke Detectors

Allfirezones mustbe wiredaccordingtothefollowing diagram:

2.10 LINKS Zone Wiring

LINKS Support

When using the LINKS1000

cellularcommunicator,connect

the LINKS to the main panel

according to the diagram.

LINKS Supervision (24 Hour Supervisory)

When using the LINKS1000

cellularcommunicator,anymain

board zone may be configured

forLINKS Supervision.Program

this zone as zone type [09], 24

Hour Supervisory in section

[001].

With a LINKS Supervisory zone,

if the LINKS1000 experiences a

trouble,thezonewillbeviolated,

causing the panel to report the event to the central station. This

type of zone

always

requires a single EOL resistor (5600Ω).

Wire this zone according to the above diagram.

LINKS Answer

WhenusingtheLINKS1000cellular

communicator, any main board

zone may be configured for LINKS

Answer.

AzoneconfiguredforLINKSAnswer

allows downloading to be

performedintheeventoftelephone

line failure. When the LINKS

receives a telephone call, it will

activate the RING terminal on the

LINKS circuit board. The zone programmed as LINKS Answer

always

requires a single EOL resistor (5600Ω).

Wire the LINKS Answer zone according to the above diagram.

The LINKS Answer zone is only required for

downloading to the panel via the LINKS.

When using the LINKS, BusyTone Detection must

not be used.

Keypad zones cannot be used for 24 Hour Super-

visory or LINKS Answer.

2.11 Keypad Zones

Each “z” keypad on the system has a zone input to which a

device- such as a door contact- can be connected. This saves

you from running wires back to the control panel for every

device.

To install the keypad, open the keypad plastic by removing the

screw at the bottom of the unit. Locate the five terminals on the

keypad circuit board. Connect the four Keybus wires from the

control panel: the red wire to R, the black to B, the yellow to Y

and the green to G.

Toconnectthezone,runonewiretotheZterminalandtheother

to B. For powered devices, use red and black to supply power

to the device. Run the red wire to the R (positive) terminal and

the black wire to the B (negative) terminal.

Whenusingendoflinesupervision,connectthezoneaccording

to one of the configurations outlined in Section 2.8 “Zone

Wiring.” End of line resistors must be placed on the device

end of the loop, not at the keypad.

G E T T I N G S T A R T E D

Keypad zones do not support DEOL resistors.

Assigning Keypad Zones

When using keypad zone inputs, each input used must be

assigned a zone number in Installer’s Programming.

First,ensurethatyouhaveenrolledallinstalledkeypadsintothe

desired slots. (See Section 2.5 “Keypad Enrollment.”)

Next, enter programming section [020] to assign the zones.

There are eight programming locations in this section, one for

each keypad slot. Enter a 2-digit zone number for each of the

keypad zones. This number must be entered in the location

correspondingtothekeypad to which each zone is connected.

Keypad zones 1-4 will replace zone terminals Z1-

Z4 on the control panel.

Once the keypad zones are assigned, you must

also program zone definitions and zone attributes.

(See also Section 5.4 “Assigning Keypad Zones”).

Keypad Commands

SECTION3

Useany system keypad toenter commands and/or programthe

PC585securitysystem.TheLEDkeypadusesfunctionandzone

indicator lights to represent alarm functions and status. If you

have a PC1555RKZ keypad, the System light acts as a Trouble,

Memory, Program and Bypass indicator. Unlike other LED

keypads, these conditions will only be represented by the

System light. The LCD keypad provides a written description on

the liquid crystal display and uses function indicator lights to

communicate alarm status to the user.

The PC585 Instruction Manual provides basic directions for

arming and disarming the system, bypassing zones and

performing user functions from the keypads. The following

sections provide additional details on these functions.

3.1 Arming and Disarming

Fora description of basic arming and disarming, please see the

PC585 Instruction Manual. For other methods of arming, please

refer to Section 3.4 (“[✱] [0] Quick Arm” and “[✱] [9] Arming

Without Entry Delay”) and Section 3.5 (“Function Keys”).

The Event Buffer will log “Armed in Stay Mode” or

“Armed in Away Mode” whenever the system is

armed.

Inan attempt to prevent false alarms, the Audible Exit Fault will

notify the user of an improper exit when they arm their system.

If a non force-arming Delay 1 or Delay 2 type zone is left open

attheendoftheexitdelay,theentrydelaywillbeginimmediately

andthe bell or siren will sound a steadyalarmfor the entry delay

period.At theend ofthe entrydelayperiod, ifthe systemhas not

been disarmed it will go into alarm. This feature can be turned

OFFin programming section [013],option[6]. (See section 5.17

“Arming / Disarming Options” for more information.)

3.2 Auto Bypass – Stay Arming

Stayarmingallowstheusertoarmthesystemwithoutleavingthe

premises.Allzonesprogrammedasstay/awaywillbebypassed

when the user stay arms the system, so that the user does not

have to bypass interior zones manually. (See section 5.2 “Zone

Programming”.)

When the system is armed using a valid access code, if any

zones on the system have been programmed as stay/away

zones, the Bypass light will turn ON. The panel will then monitor

all zones programmed as Delay 1 and Delay 2 zones, such as

designatedentry/exitdoors.Ifadelay zoneisnot violatedbythe

end of the exit delay, the panel will bypass all stay/away zones.

TheBypasslightwillremainONtoinformtheuserthattheinterior

zones have been automatically bypassed by the panel. If a

delay zone is violated during the exit delay, the system will arm

inAwaymodeandallstay/awayzoneswillbeactiveaftertheexit

delay expires.

Theuser can armthestay/away zones atanytime by enteringthe

[✱]

[1]keypadcommand(seeSection3.4“[✱][1]ZoneBypass”).

Stay arming can also be initiated by pressing and holding the

StayfunctionkeyfortwosecondsonthePC5508ZandLCD5500Z

keypads, if programmed by the installer. For more information

regardingStayarming,pleaseseeSection3.5(“FunctionKeys”).

3.3 Automatic Arming

The system can be programmed to Auto-Arm at a specific time

every day if it is in the disarmed condition. In order for the Auto-

Arm function to work properly, you must program the correct

Time of Day. For programming the clock and auto-arm times,

see Section 3.4 (“[✱]

[6] User Functions”).

When the system’s internal clock matches the Auto-Arm Time,

the panel will check the system status. If the system is armed,

the panel will do nothing until the next day at the Auto-Arm

Time, when it will check the system again. If the system is

disarmed at the auto-arm time, the panel will sound the buzzer

of all keypads for one minute. If the Bell Squawk During Auto

Arm option is enabled (section [014], option [2]), the bell will

squawkonceevery10secondswhilethesystemisauto-arming.

If a valid Access code is entered, Auto-Arming will be aborted.

If Auto-arm is cancelled, the number of the user

who cancelled the auto-arm will be logged in the

Event Buffer.

If no code is entered, the panel will auto-arm. If a zone is

violated, the panel will transmit a Partial Closing Reporting

Code –ifprogrammed –to indicateto thecentral stationthat the

system is not secure. If the zone is restored, the panel will add

the zone back into the system.

Auto arming can only be cancelled by entering a

valid access code at any keypad.

3.4 [✱]

Commands

The [✱]

key commands provide an easy way for the user to

access basic system programming – such as programming

access codes or bypassing zones. The user can also use the

[✱]

key commands to check on the system’s status, including

viewing trouble conditions and displaying the event buffer on

the LCD keypad.

The [✱]

key commands can be performed from both LCD and

LED keypads. The LED keypad uses the zone indicator lights to

displaycommandinformation.TheLCDdisplayprovideswritten

information, guiding the user through each command. The

commands in this section are explained as viewed from an LED

keypad. When using an LCD keypad, use the arrow keys (< >)

to scroll through information provided. Otherwise, the functions

remain the same for both keypad types.

[✱]

[1] Bypassing and Activating Stay/Away Zones

Use the [✱]

[1] keypad command to bypass individual zones. A

bypassed zone will not cause an alarm.

Zones can only be bypassed when the system is

not armed.

If the Code Required for Bypass option is enabled (section

[015], option [5]), only access codes with the bypass attribute

enabled will be able to bypass zones (see Section 5.1

“Programming Security Codes”).

IftheBypass Status DisplayedWhileArmedoptionischosen,

the Bypass (or System) light will be ON while the system is

armed to indicate any bypassed zones (see Section 5.17

“Arming / Disarming Options”).

When you disarm the system, all manually-

bypassed zones will be unbypassed.

Activate Stay/Away Zones

Ifthesystemisarmedinstaymode

the[✱]

[1]commandcanbe

used to activate the stay/away zones.

KEYPADVCOMMANDS

[✱]

[2] Trouble Display

The panel constantly monitors itself for several different trouble

conditions. If a trouble condition is present, the Trouble (or

System)lightwill beON andthe keypadwillbeeptwiceevery 10

seconds.Thetrouble beepcan besilencedbypressingany key

on any keypad. If Bell Squawk on Trouble is enabled (section

[014], option[5]), the bell will squawk every 10 seconds when a

trouble condition is present.

To view trouble conditions from an LED keypad:

1. Press [✱]

[2].

2. The keypad will flash the Trouble (or System) light. The zone

indicator lights corresponding to the present trouble

conditions will be ON.

When using an LCD keypad, the trouble conditions will be listed

on the display; simply use the arrow (< >) keys to scroll through

the list of present trouble conditions.

Troubles can be viewed while armed using the

LCD keypad, provided the keypad is version 2.0 or

later. Older keypads will incorrectly display “Fire

Trouble”. If using older LCD keypads, program-

ming section [013], option [3] as OFF will ensure

troubles are displayed correctly.

The various troubles are described below:

Light Trouble

Service Required

: Press [1] to determine the specific

trouble. Lights 1 - 5 will light up to indicate the trouble:

• Light [1] – Low Battery: Main panel backup battery

charge is low (below 11.5 volts under load).Trouble is

restored when the battery charges over 12.5 volts.

• Light [2] – Bell Circuit Trouble: The bell circuit is open

(see Section 5.13 “Siren”).

• Light [3] – General System Trouble: The printer

connected to the PC5400 Printer module has a fault

and is off-line.

• Light [4] – General System Tamper: Tamper has been

detected in a module.

All tamper conditions must be physically restored

before the trouble condition can be cleared.

• Light [5] – General System Supervisory: The panel

has lost communication with a module connected to

theKeybus(seeSection2.6“Supervision”).Theevent

buffer will log the event.

• Lights [6-8] – Not used

AC Failure

: AC power is no longer being supplied to the

control panel. The Trouble (or System) light will flash if

an AC Failure is present, if the Trouble Light Flashes if

AC Fails option is programmed (section [016], option

[2]). This trouble will not be displayed if the AC Trouble

Displayed option is disabled (section [016], option [1]).

See section 5.8 “Communicator Reporting Codes” for

information on AC trouble reporting.

Telephone Line Monitoring Trouble (TLM)

: There is a

trouble with the telephone line (See section 5.12

“Telephone Line Monitor”.)

FailuretoCommunicate(FTC)

:Thecommunicatorfailed

to communicate with any of the programmed telephone

numbers (see section 5.5 “Communicator - Dialing”).

Zone Fault (including Fire Zone)

: A zone on the system is

experiencingtrouble,meaningthatazonecouldnotprovide

analarmtothepanelifrequiredtodoso(ifafirezoneisopen,

orthere is a short on a DEOL zone, or a supervisoryfaulton

a wireless zone). When a zone fault trouble condition

occurs,thekeypad(s)onthesystemwillstarttobeep.Press

[5] while in Trouble mode to view the affected zones.

A Fire zone trouble will be generated and dis-

played in the armed state.

ZoneTamper

:AzoneconfiguredforDoubleEndOfLine

resistor supervision has a tamper condition, or the

tamper switch is open on a wireless device. When a

tamper condition occurs, the keypad(s) will start to

beep. Press [6] while in the Trouble mode to view the

affected zones. If a zone is tampered or faulted, it must

be fully restored to clear the trouble.

By enablingTampers/Faults Do Not Show as Open

in section [013], option [4],Faults andTampers will

not show as open on the keypad, and will be

hidden from the end user. If the option is disabled,

Faults andTampers will show as open.

Once a zone is tampered or faulted, it must be

completely restored before the trouble condition

will clear.

Device Low Battery

:A wireless device has a low battery

condition. Press [7] one, two, or three times to view

which devices are experiencing battery failure. An LED

keypadwill indicate batteryfailure using zonelights1 to

8. The following will occur:

Keypad beeps: Keypad displays:

Press [7] 1 Zones with low batteries (LED

keypad - zone lights 1 to 8)

Press [7] again 2 Handheld keypads with low

batteries (LED keypad - zone

lights 1 to 4)

Press [7] again 3 Wirelesskeyswithlowbatteries

(LED keypad - zone lights 1 to

To view the battery conditions

of wireless keys 9 through 16,

you must use an LCD keypad.

Loss of System Time

: When the panel is powered up, the

internalclockneedstobesettothecorrecttime.Thistrouble

is cleared when an attempt is made to reset the clock.

[✱]

[3] Alarm Memory

The Memory (or System) light will be on if any alarm occurred

during the last armed period or – in the case of 24 hour zones –

if an alarm occurred while the panel was disarmed.

To view alarm memory, press [✱]

[3]. The keypad will flash the

Memory(orSystem)lightandthezoneindicatorlightscorresponding

tothealarmortamperconditionswhichoccurredduringorsincethe

last armed period. To clear the Memory (or System) light, arm and

disarm the system.

[✱]

[4] Door Chime On/Off

The door chime feature is used to sound a tone from the keypad

wheneverazoneprogrammedasachimezoneisactivated(see

Section 5.3 – “Zone Attributes”). If the door chime feature is

enabled,thekeypadwillemitfiveshortbeepswheneverachime

zone is activated. Designated entry/exit doors are often defined

as chime zones. The feature can be turned on or off while the

system is armed or disarmed.

KEYPADVCOMMANDS

[✱]

[5] Programming Access Codes

There are 37 access codes available to the user. They are:

Access code (40) ............. One master code

Access codes (01)-(32) ... 32 general access codes

Access codes (33)-(34) ... Two duress codes

Access codes (41)-(42) ... Two supervisor codes

All access codes have the ability to arm or disarm the system

and can activate the PGM Outputs using the [✱]

[7] commands.

Access codes can be either four or six digits (see section 5.1

“Programming Security Codes).

For a description of how to program access codes from LCD or

LED keypads, see the PC585 Instruction Manual.

Master Code – Access Code (40)

By default, the Master Code is enabled to perform any keypad

function. This code can be used to program all Access codes.

If the Master Code Not Changeable option is enabled, the

Master Code can only be changed by the Installer.

General Access Codes – Access Codes (01) to (32)

General access codes can arm and disarm the system. When

the Code Required for Bypassing option is enabled, users will

need to enter a valid access code when bypassing zones.

Individual access codes can have the Zone Bypassing attribute

disabled under Access Code Attribute programming.

For more information regarding access code options, please

see Section 5.1 – “Programming Security Codes.”

Duress Code – Access Code (33) and (34)

Duress codes will send a duress reporting code to the central

station when entered.

If a duress code is programmed, when it is used,

the panel will always send a reporting code to the

central station, even if the attributes of the duress

code are turned off.

Supervisor Codes – Access Code (41) and (42)

These codes can be used to program general access and

duress codes. The two supervisor codes have master code

attributes by default. These settings can be changed.

Access Code Attributes

Therearetwoaccesscodeattributeswhichcanbeprogrammed

for each code. To program each attribute, enter [✱] [5] [Master

Code] [9] to enter the attribute programming mode. Then enter

thecodenumber[01-32,33,34,41,42].Entertheattributenumber:

Attribute [1]... User enabled for arming, disarming, alarm reset,

[✱] [7] [1-2] options, auto arm cancellation

Attribute [2]...Not used

Attribute [3]...Zone bypassing enabled

Attribute [4]...Not used

Master code attributes cannot be changed.

[✱]

[6] User Functions

Thiscommandcanbeusedtoprogramseveraldifferentfunctions:

To program User Functions:

1. Press [✱]

[6] [Master Code]. The Program (or System) light

will flash.

2. Press the number [1] to [6] for the item to be programmed.

• [1] – Time and Date

The time and date must be accurate for the auto-arm or test

transmission functions to work properly and for the event

buffer to time and date stamp all events.

- Enter the time (hour and minute) using 24hr format [HH MM]

from 00:00 to 23:59.

- Enter the date by month, day and year [MM DD YY].

• [2] – Auto-Arm Enable/Disable

To enable or disable auto-arming, press [2]. The keypad will

sound three short beeps when auto-arm is enabled and one

long beep when disabled. For more information, see Section

3.3 – “Auto-Arming”.

• [3] – Auto-Arm Time

Thesystemcanbeprogrammedtoarmautomaticallyatapre-

settime.Whenprogramming theauto-arm time,enter thetime

(hour and minute) using 24hr format [HH MM]. For more

information, see Section 3.3 – “Auto-Arming”.

• [4] – System Test

When [4] is pressed the panel will test the bell output, keypad

lights and the communicator for two seconds. The panel will

also send a System Test Reporting code, if programmed (see

Section 5.8 – “Communicator – Reporting Codes”).

• [5] – Enable DLS (Downloading)

When [5] is pressed, the panel will enable the downloading

option for one or six hours depending on the option selected

in programming section [702]: [7]. During this time, the panel

will answer incoming downloading calls (see Section 5.10

“Downloading”).

• [6] – User Initiated Call-Up

When [6] is pressed, the panel will initiate a call to the

downloading computer.

Additional Features Available from the LCD Keypad

Additional features, including access to the event buffer, are

available using the LCD keypad. Use the arrow keys (< >) to

scrollthroughthe[✱]

[6]menuandpressthe[✱]

keytoselectthe

following commands:

Viewing the Event Buffer from an LCD Keypad

Select“ViewEventBuffer”fromthe[✱][6]menu.Thekeypadwill

display the event, event number, time and date along with the

zonenumberandaccesscode,ifapplicable.Press[✱]totoggle

betweenthisinformationandtheeventitself.Usethearrowkeys

(<>) to scroll through the events in the buffer. When you have

finished viewing the Event Buffer, press [#] to exit.

Brightness Control

You can select from 10 different backlighting levels. Use the arrow

keys(<>)toscrolltothedesiredbacklightinglevel.Press[#]toexit.

Contrast Control

You can select from 10 different display contrast levels. Use the

arrowkeys(<>)toscrolltothedesiredcontrastlevel.Press[#]toexit.

Keypad Sounder Control

You can select from 21 different keypad tones. Use the arrow

keys (< >) to scroll to the desired keypad sound level and press

[#] to exit. This feature can be accessed on LED keypads by

pressing and holding the [✱]

key.

[✱]

[7] Command Output Functions

The user can activate programmable output functions using the

[✱][7][1-2] commands. The outputs may be activated when the

system is either armed or disarmed.

[✱] [7] [1] – Command Output Option #1:

Press [✱]

[7] [1] [Access Code, if required] to activate outputs

programmed as PGM output option [19]. This output can be

used for operating devices such a garage door opener, lighting

or door strikes.

[✱] [7] [2] – Command Output Option #2:

Press[✱]

[7][2][AccessCode,ifrequired]toactivatealloutputs

programmed as

one of

PGM output options [03] or [20].

Special Note: Traditionally, [✱] [7] [2] has been reserved for

KEYPADVCOMMANDS

resetting smoke detectors. Smoke detectors should now be

programmedasoutput[03]“SensorReset”.Ifusingoutputoption

[03],

do not

program [20] Command Output Option #2. Please

see Section 5.11 “PGM Output Options” for more information.

[✱]

[8] Installer’s Programming

Enter[✱]

[8]followedbytheInstaller’sCodetoaccessInstaller’s

Programming. See sections 4 and 5 for more information.

[✱]

[9] Arming Without Entry Delay

When the system is armed with the [✱]

[9] command, the panel

will cancel the entry delay. Once the exit delay has expired,

Delay 1 and Delay 2 type zones will be instant and Stay/Away

zoneswillbebypassed(seeSection5.2–“ZoneProgramming”).

A valid access code must be entered after pressing [✱]

[9].

[✱]

[0] Quick Arm

If the Quick Arm option is enabled, enter [✱]

[0] to arm the panel

without an access code (See Section 5.17 “Arming / Disarming

Options”).

Quick Arm cannot be used to cancel auto arm.

[✱]

[0] Quick Exit

The Quick Exit function, if enabled, will allow someone to leave

an armed premises through a Delay type zone without having to

disarm and re-arm the system (See Section 5.17 “Arming /

Disarming Options”).

When[✱]

[0]isentered,the panelwillprovideatwominutewindow

for the user to exit the premises. During this time, the panel will

ignore

only one

activation of a Delay zone. When the Delay zone is

secured, the panel will end the two minute quick exit delay.

If a second Delay zone is tripped, or if the zone is not restored

after two minutes, the panel will begin the entry delay.

If the Exit Delay is in progress, performing a Quick

Exit will not extend the Exit Delay.

3.5 Function Keys

There are five function keys on each keypad labelled Stay, Away,

Chime, Reset and Exit. Each of these keys is programmed by

defaulttoperform oneof thefunctionsdescribedbelow.Press and

hold the appropriate key for two seconds to activate a function.

On the PC1555RKZ keypad, use number keys 1 - 5

for the function keys.

“Stay” – (03) Stay Arm

The system will arm in the Stay mode (see section 3.2). Enable

the Quick Arm feature (programming section [015], option [4])

to have this key function without the need to enter an access

code. If Quick Arm is not enabled, the user will have to enter an

access code before the system will stay arm.

“Away” – (04) Away Arm

The system will arm in the Away mode (see section 3.2). Enable

the Quick Arm feature (programming section [015], option [4])

to have this key function without the need to enter an access

code. If Quick Arm is not enabled, the user will have to enter an

access code before the system will away arm.

“Chime” – (06) Door Chime On / Off

The Door Chime feature will turn ON or OFF (see Section 3.4 –

“[✱] [4] Door Chime”).

“Reset” – (14) Sensor Reset or [✱] [7] [2]

The panel will activate all PGM outputs programmed as option

[03] Sensor Reset or [20] Command Output Option #2. (See

Section 3.4 – “[✱] [7]Command Output Functions”).

“Exit” – (16) Activate Quick Exit

The panel will activate the Quick Exit feature (See Section 3.4 –

“[✱] [0] Quick Exit”).

Additional Function Key Options

The programming of any function key on any keypad may be

changed to one of the options listed below. (See section 2.5,

“Keypad Enrollment” for instructions on changing function key

programming.) Each option is listed according to the

programming code, followed by the corresponding [✱] key

command.Formoreinformationregardingeachfunction,please

refer to the appropriate part of Section 3.4, “[✱] Commands”.

[00] NullKey:Thekeyisnotusedandwillperformnofunction

when pressed.

[01]-[02] For Future Use

[03] Stay Arm: As described above.

[04] Away Arm: As described above.

[05] [✱]

[9] No-Entry Delay Arm: A valid access code must

also be entered.

[06] [✱]

[4] Door Chime On / Off: As described above.

[07] [✱]

[6] [----] [4] System Test: A valid master code must

also be entered.

[08] [✱]

[1] Bypass Mode: A valid access code may need to

be entered.

[09] [✱]

[2] Trouble Display

[10] [✱]

[3] Alarm Memory

[11] [✱]

[5] Programming Access Codes: A valid master

code must also be entered.

[12] [✱]

[6] User Functions: A valid master code must also

be entered.

[13] [✱]

[7] [1] Command Output Option #1: A valid access

code must also be entered.

[14] [✱]

[7] [2] Reset (Command Output Option #2): As

described above.

[15] For Future Use

[16] [✱]

[0] Quick Exit: As described above.

[17] [✱]

[1] Reactivate Stay/Away Zones

[18] - [20] For Future Use

3.6 Features Available for the LCD5500Z

These features are only available for LCD5500Z keypads with

zone inputs:

Automatic Scrolling of Alarms in Memory

TheLCD5500Zkeypadallowsautomaticscrollingthroughalarms

in memory while the keypad is idle. This feature, if enabled, will

override the clock display. This option can be programmed in

LCD programming section [66], option [4].

24 Hour Time Display Option

The LCD5500Z can be programmed to display time using a 24-

hour clock, instead of a 12-hour, am/pm clock. This option can

be programmed in LCD programming section [66], option [3].

Keypad Zones

See section 2.11 “Keypad Zones”.

Viewing Troubles While Armed

See section 3.4 “[✱][2] Trouble Display” for information on how

to view troubles.

Backlighting Boost

The LCD5500Z, PC5508Z and PC1555RKZ zone input keypads

will provide extra number pad lighting when any key is pressed.

The backlighting boost will last for an additional 30 seconds

after the last keypress.

How to Program

SECTION4

The following section of the manual describes the Installer’s

Programmingfunctionandhowtoprogramthevarioussections.

You must read the following section of the manual

very carefully before you begin programming.We

also recommend filling out the Programming

Worksheets section before you program the panel.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

For your reference, the corresponding programming

sections for the functions listed are highlighted in text

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

boxes such as this one.

4.1 Installer’s Programming

Installer’s Programming is used to program all communicator

andpaneloptions.TheInstaller’sCodeis[0580]bydefaultbut

should be changed to prevent unauthorized access to

programming.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Installer’s Code................................................. Section [006]

From an LED Keypad:

1. Enter [✱] [8] [Installer’s Code].

•The Program light (or System light on thePC1555RKZ)will

flash to indicate that you are in programming mode.

• The Armed light will turn ON to indicate that the panel is

waiting for the three-digit programming section number.

2. Enter the three-digit section number corresponding to the

section you wish to program.

• The Armed light will turn OFF.

• The Ready light will turn ON to indicate that the panel is

waitingfortheinformationrequiredtocompleteprogramming

the selected section.

3. Enter the information required to complete section

programming (ie: numbers, HEX data, or ON/OFF options).

If the three-digit section number entered is

invalid, or if the module which pertains to the

section is not present, the keypad will sound a

two second error tone.

From an LCD Keypad:

1. From any keypad, enter [✱] [8] [Installer’s Code]. The

Keypad will display ‘Enter Section’ followed by three dashes.

2. Enter the three-digit number corresponding to the

programming section number you wish to program. The

keypadwillnowdisplaytheinformationrequiredtocomplete

programming the selected section.

3. Enter the information required to complete section

programming (ie: numbers, HEX data, or ON/OFF options).

Ifyouenterinformationintoasectionandmakeamistake,press

the [#] key to exit the section. Select that section again and re-

enter the information correctly.

There must be one digit in each box in the

programming section in order for the change to

be valid.

4.2 Programming Decimal Data

A set number of programming boxes are allotted for each

sectionrequiringdecimaldata(e.g.:codes,telephonenumbers).

If a digit is entered for each program box, the panel will

automatically exit from the selected programming section. The

Ready light will turn OFF and the Armed light will turn ON.

Onthe PC1555RKZ andPC5508Zkeypads, you canalsopress

the [#] key to exit a programming section without entering data

for every box. This is handy if you only need to change digits in

the first few programming boxes. All other digits in the

programming section will remain unchanged.

4.3 Programming HEX Data

On occasion, hexadecimal (HEX) digits may be required. To

programaHEXdigitpress the [✱] key. The panel will enter HEX

programming and Ready light will begin to flash.

Thefollowingarethenumberswhichshouldbepressedtoenter

the appropriate HEX digit:

1 = A 2 = B 3 = C 4 = D 5 = E 6 = F

Once the correct HEX digit has been entered, the Ready light

will continue to flash. If another HEX digit is required, press the

corresponding number. If a decimal digit is required, press the

[✱] key again. The Ready light will turn ON and the panel will

return to regular decimal programming.

Example:

To enter ‘C1’ for a closing by user 1, you would enter:

[✱] [3] [✱], [1]:

•[✱] to enter Hexadecimal mode (Ready light flashes)

• [3] to enter C

•[✱] to return to decimal mode (Ready light is solid)

• [1] to enter digit 1

If Ready light is flashing, any number you enter

will be programmed as the HEX equivalent.

If you are using a pulse communications format, a decimal zero

[0]doesnottransmit.Programmingazero[0]tellsthepanelnotto

send any pulses for that digit. Decimal zero [0] is a filler digit. To

transmit a zero [0], it must be programmed as a Hexadecimal ‘A’.

Example:

For the three digit account number ‘403’, you would enter:

[4], [✱] [1] [✱] [3], [0]:

• [4] to enter the digit 4

•[✱] to enter Hexadecimal mode (Ready light flashes)

• [1] to enter A

•[✱] to return to decimal mode (Ready light is solid)

• [3] to enter the digit 3

• [0] to enter the digit 0 as a filler digit.

HOWVTOVPROGRAM

4.4 Programming Toggle Option Sections

Some programming sections contain several toggle options.

The panel will use zone lights 1 through 8 to indicate if the

different options are enabled or disabled. Press the number

corresponding to the option to turn it ON or OFF. Once all the

toggle options have been selected correctly, press the [#] key

to exit the section and save the changes. The Ready light will

turn OFF and the Armed light will turn ON.

Refer to Section 5 in this manual to determine what each option

represents and whether the light should be ON or OFF for your

application.

4.5 Viewing Programming

LED Keypads

Any programming section can be viewed from an LED keypad.

When a programming section is entered, the keypad will

immediatelydisplay the first digitofinformation programmed in

that section.

Press any of the Emergency Keys (Fire, Auxiliary or Panic) to

advance to the next digit. When all the digits in a section have

beenviewed, the panel will exit thesection; the Ready Light will

turn OFF and the Armed light will turn ON, waiting for the next

three-digit programming section number to be entered. Press

the [#] key to exit the section

LCD Keypad

When a programming section is entered, the keypad will

immediately display all the information programmed in that

section.Usethearrowkeys(<>)toscrollthroughthedatabeing

displayed.Scrollpasttheendofthedatadisplayedorpressthe

[#] key to exit the section.

The keypad displays the information using a binary format,

according to the following chart:

Value

Zone 1

Zone 2

Zone 3

Zone 4

Light On

Light Off

* See Hex Data Entry instructions

Hex Data Entry*

Program Descriptions

Thefollowingsectionexplainstheoperationofallprogrammable

features and options and provides a summary of all

corresponding programming locations.

5.1 Programming Security Codes

There are three codes which can be programmed by the

installer in the Installer’s Programming function: the Master

code, the Installer’s code, and a Maintenance code. All other

accesscodescanbeprogrammedthroughthe[✱][5]command

(see Section 3.4).

Themastercodecanalsobeprogrammedbytheuserasaccess

code(40).IftheMasterCodeNotChangeableoptionisenabled,

the system master code can only be changed by the installer.

General access codes can arm and disarm the system. When

theCode Required for Bypassing option isenabled,userswill

need to enter a valid access code when bypassing zones.

IndividualaccesscodescanhavetheZoneBypassingattribute

disabled under Access Code Attribute programming (see

section 3.4 “[✱][5] Programming Access Codes”).

Ifthe6-Digit User Access Codes optionis enabled, all the access

codes may be programmed with six digits instead of four, with the

exceptionofthePanelIDcodeandtheDownloadingAccessCode.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Installer’s Code.................................................. Section [006]

Master Code...................................................... Section [007]

Maintenance Code............................................ Section [008]

Master Code Not Changeable................... Section [015]: [6]

No Code Required for Bypassing ............. Section [015]: [5]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

6-digit User Access Codes........................ Section [701]: [5]

The Maintenance code is limited to arming and

disarming the system.The Maintenance code

cannot use [

✱✱

✱

][9] to arm the system, bypass

zones, or perform [

✱✱

✱

][7] command functions.

5.2 Zone Programming

Alleightzonesareenabledbydefault.Unusedzonesshouldbe

disabled in programming section [202].

Section [001] will allow you to select how each of the zones you

use will operate. Each zone requires a two-digit code to be

programmed, which describes the zone definition. Select a

definition from the list below.

In addition, each zone has eight different attributes which may

be programmed in sections [101] to [108] (see Section 5.3 –

“Zone Attributes”).

Zone Definitions

[00] Null Zone

The zone is vacant. Unused zones should be programmed as

Null zones.

[01] Delay 1 Zone

This zone type, normally used for entry/exit doors, can be

violated during the exit delay time without causing an alarm.

Once the exit delay has expired, opening the zone will start the

entry delay timer. During the entry delay time, the keypad

buzzer will sound steadily to advise the user that the system

should be disarmed. If the panel is disarmed before the entry

time expires, no alarm will be generated.

[02] Delay 2 Zone

The Delay 2 entry delay time can be set independently of Delay

1 in programming section [005] (System Times).

S E C T I O N 5

[03] Instant Zone

This zone type will cause an instant alarm if it is violated when

the panel is armed. Typically, this zone is used for windows,

patiodoorsorotherperimeterzones,andglassbreakdetectors.

[04] Interior Zone

This zone will not cause an alarm if violated during the entry

delay. If the zone is violated before the entry delay has begun,

it will cause an instant alarm. Typically, this zone is used for

interior protection devices, such as motion detectors.

[05] Interior Stay/Away Zone

This zone type works similarly to the Interior zone type, except

that it will be automatically bypassed under the following

conditions:

• When the panel is armed in the Stay Mode (see Section 3.5

“Function Keys”).

• When the panel is armed without entry delay (see Section 3.4

“[✱] [9] Arming Without Entry Delay”).

• When the panel is armed with an access code and a Delay

type zone is NOT tripped during the exit delay.

Theautomaticbypasspreventstheuserfromhavingtomanually

bypass interior type zones when arming at home. This zone is

typically used for interior protection devices, such as motion

detectors.

[06] Delay Stay/Away Zone

This zone type will operate similarly to Interior Stay/Away zones,

exceptthatitwillalwaysprovideanentrydelay.Typically,thiszone

is used for interior protection devices, such as motion detectors.

This zone option will help prevent false alarms since it always

provides an entry delay time for the user to turn off the panel.

Hardwire motion detectors covering entry/exit

doors that are using wireless transmitters must

be programmed as Delay Stay/Away. If not, the

panel may see the motion detector violation

before the entry/exit transmitter has time to

transmit to the receiver, causing a false alarm.

[07] Delayed 24 Hour Fire Zone

Do not wire Fire zones on keypad zone terminals

if the DEOL supervision option is enabled for the

panel (section [013], option [2]).

When this zone is violated, the alarm output will be immediately

activated (pre-alert) but the communicator will be delayed for

30 seconds. If the user presses any key on any keypad during

this delay, the alarm output and the communicator will be

delayed an additional 90 seconds, giving the user time to

correct the problem. If the zone is still violated after the 90

second delay, the panel will sound the alarm output and delay

the communicator for 30 seconds.

If the user does not press a key during the 30 second pre-alert,

the alarm output will latch and the panel will communicate the

alarm to the central station. The alarm will sound until the Bell

Cutoff time expires (Section [005] “System Times”), or until a

code is entered (see Section 5.13 “Siren”).

If a second Fire type zone is violated or if the Fire

keys are pressed during the delay period, the

panel will latch the alarm output and will immedi-

ately communicate the alarm.

P R O G R A M D E S C R I P T I O N S

AviolatedFirezonewillbedisplayedonallkeypadsandcanbe

delayed at any keypad. Typically this zone is used for latching

smoke detectors.

[08] Standard 24 Hour Fire Zone

Do not wire Fire zones on keypad zone terminals

if the DEOL supervision option is enabled for the

panel (section [013], option [2]).

When this zone is violated, the panel will immediately latch the

alarmoutput and communicatetothe central station.Thealarm

will sound until the Bell Cutoff time expires (Section [005]

“System Times”), or until a code is entered (see Section 5.13

“Siren”).

A violated Fire zone will be displayed on all keypads. Typically

this zone is used for pull stations.

[09] 24 Hour Supervisory Zone

If this zone is violated when the system is either armed or

disarmed,thepanel willreport tothecentralstation,and willlog

thezonealarmtotheEventBuffer.Thiszonegivesasilentalarm

by default.

Do not wire 24-Hour Supervisory zones on

keypad zone terminals.

[10] 24 Hour Supervisory Buzzer Zone

If this zone is violated when the system is either armed or

disarmed, the panel will immediately latch the keypad buzzer

until a valid access code is entered and will immediately

communicate to the central station.

[11] 24 Hour Burglary Zone

If this zone is violated when the system is either armed or

disarmed,the panel willimmediatelylatch the alarmoutputand

communicate to the central station. The alarm will sound until

the Bell Cutoff time expires (Section [005] “System Times”), or

until a code is entered (see Section 5.13 “Siren”).

[12] - [20]

The following zone definitions operate similar to the 24 Hour

Burglary except for the System Event output type and the SIA

identifier:

[12] 24 Hour Holdup Zone - This zone gives a silent alarm by

default.

[13] 24 Hour Gas Zone

[14] 24 Hour Heat Zone

[15] 24 Hour Medical Zone

[16] 24 Hour Panic Zone

[17] 24 Hour Non-Medical Emergency Zone

[18] 24 Hour Sprinkler Zone

[19] 24 Hour Water Flow Zone

[20] 24 Hour Freezer Zone

[21] 24 Hour Latching Tamper

If this zone is violated, the installer must enter Installer’s

Programming before the system can be armed.

Wireless zones should not be programmed as

zone types [22] - [24].

[22] Momentary Keyswitch Arm Zone

Momentary violation of this zone will alternately arm/disarm the

system.

[23] Maintained Keyswitch Arm Zone

When this zone is violated, the system will arm. When this zone

is secured, the system will disarm.

[24] LINKS Answer Zone

Downloading can be performed via the LINKS1000 Cellular

Communicator(ifused)whentheconventionaltelephonelineis

disconnected. If this operation is desired, connect the RING

terminaloftheLINKS1000toaLINKSAnswerzone(seeSection

2.11 “LINKS Zone Wiring”). Refer to the LINKS1000 Installation

Manual for more information.

Do not wire LINKS Answer zones on keypad zone

terminals.

[25] Interior Delay Zone

This zone type is normally used with motion detectors and has

a standard exit delay time.

If the panel is Away armed (a delay zone is violated during the

exit delay, or the Away function key is used), the Interior Delay

zone will work the same as the Interior zone [04].

If the panel is Stay armed (a delay zone is NOT violated during

theexitdelay,the Staykeyisused,or[✱][9]isused forarming),

a violation of the zone will initiate Entry Delay 1.

[87] Delayed 24 Hour Fire (Wireless)

This zone type operates the same as [07] Delayed 24 Hour Fire

Zone and must be used if the smoke detector is wireless.

[88] Standard 24 Hour Fire (Wireless)

Thiszonetypeoperatesthesameas[08]Standard24HourFire

Zone and must be used if the smoke detector is wireless.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zone Definitions ............................................................. [001]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zone Assignments ......................................................... [202]

5.3 Zone Attributes

All zones, with the exception of 24 Hour and Fire,

will provide an exit delay.

Attributes for Fire Zones should never be

changed from the default settings.

Additional zone attributes can be programmed to customize

the operation of a zone for a specific application. The following

attributes are programmable for each zone:

• Audible/Silent– Thisattributedetermineswhetherornotthe

zone will activate the alarm output.

• Pulsed / Steady – This attribute determineswhetherthe alarm

output will be steady or will pulse on and off every second.

• Activate Chime – This attribute determines whether or not

thezonewillactivatethechimefeature(seeSection3.4–“[✱]

[4] Door Chime On/Off”).

• BypassEnable– Thisattributedetermineswhetherornotthe

zone can be manually bypassed (see Section 3.4 – “[✱] [1]

Bypassing and Reactivating Stay/Away Zones”).

• Force Arm Enable – Thisattribute determineswhetheror not

the system can be armed while a zone is violated. At the end

of the exit delay, if this type of zone is violated, it will be

ignored by the panel. Once the zone is secured, it will be

monitored by the system. This zone attribute, for example,

will allow the user to arm the system with the garage door

open. Later, when the door is closed, it will be armed along

withtherest ofthe system.Do notprogram thisattribute for

24Hr zones.

• Swinger Shutdown Enable – This attribute determines

whetherornotthepanelwillshutdownthecommunicatorand

bell for a zone once its swinger limit has been reached (see

Section 5.19 “Swinger Shutdown”)

P R O G R A M D E S C R I P T I O N S

•Transmission Delay Enable – This attribute determines

whether or not the panel will delay communicating the alarm

reportingcodefortheprogrammedTransmissionDelayPeriod

(see Section 5.15 “Transmission Delay”).

•WirelessZone–Thisattributedetermineswhichzonesareto

havewirelessdevices.Thisallowsthepaneltogeneratealow

batterytroubleandzonesupervisoriesforthewirelesszones.

Any zone with the wireless attribute enabled will

not cause an alarm for a fault condition when

armed (or any time for 24-hour zones).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Zone Attributes ...................... Sections [101] - [108]: [1] - [8]

5.4 Assigning Keypad Zones

“Z” keypads have zone inputs to which devices—such as door

contacts—canbeconnected.(SeeSection2.12“KeypadZones”

for wiring information.)

Once the keypad zones are installed, assign the zone in

programming section [020] Keypad Zone Assignments.

Enterthe2digitzonedesignatedforeachkeypad(slotaddress)

from 01-08.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Keypad Zone Assignments ........................................... [020]

5.5 Communicator – Dialing

If the Communicator Disable option is selected, the panel will

not attempt to call central station. If communication is enabled,

the panel will attempt to call central station when an event with

avalidReportingCodeoccurs(SeeSection5.8“Communicator

– Reporting Codes”).

The Communicator Call Direction options are used to select

which telephone number the panel will dial when an event

occurs.

If the DTMF Dialing option is enabled, the panel will dial using

DTMF (touch tone). If the Switch to Pulse Dial option is

enabled, the panel will switch to pulse dialing on the fifth

attempt to call the central station. When this option is disabled,

the panel will always dial using DTMF. If DTMF Dialing is

disabled, the panel will always pulse dial.

WhentheForceDialingoptionisenabled,thepanelwilldialout

regardless of the presence of dial tone. Each dialing attempt

will follow this pattern:

a)the panel pick up the telephone line and search for dial

tone for 5 seconds

b)if no dial tone is found, the panel will hang up and wait for

20 seconds

c)the panel will pick up the telephone line again and search

for a dial tone for 5 seconds

d)the panel will then dial regardless of the presence of dial

tone

Ifthereisnoinitialhandshakerecognizedwithin40secondsthe

panel will then hang up the line.

If the Force Dialing option is disabled, each attempt will still

follow the above pattern, except that the panel will not dial in

step d if no dial tone is detected.

The Delay Between Dialing Attempts timer adds a delay

before the next call is dialed.

If the Busy Tone Detection option is enabled, the panel will

hang up after detecting busy tone for 5 seconds and will redial

after the amount of time programmed in the Delay Between

Dialing Attempts section.

Maximum Dialing Attempts determinesthe maximumnumber

of attempts the panel will make to send a signal to the central

stationbeforeindicatingaFailuretoCommunicate(FTC)trouble

condition. The 3rd Telephone Number can be used to back up

the 1st in this situation

(see Section 5.7 “Communicator –

Telephone Numbers”). If a later communication attempt is

successful, the FTC reporting code(s) programmed in section

[351] will be transmitted along with the unreported events from

an earlier unsuccessful communication.

When Bell on FTC when Armed is enabled in programming

section [702], option [8], an FTC during the armed period will

soundanAudibleAlarmforthelengthofBelltime-outoruntilthe

system is disarmed. If FTC Trouble Only when Armed is

enabled, only the keypad buzzer will sound trouble beeps

every 10 seconds until a key is pressed.

Post Dial Wait for Handshake determines the amount of time

thepanel will wait for a valid handshake from the receiver. If the

panel does not hear the handshake it will consider the call a

failed attempt, hang up and try again.

The Pulse Dialing Make/Break Ratio option can change the

Make/Breakratioto33/67fromtheNorthAmericanratioof40/60.

With ID Tone Enabled the panel will pulse a tone on the

telephone line to indicate that the panel is on the line.

The 2100Hz/1300Hz/ID Tone option selects the frequency of

the ID tone that is pulsed on the line.

Contact your local telephone company to confirm

which settings should be used.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

DTMF or Pulse Dialing ............................... Section [380]: [3]

Switch to Pulse Dialing on Fifth Attempt ... Section [380]: [4]

Communicator Enable/Disable .................. Section [380]: [1]

Communicator Call Direction Options.... Section [361]-[368]

Force Dialing .............................................. Section [702]: [2]

Delay Between Dialing Attempts ...................... Section [703]

Busy Tone Detect ....................................... Section [701]: [6]

Maximum Dialing Attempts ............................... Section [160]

Post Dial Wait for Handshake ........................... Section [161]

Pulse Dialing Make/Break Ratio ................ Section [702]: [1]

ID Tone Enabled ......................................... Section [702]: [5]

2100Hz/1300Hz.......................................... Section [702]: [6]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Bell on FTC/Trouble Only ........................... Section [702]: [8]

5.6 Communicator – Account Numbers

Theaccountnumberisusedbythecentralstationtodistinguish

betweenpanels.Therearetwoaccountnumbersprogrammable

for the PC585.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

First Account Code (4 digits)............................ Section [310]

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Second Account Code (4 digits) ...................... Section [311]

5.7 Communicator – Telephone Numbers

The panel can use three different telephone numbers for

communicating with the central station. The First Telephone

Numberistheprimarynumber,theSecondTelephoneNumber

isthesecondarynumberandthe ThirdTelephoneNumberwill

back up the First telephone number if enabled.

TheThirdTelephone Number will NOT back up the

Second Telephone Number.

If the Alternate Dial option is enabled, the panel will alternate

betweenthefirstandthirdtelephone numberswhenattempting
