PRODUCT
INSTALLATION MANUAL

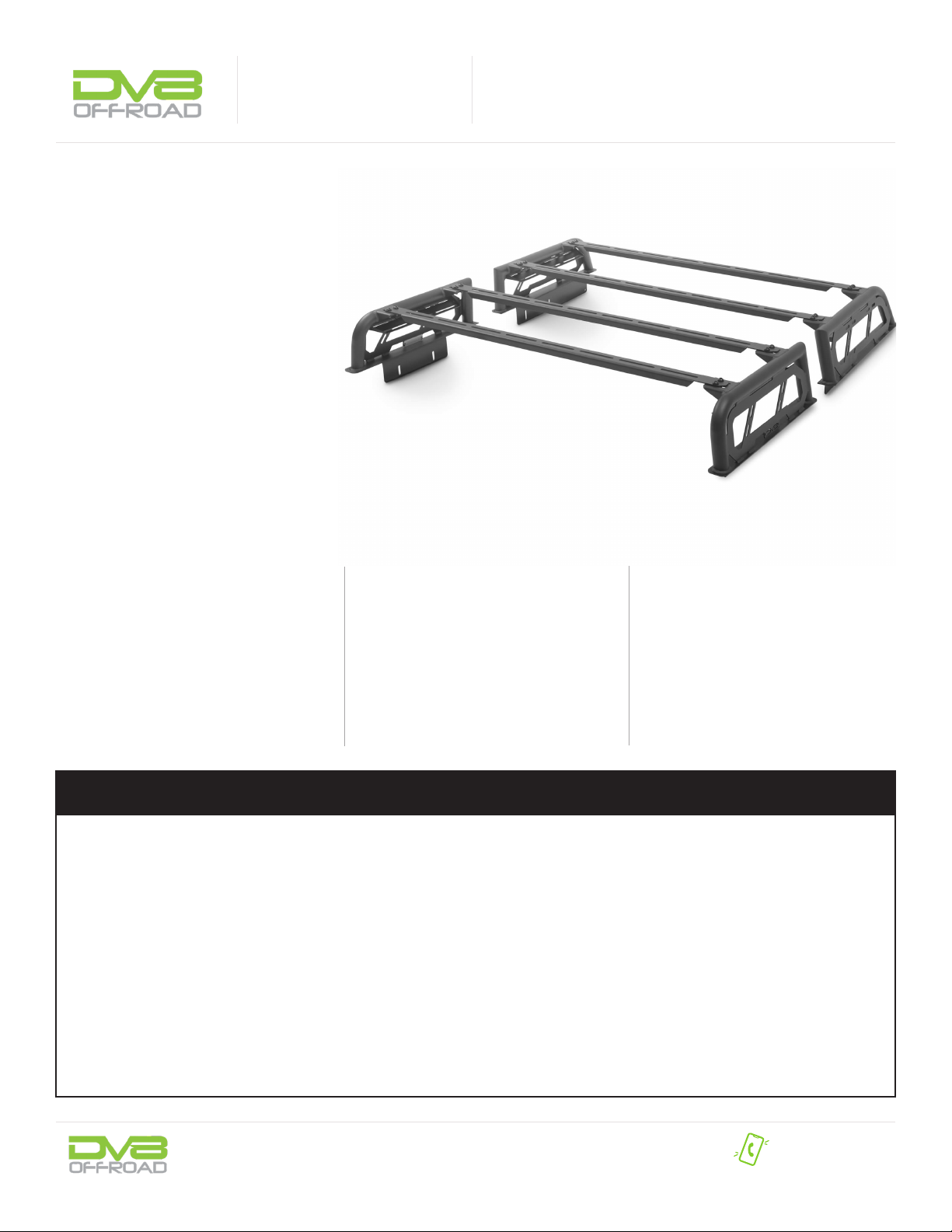

BED RACK
UNIVSERAL
RRUN-02
TOOLS REQUIRED SKILL LEVEL TIME REQUIRED
- 6mm Allen head & 13mm sockets
- 17mm wrench
- Safety Glasses
Before you install this kit — Read and understand all
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner’s manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
- 2 Hours
Time to install this should only
take about two hours
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
855-680-9595
NEED HELP?

INSTALLATION MANUAL
NEED HELP? 855-680-9595
Begin by unpacking all items and inspecting
for missing pieces or damage. If you have any
concerns, please contact the company the
product was purchased from. Extra hardware
may be included with the product.
(32) M10x30mm Bolts
(32) M10 Lock Nuts
(64) M10 Flat Washers
(4) M8 Serrated Nuts
(4) M8x16mm Bolts
(12) M8 Lock Washers
(12) M8 Flat Washers
(12) M8 Nuts
HARDWARE INCLUDED
STEP 1 | Bed Rail equipped trucks:
Remove all bed rail cleats.
If the vehicle is not equipped with bed
rails, skip to step 5.
STEP 2 | Twist counter clockwise and
pull cleat out of bed rail.
Removal may vary depending on bed rail
cleat type.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 3 | Remove bed rail end caps,
depress lined tabs and slide end caps out
of bed rails.
STEP 4 | Slide (4) T-bolts into each
bed rail.
Slight pressure may be needed to slide
T-bolts into place.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 5 | Assemble the provided
bedside assemblies and crossbars using
a 17mm wrench, #6 Allen bit and provided
M10 hardware.
Leave loose enough to allow for
adjustment.
Pair up matching bed sides.
Front Bed-Rack Section
Rear Bed-Rack Section

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 6 | Place the provide foam
strips onto each of the (4) bedside
sections.
These are specic to front and rear
mounts.
STEP 7 |
If equipped with bed rails:
Place both front and rear sections of the
bed rack over the T-bolts, secure bed-
rack to T-bolts using 13mm socket and
provided M8 hardware.
If not equipped with bed rails:
Slide the provided bedside mounting
plate behind the bed-rail lip.
Secure the bed rack and mounting plate
to the bed-rail using a 17mm wrench, #6
allen bit and provided M10 Hardware.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 9 | Included are optional
Rotopax mounts.
If you are installing a Rotopax can,
install the Rotopax mount onto the DV8
mounting bracket.
(Rotopax not included)
If you are not installing a Rotopax cans,
skip to step 11.
STEP 8 | Adjust the positioning
and spacing of each rack prior to fully
securing the hardware.
For proper installation the top of
the racks should be angled slightly
towards each other.
Proper installation is critical to the
strength of the rack.
When positioned properly, secure all M10
hardware securing the cross bars to the
assembly and assemblies to the bed of
the vehicle.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 10 | These mounts can be
installed with or without cargo-rings in
place.
Secure the DV8 mount to the bedrack
using a 13mm wrench and provided M8
hardware.
Then, install the Rotopax can to the
Rotopax mount.
STEP 11 | Optional high lift jack
mounts are included in our kit.
High lift mounts can be installed on
either driver or passenger side of the bed
rack.
Secure each mount to front and rear
bedsides using provided M10 hardware,
17mm wrench and #6 Allen bit.
If not installing a high lift jack, skip to
stpe 13.
STEP 12 | Use provided mounting
plate and nut plate to secure high lift jack
to bed rack.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 13 | If you are installing lights
in the rail, do so now using the hardware
provide with the lights.
The design of the rail allows for many
congurations of light mounting.
If you are not mounting lights, skip to
step 14.
STEP 14 | If you are installing a RTT,
do so now using the hardware provided
with the tent.
If you are not mounting a RTT skip to step
15.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 15 | If installing any other
accessories do so now.
Double check tment and all hardware is
secure.
STEP 16 |
Congratulations, the Bed Rack install is
now complete.
