E2S E2 S2R Series User manual

Sheet 1 of 6
INSTRUCTION MANUAL
E2xS2R & E2xS2F Sounder
For use in Hazardous Locations
1) Warnings
•DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
•DO NOT OPEN WHEN ENERGISED
•POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
•HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
Avertissement:
•NE PAS OUVRIR UN PRESENCE
D’ATMOSPHERE EXPLOSIVE
•NE PAS OUVRIR ENERGIE
•DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
•HAUT TENSION, RISK DE CHOC.
ATTENDEZ 5 MINUTES APRES AVOIR
DEBRANCHE L’ALIMENTATION AVANT
D’OUVRIR LA BOITIER
2) Rating & Marking Information
2.1 ATEX / IECEx certification
The E2xS2 alarm horn complies with the following standards:
EN60079-0:2012+A11:2013 / IEC60079-0: ed. 6.0 (2011-06)
EN60079-15:2010 / IEC60079-15: ed. 4.0 (2010-01)
EN60079-31:2014 / IEC60079-31:2013 ed. 2.0 (2013-11)
Certificate No. DEMKO 06ATEX 0421554X
IECEx ULD 14.0012X
The E2XS2 Alarm horn is rated as follows:
CE Marking
Zones, Gas / Dust Groups and Temperature
Classification
When connected to an approved system the E2XS2 alarm
horn may be installed in:
Zone 2 explosive gas air mixture not likely to occur
in normal operation, and if it does, it will only exist
for a short time.
Zone 22 explosive dust air mixture not likely to occur
in normal operation, and if it does, it will only exist
for a short time.
May be used with gases in groups:
Group IIA propane
Group IIB ethylene
Group IIC hydrogen / acetylene
Having a temperature classification
(for Gas applications) of:
T1 450ºC
T2 300ºC
T3 200ºC
T4 135ºC
May be used with Dust types:
Group IIIA combustible flyings
Group IIIB non-conductive dust
Group IIIC conductive dust
Maximum Surface Temperature for Dust Applications:
85ºC
Installation must be carried out in compliance with the latest
issue of the following standards:
EN60079-14 / IEC60079-14: Explosive atmospheres -
Electrical installations design, selection and erection
EN60079-10-1 / IEC60079-10-1: Explosive atmospheres -
Classification of areas. Explosive gas atmospheres
EN60079-10-2 / IEC60079-10-2: Explosive atmospheres –
Classification of areas. Explosive dust atmospheres
E2xS2R E2xS2F
0518
II 3G Ex nA IIC T4 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC T85°C Dc Ta -20°C to +55°C

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [e-mail] Tel: [phone]
www.e-2-s.com Fax: [phone]
Document No. D209-00-011-IS-SC Issue B 02-06-17 Sheet 2 of 6
2.2 NEC Class / Zone ratings US
The E2xS2 alarm horn complies with the following standards:
UL 60079-0-2013
UL 60079-15-2013
UL 60079-31-2015
The E2XS2 Alarm horn is rated as follows:
Class I Zone 2 AEx nA IIC T4 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +55°C
Installation must be carried out in compliance with the
National Electric Code.
2.3 CEC Class / Zone ratings Canada
The E2xS2 alarm horn complies with the following standards:
CAN/CSA C22.2 No. 60079-0:2015
CAN/CSA C22.2 No. 60079-15:2016
CAN/CSA C22.2 No. 60079-31:2015
The E2XS2 Alarm horn is rated as follows:
Ex nA IIC T4 Gc Ta -20°C to +55°C
Ex tc IIIC T85°C Dc Ta -20°C to +55°C
Installation must be carried out in compliance with the
Canadian Electric Code
2.4 NEC & CEC Class / Division Ratings for US / Canada
The E2xS2 alarm horn complies with the following standards:
ANSI/ISA 12.12.01-2015
CSA C22.2 No. 213-16
The E2XS2 Alarm horn is rated as follows:
Class I, Div 2, ABCD T3C Ta -20°C to +55°C
Class I, Div 2, ABCD T4 Ta -20°C to +40°C
Class II, Div 2, FG T6 Ta -20°C to +55°C
Class III T6 Ta -20°C to +55°C
Installation must be carried out in compliance with the
National Electric Code / Canadian Electric Code
2.5 Ingress Protection Ratings
The product is rated for ingress Protection as follows:
IP rating per EN60079-0: IP64
IP rating per EN60529: IP66
Type rating per UL50E / NEMA250: 4 / 4X / 13
To maintain the ingress protection rating, the two off cable
entries must be fitted with suitably rated, certified cable entry
and/or blanking devices during installation.
2.6 Electrical Ratings
Part No.
Voltage
Current
E2xS2FDC024 /
E2xS2RDC024 24Vdc 280mA
E2xS2FDC048 /
E2xS2RDC048 48Vdc 215mA
E2xS2RAC115 /
E2xS2RAC115
115-120Vac 50/60Hz 142mA
E2xS2FAC230 /
E2xS2RAC230 220-230Vac 50/60Hz 76mA
It is important that a suitable power supply is used to run the
equipment. The power supply selected must have the
necessary capacity to provide the input current to all the
units.
The input current will vary according to the voltage input level
and the frequency of the tone selected. The current levels
shown above are for the tone resulting in the max. current
draw (tone 1 - 340Hz Continuous).
3) Special Conditions of Use
When used for a Group III application, the surface of the
enclosure may store electrostatic charge and become a
source of ignition in applications with a low relative humidity
<~30% relative humidity where the surface is relatively free of
surface contamination such as dirt, dust, or oil.
Guidance on protection against the risk of ignition due to
electrostatic discharge can be found in EN TR50404 and IEC
TR60079-32.
End user shall adhere to the manufacturer’s installation and
instruction when performing housekeeping to avoid the
potential for hazardous electrostatic charges during cleaning,
by using a damp cloth.
To maintain the ingress protection rating and mode of
protection, the cable entries must be fitted with suitably rated,
certified cable entry and/or blanking devices during
installation. If conduit is used for installation, seal conduit
within 18 inches from the enclosure.
Equipment with the flare horn shall not be installed with the
flare higher than horizontal (to avoid accumulation of dust).
The equipment incorporates metal parts isolated from earth,
having capacitance values exceeding the limits permitted in
the standards of certification. Mounting bracket – 10.33pF.
4) Location and Mounting
The location of the sounder should be made with due regard
to the area over which the warning signal must be audible.
They should only be fixed to services that can carry the
weight of the unit.
The E2x sounder should be secured to any flat surface using
the three 7mm fixing holes on the stainless steel U shaped
mounting bracket. See Figure 1. The required angle can be
achieved by loosening the two large bracket screws in the
side of the unit, which allow adjustment of the sounder in
steps of 18°. On completion of the installation the two large
bracket adjustment screws on the side of the unit must be
fully tightened to ensure that the unit cannot move in service.

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [e-mail] Tel: [phone]
www.e-2-s.com Fax: [phone]
Document No. D209-00-011-IS-SC Issue B 02-06-17 Sheet 3 of 6

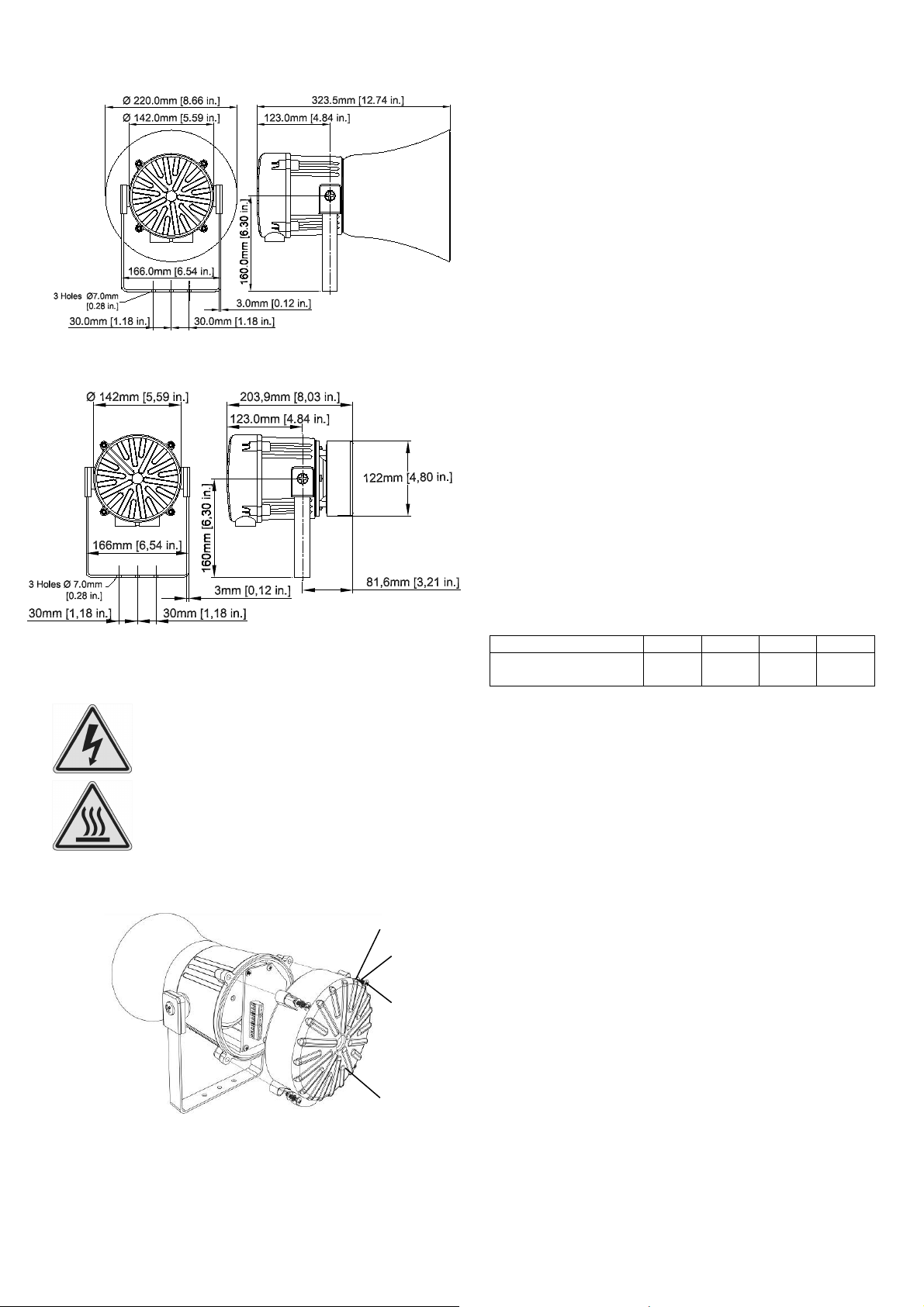

Fig. 1a Fixing Location for Sounder Flare
Fig. 1b Fixing Location for Sounder Radial
5) Access to the Enclosure
To access the enclosure, remove the four M4 posi pan head
screws, M4 spring and plain washers and withdraw the cover.
Fig. 2 Accessing the Enclosure.
To replace cover, check that the ‘O’ ring seal is in place.
Carefully push the cover in place. Insert and tighten down M4
screws, spring and plain washers in the order shown above
and tighten down.
6) Selection of Cable, Cable Glands, Blanking
Elements & Adapters
When selecting the cable size, consideration must be given
to the input current that each unit draws (see Table 1), the
number of sounders on the line and the length of the cable
runs. The cable size selected must have the necessary
capacity to provide the input current to all of the sounders
connected to the line.
The dual entries can be ordered with one of the following
options:
2-off M20 x 1.5 thread
2-off ½” NPT thread
1-off M20 x 1.5 & 1-off ½” NPT thread
To maintain the ingress protection rating and mode of
protection, the cable entries must be fitted with suitably rated,
certified cable entry and/or blanking devices during
installation. If conduit is used for installation, seal conduit
within 18 inches from the enclosure.
For ambient temperatures over +40ºC the cable entry
temperature may exceed +70ºC or the cable branching
temperature may exceed +80ºC. Therefore suitable heat
resisting cables and cable glands must be used as per table
below
Ambient Temp. 40ºC 45ºC 50ºC 55ºC
Min. Rating of cables
and cable glands 90ºC 95ºC 100ºC 105ºC
If a high IP (Ingress Protection) rating is required then a
suitable sealing washer must be fitted under the cable glands
or blanking plugs.
For use in explosive dust atmospheres, a minimum ingress
protection rating of IP6X must be maintained.
For use in explosive gas atmospheres, a minimum ingress
protection rating of IP54 must be maintained.
7) Cable Connections
Electrical connections are to be made into the terminal blocks
on the PCBA located in the enclosure. See section 5 of this
manual for access to the enclosure.
Wires having a cross sectional area between 0.5 mm² to
2.5mm² can be connected to each terminal way. If an input
and output wire is required the 2-off Live/Neutral or +/-
terminals can be used. If fitting 2-off wires to one terminal
way the sum of the 2-off wires must be a maximum cross
sectional area of 2.5mm². Strip wires to 8mm. Wires may also
be fitted using ferrules. Terminal screws need to be tightened
down with a tightening torque of 0.45 Nm / 5 Lb-in. When
connecting wires to the terminals great care should be taken
to dress the wires so that when the cover is inserted into the
chamber the wires do not exert excess pressure on the
terminal blocks. This is particularly important when using
cables with large cross sectional areas such as 2.5mm².
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
Warning – High voltage may be present,
risk of electric shock. DO NOT open when
energised, disconnect power before
opening.
(Appropriate cable entry devices
to
be
customer supplied
)
Cover
M4 Cover
Screw
M4 Spring
Washer
M4 Plain
Washer

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [e-mail] Tel: [phone]
www.e-2-s.com Fax: [phone]
Document No. D209-00-011-IS-SC Issue B 02-06-17 Sheet 4 of 6
(Customer supplied
switches
)
(Customer supplied
switches)
8) AC Wiring
A 6-way terminal block is provided on the AC Sounder for
power. There are 2-off Live, 2-off Neutral and 2-off Earth
terminals in total. A 3-way terminal is provided for stage
switching with a stage 2, a stage 3 and a common terminal.

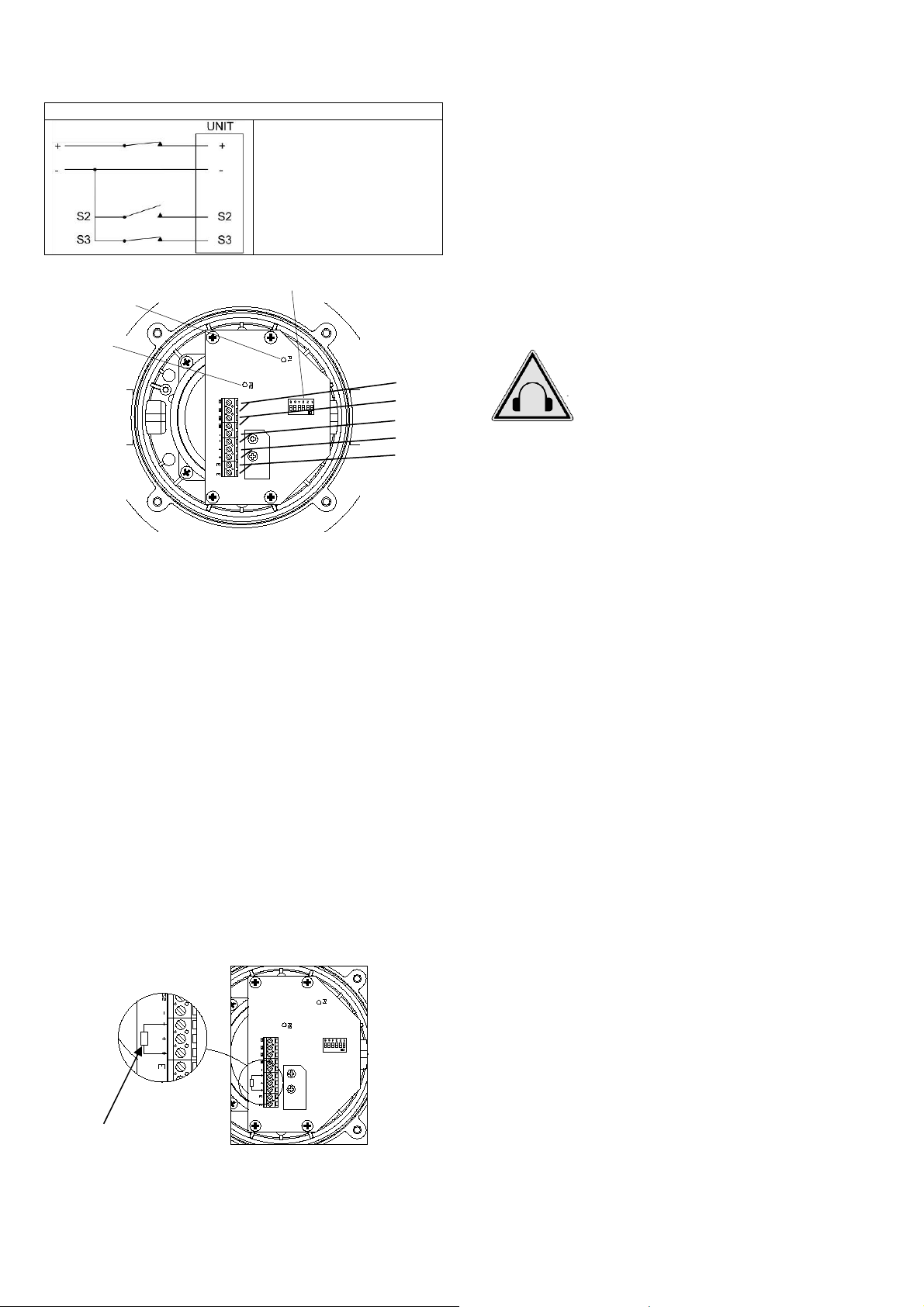

8.1 Wiring Diagrams
Fig 3. E2xS2 AC Simplified Block Diagram
8.2 Stage Switching
8.2.1 Units First Stage Tones
Stage one (S1) Operation
Simply connect the supply
voltage to the L and N
supply terminals, (see fig.
4).
8.2.2 AC Units Second & Third Stage Tone
Selection
To select the second and third stage tones on the E2xS2 AC
sounder.
Stage two (S2) Operation
Power L and N, link the
Common-C and S2
terminal.
Dip switch alters stage 2
tone.
Stage three (S3) Operation
Power L and N, link the
Common-C and S3
terminals.
Dip switch alters stage 3
tone.
Fig. 4 AC Terminals
9) DC Wiring
A 10-way terminal block is provided on the DC Sounder.
There are 2-off +ve, 2-off -ve, 2-off stage 2, 2-off stage 3 and
2-off Earth terminals in total.
9.1 Wiring Diagrams
Fig. 5 DC Simplified Block Diagram
9.2 Stage Switching
9.2.1Units First Stage Tones
Stage one (S1) Operation
Simply connect the supply
voltage to the + and -
supply terminals, (see fig.
6).
9.2.2 DC Units Second & Third Stage Tone
Selection
Stage two (S2) Operation
Power +ve and –ve, link a -
ve supply line to the S2
terminal.
Dip switch alters stage 2
tone.
DIP Switch
Volume Control
S3
S2
C
E
N
L

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [e-mail] Tel: [phone]
www.e-2-s.com Fax: [phone]
Document No. D209-00-011-IS-SC Issue B 02-06-17 Sheet 5 of 6
Stage three (S3) Operation
Power +ve and –ve, link a -
ve supply line to the S3
terminal.
Dip switch alters stage 3
tone.
Fig. 6 DC Terminals
9.3 Line Monitoring
On E2xS2 DC units, DC reverse line monitoring can be used
if required. All DC sounders have a blocking diode fitted in
their supply input lines. An end of line monitoring resistor can
be connected across the +ve and –ve terminals. If an end of
line resistor is used it must have the following values:
24V DC Sounders
Minimum resistance 3K9 Ohms Minimum Power 0.5W
Minimum resistance 1K Ohms Minimum Power 2.0W
48V DC Sounders
Minimum resistance 15K Ohms Minimum Power 0.5W
Minimum resistance 3K9 Ohms Minimum Power 2.0W
The resistor must be connected directly across the +ve and
-ve terminals as shown in the following drawing. Whilst
keeping its leads as short as possible, a spacing of at least
1/16” (1.58mm) must be provided through air and over
surfaces between uninsulated live parts.
Fig. 8 End of Line Resistor Placement
10) Settings
10.1 Tone Selection
The sounders have 45 different tones that can be selected for
the first stage alarm. The sounders can then be switched to
sound second and third stage alarm tones. The tones are
selected by operation of a DIP switch on the PCB for both DC
and AC units. The tone table on page six shows the switch
positions for the 45 tones and which tones are available for
the second and third stages. To operate the sounder on
stage 1 simply connect the supply voltage to the normal
supply terminals (+ve and –ve for DC units, L and N for AC
units).
10.2 Volume Control
The output level of the E2x sounder can be set by adjusting
the volume control potentiometer (see Fig 4 for AC & Fig 6 for
DC). For maximum output, set the potentiometer fully
clockwise.
11) Maintenance, Overhaul & Repair
Maintenance, repair and overhaul of the equipment should
only be carried out by suitably qualified personnel in
accordance with the current relevant standards:
EN60079-19
IEC60079-19 Explosive atmospheres - Equipment repair, overhaul and reclamation
EN 60079-17
IEC60079-17
Explosive atmospheres - Electrical
installations inspection and maintenance
To avoid a possible ELECTROSTACTIC CHARGE the unit
must only be cleaned with a damp cloth.
Units must not be opened while an explosive atmosphere is
present.
If opening the unit during maintenance operations a clean
environment must be maintained and any dust layer removed
prior to opening the unit.
Warning - High noise levels above 85dB(A)
during operation. High levels of noise may
cause hearing loss, wear suitable ear
protection when equipment is in operation.
End of Line Resistor
48V DC
Volume
Control
DIP Switch
S3
S2
-
+
E
24V DC
Volume
Control

_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH [e-mail] Tel: [phone]
www.e-2-s.com Fax: [phone]
Document No. D209-00-011-IS-SC Issue B 02-06-17 Sheet 6 of 6
12) Tone Table
45 Tone 34Tone 380 0 1 1 0 1
1KHz 1s on, 1s off Intermittent
- PFEER Gen. Alarm
Tone 5
Tone 21 1 0 1 0 1Motor Siren - slow rise to 2400Hz44
Tone 5Tone 20 1 0 1 0 11200Hz Continuous43
Tone 5Tone 21 0 0 1 0 1
Motor Siren - slow rise to 800Hz42
Tone 5Tone 20 0 0 1 0 1Motor Siren - slow rise to 1200Hz41
Tone 27Tone 311 1 1 0 0 1
544Hz (100mS)/440Hz (400mS)
- NF S 32-001
40
Tone 17Tone 230 1 1 0 0 1
800Hz 0.25 sec on, 1 sec off Intermittent
39
Tone 45
Tone 341 0 1 0 0 12000Hz Continuous38
Tone 45Tone 90 0 1 0 0 1
1000Hz Continuous - PFEER Toxic Gas37
Tone 5Tone 351 1 0 0 0 1
500-1200Hz 3.75 sec /0.25 sec
Australian Evac.
36
Tone 5Tone 360 1 0 0 0 1
420Hz @ 0.625 Sec Australian Alert
35
Tone 45Tone 381 0 0 0 0 1
1000 & 2000Hz @ 0.5 sec
Aletrnating - Signapore
34
Tone 5Tone 20 0 0 0 0 1
745Hz @ 1Hz Intermittent
33
Tone 15Tone 261 1 1 1 1 0Two tone chime32
Tone 5Tone 260 1 1 1 1 0
660/1200Hz @ 1Hz Sweeping
31
Tone 5Tone 21 0 1 1 1 0
300Hz Continuous
30
Tone 5Tone 70 0 1 1 1 0
800/1000Hz @ 7Hz Sweeping
29
Tone 5Tone 21 1 0 1 1 0440Hz Continuous28
Tone 5
Tone 260 1 0 1 1 0554Hz Continuous27
Tone 15Tone 21 0 0 1 1 0Bell26
Tone 5Tone 290 0 0 1 1 0
2400/2900Hz @ 50Hz Sweeping
25
Tone 5Tone 291 1 1 0 1 0
800/1000Hz @ 50Hz Sweeping
24
Tone 5Tone 60 1 1 0 1 0
800Hz @ 2Hz Intermittent
23
Tone 5Tone 21 0 1 0 1 0
544Hz @ 0.875 sec Intermittent
22
Tone 5Tone 20 0 1 0 1 0
554Hz/440Hz @ 1Hz Alternating
21
Tone 5
Tone 21 1 0 0 1 0660Hz Continuous20
Tone 5Tone 20 1 0 0 1 0
1.4KHz - 1.6KHz 1s, 1.6KHz - 1.4
KHz 0.5s - NFC48-265
19
Tone 5Tone 21 0 0 0 1 0
660Hz 1.8 sec on, 1.8 sec off Intermittent
18
Tone 27Tone 20 0 0 0 1 0
544Hz (100mS)/440 Hz (400m/S)
- NF S 32-001
17
Tone 5Tone 181 1 1 1 0 0
660Hz 150mS on, 150mS off Intermittent
16
Tone 5Tone 20 1 1 1 0 0800Hz Continuous15
Tone 5Tone 41 0 1 1 0 0
800Hz 0.25 sec on, 1 sec off Intermittent
14
Tone 5Tone 150 0 1 1 0 0
2400Hz @ 1Hz Intermittent
13
Tone 5Tone 41 1 0 1 0 0
800/1000Hz @ 0.875Hz Alternating
12
Tone 5Tone 20 1 0 1 0 0
1000Hz @ 1Hz Intermittent
11
Tone 5Tone 71 0 0 1 0 0
2400/2900Hz @ 2Hz Alternating
10
Tone 2Tone 150 0 0 1 0 0
1200/500Hz @ 1Hz - DIN
PFEER P.T.A.P.
9
Tone 5Tone 21 1 1 0 0 0
500/1200/500Hz @ 0.3Hz Sweeping
8
Tone 5Tone 100 1 1 0 0 0
2400/2900Hz @ 1Hz Sweeping
7
Tone 5Tone 71 0 1 0 0 0
2400/2900Hz @ 7Hz Sweeping
6
Tone 20Tone 30 0 1 0 0 02400Hz Continuous5
Tone 5Tone 61 1 0 0 0 0
800/1000Hz @ 1Hz Sweeping
4
Tone 5Tone 20 1 0 0 0 0
500/1200Hz @ 0.3Hz sec
Slow Whoop
3
Tone 5Tone 171 0 0 0 0 0
800/1000Hz @ 0.25 sec Alternating
2
1 2 3 4 5 6
Tone 5Tone 20 0 0 0 0 0340Hz Continuous1
Stage 3Stage 2
Switch
Frequency DescriptionStage 1
Fig. 9 Dip Switch
1=ON; 0=OFF
Example shown: 100000 = Tone 2 (Default setting)
