FIRE INSTRUCTION & SERVICE MANUAL
AL121H Range AlertAlight Combined Sounder LED Beacons
UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526
Model: AL121HDC
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH sales@e2s.com e2s.com D221-00-351-IS-UL Issue A 26/04/2021
• -40°C to +66°C / -40°F to +151°F
• Units can be mounted using the 2-off ø9mm holes in the mounting lugs or through the back of the housing using the supplied gasket seal.
• AL121HDC024 is approved for use as an Audible & Visual signal appliance for fire alarm use – Private Mode. (UL464 & CAN/ULC-S525
& UL1638 & CAN/ULC-S526).
• AL121HDC024 produces a minimum sound pressure level of P2: US: 93.67dB(A); CA: 101.2dB(A) / P3: US: 94.33dB(A); CA: 102.4dB(A)
at 10 feet (figures @ worst case 11.5Vdc).
• AL121HDC024 produces a minimum sound pressure level of P2: US: 97.59dB(A); CA: 105.4dB(A) / P3: US: 100.63dB(A); CA: 107.5dB
(A) at 10 feet (@24Vdc)
• For Fire Alarm applications, the Sounder Volume must be at the highest setting, (see volume control section). For fire alarm use, Tone 12
as shown below must be selected:
• For private mode fire alarm use, the beacons must only be fitted with clear plastic lens covers and must be set to one of the certified flash
patterns of 1Hz, 1.5Hz or 2Hz. Flash Pulse 196ms.
• For light output ratings see below:
• Connection Terminals: Pluggable
AC: 1.0 - 2.5mm2 / AWG18 - AWG12
DC: 0.2 - 2.5mm2 / AWG24 - AWG12
• Terminal Tightening torque 0.4Nm
• To maintain Ingress Protection, cable entries must be fitted with suitably rated cable glands or stopping plugs
• Units can be located indoor or outdoor wet use, wall or ceiling mounted and there are no limitations on orientation
• Factory finishes are not intended to be modified
Attention: Installation must be carried out by an electrician in compliance with the National Electrical Code, NFPA 70, and the National Fire Alarm
Signaling Code, NFPA 72 or CSA 22.1 Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32. / L'installation doit
exclusivement être réalisée par du personnel qualifié, conformément au code national d'électricité américain, NFPA 70, et le code national d’alarrme
incendie et de signalisation NFPA 72 ou CSA 22.1 Code canadien de l'électricité, première partie, norme de sécurité relative aux installations électriques,
Section 32
Attention: Disconnect from power source before installation or service to prevent electric shock / Débranchez-le de la source d'alimentation avant l'instal-
lation ou l'entretien pour éviter tout choc électrique.
Attention: Do not paint / Ne pas Peinturer
On-axis light output rating per UL1638
Model Intensity (cd) at 1Hz
flash rate
Intensity (cd) at 1.5Hz
flash rate
Intensity (cd) at 2Hz
flash rate
AL121HDC024 (12Vdc Mode) 5.9 5.97 6.35
AL121HDC024 (24Vdc Mode) 11.65 12.32 12.38
Surge current ratings for use in fire alarm systems
Model Nominal
Voltage Voltage Range Flash Rate Initial Peak (mA) Initial RMS (mA)
Beacon Sounder Beacon Sounder
AL121HDC024
12Vdc 10 to 14Vdc
1 Hz 202
P2:
1164mA
1164mA /
P3:
1829mA
172
P2: 286mA /
P3: 554mA
1.5Hz 216 172
2Hz 224 172
24Vdc 16 to 33Vdc
(Regulated)
1 Hz 950 204.3
1.5Hz 968.5 206.7
2Hz 969 205.2
1000Hz(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal
Pattern
Stage 1
Set DIP
SW 1
Tone No.

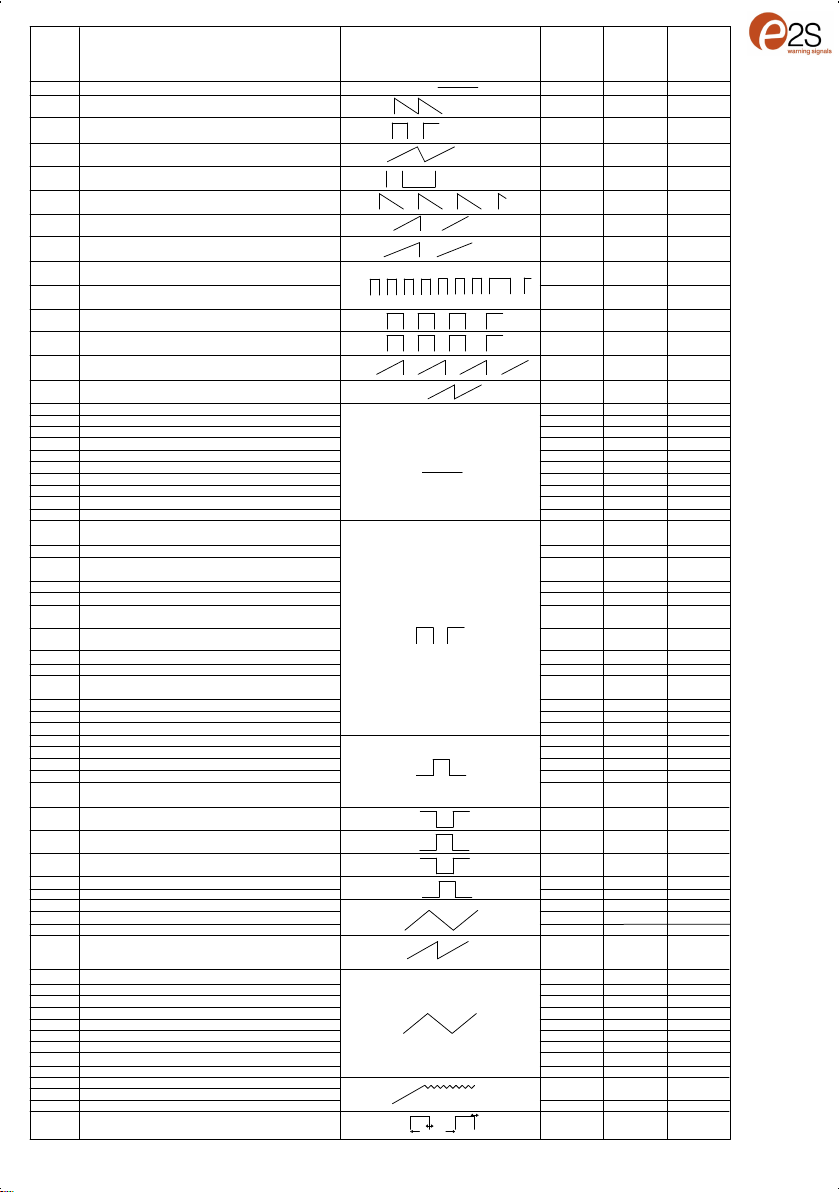

Tone Description Tone Visual
Stage 1 & 2
DIP SW 1/2
Settings
1 2 3 4 5 6
Stage 3
Set DIP
SW 1
(S3)
Stage 4
Set DIP
SW 1
(S2 + S3)
12 1 1 0 1 0 0
1000Hz 0.5s
0.5s
0.5s
0.5s
0.5s
1s 1 8
AL121HDC024 Sounder Directional Characteristics for Canadian Fire CAN/ULC-S525 at 10 feet
Horizontal Axis Vertical Axis
Angle OSPL Angle OSPL Angle OSPL Angle OSPL
Ref. 90° 107.8 dB(A) Ref. 90° 107.8 dB(A) Ref. 90° 107.6 dB(A) Ref. 90° 107.6 dB(A)
143° -3 dB(A) 35° -3 dB(A) 144.5° -3 dB(A) 36.5° -3 dB(A)
152° -6 dB(A) 25° -6 dB(A) 151° -6 dB(A) 27° -6 dB(A)
180° 97.8 dB(A) 0° 95.8 dB(A) 180° 96.8 dB(A) 0° 95.9 dB(A)
Jumper Setting Jumper Link
4Jumper Link
5Jumper
Link 6
24VDC Mode
(Default) Open Closed Open
12VDC Mode
(Customer Set) Closed Open Closed
AL121HDC024 Beacon PCBA (24VDC Mode – Default Setting)
AL121HDC024 Beacon PCBA (12VDC Mode – Customer to Set)
+
-
+
+
-
-
S2
S3
S2 S1
P2
P3
AL121HDC024 Sounder PCBA
Flash Mode
DIP switch
E - +
+ - E
Flash Mode
DIP switch
E - +
+ - E
Jumper
Link 6
Open
Jumper Link
4 Open
Jumper
Link 5
Closed
Jumper Link
4 Closed
Jumper
Link 5
Open
Jumper
Link 6
Closed
warning signals
2S
ALERTALARM RANGE
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7 H
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78
6
5
D
C
134
2
A
B
D221-06-251
R.S.RAIT
B.ISARD
R.N.POTTS
OF
AL112NH & AL121H DC COMBINED
SOUNDER & LED WIRING DIAGRAMS
NTS 1
Stage 1 +ve IN
Stage 1 +ve OUT
Common -ve IN
Common -ve OUT
Stage 2 +ve
Stage 1 +ve IN
Stage 1 +ve OUT
Common -ve IN
Common -ve OUT
Stage 2 +ve
Stage 3 +ve
WIRING LINKING BEACON & SOUNDER
FACTORY FITTED
6
-
+
-
+
-
+
R1
+
-
-
+
R1
+
-
-
+
S2
S3
R1
+
-
-
+
S2
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
14V MAX SYSTEM = 120Ω MIN, 2W MIN OR 1KΩ MIN, 0.5W MIN
28V MAX SYSTEM = 470Ω MIN, 2W MIN OR 2.4KΩ MIN, 0.5W MIN
RECOMMENDED MINIMUM VALUES:
R1
Stage 1 +ve IN
Stage 1 +ve OUT
Stage 1 -ve IN
Stage 1 -ve OUT
Single Stage Configuration Config.: 1a
Line Monitoring
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve
Two Stage Configuration Config.: 1b
Common Negative
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Common -ve
Stage 2: Apply Power to Stage 2 +ve & Common -ve
Three/Four Stage Configuration Config.: 1c
Common Negative
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Common -ve
Stage 2: Apply Power to Stage 2 +ve & Common -ve
Stage 3: Apply Power to Stage 3 +ve & Common -ve
Stage 4: Apply Power to Stage 2 +ve, Stage 3 +ve & Common -ve
Linked Sounder & Beacon Activation (Default)
16/03/2021
INTRODUCTION
RSR - 16/03/2021
A
16/03/2021
16/03/2021
MOD No. REASON - INITIAL - DATEISSUE
-
+
E
E
-
+
-
+
E
E
-
+
-
+
E
E
-
+
warning signals
2S
ALERTALARM RANGE
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7 H
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78
6
5
D
C
134
2
A
B
R.S.RAIT
B.ISARD
R.N.POTTS
INTRODUCTION
NTS
R1
Stage 1 +ve
Stage 1 -ve
Stage 2 -ve
Stage 2 +ve
OF
2
SWITCHES FOR STAGE OPERATION
CUSTOMER SUPPLIED
WIRING LINKING BEACON & SOUNDER
FACTORY FITTED
D221-06-251
AL112NH & AL121H DC COMBINED
SOUNDER & LED WIRING DIAGRAMS
6
-
+
-
+
+
-
-
+
S2
S3
R1
+
-
-
+
S2
R2
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
14V MAX SYSTEM = 120Ω MIN, 2W MIN OR 1KΩ MIN, 0.5W MIN
28V MAX SYSTEM = 470Ω MIN, 2W MIN OR 2.4KΩ MIN, 0.5W MIN
RECOMMENDED MINIMUM VALUES:
R1
Three/Four Stages. Voltage Free 2nd, 3rd & 4th Stage Activation Configuration Config.: 2
Common Positive
Customer Set H1 & H2 to Negative Switching (See Below)
Stage 1: Apply Power to Common +ve & Stage 1 -ve
Stage 2: Apply Power to Common +ve & Stage 1 -ve & connect Stage 2 -ve to Stage 1 -ve
Stage 3: Apply Power to Common +ve & Stage 1 -ve & connect Stage 3 -ve to Stage 1 -ve
Stage 4: Apply Power to Common +ve & Stage 1 -ve
& connect Stage 2 -ve & Stage 3 -ve to Stage 1 -ve
Two Stage Configuration Config.: 3
Independent Stage Input
Reverse Polarity Stage Monitoring
Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve
Stage 2: Apply Power to Stage 1 +ve & Stage 1 -ve & connect Stage 2 -ve to Stage 1 -ve
H2
H1
Set H1 & H2 to -ve switching
H2
H1
Set H1 & H2 to -ve switching
Cut Link W1
Linked Sounder & Beacon Activation (Default)
INTRODUCTION
A
MOD No. REASON - INITIAL - DATEISSUE
RSR - 16/03/2021
16/03/2021
16/03/2021
16/03/2021
-
+
E
E
-
+
-
+
E
E
-
+
Common +ve IN
Common +ve OUT
Stage 1 -ve IN
Stage 1 -ve OUT
Stage 2 -ve
Stage 3 -ve
warning signals
2S
ALERTALARM RANGE
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7 H
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78
6
5
D
C
134
2
A
B
R.S.RAIT
B.ISARD
R.N.POTTS
NTS
OF
3
SWITCHES FOR STAGE OPERATION
CUSTOMER SUPPLIED
D221-06-251
AL112NH & AL121H DC COMBINED
SOUNDER & LED WIRING DIAGRAMS
6
WIRING LINKING BEACON & SOUNDER
FACTORY FITTED
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
14V MAX SYSTEM = 120Ω MIN, 2W MIN OR 1KΩ MIN, 0.5W MIN
28V MAX SYSTEM = 470Ω MIN, 2W MIN OR 2.4KΩ MIN, 0.5W MIN
RECOMMENDED MINIMUM VALUES:
R1
Linked Sounder & Beacon Activation (Default)
Stage 1 +ve
Stage 1 -ve
Stage 2 +ve
Stage 2 -ve
-
+
R1
+
-
-
+
S2
R2
Two Stage Configuration Config.: 4
independent Stage Input
Line Stage Monitoring (Use suitable monitoring relays/modules)
Not to be used for reverse polarity monitoring
Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve
Stage 1: Apply Power to Stage 2 +ve & Stage 2 -ve
Cut Link W1
CUSTOM
CONFIGURATION
CONTACT E2S
WHEN ORDERING
16/03/2021
INTRODUCTION
RSR - 16/03/2021
A
16/03/2021
16/03/2021
MOD No. REASON - INITIAL - DATEISSUE
-
+
E
E
-
+
