INSTRUCTION MANUAL
D1xS2FDC024-S & D1xS2HDC024-S
Alarm Horn Sounder –SIL2
Class I, Zone 1, 2, 21 & 22
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 1 of 15
D1xS2FDC024-S
D1xS2HDC024-S
1) Product Table
Model Number
Nominal
Input Voltage
Nominal
Current P2
Nominal
Current P3
Voltage Range
Sound
Pressure Level
dB(A)
Max*
P2/P3
Nom.†
P2/P3
D1xS2FDC024-S
24Vdc
324mA
740mA
20-28Vdc
120/123
115/118
D1xS2HDC024-S
24Vdc
324mA
740mA
20-28Vdc
124/127
119/122
*Max = Tone 4
Nom. = Tone 44
The table shows the input current taken by the various sounders.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage.
Table 1: Electrical Ratings.
2) Warnings
CAUTION
TO REDUCE THE RISK OF IGNITION OF HAZARDOUS
ATMOSPHERES:
DISCONNECT FROM SUPPLY BEFORE OPENING.
KEEP TIGHTLY CLOSED WHEN IN OPERATION.
WARNING
FIT SEALING FITTING IN CONDUIT RUNS WITHIN 18 INCHES
FROM ENCLOSURE.
EQUIPMENT MUST NOT BE INSTALLED WITH THE HORN
FACING UPWARDS OF HORIZONTAL
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT
DO NOT OPEN WHEN ENERGISED
POTENTIAL ELECTROSTATIC CHARGING HAZARD - CLEAN
ONLY WITH A DAMP CLOTH
ATEX/IECEx & UKEx INSTALLATIONS: IF TEMPERATURE
EXCEEDS 70°C AT ENTRY OR 80°C AT BRANCHING POINT USE
SUITABLE RATED CABLE AND GLANDS
ATTENTION
ATMOSPHÈRES DANGEREUSES :
COUPER L 'ALIMENTATION AVANT OUVERTURE.
CONSERVER FERMÉ PENDANT LE FONCIONNEMENT.
AVERTISSEMENT
CONDUITS DOIVENT ETRE SCELLES EN MOINS DE 18
POUCES.
ÉQUIPEMENT NE DOIT PAS ETRE INSTALLE AVEC LE KLAXON
TOURNEE VERS LE HAUT DE HORIZONTAL.
NE PAS OUVRIR ENERGIE
DANGER POTENTIEL CHARGE ÉLECTROSTATIQUE -
NETTOYER UNIQUEMENT AVEC UN CHIFFON HUMIDE
ATEX/IECEx & UKEx INSTALLATIONS : SI LA TEMPÉRATURE
DÉPASSE 70 °C À L'ENTRÉE OU 80 °C AU POINT DE
BRANCHEMENT, UTILISER UN CÂBLE ET DES JOINTS
D'ÉTANCHÉITÉ APPROPRIÉS
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 2 of 15
3) Marking & Rating Information
The D1xS2 Alarm Horns comply with the following standards for
hazardous locations:
3.1. Class/Division Ratings for US & Canada
Standards
Class I UL 1203 & CSA C22.2 No 30-M1986
Class Division Ratings for US (NEC)
Model No:
Rating
D1xS2F-DC024-S /
D1xS2H-DC024-S
Class Division Ratings for Canada (CEC)
Model No:
Rating
D1xS2F-DC024-S /
D1xS2H-DC024-S
Class Zone Ratings for US (NEC)
Model No:
Rating
D1xS2F-DC024-S /
D1xS2H-DC024-S
Class Zone Ratings for Canada (CEC)
Model No:
Rating
D1xS2F-DC024-S /
D1xS2H-DC024-S
Installation must be carried out in compliance with the National
Electric Code / Canadian Electric Code
3.2. ATEX / IECEx & UKEx Ratings
Standards
Model No:
Rating
D1xS2F-DC024-S /
D1xS2H-DC024-S
Ex db IIC T5 Gb Ta 55°C to +75°C
Ex db IIC T6 Gb Ta 55°C to +60°C
Ex tb IIIC T95°C Db Ta 55°C to +75°C
See Product table for electrical ratings of each unit model
Certificate No.
DEMKO 19ATEX2141X
IECEx ULD 19.0008X
UKEx UL UL21UKEX2132X
Epsilon x
Equipment Group
and Category:
II 2G
II 2D
CE Marking and
Notified Body No.
2813
UKCA Marking and
Notified Body No.
0518
4) Zones, Gas Group, Category and
Temperature Classification
The units can be installed in locations with the following conditions:
Area Classification Gas
Zone 1
Explosive gas air mixture likely to occur in normal
operation.
Zone 2
Explosive gas air mixture not likely to occur in
normal operation, and if it does, it will only exist for
a short time.
Gas Groupings
Group IIA
Propane
Group IIB
Ethylene
Group IIC
Hydrogen and Acetylene
Temperature Classification for Gas Applications
T1
450oC
T2
300oC
T3
200oC
T4
135oC
T5
100ºC
T6
85ºC
(D1xS2FDC024-S/D1xS2HDC024-S up to 60°C
ambient)
Area Classification Dust
Zone 21
Explosive dust air mixture likely to occur in normal
operation.
Zone 22
Explosive dust air mixture not likely to occur in
normal operation, and if it does, it will only exist for
a short time.
Dust Groupings
Group IIIA
Combustible Dusts
Group IIIB
Non-Conductive Dusts
Group IIIC
Conductive Dusts
Equipment Category
2G, 2D
Equipment Protection Level
Gb, Gc, Db, Dc
Maximum Surface Temperature for Dust Applications
95°C (D1xS2FDC024-S/D1xS2HDC024-S)
Ambient Temperature Range
-55°C to +75°C (-67°F to +167°F)
IP Rating
IP66 to EN60529
4 / 4X / 3R / 13 to UL50E / NEMA250
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 3 of 15
5) Specific Conditions of Installation
ATEx/IECEx & UKEx Installations:
The cable entries have two M20 x 1.5 6H entry thread and a
glands, only suitably rated ATEx/IECEx or UKEx certified cable
glands must be used. They must be suitable for the type of cable
being used and also meet the requirements of the current
installation standards EN 60079-14 / IEC60079-14.
If the installation is made using conduit, openings must have a
sealing fitting connected as close as practical to the wall of the
enclosure, but in no case more than the size of the conduit or
50mm, whichever is the lesser.
Any unused cable entries must be closed with suitably rated and
UKEx certified blanking plugs.
NEC / CEC Installations:
The cable entries have two M20 x 1.5 6H entry thread and a
glands, only suitably rated and UKEx certified cable glands must
be used. They must be suitable for the type of cable being used
and also meet the requirements of the current installation
standards for NEC & CEC.
If the installation is made using conduit, openings must have a
Any unused cable entries must be closed with suitably rated and
certified blanking plugs.
All Installations:
The plastic horn is not anti-static and the metallic enclosure has a non-
conductive coating. These may generate an ignition-capable level of
electrostatic charges under certain extreme conditions. The user
should ensure that the equipment is not installed in a location where it
may be subjected to external conditions that might cause a build-up of
electrostatic charges on non-conducting surfaces.
6) Specific Conditions for Safe Use
Flameproof threaded joints and cemented joints are not permitted to
be repaired.

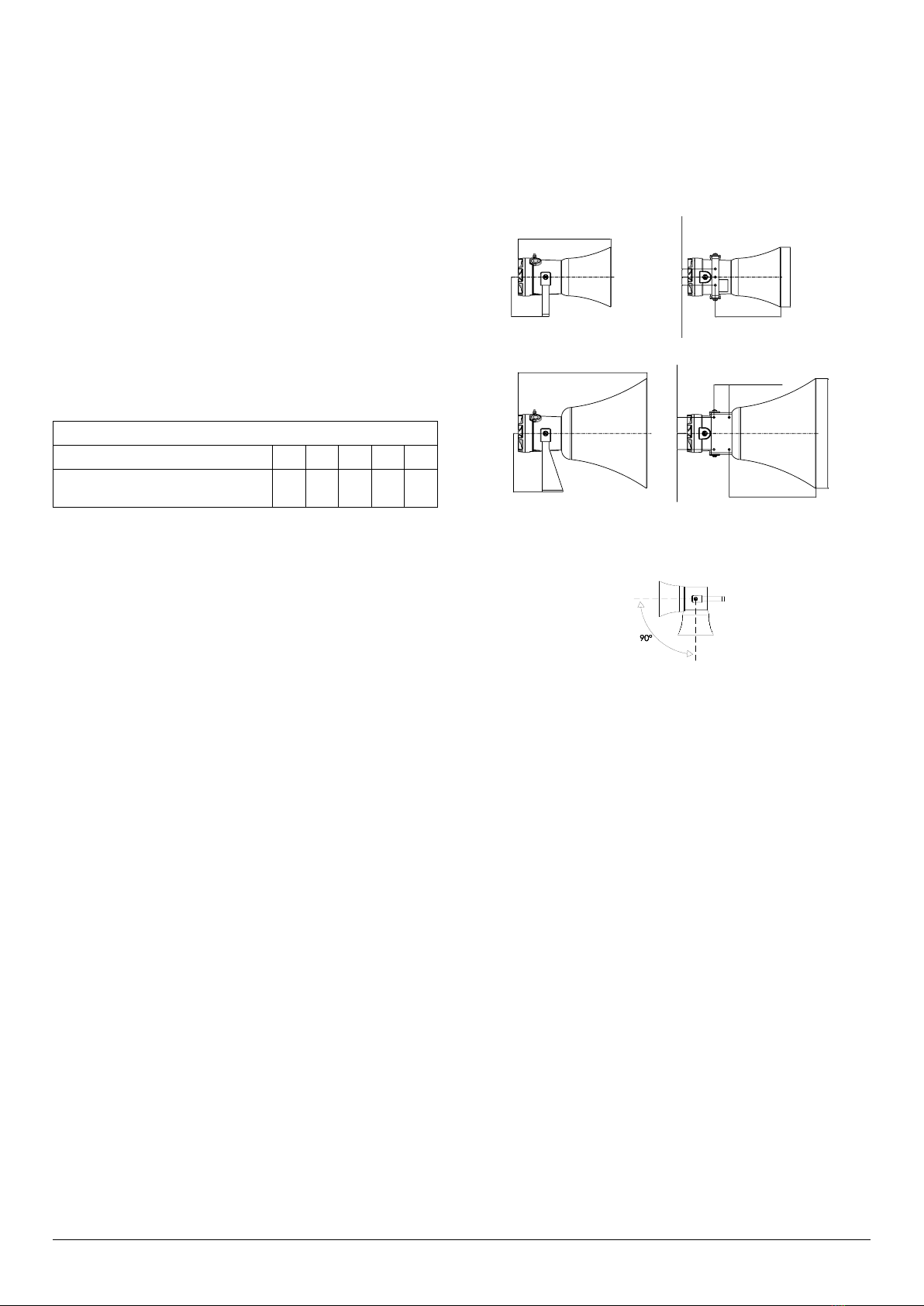

7) Product Mounting and Access
7.1. Mounting
Fig 1: Mounting Locations
7.2. Installation procedure
a. Secure the D1x unit to a flat surface via the three 7mm
fixing holes in the mounting bracket.
b. Remove the explosionproof cover of the alarm horn by
unscrewing it, taking care not to damage the
explosionproof threads in the process (Refer to section
7.4).
c. Fit an M20/NPT suitably rated cable gland or conduit entry
into the hole in the enclosure and connect the field wiring
to the appropriate alarm horn terminals as shown in D190-
06-651. The power supply terminals are duplicated so that
units may be connected in parallel. An end of line
monitoring resistor may be fitted to DC units only (see
section 10). If the second and third M20/NPT entries are
not used, suitably rated stopping plugs must always be
fitted.
d. Replace the explosionproof cover of the loudspeaker,
taking care not to damage the explosionproof threads.
Tighten fully.
7.3. Hornless Variants
Minimum Ratings of Cables & Cable Glands
Max Ambient Temp (°C)
55
60
65
70
75
D1xS2FDC024-S/D1xS2HDC024-S
Min. Rating (°C)
70
75
80
85
90
Table 2: Min. Ratings of Cables & Cable Glands.
D1xS2F
D1xS2H
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 4 of 15
7.4. Access to the Explosionproof Enclosure
Fig 2: Accessing the enclosure
On completion of the installation the flameproof threaded joint should
be inspected to ensure that they are clean and that they have not been
damaged during installation.
Ensure the O-ring seal is in place and undamaged.
When fitting the flameproof cover ensure the thread is engaged
correctly. Fully tighten the cover all the way, ensure no gap is visible
between the cover and base of the sounder enclosure.
8) Installation Requirements
8.1. Safe Installation Requirements
Warning High voltage may be
present, risk of electric shock.
DO NOT open when energised,
disconnect power before opening.
The sounder must only be installed by suitably qualified personnel in
accordance with the latest issues of the relevant standards.
8.2. Cable Selection and Connections
Electrical connections are to be made into the terminal blocks on the
PCBA, using solid wire 0.5-4mm2 / AWG 20-12 or stranded wire, sizes
0.5-2.5mm2 / AWG 24-14. Wire insulation needs to be stripped 8mm.
Wires may be fitted securely with crimped ferrules. Terminal screws
need to be tightened down with a tightening torque of 0.45 Nm / 3.5
Lb-in.
When selecting the cable size, consideration must be given to the input
current that each unit draws (see table 1), the number of sounders on
the line and the length of the cable runs. The cable size selected must
have the necessary capacity to provide the input current to all the
sounders connected to the line.
DC: 0.2 - 2.5mm2/ AWG24 - AWG12
Fig 3: Wire Preparation.
When connecting wires to the terminals great care should be taken to
dress the wires so that when the cover is inserted into the chamber
the wires do not exert excess pressure on the terminal blocks. This is
particularly important when using cables with large cross-sectional
areas such as 2.5mm².
8.3. Earthing
Fig. 4 Earth Locations
Internal earthing connections should be made to the Internal Earth
terminal in the base of the housing using a ring crimp terminal to
secure the earth conductor under the earth clamp. The earth
conductor should be at least equal in size and rating to the incoming
power conductors but at least a mini mum of 0.82mm2 / 18AWG in
size.
8.4. Cable Glands, Blanking Elements & Adapters
Ingress Protection
Adapters
The D1x sounder range can be supplied with the following types of
adapters:
M20 to M25
It is important to note that stopping plugs cannot be fitted onto
adapters, only directly onto the M20 entries.
Internal Earth
Marked with G
External Earth
8mm
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 5 of 15
9) Settings
Following illustrations show the settings available for D1xS2 Alarm
Horn Sounders. See schematic diagram D190-06-651 for details.
9.1. Configuration
See Table 1 for product power supply and Sound Pressure Levels
(SPL).
Configuration for DC Units
Fig 5: DC PCBA.
9.2. Stage Switching Polarity (DC Units)
Switching from positive switching (default) to negative switching - DC
Only.
NOTE: Max supply is 33V DC if higher DC voltage is required, use
Negative switching.
Fig 6: Stage Switching Polarity.
9.3. Tone Selection
The D1x Alarm Horn Sounders have 64 different tones that can be
selected independently for the first and second stage alarms. The
tones are selected by operation of the tone setting DIP switch 1 & DIP
switch 2 (see fig 7) on the PCB, for stage 1 and stage 2 respectively.
Default = Switch 2
S2 - Tone 1
0 0 0 0 0 0
Default = Switch 1
S1 Tone 44
1 1 0 1 0 1
(ON = 1, OFF = 0)
Figure 7: DIP switch configuration
The sounder can also be switched to sound the third and fourth stage
alarm tones.
The tone table (D221-95-651-IS) shows the switch positions for the 64
tones on first and second stages and which tones are available for the
third and fourth stages dependent on the Stage 1 DIP switch setting.
Following table (Table 3) is a summary of DC: D190-06-651 for wiring
options.
(default)
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 6 of 15
Config.
Voltage
Configuration Description
Features
Product
Option
Identifier
1a
DC
Single Stage Configuration
•Line monitoring
•Positive Switching
1
1b
DC
Two Stage Configuration
•Common Negative
•Positive Switching
1
1c
DC
Three/Four Stage Configuration
•Common Negative
•Positive Switching
1
2
DC
Three/Four Stages. Voltage Free 2nd, 3rd &
4th Stage Activation Configuration
•Common Positive
•Customer Set H1 & H2 to Negative
Switching
1
Table 3: Summary of Wiring Options. See Document D190-06-651 for DC Schematic Diagrams.
10) End of Line Monitoring (DC Units)
10.1. Standard DC End Of Line Monitoring
All DC units have a blocking diode fitted in their supply input lines. An
end of line monitoring diode or an end of line monitoring resistor can
be connected across the +ve and ve terminals in the flameproof
chamber. If an end of line resistor is used it must have a minimum
resistance value of 3k3 ohms and a minimum wattage of 0.5W or a
minimum resistance value of 500 ohms and a minimum wattage of 2W.
The resistor must be connected directly across the +ve and -ve
terminals as shown in the following drawing. The resistor leads should
be kept as short as possible.
SIL2 line monitoring module product version: see section 20 for
standard default values and product coding. See document D190-06-
651 for associated wiring diagram.
Figure 8: End of Line Resistor placement.
Note that the maximum forward polarity monitoring voltage is
6V. A monitoring voltage greater than 6V may activate the
alarm horn sounder and the 2nd, 3rd or 4th stages.
11) Maintenance, Overhaul and Repair
Maintenance, repair and overhaul of the equipment should only be
carried out by suitably qualified personnel in accordance with the
current relevant standards:
For ATEx/IECEx or UKEx:
EN60079-19/IEC60079-19
Explosive atmospheres Equipment repair, overhaul and
reclamation
EN 60079-17/IEC60079-17
Explosive atmospheres Electrical installations inspection
and maintenance
Units must not be opened while an explosive atmosphere is present.
If opening the unit during maintenance operations, a clean
environment must be maintained and any dust layer removed prior to
opening the unit.
Potential electrostatic charging hazard Clean only with a damp cloth.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 7 of 15
· All models are approved for use as Audible Signal Appliance for use as General Signaling: UL464A & CSA C22.2 No 205-17
· Type 4 / 4X / 3R / 13, IP66
· -55°C to +85°C / -67°C to +176°F
General Signaling Canada:
D1xS2-DC024-A, D1xS2-DC024-S: -55°C to +85°C / -67°F to +185°F
· To maintain Ingress Protection, cable entries must be fitted with suitably rated cable glands or stopping plugs
· EOL Monitoring (DC Only): End of Line Devices may be fitted between the +ve & -ve terminals of the PCBA. Please ensure that the device legs
meet the wire size range stated for the connection terminals and are fitted correctly in order to avoid a short. Refer to the compatible control panel
specification for EOL device values and ratings
Model
Nominal
Voltage
Voltage Range
P1
Nominal
Operating
Current#
P2
Nominal
Operating
Current#
P3
Nominal
Operating
Current#
P1 Max
Operating
RMS*
P2 Max
Operating
RMS*
P3 Max
Operating
RMS*
D1xS2-DC024-A /
D1xS2-DC024-S
12V dc
11.5 - 54V dc
-
289mA
359mA
-
324mA
740mA
24V dc
-
324mA
740mA
48V dc
-
195mA
391mA
*Max Operating current for worst-case input voltage; Nominal current at nominal voltage and Tone 12
Table 4: UL General Signaling Electrical ratings
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 8 of 15
12) SIL 2 Instruction/Safety Manual
Figure 9 - The SIL 2 Module monitors the Sounder and interfaces to the customer plant.
Warning To maintain the integrity of the SIL 2 units the system must be installed, commissioned and used within the parameters outlined in this
manual. Failure to comply could result in an unintended unit operation or function.
Warning The unit must be powered in either Standby or Active modes to comply with the SIL 2 approval requirement.
If the power is disrupted the unit must be allowed to go through the commissioning cycle to reset.
Failure to complete the commissioning cycle and continued disruption in the power supply will generate a fault state which will require
the sounder to be reset (see section 16-4).
Warning Only the alarm tones specified in section 15 may be selected for use in SIL2 compliant systems.
SIL 2 System Description
The SIL 2 module monitors the function of the device and provides
feedback to the control panel. A fault condition can be communicated
by two methods:
•4 wire installation can be seen as per section 16-1.
A SIL 2 system wiring for fault detection in standby and
active mode with independent fault contacts.
•2 wire installation can be seen as per section 16-2.
A SIL 2 system by the introduction to the monitoring circuit
and linking in an end of line resistor can only register the
fault in standby mode.
13) SIL 2 System Terms and Function
The SIL 2 Sounder Unit Monitors
•Standby mode and Active mode
•Health status of power supply
•Sounder correct function and tone pattern
The SIL 2 sounder operates as part of a SIL 2 system.
The sounder will after commissioning remain powered in Standby
mode (reverse polarity) until the sounder is required to operate. When
the signaling device is required to operate the polarity is changed to
normal supply and the sounder will go into Active mode where it will
start to sound the correct tone. When periodically testing the system
and sounders operation is put into Active mode.
The system panel or PLC will control whether the system is in either
of the main two operational modes.
Standby Mode This is where the power supply polarity is reversed
so negative (ve) is feed to the positive (+) sounder terminal and
positive (+) is feed to the negative (ve) sounder terminal.
In Standby mode the sounder will not sound the tone but the SIL 2 unit
is monitoring power supply and is set-up ready to go to Active (alarm)
mode.
Power relay RLY1-1 will be open whilst SIL 2 relay RLY1-2 will be
closed contact between terminals 1 & 2.
If power is disrupted the SIL 2 unit will go into Fault mode, in fault
mode the Power relay RLY1-1 will close whilst SIL 2 relay RLY1-2 will
become open circuit between terminals 1 & 2.
Active Mode This is where the power is in normal polarity, positive
(+) supplied to the positive (+) sounder terminal and negative (ve) is
supplied to the negative (ve) sounder terminal.
In Active mode the alarm horn sounder will output the selected alarm
tone. The SIL 2 module checks for the correct alarm tone output and
the functionality of the alarm tone signal generation process.
Power relay RLY1-1 will be open whilst SIL 2 relay RLY1-2 will be
closed contact between terminals 1 & 2.
The SIL 2 unit will also check for signal polarity.
If a fault is found the SIL 2 unit will go into Fault mode.
If power is disrupted the SIL 2 unit will go into Fault mode, in fault
mode the Power relay RLY1-1 will close whilst SIL 2 relay RLY1-2 will
become open be circuit between terminals 1 & 2.
J3 HEADER PIN
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 9 of 15
Fault modes - The fault modes listed 13-1 & 13-2 below will make the
SIL 2 unit change the state for relays RLY1-1 and RLY1-2.
In fault mode the Power relay RLY1-1 will close whilst SIL 2 relay
RLY1-2 will become open circuit between terminals 1 & 2.
13-1 Sounder Failure
•Tone Failure No Tone detected
•Sounder Controller failure No tone generation pulse
detected
•Tone Rate Failure Regular tone cycle erratic
13-2 Power Failure / SIL 2 Failure
•SIL 2 Controller failure Internal function and system
checking flags fault
•Rapid Power cycling System indicates power instability
•Total Power Failure
It is possible to reset these faults if they were transitory.
Resetting Failure (by power cycling) - It is possible that the SIL 2 unit
can be reset by powering the unit off for a period greater than 20
seconds. On restarting the unit and running through the
commissioning cycle the fault may clear.
Resetting Failure (by Hard Reset) - It is possible that the SIL 2 unit can
be reset by hard resetting the unit using the reset jumper within the
unit (see section 16-4) on hard resetting.
On restarting the unit and running through the commissioning cycle,
the fault may clear. It is necessary to run the test function cycle again
to see if the fault is still evident.
If the hard reset process does not correct the latched fault the alarm
horn sounder may require further investigation, please contact your
local E2S representative.
Commissioning System - Functional start-up of System
(Normally in reverse polarity mode)
When Commissioning system the power must not be disrupted to the
5 seconds.
Once past this period the SIL 2 system is fully operational and will be
in monitoring the sounder and power in Standby mode.
The relay RLY1-2 on the SIL 2 unit will only remain open for a
maximum of 1 second on commissioning start-up. RLY1-2 will
subsequently close contacts 1 & 2 indicating healthy operation.
Contact 1 & 2 will only remain open in the event of a fault or a loss of
power.
System Testing (Active Mode normal polarity)
The SIL 2 system will remain monitoring the power in standby mode
until the polarity is changed to normal mode to enable an active system
for sounder functional testing.
Important: - The polarity must be held in active mode for a period in
excess of 15 seconds to ensure a full system check is performed.
Once the test period has been completed the unit can be switched
back to standby mode by reversing the polarity.
If no faults have been found during the test the relays will remain in
steady state.
The SIL 2 unit will continue to monitor the power and module function.
Important: - The automated test cycle must be undertaken on at least
a weekly basis to maintain the SIL 2 units reliability.
System Activation (Active Mode normal polarity)
The SIL 2 system will remain monitoring the power in standby mode
until the polarity is changed to Active mode to enable an active system
for sounder to function as a warning signaling device.
Important :- The polarity must be held in active mode for a period in
excess of 15 seconds to ensure a full system check is performed whilst
in alarm mode, although it is expected that during a system activation
this period will be significantly greater.
Note :- The fault indication signal on TB1 can take up to 50
milliseconds to indicate system fault.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 10 of 15
14) SIL 2 Wiring configuration and Sounder set-up
Figure 10 Terminals and header pins for sounder
Power & Communication with the system control panel can be configured in two ways: - Although it is highly recommended that the unit is wired as
stated in this section 16-1 as a 4 Wire System.
15) SIL 2 APPROVED TONE SELECTION
D1xS2FDC024-S/D1xS2HDC024-S sounders need to be set to one off the SIL 2 approved tones to work correctly with the automated sounder check
on pattern generation and signal output checks.
Important: - Only tones use tones that are stated as SIL 2 approved for the SIL 2 application. Ensure that the unit is set to one of these tones see in
Tone Table (D221-95-651-IS).
As factory default the sounder should be set to Stage 1 Dip SW1 to Tone 44 and Stage 2 Dip SW2 to Tone 1.
J3 Header Hard Reset
Shown in factory default position A
(see section 16-4), set to
Normal operation
Sounder Supply Terminals
+
-
J1 Header Current Sense Resistor (CSR)
Shown in factory default position A
(see section 16-3), places SIL TB1 Current
sense resistor in circuit.
J2 Header Fault Resistor (FR)
Shown in factory default position A
(see section 16-3) removes power
supply terminal block. Fault resistor
& relay RLY 1-1out of circuit.
DIP Switch Tone Selection
SIL Relay Terminals TB1
2
1
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 11 of 15
16-1) SIL 2 system wiring for fault detection in standby and active mode –4 wire installation
(Recommended)
The customer is required to wire into both the sounder power supply terminals block and also the SIL 2 Relay terminals TB1
The power supply terminals only need to have the supply power connected. This will be reverse polarity for monitoring mode and normal polarity for
active mode. There is no need to fit an EOL resistor on the power supply terminal block as the TB1 is configured to raise a fault alarm in any situation.
Terminal block TB1 is the output from the SIL 2 monitoring relay. Relay RLY 1-2 provides a closed circuit between TB1 terminals 1 & 2 whilst powered.
On detection of a fault event this will become open circuit.
The fault will be seen via the SIL 2 TB1 terminals as soon as the fault occurs in either Active or Standby modes.
When no fault is detected the circuit to the SIL 2 TB1 terminals 1 & 2 will include a factory fitted 3.3K Ohm current sense resistor (CSR) in series. When
the circuit is driven with 24Vdc the detection current seen is ~7.3mA @ 24V.
The only other fault mode is if the cable goes short circuit where a short will be seen by the panel.
Option: Should the fault event output of RLY1-2 be required to operate as a switch, header J1 can be set to link pins 1 & 2 (see figure 11) thereby
removing the 3.3k Ohm current sense resistor (CSR) from the circuit.
Note: a cable short circuit will not be detectable in this configuration.
For one unit only:
Sounder power
supply terminal
block
Current drawn
(mA)
Active Mode
190mA
Standby Mode
25mA
SIL2
TB1 Current Sense
Resistor value
Current drawn
(mA)
7.2mA
On fault mode, current drops to 0 as circuit
goes open.
Figure 11 - Schematic of SIL 2 system wiring for fault detection in standby and active mode 4 wire installation.
If multiple SIL 2 alarm horn sounders are to be cabled in series the monitoring connections differ from that of a single alarm horn sounder. For more
information see manual D197-00-651-IS available from the E2S website.
16-2) SIL 2 system wiring for fault detection in standby mode only –2 wire installation
Cabling is required to the positive '+' and negative '-' power input terminals only. Monitoring will occur in standby mode only whilst power supply polarity
is reversed. An EOL resistor may be added during installation or can be factory fitted. See Table 5 for EOL resistor value guidance.
The SIL2 monitoring module contains a factory fitted Power Supply Fault Resistor 2.2K Ohm (FR). When a fault is detected the Fault Resistor will
activated. The total measurable resistance of the EOL resistor and Fault Resistor across the power terminals which already has customer EOL resistor
n Standby Mode.
Important: - The 2 wire configuration will not warn of a fault whilst in Active mode. A fault will only be detectable in standby mode when power supply
polarity is reversed.
Important: - The 2-wire configuration requires the J2 header pin to be set to position B (see figure 14). Factory default position is A.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 12 of 15
Figure 12 - Schematic of SIL 2 system wiring for fault detection in standby mode only 2 wire installation
To evaluate the total current drawn from the SIL 2 unit, use the equation below.
In standby mode, where there is no fault, RLY 1-1 is open. This means the voltage only passes through the customer EOL resistor and the current
drawn from the SIL 2 board is 25mA. Therefore, the equation for a No Fault scenario is then:
In standby mode, where there is a fault, the circuit is closed. This means the voltage passes through both the customer EOL resistor and current sense
resistor and the current drawn from the SIL 2 board is 20mA. The customer must first calculate the resistance of the two resistors in parallel before
applying the currents to the equation. The equation for a Fault scenario is then:
Table 5: Resistor combinations and the currents drawn when no faults and faults occur
If multiple SIL 2 alarm horn sounders are to be cabled in series the monitoring connections differ from that of a single alarm horn sounder. For more
information see manual D197-00-651-IS available from the E2S website.
I
(Total Current
drawn)
=
(Current drawn from
Fault Resistor)
+
(Current drawn from
Customer EOL resistor)
+
(Current drawn
from SIL board)
(Standby Mode, Total Current drawn - No Fault)
=
(0mA)
+
(See table 5)
+
(25mA)
(Standby Mode, Total Current drawn - Fault)
=
(Total Resistance when EOL & FR in parallel)
+
(20mA)
Standby
Mode
Power Supply Fault Resistor
Customer EOL Resistor
(Fault Mode Only)
Current
drawn
from SIL
Board
Total
current
drawn
Resistor
Value
Current drawn
()
Resistor
Value
Current
drawn ()
Total
resistance
Current
drawn ()
No Fault
0 mA
10.9 mA
-
-
25 mA
35.9 mA
Fault
-
-
21.8 mA
20 mA
41.8 mA
No Fault
0 mA
24.0 mA
-
-
25 mA
49.0 mA
Fault
-
-
48.0 mA
20 mA
68.0 mA
No Fault
0 mA
7.3 mA
-
-
25 mA
32.3 mA
Fault
-
-
1.3
18.2 mA
20 mA
38.2 mA
No Fault
0 mA
6.2 mA
25 mA
31.2 mA
Fault
-
-
19.5 mA
20 mA
39.5 mA
No Fault
0 mA
5.1 mA
-
-
25 mA
30.1 mA
Fault
-
-
18.4 mA
20 mA
38.4 mA
No Fault
0 mA
5.1 mA
-
-
25 mA
30.1 mA
Fault
-
-
16.0 mA
20 mA
36.0 mA
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 13 of 15
16-3 Header Pins Settings
J1 Header Pin - Position A
Factory default position (pins 1 & 2 not linked)
Places TB1 Current Sense Resistor (CSR) in circuit.
As used in 4 - Wire Configuration
J1 Header Pin - Position B
(pins 1 & 2 linked)
Removes TB1 Current Sense Resistor (CSR) out of circuit.
Figure 13: J1 Header pin positions Current Sense Resistor (CSR)
J2 Header Pin - Position A
Factory default position (pins 1 & 2 linked)
Removes power supply terminal Fault Resistor (FR) & RLY 1-2 out
of circuit.
As used in 4 -Wire Configuration
J2 Header Pin - Position B
(pins 2 & 3 linked)
Places power supply terminal Fault resistor & RLY 1-2 in circuit.
As used in 2 Wire Configuration
Figure 14: J2 Header pin positions Fault Resistor (FR)
16-4 SIL 2 Hard Reset Function
Power down the unit completely for a minimum of 30 seconds. Move the hard reset header pin (Jumper J3) to reset position B shown. Then power the
unit for a minimum of 5 seconds. Power down the unit for 30 seconds and then move the header pin back to Position A.
The unit has now been reset.
If the hard reset process does not correct the latched fault the alarm horn sounder may require further investigation, please contact your local E2S
representative.
J3 Header Pin - Position A
Factory default position (pins 2 & 3 linked)
Hard Reset Function disabled Normal Operation
J3 Header Pin - Position B
(pins 1 & 2 linked)
Hard Reset Enabled - Active reset mode
Figure 15: J3 Header pin positions Hard Reset Function
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 14 of 15
17) SIL 2 Specific Unit Mounting Requirements
The sounder should be mounted no closer that 5m from a sounder source of similar SPL output. This is to ensure false tone activation does not occur
when the unit is monitoring the tone pulse duration and tone failure.
18) SIL 2 Reliability Data
Reliability and Functional safety IEC/EN61508 which has been assessed and is considered suitable for use in low demand safety function:
1. Random Hardware Failures and Architectural constraints (route 1H)
2. As an unvoted item (i.e. hardware fault tolerance of 0) at SIL 2
The product was assessed against failure modes:
•Failure respond to an input with a correct tone.
•Failure to respond to an input even with an alternative tone.
•Spurious sound output despite no input.
D1xS2FDC024-S/D1xS2HDC024-S (Failure to Sound)
Integrity in respect of failure to release
SIL 2
Total Failure rate
0.447 pmh
0.443 pmh
0.004 pmh
0.002 pmh
failure rate (unrevealed)
0
Diagnostic Coverage
99%
System type
B
Hardware Fault Tolerance
0
Safe Failure Fraction
>99%
PFD (hazardous failure)
3.3 x 10-5
Proof Test Interval
Up to 1 year
D1xS2FDC024-S/D1xS2HDC024-S (Failure to Sound or Incorrect tone)
Integrity in respect of failure to release
SIL 2
Total Failure rate
0.464 pmh
0.455 pmh
0.009pmh
0.002 pmh
0
Diagnostic Coverage
98%
System type
B
Hardware Fault Tolerance
0
Safe Failure Fraction
>97%
PFD (hazardous failure)
5.2 x 10-5
Proof Test Interval
Up to 1 year
Table 6: SIL 2 Failure Rate
19) Synchronised Operation
All D1xS2FDC024-S/D1xS2HDC024-S alarm horn sounders connected to the same power supply and set to the same alarm tone will provide a
synchronised output when activated.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
www.e2s.com
Tel: +44 (0)208 743 8880
Document No. D190-00-671-IS
Issue 2
06-03-2023
Sheet 15 of 15
20) Product Coding for Fault Resistor and Customer EOL Resistor
The customer is able to identify the resistor values chosen on purchase from the product code.
This is represented by the last three characters:
D1xS2FDC024AB1S1R-AFZ
•The first A character denotes the value of the Fault Resistor (FR) Default value is 2.2 kunless an alternative value is requested
when ordering.
•The second F character denotes the value of the Current Sense Resistor (CSR) Default value is 3.3 k
value is requested when ordering.
•The third Z character denotes the value of the unit End Of Line Resistor (EOL) By default no EOL is fitted (Code = Z) A factory fitted EOL
resistor can be specified when ordering.
The values of resistors available are shown in table 7 below.
Code
Resistor Value
Default resistor coding as follows.
D1xS2FDC024AB1S1R-AFZ
Example of a custom requirement resistor coding:
D1xS2FDC024AB1S1R-GEF
(EOL) End Of Line resistor is (F = 3.3 k
A
2.2
B
1.0
C
1.5
D
1.8
E
2.7
F
3.3
G
3.9
H
4.7
J
5.6
K
6.8
L
8.2
M
11
Z
None Fitted
Table 7: Resistor Value code
Note: To utilise the full monitoring functionality the 4-wire configuration is recommended. An EOL resistor is not required for this configuration.
The alternative 2-wire configuration requires an EOL resistor to be fitted. The EOL resistor can be specified during ordering and factory fitted or selected
and fitted during the alarm horn sounder installation.
See section 9 for EOL resistor location and wattage requirements. E2S recommends a value of 2.2K Ohm. If an alternative value is required, please
see section 16-2.
Both the (FR) Fault Resistor and (CSR) Current Sense Resistor are factory fitted and cannot be user replaced.
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH [email protected] e2s.com Page 1 of 1 D221-95-651-IS_Issue_C - 09/03/2023
1000Hz PFEER Toxic Gas
1200/500Hz @ 1Hz DIN /PFEER P.T.A.P.
1000Hz @ 0.5Hz(1s on, 1soff) PFEER Gen. Alarm
1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s NF C 48-265
544Hz(100mS)/440Hz (400mS) NF S 32-001
1500/500Hz - (0.5s on , 0.5s off) x3 + 1s gap AS4428
500-1500Hz Sweeping 2 sec on 1 sec off AS4428
500/1200Hz @ 0.26Hz (3.3son, 0.5s off) Netherlands -
NEN 2575
1000Hz (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a
1000Hz (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a
420Hz(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal
Pattern
1000Hz(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal
Pattern
422/775Hz - (0.85 on, 0.5 off) x3 + 1s gap NFPA -
Temporal Coded
1000/2000Hz @ 1Hz Alternating Singapore
300Hz Continuous
440Hz Continuous
470Hz Continuous
500Hz Continuous IMO code 2 (Low)
554Hz Continuous
660Hz Continuous
800Hz IMO code 2 (High)
1200Hz Continuous
2000Hz Continuous
2400Hz Continuous
440Hz @0.83Hz (50
cycles/minute) Intermittent
470Hz @0.9Hz - 1.1s Intermittent
470Hz @5Hz - (5
cycles/second) Intermittent
544Hz @ 1.14Hz - 0.875s Intermittent
655Hz @ 0.875Hz Intermittent
660Hz @0.28Hz - 1.8sec
on, 1.8sec off Intermittent
660Hz @3.34Hz - 150mS
on, 150mS off Intermittent
745Hz @ 1Hz Intermittent
800Hz - 0.25sec on, 1 sec off Intermittent
800Hz @ 2Hz IMO code 3.a
(High) Intermittent
1000Hz @ 1Hz Intermittent
2400Hz @ 1Hz Intermittent
2900Hz @ 5Hz Intermittent
363/518Hz @ 1Hz Alternating
450/500Hz @ 2Hz Alternating
554/440Hz @ 1Hz Alternating
554/440Hz @ 0.625Hz Alternating
561/760Hz @0.83Hz (50
cycles/minute) Alternating
800/1000Hz @ 0.875Hz Alternating
2400/2900Hz @ 2Hz Alternating
500/1200Hz @ 0.3Hz Sweeping
560/1055Hz @ 0.18Hz Sweeping
560/1055Hz @ 3.3Hz Sweeping
660/1200Hz @ 1Hz Sweeping
800/1000Hz @ 1Hz Sweeping
800/1000Hz @ 7Hz Sweeping
800/1000Hz @ 50Hz Sweeping
2400/2900Hz @ 7Hz Sweeping
2400/2900Hz @ 1Hz Sweeping
2400/2900Hz @ 50Hz Sweeping
2500/3000Hz @ 2Hz Sweeping
2500/3000Hz @ 7.7Hz Sweeping
800Hz Motor Siren
1200Hz Motor Siren
2400Hz Motor Siren
SIL 2
Approved
Tone.
Tone Description Tone Visual
Stage 1
DIP SW 1/2
Settings
1 2 3 4 5 6
Stage 3
Set DIP
SW 1
(S3)
Stage 4
Set DIP
SW 1
(S2 + S3)
0 0 0 0 0 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
46
47
48
49
50
52
53
54
55
56
57
58
59
60
61
62
63
42
1 0 0 0 0 0
0 1 0 0 0 0
1 1 0 0 0 0
0 0 1 0 0 0
1 0 1 0 0 0
0 1 1 0 0 0
1 1 1 0 0 0
0 0 0 1 0 0
1 0 0 1 0 0
0 1 0 1 0 0
1 1 0 1 0 0
0 0 1 1 0 0
1 0 1 1 0 0
0 1 1 1 0 0
1 1 1 1 0 0
0 0 0 0 1 0
1 0 0 0 1 0
0 1 0 0 1 0
1 1 0 0 1 0
0 0 1 0 1 0
1 0 1 0 1 0
0 1 1 0 1 0
1 1 1 0 1 0
1 1 0 1 1 0
0 0 1 1 1 0
0 1 1 1 1 0
0 0 0 0 0 1
0 1 0 0 0 1
1 1 0 0 0 1
0 0 1 0 0 1
1 0 1 0 0 1
0 1 1 0 0 1
1 1 1 0 0 1
0 0 0 1 0 1
0 1 0 1 0 1
1 0 1 1 0 1
0 1 1 1 0 1
1 1 1 1 0 1
0 0 0 0 1 1
1 0 0 0 1 1
0 1 0 0 1 1
1 1 0 0 1 1
0 0 1 0 1 1
1 0 1 0 1 1
0 1 1 0 1 1
1 1 1 0 1 1
0 0 0 1 1 1
1 0 0 1 1 1
0 1 0 1 1 1
1 1 0 1 1 1
0 0 1 1 1 1
1 0 1 1 1 1
0 1 1 1 1 1
0 0 0 1 1 0
1 0 0 1 1 0
0 1 0 1 1 0
1 1 1 1 1 0
1 0 0 0 0 1
1 0 0 1 0 1
1 0 1 1 1 0
1000Hz
1200Hz
500Hz 1s
1000Hz 1s
1s
1600Hz
1400Hz 1s
0.5s
544Hz 0.1s
0.4s
440Hz
0.5s
1500Hz
500Hz 0.5s 0.5s 0.5s 0.5s 1s
2s 1s
3s 0.5s
1500Hz
500Hz
1200Hz
500Hz
1000Hz
1s
1s
1s
1s
1s
1s
1s
1s
1s
1s
1s
1s
1s
1s
7s
7s
420Hz 0.5s
0.5s
0.5s
0.5s
0.5s
1s
1000Hz 0.5s
0.5s
0.5s
0.5s
0.5s
1s
f(Hz)
a(s)
b(s)
(f=440, a=0.6, b=0.6)
(f=470, a=0.55, b=0.55)
(f=470, a=0.1, b=0.1)
(f=470, a=0.43, b=0.44)
(f=655, a=0.57, b=0.57)
(f=660, a=1.8, b=1.8)
(f=660, a=0.15, b=0.15)
(f=745, a=0.5, b=0.5)
(f=800, a=0.25, b=1)
(f=800, a=0.25, b=0.25)
(f=1000, a=0.5, b=0.5)
(f=2400, a=0.5, b=0.5)
(f=2900, a=0.1, b=0.1)
f1(Hz)
a(s)
f(Hz)
f1(Hz)
a(s) a(s)
f(Hz)
(f=363, f1=518, a=0.1)
(f=450, f1=500, a=0.25)
(f=440, f1=554, a=0.5)
(f=440, f1=554, a=0.8)
(f=561, f1=760, a=0.6)
0 0 1 1 0 1
1 1 0 1 0 1
43
44
45
780/600Hz @ 0.96Hz Alternating
800/1000Hz @ 2Hz Alternating
970/800Hz @ 2Hz Alternating
64 Simulated Bell 1 1 1 1 1 1
f1(Hz)
a(s) a(s)
f(Hz)
(f=800, f1=1000, a=0.57)
(f=2400, f1=2900, a=0.25)
f1(Hz)
a(s) a(s)
f(Hz)
(f=800, f1=1000, a=0.25)
f1(Hz) a(s) a(s)
f(Hz)
(f=600, f1=780, a=0.52)
f1(Hz) a(s) a(s)
f(Hz)
(f=800, f1=970, a=0.25)
(f=500, f1=1200, a=3.34)
(f=560, f1=1055, a=5.47)
(f=560, f1=1055, a=0.3)
f1(Hz)
a(s)
f(Hz)
51 600/1250Hz @ 0.125Hz Sweeping (f=600, f1=1250, a=8)
f(Hz)
a(s)
(f=800, a=1.6)
(f=1200, a=2)
(f=2400, a=1.7)
1450Hz 0.25s
0.69ms
(f=660, f1=1200, a=1)
(f=800, f1=1000, a=1)
(f=800, f1=1000, a=0.14)
(f=800, f1=1000, a=0.02)
(f=2400, f1=2900, a=0.14)
(f=2400, f1=2900, a=1)
(f=2400, f1=2900, a=0.02)
(f=2500, f1=3000, a=0.5)
(f=2500, f1=3000, a=0.13)
(f=300)
(f=440)
(f=470)
(f=500)
(f=554)
(f=660)
(f=800)
(f=1200)
(f=2000)
(f=2400)
f(Hz)
2
3
2
24
19
44
44
24
34
34
1
1
1
3
44
44
44
24
24
24
24
24
24
24
24
24
24
8
8
24
8
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
8
8
24
8
21
24
24
24
24
24
24
24
24
24
3
20
44
44
44
1
1
1
1
35
1
1
8
8
8
35
8
8
8
8
8
8
8
8
8
19
19
19
19
19
19
19
19
19
19
19
19
19
19
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
1
1
8
8
8
35
35
35
35
35
f1(Hz)
a(s)
f(Hz)
Product Option 'S' SIL 2 Approved Tone Table
Stage 1
Set DIP
SW 1
Tone No.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
No
No
No
Yes
No
Yes
No
No
No
No
2000Hz
1000Hz
0.5s 0.5s
775Hz
422Hz 0.85 0.5s 0.85 0.5s 0.85 0.5s 1s
warning signals
2S
D1x
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7QH
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
MOD No. REASON - INITIAL - DATEISSUE
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78
6
5
D
C
134
2
A
B
D190-06-651
R.S.RAIT
B.ISARD
R.N.POTTS OF
NTS 12
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
RECOMMENDED VALUE FOR SIL 2 EOL = 2.2KΩ2.0W
MINIMUM EOL RESISTOR VALUES FOR 28VDC MAX VOLTAGE
500ΩMIN AT 2W MIN OR 2.4KΩMIN AT 0.5W MIN
EOL
Stage 1 +ve IN
Stage 1 +ve OUT
Common -ve IN
Common -ve OUT
Stage 2 +ve
Stage 1 +ve IN
Stage 1 +ve OUT
Common -ve IN
Common -ve OUT
Stage 2 +ve
Stage 3 +ve
EOL
+
-
-
+
EOL
+
-
-
+
S2
EOL
+
-
-
+
S2
S3
Stage 1 +ve IN
Stage 1 +ve OUT
Stage 1 -ve IN
Stage 1 -ve OUT
Single Stage Configuration Config.: 1a
Line Monitoring
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve
For full 4-Wire SIL 2 Connection Monitor SIL 2 +ve and SIL 2 -ve
Terminals 1 & 2 in RLY1-2
Two Stage Configuration Config.: 1b
Common Negative
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Common -ve
Stage 2: Apply Power to Stage 2 +ve & Common -ve
For full 4-Wire SIL 2 Connection Monitor SIL 2 +ve and SIL 2 -ve
Terminals 1 & 2 in RLY1-2
Three/Four Stage Configuration Config.: 1c
Common Negative
Set to positive switching (default)
Stage 1: Apply Power to Stage 1 +ve & Common -ve
Stage 2: Apply Power to Stage 2 +ve &Common -ve
Stage 3: Apply Power to Stage 3 +ve &Common -ve
Stage 4: Apply Power to Stage 2 +ve, Stage 3 +ve & Common -ve
For full 4-Wire SIL 2 Connection Monitor SIL 2 +ve and SIL 2 -ve
Terminals 1 & 2 in RLY1-2
19/09/2022
19/09/2022
19/09/2022
D1xS1 / D1xS2 / GNExS1 / GNExS2 / STExS1 /
STExS2 SIL 2 DC SOUNDER WIRING DIAGRAMS
INTRODUCTIONINTRODUCTION
1RSR - 19/09/2022
SIL 2 +ve IN
SIL 2 -ve OUT
+
-
+
-
+
-
4 - WIRE SIL RLY1-2 4 - WIRE SIL RLY1-2
SIL 2 +ve IN
SIL 2 -ve OUT
4 - WIRE SIL RLY1-2
SIL 2 +ve IN
SIL 2 -ve OUT
warning signals
2S
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7QH
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
MOD No. REASON - INITIAL - DATEISSUE
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78
6
5
D
C
134
2
A
B
D190-06-651
R.S.RAIT
B.ISARD
R.N.POTTS
NTS
SWITCHES FOR STAGE OPERATION
CUSTOMER SUPPLIED
Stage 2 -ve
Common +ve IN
Common +ve OUT
Stage 1 -ve OUT
Stage 3 -ve
Stage 1 -ve IN
H2
H1
OF
22
EOL
+
-
-
+
S2
S3
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
EOL
Set H1 & H2 to -ve switching
Three/Four Stages. Voltage Free 2nd, 3rd & 4th Stage Activation Configuration Config.: 2
Common Positive
Customer Set H1 & H2 to Negative Switching (See Below)
Stage 1: Apply Power to Common +ve & Stage 1 -ve
Stage 2: Apply Power to Common +ve & Stage 1 -ve & connect Stage 2 -ve to Stage 1 -ve
Stage 3: Apply Power to Common +ve & Stage 1 -ve & connect Stage 3 -ve to Stage 1 -ve
Stage 4: Apply Power to Common +ve & Stage 1 -ve
& connect Stage 2 -ve & Stage 3 -ve to Stage 1 -ve
For full 4-Wire SIL 2 Connection Monitor SIL 2 +ve and SIL 2 -ve Terminals 1 & 2 in RLY1-2
INTRODUCTIONINTRODUCTION
1RSR - 19/09/2022
19/09/2022
19/09/2022
19/09/2022
D1x
+
-
4 - WIRE SIL RLY1-2
SIL 2 +ve IN
SIL 2 -ve OUT
D1xS1 / D1xS2 / GNExS1 / GNExS2 / STExS1 /
STExS2 SIL 2 DC SOUNDER WIRING DIAGRAMS
RECOMMENDED VALUE FOR SIL 2 EOL = 2.2KΩ2.0W
MINIMUM EOL RESISTOR VALUES FOR 28VDC MAX VOLTAGE
500ΩMIN AT 2W MIN OR 2.4KΩMIN AT 0.5W MIN
E2STelephone:+44(0)2087438880Fax:+44(0)2087404200Email:[email protected]www.e2s.comDC‐067_Issue_H(D1x).docx‐Page1of2‐QAF_252_Issue_5
EUDeclarationofConformity
Manufacturer: EuropeanSafetySystemsLtd.
ImpressHouse,MansellRoad,Acton
London,W37QH
UnitedKingdom
AuthorisedRepresentative:E2SWarnsignaltechnikUG
Charlottenstrasse45‐51
72764Reutlingen
Germany
EquipmentType: D1xS1,D1xS2
D1xL1,D1xL2
D1xC1X05,D1xC1X10,D1xC2X05,D1xC2X10
D1xB2XH1,D1xB2XH2
Directive2014/34/EU:EquipmentandProtectiveSystemsforuseinPotentiallyExplosiveAtmospheres(ATEX)‐D1xS1,D1xS2,D1xL1,D1xL2,D1xC1X05,D1xC1X10,
D1xC2X05andD1xC2X10only
NotifiedBodyforEUtypeExamination(ModuleB):ULInternationalDemkoA/S
Borupvang5A
2750Ballerup
Denmark
EU‐typeExaminationCertificate(ModuleB):DEMKO19ATEX2141X
NotifiedBodyforQualityAssuranceNotification/ConformitytoEU‐type
basedon
qualityassuranceoftheproductionprocess(ModuleD):
SiraCertificationService
NotifiedBodyNo.:2813
Unit6,HawardenIndustrialPark,Hawarden,Deeside,CH53US,UK
QualityAssuranceNotification(ModuleD):SIRA05ATEXM342
Provisionsfulfilledbytheequipment:II2GExdbIICT6…T3GB
II2DExtbIIICT82C…145CDb
Standardsapplied:EN60079‐0:2018
EN60079‐1:2014
EN60079‐31:2014
Directive2014/30/EU:ElectromagneticCompatibilityDirective(EMC)
Standardsapplied:EN61000‐6‐1:2007
EN61000‐6‐2:2005
EN61000‐6‐3:2007/A1:2011/AC:2012
EN61000‐6‐4:2007/A1:2011
Directive2014/35/EU:LowVoltageDirective(LVD)
Standardsapplied:EN60947‐1:2007+A2:2014
Directive2011/65/EU:Restrictionoftheuseofcertainhazardoussubstancesinelectricalandelectronicequipment(RoHS)
Theproductandallthecomponentscontainedwithinitareinaccordancewiththerestrictionoftheuseofhazardoussubstancesinelectricalandelectronic
equipment,includingamendmentbyDirective2015/863/EU.
Regulation(EC)1907/2006:Registration,Evaluation,AuthorisationandRestrictionofChemicals(REACH)
Theproductandallthecomponentscontainedwithinitarefreefromsubstancesofveryhighconcern.
OtherStandardsandRegulations
EN60529:1992+A2:2013‐Degreesofprotectionprovidedbyenclosures(IPcode)–enclosureratedIP66
E2STelephone:+44(0)2087438880Fax:+44(0)2087404200Email:[email protected]www.e2s.comDC‐067_Issue_H(D1x).docx‐Page2of2‐QAF_252_Issue_5
MartinStreetzDocumentNo.:DC‐067_Issue_H
QualityAssuranceManagerDateandPlaceofIssue:London,10/02/2022
EUDeclarationofConformity
OnbehalfofEuropeanSafetySystemsLtd.,Ideclarethat,onthedatetheequipmentaccompaniedbythisdeclarationisplacedonthemarket,theequipment
conformswithalltechnicalandregulatoryrequirementsoftheabovelisteddirectives,regulationsandstandards.
ThisDeclarationisissuedunderthesoleresponsibilityofthemanufacturer.
This manual suits for next models
1
Other E2S Marine Equipment manuals
E2S
E2S BExDCTS110-05D User manual
E2S
E2S E2 C1LD2F Series User manual
E2S
E2S AlertAlight AL105N Series User manual
E2S
E2S IS-D105 User manual
E2S
E2S BExCS110-05D-PDC012 User manual
E2S
E2S Minialarm IS-MA1-R User manual
E2S
E2S MA1 Series User manual
E2S
E2S E2xS2FDC024 User manual
E2S
E2S E2xS121EG Troubleshooting guide
E2S
E2S STExC1 User manual
E2S
E2S STExS1 User manual
E2S
E2S SONF1DC024 X Y Series User manual
E2S
E2S GNExS1RDC024-S User manual
E2S
E2S Minialarm IS-mA1 User manual
E2S
E2S GNExS1 User manual
E2S
E2S A100 AlertAlarm User manual
E2S
E2S BExH120DDC024 User manual
E2S
E2S BEXCS11005D230AC-AM User manual
E2S
E2S GNExS2 User manual
E2S
E2S IS-pA1 User manual
Popular Marine Equipment manuals by other brands
Japan Radio Co.
Japan Radio Co. JFE-680 instruction manual
Daniamant
Daniamant Lifebuoy light L160 Installation and maintenance instructions
Furuno
Furuno FE-4300 Operator's manual
Furuno
Furuno FE-680 Operator's manual
EMS
EMS FireCell FC-171-001 installation guide
AML Oceanographic
AML Oceanographic AML-6 RT user manual
