EAE EE-6215EKZ Guide
Model No. EE
-
6215EKZ
ClearFloorTwoPostLift
Electrical Release
Liftin
g
Ca
p
acit
y
5000KG
Installation, Operation
and Parts Manual
Distributed by
Please read this entire manual carefully and completely before installation or operation of the lift.
DATE：02/06/2017
Installation, Operation and Parts Manual
EE-6215EKZ
2
IMPORTANTNOTES
Beforestartup,connectingandoperatingEAEproducts,itisabsolutelyessentialthattheoperatinginstructions/owner’smanualand,in
particularthesafetyinstructionsarestudiedcarefully.BydoingsoyoucaneliminateanyuncertaintiesinhandlingEAEproductsandthus
associatedsafetyrisksupfront;somethingwhichisintheinterestofyouownsafetyandwillultimatelyhelpavoiddamagetothedevice,
WhenanEAEproductishandedovertoanotherperson,notonlytheoperatinginstructionsbutalsothesafetyinstructionsandinformation
onitsdesignatedusemustbehandedovertotheperson.
Byusingtheproductyouagreethefollowingconditions:
Copyright
TheenclosedinstructionsarethepropertyofEAEoritssupplier,andareprotectedagainstduplicationandreproductionbycopyrightlaws,
internationalagreements,andotherdomesticlegislation.Thereproductionordisclosureofinstructionsoranextractthereofisprohibited
andoffendersareliabletoprosecution;EAEreservestherightorinitiatescriminalproceedingsandassertsclaimsfordamagesintheevent
ofinfringements.
Warranty
Theuseofnon‐approvedhardwarewillresultinamodificationofourproductsandthustotheexclusionofanyliabilityorwarranty,evenif
suchhardwarehasbeenremovedagainintheinterim.
Itisnotpermissibletomakeanychangestoourproductsandthesearenotonlytobeusedtogetherwithgenuineaccessoriesandgenuine
replacementparts.Otherwiseanywarrantyclaimswillbeinvalid.
Liability
TheliabilityofEAEislimittotheamountthatthecustomerhasactuallypaidforthisproduct.Thisexclusionofliabilitydoesnotapplyto
damagescausedthroughwillfulmisconductorgrossnegligenceonthepartofEAE.
Installation, Operation and Parts Manual
EE-6215EKZ
3
IMPORTANTNOTES...........................................................................................................................................2
SAFETYNOTES...................................................................................................................................................4
1.1Operationofliftingplatforms................................................................................................................................4
1.2Checkingoftheliftingplatforms............................................................................................................................4
1.3Importantsafetynotices........................................................................................................................................5
1.4Warninglabels.......................................................................................................................................................6
1.5Potentialsafetyrisks..............................................................................................................................................7
1.6Noiselevel..............................................................................................................................................................7
PACKING,STORAGEANDTRANSPORTATION......................................................................................................8
2.1Theliftwasdismantledintothefollowing2partsfortransportation...................................................................8
2.2Storage...................................................................................................................................................................8
2.3Liftingandhandling...............................................................................................................................................8
PRODUCTSDESCRIPTIONS.................................................................................................................................9
3.1Generaldescriptions..............................................................................................................................................9
3.2Constructionofthelift...........................................................................................................................................9
3.3Technicaldata........................................................................................................................................................9
3.4Dimensions...........................................................................................................................................................10
3.5Safetydevicesdescriptions..................................................................................................................................11
INSTALLATIONINSTRUCTIONS.........................................................................................................................12
4.1Preparationsbeforeinstallation..........................................................................................................................12
4.2Installationattentions..........................................................................................................................................13
4.3GeneralInstallationSteps....................................................................................................................................13
4.4Itemstobecheckedafterinstallation..................................................................................................................20
OPERATIONINSTRUCTIONS.............................................................................................................................21
5.1Precautions..........................................................................................................................................................21
5.2Flowchartforoperation......................................................................................................................................21
5.3Operationinstructions.........................................................................................................................................22
TROUBLESHOOTING........................................................................................................................................23
MAINTENANCE................................................................................................................................................24
Annex1,Floorplan....................................................................................................................................................26
Annex2,Electricalschemesandpartslist.................................................................................................................27
Annex3,Hydraulicschemesandpartslist.................................................................................................................31
Annex4,Mechanicalexplodeddrawingsandpartslist.............................................................................................34
Installation, Operation and Parts Manual
EE-6215EKZ
4
SAFETYNOTES
1.1Operationofliftingplatforms
Thisliftisspeciallydesignedforliftingmotorvehicles.Usersarenotallowedtouseitforanyotherpurposes.Theapplicablenational
regulations,lawsanddirectivesmustbeobserved.
Onlyusersaged18orabovewhohavebeeninstructedonhowtooperatetheliftingplatformandhaveproventheirabilitytodosotothe
owneraretobeentrustedwithunsupervisedoperationofliftingplatforms.Thetaskofoperatingtheliftingplatformsmustbegrantedin
writing.
Beforeloadingavehicleontothelift,usersshouldstudytheoriginaloperationinstructionsandfamiliarizethemselveswiththeoperating
proceduresinseveraltrialruns.
Liftvehiclewithintheratedload.Don’tattempttoraisevehicleswithexcessiveweight.
1.2Checkingoftheliftingplatforms
Checksaretobebasedonthefollowingdirectivesandregulations:
Basicprinciplesfortestingliftingplatforms
Thebasichealthandsafetyrequirementsstipulatedinthedirective2006/42/EC
HarmonizedEuropeanstandards
Theapplicableaccidentpreventionregulations
Thechecksaretobeorganizedbytheuseroftheliftingplatform.Theuserisresponsibleforappointinganexpertorqualifiedpersonto
performchecking.Itmustbeensurethatthepersonchosensatisfiestherequirements.
Theuserbearsspecialresponsibilityifemployeesofthecompanyareappointedasexpertsorqualifiedpersons.
1.2.1Scopeofchecking
Regularcheckingessentiallyinvolvesperformingavisualinspectionandafunctionaltest.Thisincludescheckingtheconditionofthe
componentsandequipment,checkingthatthesafetysystemsarecompleteandfunctioningproperlyandthattheinspectionlogbookis
completelyfilledin.Thescopeofexceptionalcheckingdependsonthenatureandextentofanystructuralmodificationorrepairwork.
1.2.2Regularchecking
Afterinitialcommissioning,liftingplatformsaretobecheckedbyaqualifiedpersonatintervalsofnotlongerthanoneyear.
Aqualifiedpersonissomebodywiththetrainingandexperiencerequiredtopossesssufficientknowledgeofliftingplatformsandwhois
sufficientlyfamiliarwiththepertinentnationalregulations,accidentpreventionregulationsandgenerallyacknowledgedrulesof
engineeringtobeabletoassessthesafeoperatingconditionofliftingplatforms.
1.2.3Exceptionalchecking
Liftingplatformswithaliftheightofmorethan2metersandliftingplatformsintendedforusewithpeoplestandingundertheloadbearing
elementsoftheloadaretobecheckedbyanexpertpriororreusefollowingstructuralmodificationsandmajorrepairstoloadbearing
components.
Anexpertissomebodywiththetrainingandexperiencerequiredtopossessspecialistknowledgeofliftingplatformsandwhoissufficiently
Installation, Operation and Parts Manual
EE-6215EKZ
5
familiarwiththepertinentnationalworksafetyregulations,accidentpreventionregulationsandgenerallyacknowledgedrulesof
engineeringtobeabletocheckandgiveanexpertoptiononliftingplatforms.
1.3Importantsafetynotices
1.3.1Recommendforindooruseonly.DOnotexposethelifttorain,snoworexcessivemoisture.
1.3.2Onlyusethisliftonasurfacethatisstableandcapableofsustainingtheload.Donotinstalltheliftonanyasphaltsurface.
1.3.3Readandunderstandallsafetywarningsbeforeoperatingthelift.
1.3.4Donotleavethecontrolswhiletheliftisstillinmotion.
1.3.5Keephandsandfeetawayfromanymovingparts.Keepfeetclearoftheliftwhenlowering.
1.3.6Onlytheseproperlytrainedpersonnelcanoperatethelift.
1.3.7Donotwearunfitclothessuchaslargeclotheswithflounces,tires,etc.,whichcouldbecaughtbymovingpartsofthelift.
1.3.8Topreventevitableincidents,surroundingareasoftheliftmustbetidyandwithnothingunconcerned.
1.3.9Theliftissimplydesignedtolifttheentirebodyofvehicles,withitsmaximumweightwithintheliftingcapacity.
1.3.10Alwaysinsurethesafetylocksareengagedbeforeanyattempttoworknearorunderthevehicle.Neverremovesafetyrelated
componentsfromthelift.Donotuseifsafetyrelatedcomponentsaredamagedormissing.
1.3.11Donotrockthevehiclewhileontheliftorremoveanyheavycomponentfromvehiclethatmaycauseexcessiveweightshift.
1.3.12Checkatanytimethepartsofthelifttoensuretheagilityofmovingpartsandtheperformanceofsynchronization.Ensureregular
maintenanceandifanythingabnormaloccurs,stopusingtheliftimmediatelyandcontactourdealersforhelp.
1.3.13Lowerthelifttoitslowestpositionanddoremembertocutoffthepowersourcewhenservicefinishes.
1.3.14Donotmodifyanypartsoftheliftwithoutmanufacturer’sadvice.
1.3.15Iftheliftisgoingtobeleftunusedforalongtime,usersarerequiredto:
a.Disconnectthepower;
b.Emptytheoiltank;
c.Lubricatethemovingpartswithhydraulicoil.
WARNING
：
Thewarnings,cautionsandinstructionsdiscussedinthisinstructionmanualcannotcoverallpossibleconditionsand
situationsthatmayoccur.Itmustbeunderstoodbytheoperatorthatcommonsenseandcautionarefactorswhichcannotbebuiltinto
thisproduct,butmustbesuppliedbytheoperator.
Installation, Operation and Parts Manual
EE-6215EKZ
6
1.4Warninglabels
Allsafetywarninglabelsareclearlydepictedonthelifttoensurethattheoperatorisawareofandavoidthedangersofusingtheliftinan
incorrectmanner.Thelabelsmustbekeptcleanandtheyhavetobereplacedifdetachedordamaged.Pleasereadcarefullythemeaningof
eachlabelandmemoriesthemforfutureoperation.
Installation, Operation and Parts Manual
EE-6215EKZ
7
1.5Potentialsafetyrisks
1.5.1Mainvoltage
Insulationdamageandotherfaultsmayresultinaccessiblecomponentsbeinglive
Safetymeasures:
Onlyeverusethepowercordprovidedoratestedpowercord.
Replacewireswithdamagedinsulation.
Donotopentheoperatingunit.
1.5.2Riskofinjury,dangerofcrushing
Intheeventofexcessivevehicleweight,incorrectmountingofthevehicleoronremovingheavyobject,thereisarisk
ofthevehiclefallingoffortippingup.
Safetymeasures:
Theliftisonlyevertobeemployedfortheintendedpurpose.
CarefullystudyandheedalltheinformationgiveninSection1.4.
Observethewarningnoticesforoperation.
1.6Noiselevel
Noiseemittedduringoperatingtheliftshouldbelessthan70dB.Foryourhealthconsideration,itissuggestedtoplaceanoisedetectorin
yourworkingarea.
Installation, Operation and Parts Manual
EE-6215EKZ
8
PACKING,STORAGEANDTRANSPORTATION
Packing,lifting,handling,transportingoperationsmustbeperformedonlybyexperiencedpersonnelwith
appropriateknowledgeoftheliftandafterreadingthismanual.
2.1Theliftwasdismantledintothefollowing2partsfortransportation
NamePackedbyDimension(mm)Weight(kg)Quantity
Lift Steelbrackets 4330*570*9308951
Powerunit Carton 850*250*350241
2.2Storage
Thepacksmustbekeptinacoveredandprotectedareainatemperaturerange0f‐10℃to+40℃.Theymustnotbeexposedtodirect
sunlight,rainorwater.
Stackingthepacks
Weadviseagainststackingbecausethepacksarenotdesignedforthistypeofstorage.Thenarrowbase,heavyweightandlargesizeofthe
packsmakestackingdifficultandpotentiallydangerous.
Ifstackingisunavoidable,useallappropriateprecautions:
‐neverstacktomorethan2metersinheight.
‐nevermakestacksofsinglepacks.Alwaysstackpairsofpacksinacrosspatternsothatthebaseisbiggerandtheresultingstackismore
stable.Oncethestackiscomplete,restrainitusingstraps,ropesorothersuitablemethods.
Amaximumoftwopackscanbestackedonlorries,incontainers,andinrailwaywagons,onconditionthatthepacksarestrappedtogether
andrestrainedtostopthemfalling.
2.3Liftingandhandling
Thepackscanbeliftedandtransportedonlybyusinglifttrucks.Neverattempttohoistortransporttheunitusingliftingslings.
Whentheliftisdeliveredmakesurethatithasnotbeendamagedduringtransportationandthatallthepartsspecifiedonthepackinglist
arepresent.
Packsmustbeopenedadoptingalltheprecautionsrequiredtoavoidinjurytopersons(keepatasafedistancewhencuttingthestraps)or
damagetopartsofthemachine(becarefulthatnopartsaredroppedwhileyouareopeningthepacking)
Takespecialcarewiththehydraulicpowerunit,thecontrolpanelandthecylinder.
Installation, Operation and Parts Manual
EE-6215EKZ
9
PRODUCTSDESCRIPTIONS
3.1Generaldescriptions
Theliftispoweredbyanelectro‐hydraulicsystem.Thegearpumpdelivershydraulicoiltooilcylindersandpushesupwardsitspiston.The
pistondrivestoraisethecarriagesandtheliftingarms.Duringliftingprocess,themechanicalsafetylockingunitensuresnoslippingincase
offailurehydraulicsystem.
3.2Constructionofthelift
3.3Technicaldata
ModelLiftingcapacityFullrise
Fullrisetime
(3.5kWmotor)
EE‐6215EKZ5000kg1970mm45S
1.Threestagelongarm
2.Threestageshortarm
3.Carriage
4.Thesecondarypost
5.Overheadcrossbeam
6.Mainpost
7.Powerunit
8.Lockingdevice
9.Operationunit
Installation, Operation and Parts Manual
EE-6215EKZ
10

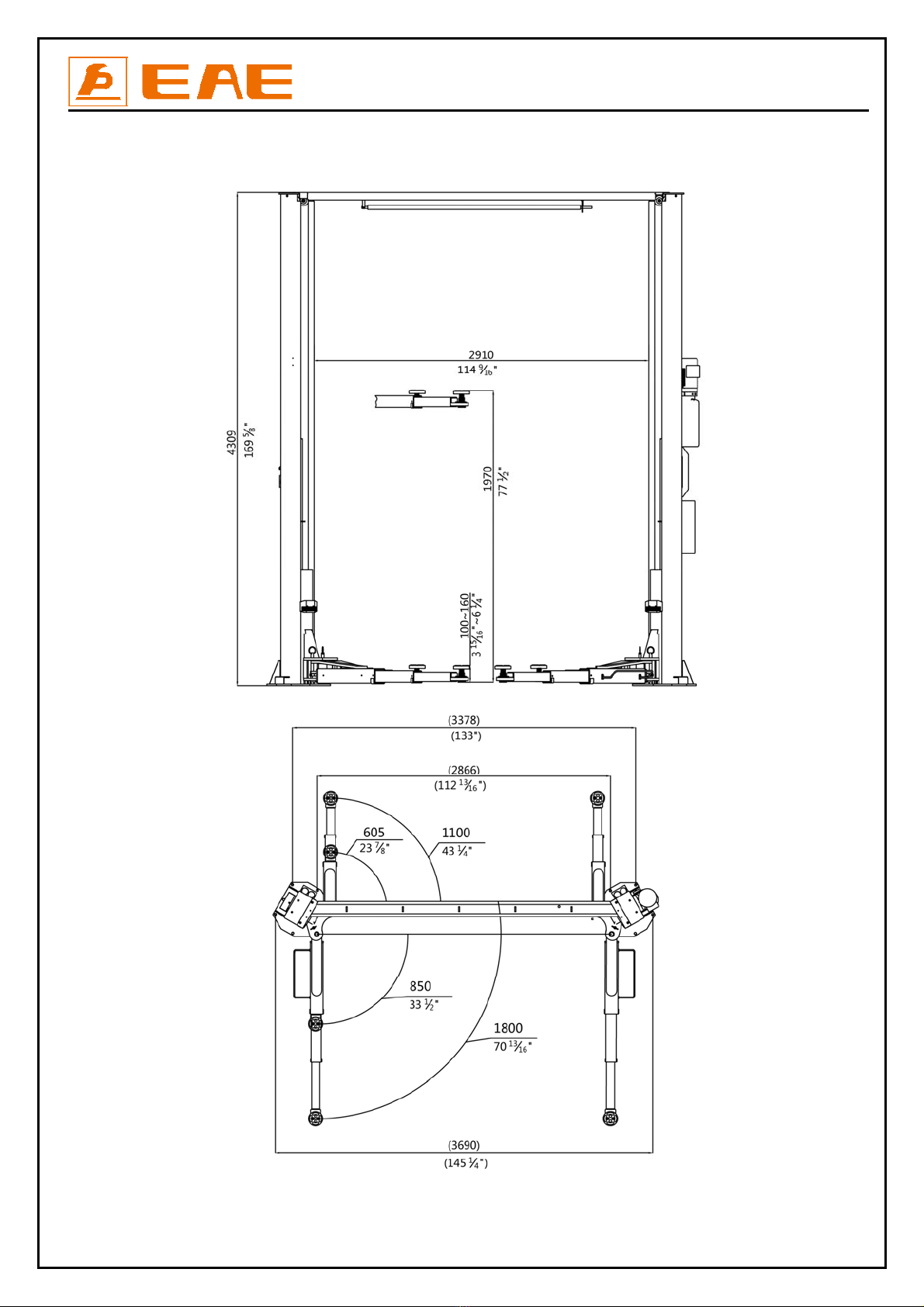

3.4Dimensions
Installation, Operation and Parts Manual
EE-6215EKZ
11
3.5Safetydevicesdescriptions
POS.Name Function
1Maxheightlimitswitch Stoprisingatmaxheight
2Mechanicallockingunit Catchthecarriagesincaseofhydraulicfailure
3SteelcableEnsurethesynchronizationforbothcarriages
4ArmlockingunitEnsuretheliftingarmsarelockedandavoidbeingswingingduringliftingprocess
5Rubberliftingpad Rubberprotectsthewheelbasefrombeingdamaged
Installation, Operation and Parts Manual
EE-6215EKZ
12
INSTALLATIONINSTRUCTIONS
4.1Preparationsbeforeinstallation
4.1.1Spacerequirements.
Referto3.4forthedimensionsofthelift.Theremustalsobeaclearanceofatleast1meterbetweentheliftingplatformandfixed
elements(e.g.wall)inallliftingpositions.Theremustbesufficientspacefordrivingvehiclesonandoff.
4.1.2Foundationsandconnections
Theusermusthavethefollowingworkperformedbeforeerectingthelift.
Constructionofthefoundationfollowingconsultationwiththemanufacturer’scustomerserviceoranauthorizedserviceagent.
Routingofthewiringtotheinstallationlocation.Theusermustprovidefuseprotectionfortheconnection.Electricalsystem
connectionmustbedonebylicensedtechnicians.Requirementsforpowersupplycableoftheinstallationsite:atleast2.5mm2wire
corefor3Phpowerand4.0mm2wirecorefor1Phpower.
Referalsotothecorrespondinginformationonthenameplateandintheoperationinstructions.Beforedoingelectricalconnection,
makesuretheliftiselectricallyadapttothelocalpowersupply.
4.1.3Foundationspreparations
RefertoAnnex1forindividualfootingandcontinuousfooting.
C20/25concretebasewithstrengthmorethan3000psi,Minimumthicknessof200mm(continuousfooting).
Surface:Horizontalandeven(Gradientsmax.0.5%)
Newlybuiltconcretegroundmustbeolderthan20days.
4.1.4Toolsandequipmentneededforinstallation
ToolnameSpecificationQuantityneeded
ElectricaldrillWithD16andD18drillbit.1
OpenspannerD17‐19mm2
AdjustablespannerbiggerthanD30mm1
Crosssocketscrewdriver PH21
Quickspannerhandleadapter/RatchetREB‐3101
Socketspanner D24mm1
Levellingdevice1mmaccuracy1
Hammer 10pounds 1
Trucklift Capacitymorethan1000KG1
Liftingstring Capacity,1000KG 2
Torquespanner MD4001
Installation, Operation and Parts Manual
EE-6215EKZ
13
4.2Installationattentions
4.2.1Jointsofoilhoseandwiringmustbefirmlyconnectedinordertoavoidleakageofoilhoseandloosenessofelectricalwires.
4.2.2Allboltsshouldbefirmlyscrewedup.
4.2.3Donotplaceanyvehicleontheliftinthecaseoftrialrunning.
4.3GeneralInstallationSteps
Step1:Removethepackaging,takeoutthecartonforaccessoriesandcoverplate.
Step2:Firstly,putsomethingsupportingbetweenthetwopostsorsuspendoneofthepostsbyacraneandthenremovetheboltsonthe
package.
Attention
：
Pleasepayspecialattentionnottoletthepostfalldownforitmaycausecasualtyorbringdamagestotheaccessoriesfixedinthe
post.
Step3:Whenthefirstposthasbeentakenaway,placesomethingsupporterunderthesecondpostandthenremovetheboltsonthe
package.
Step4:Fixthestandingpositionforthetwoposts.(seeAnnex1,floorplan)
1.Unfoldthepackageanddecideonwhichpostthepowerunitwillbemounted.
2.Drawanoutlineofthebaseplateonthegroundwithchalkandascertainthepositionforthepost.

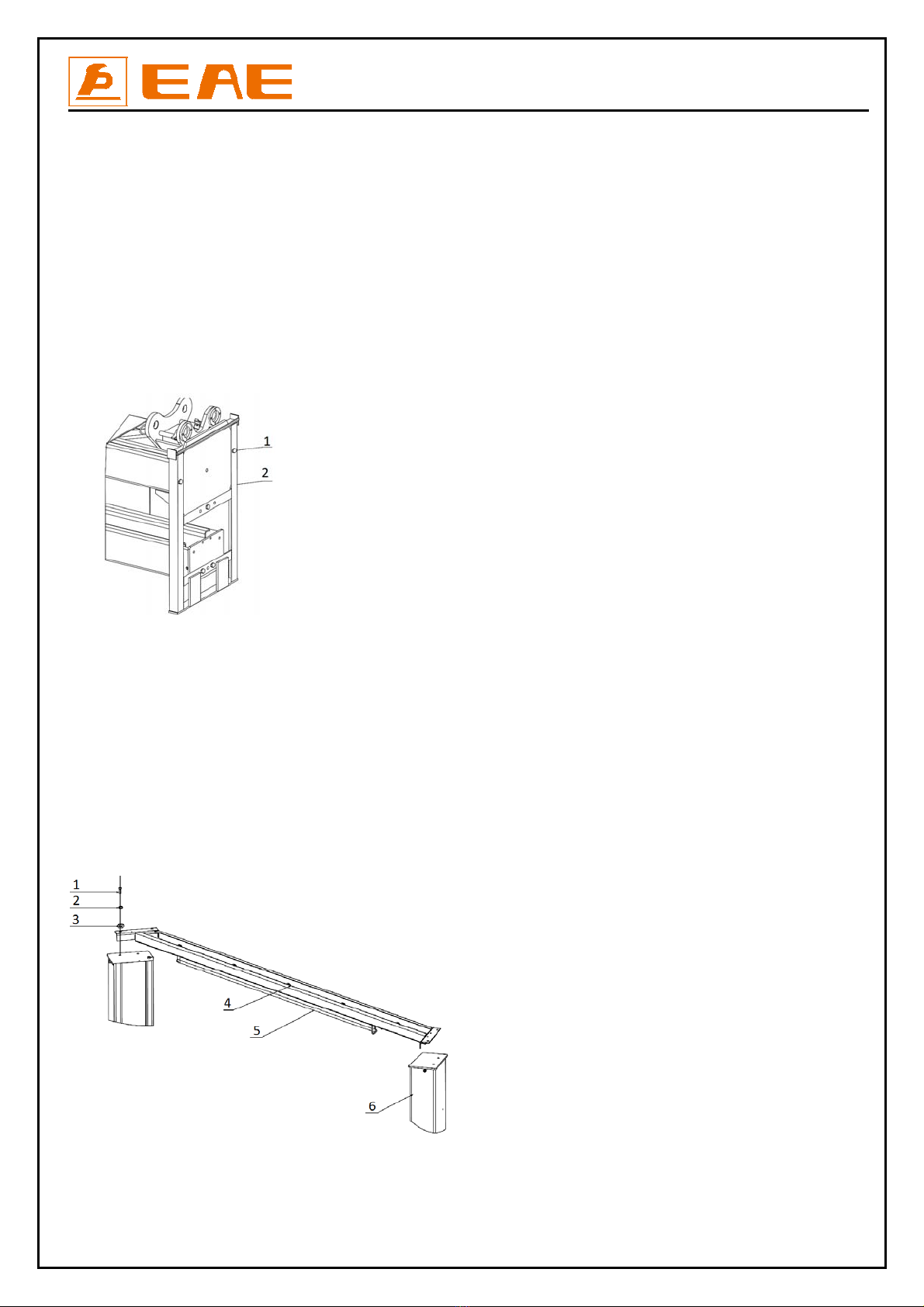

Step5:Connectcrossbeam.
Makethepostsfacetoeachotherandthedistancebetweenthepostsequalstothelengthoftheoverheadcrossbeam.Fixthebeamtothe
postsbyscrewM12×20.
1.HexsocketcylinderheadscrewM12*20
2.SpringwashingM12
3.FlatwasherM12
4.Overheadcrossbeam
5.Vehicleroofprotectionrod
6.Post
1.Hexbolt2.Ironrack
Installation, Operation and Parts Manual
EE-6215EKZ
14

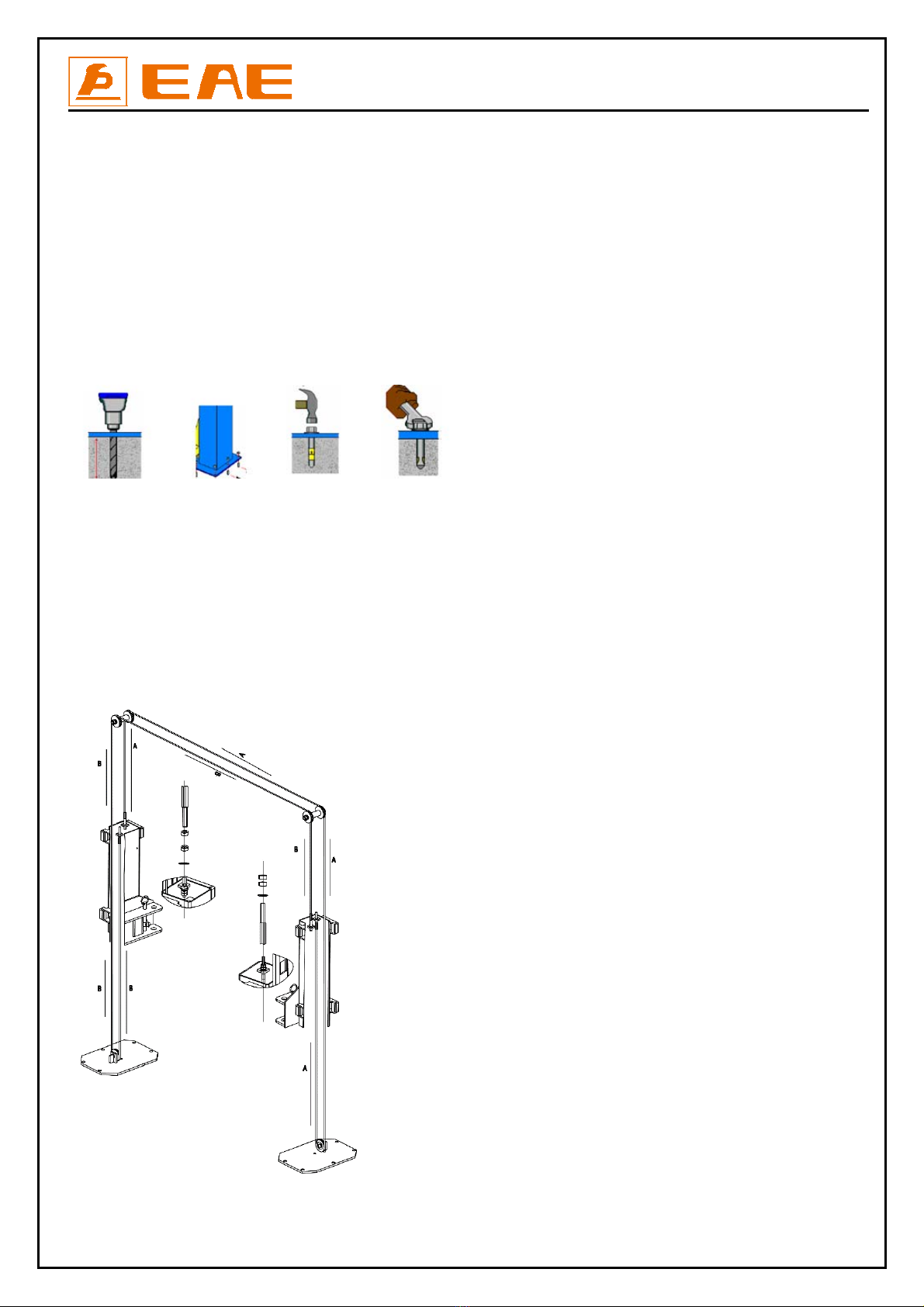

Step6:Erectandsecurethepost.
1.Usesuitablemeanstoraisetheliftingcarriagetothefirstlatchingposition.Allthemountingholesinthebaseplatearethenaccessible.
Makesurethelockingpawlisengaged.
2.Checkthepositionofthebaseplatesagain.
3.Drillthemountingholes.Removethedrillingdustfromthehole.
4.Useaspiritleveltochecktheverticalalignmentoftheliftingposts.Ifnecessary,placeequalizingplatesunderthebaseplates.The
equalizingplatesmustbeofthesamelengthasthesideofthebaseplaterestingonthem.Otherwisetheloadofthebaseplatewillnotbe
transferredevenlytothefoundation.
5.Erectandsecuretheotherpostsimilarly.
Step7:Connectthesynchronizationsteelropes.
1.Routeandfixaccordingtothefollowingdiagramofsteelcableconnection.
2.Raisebothcarriagestothefirstlatchingposition(approximately800mmabovetheground).3.Makesurethatthemechanicalsafetylocks
ineachpostarefullyengagedbeforeattemptingtoroutecables.
4.Afterthecablebeingfixed,adjustandmakethecableatbothsidesbewiththesametightnesswhichcouldbejudgedbythesound
emittedduringliftingprocess.
5.Greaseafterbeingfixed.(Itisamust.)
Installation, Operation and Parts Manual
EE-6215EKZ
15
Step8:Connectoilhoses.
1.Installhydraulicpowerunitontothemainpost.
2.Connectoilhoses(NO.4and5inthebelowFig.)tothe“T”connectorinthemainpost.
NOTE:makesuretheconnectorsandhoseareclean.
1.Anti‐vibrationwasher
2.HexheadnutM10
3.SpringwasherM10
4.FlatwasherM10
5.HexheadfullswivelscrewM10*35
1.Compositeconnector
2.Rubberoilhose
3.“T”connector
4.Shortoilhose
5.Longoilhose
6.Oilcylinder
7.Hydraulicpowerunit
Installation, Operation and Parts Manual
EE-6215EKZ
16

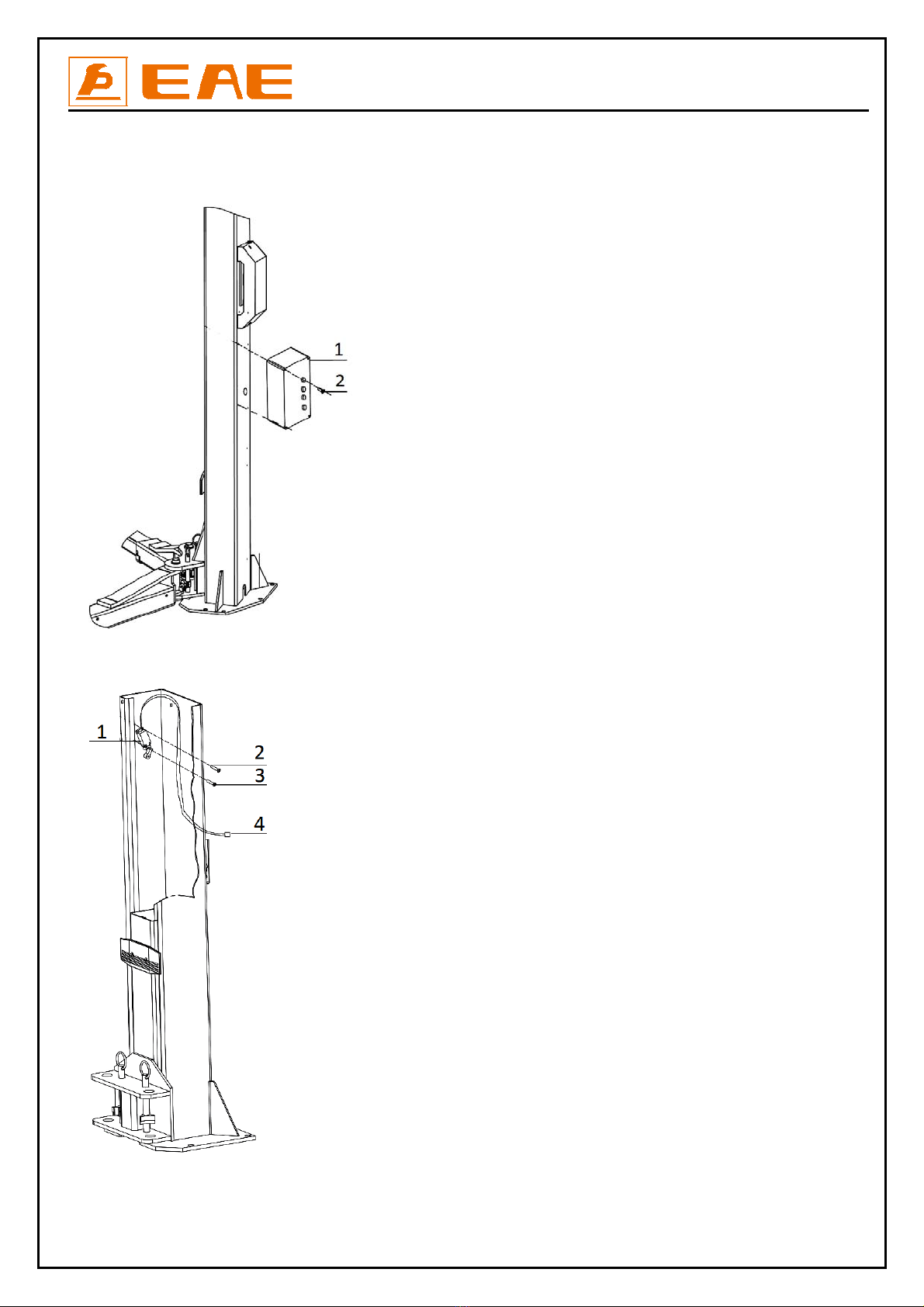

Step9:Connectelectricalsystem.
Refertoelectricalconnectiondiagram.
1.Fixtheoperationunitontothemainpost.
2.Fixmaxheightlimitswitchontotheinsidesurfaceofthemainpostandconnectitswirewiththecorrespondingwirecomesfromthe
controlboxbyquickelectricalconnector.
1.Controlbox
2.CrosssocketcapheadscrewM5*8
1.MaxheightlimitswitchTZ8108
2.CrosssocketcapheadscrewM4*12
3.CrosssocketcapheadscrewM4*25
4.Quickelectricalconnector
Installation, Operation and Parts Manual
EE-6215EKZ
17

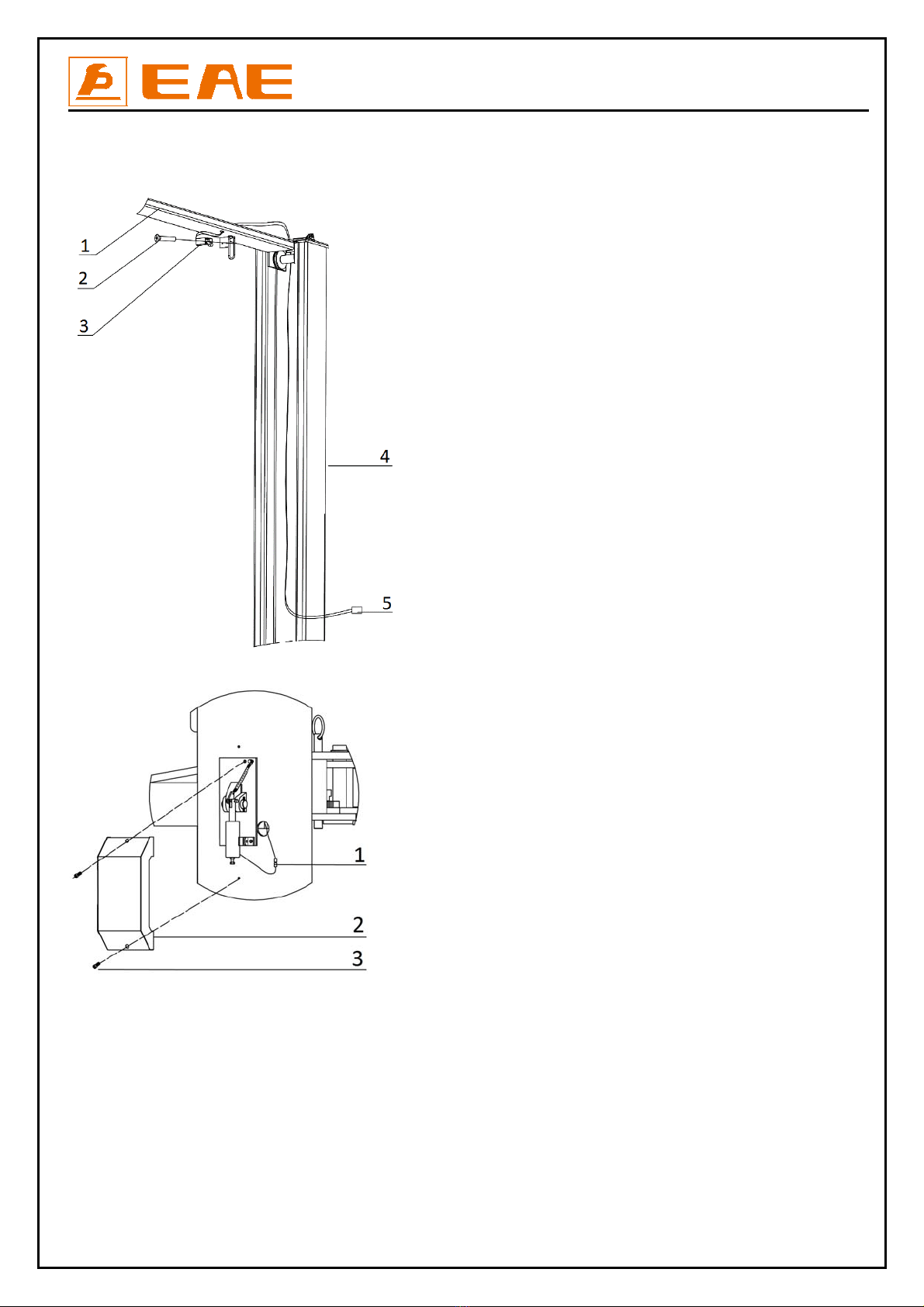

3.Fixcarroofprotectionlimitswitchontotheoverheadcrossbeamandconnectitswirewiththecorrespondingwirecomesfromthecontrol
boxbyquickelectricalconnector.
4.Connectwiresofelectromagnets.Dismantleitsprotectioncoverbeforemakingtheconnection.
1.Overheadcrossbeam
2.CrosssocketflatheadscrewM4*25
3.CarroofprotectionlimitswitchD4MC1000
4.Mainpost
5.Quickelectricalconnector
1.Quickelectricalconnector
2.Protectioncover
3.Hexsocketc
y
linderheadscrewM6*8
Installation, Operation and Parts Manual
EE-6215EKZ
18
5.Connectelectricalwiresreferringtothefollowingwireconnectiondiagram.Checkthatthesupplyvoltageisadaptedtothevoltageofthe
lift.
1.Thesecondarypost
2.Mainpost
3.Overheadcrossbeam
4.Hydraulicpowerunit
5.Electricitysupplywire
SQ1.Vehicleroofprotectionlimitswitch
SQ2.Maxheightlimitswitch
YA1/YA2.Electromagnet
M
．
Motor
YV:Solenoidvalve
Installation, Operation and Parts Manual
EE-6215EKZ
19
Step10:Installliftingarms.
Connecttheliftingarmandthecarriage.Thearmpinshafts(No.2)mustbegreasedattheinstallation
Installtheliftingarmsontothecarriagesandensurethearmlockcouldwork.
Attention:InstallLiftingarmsandfixfeetprotectionbarsONLYafterthecompleteassemblyhasbeenerectedandanchored.
Step11:Fillwithhydraulicoil.
CLEANANDFRESHOILONLY.DON’TFILLTHETANKCOMPLETELYFULL.
Liftmustbefullyloweredbeforechangingoraddinghydraulicoil.
Prepare13litersofhydraulicoil.Firstly,fillabout10litersintotheoiltankandruntheliftupanddownfor2or3times.
Afterrunningtheliftforseveralcycles,addmoreoilifnecessarytoraiselifttofullheight.
Note：ItissuggestedtouseNO.46hydraulicoilwhenaveragetemperatureofthelocationisabove18degreeCelsiusandusingNO.32
hydraulicoilwhentemperatureisbelow18degreeCelsius.
Changetheoil6monthsafterinitialuseandchangeonceperyearthereafter.
Step12:Trialrunning.
Getfamiliarwithliftcontrolsbyrunningtheliftthroughafewcyclesbeforeloadingvehicleonlift.
Thisstepisofparticular
importanceforitcancheckiftheoilhosesarewellconnected.Theconnectionisqualifiedwhenthereisnoabnormalsoundorleakageafter
havingbeentestedfor5‐6times.
Bleedingthehydraulicsystem
Unscrewbutdon'tremovethenutontopoftheoilcylinderandslightlypresstheUPbuttonuntiloilgetsout.Screwthenuttightthereafter.
Afterbleeding,oillevelinpowerunitreservoirmaybedown.Raiseandlowerliftseveralcycles.Addmoreoilifnecessarytoraiselifttofull
height.Itisonlynecessarytoaddoiltoraiselifttofullheight.
Checkthemechanicalsafetylockingunit.
Checkifitssafetylockingplatescanbeeffectivelyengagedorreleasedintherunningprocess.
Checkthesynchronizationofbothliftingcarriages.
Ensurethesynchronizationbyadjustingthebalancesteelcablesatbothsides.Makebothcablesbeofthesametightness.
Thiscouldbejudgedbythesoundemittedbythesafetylockingunitduringliftingprocess.
Iftheliftdoesn'traise,themotormayturninthewrongdirection.Insuchevent,interchangewiresU,Vintheconnectionbox.
1.Carriage
2.Armpinshaft
3.Arm
4.Handleofarmlock
5.Armlockunit
Ventairremainedinthecylinder
Installation, Operation and Parts Manual
EE-6215EKZ
20
Step13:Fixfeetprotectionfenders,chainprotectionclothes,andliftingtrays.
4.4Itemstobecheckedafterinstallation
S/NCheckitemsYESNO
1Screwtorqueofexpansionbolts:60‐80N•m;√
2Risingspeed≥20mm/s;√
3Noisewithratedload≤75db;√
4Groundingresistance:notbiggerthan4Ω;√
5Heightdifferenceofthetwocarriages≤5mm;√
6Mechanicalcatchunitisrobustandsynchronizedwhenrunningwithratedload;√
7Ifthecontrolbuttonworksas“holdtorun”? √
8Iflimitswitchesworkwell?√
9Ifgroundingwireisconnected? √
10Ifrisingandloweringsmoothly? √
11Ifthereisnoabnormalnoticeduringrunningwithratedload? √
12Ifthereisnooilleakagewhenrunningwithratedload? √
13Ifexpansionbolts,nutsorcirclipsarewellsecured? √
14Ifthemaxliftingheightis1970mm?√
15IfSafetyadvices,nameplateandlogosareclear?√
1.Feetprotectionfender
2.M10*15HexsocketcylinderheadscrewM10*15
1.HexnutM6
2.FlatwasherM6
3.Hookforchainprotectioncloth
4.Chainprotectioncloth
5.CrosssocketcapheadscrewM6*8
Table of contents
Other EAE Lifting System manuals
