Eaton ULCAS380 User manual

Sounder Base ULCAS380, ULMAS850, ULFXN538LBS Effective April 2019
Installation Instructions
Model No. Brand
ULCAS380 Eaton Cooper
ULMAS850 Eaton Menvier
ULFXN538LBS Eaton JSB
Installation
1. Fit the box in position using the mounting details below.

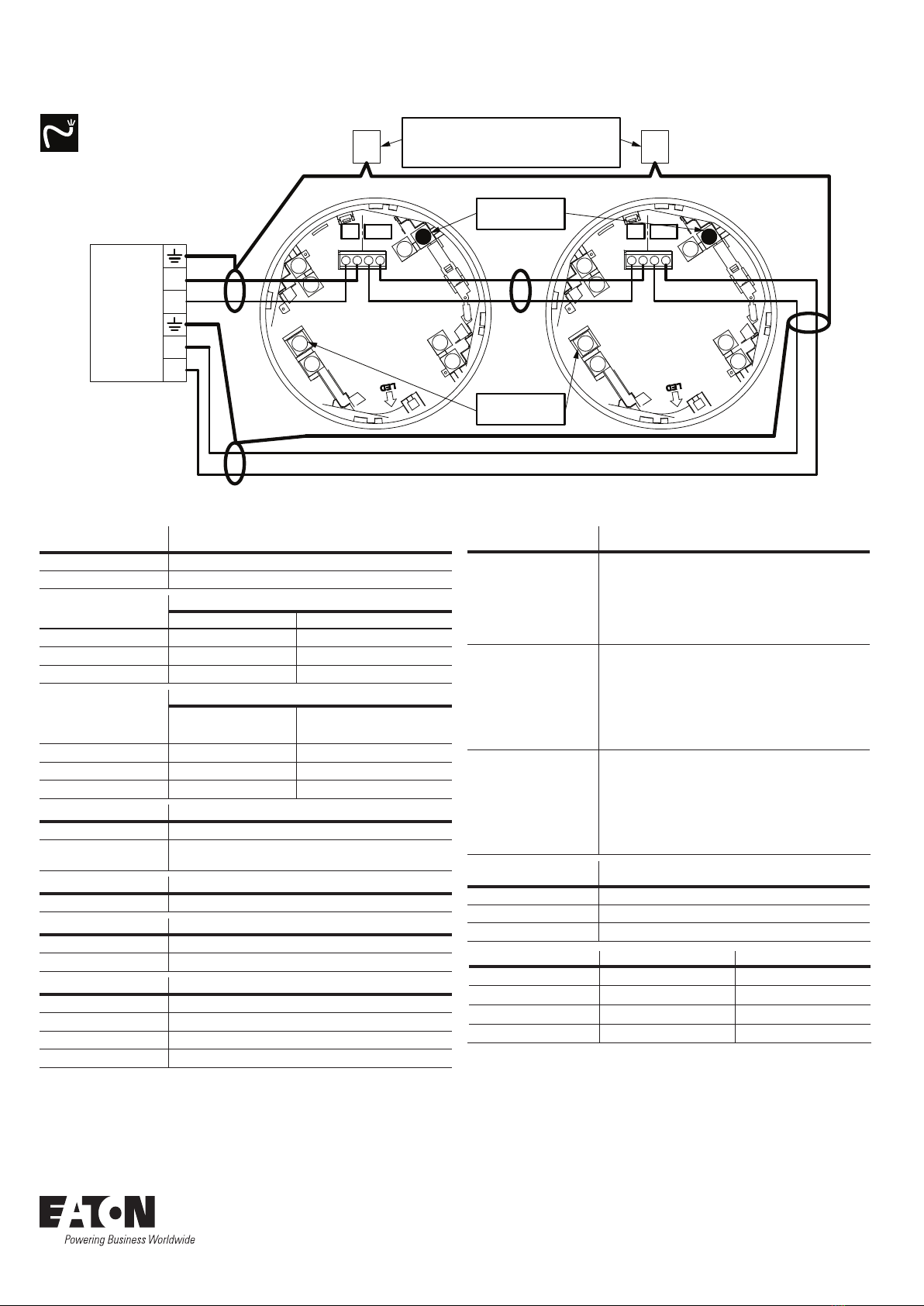

2. Connect the unit according to the diagram below.
3. Recommended Loop Cable Type: FIRETUF, FP200
1. Mounting Base
I. Knock-out the required fixing holes.
II. Fix to mounting surface using two suitable screws
If the base deforms on an uneven surface. Loosen the screws or
move to a more flat position.
When used with a detector, the installation and spacing shall be
in accordance with the requirements for smoke detectors (NFPA
72, Chapter 17).
When installed with the blank cover,the installation and spacing
shall be in accordance notification appliances
(NFPA 72, Chapter 18.)
2. Sounder Assembly
Clip sounder onto base. If sounder needs to be removed use a
small screwdriver to unclip.
3. Locking Tab (optional)
Fit the locking tab into the square
hole on the shoulder.
Finish assembly as stage 5.
Remove by inserting a suitable tool
(e.g. A thin screwdriver) into the hole
in the detector or cover, then rotate
detector or cover anti-clockwise.
4. Fitting Detector or Cover
5. Standard Connections (see diagram overleaf)
Warning: Do NOT use high voltage tester if ANY equipment is
connected to the system.
All connections are Power Limited.
When the base is used with the blank cover: Multiple tone
appliances which produce the three pulse temporal pattern for
the international evacuation signal [NFPA 72 (National Fire Alarm
Code)], shall be used for evacuation use only. The base must not
be used for evacuation when used with a detector head.
ote:N No addressing of the interface is required. See control panel
operation for details.
