Eldes ESIM364 User manual

ESIM364
GSM ALARM AND MANAGEMENT SYSTEM

2
2EN MANUAL ELDES ESIM364 V1.0
Installation Manual v1.0
Valid for ESIM364 v02.03.00 and up
Safety instructions

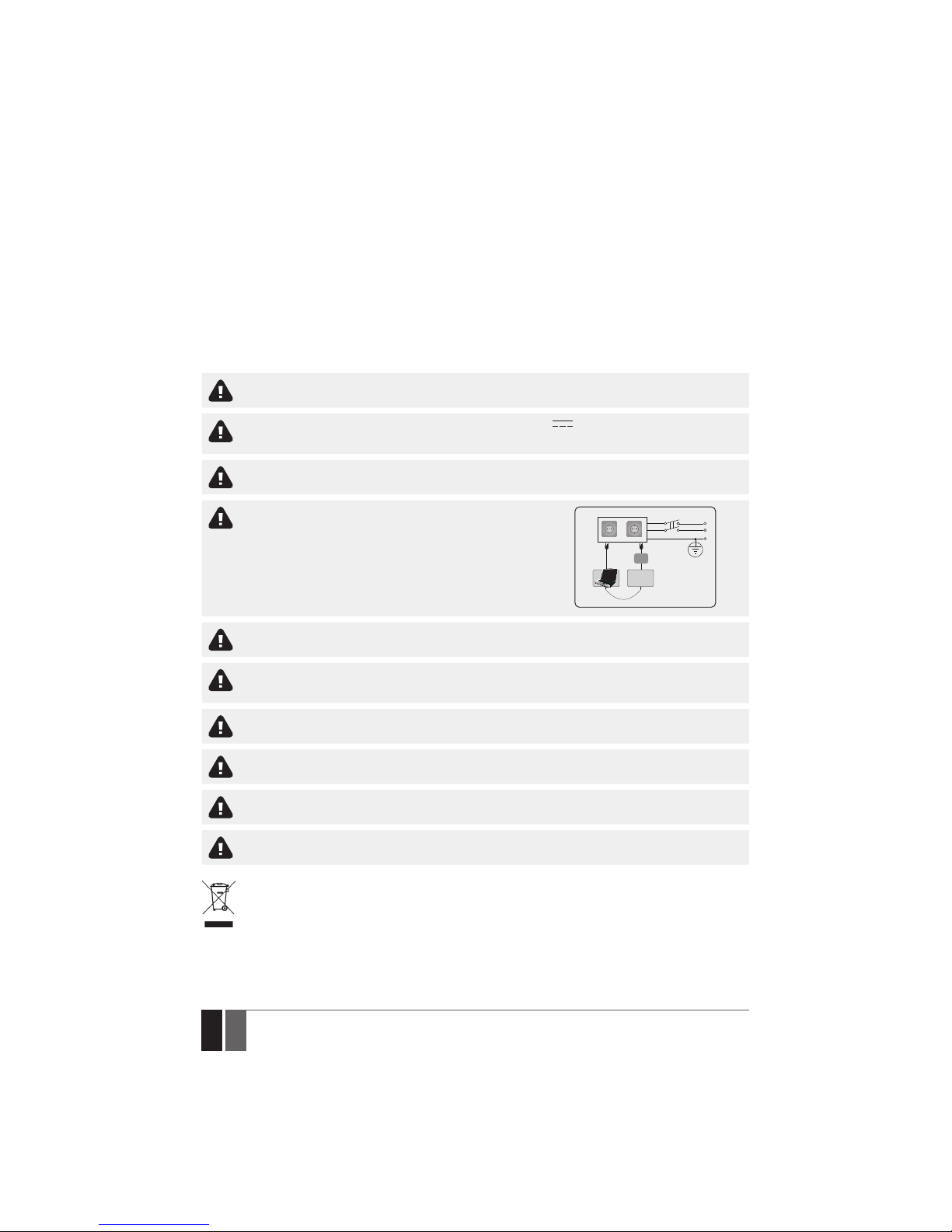

Please read and follow these safety guidelines in order to maintain safety of operators and people around:
x GSM alarm & management system ESIM364 (also referenced as alarm system, system or device) has radio transceiver operating in GSM
850/900/1800/1900 bands.
x DO NOT use the system where it can be interfere with other devices and cause any potential danger.
x DO NOT use the system with medical devices.
x DO NOT use the system in hazardous environment.
x DO NOT expose the system to high humidity, chemical environment or mechanical impacts.
x DO NOT attempt to personally repair the system.
x System label is on the bottom side of the device.
GSM alarm system ESIM364 is a device mounted in limited access areas. Any system repairs must be done only by qualied,
safety aware personnel.
The system must be powered by main 16-24V 50 Hz ~1.5A max or 18-24V 1,5A max DC power supply which must be
approved by LST EN 60950-1 standard and be easily accessible nearby the device. When connecting the power supply to the
system, switching the pole terminals places does not have any aect.
Any additional devices linked to the system ESIM364 (computer, sensors, relays etc.) must be approved by LST EN 60950-1
standard.
Main power supply can be connected to AC mains only inside installation room
with automatic 2-pole circuit breaker capable of disconnecting circuit in the
event of short circuit or over-current condition. Open circuit breaker must have a
gap between connections of more than 3mm and the disconnection current 5A.
Phase
AC 230V
50 Hz/DC 24V
USB cable
Null
PE
ESIM364
AC/DC
Mains power and backup battery must be disconnected before any installation or tuning work starts. The system installation
or maintenance must not be done during stormy conditions
Backup battery must be connected via the connection which in the case of breaking would result in disconnection of one of
battery pole terminals. Special care must be taken when connecting positive and negative battery terminals. Switching the
pole terminals places is NOT allowed.
In order to avoid re or explosion hazards the system must be used only with approved backup battery.
The device is fully turned o by disconnecting 2-pole switch o device of the main power supply and disconnecting backup
battery connector.
Fuse F1 type – Slow Blown 3A. Replacement fuses have to be exactly the same as indicated by the manufacturer.
If you use I security class computer for setting the parameters it must be connected to earth.
The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that
the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the
environment, the product must be disposed on in an approved and environmentally safe recycling process. For further infor-
mation on how to dispose of this product correctly, contact the system supplier, or the local authority responsible for waste
disposal in your area.

3
3EN
MANUAL ELDES ESIM364 V1.0
Contents
1. General Information................................................................................................................................................................6
1.1. Functionality......................................................................................................................................................................................................6
1.2. Compatible Device Overview...........................................................................................................................................................................6
1.3. Default Parameters & Ways of Parameter Conguration...........................................................................................................................6
2. Technical Specications .......................................................................................................................................................12
2.1. Electrical & Mechanical Characteristics.........................................................................................................................................................12
2.2. Main Unit, LED & Connector Functionality....................................................................................................................................................13
2.3. Wiring Diagrams ................................................................................................................................................................................................14
3. INSTALLATION ...................................................................................................................................................................... 20
4. GENERAL OPERATION........................................................................................................................................................... 24
5. CONFIGURATION METHODS ..................................................................................................................................................25
5.1. Remote System Conguration via GPRS Connection............................................................................................................................... 26
6. PASSWORDS.......................................................................................................................................................................... 28
7. MULTI-LANGUAGE SUPPORT................................................................................................................................................ 29
8. USER PHONE NUMBERS ....................................................................................................................................................... 30
8.1. User Phone Number Names ..........................................................................................................................................................................31
8.2. System Control from any Phone Number....................................................................................................................................................31
9. DATE AND TIME ......................................................................................................................................................................33
10. USER PASSWORDS................................................................................................................................................................ 34
10.1. User Password Names....................................................................................................................................................................................35
11. iBUTTON KEYS ...................................................................................................................................................................... 36
11.1. Adding and Removing iButton Keys............................................................................................................................................................ 36
11.2. iButton Key Names..........................................................................................................................................................................................37
12. ARMING AND DISARMING..................................................................................................................................................... 38
12.1. Free of Charge Phone Call............................................................................................................................................................................. 38
12.2. SMS Text Message.......................................................................................................................................................................................... 39
12.3. EKB2 Keypad and User Password ................................................................................................................................................................ 40
12.4. EKB3/EKB3W Keypad and User Password................................................................................................................................................. 40
12.5. iButton Key...................................................................................................................................................................................................... 41
12.6. EWK1 Wireless Keyfob................................................................................................................................................................................... 42
12.7. Arm-Disarm by Zone...................................................................................................................................................................................... 42
12.8. EGR100 Middle-Ware..................................................................................................................................................................................... 43
12.9. Disabling and Enabling Arm/Disarm Notications.................................................................................................................................... 43
13. EXIT AND ENTRY DELAY ....................................................................................................................................................... 45
14. ZONES.................................................................................................................................................................................... 47
14.1. Zone Numbering............................................................................................................................................................................................. 47
14.2. Zone Expansion .............................................................................................................................................................................................. 47
14.3. 6-Zone Mode................................................................................................................................................................................................... 47
14.4. ATZ (Advanced Technology Zone) Mode.................................................................................................................................................... 48
14.5. Zone Type Denitions ................................................................................................................................................................................... 49
14.6. Zone Attributes .............................................................................................................................................................................................. 50
14.7. Bypassing and Activating Zones...................................................................................................................................................................52
14.8. Zone Names .....................................................................................................................................................................................................53
14.9. Disabling and Enabling Zones .......................................................................................................................................................................53
15. STAY MODE.............................................................................................................................................................................55
16. TAMPERS................................................................................................................................................................................56
16.1. Tamper Names................................................................................................................................................................................................ 56
17. ALARM INDICATIONS AND NOTIFICATIONS ..........................................................................................................................57
17.1. Enabling and Disabling Alarm Notications............................................................................................................................................... 58
18. PROGRAMMABLE (PGM) OUTPUTS.......................................................................................................................................61
18.1. PGM Output Numbering .................................................................................................................................................................................61
18.2. PGM Output Expansion...................................................................................................................................................................................61
18.3. PGM Output Names........................................................................................................................................................................................ 62
18.4. Turning PGM Outputs ON and OFF............................................................................................................................................................... 62
18.5. PGM Output Control by Event and Scheduler ............................................................................................................................................ 64
18.6. Wireless PGM Output Type Denitions....................................................................................................................................................... 65

4
4EN MANUAL ELDES ESIM364 V1.0
19. WIRELESS DEVICES............................................................................................................................................................... 66
19.1. Binding, Removing and Replacing Wireless Devicess.............................................................................................................................. 66
19.2. Wireless Device Information and Signal Status Monitoring.................................................................................................................... 67
19.3. Disabling and Enabling Siren if Wireless Signal is Lost ............................................................................................................................ 69
20. SIREN/BELL........................................................................................................................................................................... 70
20.1. BELL Output Status Monitoring....................................................................................................................................................................71
20.2. Bell Squawk......................................................................................................................................................................................................71
20.3. Indication by EWS2 Indicators.......................................................................................................................................................................72
21. BACKUP BATTERY, MAINS POWER SUPPLY STATUS MONITORING AND MEMORY..............................................................73
22. GSM CONNECTION AND ANTENNA STATUS MONITORING....................................................................................................76
23. PARTITIONS .......................................................................................................................................................................... 78
23.1. Zone Partition ................................................................................................................................................................................................. 78
23.2. User Phone Number Partition...................................................................................................................................................................... 78
23.3. Keypad Partition and Keypad Partition Switch.......................................................................................................................................... 79
23.4. User Password Partition................................................................................................................................................................................ 80
23.5. iButton Key Partition ..................................................................................................................................................................................... 81
23.6. EWK1 Wireless Keyfob Partition .................................................................................................................................................................. 81
24. TEMPERATURE SENSORS ..................................................................................................................................................... 82
24.1. Adding, Removing and Replacing Temperature Sensors ........................................................................................................................ 82
24.2. Primary and Secondary Temperature Sensors.......................................................................................................................................... 83
24.3. Setting Up MIN and MAX Temperature Boundaries. Temperature Info SMS ....................................................................................... 84
24.4. Temperature Sensor Names......................................................................................................................................................................... 85
25. REMOTE LISTENING AND 2-WAY VOICE COMMUNICATION.................................................................................................. 86
26. SYSTEM INFORMATION. INFO SMS....................................................................................................................................... 87
26.1. Periodic Info SMS............................................................................................................................................................................................ 87
27. SYSTEM NOTIFICATIONS ...................................................................................................................................................... 89
27.1. SMSC (Short Message Service Center) Phone Number............................................................................................................................ 92
28. EVENT LOG ............................................................................................................................................................................ 93
29. INDICATION OF SYSTEM FAULTS .......................................................................................................................................... 94
30. Monitoring Station............................................................................................................................................................... 96
30.1. Data Messages – Events................................................................................................................................................................................ 97
30.2. Communication............................................................................................................................................................................................. 103
31. DUAL SIM MANAGEMENT ....................................................................................................................................................113
31.1. Disabled Mode............................................................................................................................................................................................... 113
31.2. Automatic Mode ........................................................................................................................................................................................... 113
31.3. Manual Mode..................................................................................................................................................................................................115
32. ELDES WIRED DEVICES ........................................................................................................................................................117
32.1. RS485 Interface ............................................................................................................................................................................................117
32.2. 1-Wire Interface............................................................................................................................................................................................ 131
32.3. Modules Interface ........................................................................................................................................................................................ 132
33. ELDES WIRELESS DEVICES.................................................................................................................................................. 136
33.1. EKB3W - Wireless LED Keypad ...................................................................................................................................................................136
33.2. EW1 - Wireless Zone & PGM Output Expansion Module ........................................................................................................................ 139
33.3. EWP1 – Wireless Motion Detector ............................................................................................................................................................. 141
33.4. EWD1 – Wireless Magnetic Door Contact.................................................................................................................................................. 143
33.5. EWK1 - Wireless Key-Fob ............................................................................................................................................................................ 145
33.6. EWS1 – Wireless Indoor Siren..................................................................................................................................................................... 147
33.7. EWS2 – Wireless Outdoor Siren.................................................................................................................................................................. 150
33.8. EW1B - Battery-Powered Wireless Zone & PGM Output Expansion Module...................................................................................... 152
34. SMART SECURITY ................................................................................................................................................................156
35. TEHNICAL SUPPORT ............................................................................................................................................................159
35.1. Troubleshooting ........................................................................................................................................................................................... 159
35.2. Restoring Default Parameters ................................................................................................................................................................... 159
35.3. Updating the Firmware via USB Cable Locally......................................................................................................................................... 159
35.4. Updating Firmware via GPRS Connection Remotely ..............................................................................................................................160
35.5. Frequently Asked Questions...................................................................................................................................................................... 161
36. Related Products.................................................................................................................................................................163

5
5EN
MANUAL ELDES ESIM364 V1.0
Limited Liability
The buyer must agree that the system will reduce the risk of re, theft, burglary or other dangers but does not guarantee against such
events.
“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system.
“ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not aliated with any of the
cellular providers therefore is not responsible for the quality of cellular service.
Manufacturer Warranty
The system carries a 24-month warranty by the manufacturer “ELDES UAB”. Warranty period starts from the day the system has been
purchased by the end user. The warranty is valid only if the system has been used as intended, following all guidelines listed in the manual
and within specied operating conditions. Receipt must be kept as a proof of purchase date.
The warranty is voided if the system has been exposed to mechanical impact, chemicals, high humidity, uids, corrosive and hazardous
environments or other force majeure factors.
Package Content
1. ESIM364..................................... ...............qty. 1
2. Microphone................................................qty.1
3. SMA antenna............................. ...............qty. 2
4. Back-up battery connection wire .........qty. 1
5. User manual.............................................. qty. 1
6. Resistor 5,6k........................................qty. 12
7. Resistor 3,3k........................... ...............qty. 6
8. Plastic holders..........................................qty. 4
About Installation Manual
This document describes detailed installation and operation process of alarm system ESIM364. It is very important to read the installation
manual before starting to use the system.
Copyright © “ELDES UAB”, 2012. All rights reserved
It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization
by “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning.
Hereby, “ELDES UAB” declares that this GSM alarm and management system ESIM364 is in compliance with the essential require-
ments and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt

6
6EN MANUAL ELDES ESIM364 V1.0
1. General Information
1.1. Functionality
ESIM364 – micro-controller based alarm system for houses, cottages, country homes, garages and other buildings, also capable of manag-
ing electrical appliances via cellular GSM/GPRS network. It can also be used as Intercom system.
The system can be used in the following applications:
tProperty security;
tAlarm switch;
tThermostat, heating and air-conditioner control, temperature monitoring;
tLighting, garden watering, water pump and other electrical equipment control via SMS text messages;
tRemote listening to what is happening in the secured area;
tMain 230V power status with SMS text message;
tTwo-way intercom device via GSM network.
1.2. Compatible Device Overview
Wired Devices
Device Description Max. Connectable Devices
EKB2 LCD keypad 4*
EKB3 LED keypad 4*
EA1 Audio output module with 3,5mm jack 1**
EA2 Audio amplier module 1W 8 1**
EPGM1 16 zone and 2 PGM output expansion module 2
EPGM8 8 PGM output expansion module 1**
Wireless Devices
Device Description Max. Connectable Devices
EW1 Wireless 2 zone and 2 PGM output expansion module 32***
EW1B Battery-powered wireless 2 zone and 2 PGM output expansion module 32***
EWP1 Wireless PIR movement sensor 32***
EWD1 Wireless magnetic door contact 32***
EWK1 Wireless key-fob with 4 buttons 5***
EWS1 Wireless indoor siren 32***
EWS2 Wireless outdoor siren 32***
EKB3W Wireless LED keypad 4***
* - A mixed combination of EKB2 and EKB3 keypads is supported. The combination can consist of up to 4 keypads in total.
** - Only 1 of these modules can be connected at a time if the module slots are implemented in ESIM364 unit.
*** - A mixed combination of wireless devices is supported. The combination can consist of up to 32 wireless devices in total.
1.3. Default Parameters & Ways of Parameter Conguration
Main Settings
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
SMS & EKB2 Menu Language Depends on rmware version according to user‘s lo-
cation 9 9 9 9
SMS Password 0000 9 9 9 9
User Password 1 1111 9 9 9
User Password 2... 30 N/A 9 9 9
User Password Name N/A 9
Administrator Password 1470 9 9 9
Duress Password N/A 9 9 9
SGS Password N/A 9 9 9
User 1... 10 Phone Number N/A 9 9 9 9
User 1... 10 Name N/A 9
Allow Control from Any Phone Number Disabled 9 9 9 9
Date & Time N/A 9 9 9 9
Exit Delay Partition 1... 4 9 9 9 9
Info SMS Scheduler Frequency (days) – 1; Time - 11 9 9 9 9

7
7EN
MANUAL ELDES ESIM364 V1.0
Zones
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Zone Name Z1 - Zone 1; Z2 - Zone 2; Z3 - Zone 3; Z4 - Zone 4; Z5 -
Zone 5; Z6 - Zone 6 9 9
Entry Delay 15 seconds 9 9 9 9
On-Board Zone Delay 800 milliseconds 9
EPGM1 Zone Delay 800 milliseconds 9
On-board Z1 Zone Type Delay 9 9 9
On-board Z2... Z12 Zone Type Instant 9 9 9
Keypad Zone Type Instant 9 9 9
EPGM1 Zone Type Instant 9 9 9
Wireless Zone Type Depends on the connected wireless device 9 9 9
Virtual Zone Type Follow 9 9
ATZ Mode Disabled 9 9 9
6-Zone Mode: Zone Connection Type Type 1 9 9 9
ATZ Mode: Zone Connection Type Type 4 9 9 9
On-board Zone Status Enabled 9 9 9 9
Keypad Zone Status Disabled 9 9 9 9
EPGM1 Zone Status Enabled 9 9 9 9
Wireless Zone Status Depends on the connected wireless device 9 9 9 9
Virtual Zone Status Disabled 9 9
Stay attribute for individual zone Disabled 9 9 9
Arm-Disarm by Zone N/A 9 9 9
Force atrribute for individual zone Disabled 9 9 9
Tamper Name Tamper 1, Tamper 2, Tamper 3, Tamper 4, Tamper 5,
Tamper 6 etc. 9
Chime Enabled 9 9 9
PGM Outputs
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
PGM Output Name C1 – Controll1, C2 – Controll2, C3 – Controll3, C4 – Con-
troll4 etc. 9 9
PGM Output Status Disabled 9 9 9 9
EPGM8 PGM Output Status Disabled 9 9 9 9
EPGM1 PGM Output Status Disabled 9 9 9
Wireless PGM Output Status Enabled 9 9 9 9
Wireless PGM Output Type Depends on the connected wireless device 9
PGM Output Control by Event 1... 16 Disabled 9 9
PGM Output Control by Event Manage-
ment 9
Scheduler 1... 16 Disabled 9
Turn ON/OFF PGM Output by Timer 9
Using Module EPGM8 Mode Disabled 9 9 9
Alarm Duration & Siren
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Alarm Duration 1 minute 9 9 9 9
EWS2 LED Disabled 9 9
Bell Squawk Disabled 9 9 9
Activate Siren if Wireless Device is Lost Disabled 9 9 9

8
8EN MANUAL ELDES ESIM364 V1.0
Alarm Notications & Arm/Disarm Notications
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Call in Case of Alarm Disabled 9 9 9
Send Alarm SMS to All Users Simulta-
neously Disabled 9 9 9 9
Send Arm/Disarm SMS to User 1... 10 Enabled 9 9 9
Send Arm/Disarm SMS to All Selected
Users Simultaneously Disabled 9 9 9 9
Main Power Status
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Main Power Loss Delay 30 seconds 9 9 9
Main Power Restore Delay 120 seconds 9 9 9
Peripheral Devices
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Temperature Sensor 1... 8 Name N/A 9 9
Primary Temeprature Sensor No. 1 9 9 9 9
Secondary Temperature Sensor No. 2 9 9 9 9
Temperature Sensor 1... 8 MIN 0 °C 9 9 9 9
Temperature Sensor 1... 8 MAX 0 °C 9 9 9 9
Allow adding New iButton Keys Disabled 9 9 9 9
iButton 1... 5 Name N/A 9
System Notications
Parameter Parameter
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
System Armed Enabled 9 9 9
System Disarmed Enabled 9 9 9
General Alarm Enabled 9 9 9
Mains Power Loss/Restore Enabled 9 9 9 9
Battery Failed Enabled 9 9 9
Battery Dead or Missing Enabled 9 9 9
Low Battery Enabled 9 9 9
Siren Fail/Restore Enabled 9 9 9
Date/Time Not Set Enabled 9 9 9
GSM Connection Failed Disabled 9 9 9
GSM Antenna Fail/Restore Disabled 9 9 9
Tamper Alarm Disabled 9 9 9
Keypad Failed Enabled 9 9 9
Temperature Info Enabled 9 9 9 9
System Started Enabled 9 9 9
Periodical Info Enabled 9 9 9
Wireless Signal Loss Enabled 9 9

9
9EN
MANUAL ELDES ESIM364 V1.0
Partitions
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Partition 1 Name PART1 9 9 9
Partition 2 Name PART2 9 9 9
Partition 3 Name PART3 9 9 9
Partition 4 Name PART4 99 9
Keypad 1... 4 Partition PART1 9 9 9
Keypad Partition Switch Disabled 9 9 9
User Password 1... 30 Partition PART1 9 9 9
User 1... 10 Phone Number Partition PART1 9 9 9
iButton 1.. 10 Partition PART1 9 9 9
Zone partition PART1 9 9 9
Monitoring Station
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
MS Mode Disabled 9 9 9 9
Data Messages All Enabled 9 9 9
Account (Alarm System ID) 9999 9 9 9
Monitoring Station Phone Number 1... 3
(Voice Calls/SMS) N/A 9 9 9
Attempts (Voice Calls/SMS) 3 9 9 9
Monitoring Station Phone Number 1...
3 (PSTN) N/A 9 9 9
Attempts (PSTN) 3 9 9 9
Monitoring Station Phone Number 1...
5 (CSD) N/A 9 9 9
Attempts (CSD) 3 9 9 9
Server IP Address (GPRS) 0.0.0.0 9 9 9 9
DNS1 Server IP Address (GPRS) N/A 9 9 9 9
DNS2 Server IP Address (GPRS) N/A 9 9 9 9
Protocol (GPRS) UDP 9 9 9 9
Server Port (GPRS) 20000 9 9 9 9
Local Port (GPRS) N/A 9 9 9 9
SIM1 APN (GPRS) N/A 9 9
SIM1 User (GPRS) N/A 9 9
SIM1 Password (GPRS) N/A 9 9
SIM2 APN (GPRS) N/A 9
SIM2 User (GPRS) N/A 9
SIM2 Password (GPRS) N/A 9
Prole (GPRS) Prole1 9 9
GPRS Attempts 3 9 9 9
Delay Between Attempts (GPRS) 600 seconds 9 9 9
Unit ID (GPRS) 0000 9 9 9
Test Period (GPRS) 180 seconds 9 9 9
Communication - Primary N/A 9 9 9
Communication - Backup 1... 5 N/A 9 9 9
Protocol over GPRS EGR100 9

10
10 EN MANUAL ELDES ESIM364 V1.0
Additional Parameters
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Event Log Enabled 9 9 9
Microphone Gain 12 9 9
Speaker Level 85 9 9
GSM Signal Loss Indication - Delay 180 seconds 9
GSM Signal Loss Indication - Activate
Output N/A 9
Show ARMED Status in Keypad (EKB2) Disabled 9
Dual-SIM Management
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
SIM Card Switch Disabled 9
Return to Primary SIM Enabled 9
Send SMS / Call via Currently in Use SIM 9
Try to Find Operator for a Maximum of 3 times 9
Smart Security
Parameter Default Value
Congurable by:
SMS EKB2 EKB3/
EKB3W
Conguration
Tool
Smart Security Disabled 9
Server Address cong.eldes.lt 9
Port 8082 9
Ping Period 180 seconds 9
Time Zone 0 9

11
11EN
MANUAL ELDES ESIM364 V1.0

12
12 EN MANUAL ELDES ESIM364 V1.0
2.Technical Specications
2.1. Electrical & Mechanical Characteristics
Electrical & Mechanical Characteristics
Main Power Supply 16-24V 50 Hz ~1.5A max / 18-24V 1,5A max
Current in Standby without External Sensors and Keypad Up to 80mA
Recommended Backup Battery Voltage, Capacity 12V; 1,3-7Ah
Recommended Backup Battery Type Lead-Acid
Maximum Battery Charge Current 900mA
GSM Modem Frequency 850/900/1800/1900MHz
Cable Type for GSM Antenna Connection Shielded
Number of Zones on Board 6 (ATZ mode: 12)
Nominal Zone Resistance 5,6k (ATZ Mode: 5,6k and 3,3k)
Number of PGM Outputs on Board 4
ESIM364 PGM Output Circuit
Maximum Commuting PGM Output Values Voltage – 30V; Current – 100mA;
BELL: Siren Output when Activated Connected to COM
BELL: Maximum Siren Output Current 1A
BELL: Maximum Cable Length for Siren Connection up to 30 meters
BELL: Cable Type for Siren Connection Unshielded
AUX: Auxiliary Equipment Power Supply Voltage 13,8V DC
AUX: Maximum Accumulative Current of Auxiliary Equipment 1,1A
AUX: MaximumCableLength for AuxiliaryEquipmentConnection up to 100 meters
AUX: Cable Type for Auxiliary Equipment Connection Unshielded
BUZ: Maximum Current of Mini Buzzer 150mA
BUZ: Power Supply Voltage of Mini Buzzer 5V DC
BUZ: Cable Type for Mini Buzzer Connection Unshielded
Dimensions 140x100x18mm
Operating Temperature Range -20...+550C
Supported Temperature Sensor Model Maxim®/Dallas® DS18S20, DS18B20
Maximum Supported Number of Temperature Sensors 8
DATA: Maximum Cable Length for 1-Wire® Communication up to 30 meters
DATA: Cable Type for 1-Wire® Communication Unshielded
Supported iButton® Key Model Maxim®/Dallas® DS1990A
Maximum Supported Number of Keypads 4 x EKB2 / EKB3
Y/G: Maximum Cable Length for RS485 Communication up to 100 meters
Y/G: Cable Type for RS485 Communication Unshielded
MIC: Maximum Cable Length for Microphone Connection Up to 2 meters
MIC: Cable Type for Microphone Connection Unshielded
Wireless Transmitter-Receiver Frequency 868 Mhz
Wireless Communication Range Up to 30m in premises; up to 150m in open areas
Maximum Supported Number of Wireless Devices 32
Event Log Size 500 events
Maximum Supported Number of Zones 76
Maximum Supported Number of PGM Outputs 76
Cable Type for Zone and PGM Output Connection Unshielded
Communications SMS, Voice calls, GPRS network, RS485, CSD, PSTN
Supported Protocols Ademco Contact ID, 4+2, EGR100, Kronos, Cortex SMS
1 R OUT Open Collector Output.
Output is pulled to COM
when turned ON.

13
13EN
MANUAL ELDES ESIM364 V1.0
2.2. Main Unit, LED & Connector Functionality
Main Unit Functionality
GSM MODEM GSM network 850/900/1800/1900MHz
modem
SIM CARD1 Primary SIM card slot / holder
SIM CARD2 Secondary SIM card slot / holder
DEF Pins for restoring default settings
USB Mini USB port
FUSE F1 3A fuse
W-LESS ANT Wireless antenna SMA type connector
GSM ANT GSM antenna SMA type connector
MODULES* Slots for EA1, EA2 or EPGM8 module
G S M
MO D E M
ANTW-LESS GSM ANT
TIP
FUSE F1
RING
DEF
SIM CARD1
SIM CARD2
PRG
USB
AKU+
AKU-
C 2 C 3
C 3
C 4
C 4
C 1
S TA T
NE TW
C O M BELL- BELL+ G Y C2
AUX-
AUX+
AC /DC
AC /DC
Z1
C O M
Z2 Z3
C O M
Z4
DA T A
+5V
M IC -
MI C +
BU Z -
C1
BU Z +
C O M C O M
Z6 Z5
3A
MODULES
OPENOPEN
1
LED Functionality
NETW GSM network signal strength
C1 PGM output C1 status - on/o
C2 PGM output C2 status - on/o
C3 PGM output C3 status - on/o
C4 PGM output C4 status - on/o
STAT Micro-controller status
Connector Functionality
TIP* PSTN (landline) terminal
RING* PSTN (landline) terminal
DATA 1-Wire® interface for iButton key & temperature sensor connection
+5V Temperature sensor power supply terminal (+5V)
MIC- Microphone negative terminal
MIC+ Microphone positive terminal
BUZ- Buzzer negative terminal
BUZ+ Buzzer positive terminal
C1 - C4 PGM output terminals
Z1 - Z6 Security zone terminals
Y RS485 interface for communication (yellow wire)
G RS485 interface for communication (yellow wire)
COM Common return terminal
BELL- Siren negative terminal
BELL+ Siren positive terminal
AUX- Negative power supply terminal for auxiliary equipment
AUX+ Positive power supply terminal for auxiliary equipment
AC/DC Main power supply terminals
AKU- Backup battery negative terminal
AKU+ Backup battery positive terminal
* - Optional, implementable on request in advance

14
14 EN MANUAL ELDES ESIM364 V1.0
2.3. Wiring Diagrams
2.3.1.General Wiring
C O M
BELL- BELL+ G Y C2
AUX-
AUX+
AC /DC
AC /DC
Z1
C O M
Z2 Z3
C O M
Z4
DATA
+5V
MIC -
MIC +
BUZ-
C1
BUZ+
C O M
C O M
Z6 Z5
MIC
BUZ
SIREN/BELL
iButton
key reader
Temperature sensor EKB2EKB3
EPGM1
Z1 Z2
Backup Battery
12V 1.3-7Ah
Metal cabinet
PE terminal
Relay
module
1A max.
Z4 Z3 Z5 Z6
Fuse 500 mA
~230V 50Hz
~16-24V
AKU+
AKU-
5,6 kΩ
5,6 kΩ 5,6 kΩ
5,6 kΩ
5,6 kΩ 5,6 kΩ
2
2.3.2. Zone Connection Types
Type 1 Example of magnetic door contact wiring
COM
NO
Magnet
COM
Z1
5,6 kΩ
3
6-Zone mode: Nor-
mally open contact
with 5,6K end-of-
line resistor.
Type 2 Example of 4-wire smoke detector wiring
Z1
COM
AUX+
+Vin
GND
C1
COM
NC
5,6 kΩ
3
6-Zone mode: Nor-
mally closed contact
with 5,6K end-of-
line resistor

15
15EN
MANUAL ELDES ESIM364 V1.0
Type 3 Example of motion detector wiring
Z1
COM
COM
AUX+
AUX-
+Vin
GND
NC
TAMP
5,6 kΩ 3,3 kΩ
5
6-Zone mode: Tamper
and 5,6K end-of-line
resistor and 3,3K
end-of-line resistor
with normally closed
contact.
Type 4 Example of magnetic door contact (Z1) and glass break sensor (Z7) wiring
AUX+
+Vin
AUX-
GND
COM
COM
NC
NC
COM
Z1
5,6 kΩ
3,3 kΩ
Magnet
6
ATZ mode: 5,6K
end-of-line resistor
and normally closed
contact with 3,3K
end-of-line resistor
and normally closed
contact
Type 5 Example of motion detector (Z1) and magnetic door contact (Z7) wiring
Z1
COM
COM
COM
AUX+
AUX-
+Vin
GND
NC
NC
TAMP
5,6 kΩ5,6 kΩ 3,3 kΩ
Magnet
ATZ mode: Tamper,
5,6K end-of-line
resistor, 5,6K
end-of-line resistor
with normally closed
contact and 3,3K
end-of-line resistor
with normally closed
contact.
7

16
16 EN MANUAL ELDES ESIM364 V1.0
2.3.3. Siren
RED +
BLACK -
BELL-
BELL+
SIREN/BELL
1A max.
82-wired siren
1 Connect positive siren wire (red) to BELL+ ter-
minal.
2 Connect negative siren wire (black) to BELL-
terminal.
+12V
GND
BELL
BELL-
BELL+
COM
SIREN/BELL
1A max.
9Self-contained siren
1 Connect negative GND siren wire to COM termi-
nal.
2 Controlling BELL siren wire must be connected
to BELL- terminal.
3 Connect positive +12V siren wire to BELL+ ter-
minal.
BELL-
BELL+
10 No siren
If siren/bell is not in use, connect a resistor of nom-
inal ranging from 7  through 3,3  across BELL+
and BELL- terminals. If the resistor is not connect-
ed, the system will indicate system fault.
See also 20. SIREN/BELL.
NOTE: BELL- is the commuted contact intended for siren control.
NOTE: Ensure that the inner resistance of the siren/bell is ranging from 7  through 3,3 , otherwise the system will indicate system fault.

17
17EN
MANUAL ELDES ESIM364 V1.0

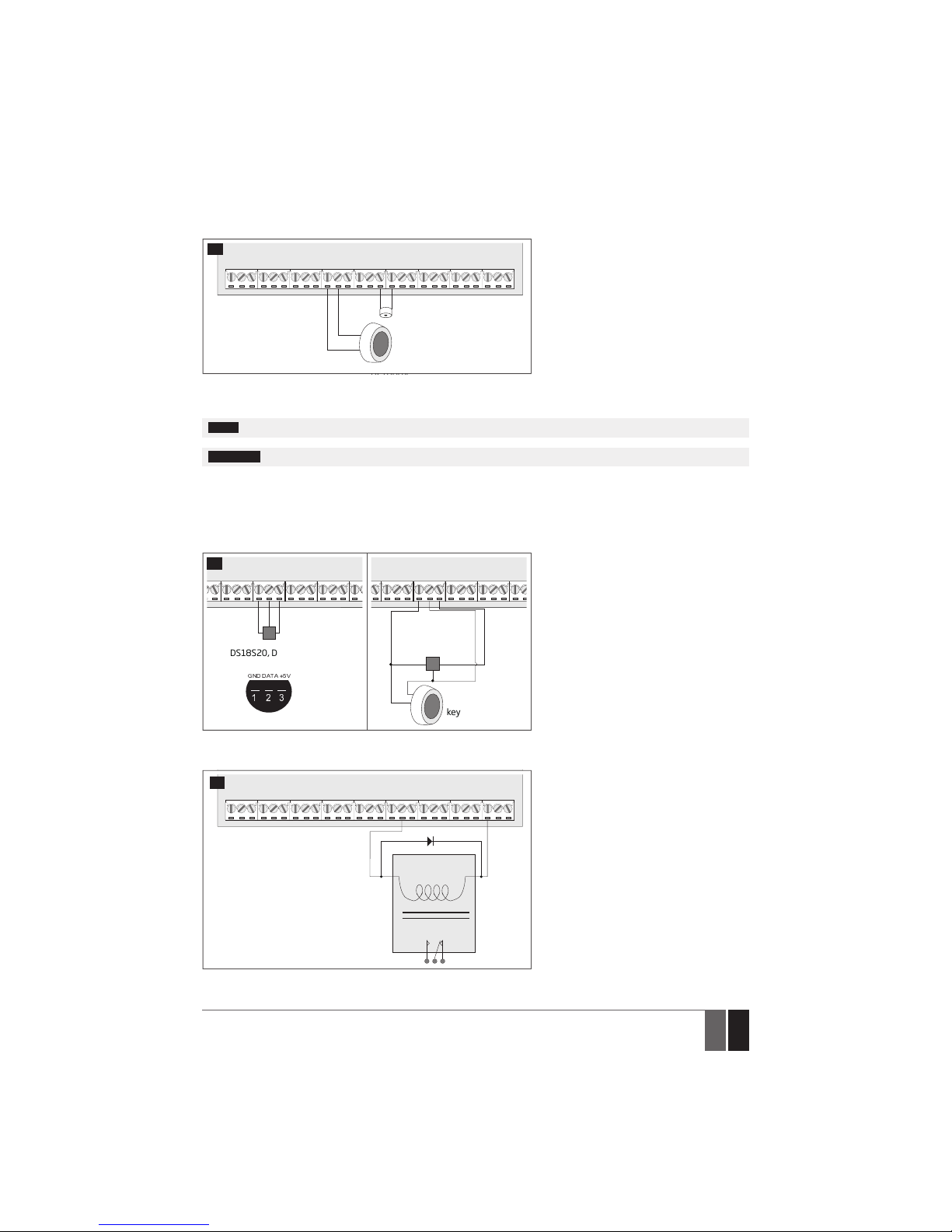

2.3.4. iButton Key Reader and Buzzer
BUZ-
BUZ+
+-
DATA
COM
BUZZER
iButton
key reader
DS1990A
11 Supported iButton key model: Maxim/Dallas
DS1990A
The iButton key reader can be installed with buzzer
or separately. The buzzer is intended for audio in-
dication of exit/entry delay countdown providing
short beeps.
1 Connect iButton key reader terminal wires to
1-Wire interface: COM and DATA terminals res-
pectively.
2 Connect buzzer‘s negative terminal wire to BUZ-
and positive terminal wire to BUZ+.
3 Additionally, a LED indicator for visual indication
can be installed in parallel to buzzer or instead.
Connect LED anode terminal to BUZ- and catho-
de to BUZ+.
NOTE: The installation of buzzer is not necessary if EKB2/EKB3 keypad is used.
ATENTION: The cable length for connection to 1-Wire interface can be up to 30 meters max.
2.3.5. Temperature Sensor and iButton Key Reader
Supported iButton key model: Maxim/Dallas DS1990A
Supported temperature sensor model: Maxim/Dallas DS18S20, DS18B20
COM
DATA
+5V
COM
DATA
+5V
1 3
2
TEMPERATURE SENSOR
BOTTOM VIEW
         
DS18S20, DS18B20
  
123
iButton
key reader
DS1990A
TEMPERATURE
SENSOR
DS18S20,
DS18B20
12 1 Connect temperature sensor 1, 2, 3terminals to
1-Wire interface: COM, DATA and +5V terminals
respectively.
2 When connecting iButton key reader in parallel
to temperature sensor, connect iButton key rea-
der terminal wires to COM and DATA terminals
respectively.
2.3.6. Relay Finder® 40.61.9.12 with Terminal Socket 95.85.3 to PGM Output
LED
A1
C1
AUX+
A2
COIL
RELAY
13
1 Wire up relay A2 terminal to PGM output Cx and
A1 terminal to AUX+.
2 In addition, connect LED anode terminal to relay
A2 terminal and cathode to A1 terminal.

18
18 EN MANUAL ELDES ESIM364 V1.0
2.3.7. RS485
Serial Wiring Method
ESIM364
a
b c d
e
f
EKB2/EKB3 EKB2/EKB3 EKB2/EKB3 EKB2/EKB3
EPGM1
EPGM1
Max. cable length: a+b+c+d+e+f= up to 100 meters
NOTE: If necessary, the RS485 devices can be powered from anexternal 12-14V DC power supply instead of AUX+ and AUX- terminals
ATTENTION: The cable length must not exceed 100 meters in total.
ATTENTION: When wiring more than 1 keypad and/or EPGM1 module, please ensure that the set address of each keypad and/or EPGM1
module is dierent.
NOTE: You may connect only 1 EKB2/EKB3 keypad or a mixed combination of EKB2 and EKB3 keypads. The combination can consist of
up to 4 keypads in total.
For more details on RS485 device installation, please refer to 32.1. RS485 Interface

19
19EN
MANUAL ELDES ESIM364 V1.0
Parallel Wiring Method
ESIM364
Max. cable length: up to 100 meters
EPGM1 EPGM1 EKB2/EKB3 EKB2/EKB3 EKB2/EKB3
NOTE: If necessary, the RS485 devices can be powered from anexternal 12-14V DC power supply instead of AUX+ and AUX- terminals
ATTENTION: The cable between ESIM364 and each RS485 device must be of the same length and can NOT exceed 100 meters.
ATTENTION: When wiring more than 1 keypad and/or EPGM1 module, please ensure that the set address of each keypad and/or EPGM1
module is dierent.
NOTE: You may connect only 1 EKB2/EKB3 keypad or a mixed combination of EKB2 and EKB3 keypads. The combination can consist of
up to 4 keypads in total.
For more details on RS485 device installation, please refer to 32.1. RS485 Interface
2.3.8. RING/TIP
RING
TIP ESIM364
to PSTN
(landline)
14 ATTENTION: The TIP/RING connectors and PSTN module are NOT
included in a standard ESIM364 alarm system unit. These components
are optional and can be implemented on request in advance.

20
20 EN MANUAL ELDES ESIM364 V1.0
3.INSTALLATION
x The system can be installed in a metal or non-ammable cabinet only. For a convenient installation, ME1 metal cabinet is highly recom-
mended. When using a dierent metal cabinet, it is necessary to ground it.
x For the connection of 230V transformer, use 3x0.75 mm21 thread double isolated cable. 230V power supply cables must not be
grouped with low voltage cable group.
x For the connection of auxiliary and BELL outputs, use 2x0.75 mm21 thread unshielded cable of up to 100 meters length.
x For the connection of zone/PGM output connectors, use 0.50 mm21 thread unshielded cable of up to 100 meters length.
System Installation in ME1 Metal Cabinet
1. ME1 metal cabinet components
15
Tamper switch
to AC main power line
to AC/DC terminals
of ESIM364 system
Phase
PE
Null blue
brown
Fuse 1A
Transformer
(Primary voltage: 230V AC,
Secondary voltage: 17V 2,35A)
2. Insert the plastic holders into the appropriate mounting points and x the board of ESIM364 on the holders as indicated below.
mounting points
16
