EMG velociptor ES 110 OR User manual
USER GUIDE
velociptor ES 110 OR
Thank you for purchasing the electric scooter
VELOCIPTOR ES 110 OR.
Please read the manual before using the product, and
keep it in a safe place for future reference.
3
index
Note on user guide ....................................................................... 4
Warnings ....................................................................................... 5
First use ......................................................................................... 6
Folding and unfolding ................................................................. 9
Charging the the battery .......................................................... 11
Autonomy of VELOCIPTOR ES 110 OR ..................................... 12
Display ......................................................................................... 12
Remote control management .................................................. 15
How to use the scooter ............................................................. 16
Technical specications ............................................................. 16
Extract from current legislation in Italy.................................... 17
Information to users about household appliances ............... 18
Warranty ..................................................................................... 19
4
This manual provides the user a description of the characteristics and ope-
ration.
The use of the vehicle is the sole responsibility of the driver who, after re-
a-ding and understanding this manual, and after asking the seller and / or
the manufacturer for any clarications deemed necessary, considers him-
self suitable from a psychological and physical point of view to the use of
the vehicle.
The manufacturer declines any responsibility for damages of any kind and
entity caused to people or things as a result of using the vehicle.
The manufacturer reserves the right to make changes to the manual and
the product without prior notice.
Charger specication
Manufacturer: Shenzhen YongLeTong Electronic Technology Co., Ltd.
Model: YLT-546200
Input voltage and frequency: 100-240V ~50/60 Hz
Output voltage and current: 54,6 V 2A
Output power: 109,2 W
Average eciency in active mode: 88,11 %
Input Power in no-load condition: 0,16 W
Note on user guide
5
1. Use only the supplied power adapter.
2. The use of VELOCIPTOR ES 110 OR by minors must always be supervised
by an adult.
3. Do not drive VELOCIPTOR ES 110 OR with more than one person on the
platform, as it may cause loss of control of the vehicle.
4. Do not use VELOCIPTOR ES 110 OR in dangerous situations for your per
sonal safety and that of those close to you.
5. Do not use the vehicle after drinking alcohol, taking exciting or psychotro
pic substances that can alter the emotional state, the sensory abilities and
the ma-stery of the movements.
6. Always use suitable clothing that does not hinder your movements and
at sho-es (possibly sports shoes with a non-smooth rubber surface) that
ensure the necessary grip and stability.
7. As any means of locomotion, the use of VELOCIPTOR ES 110 OR carries
the risk of injury for those who use it and for other people nearby, due to
accidental falls or impacts. It is therefore necessary to always wear ade-
quate protections (such as a bicycle helmet, knee pads, elbow pads) and
pay the utmost attention not to damage people and things.
8. VELOCIPTOR ES 110 OR is not a toy.
9. VELOCIPTOR ES 110 OR has a degree of resistance to water and dust
(Water & Dust Proof) which makes its use possible in the presence of acci-
dental and non-persistent splashes. Therefore it is not allowed to use
VELOCIPTOR ES 110 OR in the presence of stagnant water, puddles or ad
verse weather conditions (such as rain, snow or hail). Use VELOCIPTOR
ES 110 OR in dry environments to avoid damage to the motor and electri
cal circuits.
10. Do not try to disassemble the product or its parts. Any repairs must be
carried out by authorized personnel, in compliance with the warranty con
ditions.
11. Before cleaning the device, disconnect the power supply. To clean, use a
cloth slightly moistened with water or a solution suitable for cleaning such
devices. Do not use alcohol or benzene. When nished, dry immediately
with a soft cloth.
12. Periodically check the correct tightening of all the screws present, to
check the absence of yokes on the handlebars and mechanical parts, the
correct adjustment of the brakes and the functioning of the front / rear
lights.
warnings
6
first use
Before rst use, it is recommended to make some adjustments in order to
adapt the scooter to your height and driving style.
Adjusting the folding mechanism
If the main bar is loose or dicult to bend, you can adjust it. Turn the nut
located at the bottom of the handlebar (visible after folding the scooter).
This screw also controls the scooter folding mechanism; if the locking lever
is too hard, loosen the nut.
On the other hand, if the lever is too loose, tighten the nut on the screw
axis, in order to prevent the handlebar rod from sliding down when pres-
sed from above.
Adjusting the brake levers position
It is possible to loosen the xing nuts of the brake levers and then change
their position, so that they are comfortable and safe for use.
Once the adjustment has been made, properly tighten the nuts.
7
first use
Display
It is possible to loosen the display xing bolts on the handlebar, and rota-
te it, so that it is clearly readable and the accelerator lever is comfortable
and safe for use. Once the adjustment has been made, properly tighten
the nuts.
Brakes
Disc brakes are adjusted at the factory.
a / braking intensity is adjusted by the screw on the brake lever (1) or by
the brake mechanism
(2) (3) (4).
b / the pads centering can be adjusted using the screws (4) on the brake
mechanism - gently loosen the bolts, adjust the brake disc so that it is cen-
tered between the pads, then tighten the bolts.
8
first use
Loosening of the handlebar
The handlebar may vibrate and this behaviour may increase over time. If
the mechanism swings too much, it can be adjusted with the screw (5) loca-
ted where the handlebar folds (when the handlebar is
bent, the bolt is visible). By loosening the bolt, the oscillation increases, and
vice versa. If the bolt is unscrewed too much, it may not be possible to fold
the scooter - in this case, tighten the bolt.
Tire type and pressure
The scooter is tted with 80/60-6 10 ”air tires.
The optimum tire pressure is around 40-45 p.s.i. / 2.8-3.1 bar.
Handlebar height
Open the quick release clamp, adjust the handlebar according to your hei-
ght and then carefully lock the clamp.
9
FOLDING AND UNFOLDING

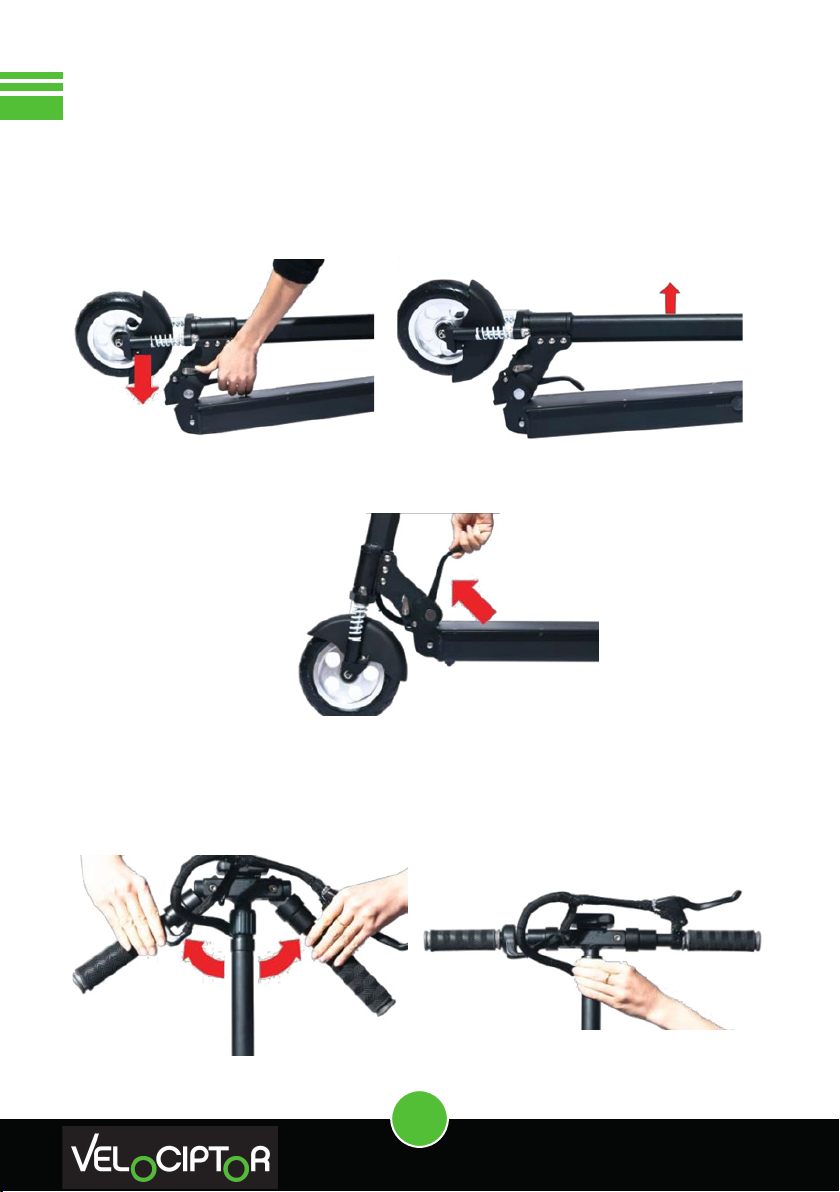

Folding the scooter
1. Open the quick release clamp on the handlebar, push it down and
lock the clamp.
2. Pull both handles outwards and fold the handlebar down
3. Push the lever down to unlock the folding mechanism.
4. Push the steering bar slightly forward, open the second folding le-
ver (“click” sound will be made) and continue folding the frame until it enga-
ges the locking mechanism (“click” sound again).
10
FOLDING AND UNFOLDING
Opening the scooter
1. Open the folding lever (“click” sound is made) and continue to open
the frame until the bar reaches the vertical position and the locking mecha-
nism engages (another “click” is heard).
2. Push the lever up until the xing lever locks.
3. Pull the handles upwards until you hear a “click”. Then open the
quick release clamp and adjust the handlebar height; nally carefully close
the clamp
11
Charging the battery
Before rst use, charge the battery to 100% capacity.
To make sure you reach your destination, we recommend that you fully
charge the battery when the display shows battery level with 2 bars.
NOTE: the battery must be charged every 30 days, even if the scooter is
not used; if the battery is not charged regularly, it will lose eciency until
completely discharged; in this case, we cannot acknowledge the warranty
on the product.
Charging procedure
1. Open the charging socket protective cap located on the side of the sco-
oter and connect the charging plug of the charger, paying attention to the
direction of insertion
2. Connect the charger to the wall socket at 220V
3. The charging process is in progress with red charger LED light. The char-
ging process is complete when the charger LED turns green: the battery is
charged to 100% capacity.
4. Disconnect the charger from the wall socket and then the charging socket
from the e-scooter.
5. Carefully close the charger connector with the protective cap.
Always charge the battery in a dry and ventilated environment. Never cover
the charger during
charging process, otherwise it may be damaged. The charger is for indoor
use only.
12
Autonomy of VELOCIPTOR ES 110 OR
The maximum distance that can be traveled with a single battery
charge is approximately 35 km. However, this value must be con-
sidered indicative since it can be inuenced by numerous factors.
Among the factors that can most aect battery life are the following:
• Transported weight: other conditions being equal, a greater
tran-sported weight will lead to a reduction in the battery autonomy.
• Surface: at and sliding surfaces are less wasteful for the battery
compared to uneven terrain, with slopes or that present substantial
friction.
• Speed and driving style: a pace with frequent acceleration and bra-
king will discharge the battery faster than a regular and uniform pace.
• Correct use and maintenance of the battery: a correct mana-
ge-ment of the charge and discharge cycles of the battery (see para-
graph “How to recharge the battery”) will help to keep the full ecien-
cy of the battery longer and delay its natural decay.
Display
13

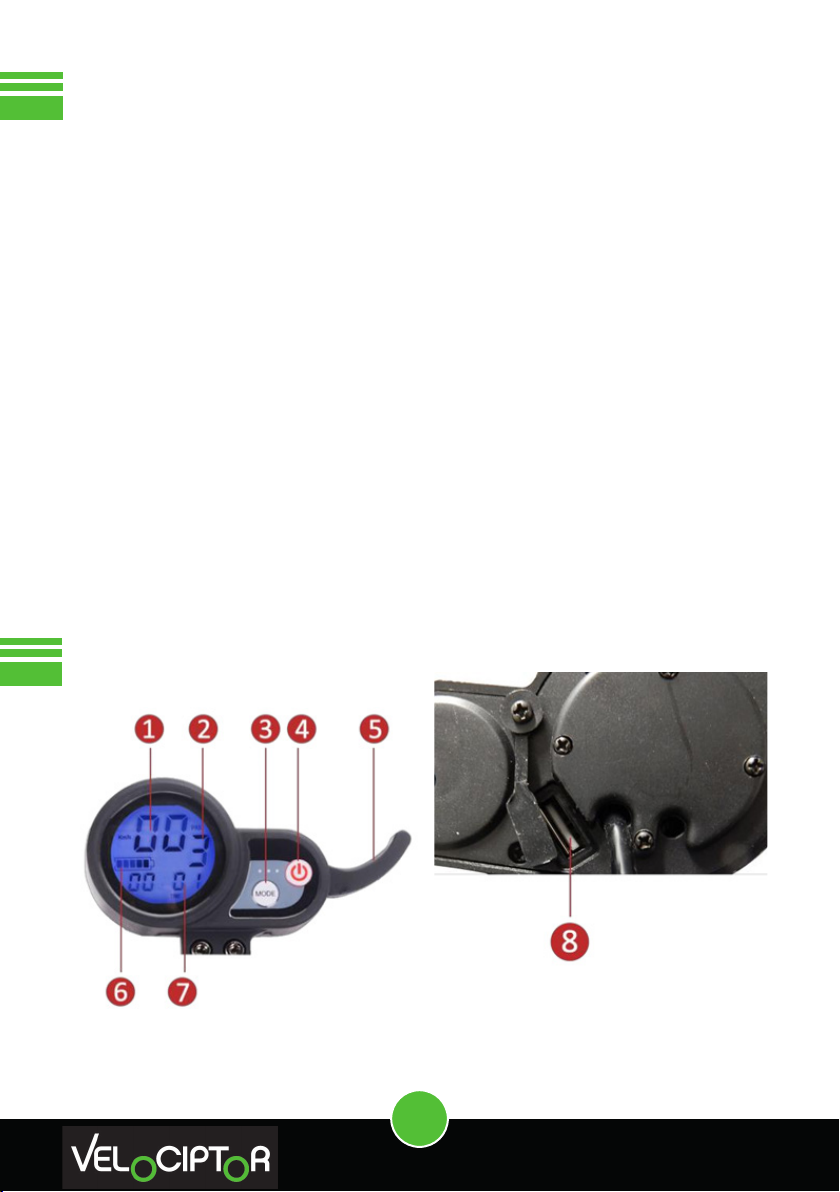

1 Speed 2 Speed level 3 Mode button
4 Power button 5 Throttle 6 Battery charge level
7 Travel time 8 USB port (on the back of the display)
Values displayed
a / current speed in km/h
b / speed level: 1 - ECO up to 6 Km/h; 2 - DRIVE up to 20 Km/h; 3 - SPORT up
to 25 Km / h
c / Battery charge level (the indicator varies according to the instantaneous
load / consumption of the engine)
d / travel time
e / PAS: push start (you need a push to start the accelerator)
SPEED LEVELS
The scooter has three speed levels.
To change the speed level:
1. briey press the power button: the speed level number starts ashing on
the display
2. Short press the Mode button to change the speed level
3. To save the desired level, briey press the power button or leave the
display idle
Display functions
Short press the Mode button and the display will show the following infor-
mation:
• TRIP - single ride distance. Long press the Mode button to reset.
• ODO - total distance travelled in km
• VOL - current voltage (may uctuate during running / instant load)
• CH TIME - when you switch to this function, the display turns o after 2
hours, for example it could be useful while charging a mobile phone from
the USB port
• TIME - travel time
When the display is inactive for 3 minutes, it will turn o automatically (if
the CH TIME countdown is not active).
Cruise control
When you keep the same speed for about 10 seconds, cruise control is acti-
vated: the symbol appears on the display.
Cruise control keeps the engine power constant (the speed may vary de-
pending on the slope of the terrain) even if the accelerator is not pressed.
The cruise control function is interrupted by pressing any brake lever or the
accelerator - the symbol disappears.
Display
14
Display
USB Port
There is a USB port on the back of the display that allows you to charge a
phone or tablet while the scooter is on.

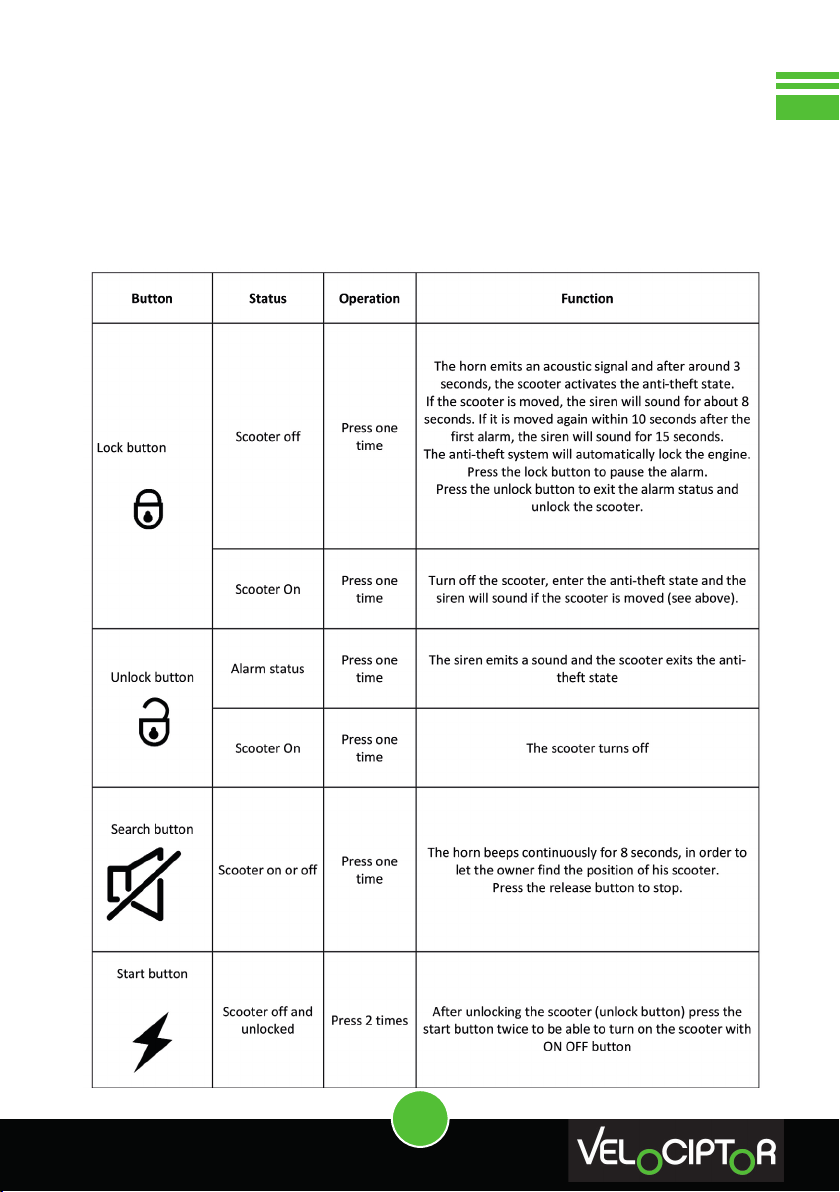

Lights and horn control
To activate the horn, press the green button on the keypad shown below.
The lights are controlled by pressing the red button; the type of light follows
the cycle:
Far light
Near light
Flashing light
Error message
If the scooter has any electronic issue, an error symbol may appear on the
display
Brake activation (this symbol is always displayed when the brake
lever is pressed)
Motor error
Accelerator error
Controller error
15
The scooter is equipped with a remote control which can control some fun-
ctions, as shown below.
The remote control works with CR2032 batteries, which must be replaced
when the remote control is not working any longer.
REMOTE CONTROL MANAGEMENT
16
Aluminum frame, maximum load 150 Kg
Foldable
80/60-6 10-inch air wheels
Motor power 500 W
3 speed levels: ECO 6 Km / h, Drive 20 Km / h, Sport 25 Km / h
48 V 13 Ah lithium battery - rechargeable in about 7 hours
LCD display
Rear and front disc brakes
Front and rear LED lights
Side stand
Weight about 25 Kg
Charger included
INPUT 100-240 V ~ 50/60 Hz
OUTPUT 54.6 V 2 A
Remote control frequency: 433.92 MHz
Remote control power: 20 mW
TECHNICAL SPECIFICATION
HOW TO USE THE SCOOTER
First of all, it is advisable to adjust the rear disc brake, tightening it or ma-
king it softer, according to your driving style.
Start the engine by pressing the ignition button.
Get on the scooter and make sure the stand is in the closed position; act
gently on the accelerator lever to start the electric motor.
To brake, release the accelerator, so that the engine brake works, or, for
more sudden braking, use the rear disc brake lever.
17
EXTRACT FROM CURRENT LEGISLATION IN ITALY
Since the kick scooter is considered as a velocipede in the current legislation, it is not
subject to any provisions relating to homologation, approval, registration, plate informa-
tion or insurance coverage.
Electric scooters can be used on urban roads with a speed limit of 50 km/h where the
circulation of velocipedes is allowed, and on suburban roads only within the cycle path
on the road side. On urban roads, it should circulate on cycle paths, if present.
Electric Scooter drivers:
• cannot exceed 25 km / h when driven on the road and 6 km / h when driven in pede-
strian areas.
• must proceed aligned in all cases where trac conditions require it, and in any case
when more than two people.
• if underage, they must wear suitable protective helmet.
• their arms and hands must be free, and must always hold the handlebar with both
hands, unless it is necessary to show the left or right turn
• must be able to see freely in front of them, both sides, and drive the scooter with the
maximum freedom.
• must wear the high-visibility retro-reective jacket or braces from half an hour after
sunset, during the whole period of darkness and during the day, if weather conditions
require to turn the lights on.
• cannot transport other people, objects or animals, tow vehicles or animals or be towed
by another vehicle.
The scooter must not be equipped with a seat for the user, because it is intended for use
with standing posture.
The scooter must be equipped with a speed limiter that does not allow them to exceed
25 km / h when they travel on the roadway and 6 km / h when they travel in pedestrian
areas.
The scooter must be equipped with a bell for acoustic signals.
As part of the experimentation of road trac, scooters can only be driven by adults aged
at least 18 years old, or by more than 14 years old with the obligation to use a suitable
helmet.
Although not expressly referred to by the new regulation, given that electric scooters
are considered velocipedes and are therefore considered vehicles, the general rules of
conduct of the trac laws will apply.
Source: Ministry of Interior - Public Security Department
Always check for possible updates to specic rules or regulations issued by local autho-
rities.
The manufacturer declines all responsibility in the event of damage to persons or
things that occur as a result of using the product
18
pursuant to Legislative Decree No. 49 of March 14,
2014 “Implementa-tion of Directive 2012/19 / EU on
waste electrical and electronic equi-pment (WEEE)”.
The crossed-out wheeled bin symbol shown on the equi-
pment indicates that the product at the end of its useful
life must be collected separately from other waste. The-
refore, the user must provide the equipment inte-grating
the essential components at the end of its life at the ap-
propriate centers for the separate collection of electronic
and electro-technical waste, or return it to the retailer at
the time of purchase of new equivalent equi-pment, on the basis of one
to one, or 1 to zero for equipment with a lon-ger side less than 25 CM.
Adequate separate collection for the subsequent start-up of the equipment
discharged for recycling, treatment and compa-tible environmental dispo-
sal helps to avoid possible negative eects on the environment and on he-
alth and promotes the recycling of the materials of which the equipment
is composed. Unauthorized disposal of the product by the user entails the
application of administrative sanctions pursuant to Legislative Decree No.
49 of March 14, 2014.
Information to users ABOUT household
appliances
The product works with batteries that fall under the
European directive 2013/56 / EC and that cannot be di-
sposed of with normal household waste. Please inform
yourself about the local directives regarding the separate
col-lection of batteries: a correct disposal allows to avoid
negative consequences for the environment and health.
TECHNICAL ASSISTANCE
Product technical assistance is guaranteed by:
Trevi S.p.a. Technical assistance
Via Raibano 40, 47853 Coriano (Rimini) Italia
Web:
www.velociptor.it
www.emgmobility.it
19
warranty
1. The warranty comes into force on the date of the tax document and covers ma-
nufacturing defects and consequent failures that arose during the warranty period.
2. In the event of a device failure, the buyer can ask for assistance
contact the retailer where you purchased the product or:
center Trevi S.p.a. Technical Assistance, Via Raibano 40, 47853 Coriano (Rimini)
Italy | Web: www.velociptor.it / www.emgmobility.it
3. In order for the warranty to be valid, the buyer must present a valid proof of
purchase of the product for which he intends to request assistance (invoice or sales
receipt in which an identication code and product description are expressly indica-
ted) , together with this warranty certicate.
4. The external parts of the appliance, components and accessories purchased se-
parately, parts and components which by their nature are subject to wear and tear,
decay, and therefore require periodic maintenance and / or replacement (for exam-
ple cables) are not covered by the warranty. power supply, power supplies /
battery charger, batteries, wheels, cases, etc ...).
The guarantee does not cover direct and indirect damages, suered by the user or
by third parties, deriving from knocks and falls (even accidental), misuse by the user,
use in an unsuitable environment, other components, atmospheric agents, sudden
changes in tension, res. The warranty does not cover those marginal aesthetic de-
fects that have a negligible eect on the value or functionality of the product. Except
as otherwise prescribed in other parts of this certicate, the warranty automatically
lapses in the following cases:
a) if the serial number of the device is removed, modied or made unrecognizable;
b) in the event of tampering, alteration, replacement, repair, attempted repair, di-
sassembly (even partial) of the product carried out by unauthorized personnel;
c) in case of tampering or other violation of the integrity of the warranty seals placed
on the product;
d) in the event of use that does not comply with current legislation <applicable to
the product covered by the warranty.
The recognition of direct and indirect damages of any kind to persons and things
deriving directly or indirectly from one or more causes of exclusion mentioned in
this paragraph is also excluded.
20
warranty
5. The mere authorization to send the product to the service center does not imply
that the defect has been recognized as covered by the warranty with consequent
free repair of the product. The product must be shipped in the original packaging,
or in another suitable packaging, and in any case inserted in a protective packaging
that is suitable for shipment by courier or postal service. Until delivery to the service
center, the goods travel at the sender’s risk. The warranty does not cover any dama-
ge that may have occurred during transport to the service center. The service center
reserves the right to check the validity conditions of the guarantee upon receipt of
the product. For requests for warranty assistance which, following verication by
authorized service personnel, should prove to be unfounded due to the absence
of real defects or due to the absence of defects covered by the guarantee, all costs
incurred for the repair will be charged to the customer, the verication and controls
on defect-free units covered by warranty. The customer will also be charged for all
transportation costs.
6. If parts or components under warranty are replaced, the parts removed and re-
placed will become the property of the service center. In the event that the repair
is not physically possible, or is excessively expensive in relation to the value of the
product, this can be replaced with a product with equivalent or superior technical
characteristics.
7. The manufacturer is not responsible for any damage or loss resulting from the
failure to use a product for repair, or for any damage or loss resulting from the mal-
function of the product or some of its parts.
8. The period of validity of the battery warranty (if any) is 6 months from purchase.
9. The period of validity of the guarantee for consumers, that is, those who buy
for purposes unrelated to one’s professional or business activity, it is governed by
Legislative Decree 2 February 2002, n.24. - articles 1519-bis and following of the
Italian Civil Code - (2 years from delivery under legal conditions). For buyers who
purchase with a VAT number for purposes related to their professional activity, the
legal guarantees referred to in articles 1490 and following of the Civil Code will ap-
ply (1 year from delivery under the conditions of the law).
This manual suits for next models
1
Table of contents
Other EMG Scooter manuals
