Endress+Hauser Levelflex M FMP41C User manual

BA00277F/00/EN/13.10
71120288
Valid as of software version:
01.04.zz
Operating Instructions
Levelflex M FMP41C
Guided Level-Radar

Levelflex M FMP41C PROFIBUS PA
2Endress+Hauser
Brief Operating Instructions
L00-FMP40xxx-19-00-00-en-012
!Note!
This Operating Instructions explains how to install and commission the level transmitter.
All functions that are required for a typical measuring task are taken into account here.
In addition, the Levelflex M provides many other functions for optimizing the measuring point and
conventing measured values. These functions are not included in these Operating Instructions.
An overview of all device functions can be found on →ä90.
The Operating Instructions BA00245F/00/EN "Description of Instrument Functions" provides an
extensive description of all device functions which can be found on the enclosed CD-ROM.
The Operating Instructions can also be found on our homepage: www.endress.com
E
+
-
+
E
+
-
E
E
-
… …
… …
KA189F/00/a2/03.07
52012501
52012501
100%
0%
F
E
UB
FMP43
FMP40
FMP41C
FMP45
LN
D
L
Levelflex M - Brief operating instructions
input E
(see sketch)
input F
(see sketch) displayed
D and L are confirm
or specify
range
suggestion
000
measured value
Group
selection
00
basic setup
01
safety settings
09
display
04
linearisation
05
extended calibr.
0C
system
parameters
092
language
0A
diagnostics
0A0
present
error
002
tank
properties
004
process
cond.
005
empty
calibr.
006
full
calibr.
008
dist./
meas value
051
check
distance
003
medium
property
052
range of
mapping
053
start
mapping
008
dist./
meas value
- envel. curve
- substracted signal
- mapping
- single curve
- cyclic
= 100: unlocked
¹ 100: locked
09A
plot settings
09B
recording
curve
0A1
previous
error
0A4
unlock
parameter
(333 = reset customer parameters)
0A3
reset
threaded
connection
1½
(G 1
:
reference point of
measurement
¾ or BSP
¾orG ½)
¾or1½NPT
03
length
adjustment
030
end of
probe
031
probe
length
032
probe
033
probe
length
034
determine
length
- unknown
- 1.4 … 1.6
- 1.6 … 1.9
- 1.9 … 2.5
-4…7
-2.5…4
->7
0E
envelope curve
Contrast: +or +
- standard
- aluminium tank
- plastic tank
- bypass/pipe
- coax-probe
- concrete
wall
- standard
- fast
change
- test: no filter
- slow
change
- free
- tie down
isolated
- tie down
gnd.
If shortened
please enter probe length here.
reference point of
measurement
F = measuring span
E = empty distance (= zero)
UB = upper blocking distance
LN = probe length
L = level
D = distance

Levelflex M FMP41C PROFIBUS PA Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Installation . . . . . . . . . . . . . . . . . . . . . 10
3.1 Incoming acceptance, transport, storage . . . . . . . . . 10
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 19
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 20

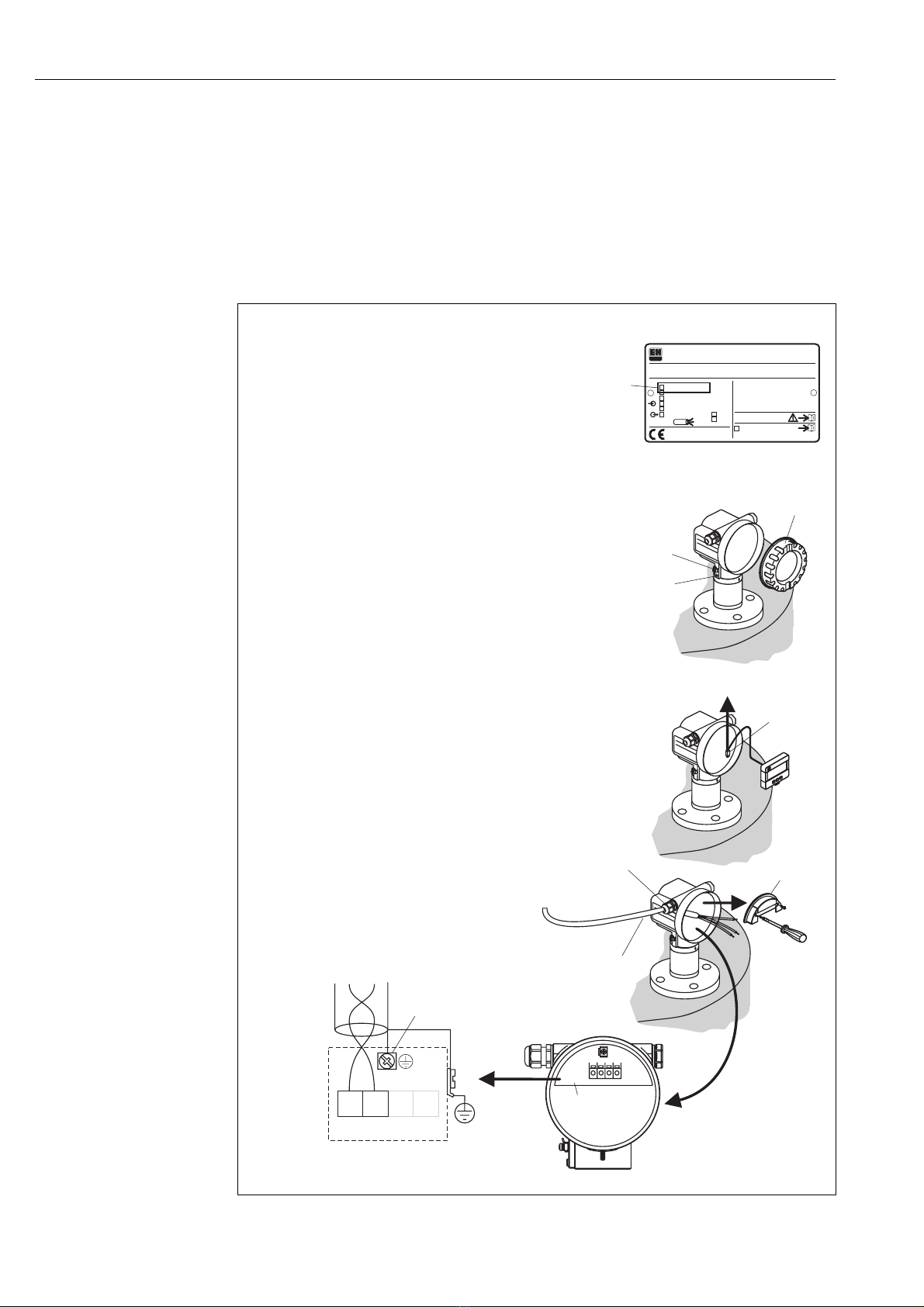

4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 23
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 24
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 24
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 24
5 Operation . . . . . . . . . . . . . . . . . . . . . . 25
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 25
5.2 Display and operating elements . . . . . . . . . . . . . . . 27
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.4 Display and acknowledging error messages . . . . . . 32
5.5 PROFIBUS PA communication . . . . . . . . . . . . . . . . 33
6 Commissioning. . . . . . . . . . . . . . . . . . 48
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.2 Switching on the measuring device . . . . . . . . . . . . 48
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.4 Basic Setup with the VU331 . . . . . . . . . . . . . . . . . 51
6.5 Blocking distance . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.6 Envelope curve with VU331 . . . . . . . . . . . . . . . . . 61
6.7 Function "envelope curve display" (0E3) . . . . . . . . 62
6.8 Basic setup with the
Endress+Hauser operating program . . . . . . . . . . . . 65
7 Maintenance. . . . . . . . . . . . . . . . . . . . 71
7.1 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.2 Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.3 Repairs to Ex-approved devices . . . . . . . . . . . . . . . 71
7.4 Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
8 Accessories . . . . . . . . . . . . . . . . . . . . . 72
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . . 72
8.2 Welding boss for adapter 43 mm . . . . . . . . . . . . . . 72
8.3 Remote display and operation FHX40 . . . . . . . . . . . 73
8.4 Centering disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.5 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 74
8.6 ToF Adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 74
8.7 Proficard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.8 Profiboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
9 Trouble-shooting . . . . . . . . . . . . . . . . . 75
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . . 75
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 76
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 78
9.4 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
9.8 Contact addresses of Endress+Hauser . . . . . . . . . . . 82
10 Technical data . . . . . . . . . . . . . . . . . . . 83
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 83
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 90
11.1 Operating menu PA (Display modul) . . . . . . . . . . . 90
11.2 Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Safety instructions Levelflex M FMP41C PROFIBUS PA
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Levelflex M is a compact level transmitter for the continuous measurement of solids and liquids,
measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry.
1.2 Installation, commissioning and operation
The Levelflex M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the device must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance word on the device.
Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this Additional documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local regulations.

Levelflex M FMP41C PROFIBUS PA Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the device.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an device response which is not planned.
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas.
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C.
Safety instruction
For safety instructions refer to the manual for the appropriate device version.
t >85°C

Identification Levelflex M FMP41C PROFIBUS PA
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The following technical data are given on the device nameplate:
L00-FMP4xxxx-18-00-00-en-001
Information on the nameplate of the Levelflex M FMP41C
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
Made in Germany
D-79689 Maulburg
Dat./Insp.:
Order Code:
IP68 / NEMA 6P
Ser.-No.:
4-wire
ENDRESS+HAUSER
t >85°C
TA > 70°C :
D01301-A
if modification
see sep. label
X= Patents
LEVELFLEX-M
90 … 253 V AC 3,5VA
10,5 … 32 V DC 1W
16 … 3 V DC 0,8W
Profibus PA
Foundation Fieldbus
LN= PN=
4 … 20 mA HART 2-wire
Order No
(see Order Information)
Communication
variant and
supply voltage
Serial number
Reference to additional
safety-relevant documentation
Designation according to Directive 94/9/EC
and designation of protection
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2G Ex ia IIC T6
Note safety instruction (XA) (electrostatic charging)!
3 ATEX II 2G Ex em (ia) IIC T6
Note safety instruction (XA) (electrostatic charging)!
5 ATEX II 1/2G Ex ia IIC T6, ATEX II 1/3D
Note safety instruction (XA) (electrostatic charging)!
6 ATEX II 1/2G Ex ia IIC T6, WHG
Note safety instruction (XA) (electrostatic charging)!
7 ATEX II 1/2G Ex d (ia) IIC T6
Note safety instruction (XA) (electrostatic charging)!
8 ATEX II 1/2G Ex ia IIC T6, ATEX II 1/3D, WHG
Note safety instruction (XA) (electrostatic charging)!
G ATEX II 3G Ex nA II T6
C NEPSI Ex emb (ia) IIC T6
I NEPSI Ex ia IIC T6
J NEPSI Ex d (ia) IIC T6
Q NEPSI DIP (in preparation)
R NEPSI Ex nA II T6
S FM IS Cl.I,II,III Div.1 Gr.A-G N.I., zone 0, 1, 2
T FM XP Cl.I,II,III Div.1 Gr.A-G, zone 1, 2
N CSA General Purpose
U CSA IS Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I., zone 0, 1, 2
V CSA XP Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I., zone 1, 2
K TIIS Ex ia IIC T4 (in preparation)
L TIIS Ex d (ia) IIC T4
Y Special version, TSP-No. to be spec.

Levelflex M FMP41C PROFIBUS PA Identification
Endress+Hauser 7
20 Probe:
A ..... mm, rope PFA>316, 150mm, Center rod, nozzle height max 150mm
B ..... mm, rope PFA>316, 300mm, Center rod, nozzle height max 300mm
C ..... mm, rope PFA>316, 450mm, Center rod, nozzle height max 450mm
D ..... inch, rope PFA>316, 6inch, Center rod, nozzle height max 6inch
E ..... inch, rope PFA>316, 12inch, Center rod, nozzle height max 12inch
G ..... inch, rope PFA>316, 18inch, Center rod, nozzle height max 18inch
K ..... mm, rod PFA>316L
M ..... inch, rod PFA>316L
Y Special version, TSP-No. to be spec.
30 Process connection:
AEK 1-1/2" 150lbs, PTFE >316/316L flange ANSI B16.5
AFK 2" 150lbs, PTFE >316/316L flange ANSI B16.5
AGK 3" 150lbs, PTFE >316/316L flange ANSI B16.5
AHK 4" 150lbs, PTFE >316/316L flange ANSI B16.5
AJK 6" 150lbs, PTFE >316/316L flange ANSI B16.5
AQK 1-1/2" 300lbs, PTFE >316/316L flange ANSI B16.5
ARK 2" 300lbs, PTFE >316/316L flange ANSI B16.5
ASK 3" 300lbs, PTFE >316/316L flange ANSI B16.5
ATK 4" 300lbs, PTFE >316/316L flange ANSI B16.5
CEK DN40 PN16-40, PTFE >316L flange EN1092-1 (DIN2527 C)
CFK DN50 PN10-40, PTFE >316L flange EN1092-1 (DIN2527 C)
CGK DN80 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CHK DN100 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CJK DN150 PN10/16, PTFE >316L flange EN1092-1 (DIN2527 C)
CSK DN80 PN25/40, PTFE >316L flange EN1092-1 (DIN2527 C)
CTK DN100 PN25/40, PTFE >316L flange EN1092-1 (DIN2527 C)
KEK 10K 40A, PTFE >316L flange JIS B2220
KFK 10K 50A, PTFE >316L flange JIS B2220
KGK 10K 80A, PTFE >316L flange JIS B2220
KHK 10K 100A, PTFE >316L flange JIS B2220
MRK DIN11851 DN50 PN40 slotted-nut, PTFE >316L
TCK Tri-Clamp ISO2852 1-1/2", PTFE >316L
TDK Tri-Clamp ISO2852 2", PTFE >316L
TFK Tri-Clamp ISO2852 3", PTFE >316L
TJK Tri-Clamp ISO2852 1-1/2", PTFE >316L, 3A EHEDG
TLK Tri-Clamp ISO2852 2", PTFE >316L, 3A EHEDG
TNK Tri-Clamp ISO2852 3", PTFE >316L, 3A EHEDG
YY9 Special version, TSP-No. to be spec.
40 Power Supply; Output:
B 2-wire; 4-20mA SIL HART
D2-wire;PROFIBUSPA
F 2-wire; FOUNDATION Fieldbus
G 4-wire 90-250VAC; 4-20mA SIL HART
H 4-wire 10.5-32VDC; 4-20mA SIL HART
K 2-wire; 4-20mA HART, interface measurement
Y Special version, TSP-No. to be spec.
50 Operation:
1 W/o display, via communication
2 4-line display VU331, envelope curve display on site
3 Prepared for FHX40, remote display (accessory)
9 Special version, TSP-No. to be spec.
60 Type of probe:
1 Compact, basic version
3 Remote, cable 3m, top entry
4 Remote, cable 3m, side entry
9 Special version, TSP-No. to be spec.

Identification Levelflex M FMP41C PROFIBUS PA
8Endress+Hauser
1) OVP = overvoltage protection
70 Housing:
A F12 Alu, coated IP68 NEMA6P
B F23 316L IP68 NEMA6P
C T12 Alu, coated IP68 NEMA6P, separate conn. compartment
D T12 Alu, coated IP68 NEMA6P + OVP1), separate conn. compartment
Y Special version, TSP-No. to be spec.
80 Cable Entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version, TSP-No. to be spec.
90 Additional options:
A Basic version
C EN10204-3.1 material, pressurized, (316/316L pressurized) inspection
certificate
H 5-point, linearity protocol, see additional spec.
K 5-point, 3.1, pressurized, 5-point linearity protocol, see additional spec.,
EN10204-3.1material, perssurized (316/316L pressurized), inspection certificate
Y Special version, TSP-No. to be spec.
995 Marking:
1 Tagging (TAG), see additional spec.
2 Bus address, see additional spec.
FMP41C- Complete product designation

Levelflex M FMP41C PROFIBUS PA Identification
Endress+Hauser 9
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring devices given in the chapter "Incoming acceptance, transport, storage", →ä10!
The scope of delivery consists of:
• Assembled device
• Accessories (→ä72)
• Endress+Hauser operating program on the enclosed CD-ROM
•
Brief operating instructions KA00189F/00/A2 (basic setup/troubleshooting), housed in the device
• Brief operating instructions KA01042F/00/EN for quick commissioning
• Approval documentation: if this is not included in the operating manual
• CD-ROM with further documentation, e.g.
– Technical Information
– Operating Instructions
– Description of Instrument Functions
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PROFIBUS®
Registered trademark of the PROFIBUS Trade Organisation, Karlsruhe, Germany

Installation Levelflex M FMP41C PROFIBUS PA
10 Endress+Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.1.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg.
Do not lift the measuring device by its probe rod in order to transport it.
3.1.3 Storage
Pack the measuring device so that is protected against impacts for storage and transport.
The original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C.

Levelflex M FMP41C PROFIBUS PA Installation
Endress+Hauser 11
3.2 Installation conditions
3.2.1 Dimensions
Housing dimensions
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 (2.56) 78 (3.07)
max. 110 (4.33)
mm (in)
85 (3.35)
150 (5.91)
ø129 (ø5.08)
(Aluminium)
F12 housing
ENDRESS+HAUSER
78 (3.07)
85 (3.35)
65 (2.56)
162 (6.38)
max. 100 (4.33) 94 (3.7)
mm (in)
ø129 (ø5.08)
(Aluminium)
T12 housing
max. 94 (3.7)
mm (in)
93 (3.66)
ø129 (ø5.08)
150 (5.91)
40(1.57)
(316L)
F23 housing

Installation Levelflex M FMP41C PROFIBUS PA
12 Endress+Hauser

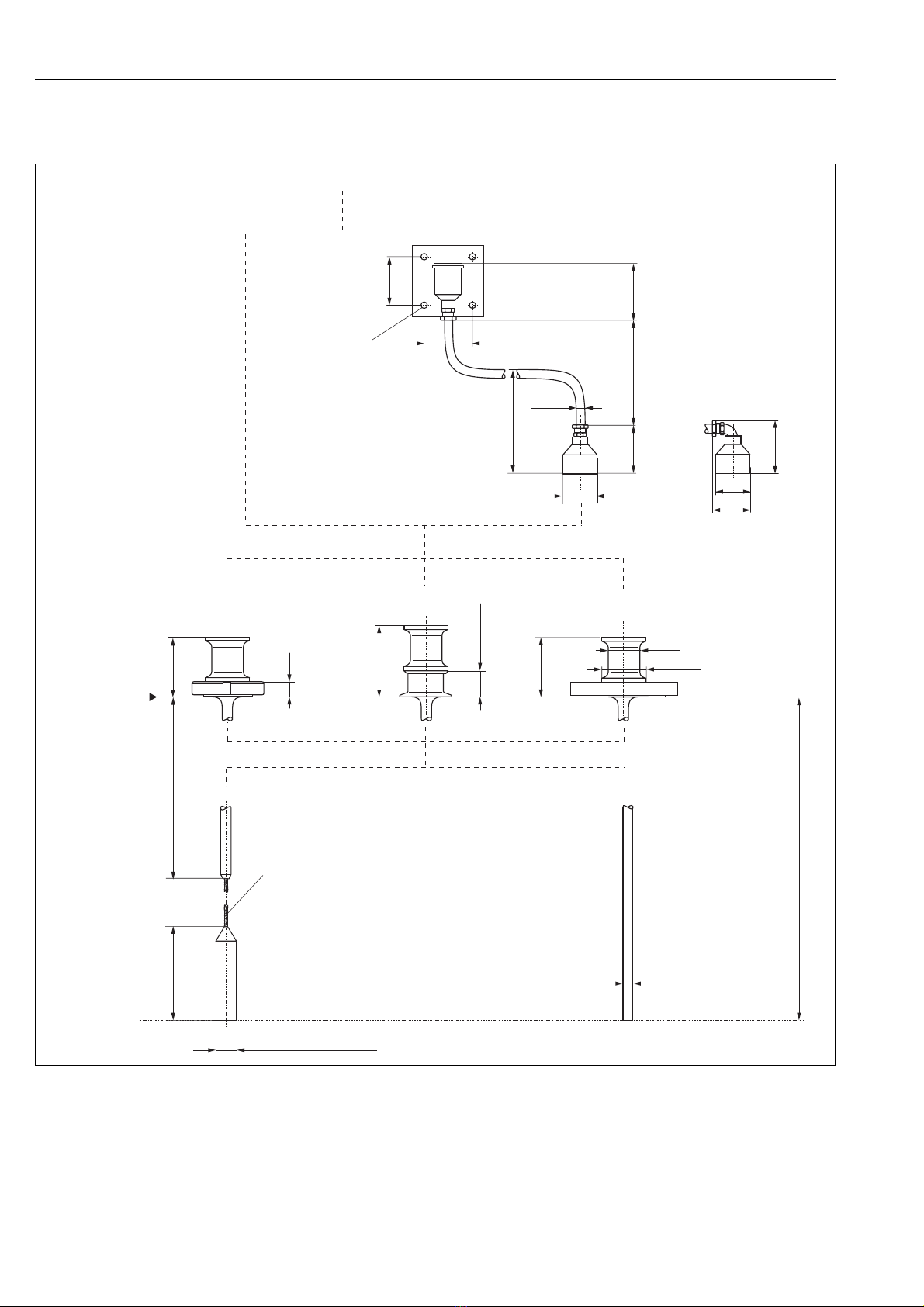

Process connection, probe type
L00-FMP41xxx-06-00-00-en-001
88
88
123
2765
80
Ø 76
4 x Ø 8,5
118
24
Ø 42
Ø 60
100
Ø 76
Ø 81
165/315/465
260
Flange DN 40…200
or equivalent
reference point of
measurement
rope:
Ø4mm/0.20”
rope probe rod probe
Ø16/0.63”(incl. insulation)
Ø22/0.87”(incl. insulation)
probe length LN
F12
/
T12
/
F23 housing
1½"/2"/3"
Clamp
DN 50
dairy coupling
72
70.3 (1½")
70.5(2"/3")
70
Ø21.3
Type ofProbe
(see feature 60 in “Ordering structure”)
18 (1½")
22.6(2"/3")
Option “3” :/“4”
remote electronic
top entry
Option “4”:
remote electronic
side entry

Levelflex M FMP41C PROFIBUS PA Installation
Endress+Hauser 13
3.3 Installation
3.3.1 Mounting kit
For the mounting, you will require the following tool:
• The tool for flange mounting
• 4 mm (0.1") Allen wrench for turning the housing
3.3.2 Mounting probes
"Caution!
If there is a risk of electrostatic discharge from the product, then both processconnection and rope
must be earthed before the probe is lowered into the silo.
3.3.3 General instructions
Normally use rod or coax probes for liquids. Rope probes are used in liquids for measuring ranges
> 4 m and with restricted ceiling clearance which does not allow the installation of rigid probes.

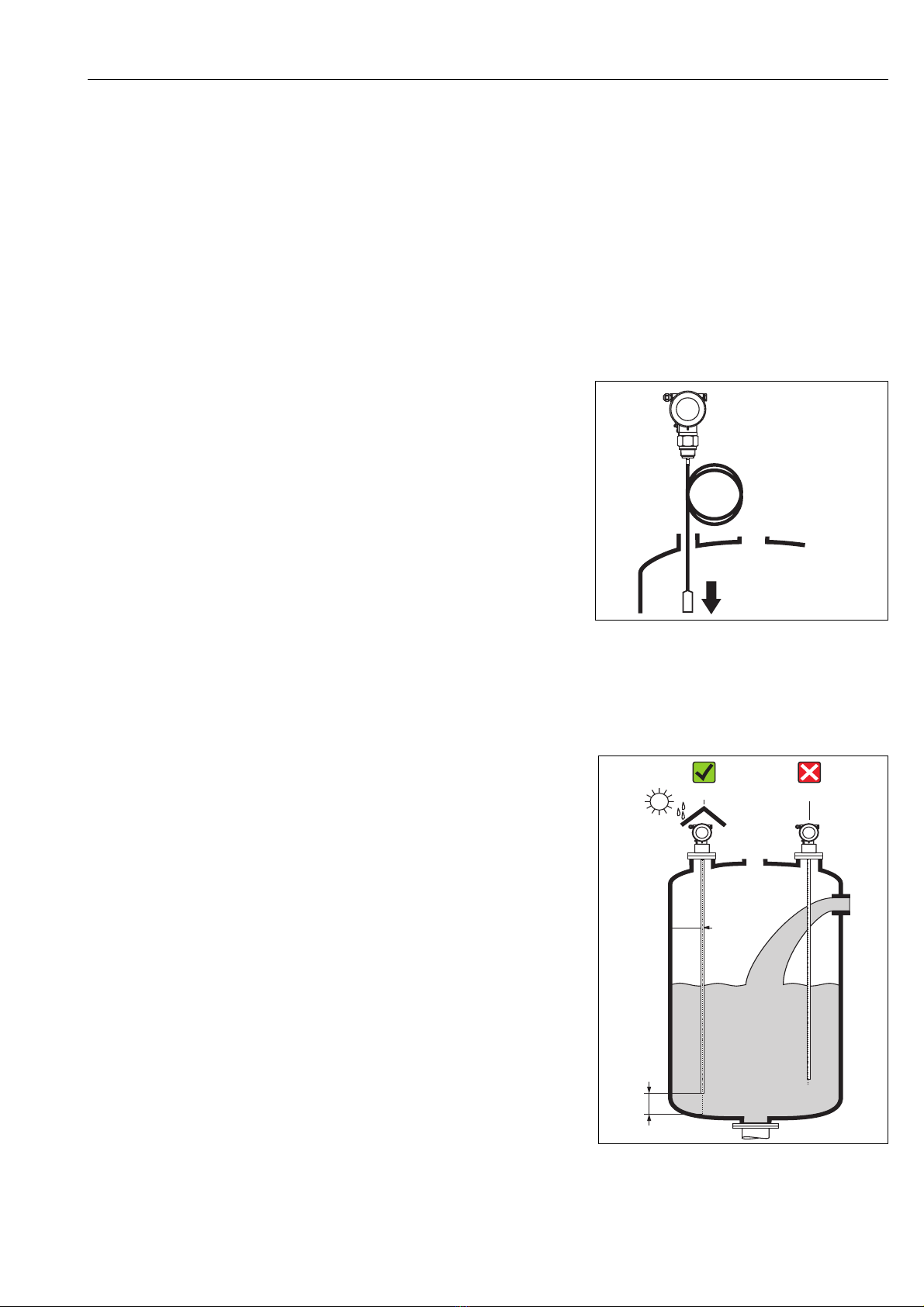

Insert probe
• Uncoil rope and lower it slowly and carefully
into the silo.
• Do not kink the rope
• Avoid any backlash, since this mightdamage
the probe or the silo fittings.
!Note!
Be sure to use unpainted metal bolts toensure
good electrical contact betweenprobe flange and
process flange.
L00-FMP4xxxx-17-00-00-en-056
Uncoil rope and lower
probe slowlyand
carefullyinto the silo
Mounting location
• Do not mount rod or rope probes in the filling
curtain (3).
• Mount rod and rope probes away from the
wall (B) at such a distance that, in the event of
build-up on the wall, there is still a minimum
distance of 100 mm between the probe and
the build-up.
• Mount rod and rope probes as far away as
possible from installed fittings. "Mapping "
must be carried out during commissioning in
the event of distances < 300 mm.
• Minimum distance of probe end to the
container floor (C):
– Rope probe: 150 mm
– Rod probe: 50 mm
• When installing outdoors, it is recommended
that you use a protective cover (1)
("Accessories", →ä72).
L00-FMP4xxxx-17-00-00-xx-007
B
C
12

Installation Levelflex M FMP41C PROFIBUS PA
14 Endress+Hauser

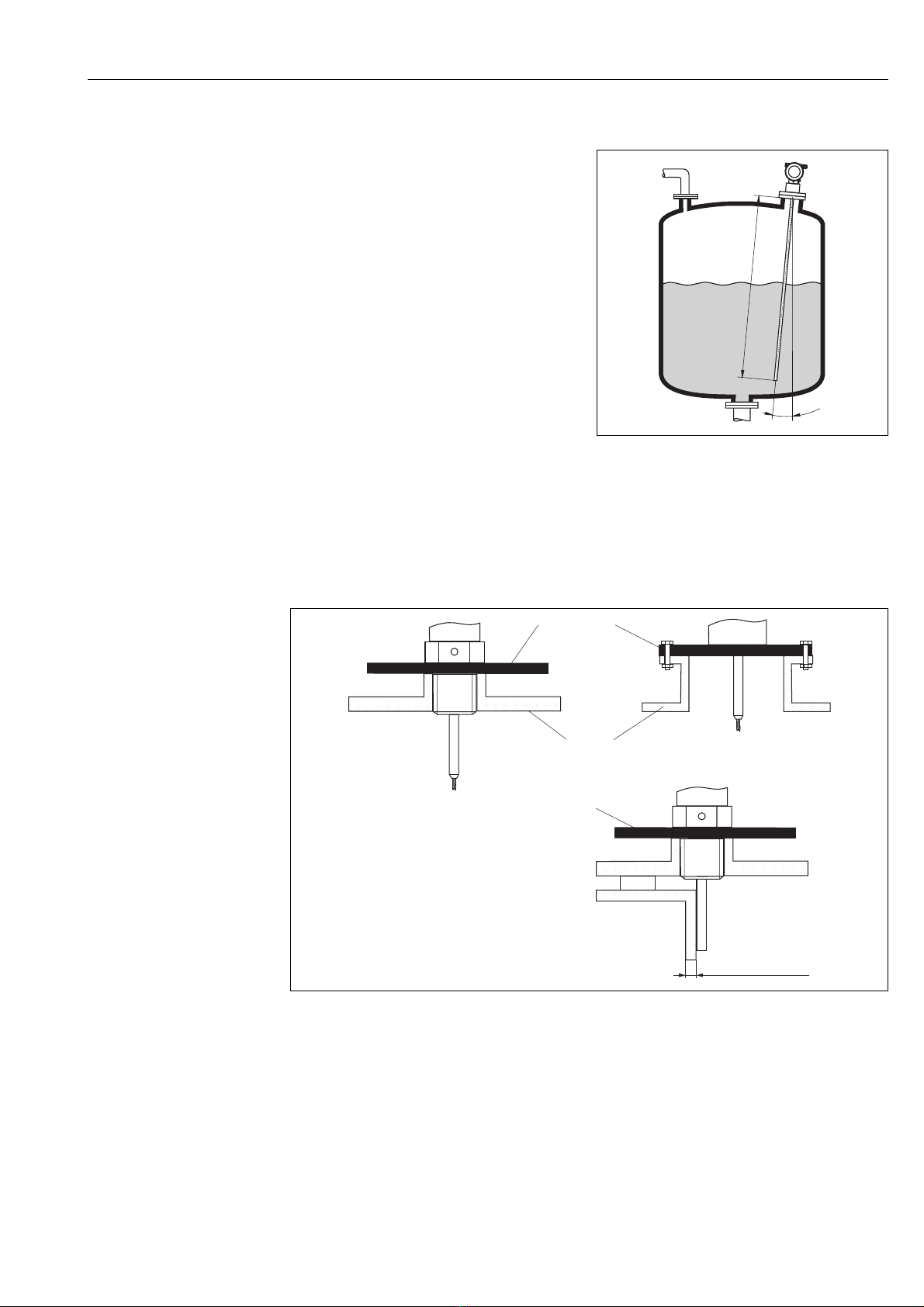

Minimum distance B of the probe to the container wall:
The wall clearance can be chosen as desired as long as the probe does not touch the tank wall.
!Note!
• There should be no metallic parts or persons moving when installation is made in plastic tanks,
also on the outside of the tank at a distance of 300 mm to the probe.
• There should no bridges to the wall created by build up or highly viscous media.

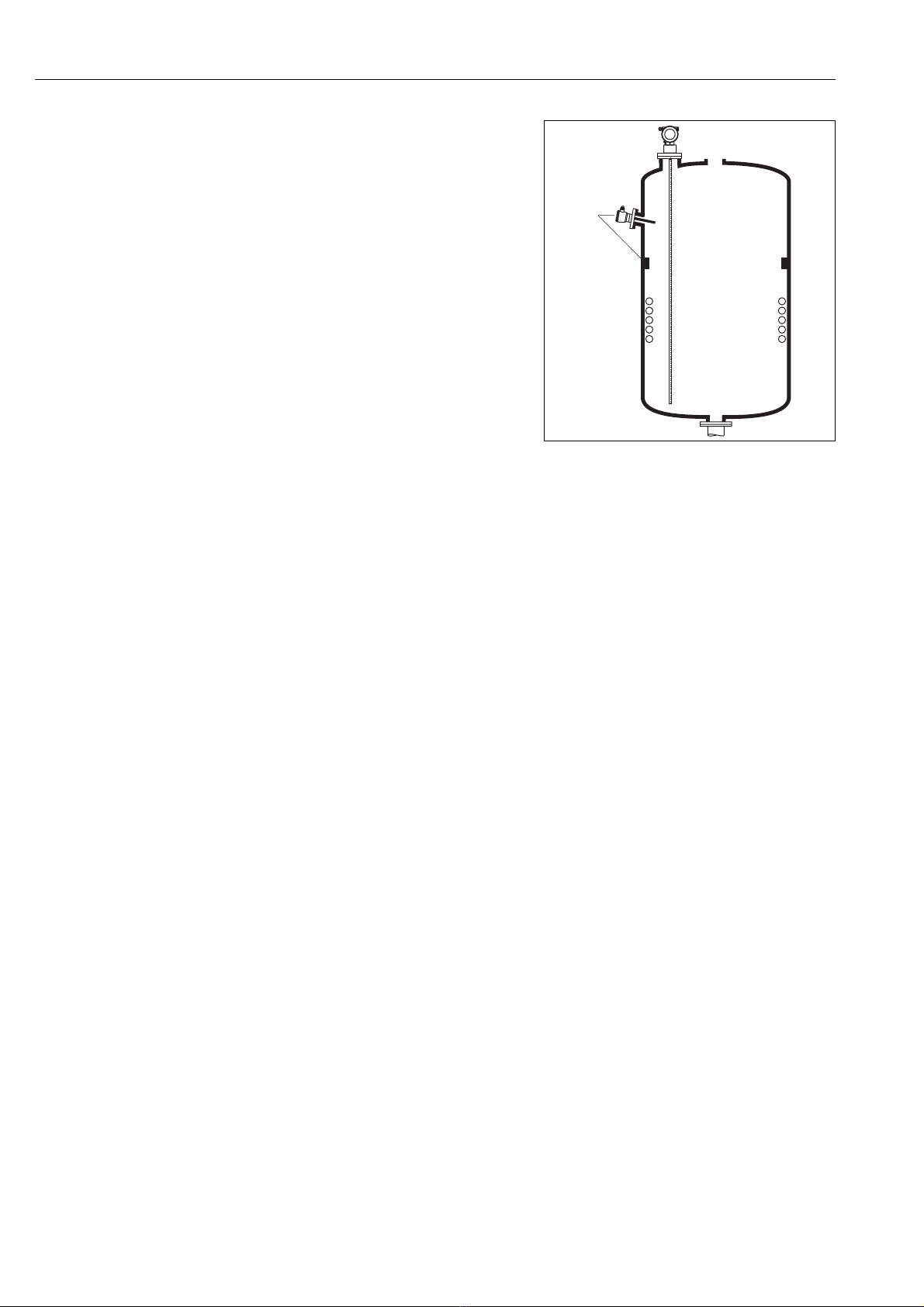

Other installations
• Select the mounting location such that the
distance to internals (5) (e.g. limit switch,
struts) is > 300 mm over the entire length of
the probe, also during operation.
• Probe must within the measuring span not
touch any internals during operation.
Optimization options
• Interference echo suppression: Measurement
can be optimised by electronically tuning out
interference echoes.
L00-FMP41Cxx-17-00-00-xx-001
5

Levelflex M FMP41C PROFIBUS PA Installation
Endress+Hauser 15

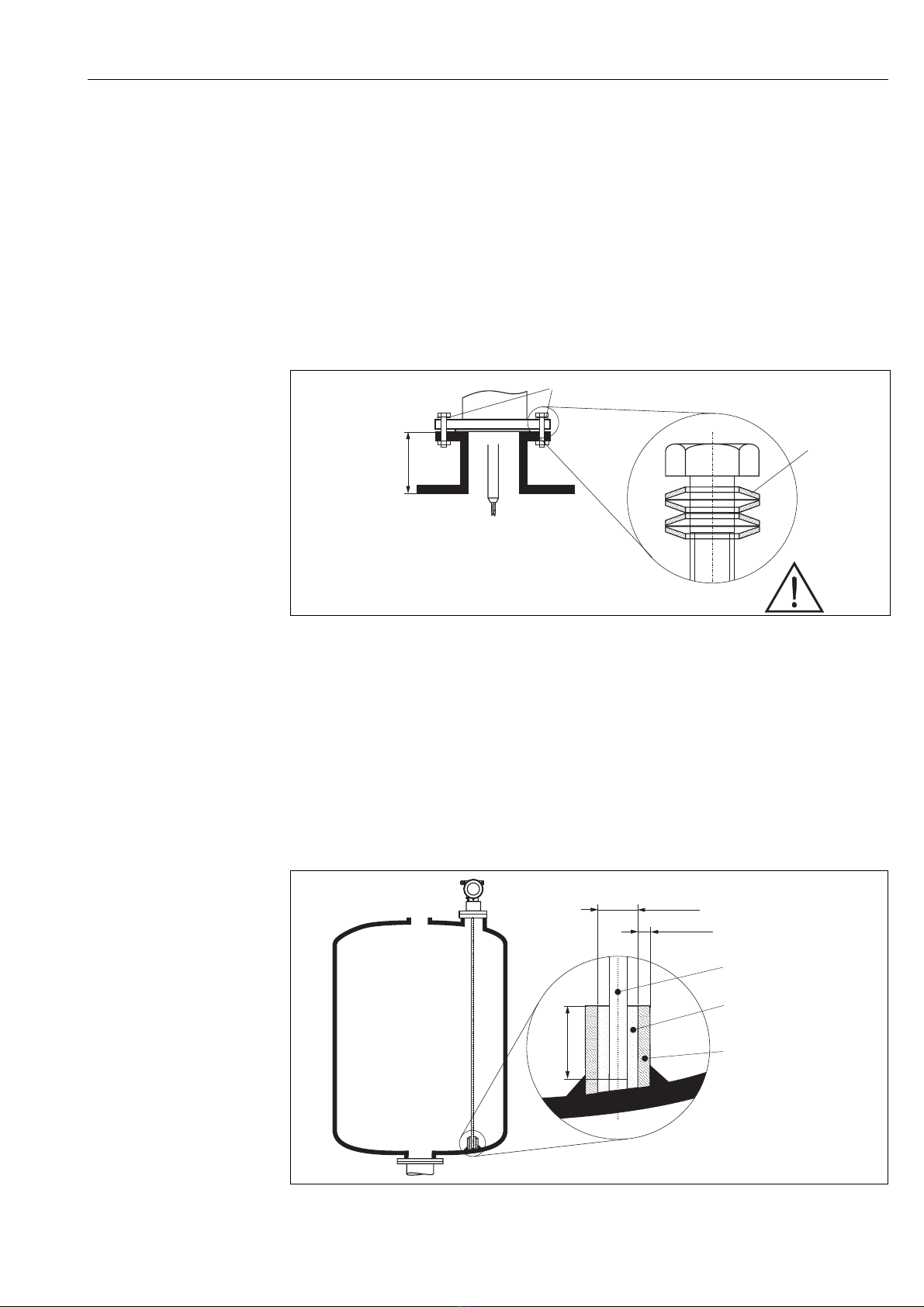

Type of probe mounting
• When installing in plastic tanks, the nozzle must have at least DN50 (2"). The appropriate flange
must be used as the process connection.
• For nozzles up to 450 mm high, select the length of the centering rod appropriate for the nozzle
height when using rope probes.
• Use spring washers (1) (see Figure below).
!Note!
It is recommended to retighten the flange bolts periodically, depending on process temperature
and pressure. Recommended torque: 60 to 100 Nm.
• After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment.
L00-FMP41Cxx-17-00-00-en-005
!Note!
The PTFE plating of the FMP41C is used for sealing to the process. Usually no other sealing is
necessary.
The coupling nut must be tightened using a torque of 5 up to a maximum of 10 Nm when installing
the FMP41C in the universal adapter ("Welding boss for adapter 43 mm", →ä72).
Supporting probes against warping
For WHG approval:
For probe lengths ≥3 m a support is required (see figure).
L00-FMP4xxxx-17-00-00-en-065
1
spring washers
450 mm / 18 “
≤
Ø <25 mm
>50 mm
Probe rod c
(FMP 41 C)
oated
Short metal pipe
e.g. welded in place
Plastic sleeve
e.g. PTFE, PEEK or PPS
e.g. 3 mm

Installation Levelflex M FMP41C PROFIBUS PA
16 Endress+Hauser

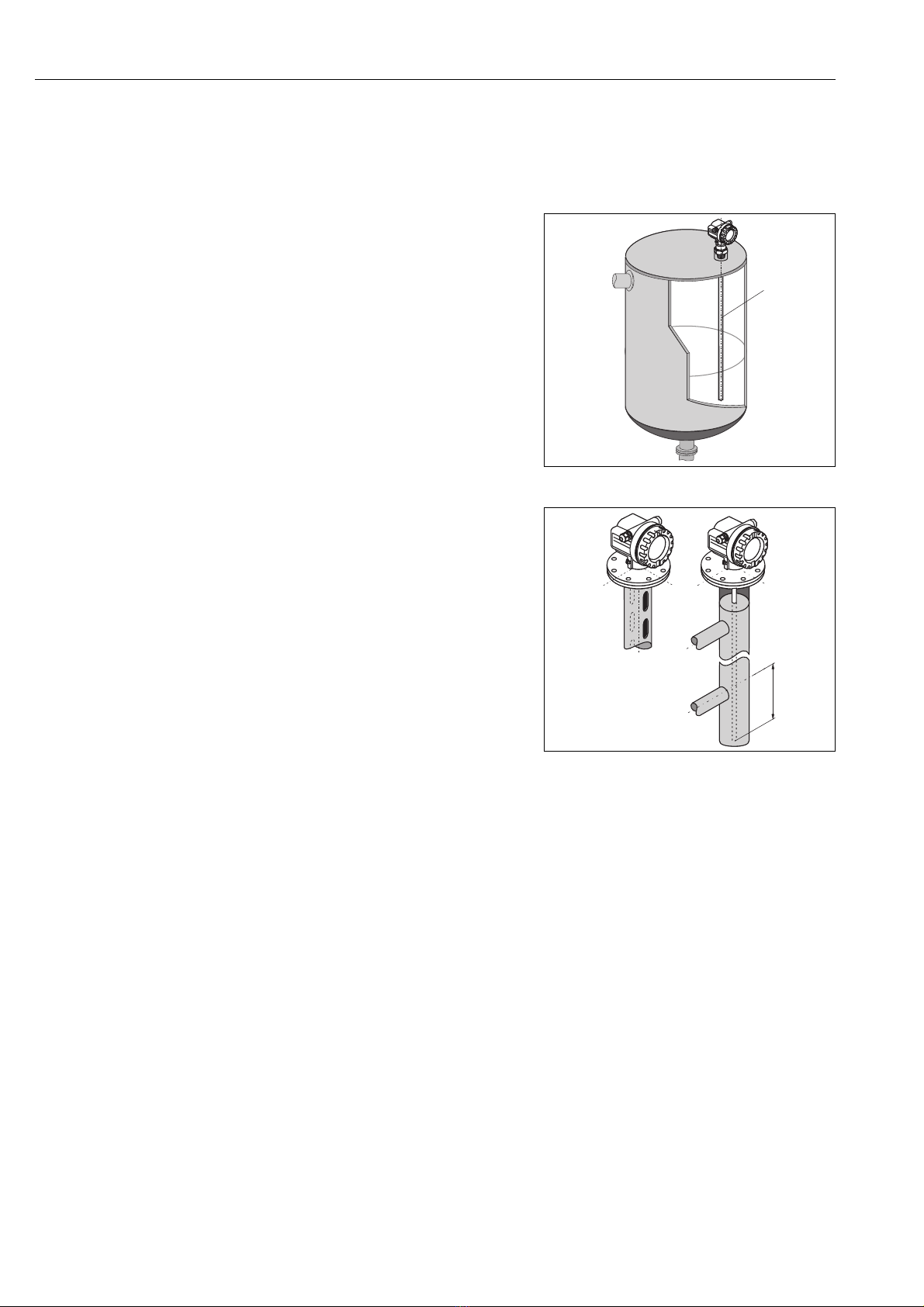

3.3.4 Special instructions
When installing in stirring tanks, observe lateral load of probes. Possibly check whether a non-
contact process, ultrasound or radar would not be better suited, above all if the stirrer generates
large mechanical loads on the probe.
Installation in horizontal cylindrical and
standing tanks
• Use a rod probe for measuring ranges up to
4 m. For anything over this or if there is too
free cover space use a rope probe.
• Any distance from wall, as long as occasional
contact is prevented.
L00-FMP4xxxx-17-00-00-yy-049
1
Installation in stilling well or bypass
• Rod and rope probes can also be installed in
pipes (stilling well, bypass).
• When installing in metal pipes up to
DN150 (6"), the measuring sensitivity of the
device increases such that liquids as of DC 1.4
can be measured.
• If a rod probe is used the probe length must be
100 mm longer than the lower disposal.
• Welded joints that protrude up to approx.
5 mm (0.2") inwards do not influence
measurement.
L00-FMP4xxxx-17-00-00-yy-023
min. 100

Levelflex M FMP41C PROFIBUS PA Installation
Endress+Hauser 17
3.3.5 Notes on special installation situations
Installation in plastic containers
Please note that the "guided level radar" measuring principle requires a metallic surface at the
process connection! When installing rod or robe probes in plastic silos, whose silo cover is also made
of plastic or silos with wood cover, the probes must either be mounted in a ≥DN50 (2") metallic
flange, or a metal sheet with diameter of ≥200 mm must be mounted under the screw-in piece.
L00-FMP4xxxx-17-00-00-en-018
Installation at an angle
• For mechanical reasons, the probe should be
installed as vertically as possible.
• With inclined installations the probe length
has to be adjusted in dependence to the
installation angle.
– up to 1 m = 30°
– up to 2 m = 10°
– up to 4 m = 5°.
L00-FMP4xIxx-17-00-00-en-048
rope probe
mounting angle
metal sheet or metal flange
silo roof of plastic
or wood
Wall thickness for GFK/PP
<15mm
metal sheet or metal flange

Installation Levelflex M FMP41C PROFIBUS PA
18 Endress+Hauser

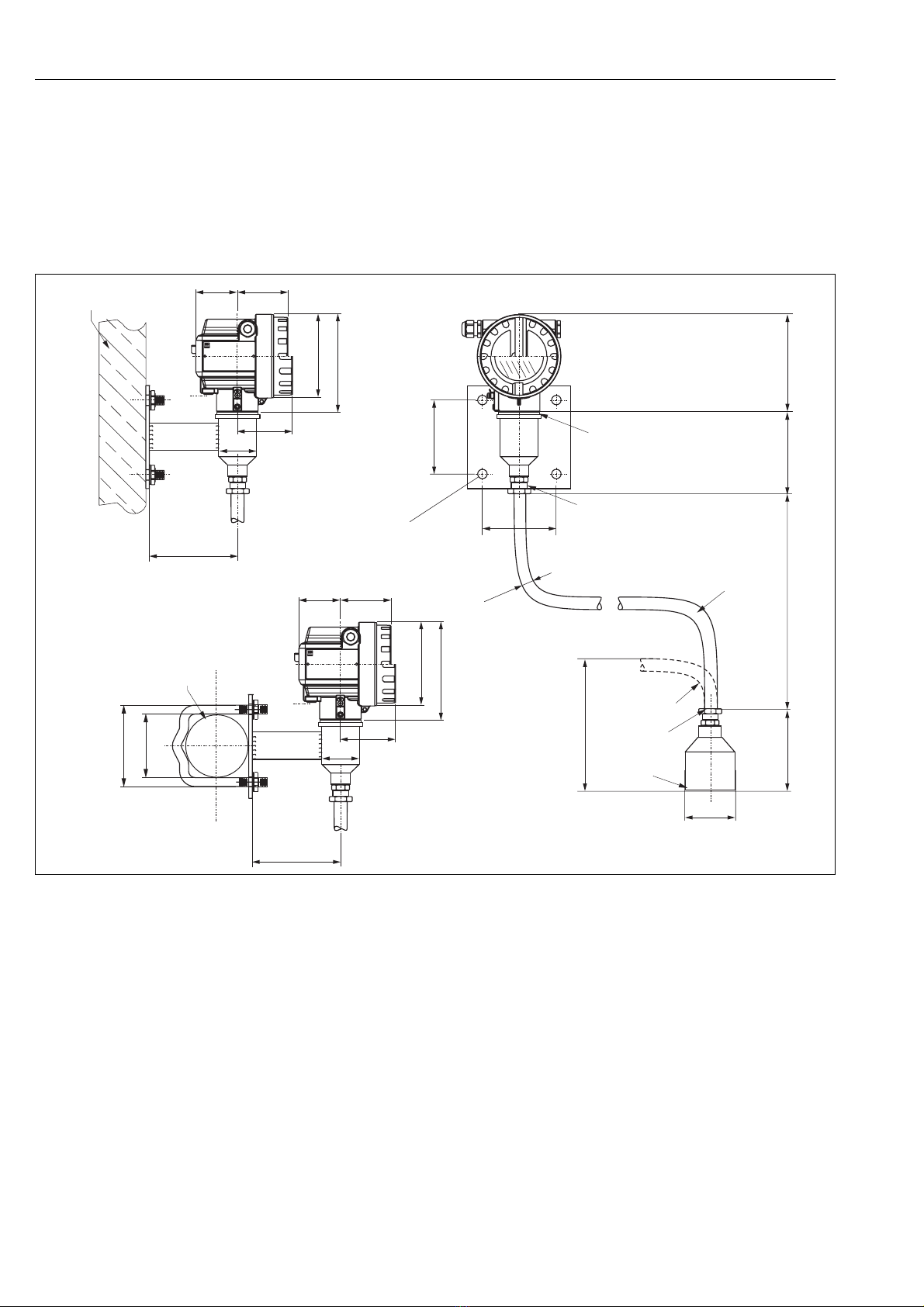

3.3.6 Installation for difficult to access process connections
Installation with remote electronic
• Wall and pipe bracket ist contained in the scope of delivery and already mounted.
• Follow installation instructions, →ä13.
• Mount housing on a wall or pipe as shown in the diagram.
L00-FMP4xxxx-17-00-00-en-015
!Note!
The protective hose cannot be disassembled at these points (1).
The ambient temperature for the connecting line (2) between the probe and the electronics must
not be greater than 105 °C. The version with remote electronics consists of the probe, a connecting
cable and the housing. If they are ordered as a complete unit they will be delivered assembled and
cannot be separated.
150
ENDRESS+HAUSER
Levelflex M
65 78
ø129
85
150
ENDRESS+HAUSER
Levelflex M
65 78
ø129
85
52
52
150
max.80
min. 30
96
94
94
88
88
123
2765
80
260
75
≥
ø76
1
1
4xø8,5
1
1
2
pipe
wall
Note min.
bendradius!
ø21.3

Levelflex M FMP41C PROFIBUS PA Installation
Endress+Hauser 19
3.3.7 Turn housing
After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment. Proceed as follows to turn the housing to the required position:
• Undo the fixing screws (1)
• Turn the housing (2) in the required direction
• Tighten up the fixing screws (1)
L00-FMP41Cxx-17-00-00-de-002
3.4 Post-installation check
After the measuring device has been installed, perform the following checks:
• Is the measuring device damaged (visual check)?
• Does the measuring device correspond to the measuring point specifications such as process
temperature/pressure, ambient temperature, measuring range, etc.?
• Are the measuring point number and labeling correct (visual check)?
• Is the measuring device adequately protected against rain and direct sunlight (→ä72)?
90°90°
90°90°
90°90°
1
1
22
F12/F23 housing T12 housing
allen key
4 mm/0.1”

Wiring Levelflex M FMP41C PROFIBUS PA
20 Endress+Hauser
4 Wiring
Notes on PROFIBUS PA installation can be found in Operating manual BA034S/04/EN.
4.1 Quick wiring guide
Wiring in F12/F23 housing
L00-FMP41Cxx-04-00-00-en-003
-
-
"
PA - PA +
3 4
12
PA L 12 34
7
Made in Germany
D-79689 Maulburg
Dat./Insp.:
Order Code:
IP68 / NEMA 6P
Ser.-No.:
4-wire
ENDRESS+HAUSER
t >85°C
TA > 70°C :
D01301-A
if modification
see sep. label
X= Patents
LEVELFLEX-M
90 … 253 V AC 1VA
10,5…32VDC 1W
16 … 3 V DC 0,8W
Profibus PA
Foundation Fieldbus
LN= PN=
4 … 20 mA HART 2-wire
1
#
4
5
6
2
3
7
8
ENDRESS+HAUSER
ENDRESS+HAUSER
Sealed terminal
compartment
Before connection please note the following:
PROFIBUS devices are marked on the nameplate (1). The
voltage is determined by the PROFIBUS standard and the
desired safety concept. (see chapter 4.3).
Connect potential matching line to transmitter
ground terminal before connecting up the device.
Tighten the locking screw :
It forms the connection between the antenna and the housing
earth potential.
l
l
l
(7)
(8)
When you use the measuring system in hazardous areas, make sure you comply with
national standards and the specifications in the safety instructions (XA’s).
Make sure you use the specific cable gland.
On devices supplied with a certificate, the explosion protection
is designed as follows:
Housing F12 - Ex ia:
Power supply must be intrinsically safe.
The electronics and the current output are galvanically
separated from the probe circuit.
l
l
Connect up the Levelflex M as follows:
Unscrew housing cover (2).
Remove any display (3) if fitted.
Remove cover plate from terminal compartment (4).
Pull out terminal module slightly using pulling loop.
Insert cable (5) through gland (6).
Use screened, twisted wire pair.
Only ground screen conductor (7) on sensor side.
Make connection (see pin assignment).
Re-insert terminal module.
Tighten cable gland (6).
Tighten screws on cover plate (4).
Insert display if fitted.
Screw on housing cover (2).
(on dust-Ex torque 40 Nm).
l
l
l
l
l
l
l
l
l
l
l
»
Caution!
