Erreka MAGIC User guide

ACCIONADOR ELECTROMECÁNICO INTEGRADO PARA PUERTAS BATIENTES
MANUAL DEL INSTALADOR
INTEGRATED IN-POST ELECTROMECHANICAL OPERATOR FOR SWING GATES
INSTALLER´S MANUAL
ACTIONNEUR ÉLECTROMÉCANIQUE INTÉGRÉ POUR PORTES BATTANTES
MANUEL DE L'INSTALLATEUR
ACCIONADOR ELECTROMECÂNICO INTEGRADO PARA PORTAS BATENTE
MANUAL DO INSTALADOR
EINGEBAUTER ELEKTROMECHANISCHER ANTRIEB FÜR FLÜGELTORE
INSTALLATEUR-BEDIENUNGSANLEITUNG
www.erreka.com
MAGIC

English
MAGIC_249_r03b_TOC.fm - 11/5/23
MAGIC built-in electromechanical operator 21
INDEX
General safety instructions 22
Symbols used in this manual__________________________________ 22
Importance of this guide _____________________________________ 22
Envisaged use ______________________________________________ 22
Installer's qualifications ______________________________________ 22
Automat safety elements ____________________________________ 22
Description of the product 23
Elements of the complete installation __________________________ 23
General characteristics of the operator _________________________ 24
Main operator parts_________________________________________ 24
Technical characteristics of the operator ________________________ 25
Manual operation __________________________________________ 26
Declaration of conformity ____________________________________ 26
Unpacking and contents 27
Unpacking_________________________________________________ 27
Contents __________________________________________________ 27
Installation 28
Required tools _____________________________________________ 28
Required materials __________________________________________ 28
Initial conditions and checks __________________________________ 28
Installing the operator _______________________________________ 29
Final preparation ___________________________________________ 38
Maintenance and troubleshooting 39
Maintenance_______________________________________________ 39
Troubleshooting____________________________________________ 39
Scrap _____________________________________________________ 39
Spare parts ________________________________________________ 39

Seguridad_249_r03b.fm - 11/5/23
22 Installation Manual
GENERAL SAFETY INSTRUCTIONS
1
SYMBOLS USED IN THIS MANUAL
This manual uses symbols to highlight specific texts. The
functions of each symbol are explained below:
Failure to respect the safety warnings could
lead to accident or injury.
Work sequences or procedures.
Important details which must be respected for
correct assembly and operation.
Additional information to help the installer.
}Information on care for the environment.
2
IMPORTANCE OF THIS GUIDE
Read this guide in its entirety before carrying
out the installation, and obey all instructions.
Failure to do so may result in a defective
installation, leading to accidents and failures.
Moreover, this guide provides valuable information
which will help you to carry out installation more
efficiently.
This guide is an integral part of the product. Keep
for future reference.
3
ENVISAGED USE
This device has been designed for installation as part of
an automatic opening and closing system for swing
doors and gates.
This device is not suitable for installation in
inflammable or explosive environments.
Failure to install or use as indicated in this
manual is inappropriate and hazardous, and
could lead to accidents or failures.
The installer shall be responsible for ensuring
the facility is set up for its envisaged use.
4
INSTALLER'S QUALIFICATIONS
Installation should be completed by a
professional installer, complying with the
following requirements:
• He/she must be capable of carrying out
mechanical assemblies in doors and gates,
choosing and implementing attachment
systems in line with the assembly surface
(metal, wood, brick, etc) and the weight and
effort of the mechanism.
• He/she must be capable of carrying out
simple electrical installations in line with the
low voltage regulations and applicable
standards.
Installation should be carried out bearing in
mind standards EN 13241-1 and EN 12453.
5
AUTOMAT SAFETY ELEMENTS
This device complies with all current safety regulations.
However, the complete system comprises, apart from
the operator referred to in these instructions, other
elements which should be acquired separately.
The safety of the complete installation depends on
all the elements installed. Install only Erreka
components in order to guarantee proper
operation.
Respect the instructions for all the elements
positioned in the installation.
Installing safety elements is recommended.
For further details, see “Fig. 1 Elements of the
complete installation” on page 23.

English
Descripcion_249_r03b.fm - 16/5/23
MAGIC built-in electromechanical operator 23
DESCRIPTION OF THE PRODUCT
1
ELEMENTS OF THE COMPLETE INSTALLATION
Fig. 1 Elements of the complete installation
The safe and correct operation of the
installation is the responsibility of the installer.
For greater safety, Erreka recommends installing the
photocells (4) and (10).
E249A1
TC
TA
TA
INSTALLATION COMPONENTS:
1Operator
2 LUMI flashing light with antenna
3Door
4 Exterior photocells
5Keyswitch
6 Wall pushbutton
7 Control board
8 Connections box
9 Electrical installation
10 Interior photocells
11 Electrolock (obligatory in MA210 and MA250)
12 Door frame
ELECTRICAL WIRING:
Element Nº wires x section Max length
A: Main power supply 3x1.5mm230 m
B: Flashing light 2x0.5mm220 m
C: Photocells 2x0.5mm230 m
D: Key switch 2x0.5mm225 m
E: Operator
(motor+brake+encoder)* 4x1mm2+2x1mm2+ screened sleeve 2x0.5mm220 m
F: Antenna Coaxial cable 50k(RG-58/U) 5 m
VERY IMPORTANT:
The TC closing stopper and the TA
opening stoppers must be installed in
all cases.
*NOTE: the electrical installation of the operator can be carried out correctly and straightforwardly using the
wire with code AYCY8, which ERREKA can supply by metre. This wire has the characteristics
4x1mm2+2x1mm2+ ((2x0.5mm2)) and was developed specifically for this purpose.

DESCRIPTION OF THE PRODUCT
Descripcion_249_r03b.fm - 16/5/23
24 Installation Manual
2
GENERAL CHARACTERISTICS OF THE OPERATOR
The MAGIC operator is made to form part of an
automated system, integrated in the frame of iron or
aluminium swing doors.
It comprises a metal body, which contains the motor
and a planetary gearbox.
The MAGIC operator allows opening of 180º.
This operator, along with its corresponding Erreka
control board, allow the implementation of a gentle
halt system, with the speed slowing down at the end of
the closing and opening operations.
The MA210 and MA250 models are reversible,
meaning the installation must be fitted with an
electrolock.
The MA210F/MAS210F and MA250F/MAS250F are
fitted with a brake. An electrolock is only required for
leaf lengths of over 1.8 m.
The MAS210F and MAS250F models, apart from a
brake, are fitted with an encoder.
3
MAIN OPERATOR PARTS
Fig. 2 Main parts
D249A1
Components
1 Base plate and traction wheel
2 Bottom cover
3 M6x16 countersunk bolts (6)
4 Adaptation plate (for iron profile)
5 Operator (MA210F/MAS210F)
6 M10x20 countersunk bolts (4)
7 Top cover with sealing joint
8 Top pin with O-rings (2)
9 Bracket plate
10 M6x14 bolts (4) with lock
washers
11 Packing glands
12 M8x20 bolts (2) with washers and
nuts
13 Angle piece
14 Water guard
15 M5x10 bolt
Wiring
•Grey wire: motor (common)
•Brown wire: motor (turning 1)
•Black wire: motor (turning 2)
•Yellow/green wire: earth
•Orange wire:
no encoder: not included
with encoder: brake
•Purple wire:
no encoder: not included
with encoder: brake
•Blue wire:
no encoder: not included
with encoder: encoder signal
•White wire:
no encoder: brake
with encoder: common (–) of the
encoder
•Red wire:
no encoder: brake
with encoder: power supply (+)
of the encoder

DESCRIPTION OF THE PRODUCT
Descripcion_249_r03b.fm - 16/5/23
MAGIC built-in electromechanical operator 25
4
TECHNICAL CHARACTERISTICS OF THE OPERATOR
Model MA210 MA210F MAS210F MA250 MA250F MAS250F
Power supply (V/Hz) 230/50 230/50 230/50 230/50 230/50 230/50
Absorbedcurrent(A) 1111,71,71,7
Power consumed (W) 230 230 230 375 375 375
Capacitor (μF) 555888
Protection grade (IP) 54 54 54 54 54 54
Available torque (Nm) 220 220 220 500 500 500
Output speed (rpm) 1,33 1,33 1,33 1,33 1,33 1,33
Openingtime90º(s) 121212121212
Lock No Yes Yes No Yes Yes
Encoder No No Yes No No Yes
Service temperature (ºC) -20/+60 -20/+60 -20/+60 -20/+60 -20/+60 -20/+60
Duty cycle (operations/hour) 20 20 20 20 20 20
Exterior frame size (mm) 100 x 100 100 x 100 100 x 100 100 x 100 100 x 100 100 x 100
Weight (Kg) 13 13 13 13 13 13
Size and weight of the door See chart See chart See chart See chart See chart See chart
3,532,521,5
500
600
G247B
Using the VIVO-M203 board is recommended.
Using an electrolock for leaf lengths of over 1.8 m is recommended.
Values for illustration purposes. The shape of the leaf and the presence of strong
wind may bring notable differences in the values of the chart.

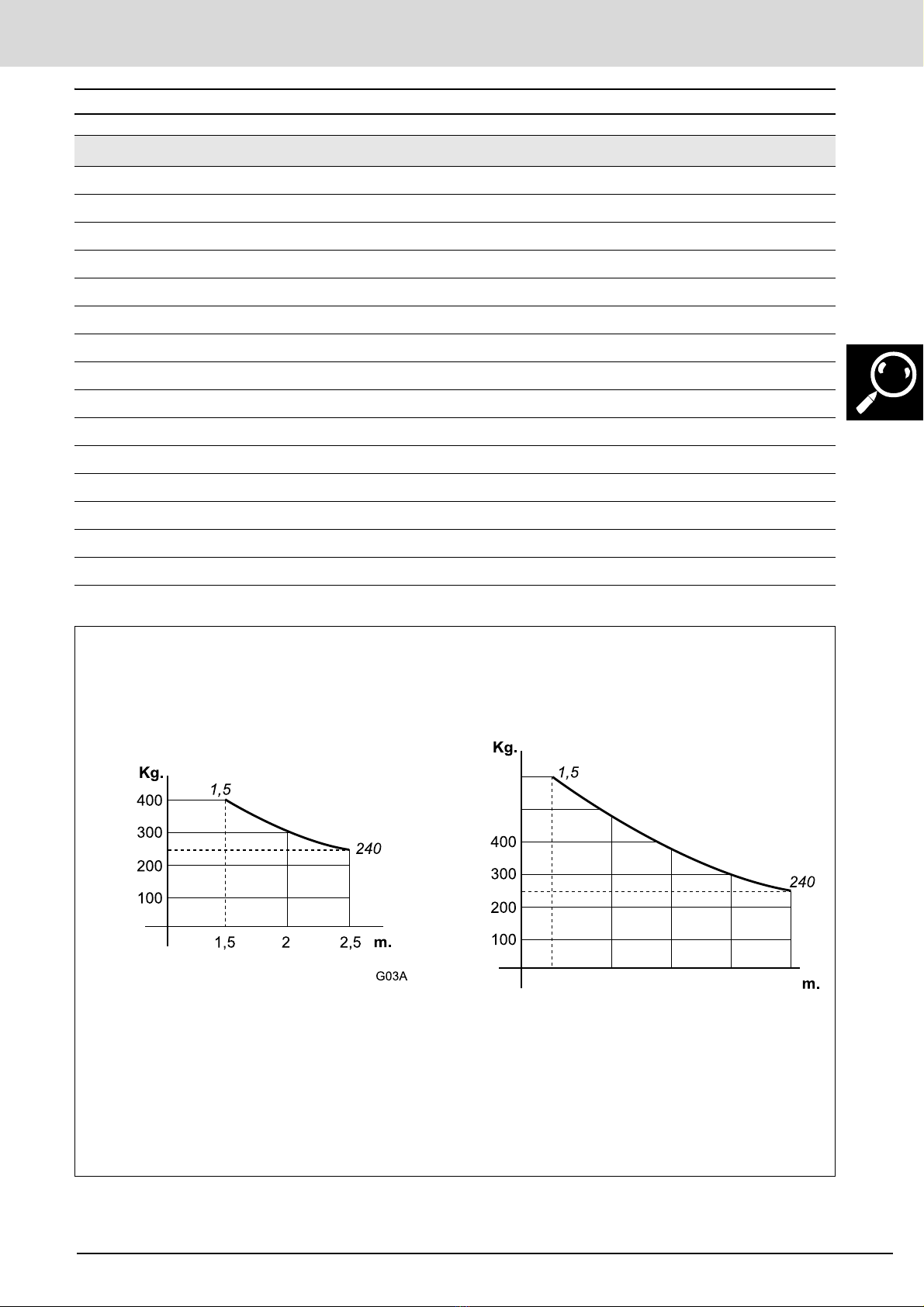

Limits on use
MA250, MA250F, MAS250FMA210, MA210F, MAS210F

DESCRIPTION OF THE PRODUCT
Descripcion_249_r03b.fm - 16/5/23
26 Installation Manual
5
MANUAL OPERATION
In the event of need, the door may be operated manually. In models MA210F, MAS210F, MA250F and MAS250F
it is necessary to first run the unlocking mechanism.
6
DECLARATION OF CONFORMITY
Erreka Automatismos declares that the MAGIC
electromechanical operator has been designed for use
in a machine or for assembly along with other elements
in order to form a machine in line with Directive 2006/
42/EC and successive modifications.
The MAGIC electromechanical operator can be used to
carry out installations in line with standards EN 13241-
1 and EN 12453, provided it is correctly and suitably
installed. The installer shall be responsible for proper
installation.
The MAGIC electromechanical operator complies with
safety legislation in line with the following directives
and standards:
•2006/95/EC (low voltage materials)
•2004/108/EC (electromagnetic compatibility)
•UNE-EN 60335-1

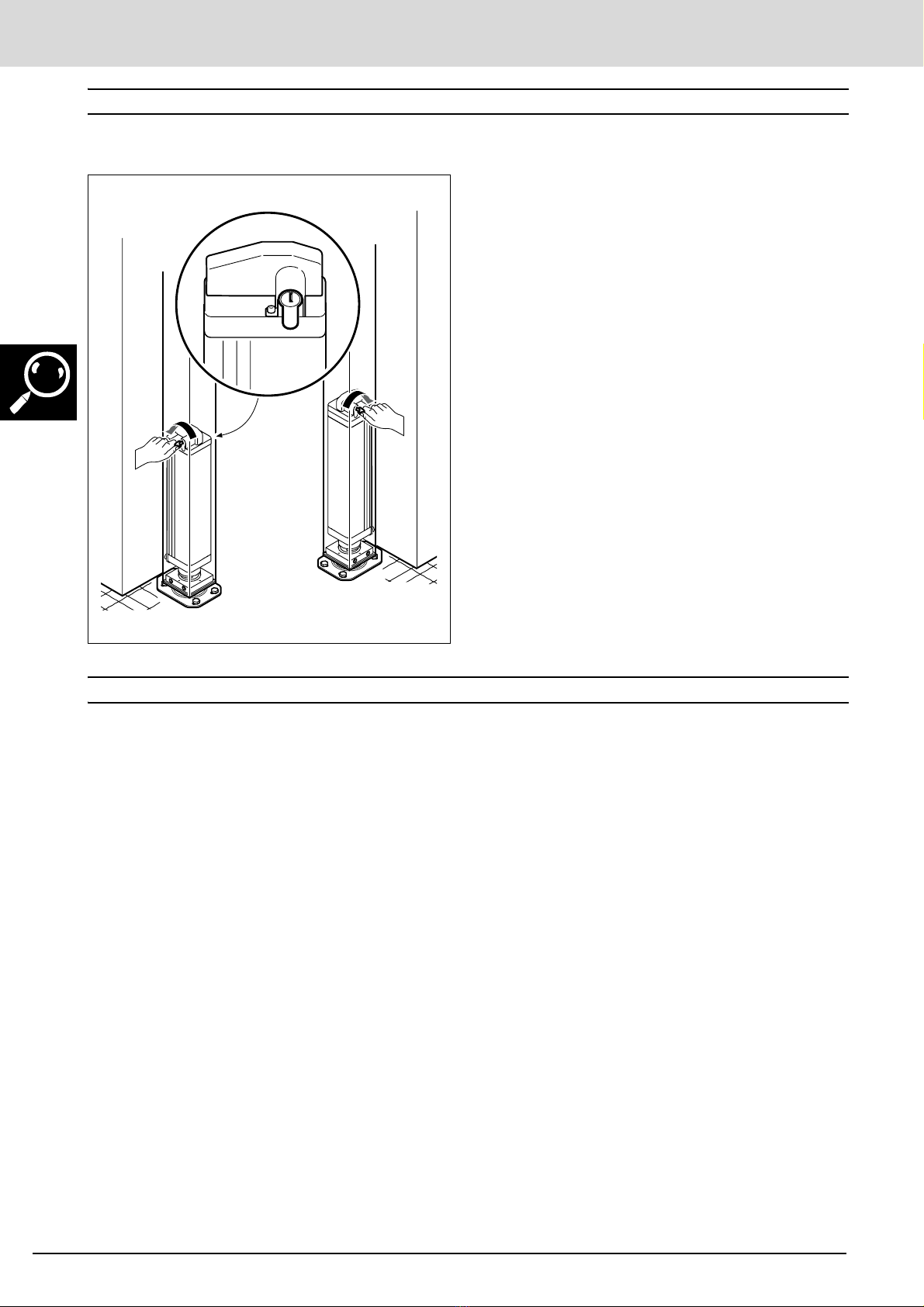

Unlocking
•Insert the key in the release lock and turn
approximately 120º towards the wall.
The key cannot be removed in unlock position.
This feature ensures the key can only be removed
with the operator locked, thus preventing it from
being accidentally unlocked.
Lock
•Locking is by turning the key again 120º anti-
clockwise to the wall.
3
A244A1

Desembalaje_249_r03b.fm - 17/5/23
English
MAGIC built-in electromechanical operator 27
UNPACKING AND CONTENTS
1
UNPACKING
1Open the package and remove the contents from
within.
}Discard the packaging in an environmentally
friendly manner, using recycling containers.
Do not leave the packaging within the reach
of children or handicapped people, as it may
cause injury.
2Check the content of the packages (see figure
below).
Should it be noticed that a piece is missing or
deteriorated, contact the nearest technical service.
2
CONTENTS
Fig. 3 MAGIC operator and metal fittings (AMA10 / AMA11)
C249A1
1Base plate with pin
2Bottom cover
3M6x16 countersunk bolts (6)
4Operator (MA210F/MAS210F/
MA250F/MAS250F)
5Adaptation plate (only models for
iron profile)
6M10x20 countersunk bolts (4)
7Top cover with sealing joint
8Top pin O-rings (2)
9Top pin
10 A6 spring washers (4)
11 M6x14 bolts (4)
12 Packing glands
13 M8 nuts (2)
14 Top bracket plate
15 Angle piece
16 A8,4 washers (2)
17 M8x20 bolts (2)
18 Water guard
19 M5x10 bolt
20 Template to make the orifices
21 Capacitor
MA210, MA210F, MAS210F: 5μF
MA250, MA250F, MAS250F: 8μF
22 Release keys
(only for MA210F/MAS210F and
MA250F/MAS250F)
23 Caps (2)
(only for MA210F/MAS210F and
MA250F/MAS250F)
The following elements are supplied in the MAGIC
operator package: operator (4), capacitor (21),
release keys (22) and installation instructions (quick
guide). The other elements which appear in the
illustration are supplied separately (adapter kits):
AMA10: MAGIC operator fittings set (for
aluminium and iron doors)
AMA11: Operator fittings set for MAGIC
INDUSTRIAL (for aluminium and iron doors)

Instalacion_249_r03b.fm - 17/5/23
28 Installation Manual
INSTALLATION
1
REQUIRED TOOLS
Set of screwdrivers
Fixed wrenches (13 mm and 17 mm)
Allen key (5mm)
Marker pencil
Spirit level
Tape measure
Electrical drill and broaches
Use the electrical drill in line with the user
instructions.
2
REQUIRED MATERIALS
Screws for attachment to the base plate and the wall
angle
Lubrication grease (graphite or lithium grease).
3
INITIAL CONDITIONS AND CHECKS
Initial conditions of the door
Check that the size of the door is within the
admissible range of the operator (see the
technical characteristics of the operator).
If the door to be automated has a pedestrian
door, use a safety device to prevent the
operator from operating with the pedestrian
door open.
The door must have a closing stopper.
The door must be easy to handle manually, namely:
•It must be balanced, in order to ensure the effort
made by the motor is minimum.
•There should be no stiffness throughout its open/
close.
Do not install the operator in a door which
does not work correctly in manual operation,
as this may lead to accidents. Repair the door
before installing.
Environmental conditions
This device is not suitable for installation in
inflammable or explosive environments.
Check that the admissible environmental
temperature range for the operator is suitable
for the location.
Electrical power supply installation
The electrical connections shall be made in line
with the instructions in the control board
manual.
The electrical wire section is indicated in: “Fig. 1
Elements of the complete installation” on page 23.

Instalacion_249_r03b.fm - 17/5/23
MAGIC built-in electromechanical operator 29
INSTALLATION
4
INSTALLING THE OPERATOR
Assembly positions and levels
Fig. 4 Assembly position for the frame and the integrated operator
130mm
=
96mm
78mm
174mm
670mm
57mm
=
85mm
110mm
M249A1 M249D1
For safety reasons:
A>25mm (B>45mm)

Instalacion_249_r03b.fm - 17/5/23
INSTALLATION
30 Installation Manual
Frame size
Template to make the orifices
A =100mm
M249C
Level A: Exterior frame size: 100mm
Level B: Interior frame size: 100 x 100 x 3
M249B1
46mm
9,5mm
1 Holes to secure the top profile cover
2 Orifices for lock
3 Motor attachment orifices
4 Holes to secure the bottom profile cover

Instalacion_249_r03b.fm - 17/5/23
MAGIC built-in electromechanical operator 31
INSTALLATION
Procedure
Position the base plate
Make the orifices for the attachment of the motor
1Mark the points (1) to drill.
Before marking the position of the holes, ensure
the assembly positions are respected (see “Fig. 4
Assembly position for the frame and the integrated
operator”).
2Drill the points marked.

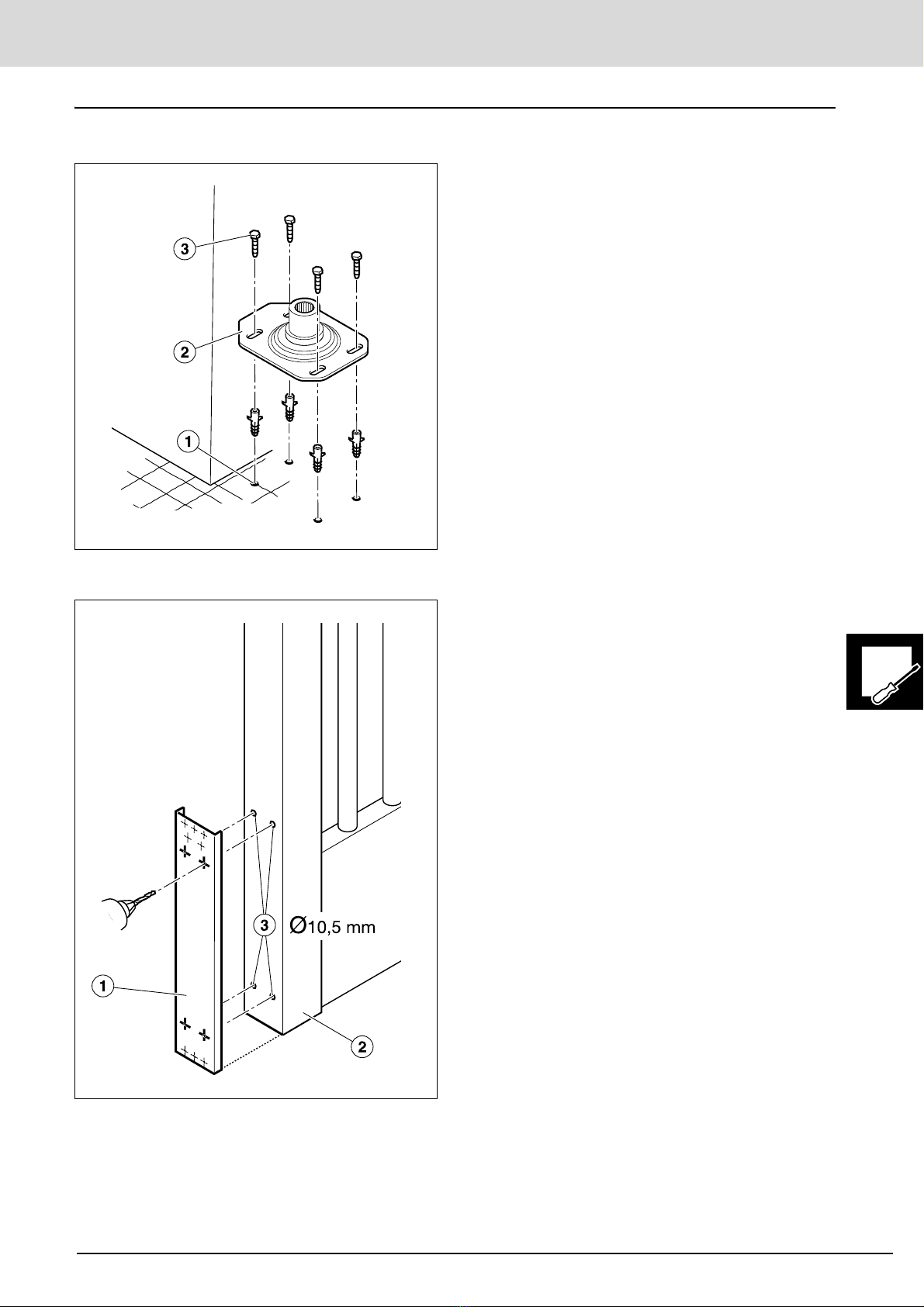

3Position the base plate (2) and secure it using
appropriate screws (3).
1Position the template (1) supplied with the operator,
ensuring the lower edge of the template coincides
with the base of the frame (2).
2Drill the four orifices (3) where the motor will be
attached.
Use 10.5 mm broach.
1
1
P05A1
P249B1

Instalacion_249_r03b.fm - 17/5/23
INSTALLATION
32 Installation Manual

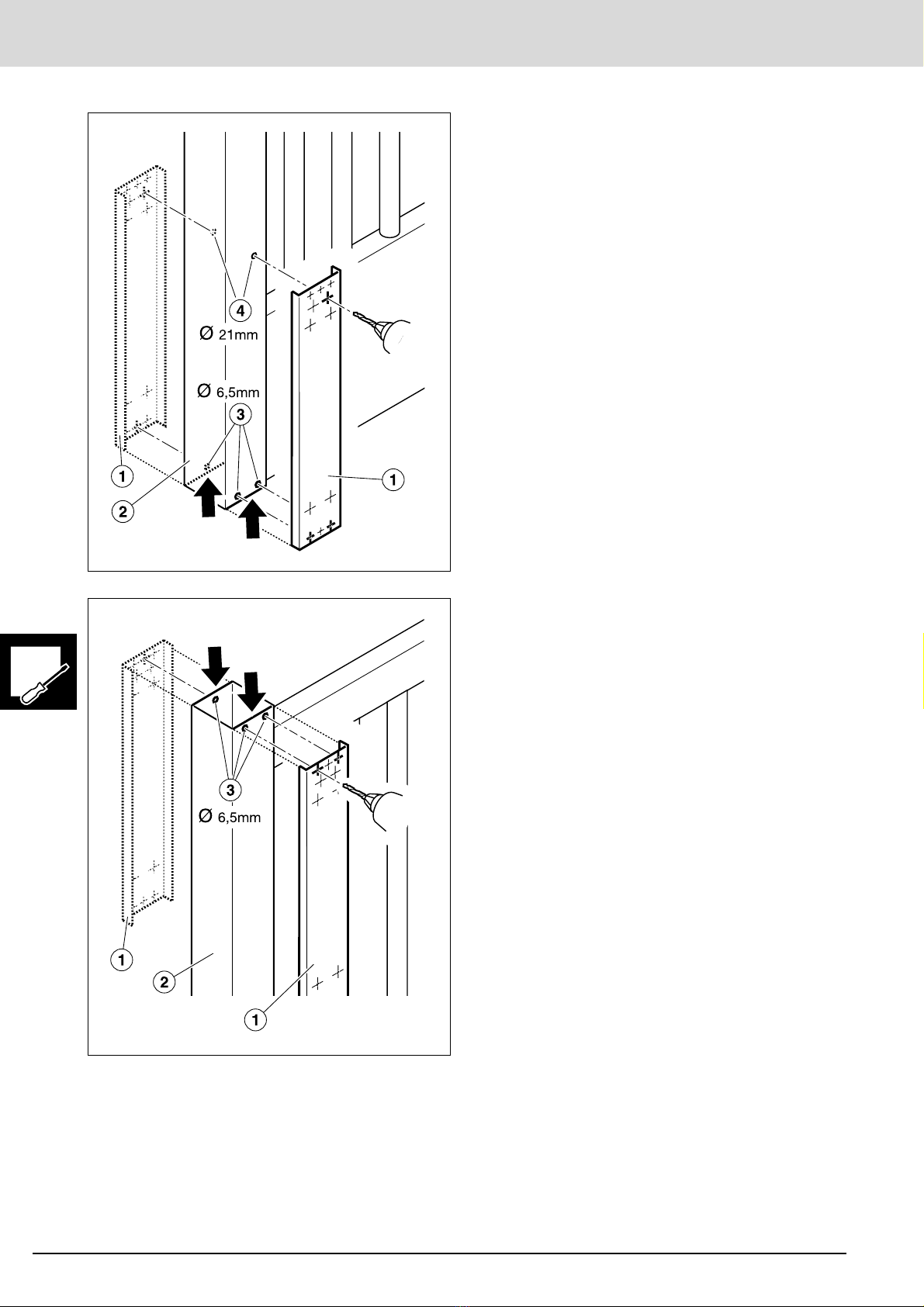

Make the orifices for the attachment of the metal fittings
1Position the template (1) supplied with the operator,
ensuring the lower edge of the template coincides
with the base of the frame (2) on the interior side of
the door.
2Drill the holes (3) where the profile's bottom cover
will be attached.
Use 6.5 mm broach.
3Make an orifice (4) of 21 mm in diameter in order to
make the cylinder key accessible (only in models
MA210F/MAS210F and MA250F/MAS250F).
4Repeat points 1, 2 and 3 on the outside of the door.
5Position the template (1) supplied with the operator,
ensuring the upper edge of the template coincides
with the top of the frame (2) on the interior side of
the door.
6Drill the holes (3) where the profile's top cover will
be attached.
Use 6.5 mm broach.
7Repeat points 5 and 6 on the outside of the door.
P249C1
P249D1

Instalacion_249_r03b.fm - 17/5/23
MAGIC built-in electromechanical operator 33
INSTALLATION
Position the operator
1Position the adaptation plate (1) (only in the case of
an iron door) in the operator (2).
2Introduce the operator (2) in the gap in the frame
(3).
3Secure the operator (1) to the frame (2) using the
bolts (3), but without tightening.
4Only models MA210F/MAS210F and MA250F/
MAS250F: position the two caps (4), one on each
side.
P249E1
P249F2
Take care to correctly position the two caps
(4) (one on each side), using the four
screws (T), to prevent the ingress of water.

Instalacion_249_r03b.fm - 17/5/23
INSTALLATION
34 Installation Manual
Position the base of the profile
Position the upper profile support
1Mount the lower cover (1) on the frame of the door.
2Tighten the screws (3) and (4).
3Position the assembly (M) on the base plate (5),
ensuring the traction wheel (2) is correctly coupled.
1With the sealing joint (T) correctly in place, secure
the top cover (1) to the frame of the door (2) using
the bolts (3).
The frame in iron doors has a rim (R). Check the
position of the rim in order to fit the top cover (1)
correctly (the groove of the bracket must match the
rim of the frame).
2Check that the two O-rings (S) are correctly in place
on the top pin (4).
3Fit the top pin (4) and secure the bracket plate (5)
using its washers and bolts.
P05G1
P249H1
1
5
4
2

Instalacion_249_r03b.fm - 17/5/23
MAGIC built-in electromechanical operator 35
INSTALLATION
Position the angle on the wall
Connect the operator to the control board (VIVO-M203, VIVO-M204)
Before making any electrical connections,
check the control board instructions manual.
Before carrying out any door movement,
ensure there is no person or object in the radius
of action of the door and the drive
mechanisms.
Ensure the earth wire of the motors is
connected to the control board earth terminal.

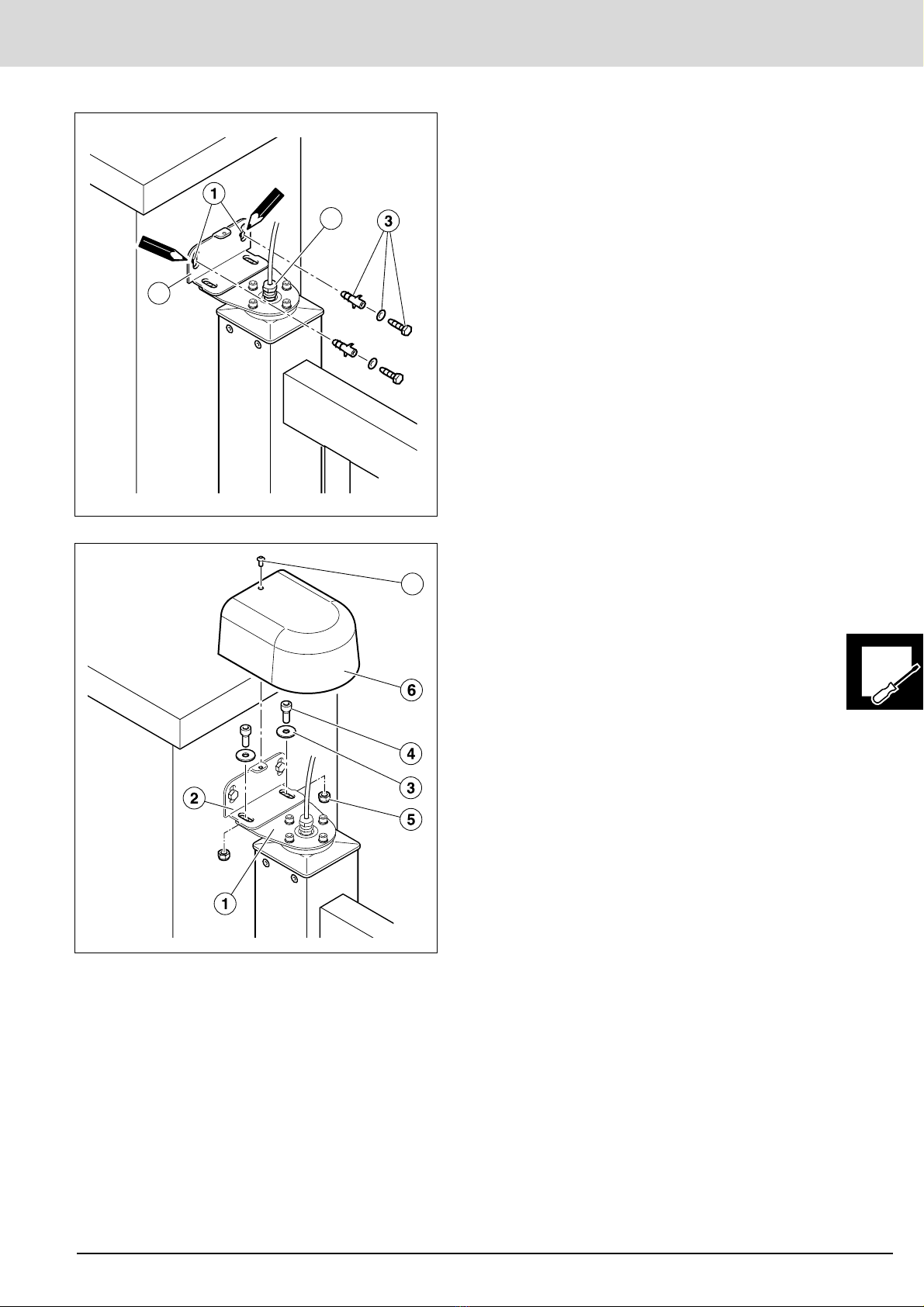

1Mark the points (1) to drill in the pillar.
Before marking the position of the holes, ensure
the assembly positions are respected (see “Fig. 4
Assembly position for the frame and the integrated
operator”).
2Drill the points marked.
3Position the angle (2) and secure it to the material
upon which the angle is attached, using appropriate
screws (3).
4Packing gland adjustment (4).
5Attach the top plate (1) to the angle piece (2) using
the washers (3), bolts (4) and nuts (5).
6Fit the water guard (6) with its bolt (7).
1
1
P05I1
4
2
P05J1
7

Instalacion_249_r03b.fm - 17/5/23
INSTALLATION
36 Installation Manual

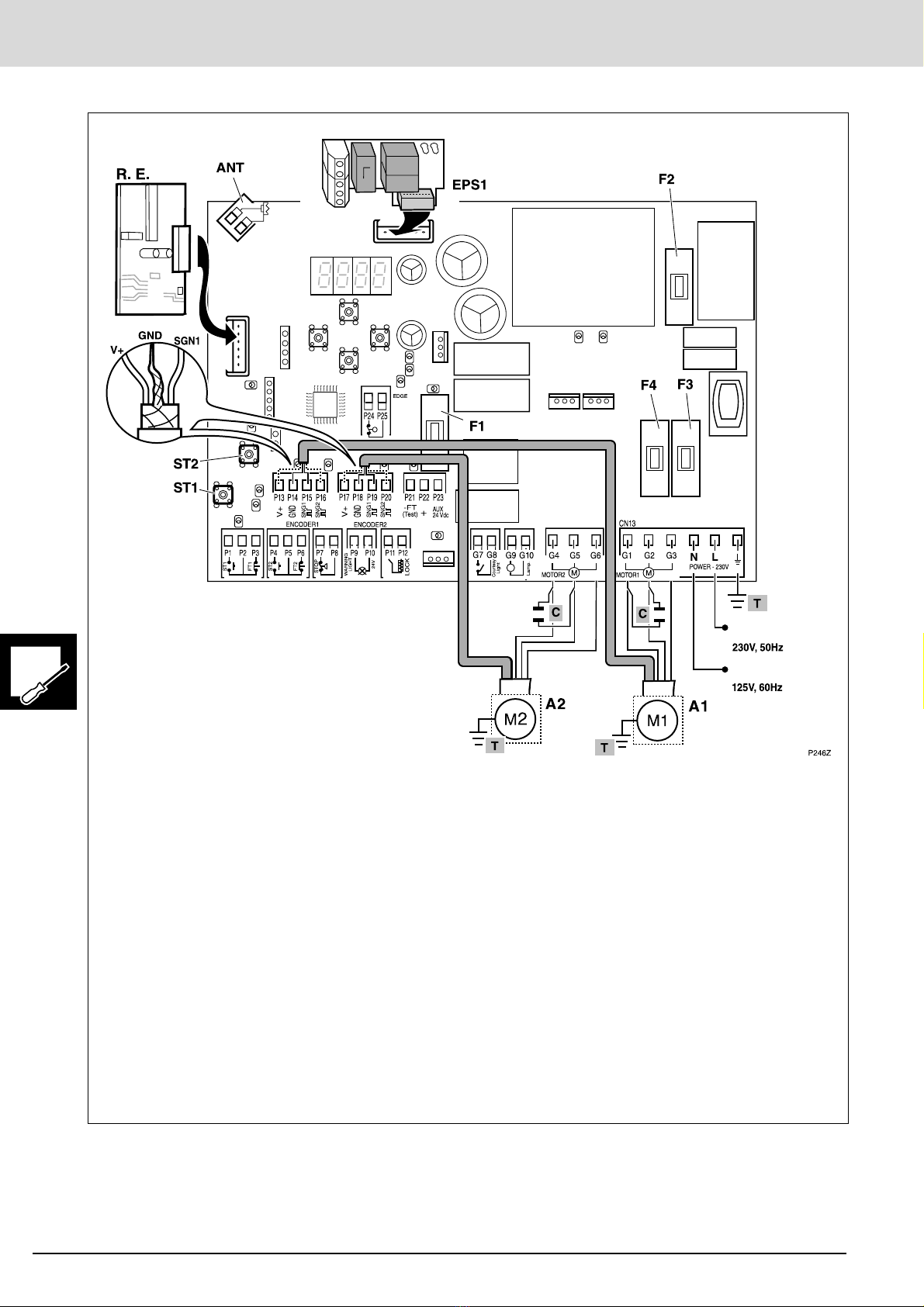

General connections, using the VIVO-M203 or VIVO-M204 board
Fig. 5 Power supply and operator connections
Encoder connection (when available)
V+: red wire
GND :mesh
SGN1:blue wire
M1 connections (A1 motor)
G1: brown wire
G2: black wire
G3: grey wire
M2 connections (A2 motor)
G4: brown wire
G5: black wire
G6: grey wire
VIVO-M203,
VIVO-M203,
VIVO-M204:
VIVO-M204:
VIVO-M203M,
VIVO-M203M,
VIVO-M204M:
VIVO-M204M:
Check the instructions for the control board to connect the other
components and complete the programming.
A1, A2: operators
C: capacitors
T: earth connection (yellow/green wire)

Instalacion_249_r03b.fm - 17/5/23
MAGIC built-in electromechanical operator 37
INSTALLATION
EPS1 card brake connection
Fig. 6 EPS1 plate brake connection
FR1 connections (A1 brake)
•If the operator DOES NOT have an encoder:
COM white wire
L1 red wire
•If the operator HAS an encoder:
COM orange wire
L1 purple wire
FR2 connections (A2 brake)
•If the operator DOES NOT have an encoder:
COM white wire
L2 red wire
•If the operator HAS an encoder:
COM orange wire
L2 purple wire
VIVO-M203:
VIVO-M204:
DL1 Red LED, FR1 activation
DL2 Green LED, FR2 activation
VIVO-M203, VIVO-M204
If the operator to be installed has a brake, the EPS1 plate must be used to connect
it to the VIVO-M203 or VIVO-M204 board, carrying out the connections
indicated below.
A1, A2: operators

Instalacion_249_r03b.fm - 17/5/23
INSTALLATION
38 Installation Manual
5
FINAL PREPARATION
Connections and checks
Programming the operations
In dual leaf facilities without brake or encoder,
the following should be taken into account when
programming the operations:
when programming closing for leaf 2, once the leaf
reaches the closing stopper wait for a time equal to
the lapse between leaves before pressing ST1 to
finish programming. This ensures that during the
closing operation, leaf 2 remains at the closing
stopper during the lapse, until leaf 1 closes
completely.
User instruction
1Instruct the user with regards to the use and
maintenance of the installation and provide him/her
with the user manual.
2Signpost the door, showing that it opens
automatically and indicating how to operate it
manually. Where appropriate, indicate that
operation is using the remote control.
1Install an electrolock to lock the door in closing
position. This is necessary for models MAS210 and
MAS250, along with the other models, if the length
of the leaf is over 1.8 m.
See the electrolock instructions.
2Carry out the installation and the connections for all
the elements of the facility, in line with the control
board instructions.
3Check that the mechanism is correctly regulated.
The torque regulator of the control board must
be adjusted in a manner which respects the
values indicated in standard EN 12453:2000, as
shown in the attached chart. The
measurements must be made in line with the
method described in standard EN 12445:2000.
4Check the operation of all the installation elements,
especially the protection systems and the manual
operation unlocking system.
Fd< 400N in spaces between 50 mm and 500 mm
Fd< 1400N in > 500 mm spaces
