EX42395AT Hardened PoE Switch
Installation Guide
1 Unpacking
Unpack the items. Your package should
include:
 One EX42395AT PoE switch
 Power input terminal block
 Wall and DIN-Rail mounting hardware
brackets
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton
and packing material.
More information available at:
https://www.etherwan.com/us
For warranty information, visit:
https://www.etherwan.com/us/support/war
ranty-policy
2 Equipment Needed
 Category 5e or better cable for RJ-45
ports
 48VDC power supply with voltage
adjustable up to 56VDC and power output
to handle 120W PoE power budget.
3 Select a Location
 DIN-rail installations: Attach the bracket
on the unit using the included screws and
then mount on a DIN-rail.
 Wall installations: Attach the brackets on
the unit using the included screws and
then mount on a wall.
 Identify a power source within 6 feet (1.8
meters).
 Choose a dry area with ambient
temperature between -40 and 75ºC (-40
and 167ºF).
 Keep away from heat sources, sunlight,
warm air exhausts, hot-air vents, and
heaters.
 Make sure there is adequate airflow.
4 Connect to the Ports
The EX42395AT has the following ports:
 4 10/100/1000 Mbps PoE ports
 1 100/1000 SFP slot shared with 1
10/100/1000 copper port (port 5)
 1 dedicated 100/1000 SFP slot
10/100/1000BASE-T Ports
Ports 1 to 4 are gigabit copper ports that are
compliant with IEEE 802.3af/at PoE protocol,
with up to 30W power output per port.
1 Gbps Combo TX/SFP Ports
Port 5 is a combo port and have two physical
interfaces. One interface is a
10/100/1000BASE-T port and the other
interface is a 100/1000BASE SFP slot. These
ports operate in “either or” fashion. Both
cannot be used simultaneously.
SFP Slot
Port 6 is a 100/1000BASE SFP slot.
5 Connect Power

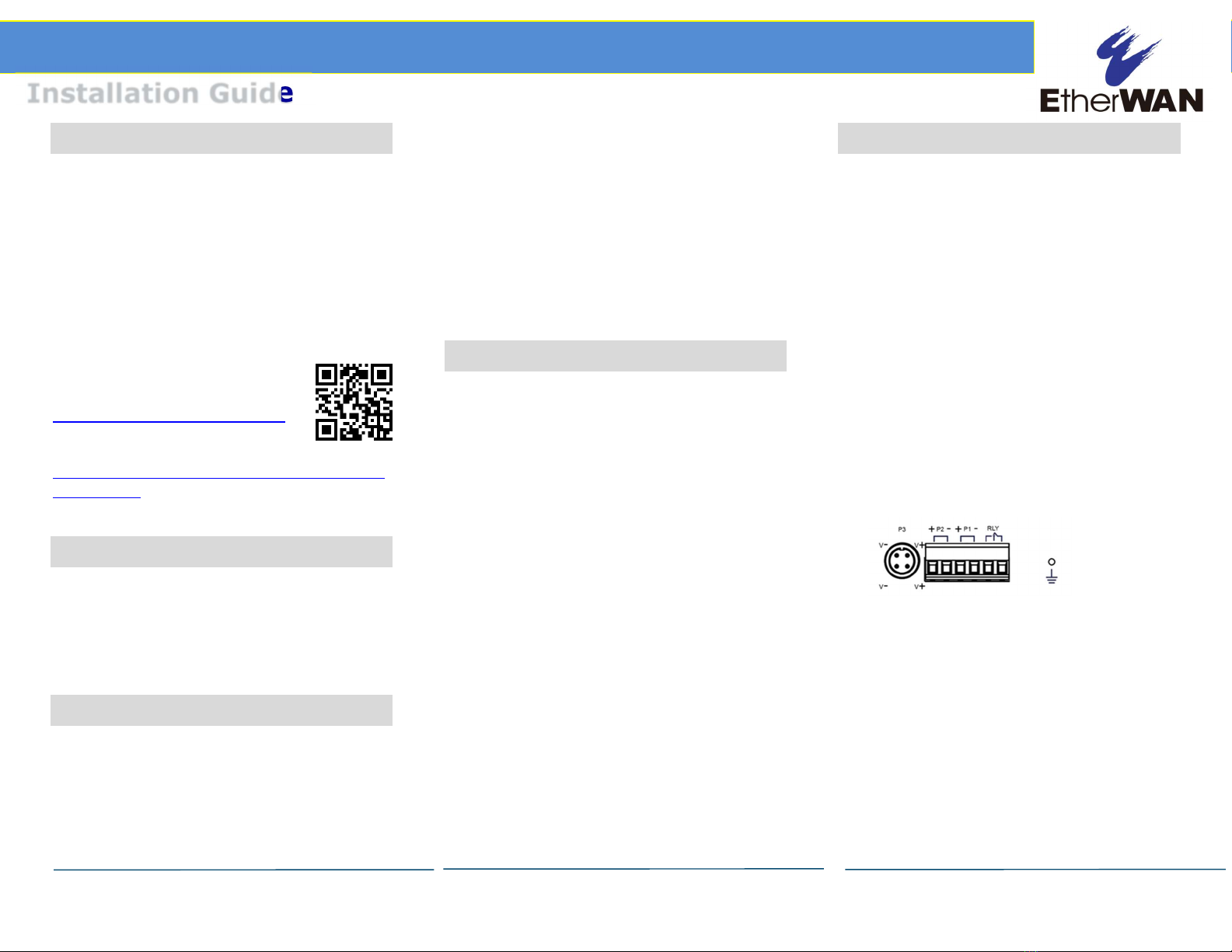

Terminal Block
Connect the unit to a suitable power supply
using appropriate wire, 18-24 AWG, rated for
105°C or higher.
Redundant power is supported. However,
only one power input is required to operate
the unit.
1. Connect power wires to the
appropriate P1+/- or P2+/- pins on
the terminal block.
2. Connect the grounding wire to the
ground screw.
3. Plug the terminal block into the
socket.
4. Alternatively, connect power 3 to an
external power adapter.
Relay Output Alarm
The switch provides relay output contacts for
redundant power. The relay output can be
connected to an alarm signaling device. The
current capacity is 1A@24VDC.
 When dual power sources are connected,
the circuit is open.
 When a single power source is connected
the circuit is closed.
 The relay works with only power 1 and
power 2. It is not connected to power 3.

Copyright 2022 EtherWAN Systems, Inc. Page 2
All Rights Reserved
EX42395AT
8/2/2022
EX42395AT Hardened PoE Switch
Installation Guide

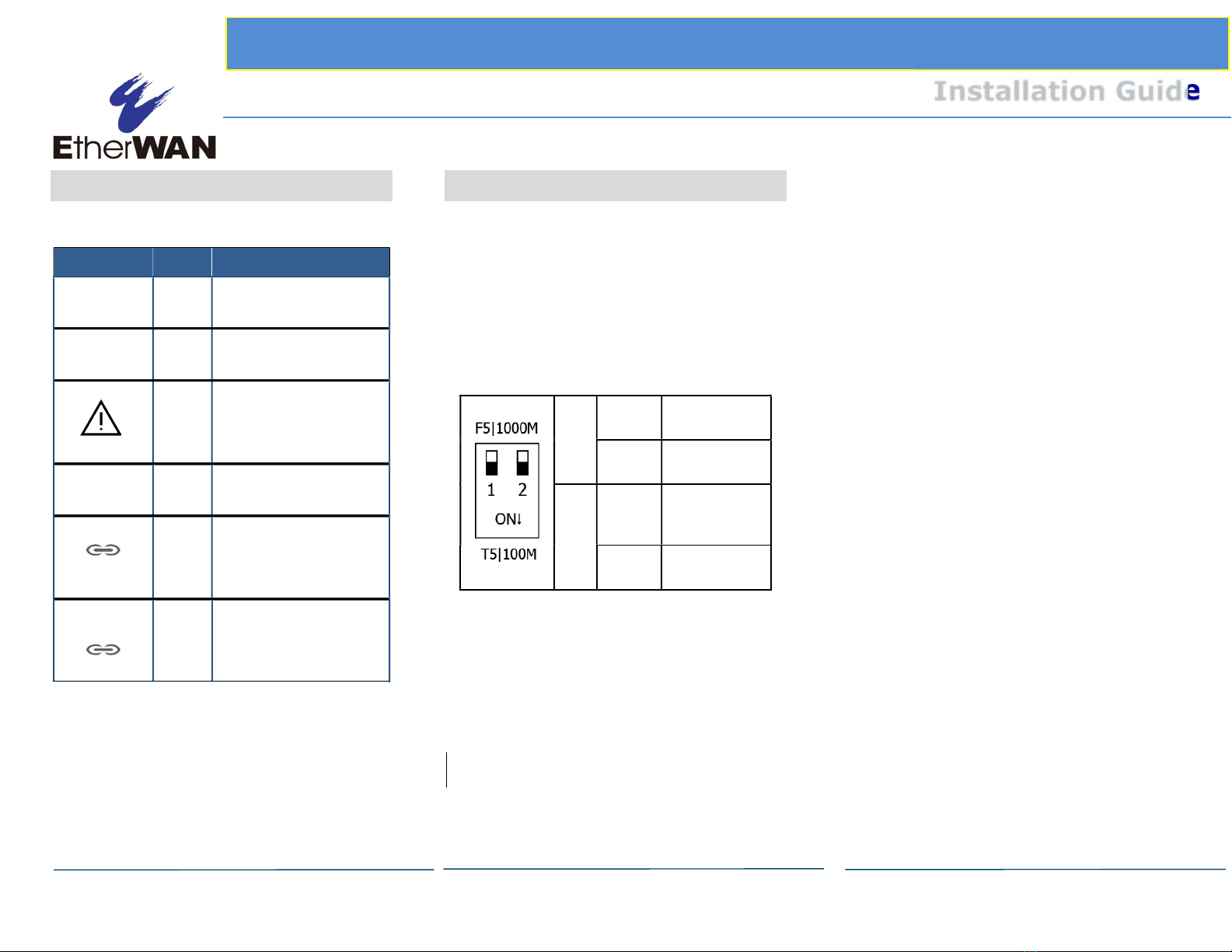

6 Front Panel LEDs
LED Panel Layout
LED Color Status
Power
1 & 2
Green ON = power detected
OFF = power not detected
Power
3
Amber ON = power detected
OFF = power not detected
Amber ON = One power source
connected
OFF = Both power sources
connected
PoE
(1-4)
Amber ON = PD is detected
Off = No PD detected
Link/ACT Green ON = Connection
established
Flashing = Port is sending
or receiving data
SFP
(F5-F6)
Green ON = Connection
established
Flashing = Port is sending
or receiving data
7 Combo Port and SFP Speed
DIP Switch Settings
The DIP switches on the EX42395AT can be
used to set which combo port will be used
(T5 or F5) and the speed of the SFP port.
Warning: Make sure power is disconnected
before adjusting the DIP switch
DIP
1
F5 Port F5 on
(default)
T5 Port T5 on
DIP
2
1000M
SFP speed
1000M
(default)
100M SFP speed
100M
