Exibel BTX80 User manual

Bluetooth högtalare ·Bluetooth-høyttaler
Bluetooth-kaiutin ·Bluetooth-Lautsprecher
Ver. 20200327
English 2
Svenska 8
Norsk 14
Suomi 21
Deutsch 26
Bluetooth Speaker
Art.no. Model
38-8874-1 BTX80

2
English
Exibel Bluetooth Speaker
Art.no 38-8874-1 Model BTX80
Please read the entire instruction manual before using the product and then save it for
future reference. We reserve the right for any errors in text or images and any neces-
sary changes made to technical data.
In the event of technical problems or other queries, please contact our Customer Ser-
vices (see address details on the back).
Safety
• Do not place the speaker in constant sunlight or near naked flames such as wood-
burning stoves or lit candles.
• Never subject the speaker to high temperatures, dusty environments, heavy
vibrations or impacts.
• Protect your hearing. Listening on high volume for prolonged periods can lead to
permanent hearing loss.
• The speaker must only be repaired by qualified service technicians.

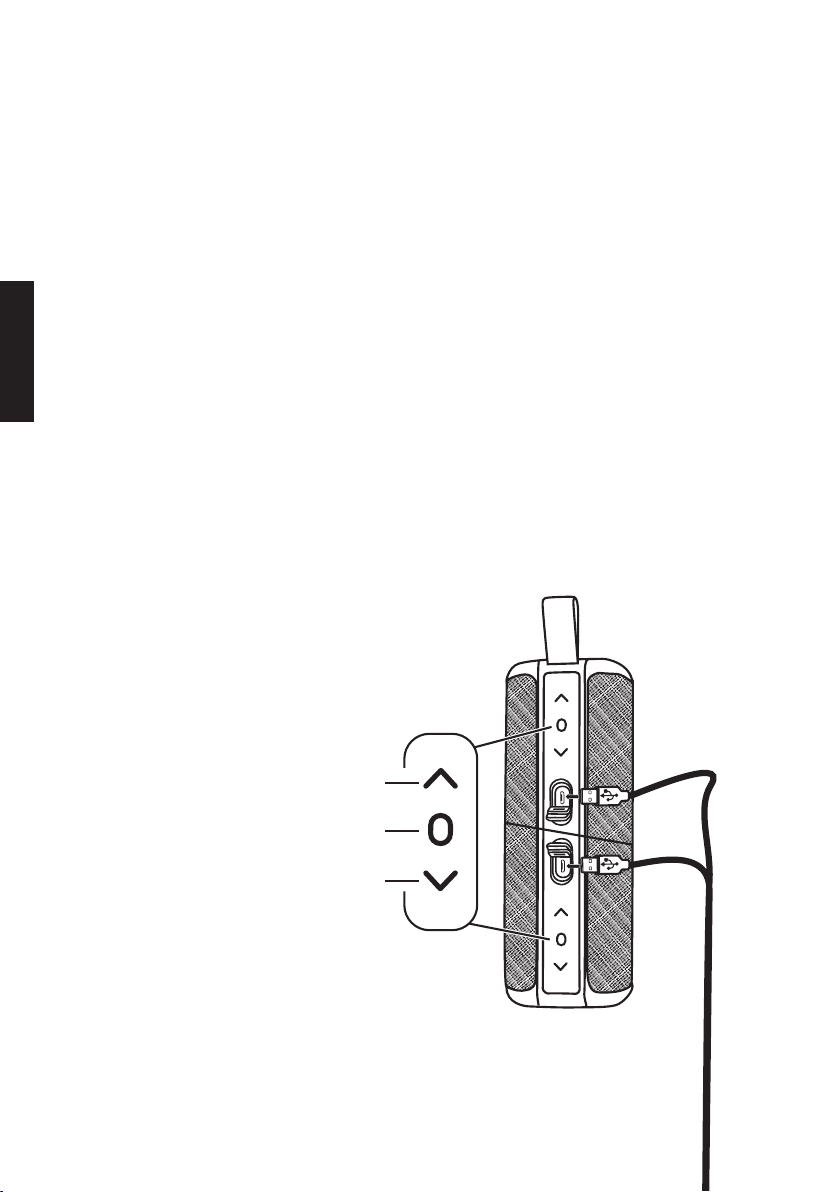

Buttons and functions
Change tracks, increase volume
On/off, play/pause, manage calls
Change tracks, decrease volume

3
English
Charging
1. Connect the included charging lead to the Micro-USB port and to a USB
charger or computer.
2. The LED indicator will shine red when charging is in progress. The LED
indicator will go out once the battery is fully charged.
Connecting the speakers in stereo mode "TWS" (True Wireless
Stereo)
1. Turn off Bluetooth on your device.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
2. Press and hold [
]for two
seconds on each speaker.
The speakers will emit a short
audible signal and the LED
indicator will flash blue.
When one of the speakers stops flashing they are pai-
red with each other and are waiting to be connected to
Bluetooth from an external device.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
When the LED indicator flashes red and the speaker emits an audible signal,
it means that the battery power is low and the battery needs to be charged.
Dividing the speaker into two
The speaker can be separated into two speakers for better stereo sound or you can
play music from two different external devices on each speaker.

4
English
3×
3. Activate Bluetooth on the device to be connected
to the speaker.
Connecting to a speaker
1. Press and hold [
]for two seconds. The speaker will emit
a short audible signal and the LED indicator will flash blue.
5. Exiting stereo mode TWS”
1. Press [
]three times in quick succession on one of the
speakers. Playback continues on one speaker while the
indicator light flashes blue on the other speaker, TWS stereo
mode has now been exited.
2. The other speaker can now be connected to another external
device.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
4. Select “BTX80” when the device appears on the
Bluetooth list. The speaker will emit an audible signal and
the LED indicator will shine a steady blue once contact
has been established.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
2. Activate Bluetooth on the device to be paired with the
speaker.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR

5
English
1×
1×
1×
1× 2s
1×
1×
1×
1×
2s
1×
1×
1×
1×
2s
Audio playback
1. Start playback on the connected device.
2. You can control playback from your device or using the buttons on the speaker:
-Press
[ ]to start and pause music playback.
-Press [ ] or [ ] to raise or lower the volume.
-Press and hold [ ] or [ ] for 2 seconds to change tracks.
3. Select “BTX80” when the device appears on the
Bluetooth list. The speaker will emit an audible signal
and the LED indicator will shine a steady blue once
contact has been established.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR

6
English
1×
1×
1×
1×
LR
LR
LR
1×
1×
1×
1×
LR
L
R
LR
1×
2×
1×
2×
• Press [
]twice to reject a call.
Call management
If you have connected a mobile phone to the speaker via Bluetooth and receive a call
whilst you are listening to music, the the music will be switched off automatically and
the call will be played through the speaker. When the call has ended, audio playback
resumes.
• Press [
]once to answer the call.
• Press [
]once again to end the call.
• Use [ ] or [ ] to adjust the volume on the call.
Light effects
1. Increase the volume on the external audio device to start the light effects.
2. Press both arrows at the same time to change between fixed blue light or light that
pulses in time with the music.

7
English
Specifications
Connections
Bluetooth
ID Shale
Output power 0.44 dBm
Frequency response 2402–2480 MHz
Range approx. 10 m
AUX 3.5 mm audio jack
USB USB flash drive. Supports: MP3, WMA, MAV, APE, FLAC
Other
Built-in battery 1800 mAh lithium, 3.7 V
Charging time approx. 2.5 hours
Playback time approx. 15 hours
IP rating IPX7
Speaker 2×7.5 W
Dimensions Ø 78.5 mm, height 206.5 mm
Weight 2×430 g
Care and maintenance
• The speaker is resistant to water and moisture so you can leave it outdoors.
• Clean the speaker using a lightly moistened cloth. Use only mild cleaning agents,
never solvents or corrosive chemicals.
Responsible disposal
This symbol indicates that the product should not be disposed of with
general household waste. This applies throughout the entire EU. In order
to prevent any harm to the environment or health hazards caused by
incorrect waste disposal, the product must be handed in for recycling
so that the material can be disposed of in a responsible manner. When
recycling your product, take it to your local collection facility or contact
the place of purchase. They will ensure that the product is disposed of in
an environmentally sound manner.

8
Svenska
Bluetooth högtalare Exibel
Art.nr 38-8874-1 Modell BTX80
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida
bruk. Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska data.
Vid tekniska problem eller andra frågor, kontakta vår kundtjänst (se adressuppgifter på
baksidan).
Höj volymen, byt spår
På/av, spela upp/pausa,
samtalsstyrning
Sänk volymen, byt spår
Säkerhet
• Placera inte högtalaren i ihållande solljus eller i närheten av öppen eld, som
vedspis/kamin eller levande ljus.
• Utsätt aldrig högtalaren för höga temperaturer, dammig miljö, starka vibrationer
eller stötar.
• Skydda din hörsel. Lyssning med hög volym under lång tid kan leda till bestående
hörselskador.
• Högtalaren får endast repareras av kvalificerad servicepersonal.
Knappar och funktioner

9
Svenska
Laddning
1. Anslut medföljande laddkabel till Micro-USB-anslutningarna
och till valfri USB-laddare eller dator.
2. LED-indikatorn lyser med fast rött sken när laddning pågår.
När batteriet är fulladdat släcks indikatorn.
Anslut högtalarna i stereoläge "TWS" (True Wireless Stereo)
1. Stäng av bluetooth på din enhet.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
2. Tryck och håll in [
]i två sekunder
på båda högtalarna. Högtalarna
ljuder och LED-indikatorn blinkar
i blått.
När LED-indikatorn blinkar rött och högtalaren avger en ljudsignal är
batterikapaciteten låg och batteriet behöver laddas.
Dela till två högtalare
Man kan dela högtalaren till två och placera ut dem för ett bredare stereoljud eller
spela upp från två olika externa enheter på varsin högtalare.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
När den ena högtalaren slutat blinka är de ihopkopp-
lade med varandra och inväntar bluetooth samman-
koppling från en extern enhet.

10
Svenska
3×
3. Aktivera bluetooth på den enhet som ska anslutas
till högtalaren.
Anslut till en högtalare
1. Tryck och håll in [
]i två sekunder. Högtalaren ljuder
och LED-indikatorn blinkar i blått.
Avsluta stereoläge "TWS"
1. Tryck [
]tre gånger snabbt efter varandra på en av
högtalarna. Uppspelningen fortsätter i en högtalare
samtidigt som indikatorn blinkar i blått på den
andra högtalaren, TWS-stereoläge är nu avslutad.
2. Den andra högtalaren kan nu anslutas till en annan
extern enhet.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
4. Välj ”BTX80” när enheten visas i Bluetooth-listan.
När kontakt upprättats ljuder högtalaren och LED-
indikatorn lyser med ett fast blått sken.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
2. Aktivera Bluetooth på den enhet som ska anslutas
till högtalaren.
Bluetooth
OFF
Bluetooth
ON
Bluetooth
Devices
BTX80
L
L
R
R
LR
