Feig Electronic ID ISC.M02.M8 User manual

INSTALLATION MANUAL
final – public (B)
2020-06-03 – M02M8-IM-e_02.doc
ID ISC.M02.M8

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 2 of 16 M02M8-IM-e_02.doc
Note
Copyright by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization is prohibited. Offenders will be held liable for the payment of damages.
All rights reserved in the event of the grant of a patent, utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.
All brand names, trademarks or logos are property of their respective owners.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 3 of 16 M02M8-IM-e_02.doc
Content
ID ISC.M02.M8 1
1Safety Instructions / Warning - Read before start-up ! 4
2Performance Characteristics of the ID ISC.M02.M8 Reader Module 5
2.1Performance Characteristics...................................................................................5
2.2Available module ......................................................................................................5
2.3Available Accessories..............................................................................................5
3Installation and wiring 6
3.1Dimensions ...............................................................................................................6
3.2Wiring.........................................................................................................................7
3.2.1Supply voltage............................................................................................................7
3.2.2RS232-LVTTL-Interface (3,3V)...................................................................................8
3.2.3Connection of the external antennas..........................................................................9
3.3Installation notes ....................................................................................................10
3.3.1Mounting...................................................................................................................10
3.3.2Influence...................................................................................................................10
3.3.3EMC effects on cables..............................................................................................11
3.3.4EMC effects from magnetic fields.............................................................................11
4Technical Data 12
51.Approvals 14
5.11.1.Europa (CE)............................................................................................................14
5.21.2.USA (FCC) and Canada (IC)..................................................................................15

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 4 of 16 M02M8-IM-e_02.doc
1 Safety Instructions / Warning - Read before start-up !
The device may only be used for the intended purpose designed by for the
manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorised changes and the use of spare parts and additional devices which have not
been sold or recommended by the manufacturer may cause fire, electric shocks or
injuries. Such unauthorised measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase
are valid for the device. The manufacturer shall not be held legally responsible for
inaccuracies, errors, or omissions in the manual or automatically set parameters for a
device or for an incorrect application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by
qualified personnel.
Use of the device and its installation must be in accordance with national legal
requirements and local electrical codes .
When working on devices the valid safety regulations must be observed.
The reader module is a limited module. The HF Reader IC has no internal shielding. The
module is designed for installation in electronic devices. (e.g. printers, terminals, hand
scanners, etc.) Care must be taken to ensure that no switching power supply, oscillator
or high current lines are routed directly along the module. Or located under the module.
Only the antennas, mentioned in the manual, may be used. The cable length to the an-
tenna is limited to 1m. Take care that the PCB design in the host environmentis is EMC
compliant.
Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you
should keep a minimum distance of 25 cm between the external antenna and your cardi-
ac pacemaker and not stay in an immediate proximity of the device respective the an-
tenna for some time.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 5 of 16 M02M8-IM-e_02.doc
2 Performance Characteristics of the ID ISC.M02.M8 Reader Module
2.1 Performance Characteristics
The ID ISC.M02.M8 reader module is designed for reading and writing passive transponders, so-
called “Smart Labels”, with an operating frequency of 13.56 MHz according to the ISO15693
standard. It is suitable for any application in which short read ranges and small reader dimensions
are required.
The module has an integrated antenna multiplexer. Up to 8 external antennas can be connected.
2.2 Available module
The following reader types are available:
Module type Description
ID ISC.M02.M8 1 x Reader module ID ISC.M02.M8
Table 1: Available module version
2.3 Available Accessories
Tab. 1 Available Accessories and spare parts
Part Number Part name Description
3674.000.00 ID ISC.ANT40/30-U.FL-A
50 Ohm Antenna with U.FL-connector for the connection
to the ID CPR60
Dimensions: 40 mm x 30 mm

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 6 of 16 M02M8-IM-e_02.doc
3 Installation and wiring
3.1 Dimensions

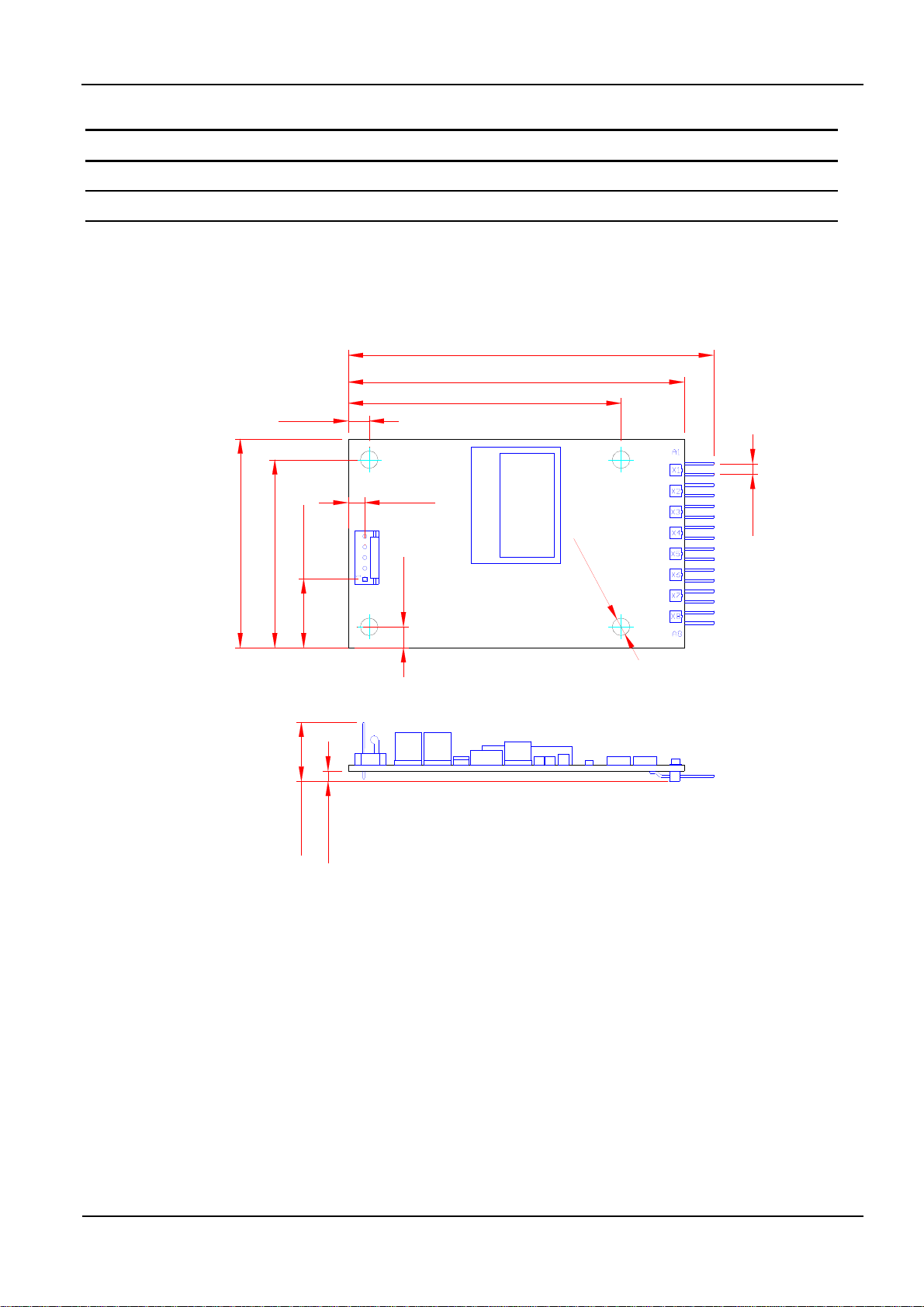

Fig. 1 shows the dimensions of the ID ISC.M02.M8 Reader Module in mm.
5±0,3 65±0,3
80±0,3
5±0,3
45±0,3
50±0,3
16,5±0,3
4±0,3
X9
Ø4,2±0,1
2,5±0,6
14,1±0,3
87±0,3
2,54
Fig. 1: Dimension of the Readermodul ID ISC.M02.M8

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 7 of 16 M02M8-IM-e_02.doc
3.2 Wiring
Figure 1 and Table 2 show the pin assignments for Terminal X9. The pin connector is designed for
flat cable connection using a 5 pin multipoint socket connector type MTA 100 company AMP.
X9
Pin-No. Function Description
1 GND ** GND
2 TxD RS232-LVTTL – Send data
3 Vin * + 24VDC
4 RxD RS232-LVTTL – Receive data
5 GND ** GND
* Use only regulated DC power supplies !
Table 2: Pin Assignment of the multipoint connector X9
Note:
A wrong polarity of the DC voltage will destroy the reader
3.2.1 Supply voltage
The reader ID ISC.M02.M8 has to supplied by a limited power supply (e.g. NEC Class 2/LPS
power supply) according IEC EN 60950, only.
If switching power supplies are used with the module, be sure that there is adequate filtering.
Noise from the power supply can result in a reduction of the read/write range of the module.
The cable length from the power supply should be as short as possible, and should in any case not
exceed 1 m.
Note:
A wrong polarity of the DC voltage will destroy the reader
Supply voltages outside the specifications may destroy the device.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 8 of 16 M02M8-IM-e_02.doc
3.2.2 RS232-LVTTL-Interface (3,3V)
The length of the cable to the RS232 LVTTL interface should be kept as short as possible, and
must in any case not exceed 1 m.
The transmission parameters for the interface can be software-configured.
Table 3 shows the standard parameters for the RS232 interface.
Parameter Default Setting
Baudrate 38400 bit/s
Number of Data bits 8
Parity Even
Number of Stop bits 1
Table 3 Default parameter of the RS232 LVTTL

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 9 of 16 M02M8-IM-e_02.doc
3.2.3 Connection of the external antennas
Up to 8 external antennas can be connected.
For the connection of the external antennas 8 antenna connectors (X1..X8 respectively A1..A8) are
available.
The connector type is U.FL-R-SMT from the company Hirose. .
Alternatively a 16pin connector can be used for the connection of the antennas.

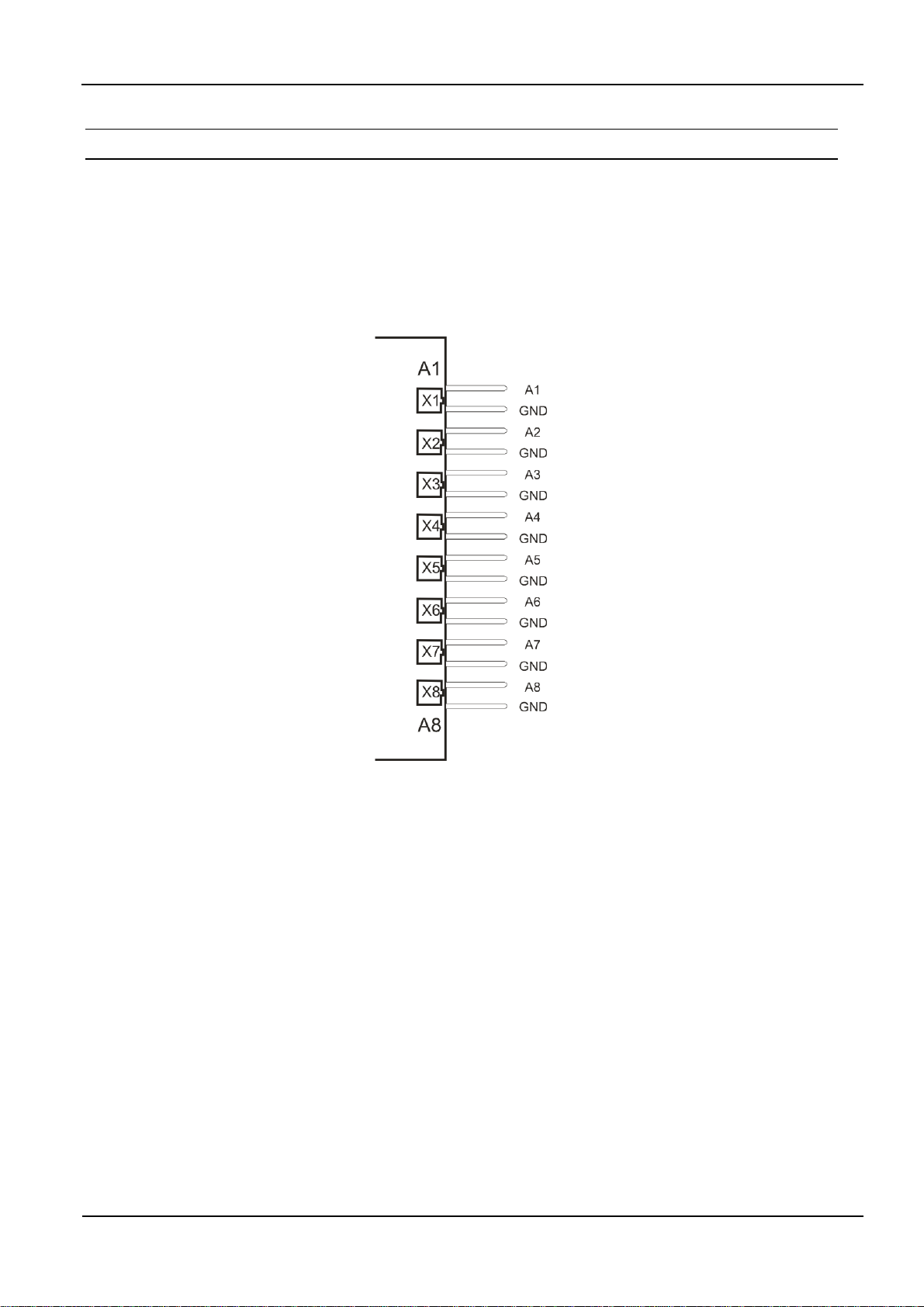

Figure 1 shows the pin assignment.
Figure 1: Antenna connector‘s
Note:
A coaxial cable, U.FL-LP-088, is used to connect the antenna. The antenna cable should
be no longer than 1 m. The use of other cable length are possible after consulting the
manufacturer.
The input impedance for the antenna must be calibrated to a value of
50
  (3   3°).
A not correct tuned antenna can destroy the reader.
The optimum working quality of the antenna should be in a range of QB = 10...20.
For measuring the working quality the antenna must be connected with a 50
 -source,
e.g. a network analyzer or a frequency generator
When connecting an antenna, ensure that it does not exceed the permissible limits pre-
scribed by the national regulations for radio frequency devices.
The ultraminiatur coax connector can be used for up to about 20 connection cycles. For
the disconnection the „Extraction Tool“ must be use according to the recommendation
from the manufacturer.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 10 of 16 M02M8-IM-e_02.doc
3.3 Installation notes
The reader module has been designed for the installation in a device.
3.3.1 Mounting
The reader module can be mounted by using 4mm (M4) screws.
Component side: the maximum head diameter should not increase more than 8mm.
Preferred no metallic screws should be used (DIN7985).
Alternatively internal hexagon screws can be used (DIN 912).
Component underside: conductive materials can have a diameter of 6mm.
Non-conductive materials can have a diameter of up to 10mm.
The mounting orientation of the reader module is arbitrary. The component side on the top is
the preferred orientation.
Check the planed mounting place first for suitability.
3.3.2 Influence
Be aware of the following possible environmental factors when installing the module into another
device :
Effects from nearby metal objects
Detuning of the integrated antenna
Impaired propagation of the antenna’s magnetic field
EMC effects on cables
Impaired communication between reader and transponder
EMC effects from magnetic fields
Impaired communication between reader and transponder

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 11 of 16 M02M8-IM-e_02.doc
3.3.3 EMC effects on cables
In spite of the internal EMC filters inside the reader, high levels of noise on the supply voltage can
result in impairment of the communication between the reader and transponder.
When installing an reader module into another device, be sure therefore that a clean, noise-free
power supply is used.
3.3.4 EMC effects from magnetic fields
Since in this type of RFID-Technology the communication between the reader and transponder
takes place by modulation of a magnetic field, alternating magnetic fields in the vicinity of the an-
tenna can have a negative impact on its function.
Sources of such magnetic interference fields include coils within a primary or secondary switching
power supply.
When determining the position of the reader and antenna within a device, check the device for any
possible sources of interference as described above. If necessary, use shielding to suppress such
interference.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 12 of 16 M02M8-IM-e_02.doc
4 Technical Data
Mechanical Data
Housing without housing
Dimensions (W x H x D) 87 x 50 x 14,1 mm (3.43 x 1.97 x 0.56 inch)
Weight 24 g
Connector 5 Pin multipin connector Type MTA 100 AMP
Electrical Data
Supply voltage 24V DC ± 10%
Current draw max. 100mA
Power consumption max. 2 Watt
Operating frequency 13,56 MHz
Transmitting power 200mW ± 1dB
Antenna connection
up to 8 external Antennas (50Ohm)
(Connection: U.FL-R-SMT or multipin)
Interface RS232 – Level LVTTL (3,3V)
Functional Properties
Protocol Modes - FEIG ISO HOST
Supported transponders ISO15693
EEPROM (for parameters) 1kB (10.000 write cycles)
FLASH 64 kB (Firmware Update via interface possible)

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 13 of 16 M02M8-IM-e_02.doc
Ambient Conditions
Temperature range
- Operation
- Storage
-20°C to +70°C (-4°F to 158°F)
-40°C to +85°C (-40°F to 185°F)
Humidity 5 – 95% non condensing
Applicable Norms
Radio approval Europa EN 300 330
USA FCC 47 CFR Part 15
Kanada IC RSS-210
EMC EN 301 489
Safety EN 60950
EN 50364
Waste and Hazardous Substances WEEE - 2002/96/EC
RoHS - 2011/65/EC

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 14 of 16 M02M8-IM-e_02.doc
5 1. Approvals
5.1 1.1. Europa (CE)
Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID CPR60 is in com-
pliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.feig.de/en/downloads-support/declarations-of-conformity.html
Performance Classification according to ETSI EN 301 489: Class 2

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 15 of 16 M02M8-IM-e_02.doc
5.2 1.2. USA (FCC) and Canada (IC)
Product name: ID ISC.M02.M8
FCC ID:
IC:
PJMM02M8
6633A-M02M8
Notice for USA
and Canada
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Unauthorized modifications may void the authority granted under Federal
communications Commission Rules permitting the operation of this device.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux condi-
tions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Warning: Changes or modification made to this equipment not expressly approved by
FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment.
Installation with FCC / IC Approval:
The reader module was tested according to the standard FCC - Title 47 CFR Part 15 §207, $209
and §225 and the ISED standard RSS 210 Issue 10 and RSS Gen Issue 5 . The module is con-
form to the listed limits in the standards.
In normal operation the RF exposure is far below the limits of OET Bulletin 65.
This module is approved for installation into fixed and/or mobile host platforms and must not be co-
located or operating in conjunction with any other antenna or transmitter except in accordance with
FCC/ISED multi-transmitter guidelines. End users must be provided with transmitter operating
conditions for satisfying RF Exposure compliance.
The manufacturer is obliged to include a notice "Contains FCC ID: PJMM02M8 an IC: 6633A-
M02M8" at the user manual and on the product label.

IDENTIFICATION Installation ID ISC.M02.M8
FEIG ELECTRONIC GmbH Page 16 of 16 M02M8-IM-e_02.doc
The manufacturer is obliged to test the terminal device together with the reader module according
to the national FCC requirements according to 47 CFR Part15 §209 and §225
For this purpose the reader module must be set to normal operation, ScanMode. The Scan mode
is switched with on by SW command: Transparent Command - ISO 14443A [ReqA] HEX: 02 00 0A
FF 00 30 02 01
The manufacturer is obliged to test the terminal device together with the reader module according
to the national FCC requirements according to 47 CFR Part15 §209 and §225 For this purpose the
reader module must be set to normal operation, ScanMode. The Scan mode is switched with on by
SW command: Transparent Command - ISO 14443A [ReqA] HEX: 02 00 0A FF 00 30 02 01
The manufacturer is obliged to test the terminal equipment without RF transmitter, according to
the national FCC requirements according to 47 CFR Part 15 Subpart B. For this purpose, the HF
transmitter of the reader module must be switched off. The HF transmitter is switched off by the
SW command: Transparent Command - HF Off HEX: 02 00 0A FF 00 04 01 00
FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Stand-
ards in Canada, the system must be professionally installed to ensure compliance with the Part 15
certification / IC certification. It is the responsibility of the operator and professional installer to en-
sure that only certified systems are deployed in the United States / Canada.
