Feig electronic Id isc.mrmu102-a User manual

INSTALLATION

final – public (B)

2016-06-07 – M21112-2e-ID-B.docx

ID ISC.MRMU102-A / ID ISC.MRMU102-POE

UHF Mid Range Reader Module

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 2 of 24 M21112-2e-ID-B.docx

Note

FEIG ELECTRONIC GmbH

Lange Strasse 4

D-35781 Weilburg

Tel.: +49 6471 3109-0

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be

changed without previous notice.

Copying of this document, and giving it to others and the use or communication of the contents thereof are

forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved

in the event of the grant of a patent or the registration of a utility model or design.

Composition of the information in this document has been done to the best of our knowledge. FEIG

ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this

manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,

despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC

GmbH does not give any guarantee promise for perfect function in cross environments and does not give

any guaranty for the functionality of the complete system which incorporates the subject of this document.

FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed

with components and testing methods for a level of reliability suitable for use in or in connection with surgical

implants or as critical components in any life support systems whose failure to perform can reasonably be

expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application

designer must take reasonably prudent steps to protect against system failures.

Use Exclusion in Transportation Market: Devices which are subject of this document may NOT be sold,

used, leased, offer for sale, or otherwise transferred, exported, and imported by anyone in the Transportation

Market. “Transportation Market” means (i) Electronic Toll and Traffic Management (ETTM), (ii) Public Sector

Vehicle Registration, Inspection and Licensing Programs, (iii) Railroad Locomotive and Wagon tracking, (iv)

airport based ground transportation management systems (GTMS) and taxi dispatch, (v) revenue based

parking, and (vi) vehicle initiated mobile payment applications, where the RFID sticker/tag is initially attached

to the vehicle but not incorporated at the point of vehicle manufacture.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-

ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does

not convey any license under its patent rights nor the rights of others.

OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 3 of 24 M21112-2e-ID-B.docx

General information's regarding this document

•The sign "" indicates extensions or changes of this manual compared with the former issue.

•If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or

for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this

may cause faulty operation of the reader.

•The following figure formats are used:

0...9: for decimal figures

0x00...0xFF: for hexadecimal figures,

b0...1 for binary figures.

•The hexadecimal value in brackets "[ ]" marks a control byte (command).

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 4 of 24 M21112-2e-ID-B.docx

Contents

1. Safety Instructions / Warning - Read before start-up ! 6

2. Performance Features of the Reader 7

2.1. Available Reader Types ....................................................................................................7

3. Assembly and Wiring 8

3.1. Viewing and Dimensions ..................................................................................................8

3.1.1. Viewing and Dimensions ID ISC.MRMU102-A.............................................................8

3.1.2. Viewing and Dimensions ID ISC.MRMU102-POE........................................................9

4. Connections 10

4.1. Connections ID ISC.MRMU102-A....................................................................................10

4.1.1. Power Supply via Connector X1.................................................................................10

4.1.2. RS232 Interface on Connector X2..............................................................................11

4.1.3. USB Interface on Connector X3.................................................................................12

4.2. Connections ID ISC.MRMU102-POE...............................................................................13

4.2.1. Power Supply.............................................................................................................13

4.2.1.1. Power Supply via Connector X1.....................................................................13

4.2.1.2. Power Supply via Power over Ethernet (PoE)................................................14

4.2.2. Ethernet-Interface on Connector X4 (10/100Tbase)...................................................15

4.3. Antenna Terminals..........................................................................................................16

4.3.1. External Antenna ANT 1 - 3 .......................................................................................16

4.3.2. Internal Antenna ANT 4..............................................................................................16

5. Control and Display Elements 17

5.1. LED...................................................................................................................................17

6. Technical Data 18

7. Radio Approvals 20

7.1. Europe (CE)......................................................................................................................20

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 5 of 24 M21112-2e-ID-B.docx

7.2. Declaration of Conformity...............................................................................................20

7.3. USA (FCC) and Canada (IC)............................................................................................21

7.3.1. USA (FCC) and Canada (IC) warning notices............................................................21

7.3.2. Label Information Reader Module..............................................................................22

7.3.3. Installation with FCC / IC Approval.............................................................................22

7.3.4. USA (FCC) and Canada (IC) approved antennas ......................................................22

ANHANG 23

ANNEX A - Accessories.........................................................................................................23

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 6 of 24 M21112-2e-ID-B.docx

1. Safety Instructions / Warning - Read before start-up !

•The device may only be used for the intended purpose designed by for the manufacturer.

•The operation manual should be conveniently kept available at all times for each user.

•Unauthorized changes and the use of spare parts and additional devices which have not been

sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such

unauthorized measures shall exclude any liability by the manufacturer.

•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid

for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,

or omissions in the manual or automatically set parameters for a device or for an incorrect

application of a device.

•Repairs may only be executed by the manufacturer.

•Installation, operation, and maintenance procedures should only be carried out by qualified

personnel.

•Use of the device and its installation must be in accordance with national legal requirements

and local electrical codes .

•When working on devices the valid safety regulations must be observed.

•Special advice for carriers of cardiac pacemakers:

Although this device doesn't exceed the valid limits for electromagnetic fields you should keep

a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in

an immediate proximity of the device respective the antenna for some time.

OBID

i-scan

UHF

Installation

ID ISC.MRMU102

FEIG ELECTRONIC GmbH Page 7 of 24 M21112-2e-ID-B.docx

2. Performance Features of the Reader

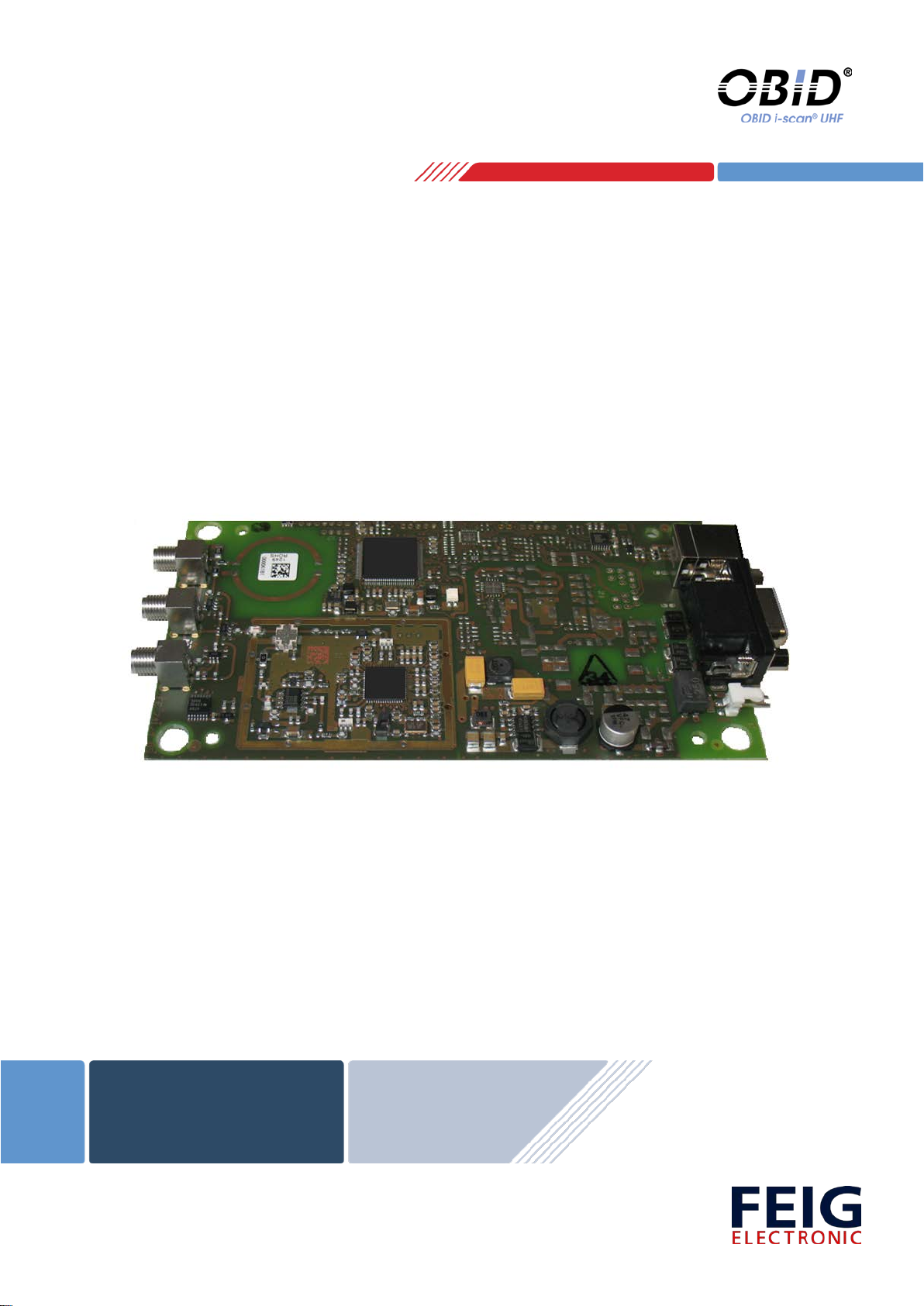

The reader modules ID ISC.MRMU102-A and ID ISC.MRMU102-POE are designed for reading of

passive data carriers, so-called „Smart Labels“ at an operating frequency in the UHF band be-

tween 860 MHz and 960 MHz. Transponders according to EPC Class1 Gen2 are supported. Op-

tional an Upgrade Code for the reading of ISO 18000-6-C transponders is available.

For Host communication ID ISC.MRMU102-A provides an asynchronous RS232 interface and an

USB interface. ID ISC.MRMU102-POE is equipped with an Ethernet interface.

The reader module are equipped with 3 SMA connectors for conduction of external antennas

(ANT1 – ANT3). Additional an integrated antenna (ANT4) is available. The reader is designed for

use in applications with small tag populations. Depending on the type of external antenna and the

used transponder read ranges of up to 4 m are possible. The integrated antenna is able to com-

municate with nearfield as well as farfield transponders. Read ranges of up to 40 cm in combina-

tion with a farfield transponder can be realized. Nearfield transponders can be read up to 5 cm.

2.1. Available Reader Types

The following reader types are available:

Table 1: Available Reader Types

Model Description Order Number

ID ISC.MRMU102-A Module version with asynchronous RS232- and USB- Interface,
